proute_stripes

proute_stripes
-layers {s_layerName…}
-nets {s_netName…}
-net_width f_userunit
[ -set d_setObj | -instances {s_instName…} ]
[ -blockage {f_xlo f_ylo f_xhi f_yhi} ]
[ -direction {horizontal|vertical} ]
[ -max_length f_userunit ]
[ -max_width f_userunit ]
[ -min_length f_userunit ]
[ -min_length_to_rings f_userunit ]
[ -net_clearance f_userunit ]
[ -pin_clearance f_userunit ]
[ -observe_rectilinear_prBoundary [ true | false ] ]
[ -ignore_same_net_shape [ true | false ] ]
[ -routing_area
  {{f_xlo f_ylo f_xhi f_yhi} | {f_x1 f_y1 f_x2 f_y2 f_x3 f_y3 … f_xn f_yn}}
  [ -snap_to_core_ring [ true | false ] ]
 | -use_design_boundary [ true | false ]
 | -use_regions_on_scratch_layer i_scratchID ] ]
[ -x_step f_userunit | -y_step f_userunit ]
[ -bottom_offset f_userunit | -y_offset f_userunit ]
[ -left_offset f_userunit | -x_offset f_userunit ]
[ -all_term_types {core_ring | block_ring | stripes | cell_row_straps
 | unknown} ]
[ -centerline [ true | false ] ]
[ -full_overlap [ true | false ] ]
[ -ignore_obstacles [ true | false ] | -ignore_purposes {s_purposeName…}]
[ -interior_stripes [ true | false ] ]
[ -interior_stripes_of_class1 [ true | false ] ]
[ -interior_stripes_of_class2 [ true | false ] ]
[ -interior_stripes_of_class3 [ true | false ] ]
[ -interior_stripes_of_class4 [ true | false ] ]
[ -interior_stripes_of_class5 [ true | false ] ]
[ -jog_stripes [ true | false ]
 [ -max_wrong_way_jog_of_class1 f_userunit ]
 [ -max_wrong_way_jog_of_class2 f_userunit ]
 [ -max_wrong_way_jog_of_class3 f_userunit ]
 [ -max_wrong_way_jog_of_class4 f_userunit ]
 [ -max_wrong_way_jog_of_class5 f_userunit ]
 [ -max_wrong_way_jog f_length ] ]
 [ -max_wrong_way_ring_jog f_length ]
 [ -max_full_overlap_jog f_length ] ]
[ -section_length f_userunit -section_step f_stepLength ]
[ -power_only [ true | false ] ]
[ -undoable [ true | false ] ]
[ -stop_at_boundary_of_class {s_className…}
  [ -boundary_clearance {f_clearanceValue
    | {f_leftValue f_bottomValue f_rightValue f_topValue}} ] ]
[ -stop_at_boundary_of_class1 {s_className…}
  [ -boundary_clearance1 {f_clearanceValue
    | {f_leftValue f_bottomValue f_rightValue f_topValue}} ] ]
[ -stop_at_boundary_of_class2 {s_className…}
  [ -boundary_clearance2 {f_clearanceValue
    | {f_leftValue f_bottomValue f_rightValue f_topValue}} ] ]
[ -stop_at_boundary_of_class3 {s_className…}
  [ -boundary_clearance3 {f_clearanceValue
    | {f_leftValue f_bottomValue f_rightValue f_topValue}} ] ]
[ -stop_at_boundary_of_class4 {s_className…}
  [ -boundary_clearance4 {f_clearanceValue
    | {f_leftValue f_bottomValue f_rightValue f_topValue}} ] ]
[ -stop_at_boundary_of_class5 {s_className…}
  [ -boundary_clearance5 {f_clearanceValue
    | {f_leftValue f_bottomValue f_rightValue f_topValue}} ] ]
[ -ignore_blockage_of_class {s_className…}]
[ -core_ring_layers {s_layerName …} | all]
[ -stop_at_rings [ true | false ] [ -ring_layers {s_layerName…} ]
 [ -incomplete_rings [ true | false ] ]
 | -class_applies_to_top_level_rings [ true | false ] ]
[ -class1 {s_className …} ]
[ -class2 {s_className …} ]
[ -class3 {s_className …} ]
[ -class4 {s_className …} ]
[ -class5 {s_className …} ]
[ -stop_at_rings_of_class1 {s_className…} [ -ring_layers1 {s_layerName…} ]
 [ -incomplete_rings1 [ true | false ] ]
 [ -ring_pin_prop_name1 s_propName -ring_pin_prop_value1 s_propValue ] ]
[ -stop_at_rings_of_class2 {s_className…} [ -ring_layers2 {s_layerName…} ]
 [ -incomplete_rings2 [ true | false ] ]
 [ -ring_pin_prop_name2 s_propName -ring_pin_prop_value2 s_propValue ] ]
[ -stop_at_rings_of_class3 {s_className…} [ -ring_layers3 {s_layerName…} ]
 [ -incomplete_rings3 [ true | false ] ]
 [ -ring_pin_prop_name3 s_propName -ring_pin_prop_value3 s_propValue ] ]
[ -stop_at_rings_of_class4 {s_className…} [ -ring_layers4 {s_layerName…} ]
 [ -incomplete_rings4 [ true | false ] ]
 [ -ring_pin_prop_name4 s_propName -ring_pin_prop_value4 s_propValue ] ]
[ -stop_at_rings_of_class5 {s_className…} [ -ring_layers5 {s_layerName…} ]
 [ -incomplete_rings5 [ true | false ] ]
 [ -ring_pin_prop_name5 s_propName -ring_pin_prop_value5 s_propValue ] ]
[ -silent [ true | false ] ]
[ -use_cellname_as_class [ true | false ] ]
[ -ring_extension_upper_layer f_userunit ]
[ -ring_extension_lower_layer f_userunit ]
[ -use_wsp [ true | false ] ]
[ -wsp_pullback_left f_userunit]
[ -wsp_pullback_right f_userunit]
[ -wsp_pullback_top f_userunit]
[ -wsp_pullback_bottom f_userunit]
[ -ignore_boundary_tracks [ true | false ] ]

Description

Adds net stripes at regular intervals. If more than one net is specified, the stripes are added in groups, in the order given, and repeated according to the stepsize.

Two methods are provided for placement of the stripes:

Absolute Offset from Origin

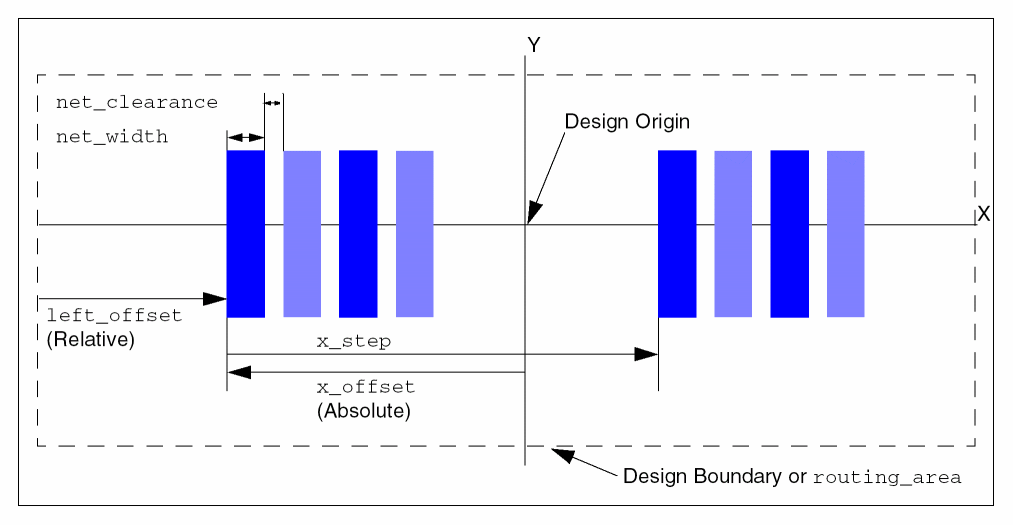

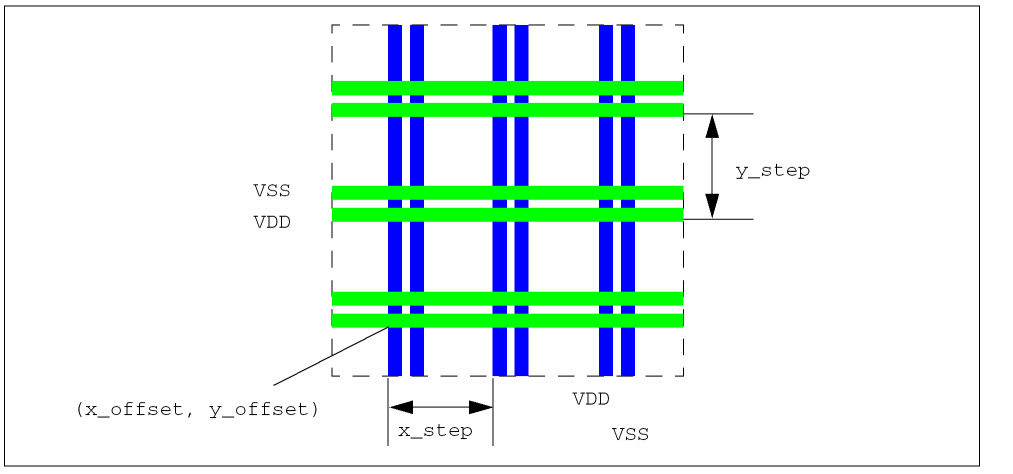

- For horizontal stripes, use -y_offset to indicate the y-axis distance from the origin to the lower edge of the first stripe.
- For vertical stripes, use -x_offset to indicate the x-axis distance from the origin to the left edge of the first stripe.
Relative Offset from Boundary
- For horizontal stripes, use -bottom_offset to indicate the y-axis distance from the bottom boundary (either the design’s bottom edge or f_ylo if -routing_area is given) to the lower edge of the first stripe.
- For vertical stripes, use -left_offset to indicate the x-axis distance from the left boundary (either the design’s left edge or f_xlo if -routing_area is given) to the left edge of the first stripe.

The power router will not route on blockages. In addition, you can prevent routing on all layers of a given area, using the -blockage argument.

Class options let you control stripe truncation at block rings inside cell hierarchy. You can specify up to five macro cell classes and a corresponding list of ring layers for which the truncation applies. If a macro cell has a ctuPowerRouteClass property, then the value of that property can be listed in the *of_class* options.

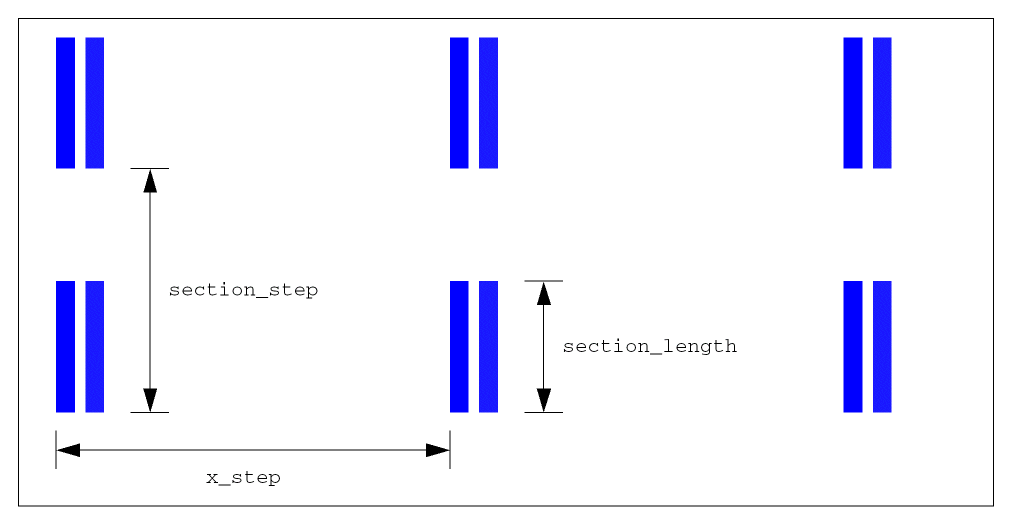

Two mutually required arguments, -section_length and -section_step, let you create tandem stripe sections in a regular pattern.

To add interlayer connections, use proute_via_insertion.

Arguments

`-all_term_types {core_ring \| block_ring \| stripes \| cell_row_straps \| unknown}`
	Treats the given classes of macro block terminals on specified ring layers as this power type.
`-blockage` {f_xlo f_ylo f_xhi f_yhi}
	Prevents routing of stripes in this region. This allows you to create a hole in the stripes.
`-bottom_offset` f_userunit

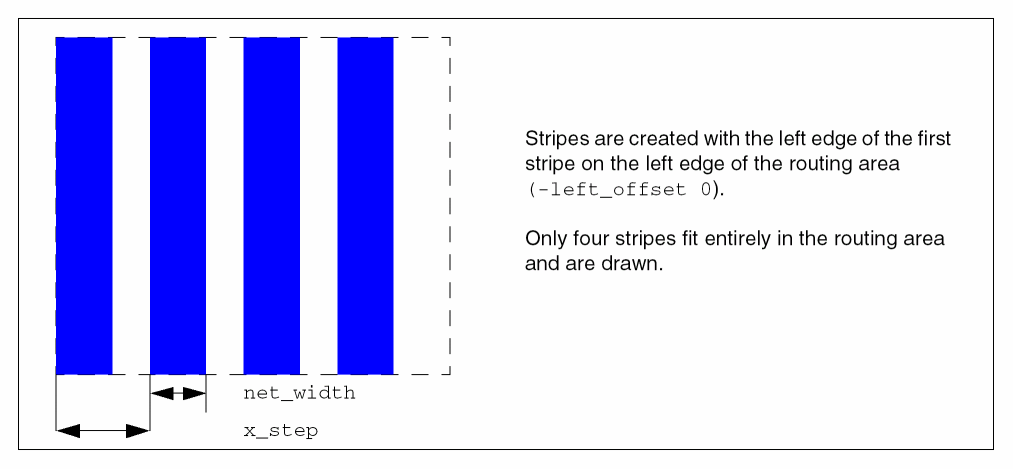

	Specifies the y location of the first horizontal stripe relative to the bottom bounds (entire design or given by `routing_area`).
`-boundary_clearance {`f_clearanceValue \| {f_leftValue f_bottomValue f_rightValue f_topValue}}
	Specifies the clearance for blocks of the class given by `stop_at_boundary_of_class`. For an explanation of the argument value, refer to Specifying Block Boundary Clearances.
`-boundary_clearance1 {`f_clearanceValue \| {f_leftValue f_bottomValue f_rightValue f_topValue}} `-boundary_clearance2 {`f_clearanceValue \| {f_leftValue f_bottomValue f_rightValue f_topValue}} `-boundary_clearance3 {`f_clearanceValue \| {f_leftValue f_bottomValue f_rightValue f_topValue}} `-boundary_clearance4 {`f_clearanceValue \| {f_leftValue f_bottomValue f_rightValue f_topValue}} `-boundary_clearance5 {`f_clearanceValue \| {f_leftValue f_bottomValue f_rightValue f_topValue}}
	Specifies the clearance for blocks of the class given by the `stop_at_boundary_of_class`x argument`.`For an explanation of the argument value, refer to Specifying Block Boundary Clearances.
`-centerline [ true \| false ]`
	If `true`, measures offsets to the first stripe centerline. If `false`, measures offsets to the left edge for vertical stripes or to the bottom edge for horizontal stripes. Default is `false`.
`-class_applies_to_top_level_rings [ true \| false ]`
	Stops strap extensions at top-level block rings around blocks whose class is specified in the “of class” arguments. Default: `false`
`-class1` {s_className…} `-class2` {s_className…} `-class3` {s_className…} `-class4` {s_className…} `-class5` {s_className…}
	Specifies a list of classes of macro blocks that belong to classx for “of_classx” arguments.
`-core_ring_layers {`{s_layerName…} `\| all}`
	By default, stripes are terminated at core rings using all core ring layers to determine the bounds. If `-core_ring_layers` is set, it specifies the core ring layers to use for determining core ring bounds. If this argument is not set and `-ring_layers` is set, then `ring_layers` applies.
`-direction horizontal\|vertical`
	Specifies the routing direction for the stripes. By default, the preferred routing direction for the given layer is used.
`-full_overlap [ true \| false ]`
	When `true`, stripes must fully overlap same net shapes. If a straight stripe does not fully overlap an existing same net shape and `-jog_stripes` is specified, the stripe can be jogged to achieve full overlap; otherwise, the stripe is not added. Default: `false`
`-ignore_blockage_of_class` {s_className…}
	Ignores the blockages in macro blocks that belong to a class in this list.
`-ignore_boundary_tracks [ true \| false ]`
	Restricts from creating the tracks on the boundary of a region. Default: `false`
`-ignore_obstacles [ true \| false ]`
	When `true`, ignores all obstacles and creates power segments without regard to rule violations. This is useful to get a quick preliminary power layout or when it is known that there are no obstacles, such as on an empty layer. Default: `false`
`-ignore_purposes` {s_purposeName…}
	Similar to `-ignore_obstacles`, ignores objects on the given purposes. By default, no purposes are ignored.
`-ignore_same_net_shape [ true \| false ]`
	When `true`, ignores pre-existing same net shapes. Default: `true`
`-incomplete_rings [ true \| false ]`
	When `true`, top-level block rings are assumed to be incomplete (depopulated). This causes an alternate algorithm to be used for adding the stripes, that is specific to this condition. If there are incomplete ring segments on concave U-turns surrounding a block, stripes cannot be placed in the U-turn area. Default: `false`
`-incomplete_rings1 [ true \| false ] -incomplete_rings2 [ true \| false ] -incomplete_rings3 [ true \| false ] -incomplete_rings4 [ true \| false ] -incomplete_rings5 [ true \| false ]`
	When `true`, internal block rings of class x are assumed to be incomplete (depopulated). This causes an alternate algorithm to be used for adding the stripes, that is specific to this condition. Default: `false`
`-interior_stripes [ true \| false ]`
	When `true`, allows stripes to be created within the interior of macros. Default: `true`
`-interior_stripes_of_class1 [ true \| false ] -interior_stripes_of_class2 [ true \| false ] -interior_stripes_of_class3 [ true \| false ] -interior_stripes_of_class4 [ true \| false ] -interior_stripes_of_class5 [ true \| false ]`
	When `true`, allows stripes to be created within the interior of macros of class x. Default: `true`
`-max_length` f_userunit
	Specifies the maximum allowed stripe length.
`-max_width` f_userunit
	Specifies the maximum stripe width (overrides the `maxWidth` rule).
`-max_wrong_way_jog` f_length
	Specifies the maximum distance to jog in the wrong-way direction. Default is equal to the `net_width` value.
`-max_wrong_way_jog_of_class1` f_userunit `-max_wrong_way_jog_of_class2` f_userunit `-max_wrong_way_jog_of_class3` f_userunit `-max_wrong_way_jog_of_class4` f_userunit `-max_wrong_way_jog_of_class5` f_userunit
	(Applies only when `-jog_straps true`) Specifies the maximum amount of jogging that is permitted in the wrong-way direction around obstacles associated with macro blocks of classx. Default: `net_width`
`-max_wrong_way_ring_jog` f_length
	Specifies the maximum distance to jog in the wrong-way direction when stopping at rings. Default is equal to the `net_width` value.
`-min_length` f_userunit
	Specifies the minimum allowed stripe length. Default: `minWidth`
`-min_length_to_rings` f_userunit
	Specifies the minimum length for stripes that stop at rings. Default: `min_length`
`-net_clearance` f_userunit
	Specifies the spacing required between the power net stripes.
`-net_width` f_userunit
	Specifies the total width for a stripe of each net routed. By default, each net stripe is one wire that is `minWidth` wide. If you specify a net width value that is greater than the `maxWidth` of a given layer, each net stripe on that layer will be composed of multiple wires such that the following are true: The wires of a stripe are equal in width. The width of the added wire is greater than or equal to `minWidth` of the layer and less than or equal to the `maxWidth` of the layer. The sum of the wire widths for each net in a stripe set is equal to the given net width. Some roundoff error can cause the total width to be slightly greater than specified net width.
`-nets` {s_netName…}	Specifies the nets to route. One or more nets can be given. When more than one net is given, the list order of the nets determines the placement of the stripes, with the first net on the leftmost stripe for vertical stripes, or on the bottommost stripe for horizontal stripes.
`-observe_rectilinear_prBoundary`

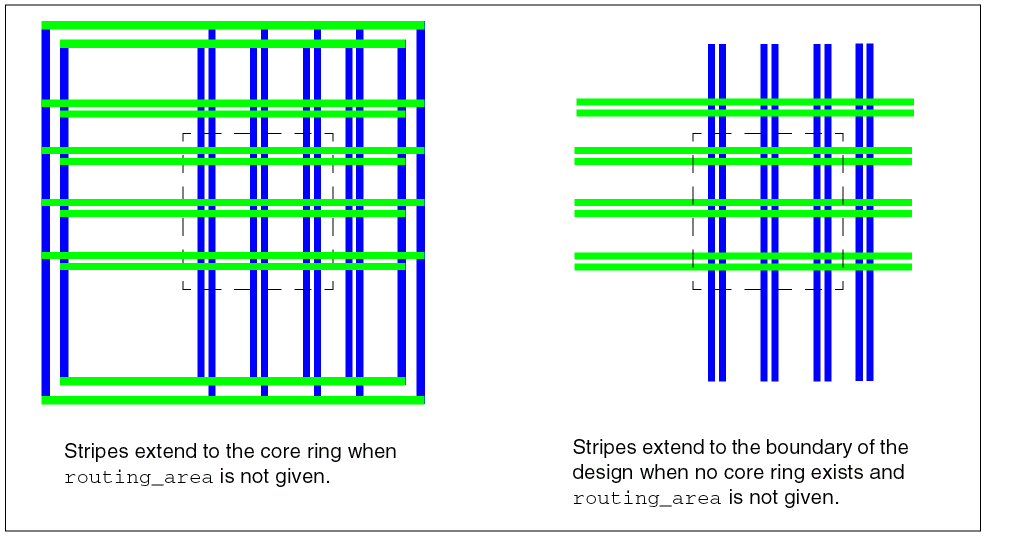

	If `true`, limits stripes to the design’s rectilinear prBoundary. Default: `false`
`-pin_clearance` f_userunit
	Specifies the clearance required between signal pins and the power nets.
`-power_only [ true \| false ]`
	If `true` (default), only power and ground nets are allowed. If `false`, signal nets are also allowed.
`-ring_extension_lower_layer` f_userunit
	Distance to extend stripe past inner edge of a ring segment on the metal layer below stripe. Deafult: `0`
`-ring_extension_upper_layer` f_userunit
	Distance to extend stripe past inner edge of a ring segment on the metal layer above stripe. Deafult: `0`
`-ring_layers` {s_layerName…}
	Specifies the ring layers for -`stop_at_rings`. Default: all layers
`-ring_layers1` {s_layerName…} `-ring_layers2` {s_layerName…} `-ring_layers3` {s_layerName…} `-ring_layers4` {s_layerName…} `-ring_layers5` {s_layerName…}
	Specifies the ring layers for `-stop_at_rings_of_class`x. Default: all layers
`-ring_pin_prop_name1` s_propName `-ring_pin_prop_name2` s_propName `-ring_pin_prop_name3` s_propName `-ring_pin_prop_name4` s_propName `-ring_pin_prop_name5` s_propName
	Used with `-stop_at_rings_of_class`x to restrict rings to those comprised of class x block pin shapes with this property matching the value given by `-ring_pin_prop_value`x.
`-ring_pin_prop_value1` s_propValue `-ring_pin_prop_value2` s_propValue `-ring_pin_prop_value3` s_propValue `-ring_pin_prop_value4` s_propValue `-ring_pin_prop_value5` s_propValue
	Used with `-stop_at_rings_of_class`x to restrict rings to those comprised of class x block pin shapes with the property given by `-ring_pin_prop_name`x and value given by this argument.
`-routing_area {`{f_xlo f_ylo f_xhi f_yhi} \| {f_x1 f_y1 f_x2 f_y2 f_x3 f_y3 … f_xn f_yn}}
	Specifies the outer boundary for the stripes as a rectangular boundary given by the lower left and upper right coordinates or as a rectilinear boundary given by a list of an even number of at least four (4) x-y coordinate pairs. Only stripes that fit entirely inside this area are drawn. If this argument is not given and core rings exist, the core rings become the bounds for the stripes. If this argument is not given and the core rings do not exist, the stripes will cover the entire design.
`-section_length` f_userunit
	Breaks each logical stripe into tandem sections of this length.
`-section_step` f_stepLength
	Specifies the distance or pitch between tandem stripe sections.
`-set` d_setObj	Treats the prBoundary of the instances in the set as blockages.
`-silent [ true \| false ]`
	When `true`, only error messages are output. When `false`, all messages are output. Default: `false`
`-snap_to_core_ring [ true \| false ]`
	(Used with `-routing_area`) Snaps stripe sections to the core ring.
`-stop_at_boundary_of_class` {s_className…}
	Stops stripe sections at the boundary of macro blocks that belong to a class in this list. Use `-boundary_clearance` to specify the clearance around the boundary, otherwise minimum spacing will be used.
`-stop_at_boundary_of_class1` {s_className…} `-stop_at_boundary_of_class2` {s_className…} `-stop_at_boundary_of_class3` {s_className…} `-stop_at_boundary_of_class4` {s_className…} `-stop_at_boundary_of_class5` {s_className…}
	Stops strap extensions at the boundary of macro blocks that belong to a class in this list. Use `-boundary_clearance`x to specify the clearance around the boundary, otherwise minimum spacing will be used.
`-stop_at_rings [ true \| false ]`
	Stops stripes sections at top-level block rings and internal rings of blocks whose class is not specified in the `of_class` options.
`-stop_at_rings_of_class1` {s_className…} `-stop_at_rings_of_class2` {s_className…} `-stop_at_rings_of_class3` {s_className…} `-stop_at_rings_of_class4` {s_className…} `-stop_at_rings_of_class5` {s_className…}
	Stops stripe sections at the internal block rings of macro blocks that belong to a class in the given list.
`-undoable [ true \| false ]`
	Permits this command to be undone. Default is the current setting for the `proute.undoable` environment variable which defaults to `false` on startup.
`-use_cellname_as_class [ true \| false ]`
	Allows specification of cellnames instead of class names for the `of_class` arguments.
`-use_design_boundary [ true \| false ]`
	(Cannot be used with `-routing_area` or `-use_regions_on_scratch_layer`) When `true`, uses the design boundary as the routing area and ignores any existing core ring bounds. Default: `false`
`-use_regions_on_scratch_layer` i_scratchID
	(Cannot be used with `-routing_area` or `-use_design_boundary`) When `true`, uses the regions defined by the shapes on the given scratch layer as the routing areas for the stripes.
`-use_wsp [ true \| false ]`
	Creates stripes on the tracks from wsp regions instead of netwidth and regions provided. Default: `false`
`-x_offset` f_userunit	Specifies the x location from the design origin to the first vertical stripe.
`-x_step` f_userunit	Specifies the x distance between sets of vertical stripes.
`-y_offset` f_userunit	Specifies the y location from the design origin to the first horizontal stripe.
`-y_step` f_userunit	Specifies the y distance between sets of horizontal stripes.
`-wsp_pullback_bottom`
	Specifies pullback in the bottom direction by the value provided. The pullbacks are applied to vertical layers. Default: `0`
`-wsp_pullback_left`
	Specifies pullback in the left direction by the value provided. The pullbacks are applied to horizontal layers. Default: `0`
`-wsp_pullback_right`
	Specifies pullback in the right direction by the value provided. The pullbacks are applied to horizontal layers. Default: `0`
`-wsp_pullback_top`
	Specifies pullback in the top direction by the value provided. The pullbacks are applied to vertical layers. For example, on `metal3` tracks, `wsp_pullback_top 0.08` means that the track is short by `0.08` from routing region height). Default: `0`

Examples

The following example uses relative addressing for placing stripes in a region. Stripes on layer M6 are added for the VDD net with a width of 8 and spaced 12 apart, left edge-to-left edge. The stripes are vertical because that is the preferred direction for layer M6.

proute_stripes -layers M6 -net_width 8 -nets VDD -left_offset 0 -x_step 12 -routing_area {200 300 250 350 }

The next example creates stripe pairs of VDD and VSS on two layers. net_clearance is the spacing between the nets. The stripes are restricted to the routing_area, with the position of the bottommost and leftmost stripes given by absolute offsets (x_offset and y_offset) from the origin.

proute_stripes -nets {VDD VSS} -layers {met4 met5} -net_width 8 -net_clearance 3.5 -x_offset 1450 -y_offset 1450 -x_step 100 -y_step 100 -routing_area {1400 1400 1720 1720}

If the -routing_area argument is not given, the stripes are extended to the core ring, if it exists, or to the bounds of the design if there is no core ring.

The following command creates tandem stripe sections of VDD and VSS in a regular pattern.

proute_stripes -nets {VDD VSS} -layers met4 -net_width 8 -net_clearance 3 -x_step 100 -routing_area { 1000 1500 1450 1950} -section_length 40 -section_step 100

proute_stripes -use_wsp true -nets "vccr_cw vss_cw vcc1 vss1 vcc2 vss2" -layers Metal4 -centerline true -routing_area {0.000 0.000 10 10} -wsp_pullback_left 0.08

Virtuoso Space-based Router Command Reference
Product Version IC23.1, September 2023

proute_stripes

Description

Arguments

Examples

Related Topics

Virtuoso Space-based Router Command ReferenceProduct Version IC23.1, September 2023

proute_stripes

Description

Arguments

Examples

Related Topics

Virtuoso Space-based Router Command Reference
Product Version IC23.1, September 2023
