report_wire_spacing_stats

report_wire_spacing_stats
[ -all | -region {f_xlo f_ylo f_xhi f_yhi} | -set d_setObj ]
[ -exclude_type {[power][ground][clock]} ]
[ -file s_fileName ]
[ -ignore_blockages [ true | false ] ]
[ -ignore_boundary [ true | false ] ]
[ -layers {s_layerName…} ]
[ -length_threshold f_userunit ]
[ -reported_space {f_spacing…} ]
[ -top_level_only ]

Description

Reports statistics on spacing between nets in the entire design, in a given set, or in a given region. This is useful for quantifying spread results.

The statistics include the following:

• For each layer,
  • Edge lengths for each reported space grouping
  • The percentage of all edge lengths for each reported space grouping
  • The total edge length
• The totals for each column

By default, the space columns report spacings for facing edges that are minSpacing, minSpacing*2, minSpacing*3, and greater than minSpacing*3. You can change the reported spacing groups using -reported_space.

Only edge lengths that are greater than the minWidth constraint for the layer will be reported. You can optionally change the length threshold using the -length_threshold argument.

Arguments

-all	Reports on all nets. This is the default.
-exclude_type {[power][ground][clock]}
	Excludes the given net types from the report. By default, all net types are included.
-file s_fileName	Outputs the report to the given file.
-ignore_blockages [ true | false ]
	Specifies whether to ignore spacing between wires and blockages. Default: false
-ignore_boundary [ true | false ]
	Specifies whether to ignore wire spacing to the area boundary. Default: (true) Wire spacing to the area boundary is ignored.
-layers {s_layerName…}	Reports only on layers in the list. By default, all valid routing layers are reported.
-length_threshold f_userunit
	Restricts processing to edge lengths that are greater than the given length. The minimum value is minWidth for the layer. Default: minWidth for the layer
-region {f_xlo f_ylo f_xhi f_yhi}
	Restricts reporting to the area given by the lower-left (f_xlo, f_ylo) and the upper-right (f_xhi, f_yhi) bounding box coordinates.
-reported_space {f_spacing…}
	Groups reported spacings according to the values in the given list. Each value must be a multiple of the manufacturing step. The default reported spacings are minSpacing, minSpacing*2, and minSpacing*3.
-set d_setObj	Reports on nets in the given set.
-top_level_only	When set to true, reports only wires on the top level. Default: Wire spacing is reported for top-level wires only.

Examples

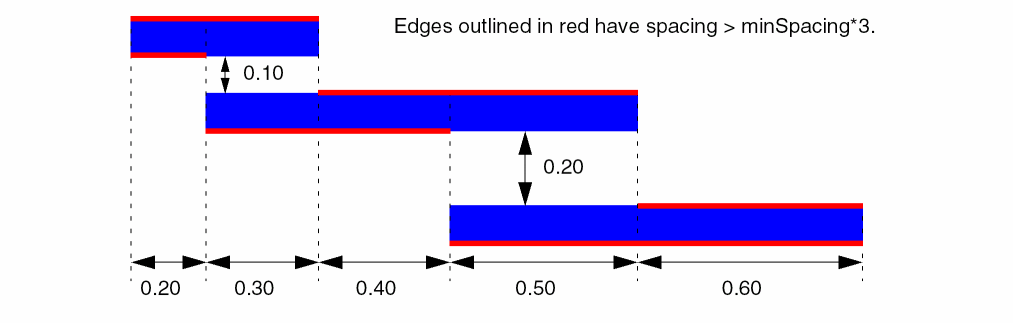

The following example shows how spacings are reported.

For this example, the following is the default report (assuming a minSpacing of 0.10) for the M1 layer:

+-------+-------------+-------------+-------------+------------+------------+
| Layer |space <=0.10 |space <=0.20 |space <=0.30 |space >0.30 |    Total   |
+-------+-------------+-------------+-------------+------------+------------+
|M1     |  0.60 (11%) |  1.00 (18%) |  0     (0%) | 4.00 (71%) | 5.6 (100%) |
+-------+-------------+-------------+-------------+------------+------------+
| TOTAL |  0.60 (11%) |  1.00 (18%) |  0     (0%) | 4.00 (71%) | 5.6 (100%) |
+-------+-------------+-------------+-------------+------------+------------+

The space columns report spacings for facing edges that are minSpacing, minSpacing*2, minSpacing*3, and greater than minSpacing*3.
