minSideExtension

Specifies the extension that either the short or long side edge of a layer1 shape must extend past a layer2 shape.

Optionally, the constraint may apply only if the layer2 extension is less than or equal to a certain value.

This constraint may not apply to all layer1 or layer2 widths. Two parameters indicate the set of width ranges for each layer when the constraint applies.

This constraint applies to rectangular shapes only. Non-rectangular shapes are ignored.

This constraint is not symmetric.

minSideExtension Quick Reference

Value Type

minSideExtension constraints have a Value that represents the minimum side extension in user units.

Parameters

• otherExtension (Value, optional) specifies that the constraint applies only if the layer2 extension past layer1 is less than or equal to this value.
• longSideEdge (BoolValue, optional) When true, the constraint applies to the long side edge of layer1, otherwise (false) applies only to the short side edge.
• widthRangeArray (RangeArrayValue, optional) specifies that the constraint applies only if the layer1 width is in one of the ranges.
• otherWidthRangeArray (RangeArrayValue, optional) specifies that the constraint applies only if the layer2 width is in one of the ranges.
• exceptEdgeLengthRangeArray (RangeArrayValue, optional) specifies that the constraint does not apply if the layer2 edge length is in this range.

Examples

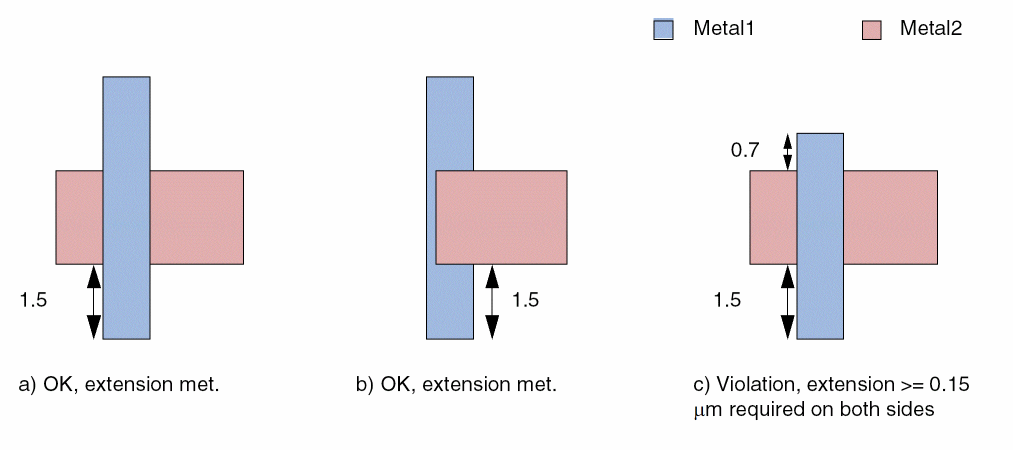

Example 1—minSideExtension With No Parameters

In this example, the short edge of Metal1 shapes must extend at least 1.5 μm past Metal2 shapes.

set_layerpair_constraint -constraint minSideExtension \
 -layer1 Metal1 -layer2 Metal2 -Value 1.5

orderedSpacings(
  (minSideExtension "Metal1" "Metal2" 1.5)
) ;orderSpacings

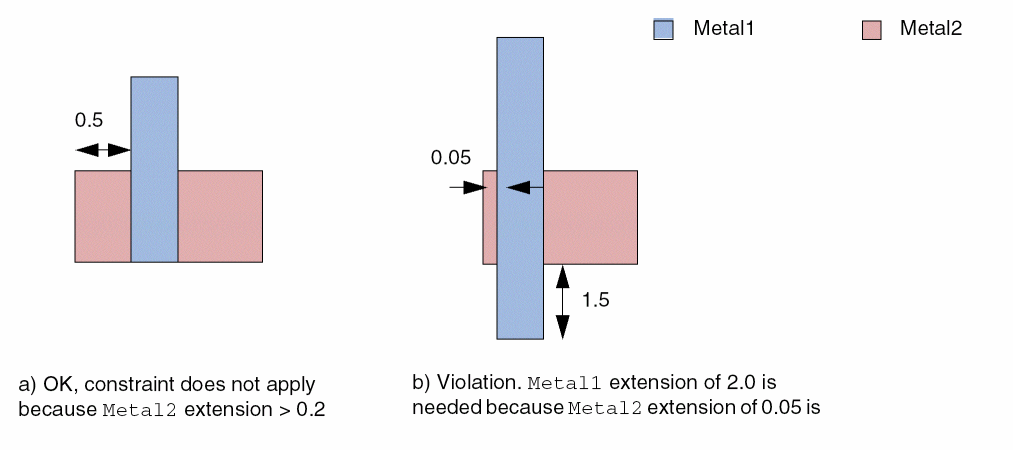

Example 2—minSideExtension With otherExtension Parameter

In this example, short edge of Metal1 shapes must extend past Metal2 shapes at least 0.2 μm when Metal2 shapes extend past Metal1 shapes by less than or equal to 2.0 μm.

set_constraint_parameter -name otherExtension -Value 0.2

set_layerpair_constraint -constraint minSideExtension \
 -layer1 Metal1 -layer2 Metal2 -Value 2.0

orderedSpacings(
  (minSideExtension "Metal1" "Metal2" 'otherExtension 0.2 2.0)
) ;orderSpacings

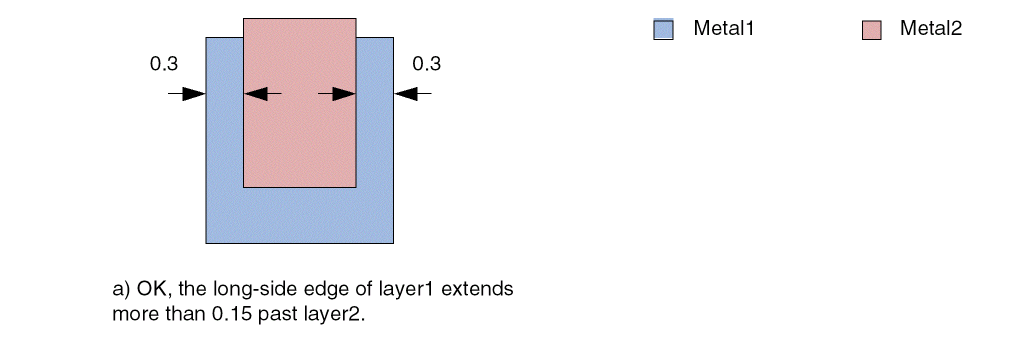

Example 3—minSideExtension With longSideEdge Parameter

In this example, the long edge of Metal1 shapes must extend at least 0.15 μm past Metal2 shapes.

set_constraint_parameter -name longSideEdge -BoolValue true

set_layerpair_constraint -constraint minSideExtension \
 -layer1 Metal1 -layer2 Metal2 -Value 0.15

orderedSpacings(
  (minSideExtension "Metal1" "Metal2" 'longEdges true 0.15)
) ;orderSpacings

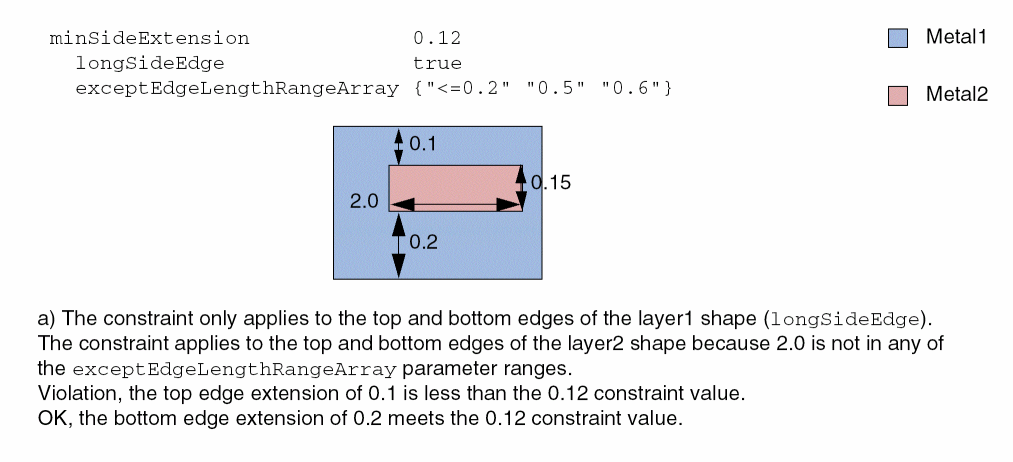

Example 4—minSideExtension With exceptEdgeLengthRangeArray and longSideEdge Parameters

In this example, the extension of a long edge of a layer1 shape past a layer2 shape must be greater than or equal to 0.12um, except when the layer2 edge is less than or equal to 0.2um, equal to 0.5um, or equal to 0.6um.

set_constraint_parameter  –name longSideEdge –BoolValue true
set_constraint_parameter –name exceptEdgeLengthRangeArray –RangeArrayValue {"<=0.2" "0.5" "0.6"}
set_layerpair_constraint –layer1 layer1 –layer2 layer2 –constraint minSideExtension –Value 0.12

orderedSpacings(
 (minSideExtension "layer1" "layer2"
  'longEdge
  'exceptEdgeLengthRanges ("<=0.2" "0.5" "0.6")
  0.12
 )
); orderedSpacings
