horizontalSymmetryLine

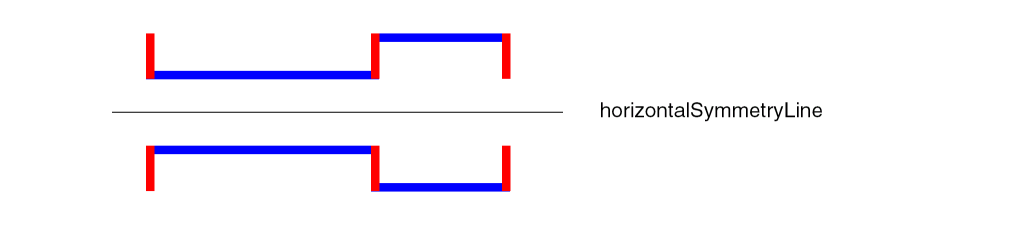

Sets the symmetry line on the Y-axis for a symmetric net pair group.

The horizontalSymmetryLine and verticalSymmetryLine constraints are mutually exclusive.

horizontalSymmetryLine Quick Reference

Value Type

horizontalSymmetryLine constraints have a Value that represents the Y-axis coordinate for the symmetry line.

Examples

Sets the symmetry line on the Y-axis, offset 110.5 μm from the origin.

set_constraint -constraint horizontalSymmetryLine -Value 110.5
