verticalSymmetryLine

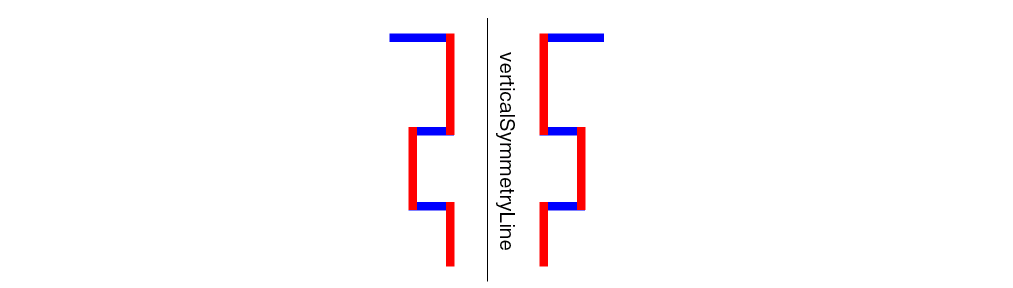

Specifies the symmetry line on the x-axis for a symmetric net pair group.

The horizontalSymmetryLine and verticalSymmetryLine constraints are mutually exclusive.

verticalSymmetryLine Quick Reference

Value Type

verticalSymmetryLine constraints have a Value that specifies the X-axis coordinate for the symmetry line.

Examples

This example sets the symmetry line on the X-axis, offset 55 μm from the origin.

set_constraint -constraint verticalSymmetryLine -Value 55
