oaDefault135RouteGridOffset

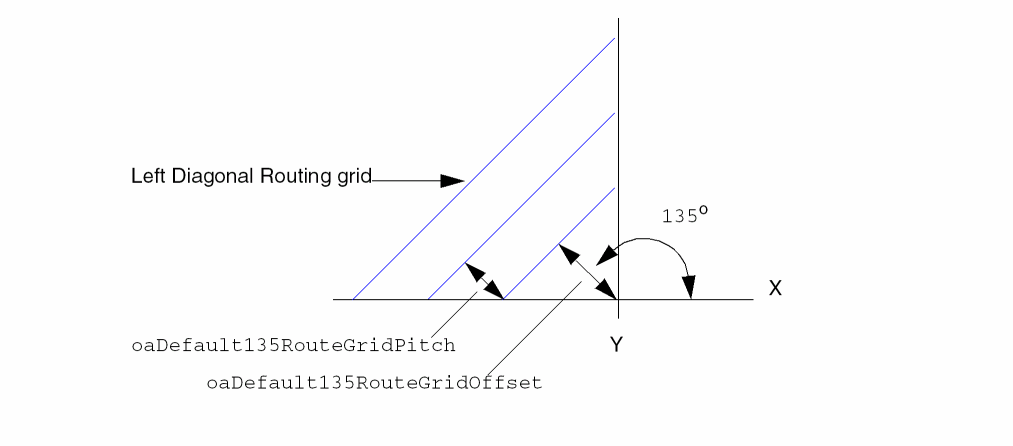

Specifies the default 135 degree (left diagonal) route grid offset for all layers and applies only to layers that do not have the 135RouteGridOffset constraint set.

oaDefault135RouteGridOffset Quick Reference

Value Types

oaDefault135RouteGridOffset constraints have a Value that represents the default 135 degree route grid offset in user units.

Examples

set_constraint -constraint oaDefault135RouteGridOffset \
 -Value f_offset

routingGrids(
( leftDiagOffset f_offset )
)

Related Topics

Routing Constraints
