oaDefault135RouteGridPitch

Specifies the default 135 degree (left diagonal) route grid pitch for all layers and applies only to layers that do not have the 135RouteGridPitch constraint set.

oaDefault135RouteGridPitch Quick Reference

Value Type

oaDefault135RouteGridPitch constraints have a Value that represents the default left diagonal route grid pitch in user units.

Examples

set_constraint -constraint oaDefault135RouteGridPitch \
 -Value f_pitch

routingGrids(
( leftDiagPitch f_pitch )
)

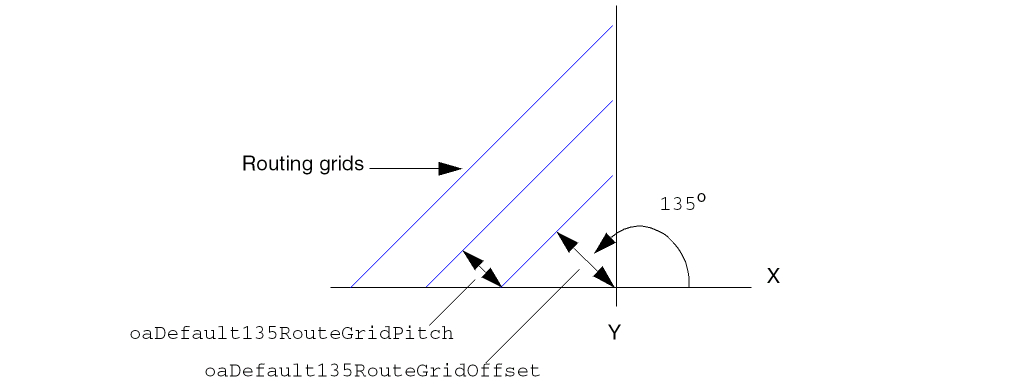

Illustration of the example for oaDefault135RouteGridPitch constraint
