minEndOfLineSpacing

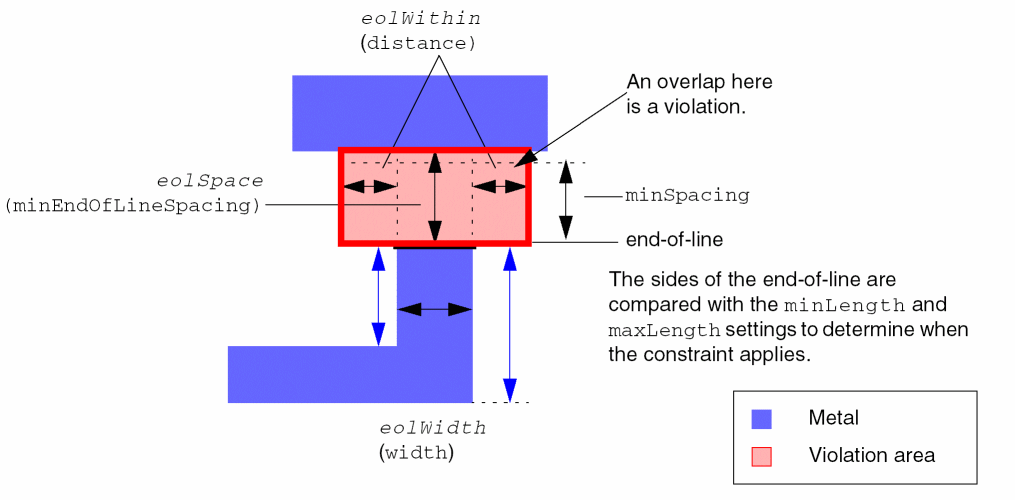

Specifies the minimum spacing between the end of a line and its neighboring geometry. The constraint definition supports optional parameters to specify when the constraint applies.

• The constraint applies only when the width of the end-of-line wire is less than a specified value (width parameter) or within a specified range (widthRangeArray parameter).
• The constraint applies when any geometry occurs within a region defined by the minimum end-of-line spacing (minEndOfLineSpacing constraint), the distance (distance parameter) from each side of the wire and the width of the wire.
• The constraint applies only if one parallel edge is within a specified rectangular region from the corners of the end-of-line wire, or it applies only if two parallel edges are within a specified rectangular region from the corners of the end-of-line wire. The dimensions of the rectangular region are given by the distance perpendicular to the wire (parallelEdgeSpace parameter), the distance from the end-of-line along the wire (parallelEdgeWithin parameter), and the lateral verification distance (distance parameter).
• The constraint applies when no parallel edges occur within the region defined by the minimum end-of-line spacing, or when one parallel edge occurs within the region defined by the minimum end-of-line spacing, or when two parallel edges occur within the region defined by the minimum end-of-line spacing.

minEndOfLineSpacing Quick Reference

Value Type

minEndOfLineSpacing constraints have a Value that represents the minimum spacing between the end of a line and its neighboring geometry. Typically, the minEndOfLineSpacing is slightly larger than the minimum required spacing (minSpacing).

The application of the End-of-Line Spacing rule is dependent on the given count parameter:

• Case 1—When the count parameter is 0

In this case, an end-of-line with a width less than eolWidth requires spacing greater than or equal to eolSpace beyond the end-of-line anywhere within (that is, less than) eolWithin distance.

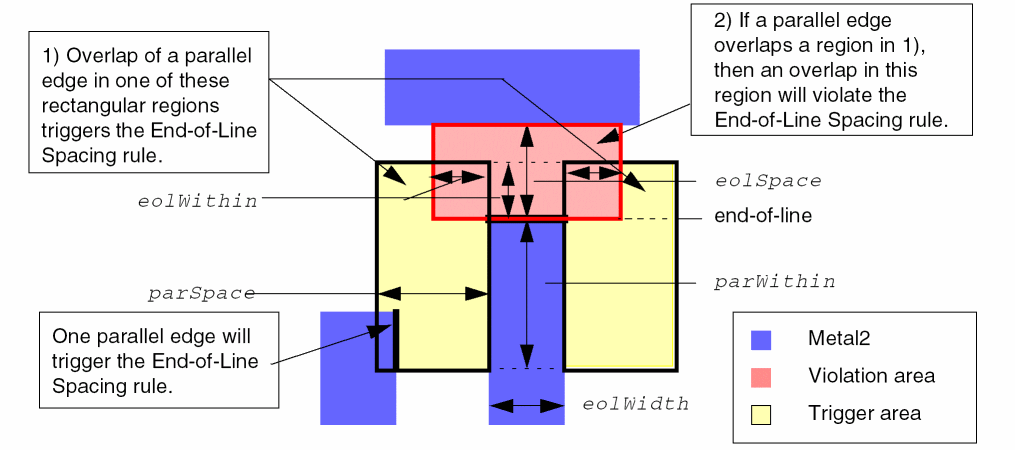

• Case 2—When the count parameter is 1

In this case, the end-of-line rule applies only if there is one parallel edge that is less than parSpace away, and is also less than parWithin from the end-of-line and eolWithin beyond the end-of-line.

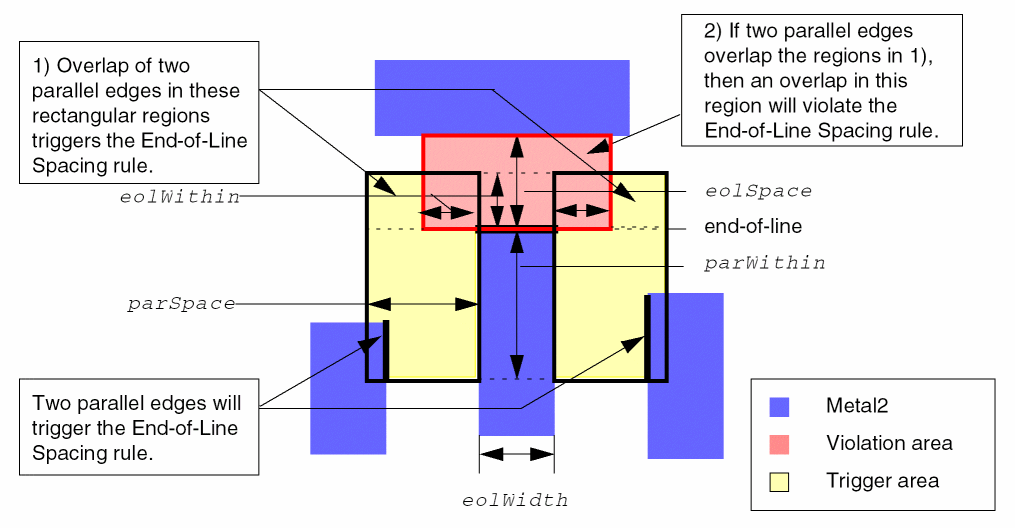

• Case 3—When the count parameter is 2

In this case, the End-of-Line Spacing rule is triggered if there are two parallel edges that are less than parallelEdgeSpace from the end-of-line wire within the regions given by the distance and the parallelEdgeWithin parameters as shown in the following figure.

Parameters

One of the following parameters must be specified:

• width (Value, required) is the width of the end-of-line wire (eolWidth). The constraint applies only when the wire width is less than the specified width parameter value.
• widthRangeArray (RangeArrayValue, required) specifies that the constraint applies only to end-of-line edges with edge length in this range, specified in user units.

The following parameters specify the remaining conditions for the constraint:

• distance (Value, required) is the lateral verification distance (eolWithin) from the end-of-line wire for the spacing check. The constraint applies anywhere laterally beyond the end-of-line within (<) distance. Also specifies the distance beyond the end-of-line edge for the parallel-edge check region when count is greater than 0.
• count (IntValue, optional) is the number of parallel edges that trigger this constraint and is an integer value of 0, 1, or 2. When this value is 1 or 2, you must also specify parallelEdgeSpace and parallelEdgeWithin parameters. When count = 2, the two parallel edges must be on opposite sides of the end-of-line.
• minOppositeWidth (Value, optional) specifies that the constraint applies only if a wire beyond the end-of-line edge has a perpendicular span to the EOL edge that is less than this value.
• minLength (Value, optional) with the twoSides parameter, specifies when the end-of-line applies, based on the side lengths of the end-of-line.
• twoSides (BoolValue, optional) applies only when minLength is given and determines when the constraint applies.


  minLength with twoSides false or not given	The constraint applies when at least one side of the end-of-line is greater than or equal to minLength. (The constraint does not apply if both sides of the end-of-line are less than minLength.)
  minLength with twoSides true	The constraint applies when both sides of the end-of line are greater than or equal to minLength. (The constraint does not apply if either side of the end-of-line is less than minLength).

• maxLength (Value, optional) specifies that the constraint does not apply if both sides of the end-of-line are longer than maxLength.

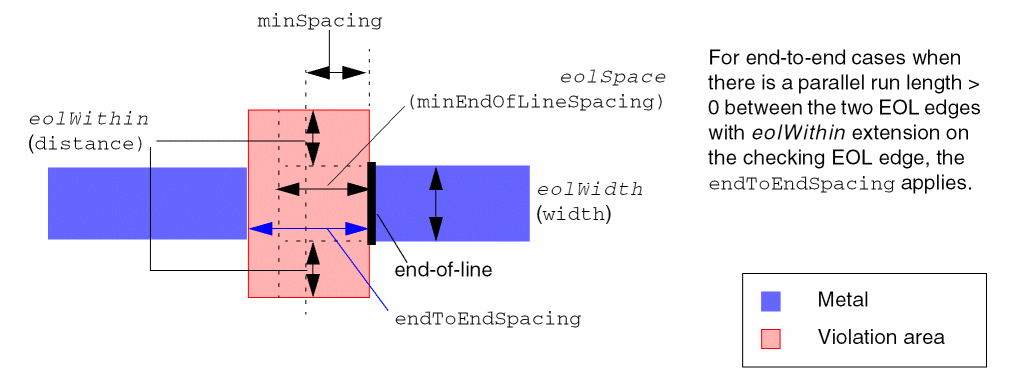

• endToEndSpacing (Value, optional) specifies that the constraint only applies when there is another end-of-line within (less than) this distance. Use this parameter to specify end-to-end minEndOfLineSpacing that is different from minEndOfLineSpacing required for end-to-perpendicular shapes.
  • oneCutSpace (Value, optional) applies only when endToEndSpacing is specified. The oneCutSpace parameter specifies the spacing required between an end-of-line which touches a single cut, and another that does not.
  • twoCutSpace (Value, optional) applies only when endToEndSpacing is specified. The twoCutSpace parameter specifies the spacing required between two end-of-lines, both of which touch a via cut.
  • otherEndWidth (Value, optional) specifies that another shape’s width must be less than this value for it to be considered an end-of-line. This is used with the endToEndSpacing parameter to qualify the other end-of-line and with the eolAddSpace parameter to extend the end for stricter spacing.
  • bothWires (BoolValue, optional) if true, specifies that the endToEndSpacing check only applies if both shapes satisfy the parameters minLength and maxLength. The bothWires parameter should be only specified if endToEndSpacing and at least one of minLength or maxLength is specified, else it is not applicable. The default value of this parameter is false. When false, only one of the two shapes must satisfy the minLength and maxLength parameters.
• equalRectWidth (BoolValue, optional) specifies that the constraint applies only when the length of the end-of-line edge is smaller than or equal to the wire width. If there are more than one minEndOfLineSpacing constraints with the equalRectWidth parameter set for a given layer, then all of them must have equalRectWidth set.
• eolAddSpace (OneDTblValue, custom/optional) specifies that any shape whose width maps to a non-zero spacing value in the table is effectively extended by the given amount. In addition, the spacing measurement becomes Euclidean (radial). By default, Manhattan spacing is used for end-of-line spacing.

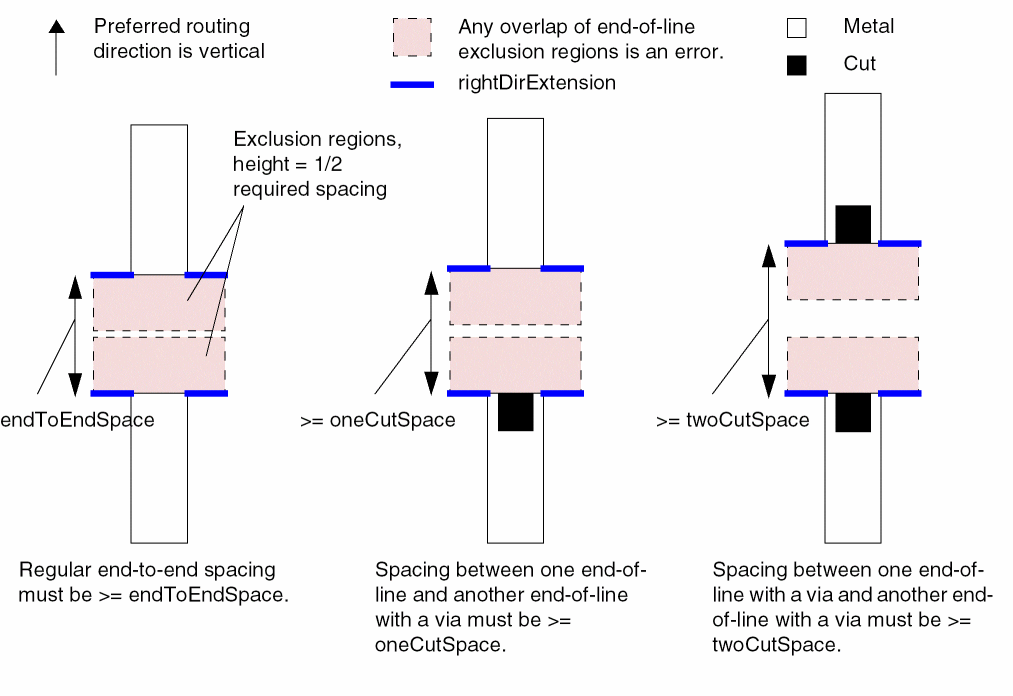

• rightDirExtension (Value, optional) specifies the lateral checking distance used to check end-of-line spacing between two end-of-lines routed in the preferred direction.

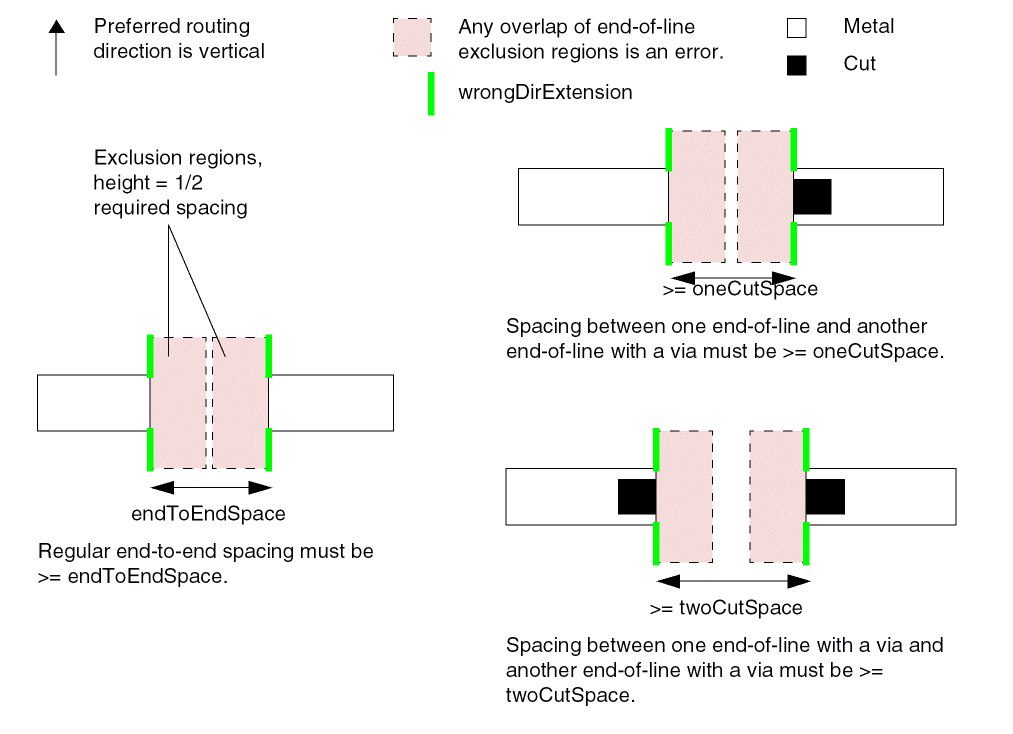

• wrongDirExtension (Value, optional) specifies the lateral checking distance used to check end-of-line spacing between two end-of-lines routed in the non-preferred direction.
• oaConnectivityType (IntValue, optional) specifies the shapes to which this constraint applies, based on their connectivity, as given in Table .

  oaConnectivityType Parameter Values

  String	Value	Constraint applies to:
  anyConnectivity	0	(Default) Any connectivity
  sameNetConnectivity	1	Same net only
  sameIslandConnectivity	2	Contiguous (same metal) shapes only

• oaSpacingDirection (StringAsIntValue, optional) specifies the measurement direction. anyDirection 0 Horizontally and vertically (default) horizontalDirection 1 Horizontally only verticalDirection 2 Vertically only
• extendBy (Value, optional) specifies that the end-of-line edge must be extended in the projection direction by this distance before checking. This extension applies to both the end-of-line edge and the adjacent shape.
• sizeBy (Value, optional) specifies that the end-of-line edge must be extended by this distance on both sides before checking.

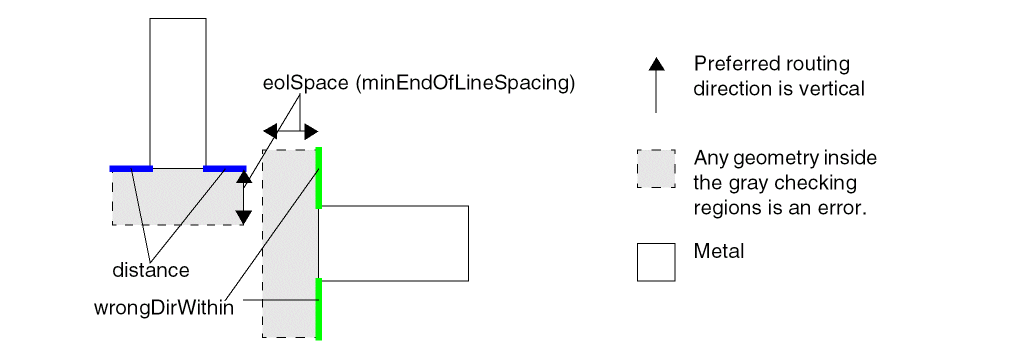

• wrongDirWithin (Value, optional) specifies the lateral checking distance used for wires running in the non-preferred direction, which is different from that used for preferred direction wires. If this parameter is specified, the existing distance parameter only specifies the preferred direction lateral verification distance.
• diffMask (BoolValue, optional), when true, specifies that the constraint applies only between shapes on different masks. The default is false.
• sameMask (BoolValue, optional) specifies whether the constraint applies only between shapes on the same mask (true) or between all shapes on the given layer (false/default). When true, the constraint specifies end-to-side or end-to-end spacing for advanced nodes. End-to-end same mask spacing also requires endToEndSpacing and otherEndWidth parameters.

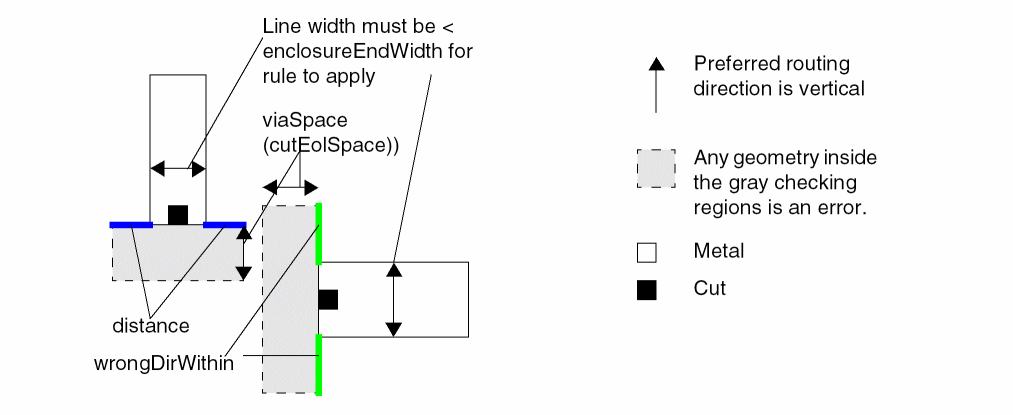

• cutEolSpace (Value, optional) specifies the spacing required if the metal end-of-line edge under consideration intersects a cut shape on the cut layer either above or below the metal layer. This is spacing to another non-end-of-line edge.
  • cutClass (DualValue, optional) used with cutEolSpace to specify the via width and height for which the constraint applies.
  • cutLayerEol (IntValue, optional) used with cutEolSpace to specify that the cutEolSpace is only applied if the metal end-of-line touches a cut shape in the cut layer above, below, or both (default).
  • enclosureEndWidth (Value, optional) used with cutEolSpace. The minEndOfLineSpacing constraint applies to an end-of-line edge touching a via cut if the edge length is less than this parameter value.
  • enclosureEndWithin (Value, optional) specifies the lateral verification distance for ends-of-lines touching via cuts applied in end-of-line to non-end-of-line spacing. If this parameter is specified, then enclosureEndWidth must also be specified. See rightDirExtension and wrongDirExtension for lateral verification distance used in end-to-end spacing checks.
• exactEolWidth (BoolValue, optional) specifies that the rule applies only if the edge width is equal to the specified end-of-line width.
• wrongDirSpace (IntValue, optional) specifies the minimum end-of-line spacing to be used for wires running in the non-preferred direction, which is different from that used for preferred direction wires.
• exceptExactAligned (BoolValue, optional), when true, specifies that the constraint does not apply to shapes that are aligned.

These parameters specify conditions when there are edges parallel to the end-of-line. The count parameter specifies the number of parallel edges (1 or 2) that must exist for the constraint to apply.

• parallelEdgeSpace (Value, required when count > 0) is the distance (parSpace) perpendicular to the end-of-line wire.
• parallelEdgeWithin (Value, required when count > 0) is the distance (parWithin) along the end-of-line wire.
• parallelEdgeMinLength (Value, optional) specifies that the constraint applies only when the end-of-line length is greater than or equal to this value.
• subtractEndOfLineWidth (BoolValue, optional) specifies that the parSpace should be subtracted by the width of the end-of-line edge to define the distance in searching for a parallel neighbor edge.

The following parameters specify that the rule only applies if there is a cut above or below this metal that is less than enclosedDistance from the end-of-line edge, and the cut-edge-to-metal-edge space beyond the end-of-line edge is less than cutToMetalSpacing. If there is more than one cut connecting the same metal shapes above and below, only one cut needs to meet this rule.

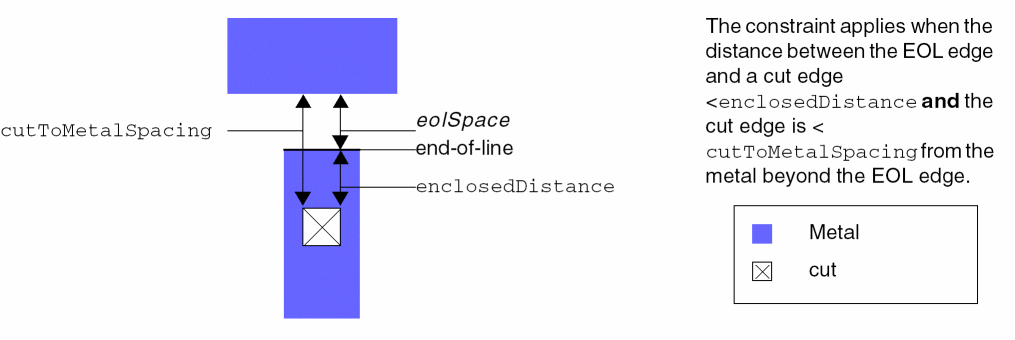

• cutToMetalSpacing (Value) specifies that the constraint applies only when there is a cut shape (enclosedCut) on the layer above or below the metal layer that is less than or equal to this distance from the metal edge.
• enclosedCut (StringAsIntValue) specifies which cuts are considered with cutToMetalSpacing as given in Table .
• enclosedDistance (Value, optional) specifies that the rule only applies if there is a cut above or below this metal that is less than enclosedDistance from the end-of-line edge, and the cut-edge-to-metal-edge space beyond the end-of-line edge is less than cutToMetalSpacing.
• allCuts (BoolValue, optional) When true, the constraint is checked for all cuts connecting the same metal shapes above and below.

Examples

• Example 1: minEndOfLineSpacing with count=0
• Example 2: minEndOfLineSpacing with count=1
• Example 3: minEndOfLineSpacing with count=2
• Example 4: minEndOfLineSpacing with maxLength
• Example 5: minEndOfLineSpacing with parallelEdgeMinLength and cutToMetalSpacing
• Example 6: minEndOfLineSpacing with equalRectWidth
• Example 7: minEndOfLineSpacing with endToEndSpacing and minLength
• Example 8: minEndOfLineSpacing with subtractEndOfLineWidth
• Example 9: minEndOfLineSpacing with minOppositeWidth and minLength
• Example 10: minEndOfLineSpacing with eolAddSpace, otherEndWidth and minLength
• Example 11: minEndOfLineSpacing with minLength and twoSides
• Example 12: minEndOfLineSpacing with oaSpacingDirection

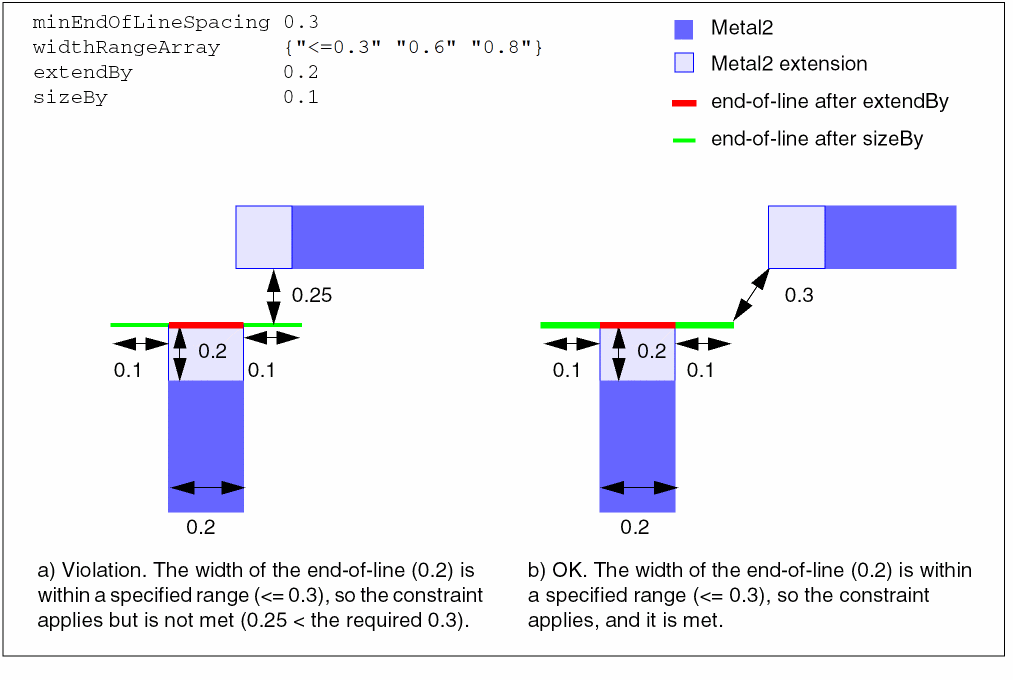

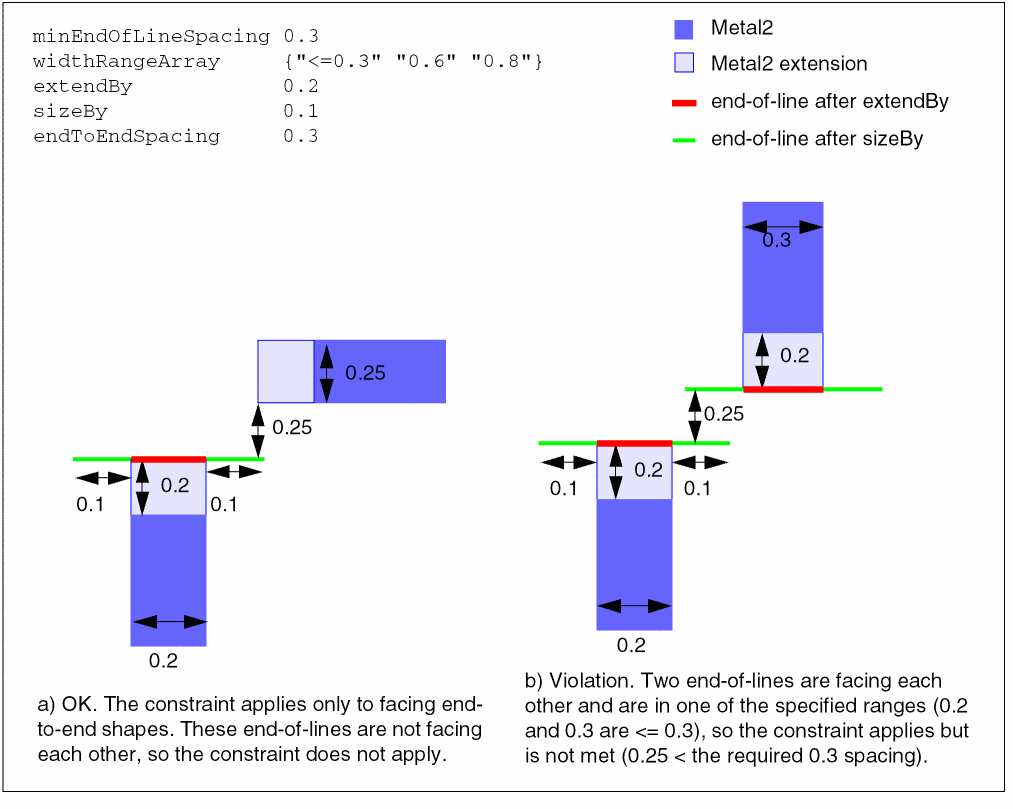

• Example 13: minEndOfLineSpacing with widthRangeArray, extendBy and sizeBy
• Example 14: minEndOfLineSpacing with endToEndSpacing, extendBy and sizeBy

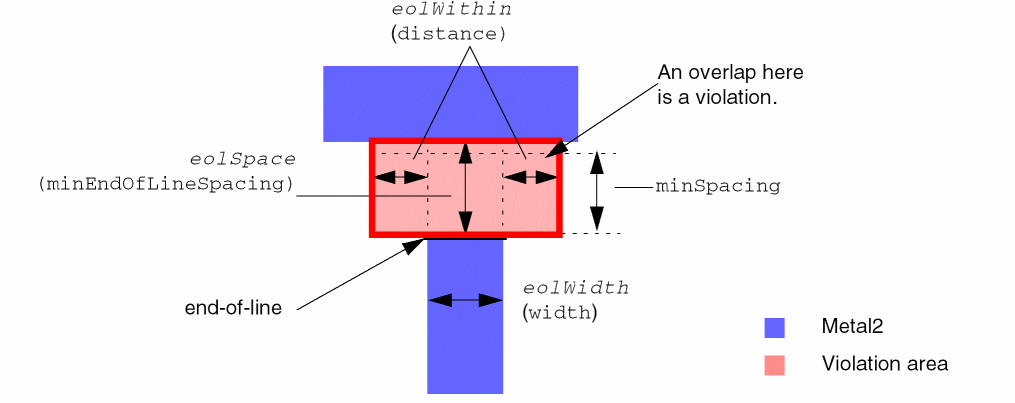

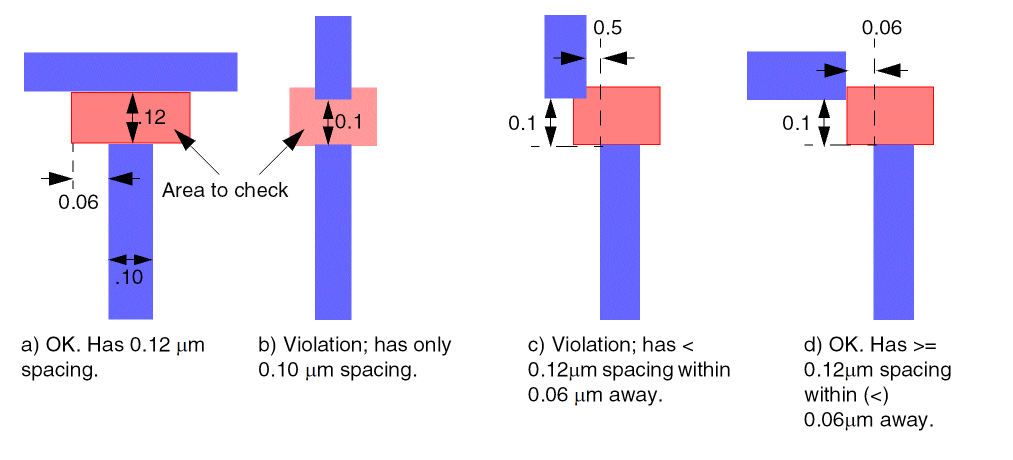

Example 1: minEndOfLineSpacing with count=0

In this example, any end-of-line that is less than 0.11μm wide requires spacing that is greater than or equal to 0.12 μm beyond the end-of-line, within 0.06 μm to either side. The following figure includes examples of this rule.

set_constraint_parameter -name width -Value .11
set_constraint_parameter -name distance -Value 0.06
set_constraint_parameter -name count -IntValue 0
set_layer_constraint -layer Metal2 -constraint minEndOfLineSpacing \
 -Value .12

PROPERTY LEF58_SPACING \"SPACING 0.12 ENDOFLINE 0.11 WITHIN 0.06 ;\" ;

spacings(
   ( minEndOfLineSpacing  \"Metal2\" (0.11 0.06 0.0 0.12) )
)

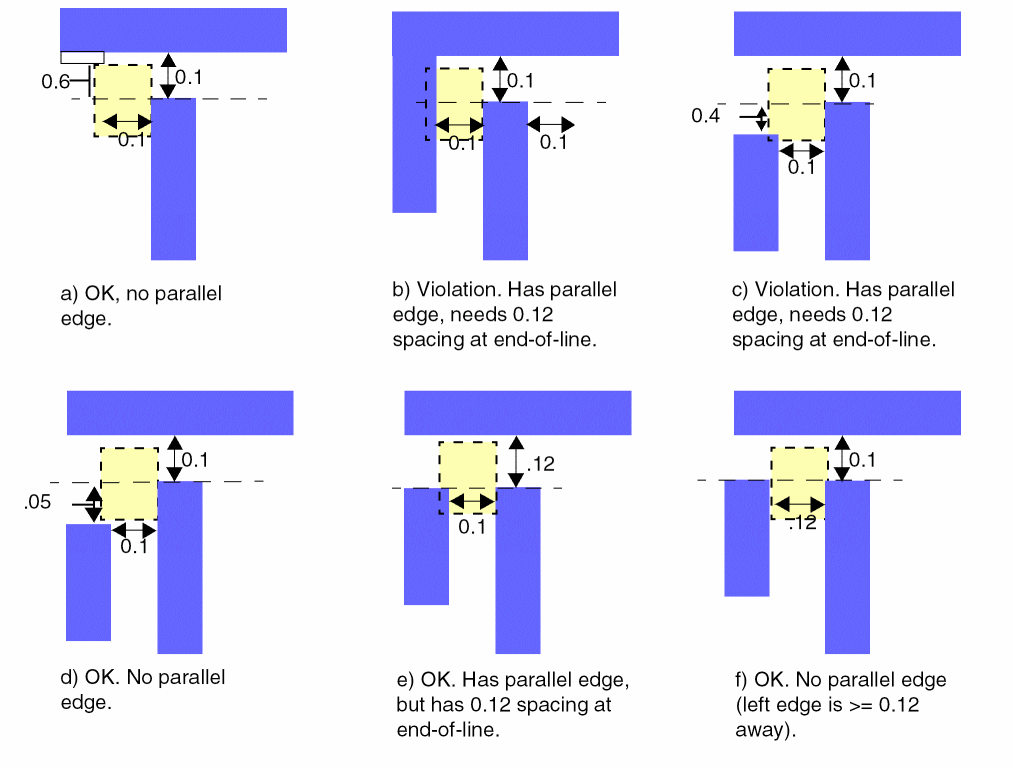

Example 2: minEndOfLineSpacing with count=1

In this example, any end-of-line shape that is less than 0.11 μm wide, with a parallel edge that is less than 0.12 μm away, and is within 0.05 μm of the end-of-line, requires spacing greater than or equal to 0.12μm beyond the end-of-line, when within 0.6 μm to either side of the end-of-line. The following figure includes examples of legal spacing for, and violations of, this rule.

set_constraint_parameter -name width -Value .11
set_constraint_parameter -name distance -Value 0.06
set_constraint_parameter -name count -IntValue 1
set_constraint_parameter -name parallelEdgeSpace -Value .12
set_constraint_parameter -name parallelEdgeWithin -Value .05
set_layer_constraint -layer Metal2 -constraint minEndOfLineSpacing \
 -Value .12

PROPERTY LEF58_SPACING "SPACING 0.12 ENDOFLINE 0.11 WITHIN 0.06 PARALLELEDGE 0.12 WITHIN 0.05 ;" ;

spacings(
    ( minEndOfLineSpacing "Metal2"  (0.11 0.06 0.001 0.12 50 0.12) )
)

Example 3: minEndOfLineSpacing with count=2

This example is similar to Example 2: minEndOfLineSpacing with count=1, except that the rule is triggered by two parallel edges. See minEndOfLineSpacing with count = 2 for a graphic example.

set_constraint_parameter -name width -Value .11
set_constraint_parameter -name distance -Value 0.06
set_constraint_parameter -name count -IntValue 2
set_constraint_parameter -name parallelEdgeSpace -Value .12
set_constraint_parameter -name parallelEdgeWithin -Value .05
set_layer_constraint -layer Metal2 -constraint minEndOfLineSpacing \
 -Value .12

PROPERTY LEF58_SPACING "SPACING 0.12 ENDOFLINE 0.11 WITHIN 0.06 PARALLELEDGE 0.12 WITHIN 0.05 TWOEDGES ;" ;

( minEndOfLineSpacing  "Metal2" (0.11 0.06 0.002 0.12 .05 0.12) )

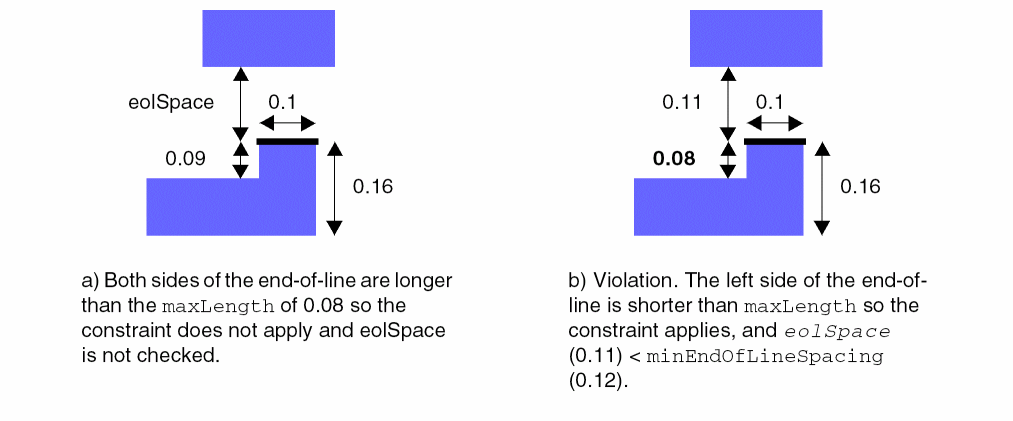

Example 4: minEndOfLineSpacing with maxLength

set_constraint_parameter -name width -Value .1
set_constraint_parameter -name distance -Value 0.05
set_constraint_parameter -name count -IntValue 0
set_constraint_parameter -name maxLength -Value 0.08
set_layer_constraint -layer Metal2 -constraint minEndOfLineSpacing \
 -Value 0.12

PROPERTY LEF58_SPACING
"SPACING 0.12 ENDOFLINE 0.1 WITHIN 0.05 MAXLENGTH 0.08 ;" ;

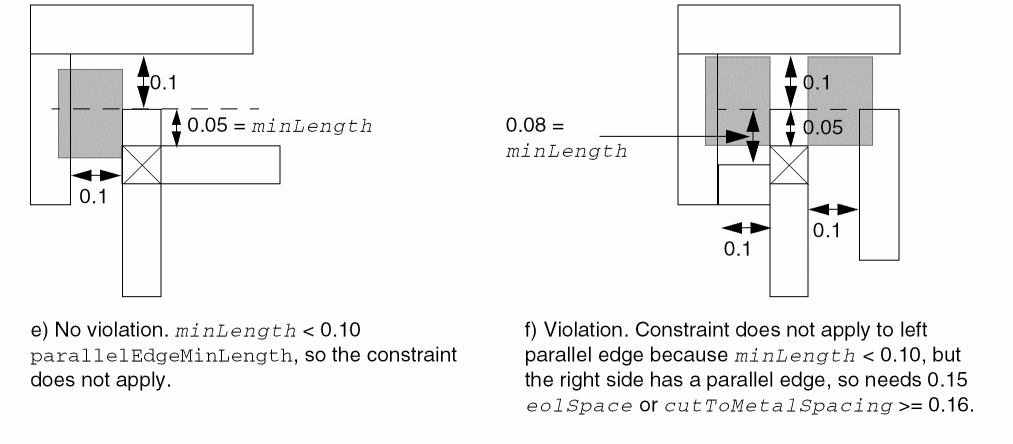

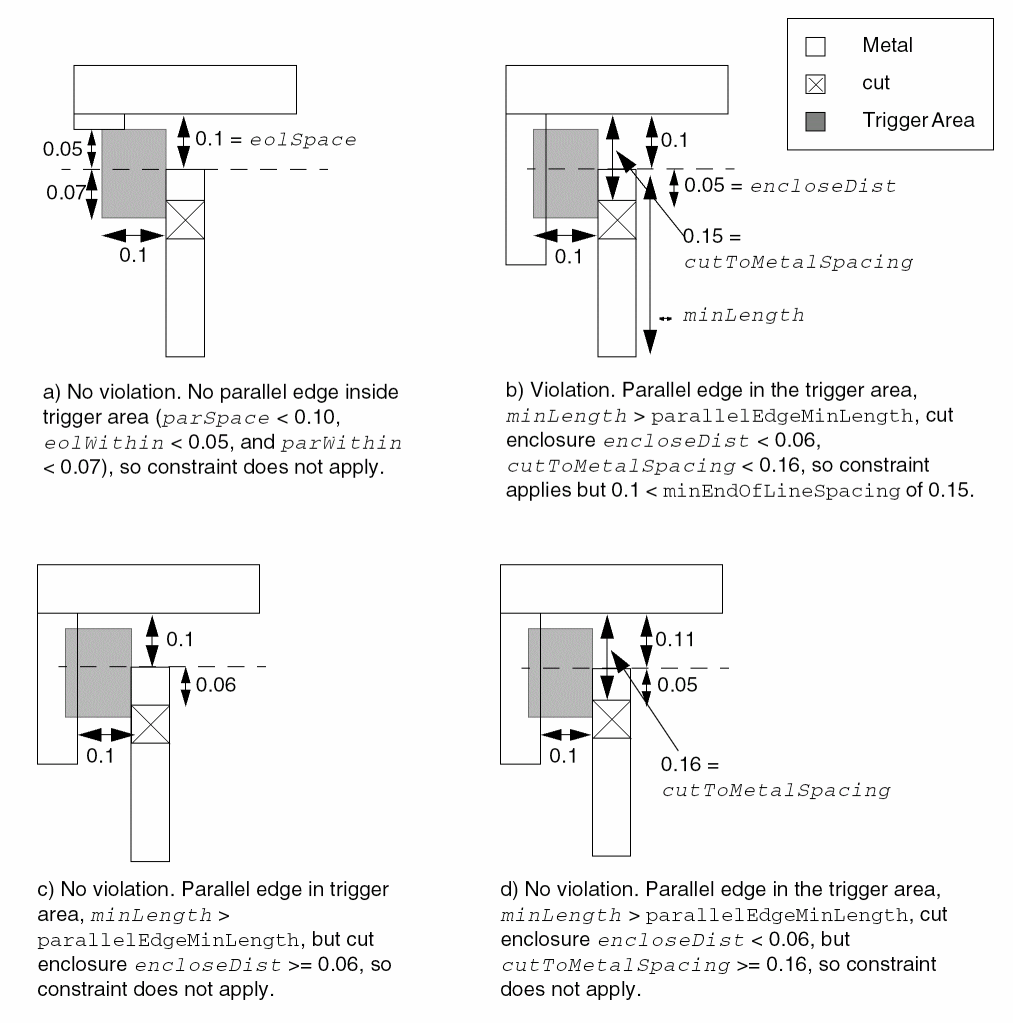

Example 5: minEndOfLineSpacing with parallelEdgeMinLength and cutToMetalSpacing

set_constraint_parameter -name width -Value 0.10
set_constraint_parameter -name distance -Value 0.05
set_constraint_parameter -name count -IntValue 1
set_constraint_parameter -name parallelEdgeSpace -Value 0.10
set_constraint_parameter -name parallelEdgeWithin -Value 0.07
set_constraint_parameter -name parallelEdgeMinLength -Value 0.10
set_constraint_parameter -name enclosedCut \
  -StrinAsIntValue cutIsBelow
set_constraint_parameter -name enclosedDistance -Value 0.06
set_constraint_parameter -name cutToMetalSpacing -Value 0.16
set_layer_constraint -layer Metal2 -constraint minEndOfLineSpacing \
  -Value 0.15

PROPERTY LEF58_SPACING
"SPACING 0.15 ENDOFLINE 0.10 WITHIN 0.05 PARALLELEDGE 0.10
 WITHIN 0.07 MINLENGTH 0.10 ENCLOSECUT BELOW 0.06 CUTSPACING 0.16 ;" ;

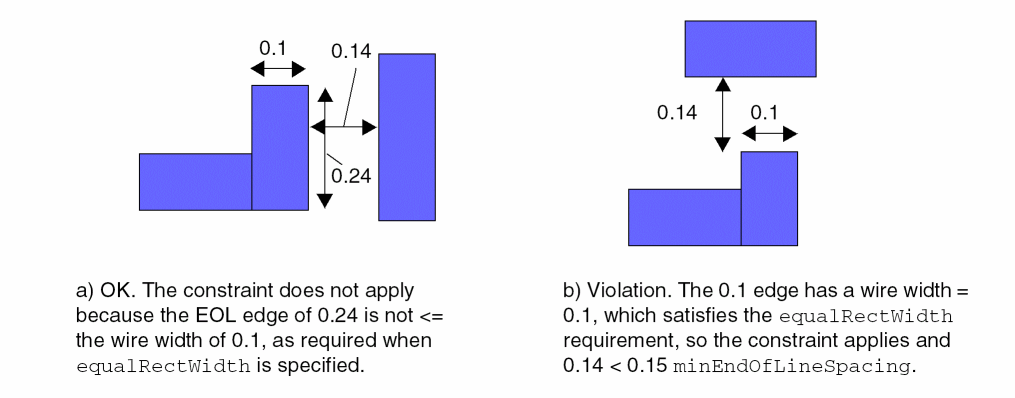

Example 6: minEndOfLineSpacing with equalRectWidth

set_constraint_parameter -name width -Value 0.25
set_constraint_parameter -name distance -Value 0.10
set_constraint_parameter -name count -IntValue 0
set_constraint_parameter -name equalRectWidth -BoolValue true
set_layer_constraint -layer Metal2 -constraint minEndOfLineSpacing \
 -Value 0.15

PROPERTY LEF58_SPACING
"SPACING 0.15 ENDOFLINE 0.25 WITHIN 0.10 EQUALRECTWIDTH ;" ;

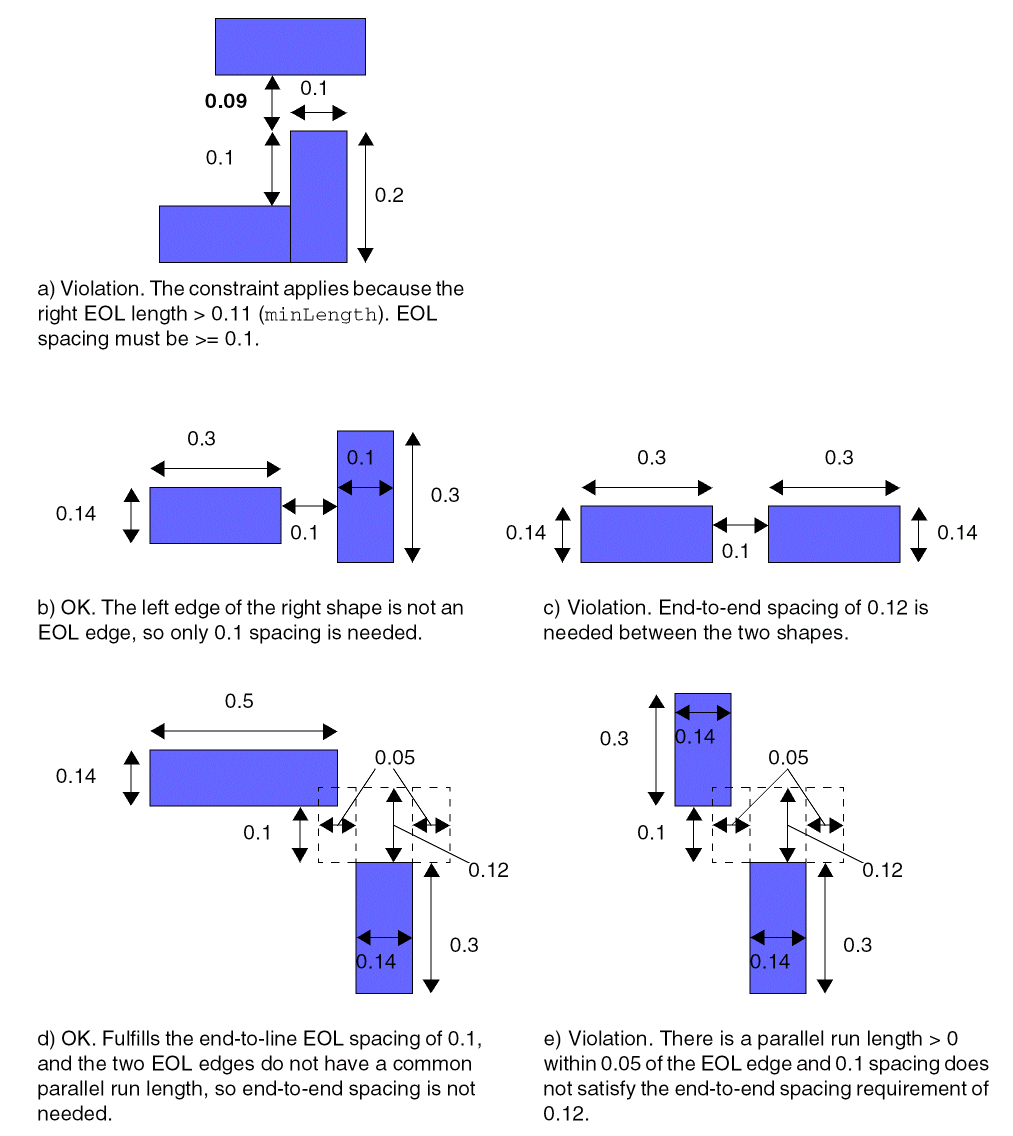

Example 7: minEndOfLineSpacing with endToEndSpacing and minLength

set_constraint_parameter -name width -Value 0.15
set_constraint_parameter -name distance -Value 0.05
set_constraint_parameter -name count -IntValue 0
set_constraint_parameter -name endToEndSpacing -Value 0.12
set_constraint_parameter -name minLength -Value 0.11
set_layer_constraint -layer Metal2 -constraint minEndOfLineSpacing \
 -Value 0.10

PROPERTY LEF58_SPACING
"SPACING 0.10 ENDOFLINE 0.15 WITHIN 0.05
   ENDTOEND 0.12
   MINLENGTH 0.11 ;" ;

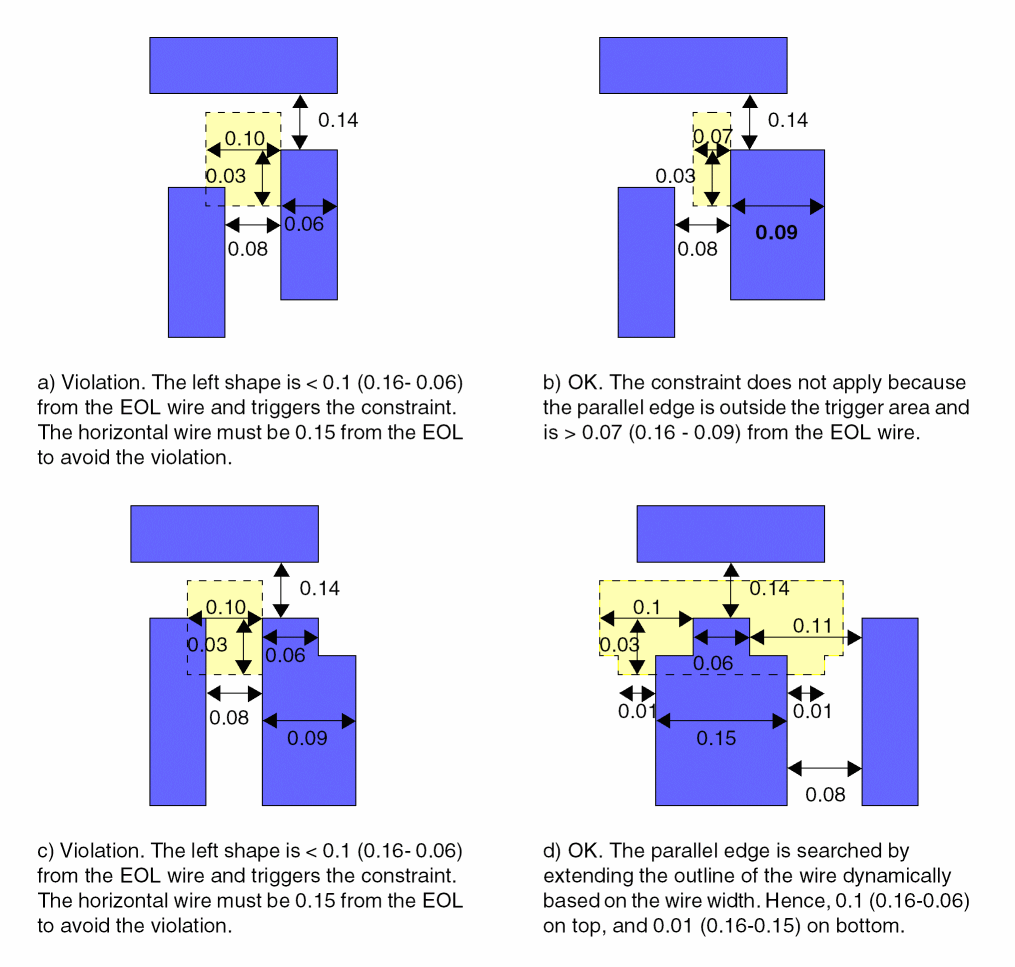

Example 8: minEndOfLineSpacing with subtractEndOfLineWidth

set_constraint_parameter -name width -Value 0.1
set_constraint_parameter -name distance -Value 0.05
set_constraint_parameter -name count -IntValue 1
set_constraint_parameter -name subtractEndOfLineWidth \
 -BoolValue true
set_constraint_parameter -name parallelEdgeSpace -Value 0.16 set_constraint_parameter -name parallelEdgeWithin -Value 0.03
set_layer_constraint -layer Metal2 -constraint minEndOfLineSpacing \
 -Value 0.15

PROPERTY LEF58_SPACING
"SPACING 0.15 ENDOFLINE 0.1 WITHIN 0.05
   PARALLELEDGE SUBTRACTEOLWIDTH 0.16 WITHIN 0.03 ;" ;

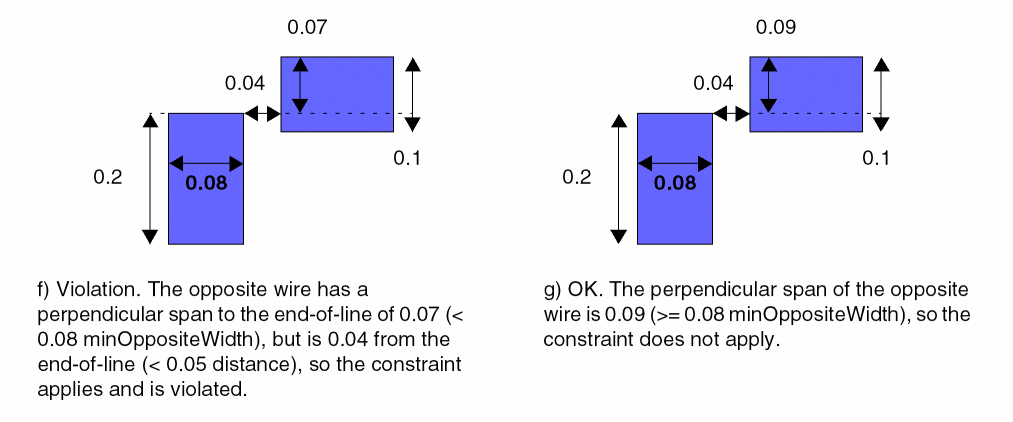

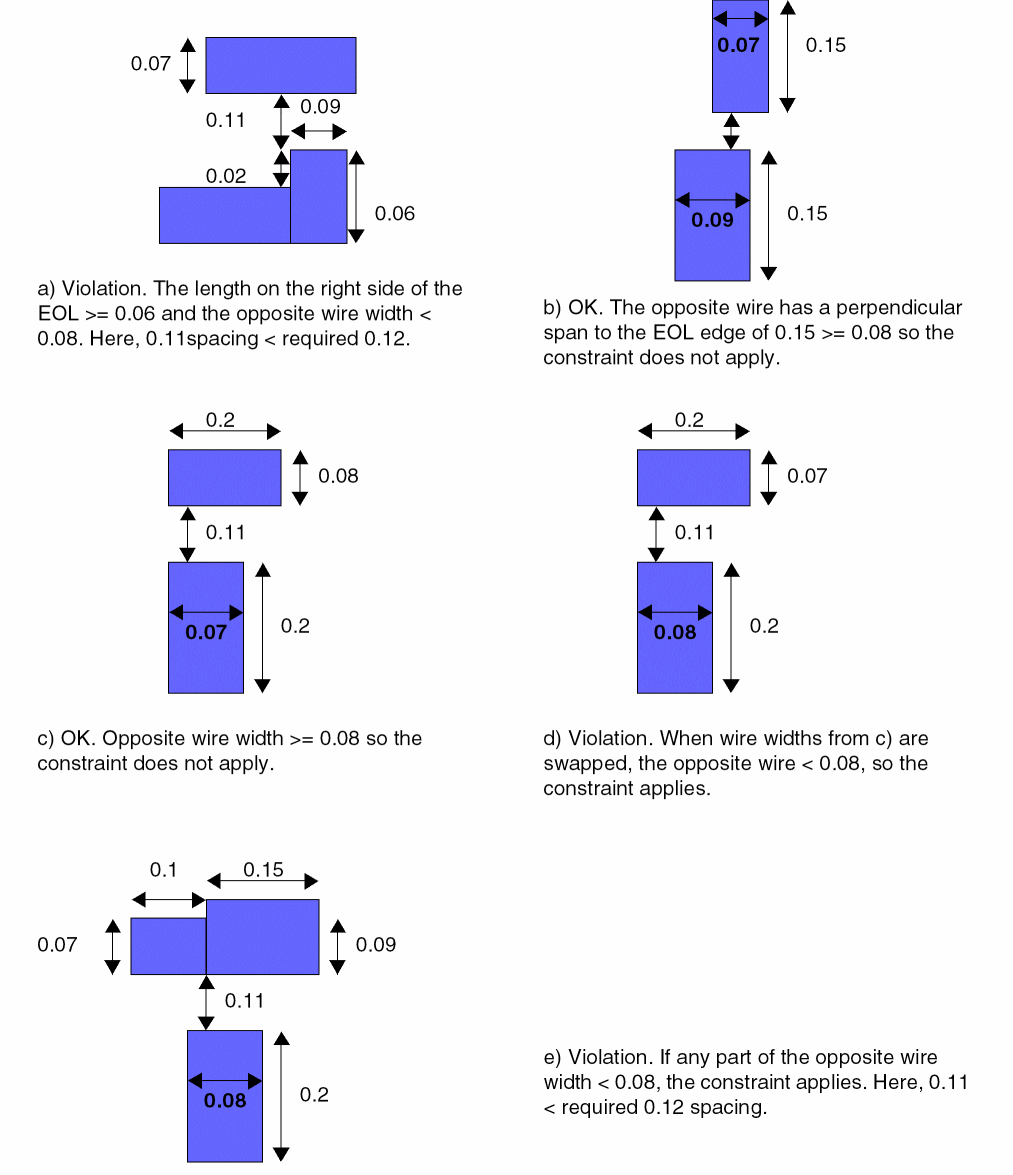

Example 9: minEndOfLineSpacing with minOppositeWidth and minLength

set_constraint_parameter -name width -Value 0.1
set_constraint_parameter -name distance -Value 0.05
set_constraint_parameter -name count -IntValue 0
set_constraint_parameter -name minOppositeWidth -Value 0.08
set_constraint_parameter -name minLength -Value 0.06 set_layer_constraint -layer Metal2 -constraint minEndOfLineSpacing \
 -Value 0.12

PROPERTY LEF58_SPACING
"SPACING 0.12 ENDOFLINE 0.1 OPPOSITEWIDTH 0.08 WITHIN 0.05
   MINLENGTH 0.06 ;" ;

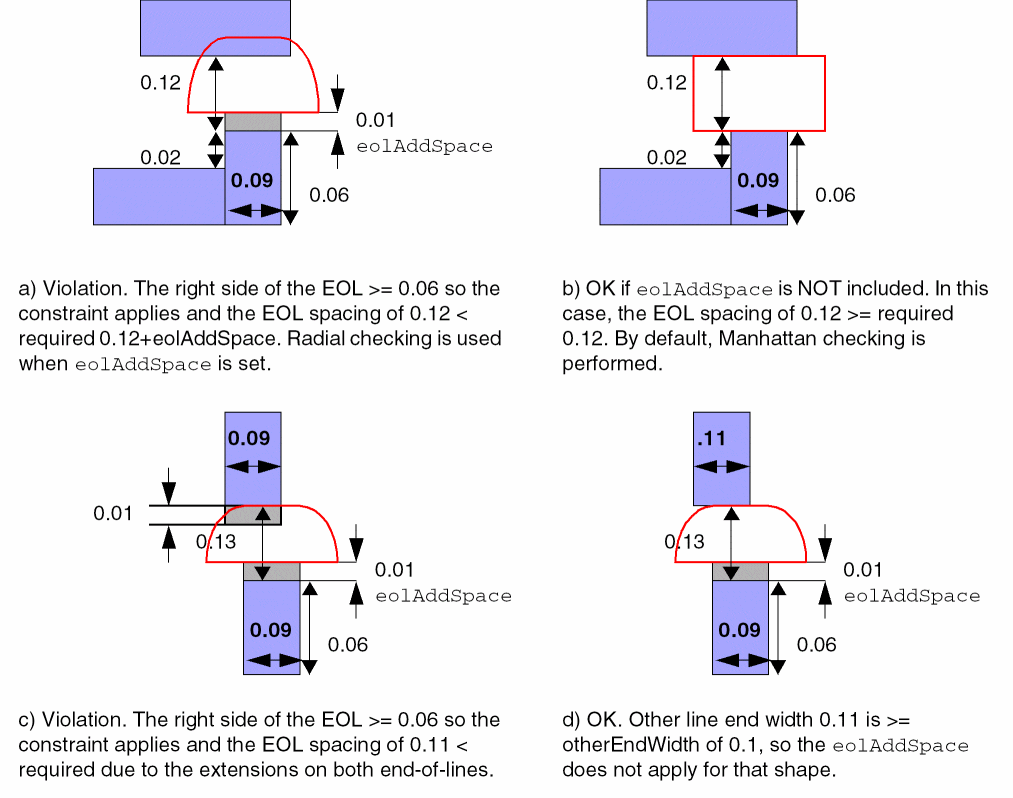

Example 10: minEndOfLineSpacing with eolAddSpace, otherEndWidth and minLength

set_constraint_parameter -name width -Value 0.1
set_constraint_parameter -name distance -Value 0.05
set_constraint_parameter -name count -IntValue 0
set_constraint_parameter -name otherEndWidth -Value 0.1
set_constraint_parameter -name eolAddSpace \
  -OneDTblValue {0 0.01 0.1 0} -row_interpolation snap_down \   -row_extrapolation { snap_down snap_down)
set_constraint_parameter -name minLength -Value 0.06 set_layer_constraint -layer Metal2 -constraint minEndOfLineSpacing \
 -Value 0.12

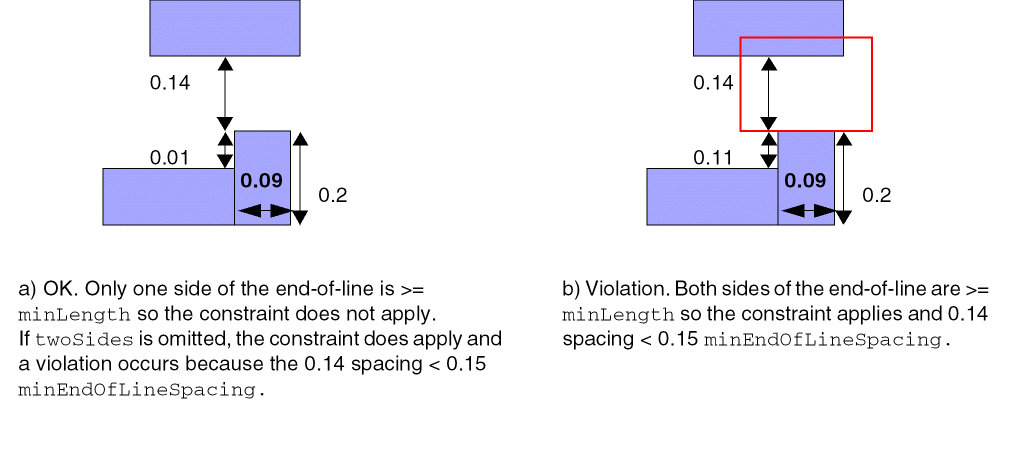

Example 11: minEndOfLineSpacing with minLength and twoSides

set_constraint_parameter -name width -Value 0.1
set_constraint_parameter -name distance -Value 0.05
set_constraint_parameter -name count -IntValue 0
set_constraint_parameter -name minLength -Value 0.11 set_constraint_parameter -name twoSides -BoolValue true
set_layer_constraint -layer Metal2 -constraint minEndOfLineSpacing \
 -Value 0.15

SPACING 0.15 ENDOFLINE 0.1 WITHIN 0.05 MINLENGTH 0.11 TWOSIDES

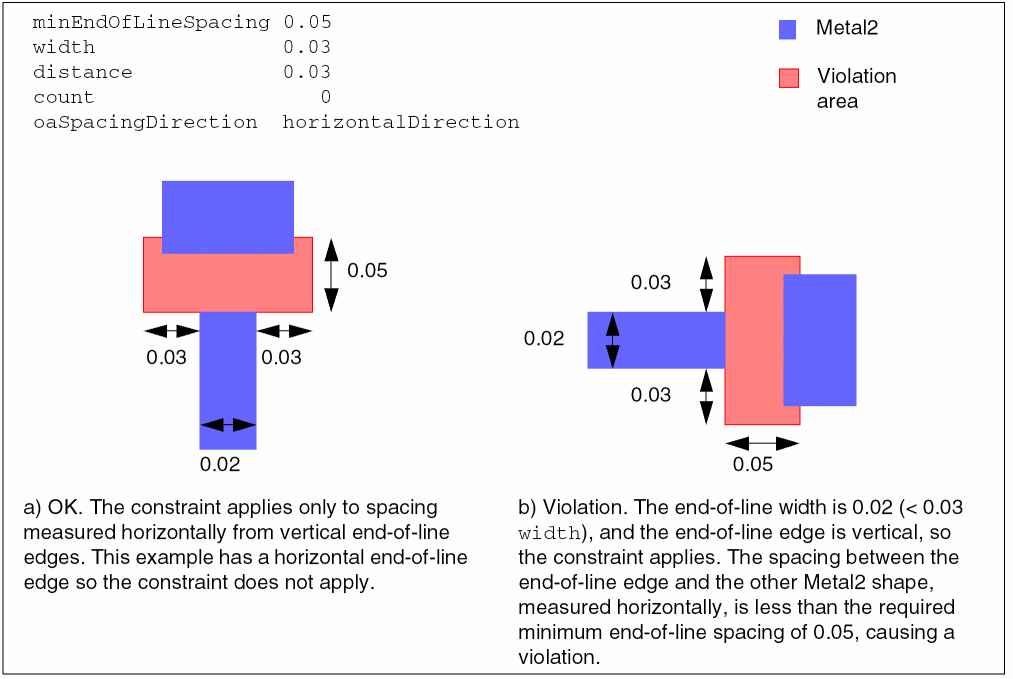

Example 12: minEndOfLineSpacing with oaSpacingDirection

In this example, the minimum end-of-line spacing measured in the horizontal direction is 0.05 user units for an end-of-line on Metal2 that is less than 0.03 in width, and applies only to vertical end-of-line edges. The violation area extends 0.03 to the sides of the end-of-line, as shown in the following figure.

set_constraint_parameter -name width -Value 0.03
set_constraint_parameter -name distance -Value 0.03
set_constraint_parameter -name count -IntValue 0
set_constraint_parameter -name oaSpacingDirection \
 -StringAsIntValue horizontalDirection
set_layer_constraint -layer Metal2 -constraint minEndOfLineSpacing \
 -Value 0.05

spacings(
  ( minEndOfLineSpacing "Metal2"
  'horizontal
  'width 0.03
  'distance 0.03
  0.05
  )
); spacings

Example 13: minEndOfLineSpacing with widthRangeArray, extendBy and sizeBy

In this example, the minimum spacing is 0.3 user units to an end-of-line edge with width less than or equal to 0.3, or equal to 0.6 or 0.8, when the end-of-line edge and the adjacent shape are extended by 0.2 in the projection direction, and the end-of-line edge is extended by 0.1 on both sides.

set_constraint_parameter -name widthRangeArray \
 -RangeArrayValue {"<=0.3" "0.6" "0.8"}
set_constraint_parameter -name extendBy -Value 0.2
set_constraint_parameter -name sizeBy -Value 0.1
set_layer_constraint -layer Metal2 -constraint minEndOfLineSpacing \
 -Value 0.3

spacings(
  ( minEndOfLineSpacing "Metal2"
  'widthRanges ("<=0.3" "0.6" "0.8")
  'extendBy 0.2
  'sizeBy 0.1
  0.3
  )
); spacings

Example 14: minEndOfLineSpacing with endToEndSpacing, extendBy and sizeBy

In this example, the minimum spacing is 0.3 user units between end-of-line edges with width less than or equal to 0.3, or equal to 0.6 or 0.8, when both end-of-line edges are extended by 0.2 in the projection direction, and the target end-of-line edge is extended by 0.1 on both sides.

set_constraint_parameter -name widthRangeArray \
 -RangeArrayValue {"<=0.3" "0.6" "0.8"}
set_constraint_parameter -name extendBy -Value 0.2
set_constraint_parameter -name sizeBy -Value 0.1
set_constraint_parameter -name endToEndSpacing -Value 0.3
set_layer_constraint -layer Metal2 -constraint minEndOfLineSpacing \
 -Value 0.0

spacings(
  ( minEndOfLineSpacing "Metal2"
  'widthRanges ("<=0.3" "0.6" "0.8")
  'extendBy 0.2
  'sizeBy 0.1
  'endToEndSpace 0.3
  0.0
  )
); spacings

Related Topics

Spacing Constraints
