Abutment Event 4

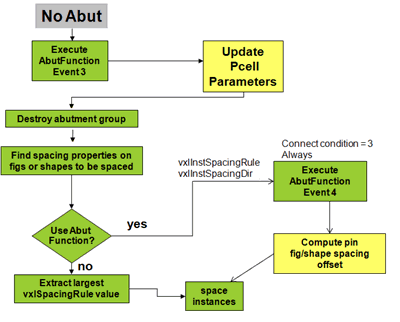

In this event, the abutment engine verifies if the pin figures or shapes have a spacing property set. If the value of that property is set to abutFunction, the abutment engine executes Event 4 using the “Connect Always” condition. This allows adjusting the wells and guard rings for the non-abutted instances. The pin figures or shapes are moved based on the value returned by the spacing property. If the spacing property is not set, the instances are not moved.
