permuteRule Property

permuteRule string t_permuteRule

Description

Makes the instance pins or terminals of a device permutable.

• (p E1 E2) specifies that E1 and E2 are permutable.
• (f E1 E2) specifies that E1 and E2 are fixed (i.e., not permutable).

Alternatively, you can use the following syntax to same effect:

p (E1 E2)

f (E1 E2)

The permuteRule property can be defined on the layout or symbol master, in the CDF, or on the schematic or layout instance. Depending on where the permuteRule property is defined in a design, the rule that is used is based on the following precedence:

1. Look for the autoPermutePins property on the layout instance. If the property is set to false, do not permute.
2. Look for the permute rule in CDF to get the instance CDF for the layout instance. Search for the permuteRule CDF parameter. If the parameter is present and not an empty string, return the value. Else, search in simInfo and auLvs. If the parameter is present and not an empty string, return the value.
3. Find the schematic instance this layout instance is bound to and search for the permuteRule property on the schematic instance. If the parameter is present and not an empty string, return the value. Else, search for the permuteRule property on the master of the schematic instance. If the parameter is present and not an empty string, return that value. Else, search for the permuteRule property on the supermaster of the schematic instance. If the parameter is present and not an empty string, return the value.

Search for the permuteRule property on the layout instance. If the parameter is present and not an empty string, return the value. Else, search for the permuteRule property on the master of the layout instance. If the parameter is present and not an empty string, return that value. Else, search for the permuteRule property on the supermaster of the layout instance. If the parameter is present and not an empty string, return the value.

All pins that are not listed in the permuteRule property for a device are considered fixed. If you define the permuteRule property on a schematic symbol, that setting overrides any other rule defined in the layout for that instance.

You define the permuteRule in the Edit Component CDF form in either the Component Parameters section or the Simulation Information section. If it is defined in both sections, Layout XL uses the definition in the Component Parameters section.

After you add the permuteRule in the Edit Component CDF form, make sure that you run either of the following commands, for the permuteRule to take effect:

• Connectivity – Check – XL Compliance command
• Connectivity – Update – Binding

Alternatively, you can set the Update Connectivity Reference to None and then again set to the schematic for the property to take effect.

If you want Layout XL to permute pins automatically, switch on the Permute pins option in the Generation of the Connectivity form. If this option is switched off, you can only permute pins manually. Use the Disable Permutation constraint to prevent permutation for a selected instance. See Disabling Permutation for an Instance.

Symbol master Add Property form
Name	permuteRule
Type	string
Value	t_permuteRule

Add CDF Parameter form
Add After Parameter	As First Parameter
paramType	string
name	permuteRule
defValue	t_permuteRule

Examples

• To specify that pins E1 and E2 are permutable, use the following permuteRule.


  (p E1 E2)

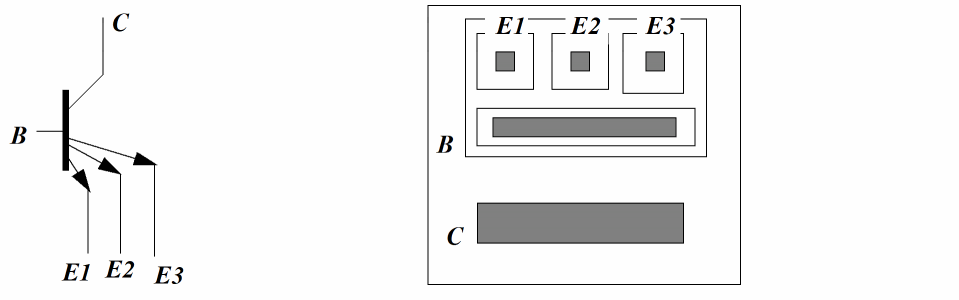

• To specify that pins E1, E2, and E3 are permutable, use the following permuteRule.


  (p E1 E2 E3)

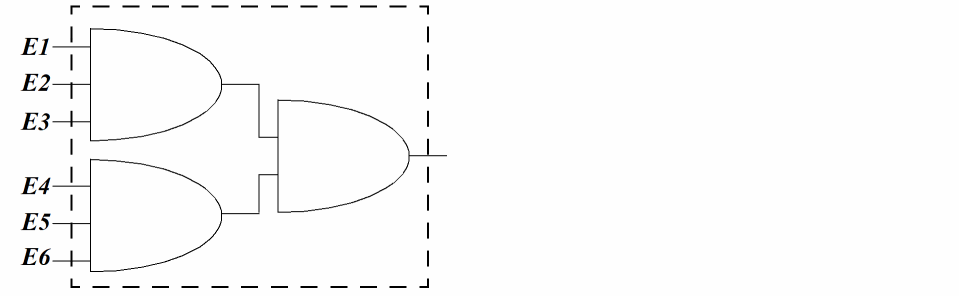

• You can also specify a hierarchical permuteRule. For example, the value below defines two sets of permutable pins (E1, E2, E3 and E4, E5, E6) and specifies that the two sets are permutable with each other.


  (p (p E1 E2 E3) (p E4 E5 E6))




• The following permuteRule value defines two sets of permutable pins (E1, E2, E3 and E4, E5, E6) and specifies that the two sets are not permutable with each other.


  (f (p E1 E2 E3) (p E4 E5 E6))

Here is a sample block of code to look for permuteRule for a given layout instance. If the value returned is an empty string, it implies no permute.

string findPermuteRule(dbInstId layInst)  {

      if (layInst->hasBoolProp("autoPermutePins", &pValue)) {

   if (pValue == false) {

  return "";

    }

     }

     cdf = getInstCDF(layInst);

     if (param = cdf->findParam(layInst, "permuteRule") {

  if (param->valueNotEmptyString()) {

       return param->value();

  }

  return ""

     } else if (param = cdf->findParam(layInst,

"simInfo/auLvs/permuteRule")) {

   // look for permuteRule property in CFD simInfo, under auLvs

   if (param->valueNotEmptyString()) {

        return param->value();

     }

     schInst = binder->findSchInst(layInst);    // find schematic instance

this layout instance is bound to

    if (schInst->hasStringProp("permuteRule", &pValue)) {

   if (pValue->valeNotEmptyString()) {

        return pValue;

   }

    }

    schMaster = schInst->master;

    if (schMaster->hasStringProp("permuteRule"), &pValue)) {

  if(pValue->valueNotEmptyString()) {

       return pValue;

  }

     }

     schSuperMaster = schMaster->superMaster;

     if (schSuperMaster->hasStringProp("permuteRule"), &pValue)) {

  if(pValue->valueNotEmptyString()) {

     return pValue;

  }

     }

      if (layInst->hasStringProp("permuteRule", &pValue)) {

   if (pValue->valeNotEmptyString()) {

        return pValue;

   }

    }

    layMaster = layInst->master;

    if (layMaster->hasStringProp("permuteRule"), &pValue)) {

  if(pValue->valueNotEmptyString()) {

       return pValue;

  }

     }

     laySuperMaster = layMaster->superMaster;

     if (laySuperMaster->hasStringProp("permuteRule"), &pValue)) {

  if(pValue->valueNotEmptyString()) {

     return pValue;

  }

     }

    return "";

}

Macros

To avoid entering long lists of permutable pins for the permuteRule property, use the following macro notations.

• (f ALL), which means that all the pins in the cell are fixed
• (p ALL), which means that all the pins in the cell are permutable
• Range indications, where pins are numbered or sorted as in bus notations.
  For example, the notation

  (p A<0:3> B<4:7>)

  is equivalent to

  (p A<0> A<1> A<2> A<3> B<4> B<5> B<6> B<7>)

  The notation

  (p (f A<0:3>) (f B<4:7>))

  defines two sets of fixed pins (A<0:3> and B<4:7>) which are permutable with each other
  You can also express range indications in descending order

  (p A<3:0> B<7:4>)
