Virtuoso Technology Data Constraints Reference
Product Version IC23.1, November 2023

minNeighborExtension

orderedSpacings(
( minNeighborExtension tx_metalLayer tx_cutLayer
 'cutClass {f_width | (f_width f_length) | t_name}
 'paraLengthRange g_paraLengthRange
 'withinRange g_withinRange
 ['width f_wireWidth]
 ['otherExtension f_otherExtension
  ['layer tx_otherMetalLayer]
  ['dualExtension f_ext1 f_ext2]
 ]
 ['mask1 | 'mask2 | 'mask3 | 'mask4]
 (f_ext f_oppExt)
)
) ;orderedSpacings

(Virtuoso Advanced Node for Layout Standard) Specifies the minimum extension of a metal shape past a cut shape if the distance between the cut shape and a neighboring wire falls in withinRange and the parallel run length between them falls in paraLengthRange. You can specify both a lower and an upper bound for withinRange and paraLengthRange. Only one such neighbor must exist when only the lower bound for withinRange and paraLengthRange is specified.

Additionally, for the constraint to apply, the neighboring wire must have an edge in the preferred routing direction facing the cut shape and this neighboring wire edge must not have a parallel run length greater than or equal to zero with the cut shape edge orthogonal to it.

The constraint specifies a pair of extension values—of which one applies to one set of opposite sides/edges of the cut shape and the other applies to the other set of opposite sides/edges of the cut shape. For example, if the first value is used to evaluate the extensions in the horizontal direction, the second value is used to evaluate the extensions in the vertical direction.

Optionally, the constraint applies only if the width of the metal shape (the shape drawn on metalLayer) enclosing the cut shape is less than wireWidth.

Values

tx_metalLayer

The metal layer on which the constraint is applied.

Type: String (layer and purpose names) or Integer (layer number)

tx_cutLayer

The cut layer on which the constraint is applied.

Type: String (layer and purpose names) or Integer (layer number)

f_ext f_oppExt



The extension values.

  • f_ext: The minimum extension on opposite sides in one direction, horizontal or vertical.
  • f_oppExt: The minimum extension on opposite sides in the perpendicular direction.

Parameters

'cutClass {f_width | (f_width f_length) | t_name}



The cut class to which the constraint applies, specified by width, by width and length, or by name (as defined in a cutClasses constraint).

  • f_width: Width
  • f_length: Length
  • t_name: Name of the cut class

'paraLengthRange g_paraLengthRange



The lower and, optionally, the upper bound for the parallel run length between the cut shape and the neighboring wire.

If upper bound is defined, it must be defined for both 'paraLengthRange and 'withinRange.

When only the lower bound is specified: The constraint applies if the parallel run length between the cut and the neighboring wire is greater than or equal to the lower bound.

When both lower and upper bounds are specified:

  • The constraint does not apply if neighboring wires are present on both sides of the cut shape inside the small search window defined using the lower bound values.
  • The constraint applies if a neighboring wire is present on one or both sides of the cut shape at a distance greater than or equal to the lower bound and less than the upper bound with parallel run length less than or equal to the lower bound and greater than the upper bound (that is, the neighboring wires must be inside the outer search window defined using the upper bound values).
The upper bound for 'withinRange must be greater than the lower bound. The upper bound for 'paraLengthRange must be less than the lower bound.

Type: Floating-point values specifying a range of parallel run lengths that trigger the constraint

'withinRange g_withinRange



The lower and, optionally, the upper bound for the distance between the cut and the neighboring wire.

If upper bound is defined, it must be defined for both 'paraLengthRange and 'withinRange.

When only the lower bound is specified: The constraint applies if the distance between the cut shape and the neighboring wire is less than the lower bound.

When both lower and upper bounds are specified:

  • The constraint does not apply if neighboring wires are present on both sides of the cut shape inside the small search window defined using the lower bound values.
  • The constraint applies if a neighboring wire is present on one or both sides of the cut shape at a distance greater than or equal to the lower bound and less than the upper bound with parallel run length less than or equal to the lower bound and greater than the upper bound (that is, the neighboring wires must be inside the outer search window defined using the upper bound values).
The upper bound for 'withinRange must be greater than the lower bound. The upper bound for 'paraLengthRange must be less than the lower bound.

Type: Floating-point values specifying a range of distances that trigger the constraint

'width f_wireWidth



The constraint applies only if the width of the metal shape (the shape drawn on metalLayer) enclosing the cut shape is less than this value.

'otherExtension f_otherExtension



The constraint applies only if the extension of the "below" metal shape is less than this value on either side of the cut shape in a direction perpendicular to the direction of the "above" metal shape containing the cut shape.

You can specify a metal layer other than the default "below" metal layer by using the 'layer parameter.

'layer tx_otherMetalLayer



The layer on which the 'otherExtension parameter applies.

Type: String (layer name) or Integer (layer number)

'dualExtension f_ext1 f_ext2



The constraint does not apply if the extension of otherMetalLayer shape past the cut shape:

  • Is greater than or equal to the smaller of the two specified extension values on all four sides, including the corners
  • Is greater than or equal to the larger of the two specified extension values on any two opposite sides of the cut shape

'mask1 | 'mask2 | 'mask3 | 'mask4



(Virtuoso Advanced Node for Layout Only) The constraint applies only if the cut shape is enclosed by a shape on the specified mask on the metal layer on which the constraint is specified.

Type: Boolean

Examples

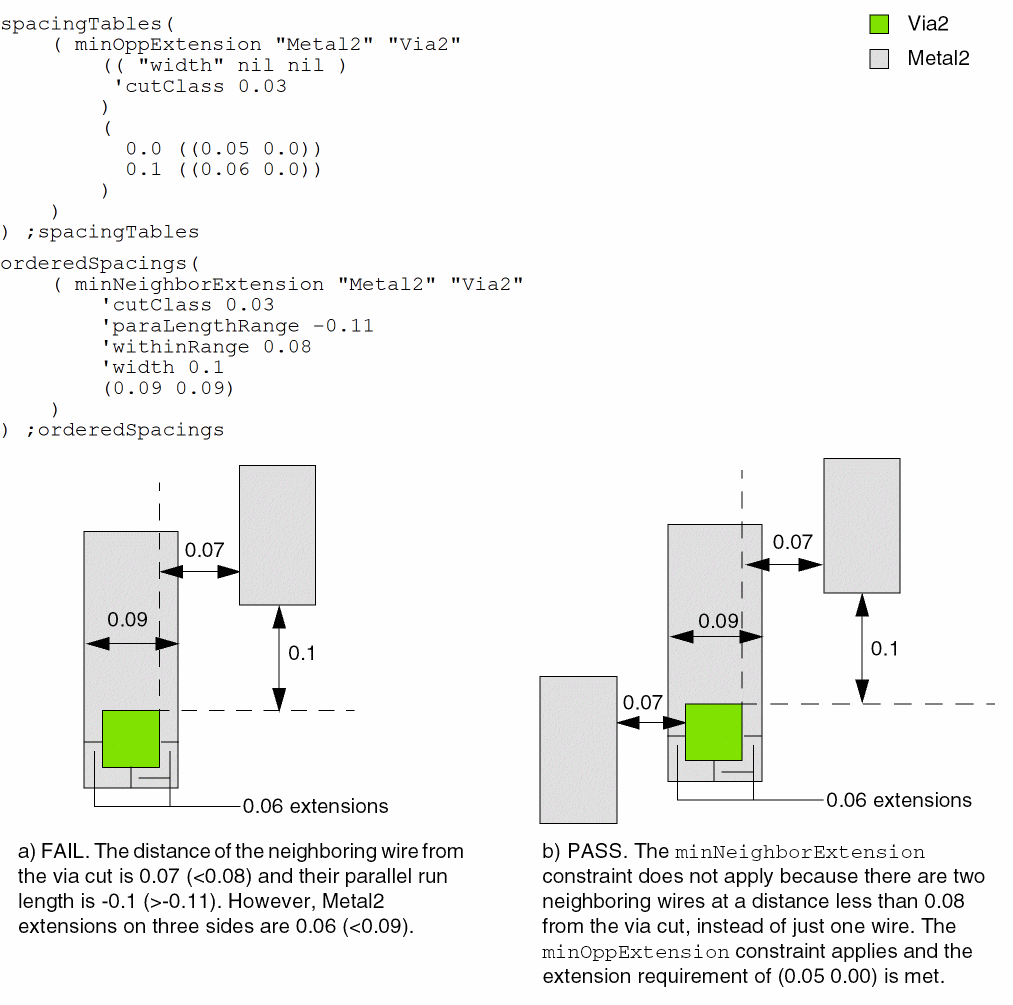

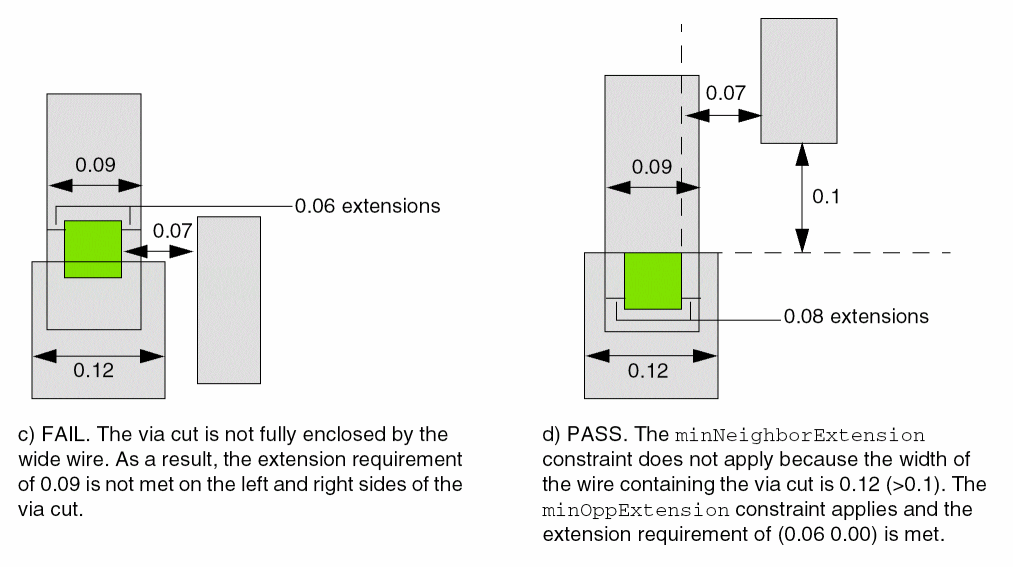

Example 1: minNeighborExtension with cutClass, paraLengthRange, withinRange, and width

The extensions of a Metal2 shape on all sides of a Via2 cut shape with dimensions 0.03x0.03 must be at least 0.09 if a neighboring wire is present at a distance less than 0.08 from the cut shape and has parallel run length greater than or equal to -0.11 with the cut shape.

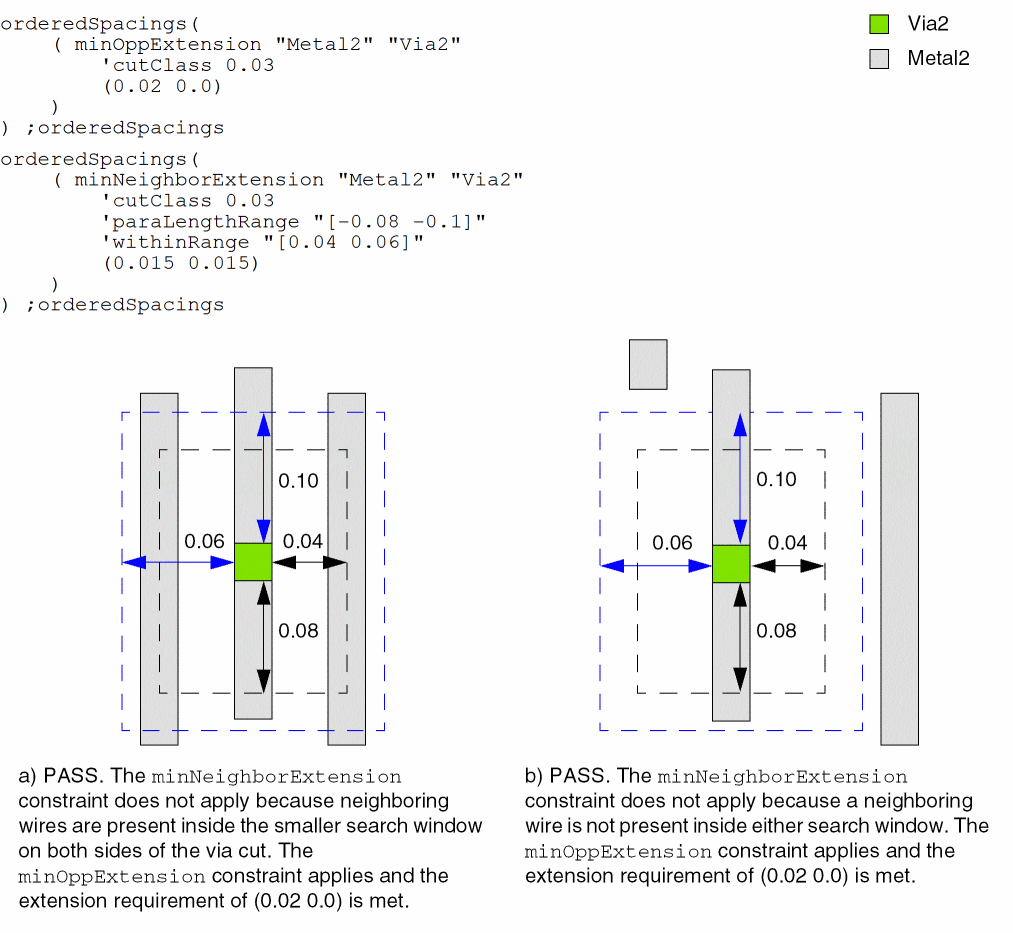

Example 2: minNeighborExtension with cutClass, paraLengthRange, and withinRange

The extensions of a Metal2 shape on all sides of a Via2 cut shape with dimensions 0.03x0.03 must be at least 0.015 if a neighboring wire is present:

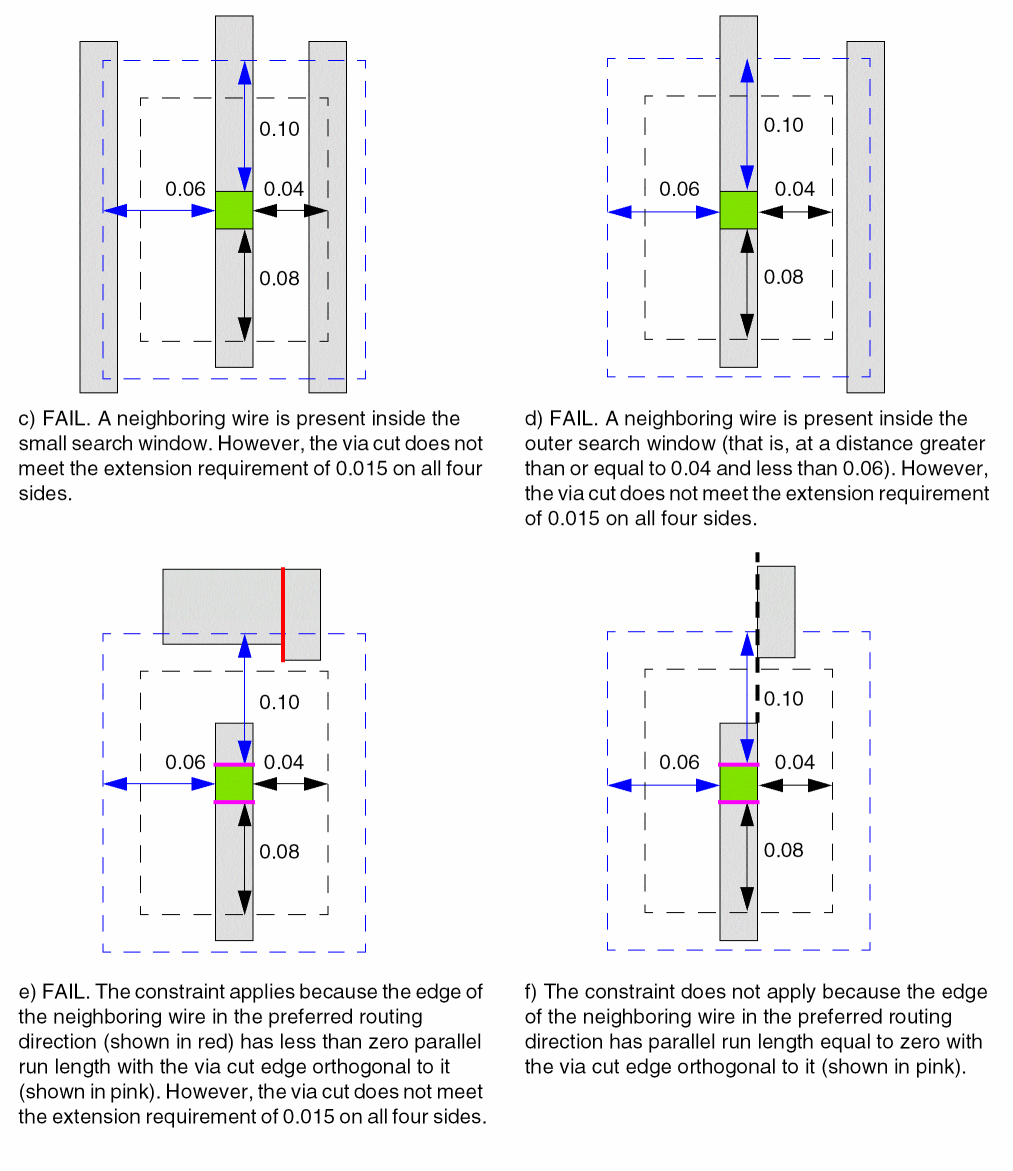

Because upper bounds are defined for parallel run length and distance (-0.1 and 0.06, respectively), the constraint does not apply if a neighboring wire is present on both sides of the cut shape inside the small search window.

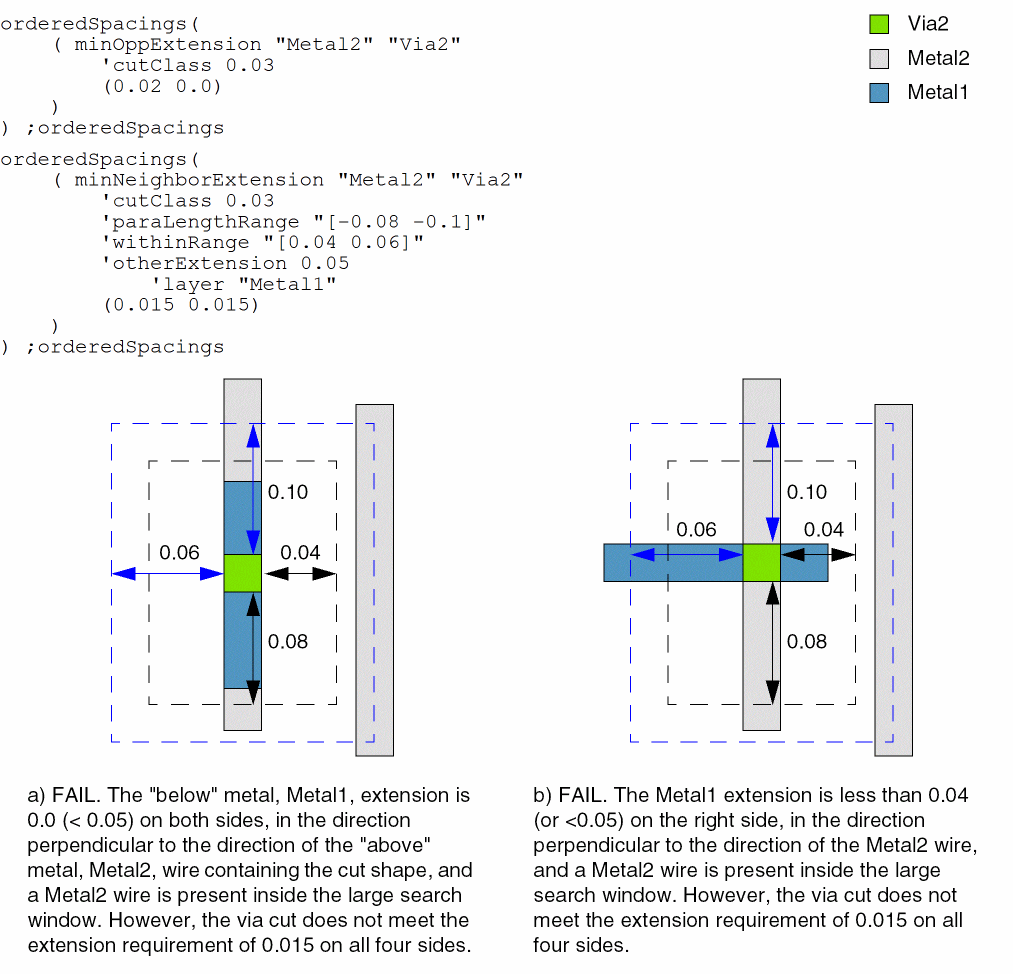

Example 3: minNeighborExtension with cutClass, paraLengthRange, withinRange, otherExtension, and layer

The extensions of a Metal2 shape on all sides of a Via2 cut shape with dimensions 0.03x0.03 must be at least 0.015 if all of the following conditions are met:

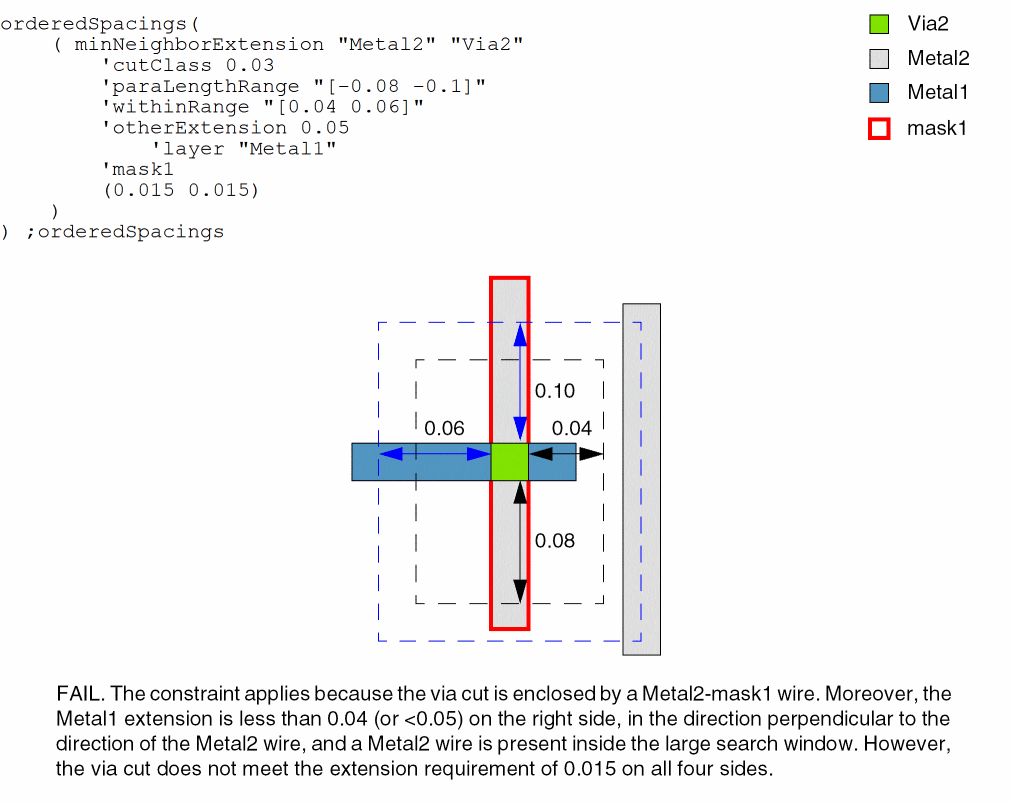

Example 4: minNeighborExtension with cutClass, paraLengthRange, withinRange, otherExtension, layer, and mask1

The extensions of a Metal2 shape on all sides of a Via2 cut shape with dimensions 0.03x0.03 must be at least 0.015 if all of the following conditions are met:
