8

---

Working with DSPF Files

---

The Detailed Standard Parasitic Format files (DSPF files) contain the post-layout data, which includes the designed and parasitic devices in a design. These files are created using the parasitic extraction tools. Therefore, the content and format of each DSPF file is dependent on the extraction tool. To run simulations for designs containing devices represented by DSPF files, ADE Assembler needs to consider these components in a way different than the devices with schematic.

The following sections explain how you can use DSPF files while running simulations in ADE Assembler:

• Including DSPF Files in the Setup
• Rules for Adding Prefixes to Instance Names
• Customizing Netlist Creation Using the Options in .simrc
• Customizing Netlist Creation Using Environment Variable

Including DSPF Files in the Setup

You can include DSPF files in the ADE Assembler setup in the following ways:

• Specifying DSPF Files in the Simulation Files Setup Form
• Sweeping DSPF Files in the Corners Setup Form
• Sweeping DSPF Files in the Simulation Files Setup Form Using the VAR Function
• Sweeping DSPF Files in the Corners Setup Form Using the VAR Function
• Binding a DSPF View to a Design

Specifying DSPF Files in the Simulation Files Setup Form

To specify a DSPF file for a test, perform the following steps:

1. In the Data View assistant, right-click a test and choose Simulation Files.
   The Simulation Files Setup form is displayed.

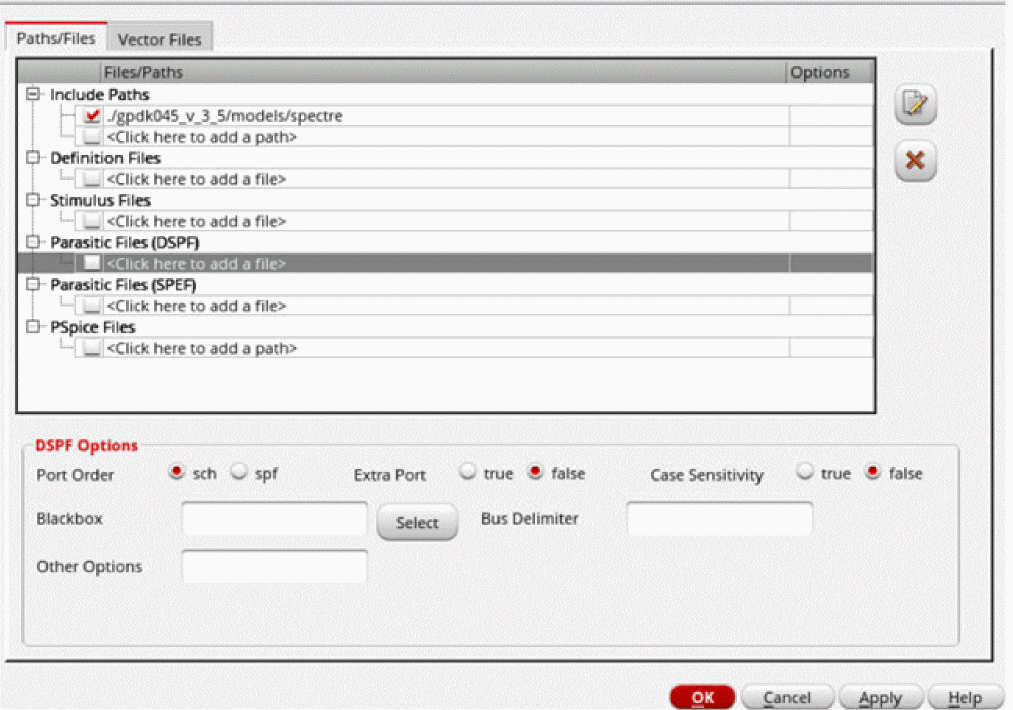

2. On the Paths/Files tab of the Simulation Files Setup form, specify the name of the DSPF file in the Parasitic Files (DSPF) field.
   A few additional options are displayed in the DSPF Options section on the form.


3. Specify the additional options to be used for the included DSPF file.
   • Port Order: Specifies whether to take the port order of the subcircuit definition from the pre-layout schematic netlist or from the DSPF file subcircuit definition.
     • sch specifies that the port order is taken from schematic subcircuit definition.
     • spf specifies that the port order is taken from the DSPF subcircuit definition
   • Extra Port: Specifies how to handle extra ports in the DSPF or schematic subcircuit definition. By default, this option is set to false, which implies that the port number in the schematic and the DSPF file needs to be the same. If not, the simulation will stop. When you set this option to true, the extra ports in the DSPF subcircuit call are changed to internal nodes. In addition, the extra ports in the schematic subcircuit definition are connected to nodes with the same name in the DSPF netlist, otherwise, they will be floating.
   • Case Sensitivity: By default, the DSPF file is considered case insensitive. To make the DSPF file case-sensitive, set this option to true.
   • Blackbox: Specifies the instances to be considered as blackboxes. For the blackbox subcircuit instances, Spectre takes the port order from the DSPF subcircuit definition, and the content from the schematic (blackbox) subcircuit definition

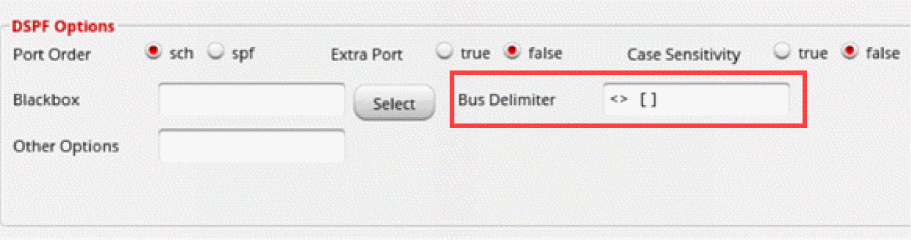

   • Bus delimiter: Enables you to map the bus delimiter between the schematic and DSPF or SPEF files. This option defines the bus delimiter in the schematic netlist, and optionally the bus delimiter in the DSPF file. By default, the bus delimiter of the DSPF file is automatically taken from the DSPF file header (that is, *|BUSBIT [ ] or *|BUS_DELIMITER [ ]). If the bus delimiter is not defined in the parasitic file header, you need to specify it in the dspf_include bus_delim statement. If both are specified, then the parasitic file bus delimiter is taken from the dspf_include bus_delim. This option specifies the value for dspf_include bus_delim.
     Buses are typically specified in the schematic using angular brackets as the delimiters, for example, bus<0:4>. Buses in the DSPF are flattened and use square brackets, for example, bus[0], bus[1], bus[2], bus[3], and bus[4]. To map between the different bus delimiters, specify the schematic bus delimiters followed by the DSPF bus delimiters in the Bus Delimiter field, as shown in the figure.


   • Other Options: Any dspf_include option other than those available on this form. For example, you can enter the auto_blackbox=true option to specify that Spectre needs to automatically consider a subckt as a blackbox subckt if it does not have the following:

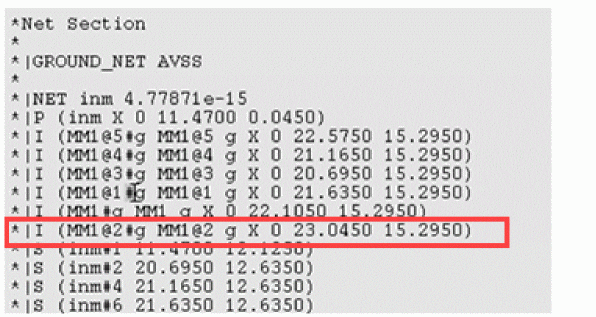

     • *|NET section
     • *|GROUND_NET section
     • Any valid device in the *Instance section
4. Click OK to save and close the form.
   ADE Assembler uses the DSPF file for the subcircuit defined in it.

   If you specify the same DSPF file in the Simulations Files Setup as well as in the Corners Setup, the simulations will not run.

Annotating DSPF Results for DC node Voltage and DC Operating Points

When you specify DSPF files in your simulation setup, you must manually add the cap parameter in the CDF Editor to view the DC node voltage and DC Operating points annotation for all devices.

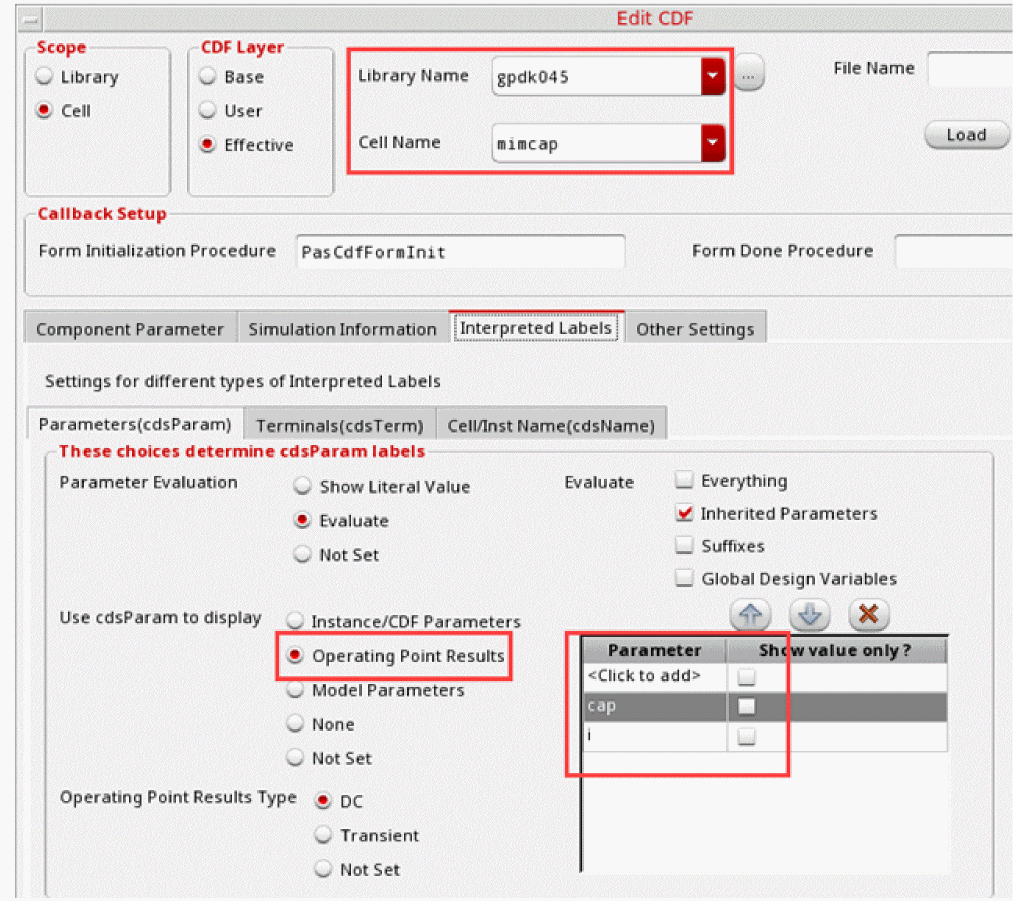

To add the cap parameter in the CDF Editor:

1. In the CIW, choose Tools – CDF – Edit.
   The Edit CDF form appears.
2. On the Edit CDF form:
   • In the Library Name field, select the library whose CDF you want to edit.
   • In the Cell Name list, select mimcap.
   • Click the Interpreted Labels tab.
   • On the Interpreted Labels tab, click the Parameters(cdsParam) tab.
   • On the Parameters(cdsParam) tab, select Operating Point Results from the Use cdsParam to display group of options.
     This enables the Parameters list box.
3. In the Parameter column, add cap.


4. Click OK.

To view the annotation for DC node voltage and DC Operating Points results in the schematic:

1. On the Results tab of the Outputs pane, right-click a data point and choose Annotate.
2. In the sub-menu that appears, select DC Node Voltages and DC Operating Points.
   Assembler annotates your design schematic with the DC node voltage values and DC operating point data.

Sweeping DSPF Files in the Corners Setup Form

If you have multiple DSPF files that you can use for a particular device, and you want to use one file at a time, you can sweep the files using the Corners Setup form.

To sweep the DSPF files:

1. Create a model file that a separate section for the each DSPF file to be swept.

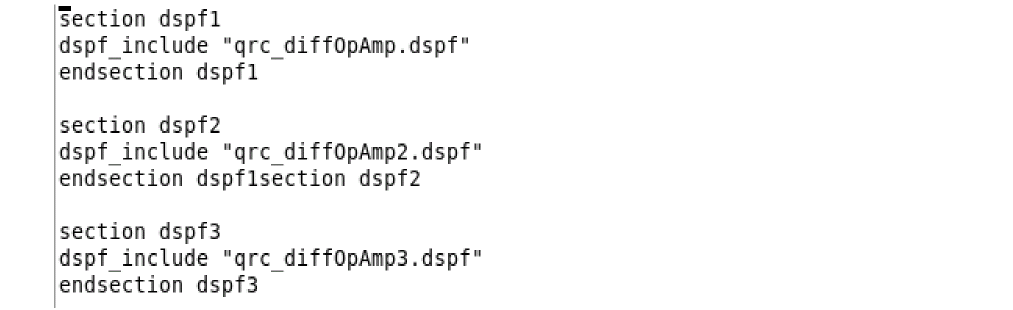

   The following code shows a sample content of a model file:

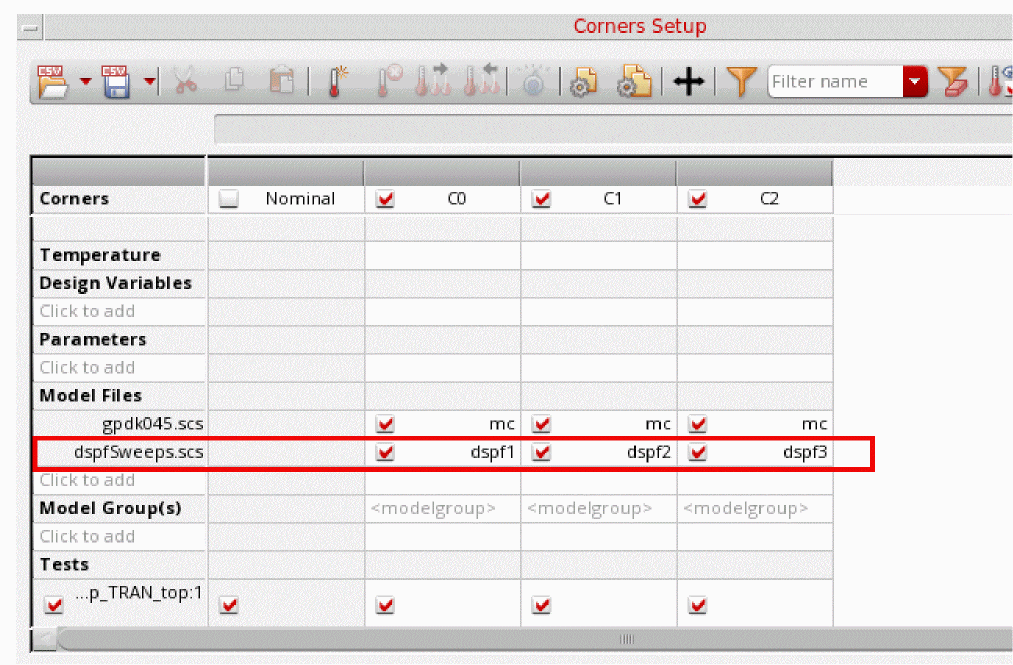

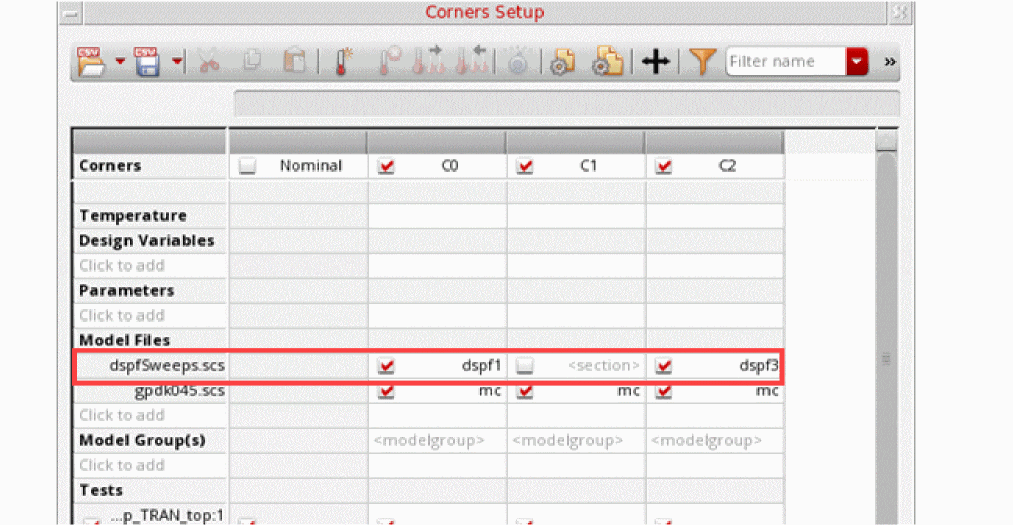

2. In the Corners Setup form, include the model file and select a unique section for each corner.


   ADE Assembler uses the DSPF file for the subcircuit defined in it.
   If required, you can use the schematic view for selected corners and a DSPF file for the remaining. For example, in the following corners setup, corner C1 is not using the DSPF file. Therefore, it will use the schematic view. In this case, the output shows the difference in values of corners C0 and C2 as compared to corner C1.

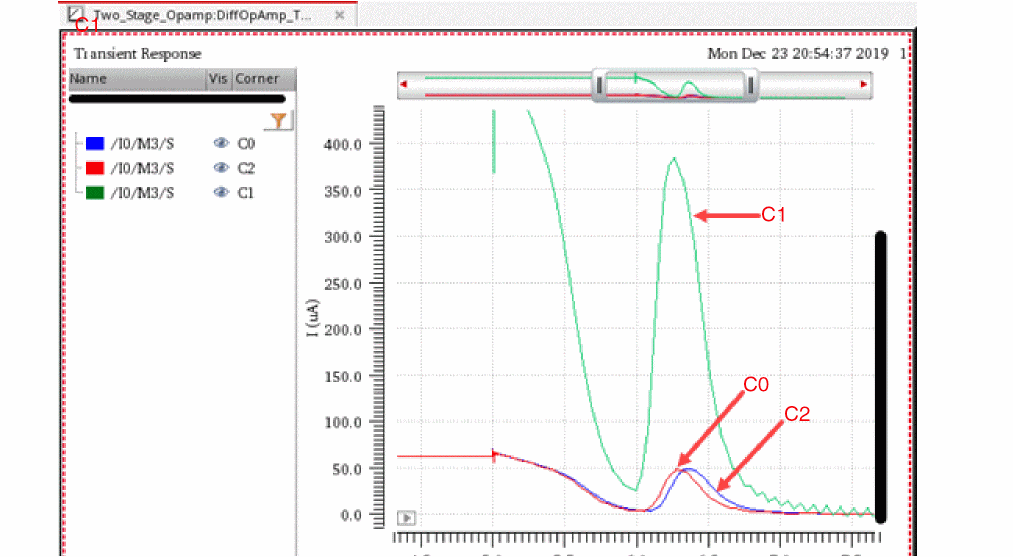

   The output shows the difference in values of corners C0 and C2 as compared to corner C1.


   If you specify the same DSPF file in the Simulations Files Setup as well as in the Corners Setup, the simulations will not run.

Sweeping DSPF Files in the Simulation Files Setup Form Using the VAR Function

To specify multiple DSPF files for a test in the Simulation Files Setup form:

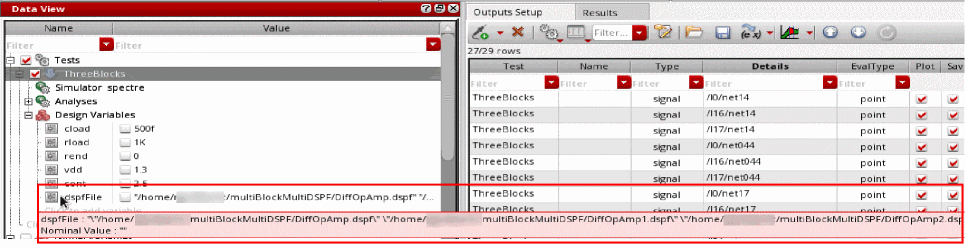

1. In the Data View assistant, add a design variable or global variable to specify the path to one or more DSPF files.


   Here, the design variable is named dspfFile and its value has been set to the path of three DSPF files.

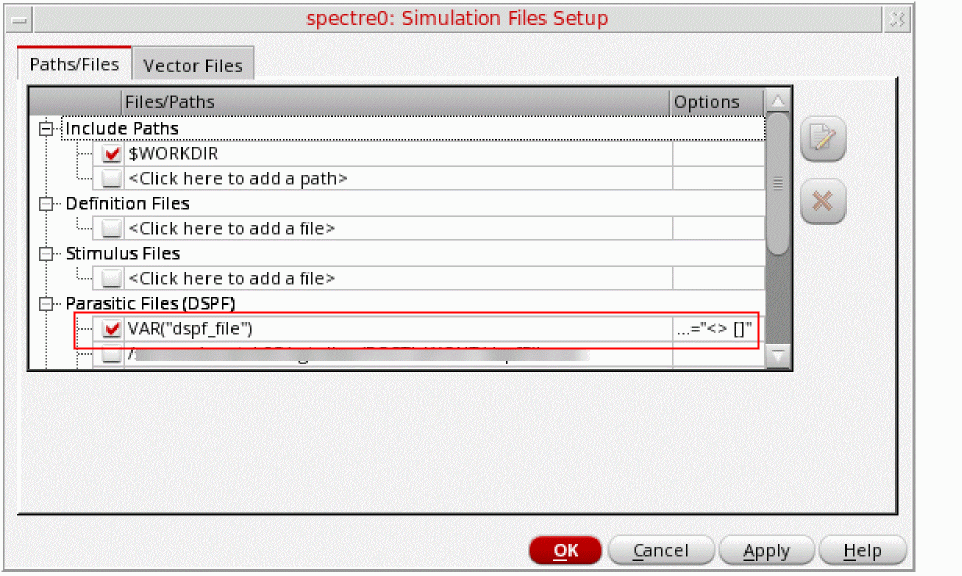

2. On the Paths/Files tab of the Simulation Files Setup form, specify the name of the design variable enclosed within the VAR function in the Parasitic Files (DSPF) field.


3. Click Run on the toolbar to run the simulation.
4. Right-click a point from the Results tab and select Plot Across Design Points from the context menu.

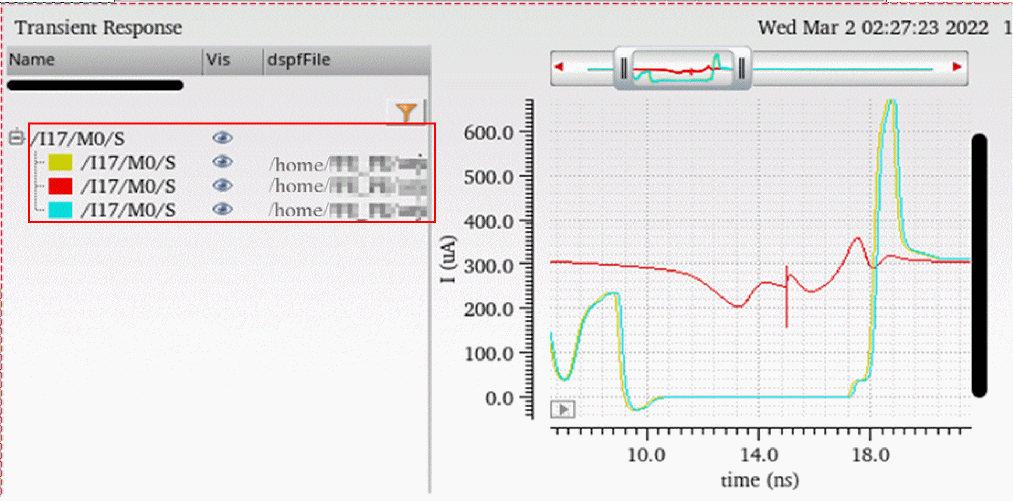

The Results Browser displays the plotted outputs for the three DSPF files that are swept.

Sweeping DSPF Files in the Corners Setup Form Using the VAR Function

To specify different DSPF files in the Corners Setup form:

1. Create a model file that contains sections to be used by multiple DSPF files.
   The following code shows the sample content of a model file:

   section dspf1
   dspf_include "DiffOpAmp.dspf"
   dspf_include "DiffOpAmpB.dspf"
   dspf_include "DiffOpAmpC.dspf"
   endsection dspf1

   section dspf2
   dspf_include "DiffOpAmp1.dspf"
   dspf_include "DiffOpAmpB1.dspf"
   dspf_include "DiffOpAmpC1.dspf"
   endsection dspf2

   section dspf3
   dspf_include "DiffOpAmp2.dspf"
   dspf_include "DiffOpAmpB2.dspf"
   dspf_include "DiffOpAmpC2.dspf"
   endsection dspf3

2. Save this model file at the required location.

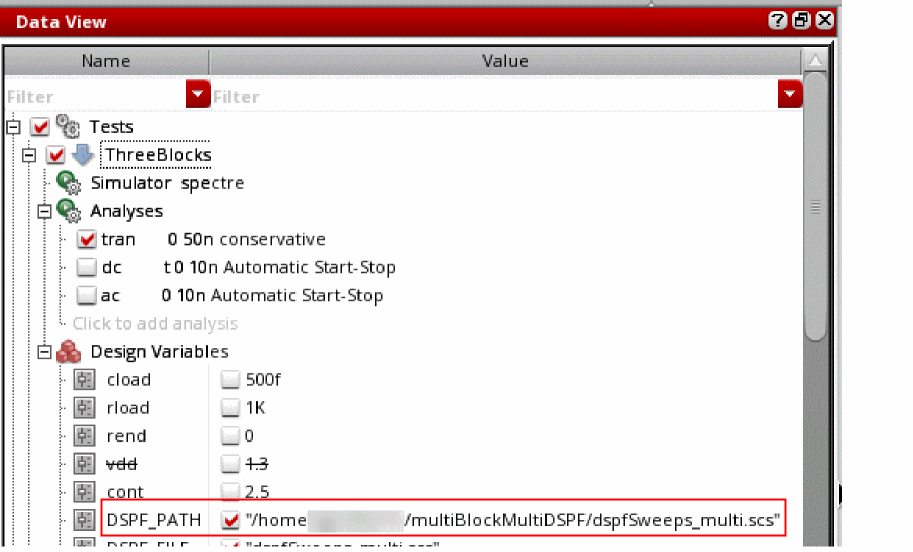

3. In the Data View assistant, specify a design variable, such as DSPF_PATH, that points to the location of the model file.


4. In the Data View assistant, right-click the Corners group and select Open Corners Setup.
   The Corners Setup form is displayed.

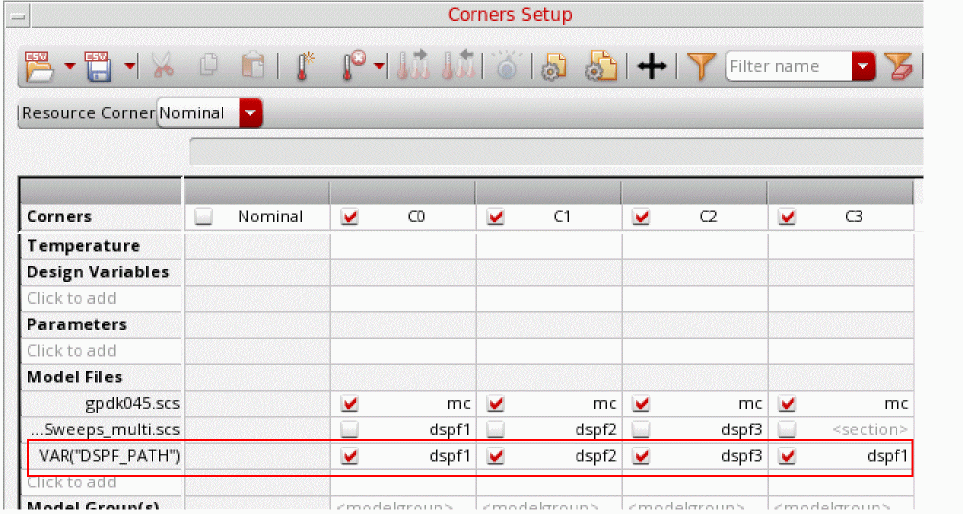

5. In the Model Files field, specify the model file by enclosing it within the VAR function and specify a section for each corner.


6. Click OK on the Corners Setup form.
7. Click Run on the toolbar to run the simulation.
8. Right-click a point from the Results tab and select Plot Across Corners from the context menu.

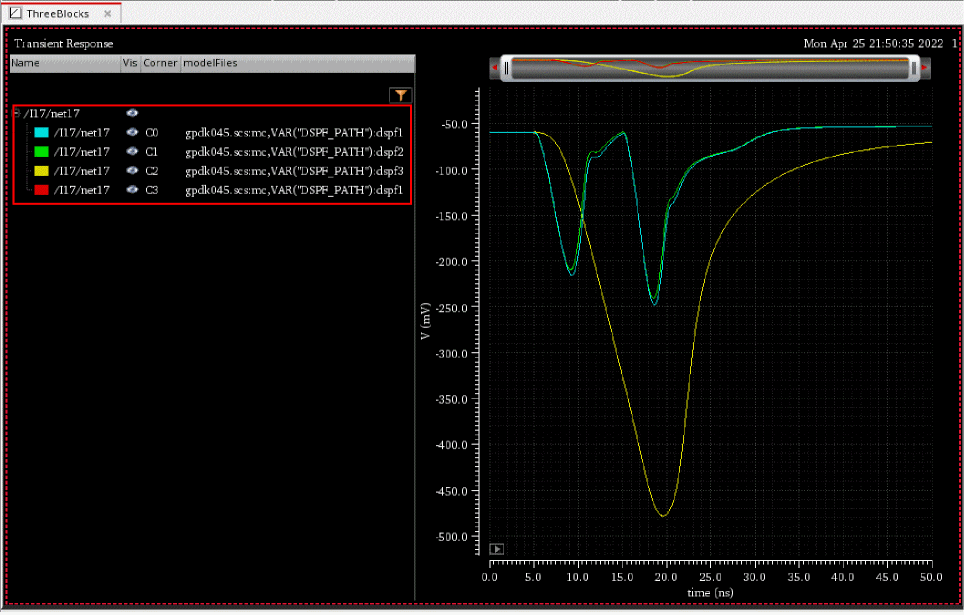

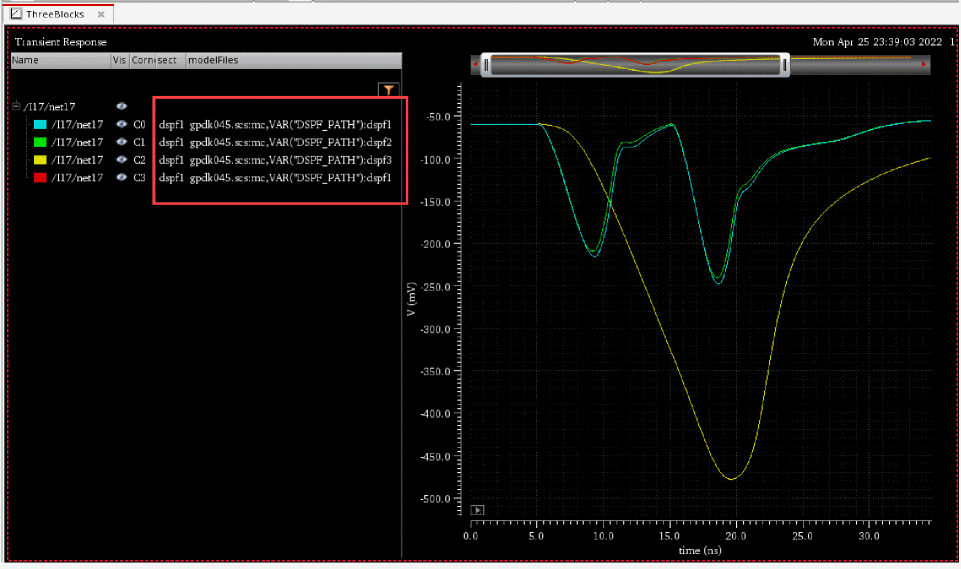

   The Results Browser displays the plotted outputs for all corners where different DSPF files have been swept.



   Here, each corner uses a different set of DSPF files.

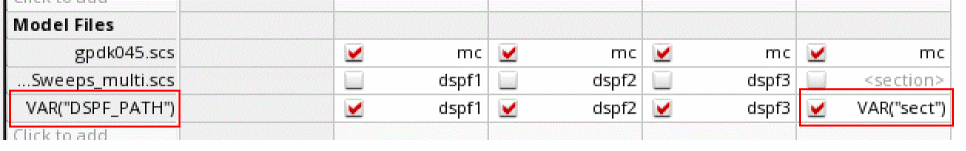

9. Optionally, in the Corners Setup form, use the VAR function to specify different model sections for a corner.


10. Click OK on the Corners Setup form.
11. Click Run to run the simulation.
12. Right-click a point from the Results tab and select Plot Across Corners from the context menu.
    The Results Browser displays the plotted outputs for all corners where different DSPF files as well as model sections have been swept.



Binding a DSPF View to a Design

If you need to replace the schematic of a particular device in your design with the DSPF view, you can bind the cellview to the corresponding DSPF view.

To do this:

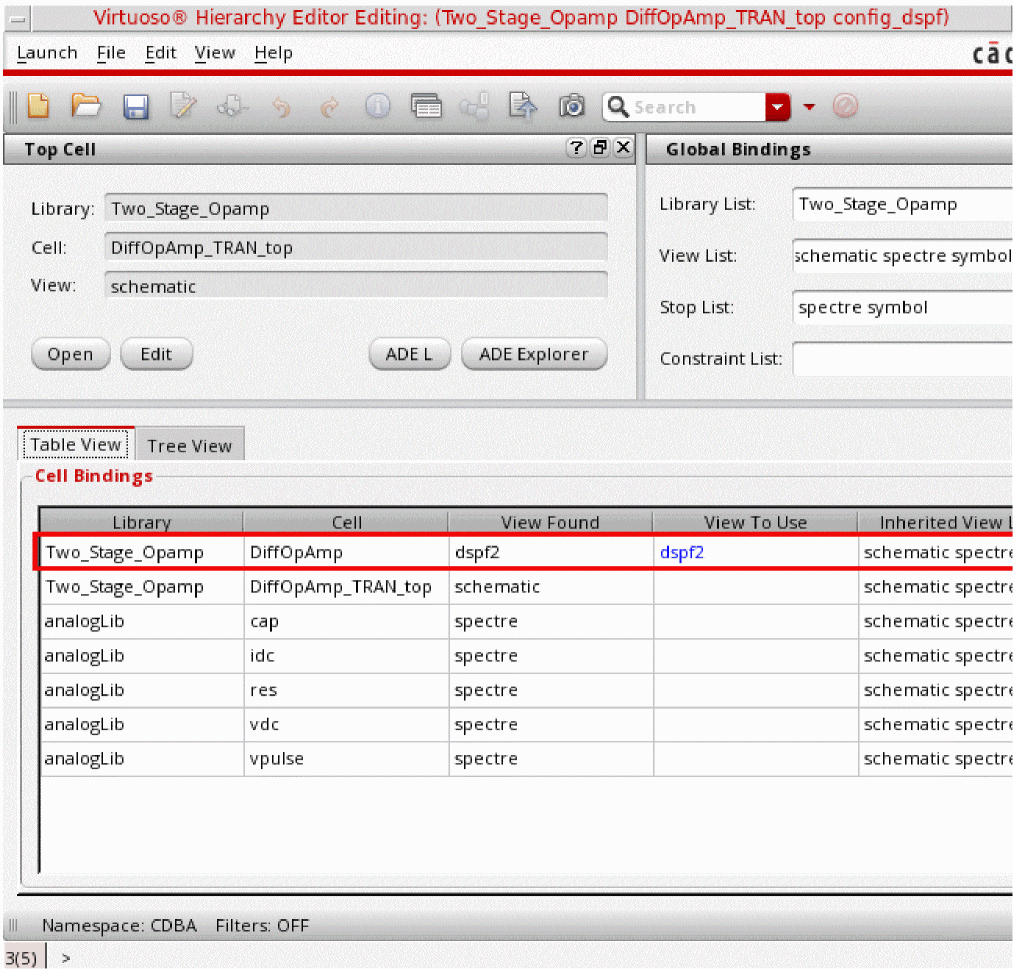

1. Create or edit the config view for its parent cellview in Virtuoso Hierarchy Editor.
2. Specify the DSPF view to be used in the View to Use column in the Cell Bindings table.


3. Save the changes in the Hierarchy Editor.

   If required, you can vary the DSPF view to be used for simulation by using the CONFIG sweep feature of ADE Assembler.

Rules for Adding Prefixes to Instance Names

The netlister determines the naming prefix for instances using the namePrefix property set in the Simulation Information section of the Edit CDF form.

The namePrefix for instances is decided as follows:

• If the namePrefix is not found in the CDF Simulation Information section, the netlister prints X as the namePrefix.
• If the namePrefix is the same as the first character of the device name, the netlister does not add a prefix to the instance name in the netlist.

If none of these conditions are met, the netlister adds the prefix namePrefix in the output of the instance. You can modify the prefixes that are chosen by either using the dspfNamePrefixSimInfo environment variable or the useSelfCDFInPostLayoutNetlist environment variable.

Examples

• When the namePrefix and the first character of the device name are the same
  The mimcap device is netlisted in the DSPF as C0, when the simulator used is auCdl.

  C0 outm#64 net044#67 AVSS g45cmim w=5e-06 l=5e-06 m=1 $x=15.29 $y=25.58

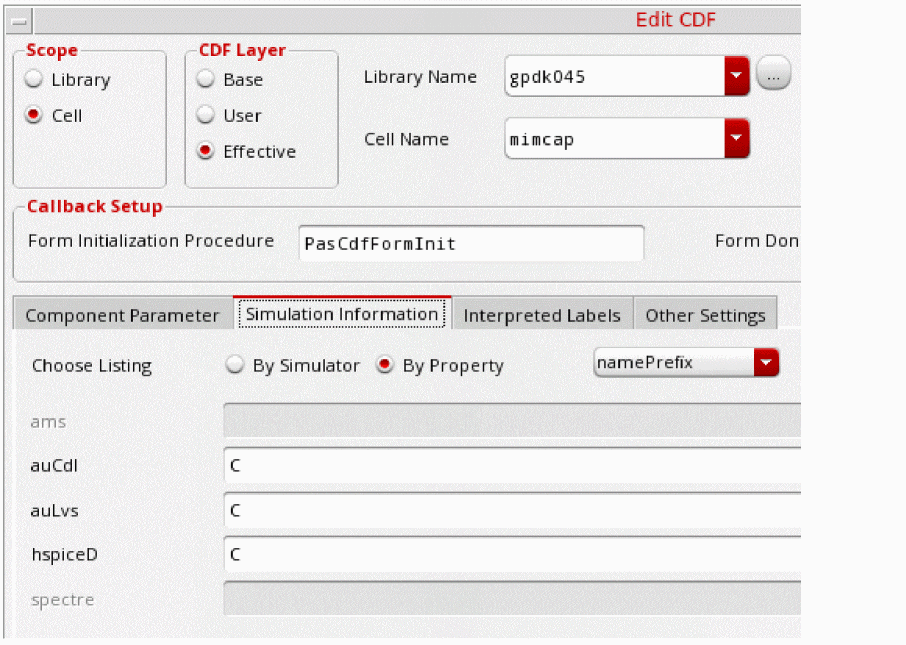

  Here, the namePrefix in the Edit CDF form is set to C, which is the same as the first character of the device name. According to the pre-defined rules, no prefix is added for mimcap in the DSPF file.
  Setting dspfNamePrefixSimInfo to ams or spectre will add an X prefix and the DSPF will print the device as follows:

  XC0 outm#64 net044#67 AVSS g45cmim w=5e-06 l=5e-06 m=1 $x=15.29 $y=25.58

• When namePrefix has no specified value
  Set the dspfNamePrefixSimInfo environment variable to a simulator, such as spectre, that does not have a namePrefix specified for mimcap.


  Based on the namePrefix rules, the X prefix is added to the devices.

  XC0 outm#64 net044#67 AVSS g45cmim w=5e-06 l=5e-06 m=1 $x=15.29 $y=25.58

• When the device name and namePrefix are different
  Consider that you have resistors in the netlist as shown below:

  R14@2 (net#222 net0178#12 gnd#1330 ) rhim_m lr=3.5e-06 wr=8e-07 + multi=(1) $x=69.656 $y=38.422

  To netlist this correctly with an X prefix, set dspfNamePrefixSimInfo to auCdl because the namePrefix for auCdl is X.



  XR14@2 (net#222 net0178#12 gnd#1330 ) rhim_m lr=3.5e-06 wr=8e-07 + multi=(1) $x=69.656 $y=38.422

  This is applicable in cases when the auCdl prefix is not the same as the first character of the device name.
• When namePrefix has a value for a specific simulator and none for others

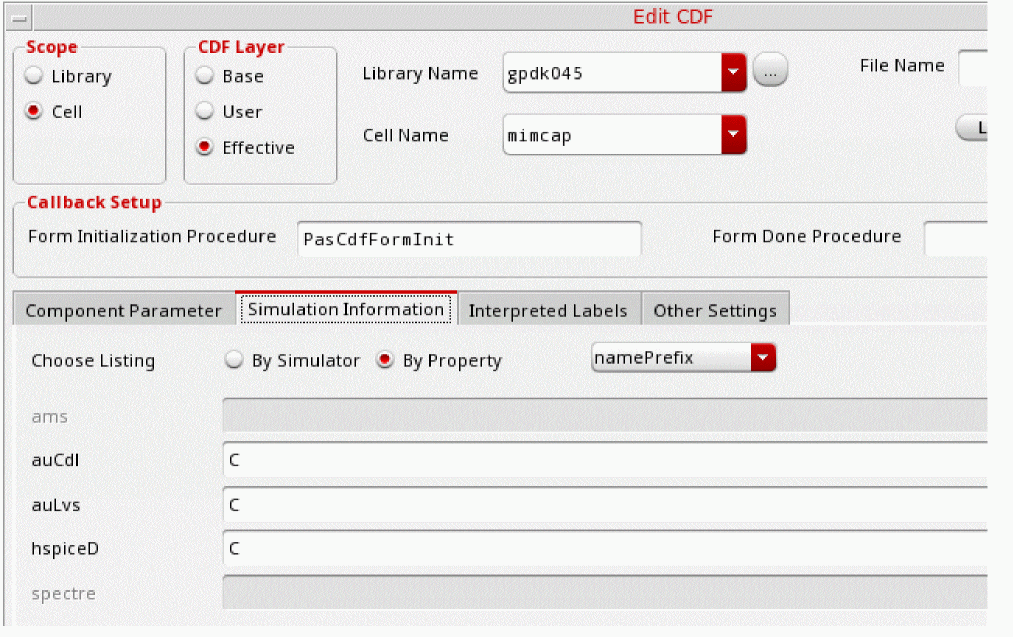

  Consider that a device has the namePrefix set to R for only the auCdl simulator, and no value for other simulators in the Edit CDF form. On netlisting, no prefix will be added to resistors if you set dspfNamePrefixSimInfo to auCdl.


  If you set dspfNamePrefixSimInfo to any other simulator name, the prefix X will be added as per the namePrefix rules.
• When namePrefix value is not shown

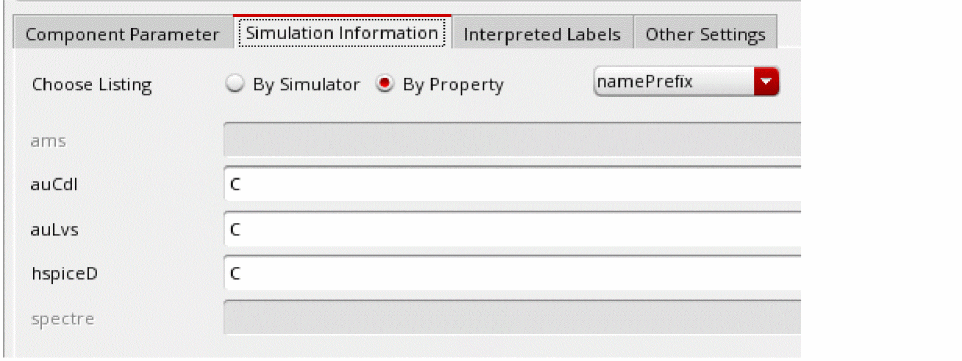

  The namePrefix for mimcap is C for the auCdl, auLvs, and hspiceD simulators, and disabled for ams and spectre.


  If you set dspfNamePrefixSimInfo to auCdl, auLvs, and hspiceD, no prefix is added, but if you set the environment variable to ams, or spectre, the prefix X is added to the devices.

  XC0 outm#64 net044#67 AVSS g45cmim w=5e-06 l=5e-06 m=1 $x=15.29 $y=25.58

Related Topics

Prefixes in Instance Names in the DSPF File

dspfNamePrefixSimInfo

useSelfCDFInPostLayoutNetlist

Customizing Netlist Creation Using the Options in .simrc

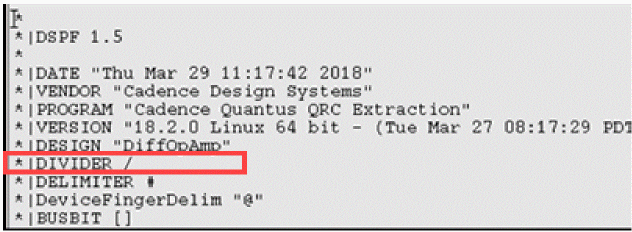

The content and format of a DSPF file is heavily dependent on the extraction tool and the settings. Often, simulation problems occur because the syntax used for the nets and terminals in the DSPF file is different from the syntax used in the netlist created by Spectre. For example, the hierarchy delimiter used in a DSPF file is '.' (I0.M9) whereas the delimiter used in the Spectre netlist is '/' (I0/M9).

Similarly, for terminal currents, mapped name of top level devices in the DSPF file can have an extra prefix, such as XX instead of X, which does not exist in the netlist.

If your DSPF files show such differences, you can set options in the .simrc file to update the save statement in the netlist so that the device names match with those in the DSPF file. For this, you need to read the contents of the DSPF file and set the variables in the .simrc file to update the name mapping.

The following table describes the options you can set in the .simrc file:

Variable	Description
spfFileNameMappingFormat	Specifies the format to be used for name mapping. Valid values:"cdl", "spectre". If you give any other value it is internally reset to "cdl". Default value: "cdl"
spfFileTermDelimiter	Specifies the delimiter to be used to save terminal currents. This value is not taken from the DSPF because Spectre requires this to be set to a colon. Therefore, it is mandatory to set it to the default value, which ":".
spfFileAddPrefixToDevice	Specifies whether the prefixes defined by other spf* variables, for example, spfFileDeviceDefaultPrefix, spfFileDevicePrefixForTermCurrent and spfFileDevicePrefixForOppoints, are to be added to the device names printed in the save statements in the netlist. Default value: t
spfFileAddContextSensitivePrefix	Specifies how many prefixes need to be added to the names of the devices at a level below the DSPF block. This variable does not affect the name of the DSPF block. When this variable is set to "yes", the device names get a single prefix that is specified by the namePrefix field in the Component Description Format form or the spfFileDeviceDefaultPrefix variable. When this variable is set to "no", the device names get all prefixes specified by the .simrc variables or CDF properties. Example: A device named I0.I1.I2.XM0*:1 is changed to one of the following depending on the value of this variable: I0.I1.I2.XMM0*:1, when this variable is set to yes I0.I1.I2.XXMM0*:1, when this variable is set to no where the first M is specified by the namePrefix field in the Component Description Format form and X is specified by the spfFileDevicePrefixForTermCurrent variable.
spfDevicePrefixForMimcap	Specifies the prefix to be used to identify the top-level devices while mapping mimcap devices. Default value: "C" If the DSPF has mimcap devices, you can print these devices in the DSPF with a different prefix to the other devices, using the following definition: spfDevicePrefixForMimcap "C" For example, using this variable will map a capacitance, CC0@1, and show the following mapping in the netlist: save I0.CC0:cap I0.CC1:cap
spfFileHierDelimiter	Specifies the delimiter to be used in hierarchical names. This variable should be set to the DIVIDER setting in the DSPF Header section. Default value: .
spfFileTerminalMapping	Specifies the character case to be used while mapping the terminal names. Valid values: "mixed": Uses a mix of upper or lower case. For example, M0#Term1 "lower": Uses the lower case. For example, M0#term1 "upper": Uses the upper case. For example, M0#TERM1 "spectre": Uses only numbers to identify the terminals. For example, M0#1 Default value: "lower"
spfFileFingerDelimiter	Specifies the delimiter to be used to mention the device fingers. Set this value to the delimiter used in the DSPF file. The example shown below uses the @ delimiter. Default value: @ In the expressions that calculate the sum total of current for a multi-fingered device, you must use the same delimiter that is mentioned in the DSPF file.
spfFileDevicePrefixForMacroModels	Specifies the prefix for any macro models in the design. In some PDKs, the MOS transistors are implemented as macro models to which an X prefix is added during LVS and extraction. To ensure that the save statements adds the X prefix so that the content saved by simrc matches the DSPF, set the spfFileDevicePrefixForMacroModels variable to X. Default value: X
spfFileDeviceDefaultPrefix	Specifies the default device prefix to be used when no prefix is specified in the namePrefix field in the simInfo section of the Component Description Format form, but a prefix is required to correctly identify a device in the DSPF. Default value: nil
spfFileNetMapping	Specifies the character case to be used while mapping the terminal names. Valid values: "mixed", "lower", "upper"s
spfFileDevicePrefixToOverrideCDF	Overrides the value specified in the namePrefix field in the simInfo section of the Component Description Format form. Default value: X
spfFileDevicePrefixForTermCurrent	Specifies the prefix to be used to identify the top level devices while mapping the terminal currents. For terminal currents the mapped name of the top level devices in the DSPF file can have an extra prefix, such as XX instead of X. Set this variable to the prefix or to nil if no extra prefix is required. Default value: X This variable is applicable to MOS devices only.
spfFileDevicePrefixForOppoints	Specifies the prefix to be used to identify the top level devices for operating points. Set this variable to the prefix or to nil if no extra prefix is required. Default value: nil This variable is applicable to MOS devices only. For example, if the saved device names in the netlist are prefixed with X, as shown below, set this variable to "X". save I0.XMM4:ids
spfFilePrefixForBoxedDevice	Specifies the prefix to be assigned to the devices that are considered to be boxed, that is a DSPF embedded inside a DSPF, by the extractor. The names of such boxed devices are specified by the spfFileBoxedDeviceList variable in the .simrc file. In the netlist saved for simulation, the names of the boxed devices are printed with the assigned prefix. You can probe only the terminals of such boxed subcircuits or devices, not the objects inside them. Default value: X
spfFileBoxedDeviceList	Specifies a list of names of devices to be considered as boxed. These devices do not get a prefix in the netlist. While creating netlist, the names of these boxed devices are assigned a prefix specified by the spfFilePrefixForBoxedDevice variable. Default value: nil

The following example of the .simrc file shows how you can specify these settings:

dspfFileEnvOptions = '(
        (nil spfFileNameMappingFormat "cdl"
            spfFileTermDelimiter ":"
             spfFileTerminalMapping "lower"
          spfDevicePrefixForMimcap "C"
          spfFileFingerDelimiter "@"
          spfFileDeviceDefaultPrefix "M"
          spfFileHierDelimiter "/"
          spfFileDevicePrefixForMacroModels "X"
          spfFileDevicePrefixToOverrideCDF "X"
          spfFileDevicePrefixForTermCurrent "X"
          spfFileDevicePrefixForInstCurrent " "
          spfFileNetMapping "lower"
          spfFileBoxedDeviceList ("devicename1" "devicename2")
          spfFilePrefixForBoxedDevice "XB"

))

• • spfAlwaysAddPrefixWithInstanceNames
  • spfSimAlwaysAddPrefixInInstName
  • simAlwaysAddPrefixInInstName

Customizing Netlist Creation Using Environment Variable

When using DSPF files, you can also use the saveFingersForOpParams and sumDeviceFingerCurrents environment variables to customize the save statement in the netlist.

You can use the dspfNamePrefixSimInfo environment variable to specify the simulator from which the namePrefix value is used to modify prefixes for device names in a DSPF file. To use the namePrefix from the current simulator, you can use the useSelfCDFInPostLayoutNetlist environment variable.
