7 Writing Callbacks

Overview

A callback procedure is a Cadence^® SKILL language expression that is evaluated when a parameter value changes. Using callbacks is a powerful way to control relationships between parameters and the restrictions on the parameter itself.

Cadence advises you to have sufficient knowledge of callback procedures before using them.

Callbacks can be GUI-based or database-based. GUI-based callbacks occur when you modify the values in the parameter form fields. Database-based callbacks occur when the parameter value is modified via a database action. The CDF parameter callback is primarily a GUI-based callback. A GUI-based callback is active when the CDF parameters are displayed in the Add Instance form or the Edit Object Properties form when you use the Create Instance or Edit Properties commands.

The CDF parameter callback is invoked only when you use the Create Instance or the Edit Properties commands. You can specify a callback for each parameter. If you modify the parameter values through other commands then the CDF parameter callback is not invoked.

CDF callbacks are used for a variety of purposes, such as:

Validating entered values
Controlling form appearance
Computing the values of other CDF parameters, such as derived parameters

The first two of these do not present any significant danger - but the third - derived parameters - can cause major trouble, specifically if the derived value is being used (in simulation, physical verification, or a Pcell, for example).

You can enter a callback as a SKILL expression that you type directly in the callback field of the parameter section of the Edit CDF form. You can also enter a callback by using the ?callback keyword as an argument to the cdfCreateParam function:

cdfParamId = cdfCreateParam(cdfDataId
?type "string"
?parseAsNumber "yes"
?units "lengthMetric"
?parseAsCEL "yes"
?storeDefault "no"
?name "pName2"
?prompt "width"
?defValue 7u
?display "artParameterInToolDisplay(’w)"
?editable "cdfgData->maskLayoutViewName->..."
?callback "cdfgData->pName1->value =
    cdfgData->pName2->value")

In this example, the callback on parameter pName2 sets the value of parameter pName1 to the new value when the value of pName2 changes.

A callback can also be a call to a function that you loaded previously.

cdfParamId = cdfCreateParam(cdfDataId
?type "string"
?parseAsNumber "yes"
?units "lengthMetric"
?parseAsCEL "yes"
?storeDefault "no"
?name "pName2"
?prompt "width"
?defValue 7u
?display "artParameterInToolDisplay(’w)"
?editable "cdfgData->maskLayoutViewName->..."
?callback "myFunc( )")

In the second example, the callback on parameter pName2 calls the function myFunc( ) when the value of pName2 changes.

When using callbacks, always use the global variable cdfgData to access information about parameter values and default values.

Because of infrastructure limitations, parameter callback functions do not support changing the choices of CDF parameter fields that appear as radio buttons in the GUI.

To get the default value for a parameter, type the following expression:

cdfgData->paramName->defValue

To get the current value for a parameter, type the following expression:

cdfgData->paramName->value

To set the value of a parameter, type either of the following expressions:

cdfgData->paramName->value = 10

cdfgData->paramName->value =
    cdfgData->paramName->defValue

It is recommended to define callbacks in the .libInit file to enable loading only the required callbacks when you open a cellview. Defining callbacks in the .cdsinit file loads all the callbacks irrespective of their which can impact performance.

Loading Callbacks

Once you define the SKILL callback procedures, you need to load the files. From the Command Interpreter Window in your .cdsinit file, type

load("path/callbacks.il")

You must make sure that the callbacks are loaded before you use the library and that the callback files are archived whenever you archive the library.

As an alternative, you can attach a callback file to a library. You attach callback files to a library by including a libInit.il file in that library. libInit.il is a text file that contains calls to load other SKILL files or contexts in the library or to initialize autoload properties.

You must always use the file name libInit.il or libInit.ils. You can have one such file in each library. The following example is the contents of a libInit.il file in a microwave library:

load( ddGetObj( "microwave" nil nil "libraProcs" )~>path )
load( ddGetObj( "microwave" nil nil "hpmnsProcs" )~>path )
load( ddGetObj( "microwave" nil nil "mharmProcs" )~>path )
load( ddGetObj( "microwave" nil nil "callbacks" )~>path )

where ddGetObj uses the following syntax:

ddGetObj( libName cellName viewName fileName)

If you attach the file to the library, the file is automatically loaded whenever the library is opened. This guarantees that the functions are defined. In addition, when you archive your library, the CDF callback functions are automatically archived.

Debugging Callbacks

Introducing Debug CDF

Starting with IC6.1.6, you can use a new plugin, Debug CDF, to debug the CDF callback procedures. These are written using simple SKILL expressions for form initialization (forminit), form completion (doneProc), and any parameter’s field value modification (parameter callbacks).

The Debug CDF plugin is not installed by default when you open any CDF-based application window. To install the plugin, select the Debug CDF option from the Windows–Plugins menu. Once installed, the Debug CDF plugin creates the Debug CDF assistant. Using the Debug CDF assistant you can set breakpoints on the available CDF callback procedures for debugging.

Installing Debug CDF

To install the Debug CDF plugin in an application window:

From the menu bar, choose Windows–Plugins–Debug CDF.
The Debug CDF assistant is displayed and the SKILL IDE window is launched simultaneously.

You need working knowledge of SKILL IDE to use the Debug CDF assistant. For information about the SKILL IDE window, see Cadence SKILL IDE User Guide.
By default, the assistant is docked to the left side of the application window on which it is installed. You can dock/undock the assistant to/from the application window as you would do to any other assistant.

The Debug CDF Assistant User Interface

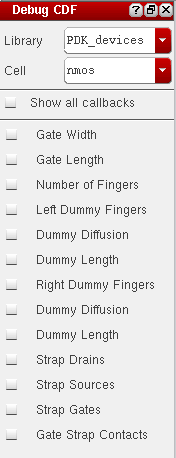

The Debug CDF assistant consists of the Library and Cell drop-down fields and a list of the CDF parameters.

The Library field consists of a list of libraries based on cds.lib. The Cell field consists of a list of cells based on the selected library. By default, the Library and Cell fields are blank. When you select a library (lib) and a cell (cell) from the respective drop-down fields, the Debug CDF plugin displays a list consisting of parameters (and forminit and doneproc) for which callbacks are defined. Each parameter is displayed with a check box next to it, as shown in the figure below:

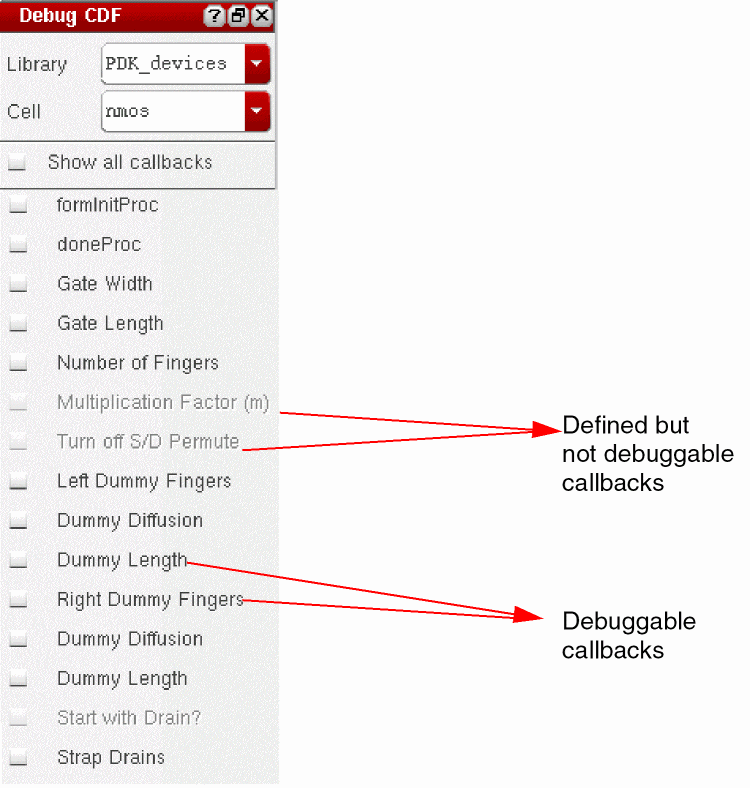

If a parameter’s callback is a ‘simple’ function and the function is loaded, the callback is considered debuggable. Callbacks that are not loaded are considered ‘not debuggable’.

To view all the callbacks defined for the selected lib/cell pair:

On the Debug CDF assistant, select the Show all callbacks check box. The Debug CDF assistant displays all callbacks defined for the lib/cell pair regardless of whether they are debuggable or not. Callbacks that are debuggable are enabled; otherwise they are disabled.

To debug a callback, Debug CDF plugin requires support files, which contain the callback procedures and other SKILL code necessary for a design. Typically, these support files are included in the libInit.il file (for the selected library) and are therefore automatically loaded by the Debug CDF plugin. However, if these support files are not included in libInit.il, you will need to load these files manually after the SKILL IDE window is launched.

Starting the Debug Process

To start the debug process:

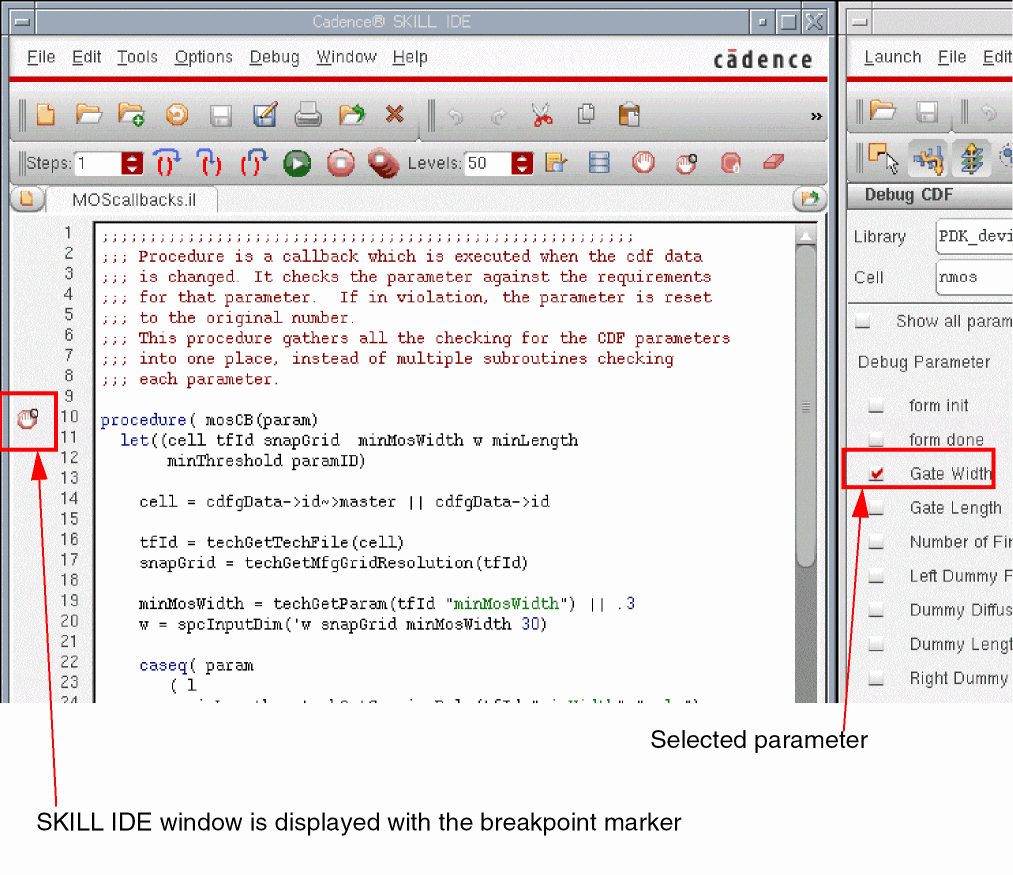

On the Debug CDF assistant, select the check box next to the parameter for which you want to examine/debug the callback procedure. The SKILL IDE window is automatically displayed with the corresponding source file and the breakpoint marker on the left margin of the source file, as shown below.

When you unset a selected parameter, its breakpoint is removed.

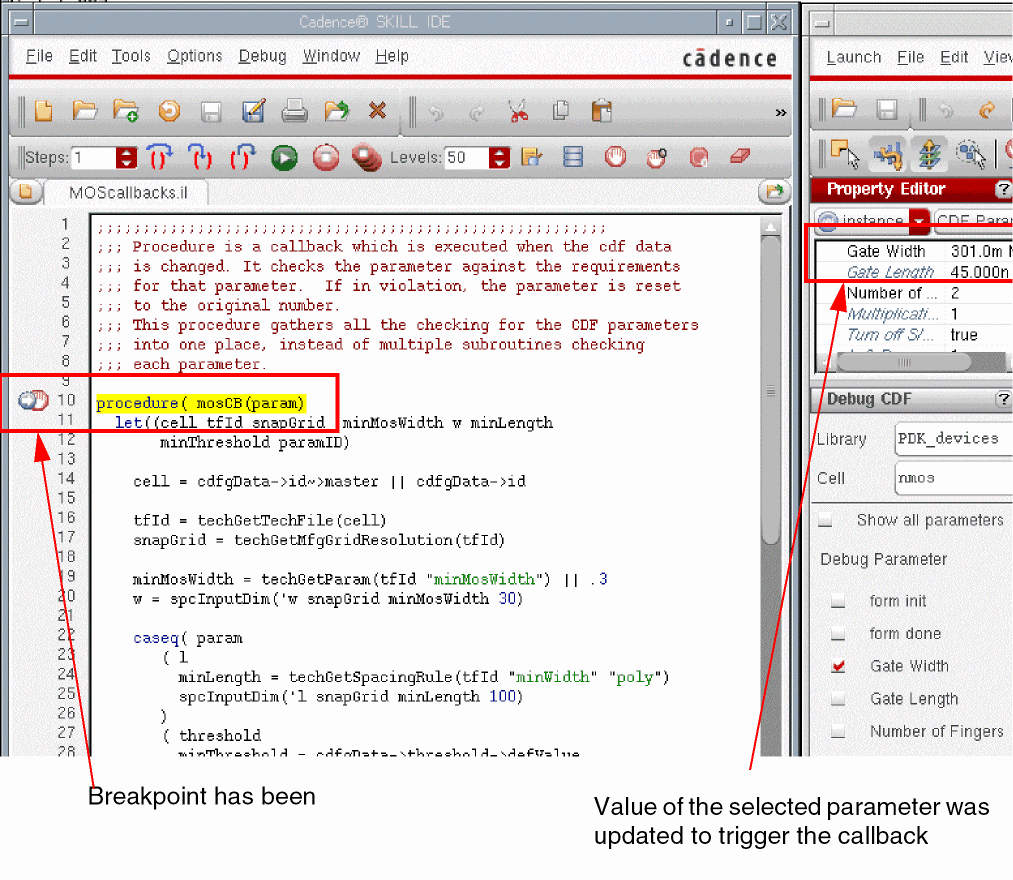

To trigger a parameter callback, modify the value of the selected parameter on the form displayed by using the Edit Properties or Create Instance commands, or from the Property Editor assistant.
To trigger the formInitProc callback, update the form containing the required CDF parameters.
- The formInitProc callback debug process is executed whenever the Edit instance Properties form is seeded with a new instance. So whenever you select the instance in the design, the formInitProc is triggered.
- The formInitProc callback debug process is triggered whenever the Create Instance form is seeded with a new combination of the lib/cell lib/cell pair that contains CDF data.
To trigger the doneProc callback, click either the Apply or OK button on the form containing the CDF parameters.
Now, since the breakpoint has been set and the callback procedure is triggered, the execution of the callback will pause at the breakpoint. This would happen at the entry point of the callback procedure.
In the SKILL IDE window, you can use debugging commands, such as Step, Next, and Continue, and set break points to examine/debug the callback procedure. For information about SKILL IDE debugging commands, see Cadence SKILL IDE User Guide.

Terminating Debug CDF

To terminate the Debug CDF plugin from an application window:

From the menu bar, choose Windows–Plugins–Debug CDF.
The Debug CDF assistant is removed from the application window. In addition, the Debug CDF option is also removed from the assistant list that is displayed when you right-click the menubar or toolbar. Also, all breakpoints that were set by the Debug CDF plugin during the debugging process are cleared.
Closing the Debug CDF plugin does not close the SKILL IDE window.

Starting Debug CDF in Multiple Windows

In a Virtuoso session, you can start multiple Debug CDF plugins in multiple windows. The Debug CDF plugin tracks all breakpoint settings based on the lib/cell pair. So, when you set breakpoints for the lib/cell pair in the Debug CDF assistant in one window, the same settings are reflected in the other window's Debug CDF assistant when you select the same lib/cell pair.

For example, when you set breakpoints for the PDK_devices/nmos pair in the Debug CDF assistant installed in VSE in one window, the same breakpoints will be visible when you start the Debug CDF assistant in another VLS window and in the assistant you will see the PDK_devices/nmos as the lib/cell pair.

When you exit the Debug CDF plugin in one application window, only the lib/cell breakpoints that are not shared by another window’s Debug CDF plugin are removed.

All the breakpoints set by the Debug CDF plugin are removed when no active Debug CDF plugins exist in any of the windows of a Virtuoso session.

Not all current SKILL breakpoints are removed and only the breakpoints set by the Debug CDF plugin are removed. So, when you add or remove breakpoints directly from SKILL IDE window or from CIW, the corresponding parameters in the Debug CDF assistant are not automatically updated.

NFET Example

To understand how to use callbacks, look at the NFET CDF description. The following callback functions are specified for the NFET component:

mosLayout( ) on parameter maskLayoutViewName
pcMOSw( ) on parameter w
pcMOSl( ) on parameter l

mosLayout Callback

In the NFET CDF description, when you select the layout.pwr option of the maskLayoutViewName parameter, the values of the other parameters are constant. You can use the mosLayout callback procedure to set these values automatically whenever the maskLayoutViewName is layout.pwr . As the following example shows, whenever the value of maskLayoutViewName changes, the callback checks the value of maskLayoutViewName and, if the value is layout.pwr , sets the parameter values:

procedure( mosLayout( )
    if((cdfgData->maskLayoutViewName->value ==
        cdfgData->maskLayoutViewName->defValue)
    then      ; It is layout. Use defaults.
        cdfgData->w->value=cdfgData->w->defValue
        cdfgData->width->value=cdfgData->width->defValue
        cdfgData->l->value=cdfgData->l->defValue
        cdfgData->length->value=cdfgData->length->defValue
        cdfgData->bend->value=cdfgData->bend->defValue
        cdfgData->bendt->value=cdfgData->bendt->defValue
        cdfgData->ad->value=cdfgData->ad->defValue
        cdfgData->as->value=cdfgData->as->defValue
        cdfgData->pd->value=cdfgData->pd->defValue
        cdfgData->ps->value=cdfgData->ps->defValue
        cdfgData->diffD->value=cdfgData->diffD->defValue
    else      ; It is layout.pwr. Use known values.
        cdfgData->w->value="880u"
        cdfgData->width->value=880
        cdfgData->l->value="12u"
        cdfgData->length->value=12
        cdfgData->bend->value=cdfgData->bend->defValue
        cdfgData->bendt->value=cdfgData->bendt->defValue
        cdfgData->ad->value="6.16e-09"
        cdfgData->as->value="6.16e-09"
        cdfgData->pd->value="0.001774"
        cdfgData->ps->value="0.001774"
        cdfgData->diffD->value=nil
    )
)

pcMOSw Callback

The pcMOSw callback is similar to the pcMOSl callback. pcMOSw checks the input, sets the width parameter, determines if there should be a bend, and calculates some of the simulation parameters:

procedure( pcMOSw( )
  prog(()
    if( (cdfgData->maskLayoutViewName->value ==
            cdfgData->maskLayoutViewName->defValue)
                 ; Do this only if maskLayoutViewName is
                 ; layout. Otherwise, mosLayout sets it.
    then
        tmp = evalstring(cdfgData->w->value)
        if( (tmp && (typep(tmp)!=’flonum))
        then
            error("Width value must be a floating
                 point number. Set to default." )
            cdfgData->w->value = cdfgData->w->defValue
            cdfgData->width->value =
                 cdfgData->width->defValue
            cdfgData->bend->value =
                 cdfgData->bend->defValue
            cdfgData->bendt->value =
                 cdfgData->bendt->defValue
            cdfgData->ad->value = cdfgData->ad->defValue
            cdfgData->as->value = cdfgData->as->defValue
            cdfgData->pd->value = cdfgData->pd->defValue
            cdfgData->ps->value = cdfgData->ps->defValue
            return(nil)
        )
        tmp = ( tmp / 1e-6 )

        if( (tmp < cdfgData->width->defValue)
        then
            error("Width value is less than
                 minimum (7u). Set to default." )
            cdfgData->w->value = cdfgData->w->defValue
            cdfgData->width->value =
                 cdfgData->width->defValue
            cdfgData->bend->value =
                 cdfgData->bend->defValue
            cdfgData->bendt->value =
                 cdfgData->bendt->defValue
            cdfgData->ad->value = cdfgData->ad->defValue
            cdfgData->as->value = cdfgData->as->defValue
            cdfgData->pd->value = cdfgData->pd->defValue
            cdfgData->ps->value = cdfgData->ps->defValue
            return(nil)
        )
        if( (tmp > 240 )
        then
            error("Width value is greater than
                 maximum (240u). Set to default." )
            cdfgData->w->value = cdfgData->w->defValue
            cdfgData->width->value =
                 cdfgData->width->defValue
            cdfgData->bend->value =
                 cdfgData->bend->defValue
            cdfgData->bendt->value =
                 cdfgData->bendt->defValue
            cdfgData->ad->value = cdfgData->ad->defValue
            cdfgData->as->value = cdfgData->as->defValue
            cdfgData->pd->value = cdfgData->pd->defValue
            cdfgData->ps->value = cdfgData->ps->defValue
            return(nil)
        )

        if( (tmp <= 240 )
        then
            cdfgData->maskLayoutViewName->value =
                 cdfgData->maskLayoutViewName->defValue
            grid = round(tmp/0.5)
            newwidth = grid*0.50
            if( (newwidth != tmp)
            then
                 error("Width is set to nearest value
                     on 0.50 micron pitch.")
                 cdfgData->w->value =
                     sprintf(s "%g" (newwidth * 1e-6))
            )
            if( (tmp > 120) ;criteria for setting bend here
            then
                 cdfgData->width->value = tmp/2
                 cdfgData->bend->value = t
                 cdfgData->bendt->value = 1
                 cdfgData->diffD->value = nil
            else
                 cdfgData->width->value = tmp
                 cdfgData->bend->value =
                     cdfgData->bend->defValue
                 cdfgData->bendt->value =
                     cdfgData->bendt->defValue
            )
        )
        cdfgData->ad->value =
            sprintf(s "%g" (tmp * 7.0 * 1e-12))
        cdfgData->as->value =
            sprintf(s "%g" (tmp * 7.0 * 1e-12))
        cdfgData->pd->value =
            sprintf(s "%g" ((tmp + 7.0) * 2e-6))
        cdfgData->ps->value =
            sprintf(s "%g" ((tmp + 7.0) * 2e-6))
    )
  )
)

pcMOSl Callback

When the length and width parameters for the NFET CDF description were created, the l and w parameters already existed for one of the simulators. Instead of prompting the user twice for the same information, callbacks attached to the l and w parameters can update the length and width parameters automatically.

The pcMOSl callback runs whenever the value of l changes. The callback verifies that the maskLayoutViewName parameter value is layout. (For the other option, layout.pwr, the parameter values are controlled by the mosLayout callback, shown in the previous section.) The callback then checks the new value against the minimum value, the maximum value, and the grid. If the value is not valid, the callback resets the lengths to the default value. If the value is valid, the callback sets the length parameter value. The following example shows this process:

procedure( pcMOSl( )
  prog(()
    if((cdfgData->maskLayoutViewName->value ==
        cdfgData->maskLayoutViewName->defValue)
                 ; Do this only if maskLayoutViewName is
                 ; layout. Otherwise, mosLayout sets it.
    then
                 ; Convert input string to float.
        tmp = evalstring(cdfgData->l->value)
        if( (tmp && (typep(tmp)!=’flonum))
        then
            error("Length value must be a floating point
                 number. Set to default." )
                 ; error will send message to CIW
            cdfgData->l->value = cdfgData->l->defValue
            cdfgData->length->value =
            cdfgData->length->defValue
            return(nil)
        )
        tmp = ( tmp / 1e-6 )    ; Convert to user units.

        if( (tmp < 3.0)
        then
            error("Length is less than minimum (3u).
                 Set it to default." )
            cdfgData->l->value = cdfgData->l->defValue
            cdfgData->length->value =
                 cdfgData->length->defValue
            return(nil)
        )
        if( (tmp > 15.0 )
        then
            error("Length value is greater than
                 maximum (15u). Set it to default." )
            cdfgData->l->value=cdfgData->l->defValue
            cdfgData->length->value =
                 cdfgData->length->defValue
            return(nil)
        )
                 ; The following checks the value against
                 ; the grid and fixes it if necessary.
        grid = round(tmp/0.5)
        newlength = grid*0.50
        if( (newlength != tmp)
        then
            or("Length is set to nearest value
                 on 0.50 micron pitch.")
            cdfgData->l->value = sprintf(s "%g"
                 (newlength * 1e-6))
        )
                 ; Set the Pcell param value.
        cdfgData->length->value = tmp
    )
  )
)
