C

---

Environment Variables

---

This appendix covers the environment variables that can be used to control and customize the characteristics and behavior of custom constraints. Refer to the List of Environment Variables section for a complete list of environment variables available for use.

For information about the environment variables specific to:

• Virtuoso Schematic Editor, refer to the Environment Variables chapter in the Virtuoso Schematic Editor User Guide.
• Virtuoso Layout Suite XL, refer to the Environment Variables chapter in the Virtuoso Layout Suite documentation.

Setting Environment Variables

You can set the environment variables in the following three ways:

• Within the .cdsenv File
• Within the .cdsinit File
• In the CIW

.cdsenv File

Add environment variables to the .cdsenv file when the settings should be applied while launching the Constraint Manager.

Use the following syntax:

constraint environmentVariableName dataType value

For example:

constraint addParallelDevices boolean t

.cdsinit File

Like the .cdsenv file, the environment variable settings saved in the .cdsinit file get applied when you launch the Constraint Manager.

Use the envSetVal() command, which has the following syntax, to add environment variables to the .cdsinit file:

envSetVal("constraint" "environmentVariableName" 'dataType value)

For example:

envSetVal("constraint" "addParallelDevices" 'boolean t)

CIW

Use the envSetVal() command in the CIW to set an environment variable for the duration of the current session. The syntax is the same as described above for the .cdsinit file.

Displaying the Current Value of an Environment Variable

To determine the current value of any Constraint Manager environment variable, use the following syntax in the CIW.

envGetVal("constraint" "environmentVariableName")

List of Environment Variables

The following environment variables are available for use:

• addParallelDevices
• autoConstraintNotes
• autoSelectTemplateConstraint
• comanageConstraintView
• comanageFollowModeOnDescend
• comanageFollowModeOnOpen
• consistencyFailureDefaultWarning
• constraintMenuHistorySize
• constraintNotesSyncOnDesignCheck
• constraintNotesSyncOnDesignOpen
• crossCoupleDiffPairRequireSourceNotSupply
• crossHalo
• currentMirrorIncludeDummies
• defaultViewName
• diffPairRequireSourceNotSupply
• disableCICustomCGPopup
• distanceMFactorExpansion
• editTransferredTemplates
• highlightCPResults
• keepFigGroupMembersWithinSameCluster
• matchedToIgnore
• maxMatchesPerDevice
• noteTooltipMaxCharWidth
• noteTooltipMaxLines
• purgeOnCloseCellView
• restrictNetGroupMembership
• updateConstraints
• useOldComparisonReport
• viewNameList
• viewWithConfigCell

addParallelDevices

Syntax

In the .cdsenv file:

constraint addParallelDevices boolean {t | nil}

In the .cdsinit file or the CIW:

envSetVal("constraint" "addParallelDevices" 'boolean {t | nil})

Description

Controls whether parallel devices should be included in the structures during structure matching.

Default Value: nil

Example

Set the following to include the parallel devices while matching expressions for captured structures:

envSetVal("constraint" "addParallelDevices" 'boolean t)

autoConstraintNotes

Syntax

In the .cdsenv file:

constraint autoConstraintNotes boolean {t | nil}

In the .cdsinit file or the CIW:

envSetVal("constraint" "autoConstraintNotes" 'boolean {t | nil})

Description

Enables the automatic creation of constraint notes.

When you set this environment variable to t and create new constraints, the constraint notes automatically get added to the schematic, In addition, when you change or delete any constraint, the constraint notes get updated.

Default Value: nil

Example

Set the following to enable the feature to automatically add constraint notes to the schematic when constraints are added, updated, and deleted:

envSetVal("constraint" "autoConstraintNotes" 'boolean t)

autoSelectTemplateConstraint

Syntax

In the .cdsenv file:

constraint autoSelectTemplateConstraint boolean {t | nil}

In the .cdsinit file or the CIW:

envSetVal("constraint" "autoSelectTemplateConstraint" 'boolean {t | nil})

Description

Restores the original behavior that existed in IC6.1.5 where on selecting a template in the Constraint Manager, the Constraint Property Editor displayed all the parameters of all the constraints contained within the template.

In IC6.1.6, the template parameters are defined within the template definition itself. Therefore, the template parameters, if there are any, are displayed with the template. If the template does not have any parameters, then no parameters are displayed.

Default Value: nil

Example

Set the following to display all parameters of all constraints associated with the selected template in the Constraint Property Editor:

envSetVal("constraint" "autoSelectTemplateConstraint" 'boolean t)

comanageConstraintView

Syntax

In the .cdsenv file:

schematic comanageConstraintView boolean {t | nil}

In the .cdsinit file or the CIW:

envSetVal("schematic" "comanageConstraintView" 'boolean {t | nil})

Description

Controls whether the schematic and constraints views are co-managed or managed separately when specific schematic editor commands are used. When set to t, schematic and constraint views are co-managed. When set to nil, they are handled separately. The default is t. This feature is available only in Schematics XL.

This feature applies to the following commands

• Save, Save a Copy, Discard Edits, Check and Save, and Change Edit Mode, in the File menu.
• Check — Current Cellview

Applying the commands to both schematic and constraint views simultaneously, saves you having to use separate commands to perform the same operation on the two views.

If set to nil, the listed commands apply to the schematic view only. Changes to the constraint view are not applied and instead the Constraint Manager assistant options: Save Constraints, Save a Copy, Discard Edits, and Make Read Only must be used instead.

If set to t and changes have only been made to the constraint view, the File menu options, Save and Discard Edits are displayed with the suffix (Constraint).

Default Value: t

Example

To manage the schematic and constraint views separately:

envSetVal("schematic" "comanageConstraintView" 'boolean nil)

comanageFollowModeOnDescend

Syntax

In the .cdsenv file:

schematic comanageFollowModeOnDescend boolean {t | nil}

In the .cdsinit file or the CIW:

envSetVal("schematic" "comanageFollowModeOnDescend" 'boolean {t | nil})

Description

Controls the edit mode of the constraint view on descend edit through the hierarchy.

Setting the comanageFollowModeOnDescend and comanageConstraintView environment variables to t ensures that a sub-cell’s constraint view is opened in edit mode every time when you select the Edit – Hierarchy – Descend Edit menu option in Schematic XL to descend into the sub-cell from the top cell. However, with the Edit – Hierarchy – Descend Read menu option, the descended subcell's constraint view may not open in read mode if it was last opened for edit in the current session.

When this environment variable is set to nil, a sub-cell’s constraint view might not necessarily open in edit mode despite using the Edit – Hierarchy – Descend Edit menu option. The constraint view can change to read only if it was last opened in read mode in the current session. Also, when you are Working with Constraint Views in a Design-Managed Environment, the expected check-in and checkout behavior related to the edit mode operation is not followed for a constraint view.

Default Value: t

comanageFollowModeOnOpen

Syntax

In the .cdsenv file:

schematic comanageFollowModeOnOpen boolean {t | nil}

In the .cdsinit file or the CIW:

envSetVal("schematic" "comanageFollowModeOnOpen" 'boolean {t | nil})

Description

Controls whether the constraint view should be opened in editable or non-editable mode.

The default setting, t, of this environment variable mainly controls the edit mode of the constraint views when a top cell is opened in edit mode followed by its subcell. For example, if you open the Constraint Manager assistant for top cell, inv_top, in tandem with a subcell of this top cell, inv_sub. notice that the Constraint Manager assistant for INV_sub1 also opens in edit mode.

If this environment variable is set to nil and you access the constraint view of a sub cell in tandem with the editable cellview of its top cell, then the subcell's constraint view may open in non-editable mode. Also, when you are Working with Constraint Views in a Design-Managed Environment, the expected check-in and checkout behavior related to opening a constraint view is not followed.

Default Value: t

consistencyFailureDefaultWarning

Syntax

In the .cdsenv file:

constraint consistencyFailureDefaultWarning boolean {t | nil}

In the .cdsinit file or the CIW:

envSetVal("constraint" "consistencyFailureDefaultWarning" boolean {t | nil})

Description

Controls the display of system-generated warning messages for consistency failures. By default, this environment variable disables the display of system-generated messages for custom constraints and system constraints that have corresponding custom verification callback. To enable the display of such messages, set this environment variable to t.

Default Value: nil

Example

To enable the display of system-generated warning messages for consistency failures, set the following:

envSetVal("constraint" "consistencyFailureDefaultWarning" boolean t)

constraintMenuHistorySize

Syntax

In the .cdsenv file:

constraint constraintMenuHistorySize int integer

In the .cdsinit file or the CIW:

envSetVal("constraint" "constraintMenuHistorySize" 'int integer)

Description

Sets the size of the constraint history displayed at the end of the Constraint Creation drop-down list, which is under the last horizontal line, in the Constraint Manager. The history is a list of the last N constraints created and gives you quick access to them.

If set to 0, the feature of maintaining the constraint history gets disabled.

Default Value: 5

Example

To maintain the last 7 records in the constraint history, set the following:

envSetVal("constraint" "constraintMenuHistorySize" 'int 7)

constraintNotesSyncOnDesignCheck

Syntax

In the .cdsenv file:

constraint constraintNotesSyncOnDesignCheck boolean {t | nil}

In the .cdsinit file or the CIW:

envSetVal("constraint" "constraintNotesSyncOnDesignCheck" 'boolean {t | nil})

Description

Enables the automatic synchronization of constraint notes when the design is checked.

By default, this environment variable is set to nil. When you set this environment variable to t, the constraint notes get synchronized on design check.

For more information, see Setting Up Automatic Generation of Constraint Notes.

Default Value: nil

Example

To enable the feature to automatically synchronize the constraint notes when a design is checked, set the following:

envSetVal("constraint" "constraintNotesSyncOnDesignCheck" 'boolean t)

constraintNotesSyncOnDesignOpen

Syntax

In the .cdsenv file:

constraint constraintNotesSyncOnDesignOpen boolean {t | nil}

In the .cdsinit file or the CIW:

envSetVal("constraint" "constraintNotesSyncOnDesignOpen" 'boolean {t | nil})

Description

Enables the automatic synchronization of constraint notes when the design is opened in edit mode.

By default, this environment variable is set to nil. Its setting to t causes the desired effect only when the autoConstraintNotes environment variable has also been set to t to enable automatic creations of constraint notes.

When you set this environment variable and autoConstraintNotes to t, the constraint notes get synchronized on opening a design in edit mode.

For more information, see Setting Up Automatic Generation of Constraint Notes.

Default Value: nil

Example

To enable the feature to automatically synchronize the constraint notes on opening a design, set the following:

envSetVal("constraint" "constraintNotesSyncOnDesignOpen" 'boolean t)

crossCoupleDiffPairRequireSourceNotSupply

Syntax

In the .cdsenv file:

constraint crossCoupleDiffPairRequireSourceNotSupply boolean {t | nil}

In the .cdsinit file or the CIW:

envSetVal("constraint" "crossCoupleDiffPairRequireSourceNotSupply"
'boolean {t | nil})

Description

When this environment variable is set to t, a cross-coupled differential pair structure will be recognized only if the source connection of the structure is not connected to a supply net. Setting the environment variable to nil removes this restriction.

Default Value: t

Example

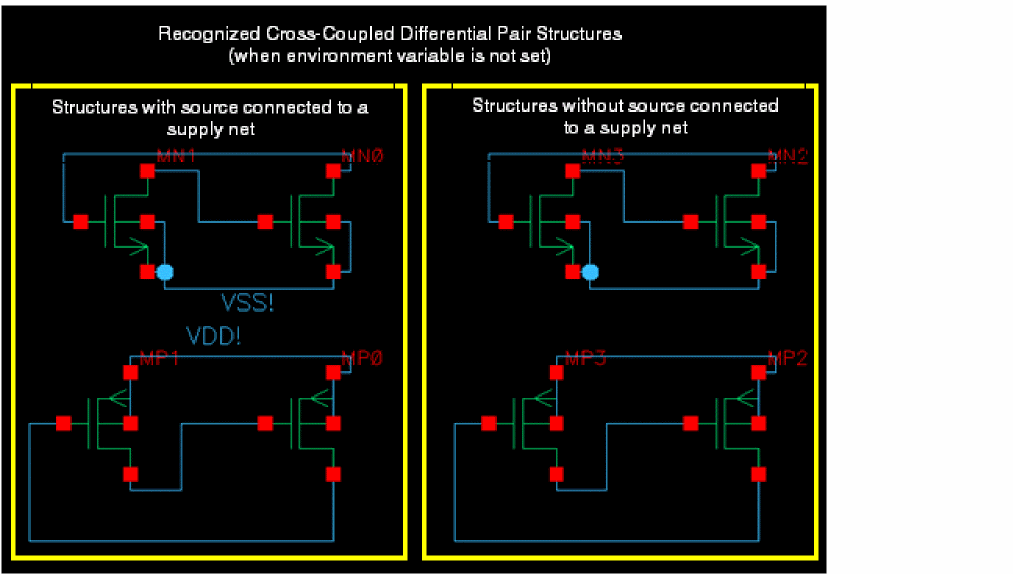

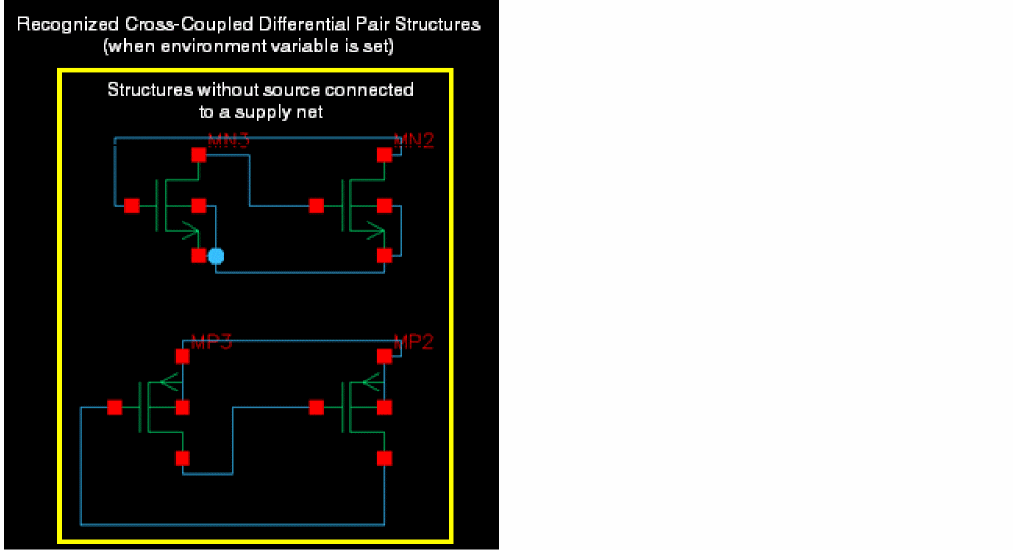

When the crossCoupleDiffPairRequireSourceNotSupply environment variable is set, the following cross-coupled differential pair structures get recognized and listed on selecting the MOS Differential Pair - Cross Coupled finder from the Search for drop-down list box in the Circuit Prospector assistant:

However, when you set the following to remove the restriction on the recognition of the cross-coupled differential pair structures:

envSetVal("constraint" "crossCoupleDiffPairRequireSourceNotSupply" 'boolean nil)

the following structures can be recognized (note the two additional structures on the right):

crossHalo

Syntax

In the .cdsenv file:

constraint crossHalo boolean {t | nil}

In the .cdsinit file or the CIW:

envSetVal("constraint" "crossHalo" 'boolean {t | nil})

Description

Controls the cross-selection of constraints between the schematic Constraint Manager and the layout Constraint Manager, as defined in the constraint partition. When set to t, the cross-selection is enabled. Setting the environment variable to nil disables the cross-selection.

The following caveats must be considered while using the crossHalo environment variable:

• The Constraint Manager should be open in both schematic and layout.

  If the Constraint Manager is closed in either, the cross-selection will not work.
• Corresponding constraints should be defined in both schematic and layout Constraint Manager and linked to the schematic and layout views.

For more information, refer to the Cross-Selection of Constraints Between Schematic and Layout Constraint Managers section.

Default Value: t

Example

To disable the cross-selection of constraints, set the following:

envSetVal("constraint" "crossHalo" 'boolean nil)

currentMirrorIncludeDummies

Syntax

In the .cdsenv file:

constraint currentMirrorIncludeDummies boolean {t | nil}

In the .cdsinit file or the CIW:

envSetVal("constraint" "currentMirrorIncludeDummies" 'boolean {t | nil})

Description

Controls whether dummy devices should also be recognized as part of the identified Current Mirror structure.

A dummy device has its source, drain, and bulk connected together and its gate connected to the gate of the reference device in the Current Mirror structure. By default, dummy devices are not included in the recognized Current Mirror structures. To allow dummy devices to be included, set this environment variable to t.

Default Value: nil

Example

To recognize the dummy devices as a part of the identified Current Mirror structure, set the following:

envSetVal("constraint" "currentMirrorIncludeDummies" 'boolean t)

defaultViewName

Syntax

In the .cdsenv file:

constraint defaultViewName string "<userDefinedName>"

In the .cdsinit file or the CIW:

envSetVal("constraint" "defaultViewName" 'string "<userDefinedName>")

Description

Defines the name of the constraint view to use when opening Constraint Manager in a schematic. This default view name is also accessible by selecting Options from Save (Constraints), which is the first menu in the Constraint Manager toolbar when accessed from the schematic.

Default Value: constraint

Example

To specify constraint2 as the default view name, set the following:

envSetVal("constraint" "defaultViewName" 'string "constraint2")

diffPairRequireSourceNotSupply

Syntax

In the .cdsenv file:

constraint diffPairRequireSourceNotSupply boolean {t | nil}

In the .cdsinit file or the CIW:

envSetVal("constraint" "diffPairRequireSourceNotSupply" 'boolean {t | nil})

Description

When this environment variable is set to t, a Differential Pair structure will be recognized only if the source connection of the structure is not connected to a supply net. Setting the environment variable to nil removes this restriction.

Default Value: t

Example

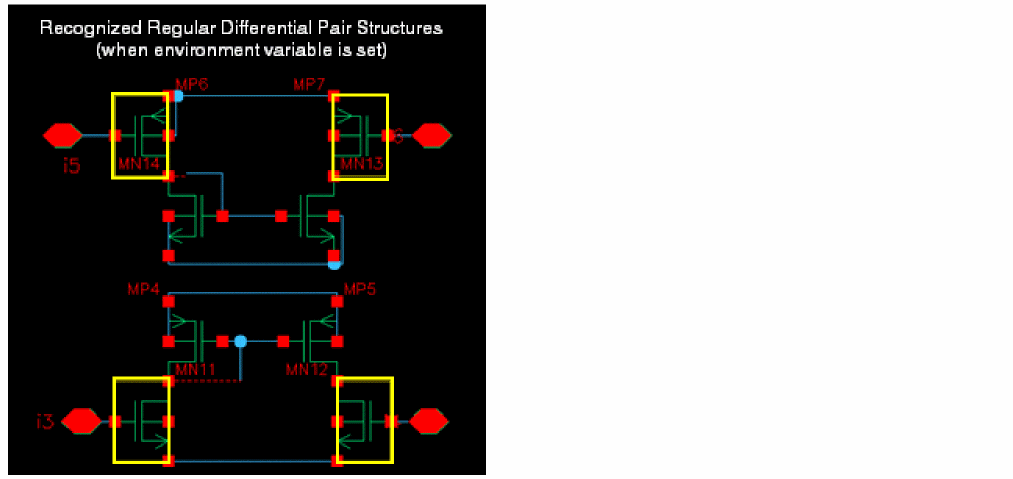

When the diffPairRequireSourceNotSupply environment variable is set, the following differential pair structures get recognized and listed on selecting the MOS Differential Pair finder from the Search for drop-down list box in the Circuit Prospector assistant:

However, when you set the following to remove the restriction on the recognition of the differential pair structures:

envSetVal("constraint" "diffPairRequireSourceNotSupply" 'boolean nil)

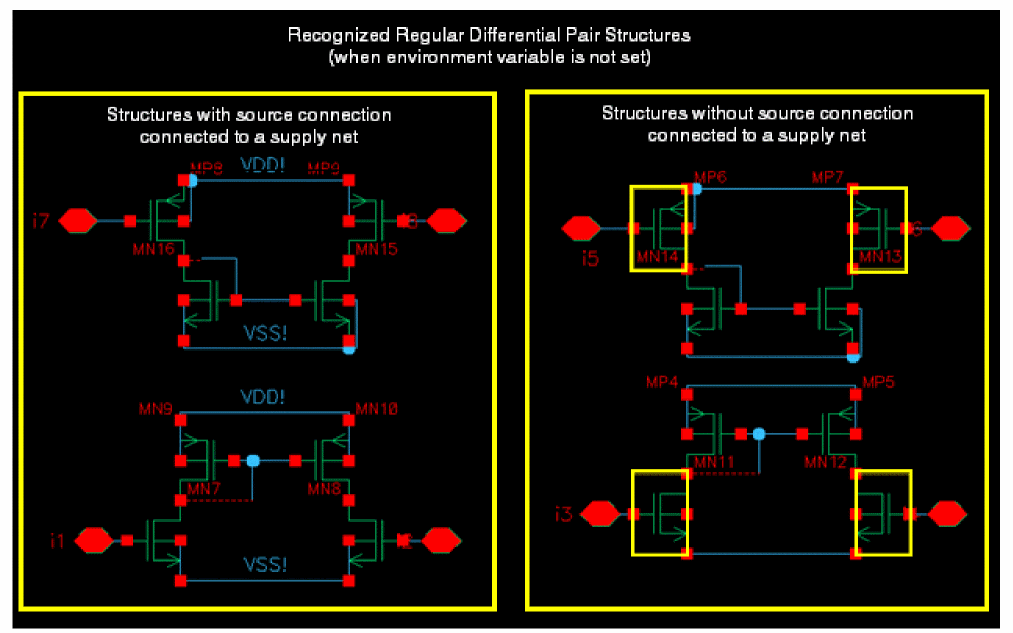

the following structures can be recognized (note the two additional structures on the left):

disableCICustomCGPopup

Syntax

In the .cdsenv file:

constraint disableCICustomCGPopup boolean {t | nil}

In the .cdsinit file or the CIW:

envSetVal("constraint" "disableCICustomCGPopup" 'boolean {t | nil})

Description

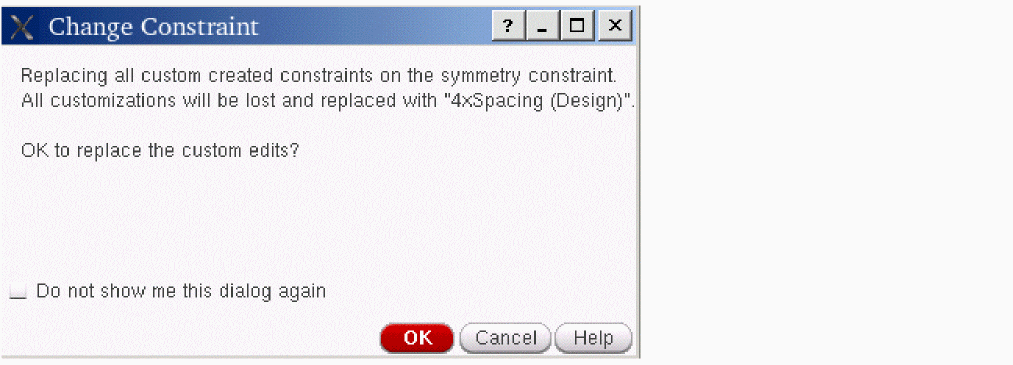

When value of any of Within Group, Default Group, or Group to Outside Group properties is changed from Custom to some default constraint groups value, the following warning message box appears that requires user input:

If the disableCICustomCGPopup environment variable is set to t, this message box does not appear and changes take place without the warning. So, setting this environment variable to t is equivalent to selecting the Do not show me this dialog again check box in the message box.

Default Value: nil

distanceMFactorExpansion

Syntax

In the .cdsenv file:

constraint distanceMFactorExpansion string {"pair" | "firstToAll" | "symmetricPair"}

In the .cdsinit file or the CIW:

envSetVal("constraint" "distanceMFactorExpansion"
       'string {"pair" | "firstToAll" | "symmetricPair"})

Description

For constraints that have mfactored instances as members, this environment variable helps to identify how the members of corresponding constraints in layout should be created on transfer or update.

The distanceMFactorExpansion environment variable requires one of the following valid values based on the logic described for each:

"pair"	For using this value, in a schematic constraint, you must have equal number of members and their corresponding mfactors. This means, if you have one member with three mfactors, the layout constraints will be created only if you have another member that also has three mfactors.
"firstToAll"	For using this value, in a schematic constraint, the number of members and their mfactors need not be equal. For example, if you have a member with two mfactors and two other members with three mfactors each, only two constraint members will be created.
"symmetricPair"	For using this value, you must have equal number of members, but their corresponding mfactors need not be equal. The pairing for creating constraints will be done till the point the mfactors of the member with lowest number of mfactors is reached. The unpaired mfactors will be omitted from the constraint creation process. See the Example section below to understand how it works.

Default Value: firstToAll

Example

• Suppose the schematic constraint, Const_1, has two members M1 and M2, and the mfactor for both the members is 3. So, if the distanceMFactorExpansion environment variable is set to pair, while representing constraints in layout on transfer or update, three corresponding constraints will be created with following members:
  First Constraint Members: M1.1 M2.1
  Second Constraint Members: M1.2 M2.2
  Third Constraint Members: M1.3 M2.3
• Suppose the schematic constraint, Const_2, has three members: M1 with mfactor 2, M2 with mfactor 3, and M3 with mfactor 3. So, if the distanceMFactorExpansion environment variable is set to firstToAll, while representing constraints in layout on transfer or update, the two corresponding constraints will be created with following members:
  First Constraint Members: M1.1 M2.1 M2.2 M2.3 M3.1 M3.2 M3.3
  Second Constraint Members: M1.2 M2.1 M2.2 M2.3 M3.1 M3.2 M3.3
• Suppose the schematic constraint, Const_3, has two members: M1 with mfactor 2 and M2 with mfactor 3. So, if the distanceMFactorExpansion environment variable is set to symmetricPair, while representing constraints in layout on transfer or update, the two corresponding constraints will be created with following members:
  First Constraint Members: M1.1 M2.1
  Second Constraint Members: M1.2 M2.2
  The last mfactor, M2.3, of member M2 will be ignored because it does not have a corresponding mfactor available in member M1.

editTransferredTemplates

Syntax

In the .cdsenv file:

constraint editTransferredTemplates boolean {t | nil}

In the .cdsinit file or the CIW:

envSetVal("constraint" "editTransferredTemplates" 'boolean {t | nil})

Description

Makes all transferred templates editable or non-editable in one go.

Default Value: t

Example

To make all transferred templates non-editable, set the following:

envSetVal("constraint" "editTransferredTemplates" 'boolean nil)

highlightCPResults

Syntax

In the .cdsenv file:

constraint highlightCPResults boolean {t | nil}

In the .cdsinit file or the CIW:

envSetVal("constraint" "highlightCPResults" boolean {t | nil})

Description

Controls whether finder results are highlighted in the Circuit Prospector. If set to nil, the results are not highlighted. For cellviews with many results, you can improve speed by setting this variable to nil.

Default Value: t

Example

Prevents finder results from being highlighted.

envSetVal("constraint" "highlightCPResults" boolean nil)

keepFigGroupMembersWithinSameCluster

Syntax

In the .cdsenv file:

constraint keepFigGroupMembersWithinSameCluster boolean {t | nil}

In the .cdsinit file or the CIW:

envSetVal("constraint" "keepFigGroupMembersWithinSameCluster" boolean {t | nil})

Description

Prevents figGroup members from becoming part of multiple constraints. If set to nil, figGroup members can be part of multiple constraints.

Default Value: t

Example

Lets figGroup members be part of multiple constraints.

envSetVal("constraint" "keepFigGroupMembersWithinSameCluster" boolean nil)

matchedToIgnore

Syntax

In the .cdsenv file:

constraint matchedToIgnore string "<list_of_param_names>"

In the .cdsinit file or the CIW:

envSetVal("constraint" "matchedToIgnore" 'string "<list_of_param_names>")

Description

Specifies the names of parameters that should be ignored by the Matched Parameters constraint check and in Constraint-Aware Editing Mode. The value is a list of parameter names separated by spaces.

Different parameter names may be specified for matchedToIgnore in Schematic XL and Layout XL.

Default Value: "" (null string)

Example

envSetVal(constraint matchedToIgnore 'string "param1 param2")

envSetVal(schematic  matchedToIgnore 'string "param1 param2")

Schematic XL looks for a non-empty schematic matchedToIgnore value and, if found, uses it. Otherwise, it uses the more general constraint matchedToIgnore value.

envSetVal(layoutXL   matchedToIgnore 'string "param1 param2")

Layout XL, similar to Schematic XL, uses layoutXL matchedToIgnore variable if it is non-empty. Otherwise, it uses the more general constraint matchedToIgnore value.

maxMatchesPerDevice

Syntax

In the .cdsenv file:

constraint maxMatchesPerDevice int <integer>

In the .cdsinit file or the CIW:

envSetVal("constraint" "maxMatchesPerDevice" 'int <integer>)

Description

Controls the maximum number of matches that a device can appear in when the Circuit Prospector structure finders are run. For example, Diff Pair and Current Mirror.

Default Value: 1

Example

To ensure maximum 4 matches per device appear when the Circuit Prospector structure finders are run, set the following:

envSetVal("constraint" "maxMatchesPerDevice" 'int 4)

noteTooltipMaxCharWidth

Syntax

In the .cdsenv file:

constraint noteTooltipMaxCharWidth int <integer>

In the .cdsinit file or the CIW:

envSetVal("constraint" "noteTooltipMaxCharWidth" 'int <integer>)

Description

Controls the maximum number of characters that can appear in the line width of a tooltip displayed for the Constraint Notes.

Default Value: 30

Example

To ensure that maximum 50 characters can appear in a line width of a constraint note’s tooltip, set the following:

envSetVal("constraint" "noteTooltipMaxCharWidth" 'int 50)

noteTooltipMaxLines

Syntax

In the .cdsenv file:

constraint noteTooltipMaxLines int <integer>

In the .cdsinit file or the CIW:

envSetVal("constraint" "noteTooltipMaxLines" 'int <integer>)

Description

Controls the maximum number of lines that should be displayed in a tooltip for the available Constraint Notes.

Default Value: 10

Example

To ensure that maximum 15 lines appear in a constraint note’s tooltip, set the following:

envSetVal("constraint" "noteTooltipMaxLines" 'int 15)

purgeOnCloseCellView

Syntax

In the .cdsenv file:

constraint purgeOnCloseCellView boolean {t | nil}

In the .cdsinit file or the CIW:

envSetVal("constraint" "purgeOnCloseCellView" 'boolean {t | nil})

Description

If set to t , then on purging a schematic, the associated constraint view is also purged. If set to nil, the associated constraint view is not purged on purging the schematic.

Default Value: t

Example

To purge only the schematic and not the associated constraint view, set the following.

envSetVal("constraint" "purgeOnCloseCellView" 'boolean nil)

restrictNetGroupMembership

Syntax

In the .cdsenv file:

constraint restrictNetGroupMembership boolean {t | nil}

In the .cdsinit file or the CIW:

envSetVal("constraint" "restrictNetGroupMembership" 'boolean {t | nil})

Description

If set to t, then while performing consistency checks for the netGroup type constraints, it is made sure that no member of the constraint being checked is part of any other netGroup including its own type.

If set to nil, then:

• For Diff Pair, Matched Length, and Strand, this member consistency check only verifies that no members should be part of the same constraint type.
• For Net Class and Net Bus, this member consistency check verifies that no members should be part of Net Class or Net Bus type constraints.
• For Net Symmetry, there are no such member consistency checks.

Default Value: t

updateConstraints

Syntax

In the .cdsenv file:

constraint updateConstraints cyclic {automatic | selected | none}

In the .cdsinit file or the CIW:

envSetVal("constraint" "updateConstraints" 'cyclic {automatic | selected | none})

Description

Controls the use model of the Update Schematic/Layout Constraints options. The following values can be set with updateConstraints:

Value	Use
automatic	If any constraints are selected in the source or target Constraint Manager, then those selected constraints will be updated when the Update Schematic/Layout Constraints option is selected. If no constraints are specifically selected then all constraints will be automatically updated.
all	All constraints will be updated regardless of what is currently selected when the Update Schematic/Layout Constraints option is selected.
selected	Only those currently selected constraints will be updated when the Update Schematic/Layout Constraints option is selected. No constraints will be updated if there are no currently selected constraints.

Default Value: automatic

Example

The updateConstraints variable can be set as follows:

• In .cdsenv:


  envGetVal("constraint" "updateConstraints" 'cyclic "automatic")

• In .cdsinit or the CIW:


  envGetVal("constraint" "updateConstraints" 'cyclic)

  envSetVal("constraint" "updateConstraints" 'cyclic "selected")

useOldComparisonReport

Syntax

In the .cdsenv file:

constraint useOldComparisonReport boolean {t | nil}

In the .cdsinit file or the CIW:

envSetVal("constraint" "useOldComparisonReport" 'boolean {t | nil})

Description

Specifies to load the old format of the Constraint Comparison Report instead of the new default format introduced in IC6.1.6 ISR9 and ICADV12.1 ISR11.

By default, the useOldComparisonReport environment variable is set to nil. As a result, when you click the Constraint Comparison Report ( ) button from the Constraint Manager assistant toolbar in Layout XL, the system launches a web browser and loads a report of the following format that compares the constraints existing in the current Schematic XL and Layout XL views.

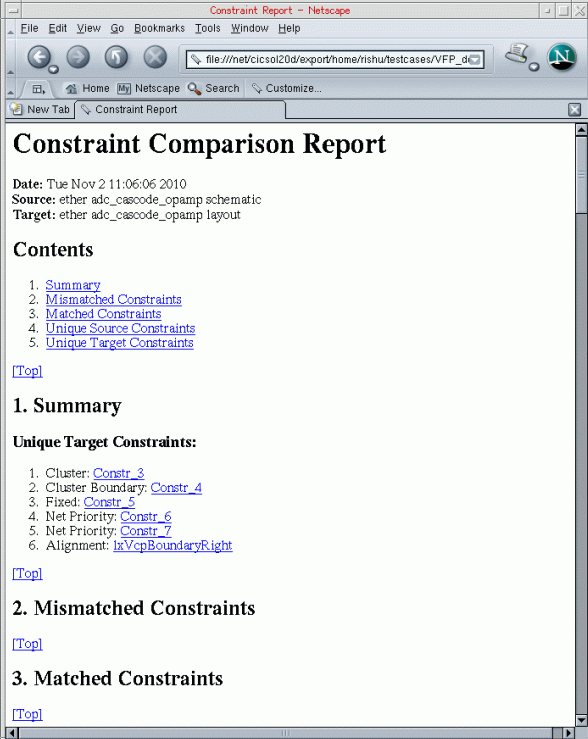

However, if you prefer the old report format shown below or your existing test cases use it, you can switch back to the old comparison report by setting the useOldComparisonReport environment variable to t.

Default Value: nil

viewNameList

Syntax

In the .cdsenv file:

constraint viewNameList string "<list_of_view_names>"

In the .cdsinit file or the CIW:

envSetVal("constraint" "viewNameList" 'string "<list_of_view_names>")

Description

Specifies a list of constraint view names. Use this environment variable in one of the following conditions:

• The schematic was not opened with a config or physConfig file.
• The config or physConfig file does not have a constraint view list.

Default Value: "" (null string)

Example

The following sets the constraint and constraint2 as the view names:

envSetVal("constraint" "viewNameList" 'string "constraint constraint2")

Alternatively, you can use any one of the following:

constraint viewNameList 'string "constraint constraint2"

OR

constraint defaultViewName 'string "constraint"

viewWithConfigCell

Syntax

In the .cdsenv file:

constraint viewWithConfigCell boolean {t | nil}

In the .cdsinit file or the CIW:

envSetVal("constraint" "viewWithConfigCell" 'boolean {t | nil})

Description

Controls which constraint view out of the following should be used:

• the constraint view located in the same library directory as the schematic view.
  OR
• the constraint view located in the same library directory as the physConfig view.

If the schematic and layout views are in the same library directory, setting of this variable does not have any impact. The Boolean value set for the viewWithConfigCell environment variable is of importance only when the schematic and layout views are located in different libraries and are bound to a physConfig view.

Default Value: nil

Example

To ensure that the constraint view is stored with the config cell, set the following:

envSetVal("constraint" "viewWithConfigCell" 'boolean t)

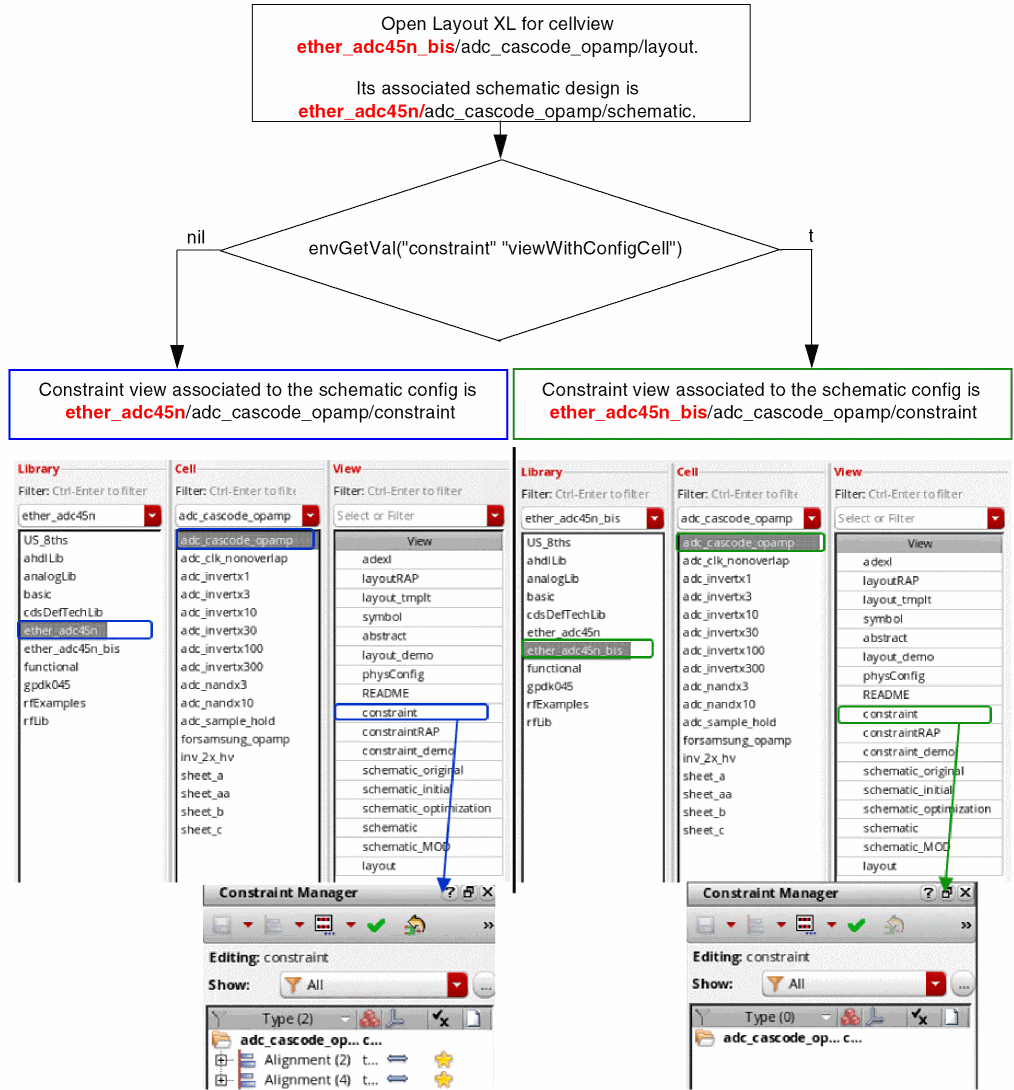

The following figure shows which constraint view is used based on the status of the viewWithConfigCell environment variable:

Return to top
