Geometrical dependences, stress effects and junction asymmetry
Scaling Equations
Effective Dimension

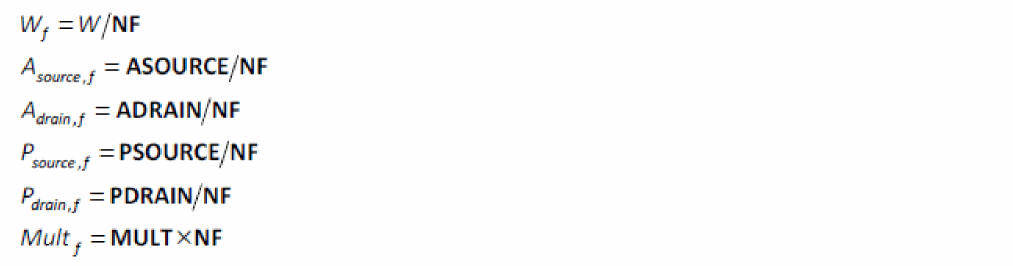

Introduction of the number of fingers.

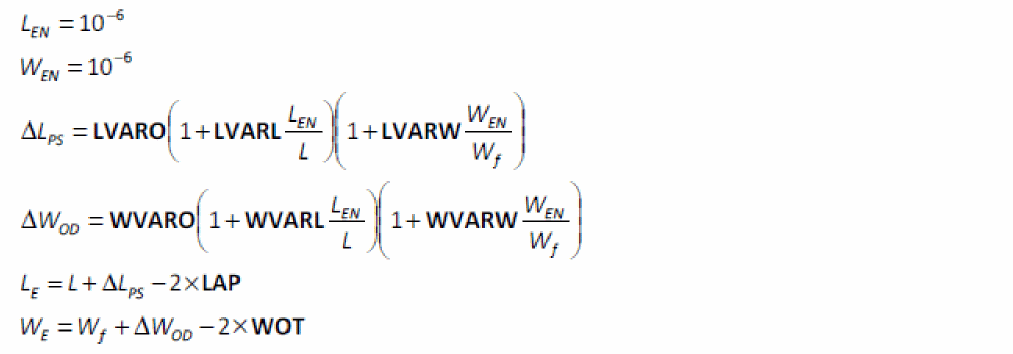

Effective length and width for current model.

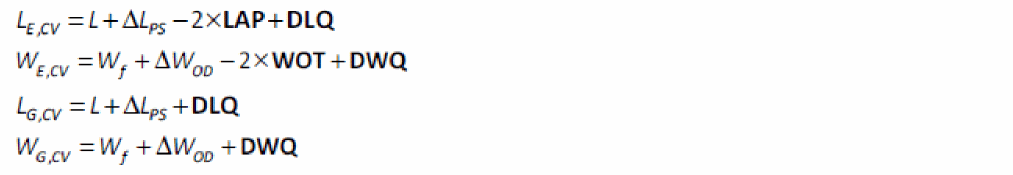

Effective length and width of charge model.
Effective length and width for self heating.

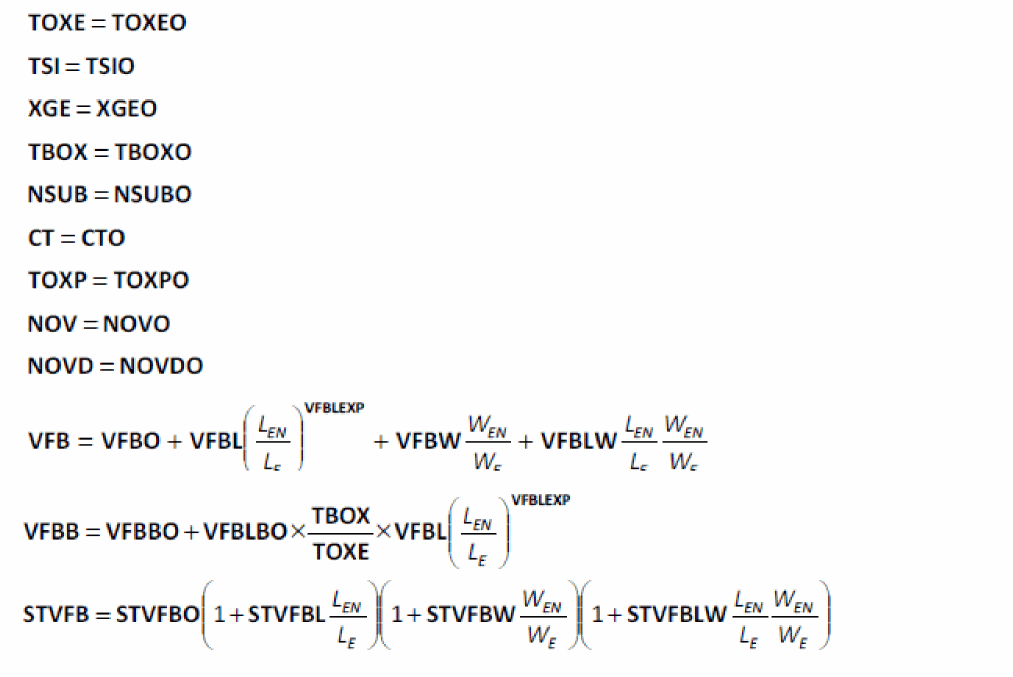

Process Parameters

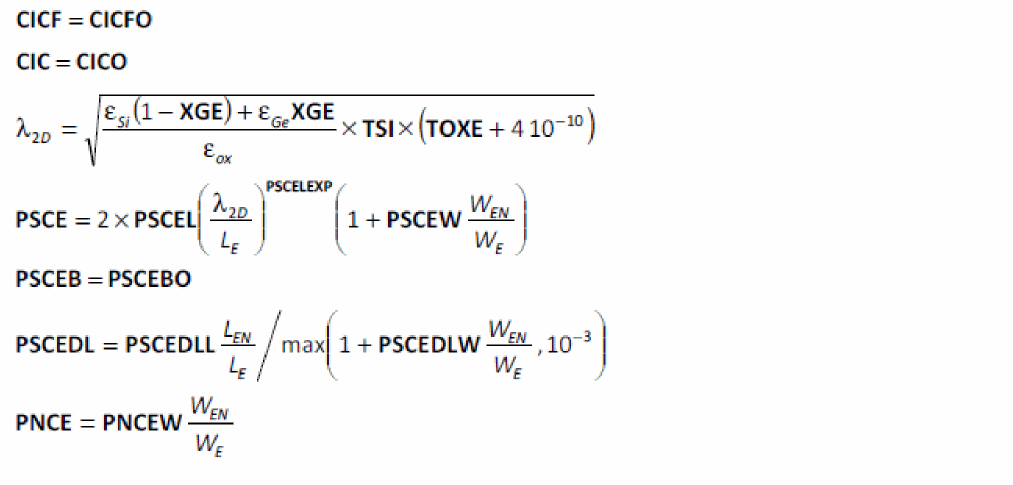

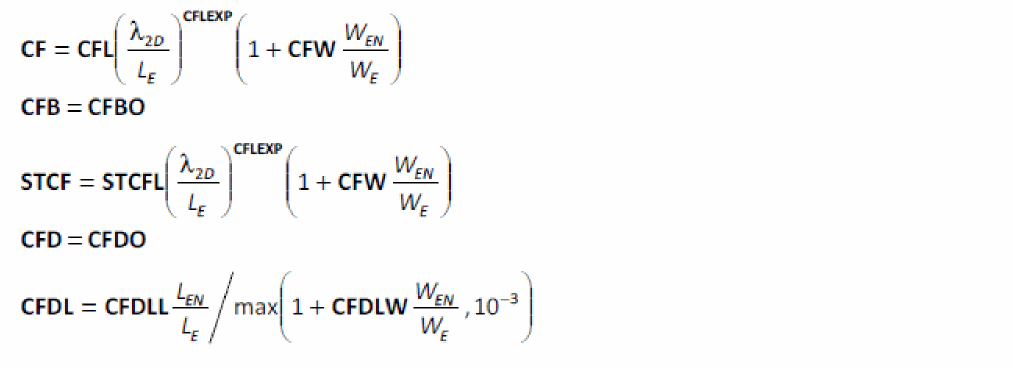

Gate-to-interface coupling parameters
Drain Induced Barrier Lowering Parameters

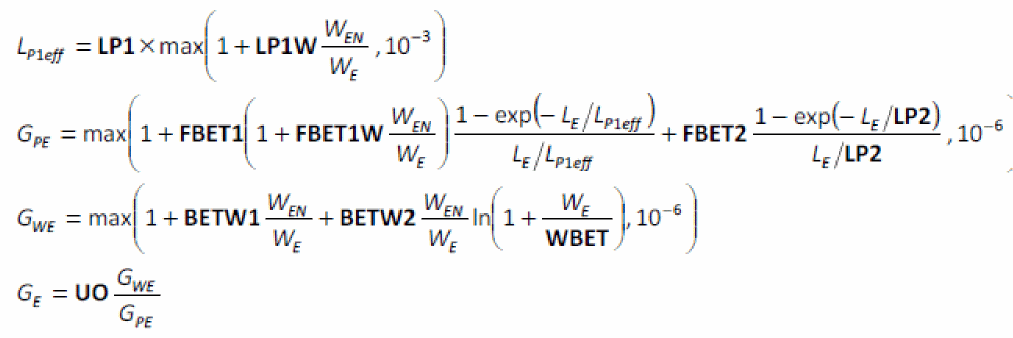

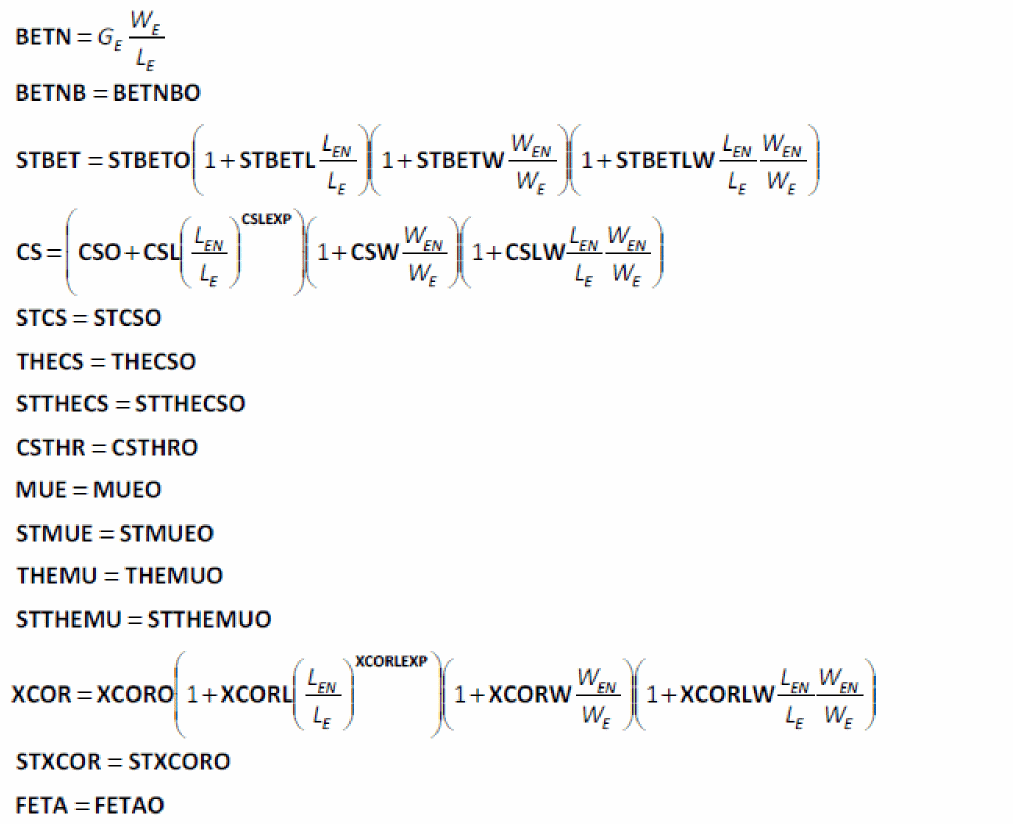

Mobility Parameters
UO is integrated into GE. This changes the signification of the THESAT related global parameters, as detailed in the Velocity Saturation Parameters section.

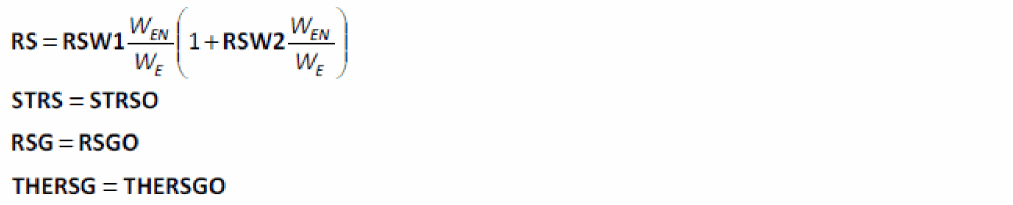

Series Resistance Parameters

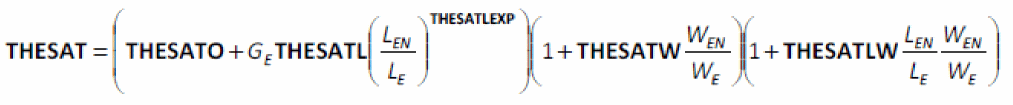

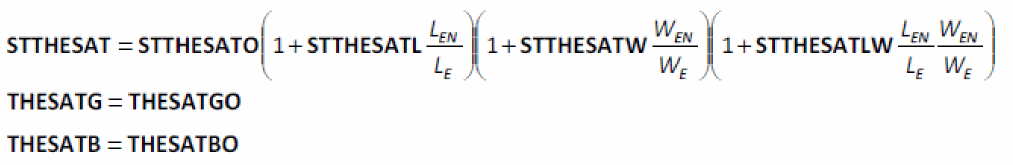

Velocity Saturation Parameters
Since UO has been included in GE (see (Mobility Parameters), THESATL, in UTSOI2, is closely related to the saturation velocity itself.

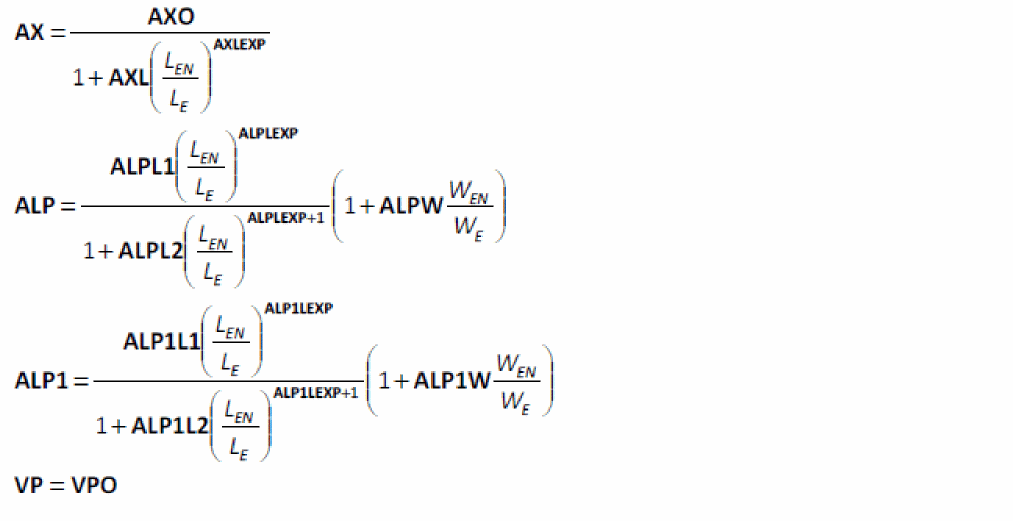

Saturation and Channel Length Modulation Parameters

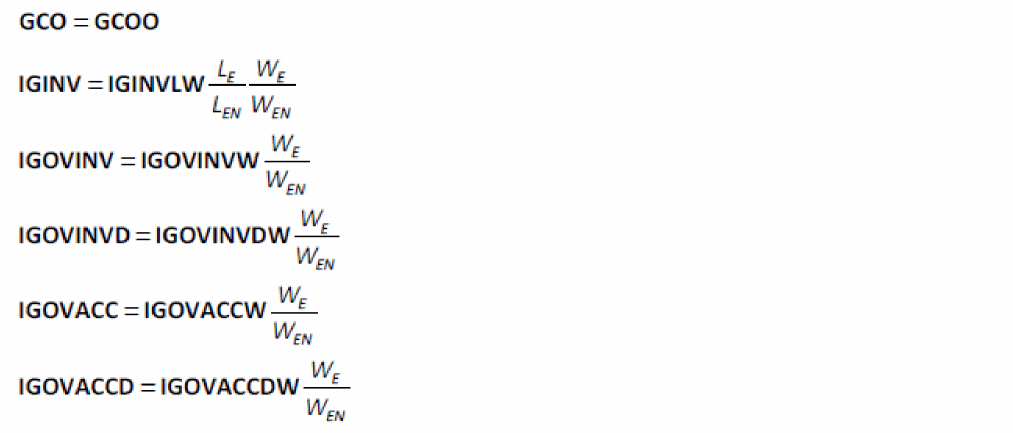

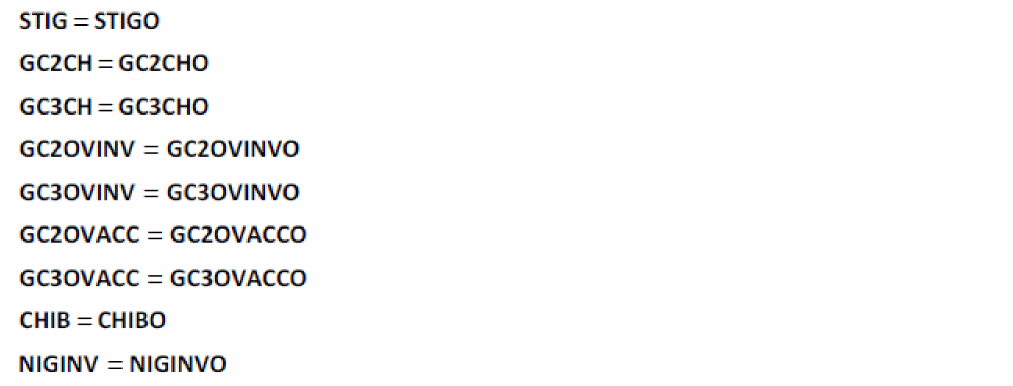

Gate Current Parameters
Unlike in UTSOI1, gate currents in overlap regions are not linked with LOVO in UTSOI2.

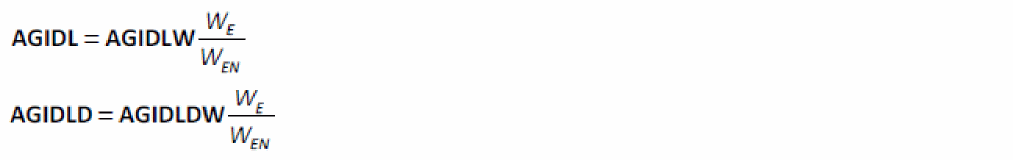

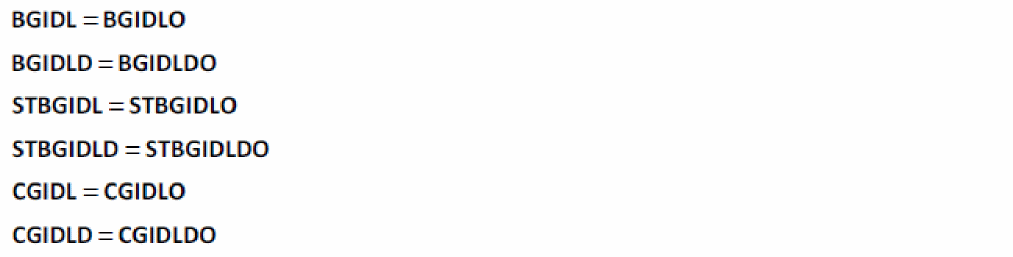

Gate Induced Drain/Source Leakage (GIDL/GISL) Parameters
For gate currents, GIDL/GISL currents are not linked with LOVO in UTSOI2, as compared to UTSOI1.

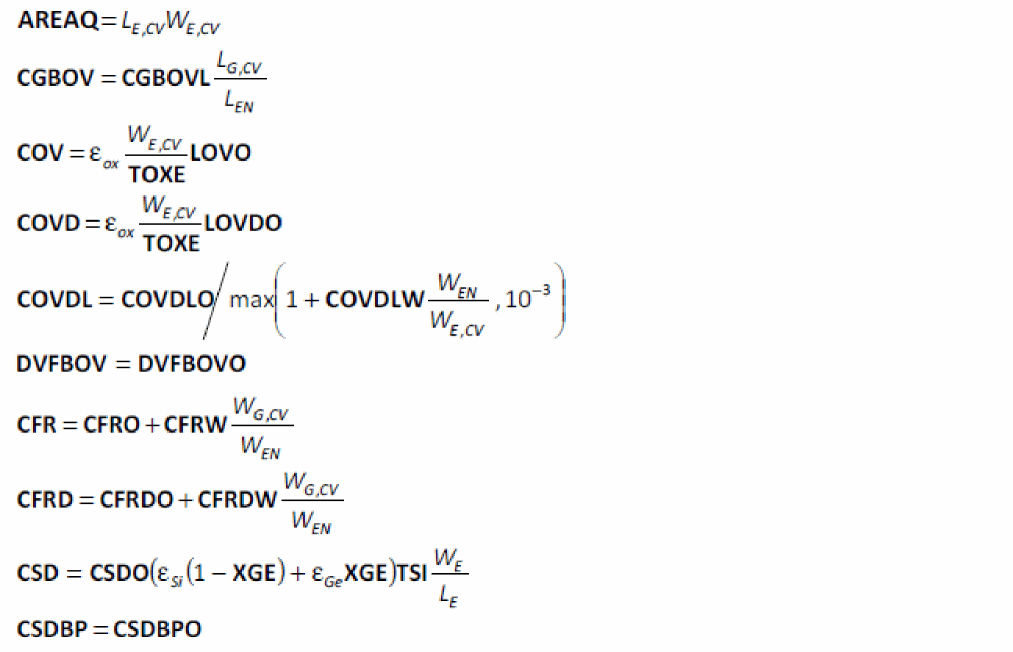

Charge Model Parameters

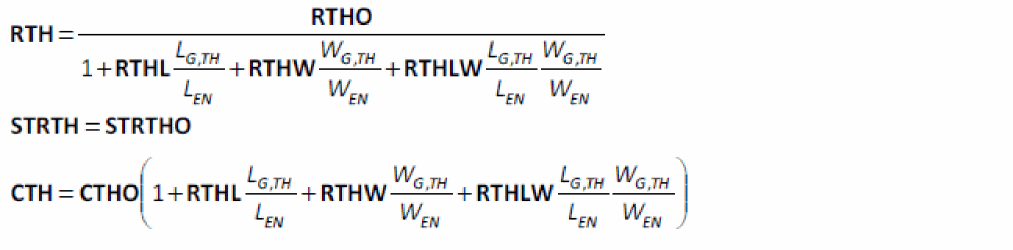

Self-heating Parameters

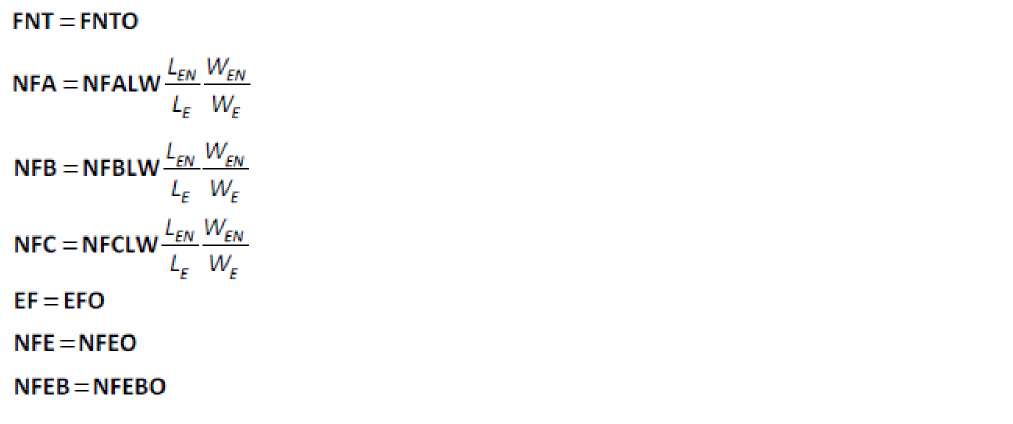

Noise Model Parameters
Stress Model

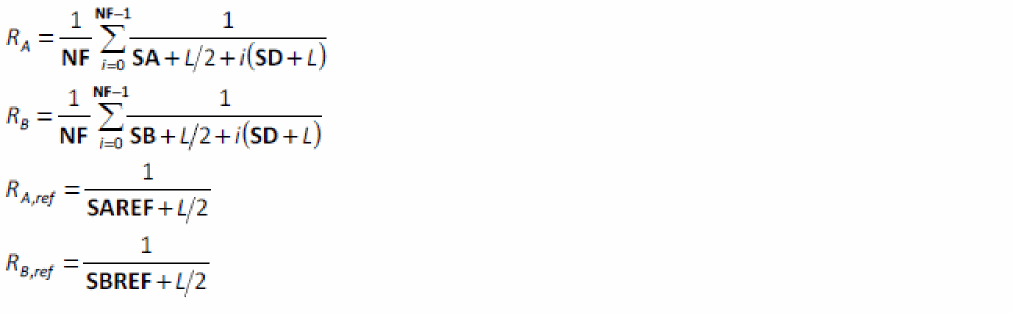

Effective SA/SB-related Parameters

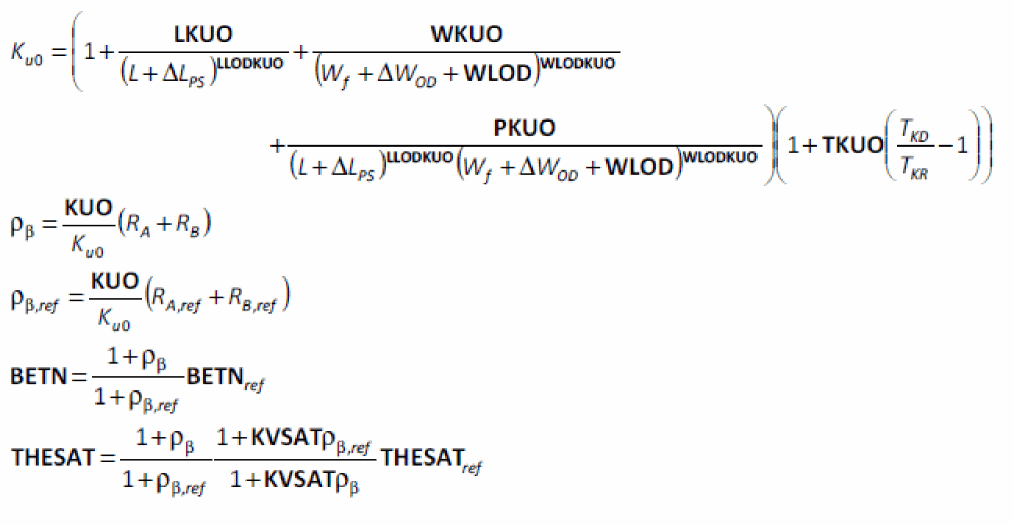

Modification of Mobility-related Parameters

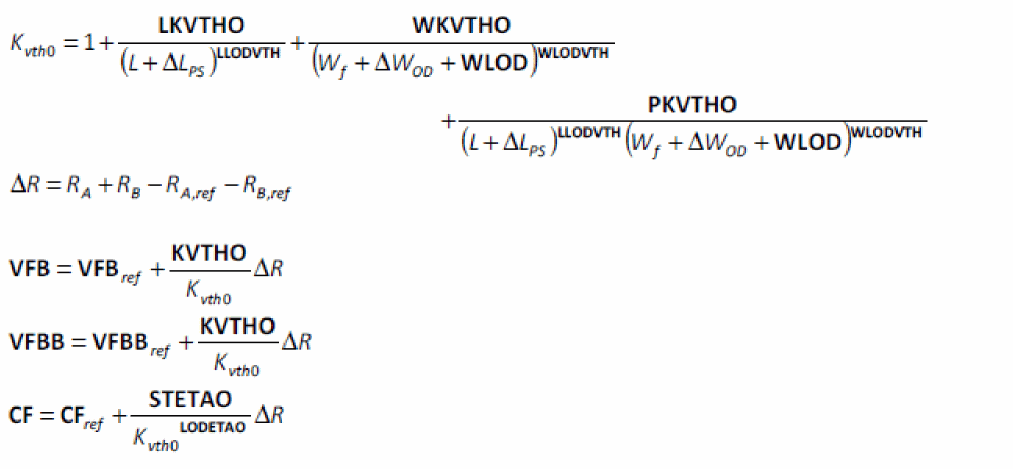

Modification of Threshold Voltage-related Parameters

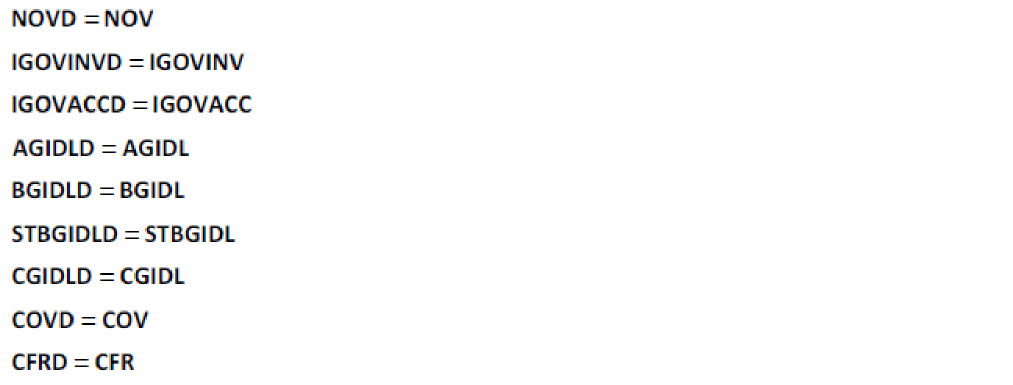

Asymmetric Junctions
After the calculations described Scaling Equations and Stress Model, local parameters are clipped according to the min/max values of the parameters.
Then, if the switch parameter SWJUNASYM is equal to 0, drain and source junctions are assumed symmetrical and all parameters related to the drain junction are overwritten by their source side counterparts.
If SWJUNASYM = 1, the parameters related to the drain side are kept unchanged.
