rfJcc

rfJcc(
[ ?result t_result ]
[ ?resultsDir t_resultsDir ]
[ ?unit t_unit ]
[ ?ber g_ber ]
[ ?from n_from ]
[ ?to n_to ]
[ ?k n_k ]
[ ?multiplier n_multiplier ]
)
=> n_value / o_waveform / nil

Description

Calculates cycle-to-cycle jitter from the results of hbnoise or pnoise analysis.

Arguments

?result t_result

Name of the result of pnoise or hbnoise analysis.

?resultsDir t_resultsDir

Path to the results directory.

?unit t_unit

Unit of the jitter measurement.

Valid values are ppm, Second, and UI.

?ber g_ber

Value of bit-error rate (BER) when the signal level is peak-to-peak.

This argument can be used to convert between RMS and peak-to-peak random jitter.

Where is the scaling factor.

To know scaling factor ( ) for various BER tolerance values, see RMS to Peak-to-Peak Jitter Conversion.

?from n_from

The lower frequency limiter.

?to n_to

The upper frequency limiter.

?k n_k

Number of cycles, which determines whether one period or k-periods jitter are calculated.

The default value is 1, which indicates that only one cycle-to-cycle jitter is calculated.

?multiplier n_multiplier

Frequency multiplier. The default value is 1.

Value Returned

n_value

Value of cycle-to-cycle jitter if simulation is run in single run mode.

o_waveform

Waveform of cycle-to-cycle jitter if simulation is run in sweep mode.

nil

Result name is not correct or cycle-to-cycle jitter cannot be calculated because of an error.

Examples

The following example returns the value of cycle-to-cycle jitter if simulation is run in single run mode. It returns a waveform that shows sweep variable plotted on x axis and cycle-to-cycle jitter value plotted on y axis if simulation is run in sweep mode.

rfJcc(?result "pnoise_sample_pm0" ?unit "Second" ?from 1000 ?to 10000 ?k 1 ?multiplier 1)

The following example opens simulation results of hbnoise analysis stored in the specified results directory.

openResults("/home/user/hbnoise/lib/cell/view/results/maestro/ExplorerRun.0/1/test/psf")
=> "/home/user/hbnoise/lib/cell/view/results/maestro/ExplorerRun.0/1/test/psf"

The following example lists the results available in the currently open results directory.

results()
(hb_fi hb_fd hb_td hbnoise hbnoise_am
    hbnoise_pm hbnoise_lsb model instance output
    designParamVals primitives subckts variables
)

The following example selects the hbnoise_pm result from the current results directory.

selectResults('hbnoise_pm)
=> stdobj@0x315b06f8

The following example creates a waveform object wave1 in which sweep variable is plotted on x axis and jitter value is plotted on y axis. The signal level is rms.

wave1=rfJcc(?from 10K ?to 1G ?k 1 ?multiplier 1 ?result "hbnoise_pm" ?unit "Second")
=> srrWave:0x3574d370

The following example creates a Waveform window and returns its window ID.

win1=awvCreatePlotWindow()
=> window:3

The following example plots the waveform wave1 in the Waveform window win1.

awvPlotWaveform(
    win1
    list(wave1)
    ?expr list("rfJcc")
    ?color list("y6")
    ?lineType list("line")
    ?lineStyle list("dash")
    ?lineThickness list("thick")
    ?showSymbols list(t)
    ?dataSymbol list("o")
    )
=> t

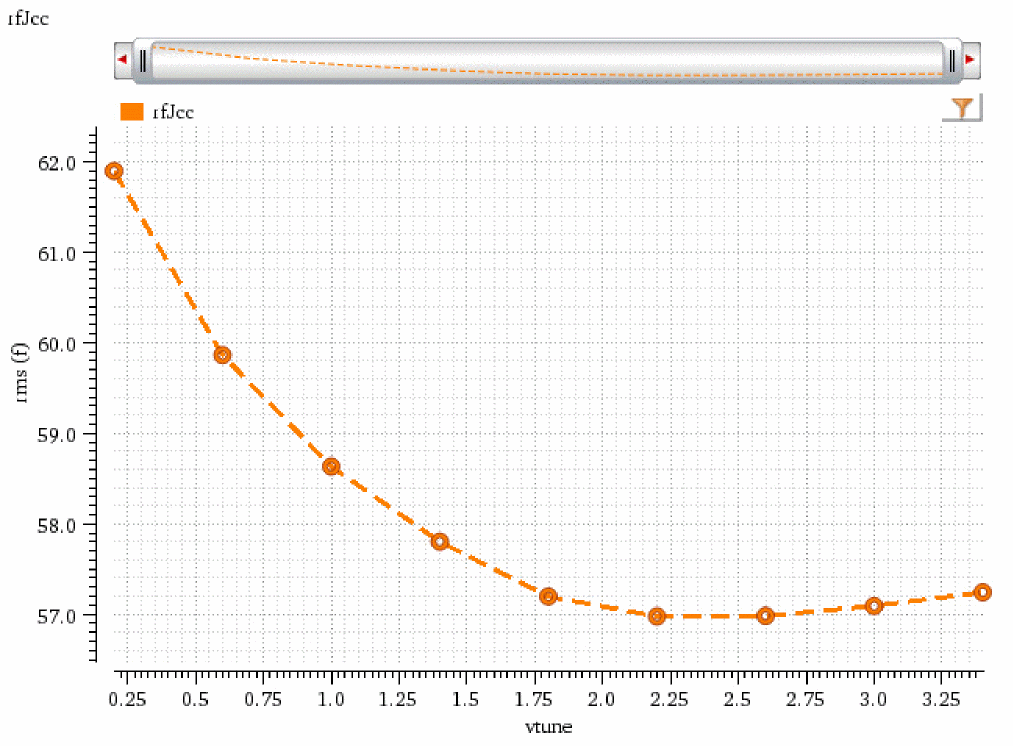

Note that the sweep variable vtune is plotted on x axis and jitter values are plotted on y axis.

The following example creates a waveform object wave2 in which sweep variable is plotted on x axis and jitter value is plotted on y axis. The signal level is peak-to-peak and BER is 1e-4.

wave2=rfJcc(?from 10K ?to 1G ?k 1 ?multiplier 1 ?result "hbnoise_pm" ?unit "Second" ?ber 1e-04)
=> srrWave:0x3570c0c0

The following example creates a Waveform window and returns its window ID.

win2=awvCreatePlotWindow()
=> window:4

The following example plots the waveform wave2 in the Waveform window win2.

awvPlotWaveform(
    win2
    list(wave2)
    ?expr list("rfJcc")
    ?color list("y18")
    ?lineType list("line")
    ?lineStyle list("dash")
    ?lineThickness list("thick")
    ?showSymbols list(t)
    ?dataSymbol list("5")
    )
=> t

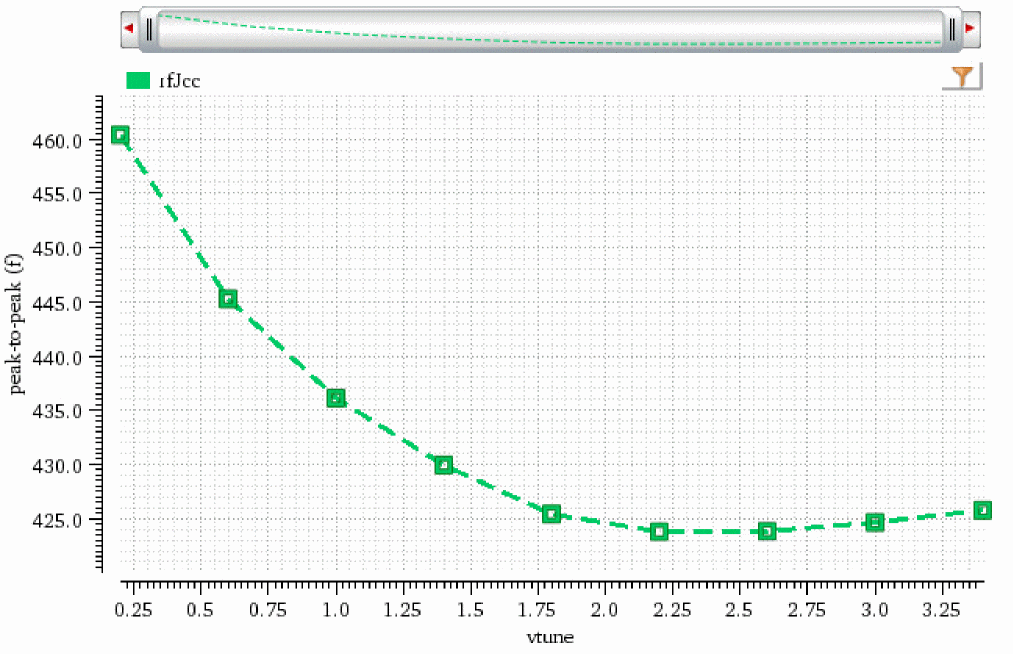

Note that the sweep variable vtune is plotted on x axis and jitter values are plotted on y axis.

The following example opens simulation results of pss_pnoise analysis stored in the specified results directory.

openResults("/servers/user/testcase/simulation/lib/cell/view/results/maestro/ExplorerRun.0/1/pss_pnoise_trannoise/psf")
=> "/servers/user/testcase/simulation/lib/cell/view/results/maestro/ExplorerRun.0/1/pss_pnoise_trannoise/psf"

The following example lists the results available in the currently open results directory.

results()
(pss_tran pss_td pss_fd pnoise_sample_pm0 model
    instance output designParamVals primitives subckts
    variables
)

The following example selects the result pnoise_sample_pm0 stored in the results directory.

selectResults('pnoise_sample_pm0)
=> stdobj@0x324df290

The following examples calculate values of cycle-to-cycle jitter from the result pnoise_sample_pm0 in units UI, Second, and ppm, respectively. The signal level is rms.

rfJcc(?from 2.5K ?to 19.2M ?k 1 ?multiplier 1 ?result "pnoise_sample_pm0" ?unit "UI")
=> 8.647249e-06
rfJcc(?from 2.5K ?to 19.2M ?k 1 ?multiplier 1 ?result "pnoise_sample_pm0" ?unit "Second")
=> 2.251888e-13
rfJcc(?from 2.5K ?to 19.2M ?k 1 ?multiplier 1 ?result "pnoise_sample_pm0" ?unit "ppm")
=> 8.647249

The following examples calculate values of cycle-to-cycle jitter from the result pnoise_sample_pm0 in units UI, Second, and ppm, respectively. The signal level is peak-to-peak and BER is 1e-12.

rfJcc(?from 2.5K ?to 19.2M ?k 1 ?multiplier 1 ?result "pnoise_sample_pm0" ?unit "UI" ?ber 1e-12)
=> 0.0001216581
rfJcc(?from 2.5K ?to 19.2M ?k 1 ?multiplier 1 ?result "pnoise_sample_pm0" ?unit "Second" ?ber 1e-12)
=> 3.168181e-12
rfJcc(?from 2.5K ?to 19.2M ?k 1 ?multiplier 1 ?result "pnoise_sample_pm0" ?unit "ppm" ?ber 1e-12)
=> 121.6581

RMS to Peak-to-Peak Jitter Conversion

To convert between RMS and peak-to-peak random jitter, the argument ?ber must be specified. The following equation can be used to convert between the two:

The following table list the scaling factor ( ) for various BER tolerance values.

BER Scaling Factor (Alpha)

10-3

6.180

10-4

7.438

10-5

8.530

10-6

9.507

10-7

10.399

10-8

11.224

10-9

11.996

10-10

12.723

10-11

13.412

10-12

14.069

10-13

14.698

10-14

15.301

10-15

15.883

10-16

16.444

and
