2 Results Browser

Results browser is an assistant in Virtuoso Visualization and Analysis XL that you can use to access the simulation results that you saved to work on later in a different session. Results Browser displays simulation results (signals) in a hierarchical arrangement that corresponds to the hierarchy of your design, making it convenient for you to locate and manage simulation data.

The results for each simulation are stored in a separate results directory. In addition, the results for different analysis types are stored in separate folders. For example, all simulation results for all transient analyses are contained in the tran directory. The various signals in a results directory are displayed in the Results Browser in a hierarchy that is determined by the design.

You can load multiple results directories in the Results Browser. The first directory that you load in the Results Browser becomes the in-context results directory. This means that the expressions in the Calculator are evaluated and the signals displayed in the graph are plotted by using the data available in the in-context results directory.

To change the in-context results directory, see Changing In-Context Results Directory.

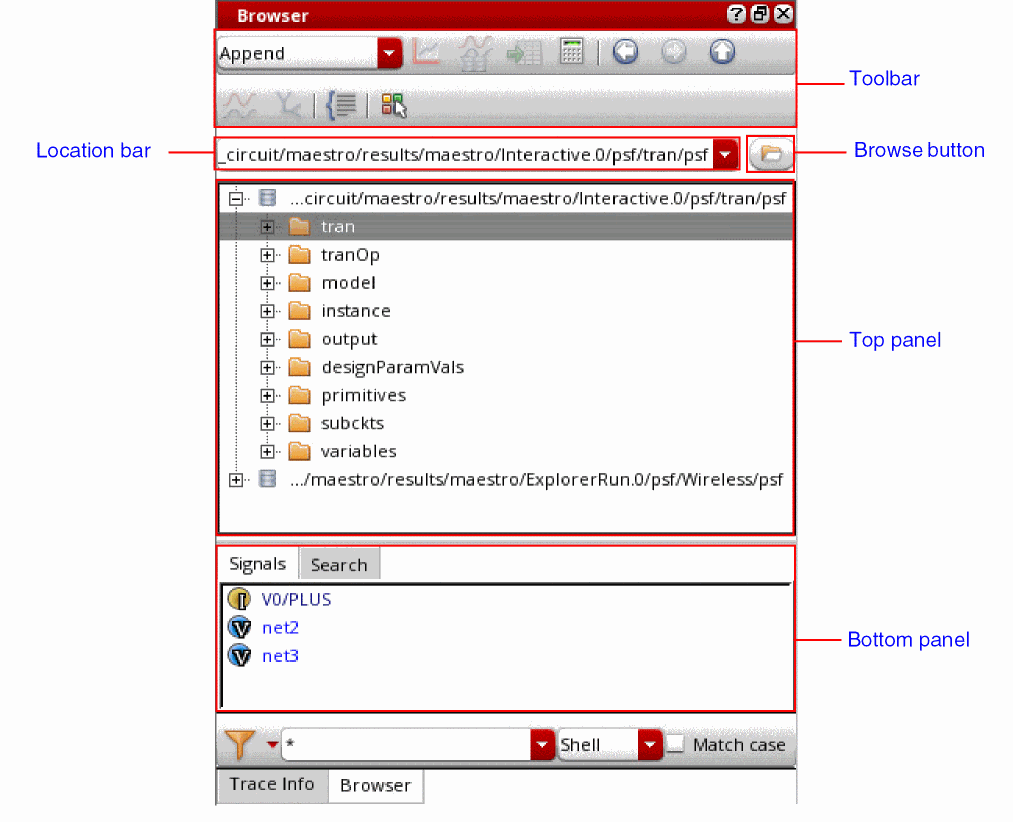

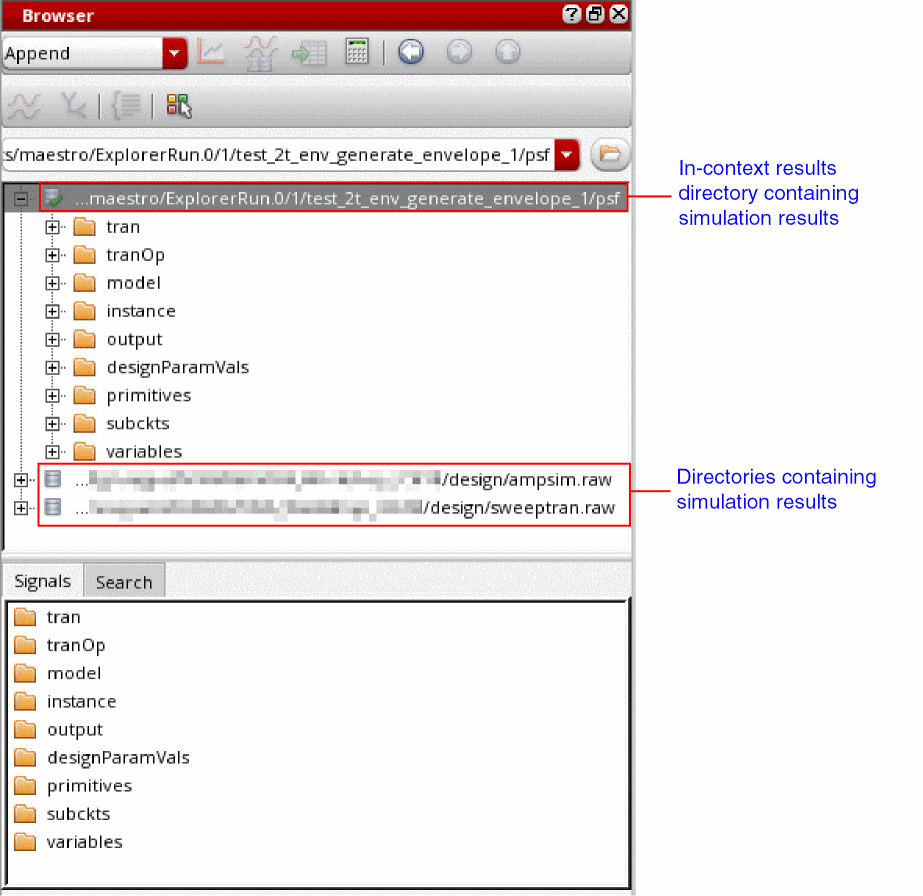

The following figure shows the Results Browser assistant.

Opening the Results Browser

You can open the Results Browser in any of the following ways:

Opening the Results Browser in Standalone Mode

To open the Results Browser in standalone mode:

Run the following command in a terminal window:
```
viva -expr SKILL
```

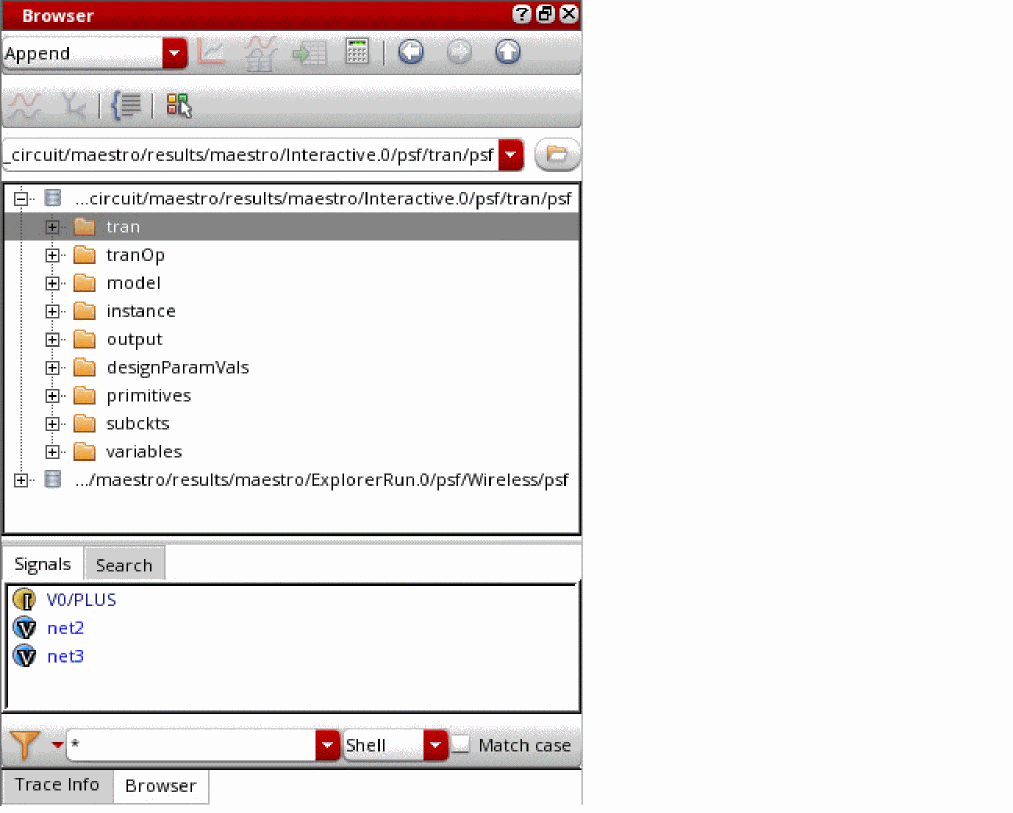

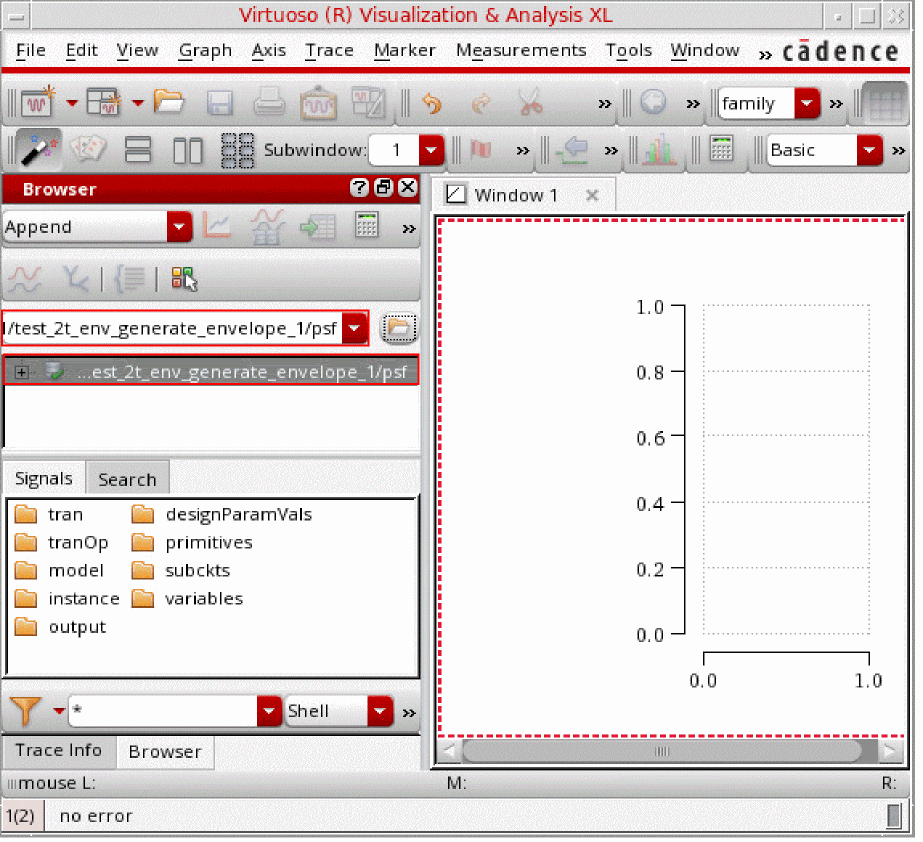

The Virtuoso (R) Visualization & Analysis XL window appears with the Results Browser displayed on the left.
To open a result directory in the Results Browser, specify the viva -dataDir command-line option as follows:
```
viva -dataDir "./simulation/WirelessLib/wireless_LTE/maestro/results/maestro/ExplorerRun.0/psf/Wireless/psf"
```
The specified results directories are opened in the Results Browser with the last-specified directory as in-context results directory.
By default, Virtuoso Visualization and Analysis XL opens in SKILL mode.

Opening the Results Browser from Virtuoso

To open the Results Browser from Virtuoso:

From the CIW, choose Tools – ViVA XL – Results Browser.
The Virtuoso (R) Visualization & Analysis XL window appears with the Results Browser displayed on the left.

Opening the Results Browser from Virtuoso Analog Design Environment

To open the Results Browser from Virtuoso ADE Assembler or Virtuoso ADE Explorer:

From the menu bar, choose Tools – Results Browser.
The Virtuoso (R) Visualization & Analysis XL window appears with the Results Browser displayed on the left.

Toolbar of the Results Browser

The following table describes the toolbar icons of the Results Browser.

Icon	Name	Description
	Plotting Mode	Specifies mode of plotting signals: Append: Adds the signal to the selected graph. Replace: Replaces the signal in the selected graph with the new signal. New Subwindow: Plots the signal in a new subwindow within the current window. New Window: Plots the signal in a new window.
	Plot Signals	Plots the selected signals in the current subwindow.

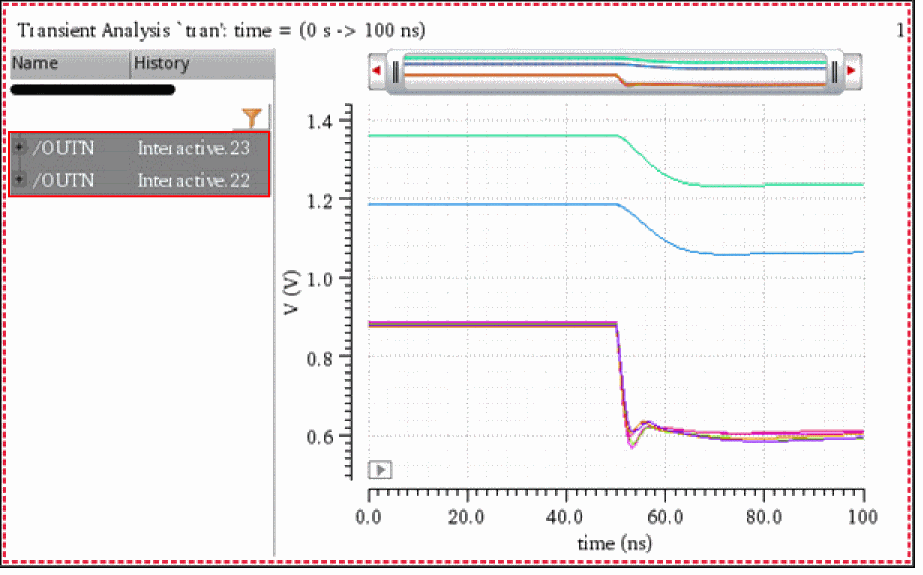

	Plot Signal from all Open DBs	Plots the selected signal from all open results directories in append mode. This helps compare signals that are common to all open results directories.

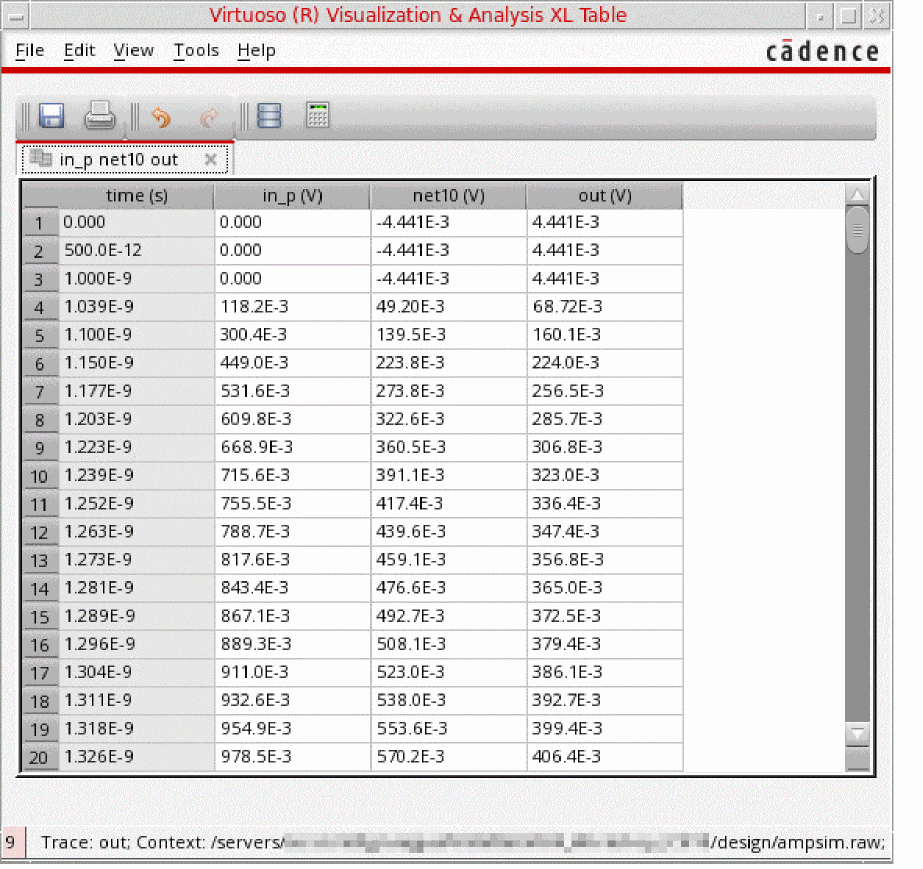

	Send to Table	Displays the signal data in the Virtuoso Visualization and Analysis XL Table.

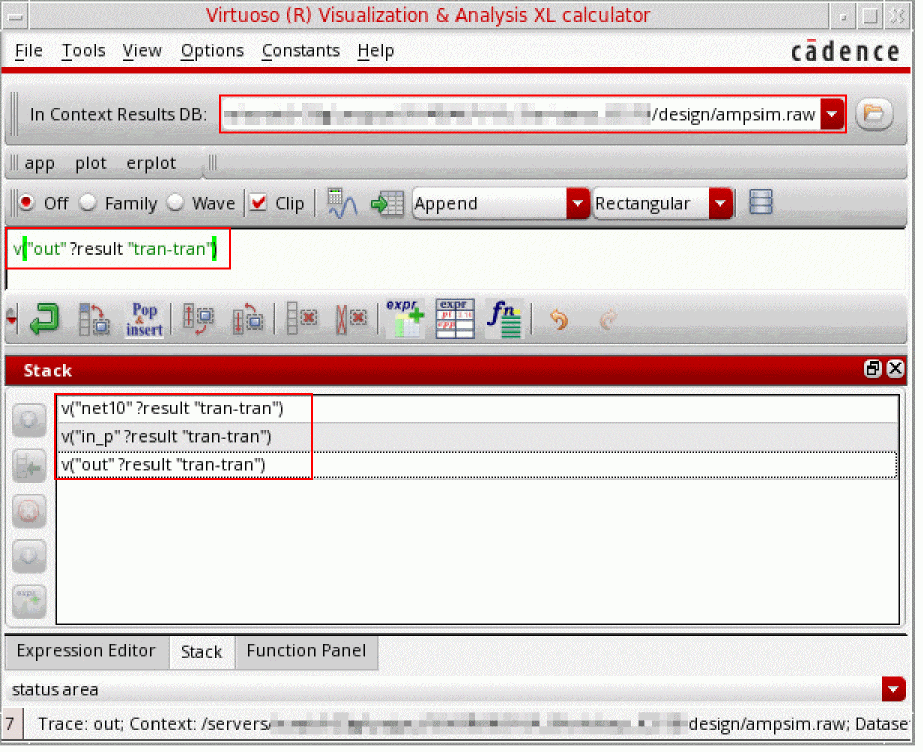

	Send to Calculator	Opens the Calculator and displays the expression for the selected signal in the Calculator Buffer.
	Previous	Moves the control to the previous results directory selected in the Results Browser. When you open a new session, this button is not available.
	Next	Moves to control to the next results directory opened in the Results Browser.
	Up to Parent Directory	Moves the control to one level up in the results directory hierarchy.
	Graph Type	Lets you select the graph type: Default: Plots the signal to the default graph type. Rectangular: Plots the signal to a rectangular graph. Tabular: Plots the signal to a tabular graph. Polar: Plots the signal to a polar graph. Impedance: Plots the signal to an impedance graph. Admittance: Plots the signal to an admittance graph. Immittance: Plots the signal to an immittance graph. RealvsImag: Plots real versus imaginary. This option is available only for AC data.
	Graph Modifier	Lets you select the graph modifier: Magnitude: Plots magnitude versus frequency. Phase: Plots phase versus frequency. WPhase: Plots wrapped phase versus frequency. Real: Plots real versus frequency. Imaginary: Plots imaginary versus frequency. dB10: Plots dB10 versus frequency. dB20: Plots dB20 versus frequency. dBm: Plots dBm versus frequency. This option is available only for AC data.
	Diff of 2 Signals	Plots the difference of two signals in the graph window.
	YvsY of 2 Signals	Plots the Y Vs Y of two signals.
	Select Sweep Data	Lets you select the range for the sweep data.

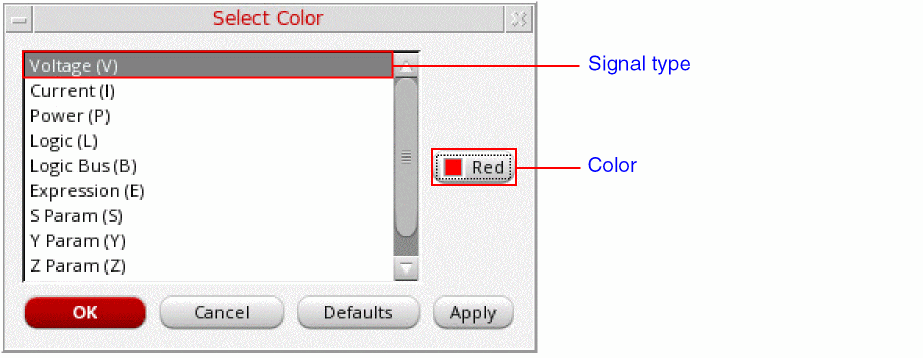

	Change Color of Signals	Lets you change the default color of different signal types.
	Location bar	Lists the paths for the last 20 results directories opened in the Results Browser. If the results directory path name is long, it is displayed in the right-justified format in the location bar. This helps differentiate between the name of the results files when multiple results directories are opened in the Results Browser. To open a results directory, select it in the drop-down list. To open a new results directory that was loaded earlier in the Results Browser, enter the path in the box, or click the Browse button on the right.
	Browse	Lets you select the path to the results directory.

Top Panel of the Results Browser

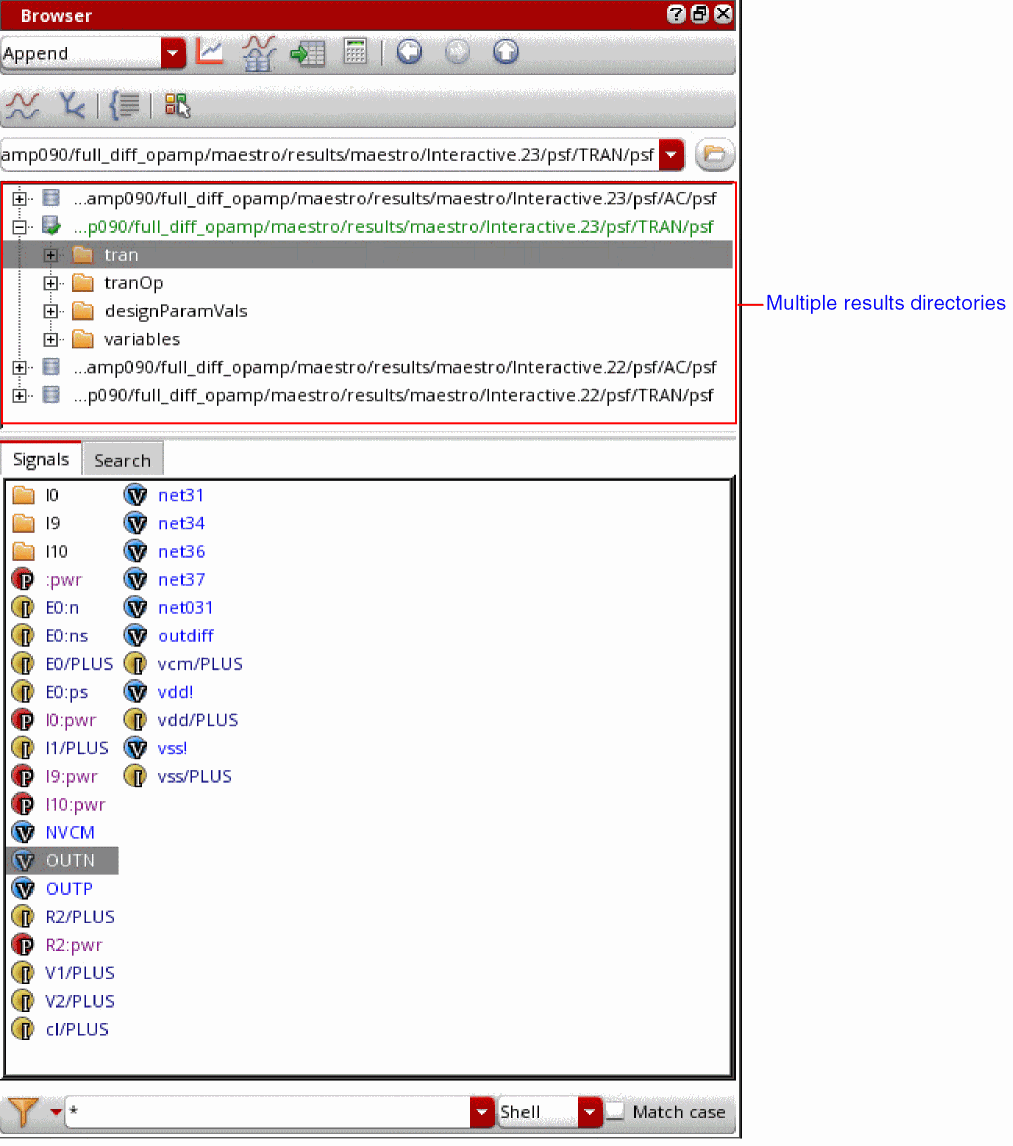

The top panel of the Results Browser displays all loaded results directories in a tree view. The icon displayed next to a results directory indicates that it is a PSF directory.

The following table describes the context-menu commands that appear when you right-click a results directory in the top panel.

Icon	Command Name	Description
	Close Results	Closes the selected results directory.
	Open Terminal	Opens a terminal for the selected results directory.
	Set Context	Sets the selected directory as the in-context results directory.

Bottom Panel of the Results Browser

The bottom panel displays the contents of the selected database in a list view.

The following table describes the context-menu commands that appear when you right-click a signal in the bottom panel.

Icon	Name	Description
	Up One Level	Moves the control to one level up in the results directory hierarchy.
	Plot Signal	Plots the selected signals in the current subwindow. By default, signals are plotted in append mode.
	Plot from all DBs	Plots the selected signal from all open results directories in append mode. This helps compare signals that are common to all open results directories.
	Export	Exports the waveforms of the selected signals.
	Send to Export List	Sends the waveforms of the selected signals to an export list.
	Send to Calculator	Opens the Calculator and displays the expression for the selected signal in the Calculator Buffer.
	Send to Table	Displays the signal data in the Virtuoso Visualization and Analysis XL Table.
	Diff of 2 Signals	Plots the difference of two signals in the graph window.
	YvsY of 2 Signals	Plots the Y Vs Y of two signals.
–	Append	Adds the signal to the selected graph.
–	Replace	Replaces the signal in the selected graph with the new signal.
–	New Subwindow	Plots the signal in a new subwindow within the current window.
–	New Window	Plots the signal in a new window.

Opening a Results Directory

To open a results directory in the Results Browser:

From the menu bar of the Virtuoso Visualization and Analysis XL, choose either File – Open Results or Browser – Results – Open Results.

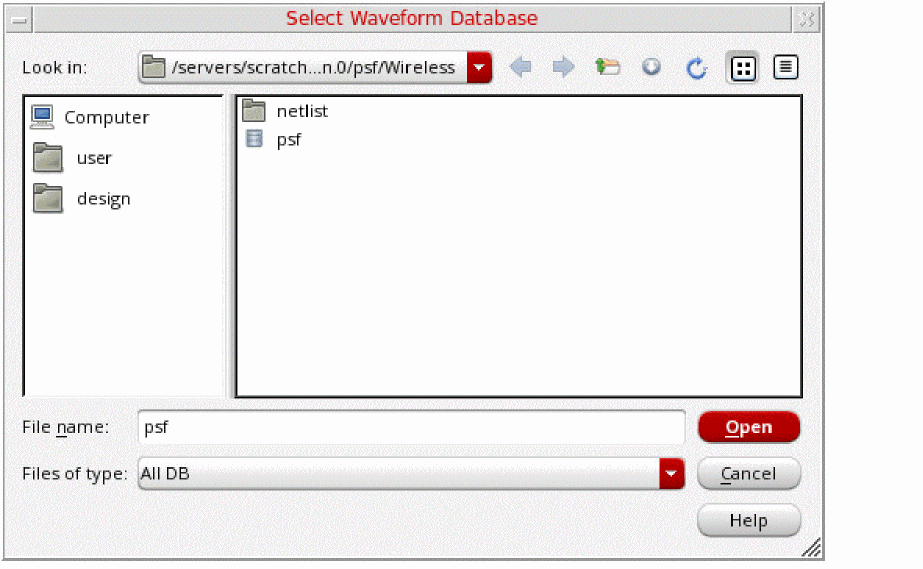

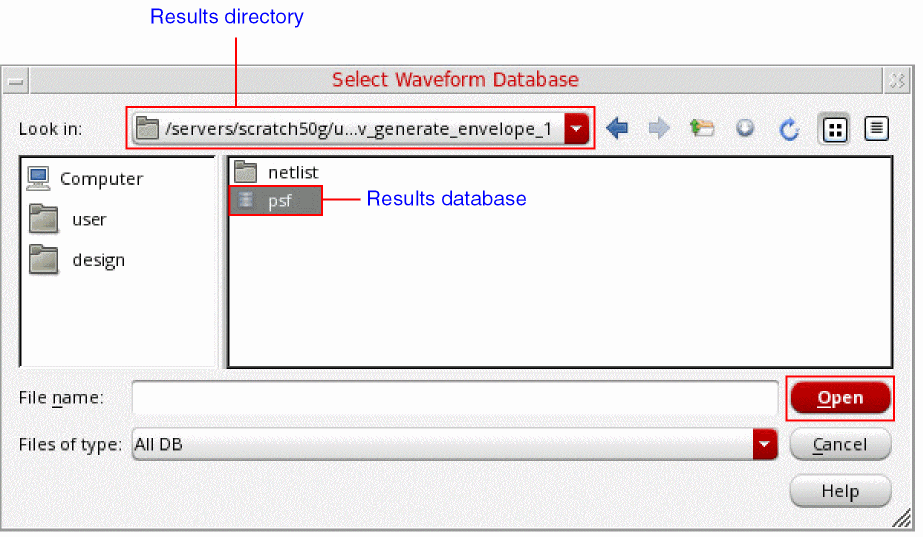

The Select Waveform Database form opens.
In the Look in field, browse to locate the results directory that you want to open. If required, you can open multiple results directories. By default, this field displays the path of the directory from where the you opened the results recently in the Results Browser.
Select the results directory that you want to open. You can select multiple directories at a time by using the Ctrl key.
Click Open.
The selected results directory is opened in the Results Browser. If this is the first directory that is opened in Results Browser, it is displayed in green and the icon is displayed next to the directory name to indicate that it is the in-context results directory.
The icon is displayed next to the directories that contain simulation data.

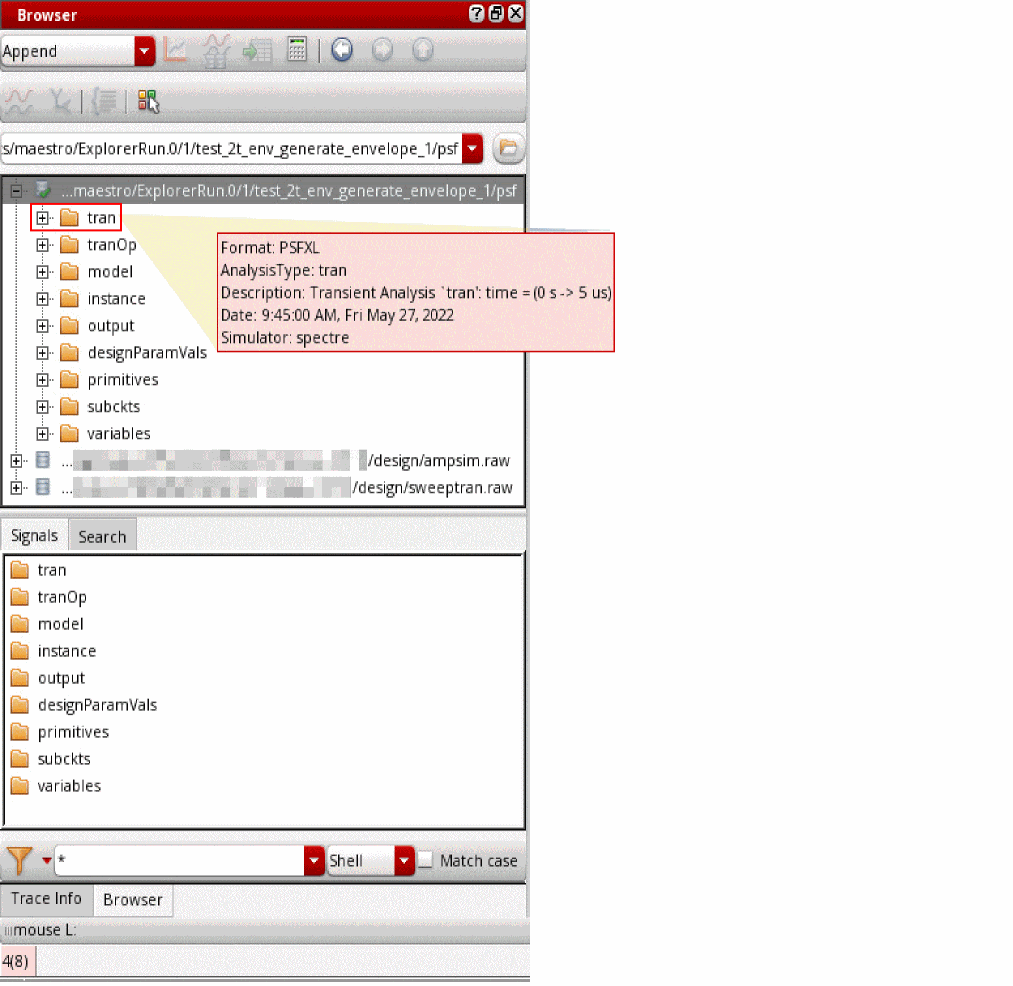

When you point to a folder of a database in the Results Browser, the following information is displayed as a tooltip.

Format: Format in which simulation results are saved in the results directory.
Analysis Type: Type of analysis performed.
Description: Description of the analysis performed.
Date: Date and time of the simulation results.
Simulator: Name of the simulator.

Setting the In-Context Results Directory

To change the database context directory from the Results Browser:

Open the results directory that you want to set as the context directory in the Results Browser.
Right-click the results directory and choose Set Context.
The database context is set to the selected results directory.

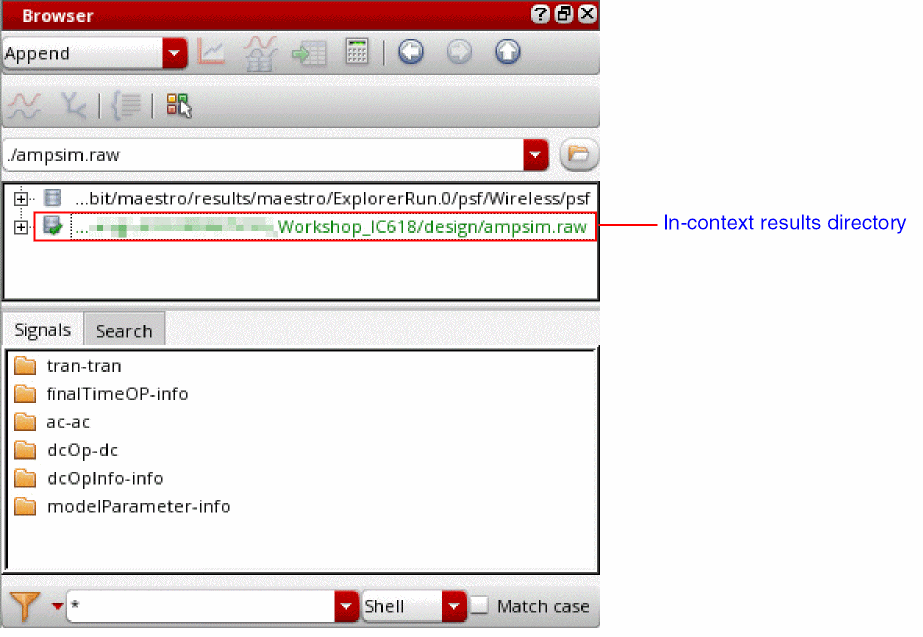

The results directory that is selected as the context directory is displayed in green and the icon is displayed next to it.

Setting the in-context results directory plays an important role in performing the following tasks:

When you set the context to a new results directory after running a simulation and plotting results, using Reload will plot traces from all the corners of the new context results directory in the graph window. For example, you are currently in the context Interactive.3 and you plot the signal /OUT with three traces C0_0, C0_1 and C0_2 from corner C0. Now, if you change the context to Interactive.4, which has the five traces C0_0, C0_1, C1_0, C1_1, C1_2 from corner C0 and C1. Using Reload plots all these five traces from corner and C1.

Selecting a Signal in the Results Browser

In the Results Browser, the top panel displays the results directories and the bottom panel displays the datasets in the selected results directory.

To select a signal in the Results Browser:

Double-click a results directory in the top panel.
The results directory is expanded and the folders containing data from different analyses are displayed in the bottom panel.
The icon, displayed next to a directory in a list, indicates that the directory contains subdirectories. You can double-click the directory to display or to hide the subdirectories.
Double-click a dataset directory.

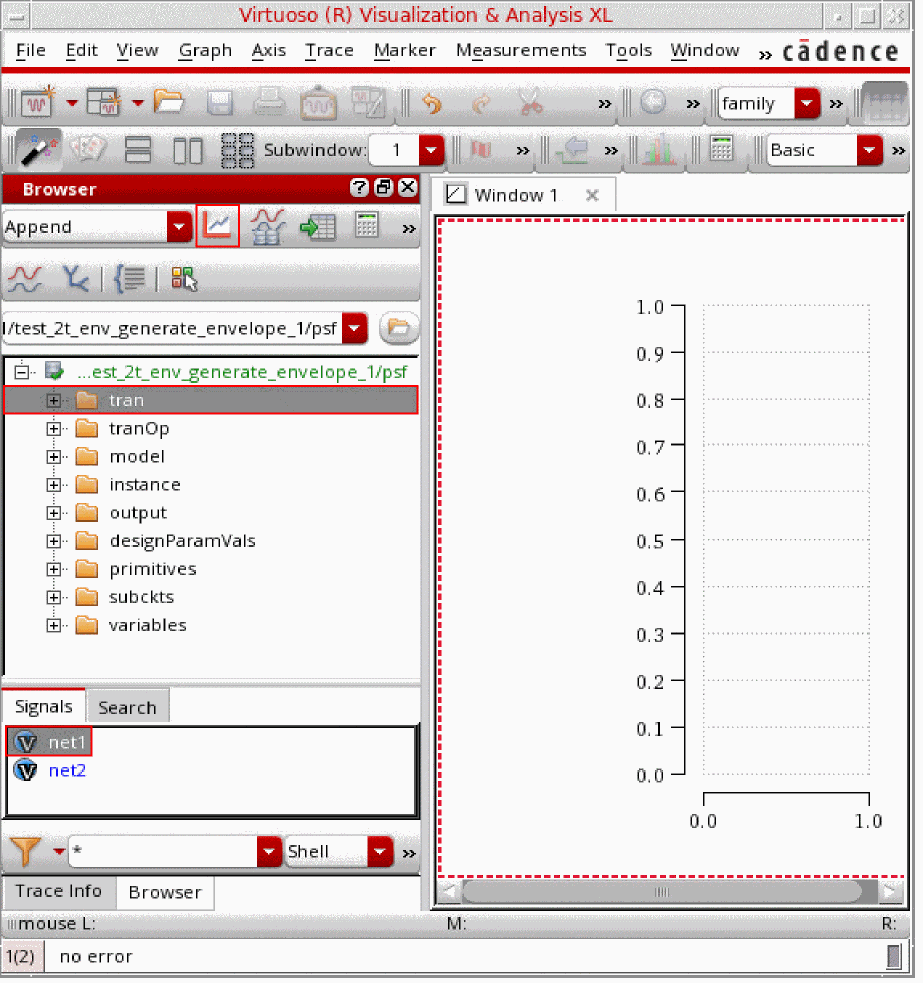

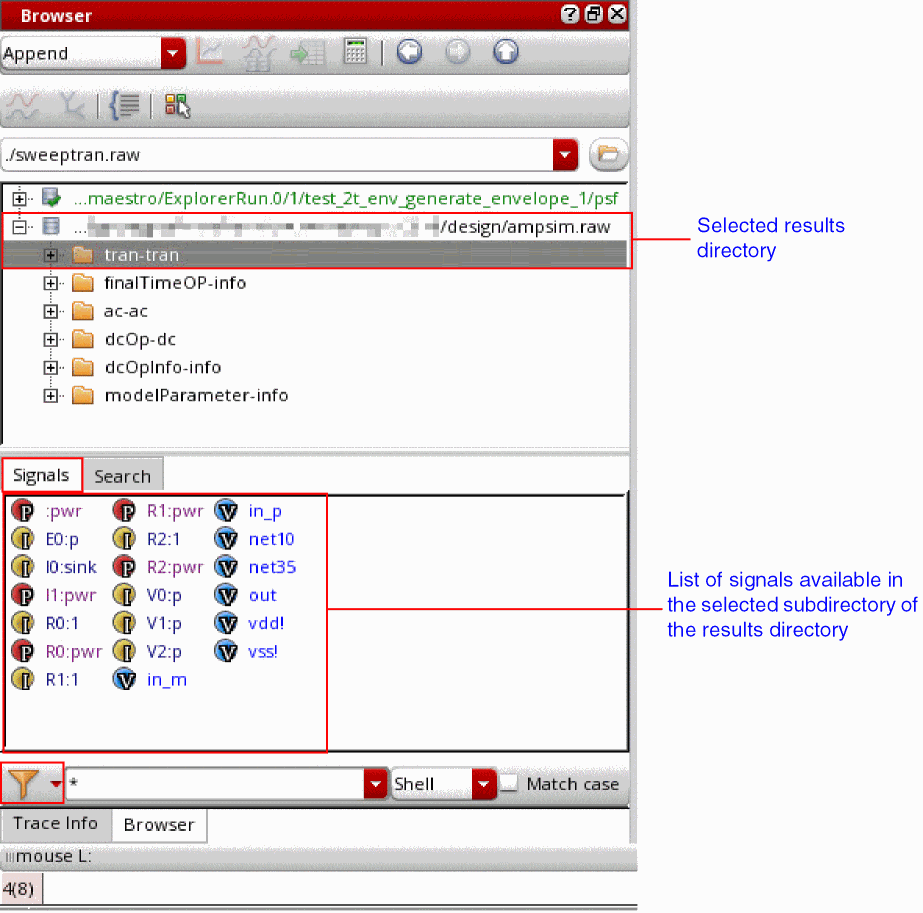

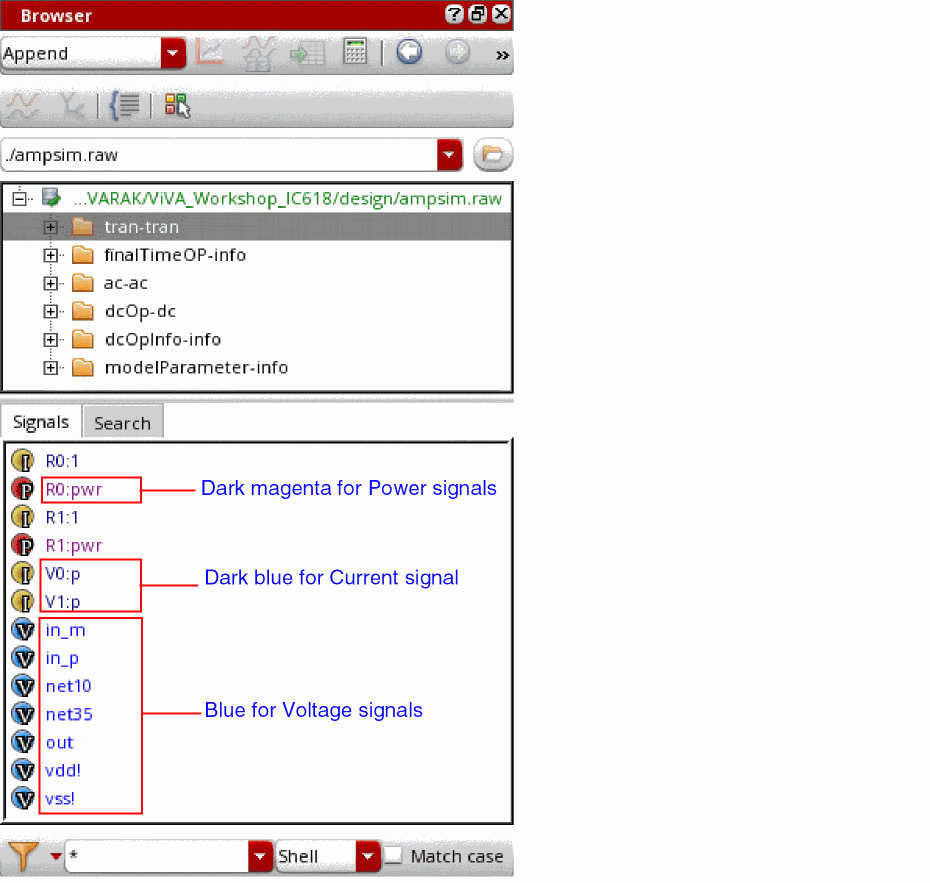

The signals are displayed in the bottom panel. Each signal has an icon displayed next to it, which indicates the signal type.
- indicates a voltage signal.
- indicates a current signal.
- indicates a power signal.
- indicates a digital signal.
- indicates a digital bus signal.

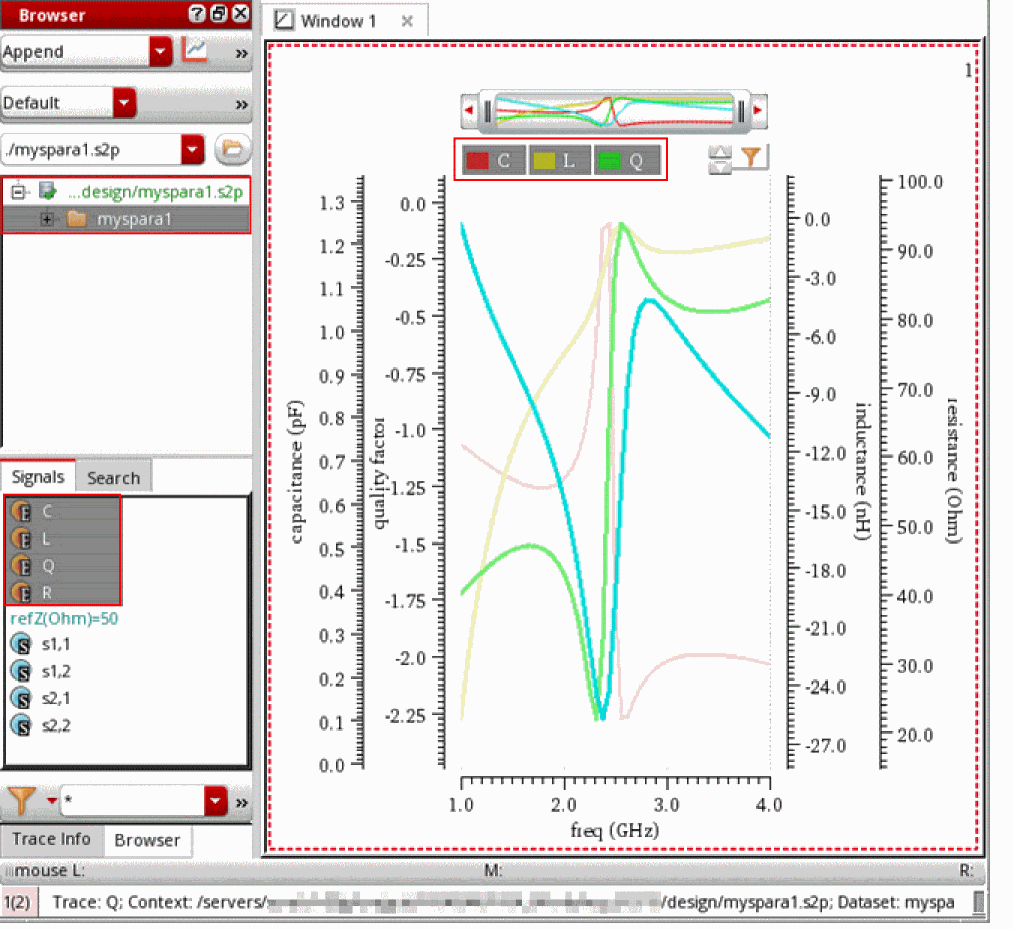

- indicates an S-Parameter.
- indicates an expression.
- indicates a WREAL signal.
Right-click the signal and choose the command to either plot it or to send it to the Calculator or Table.

Plotting a Signal from the Results Browser

To plot a signal from the Results Browser:

In the Results Browser, click the Open Results icon.
The Select Waveform Database form opens.
Navigate to a results directory.
Select a results database.
Click Open.
The selected results directory opens in the Results Browser.
In the results directory, navigate to the results folder that contains the signal you want to plot.
Select the signal you want to plot and click the Plot Signals icon in the toolbar of the Results Browser. Hold down the Ctrl key to select multiple signals.
Alternatively, right-click the signal and choose Plot Signal.

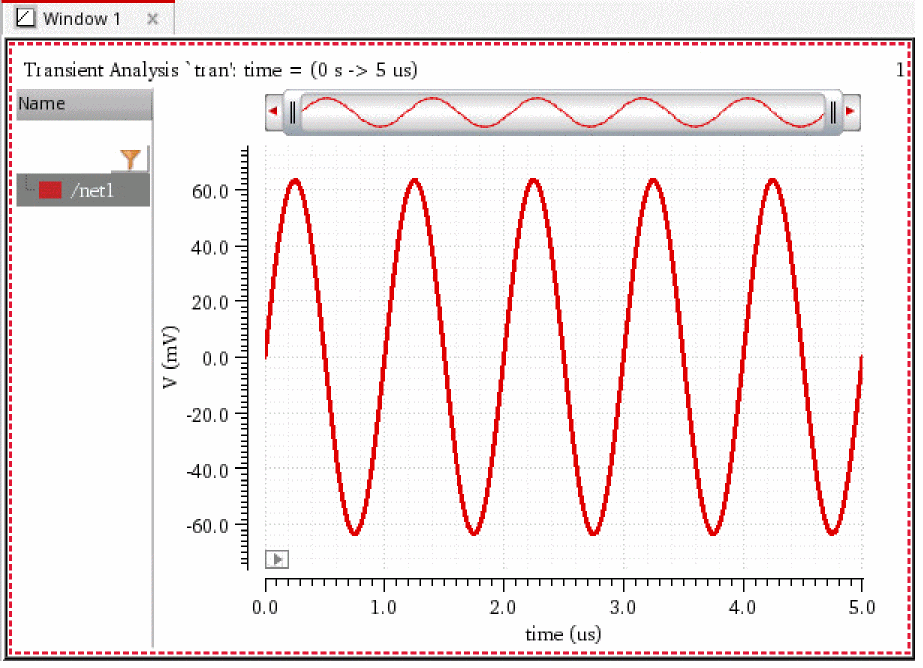

The selected signal is plotted in the current graph window or subwindow.

Plotting a Transient Signal Over a Time Range

You can plot transient data over a time range. To specify the time range for a transient dataset:

In the Results Browser, select a transient signal.
From the toolbar of the Results Browser, click Select Sweep Data .

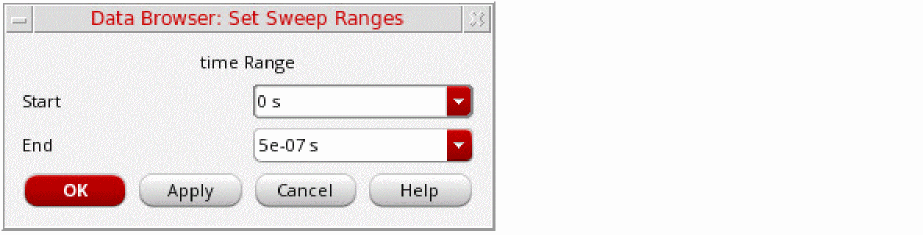

The Data Browser: Set Sweep Ranges form opens.
In the Start and End fields, specify the time range over which you want to plot the transient signal.
If you want the graph to be plotted between the first and last data points of the signal, select Default from the Start and End drop-down lists, respectively.
The default values of Start and End fields depend on the selected transient signal.
Click OK.
Click Plot Signals from the toolbar of the Results Browser to plot the transient data over the specified time range.

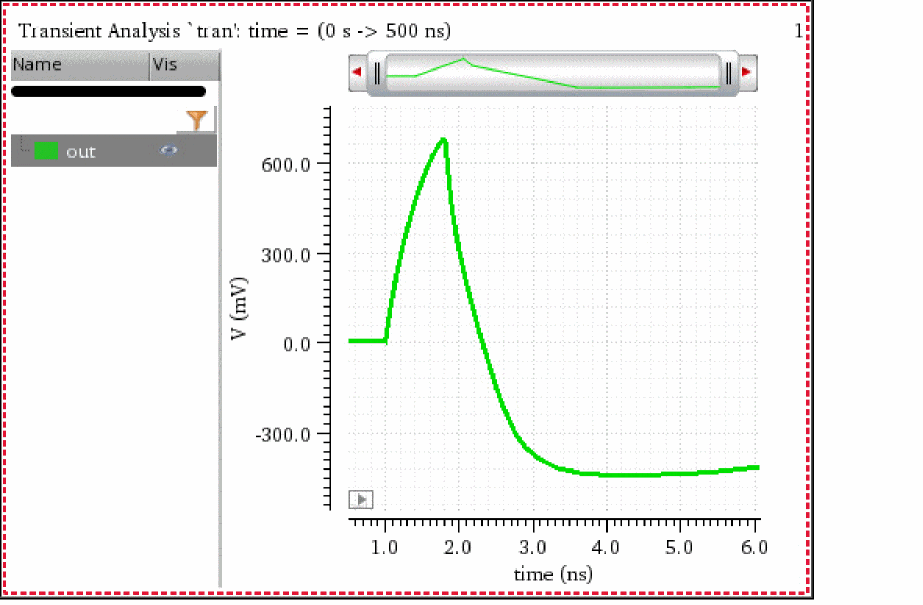

The following example shows the transient signal out plotted over the time range between 1ns and 6ns.

Plotting an AC Signal over a Frequency Range

You can plot an ac signal over a frequency range. To specify the frequency range for an ac signal:

In the Results Browser, select an ac signal.
From the toolbar of the Results Browser, click Select Sweep Data .

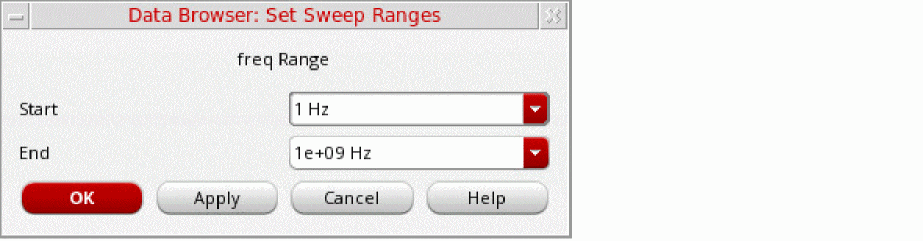

The Data Browser: Set Sweep Ranges form opens.
In the Start and End fields, specify the frequency range over which you want to plot the ac signal.
If you want the graph to be plotted between the first and last data points of the signal, select Default from the Start and End drop-down lists, respectively.
The default values of Start and End fields depend on the selected signal.
Click OK.
Click Plot Signals from the toolbar of the Results Browser to plot the ac signal over the specified frequency range.

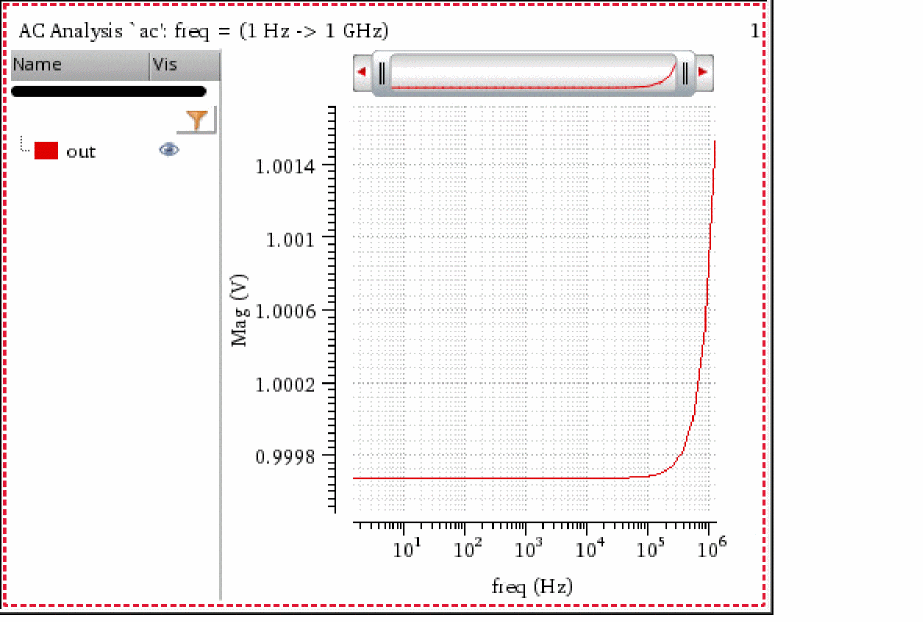

The following example shows an ac signal out plotted over the frequency range between 2Hz and 1e+06Hz.

Plotting Parametric Sweep Data

A parametric analysis sweeps a parameter or a group of parameters and runs one or more analyses for each combination of parameters. The Virtuoso Visualization and Analysis XL tool helps you analyze the resulting data efficiently.

To plot a part of parametric swept data:

In the Results Browser, select a parametric signal.

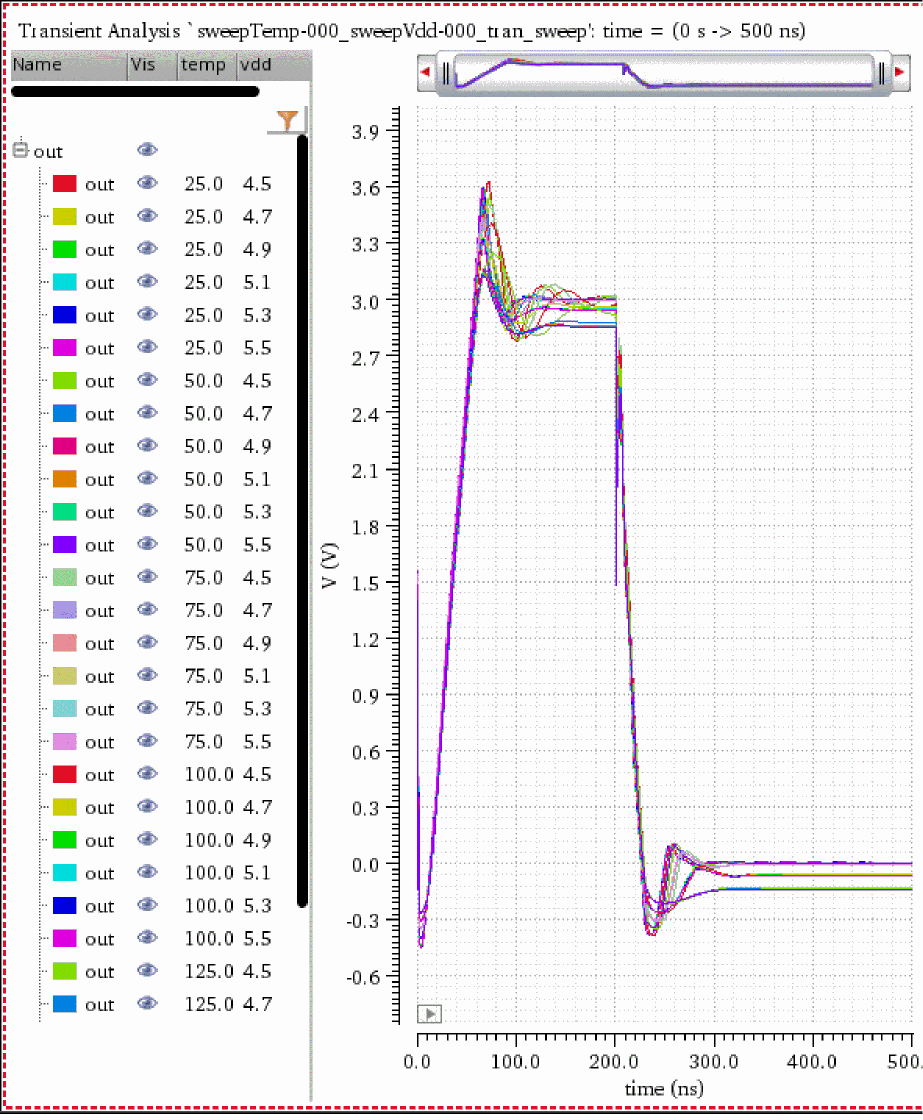

The following example shows a parametric signal out, which has two sweeping variables temp and vdd.
From the toolbar of the Results Browser, click Select Sweep Data .

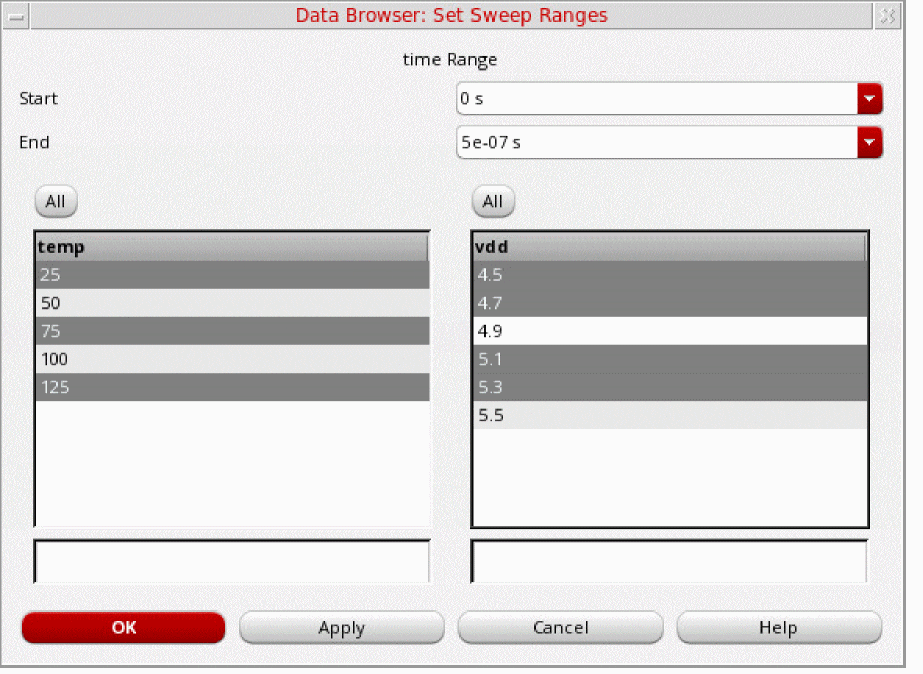

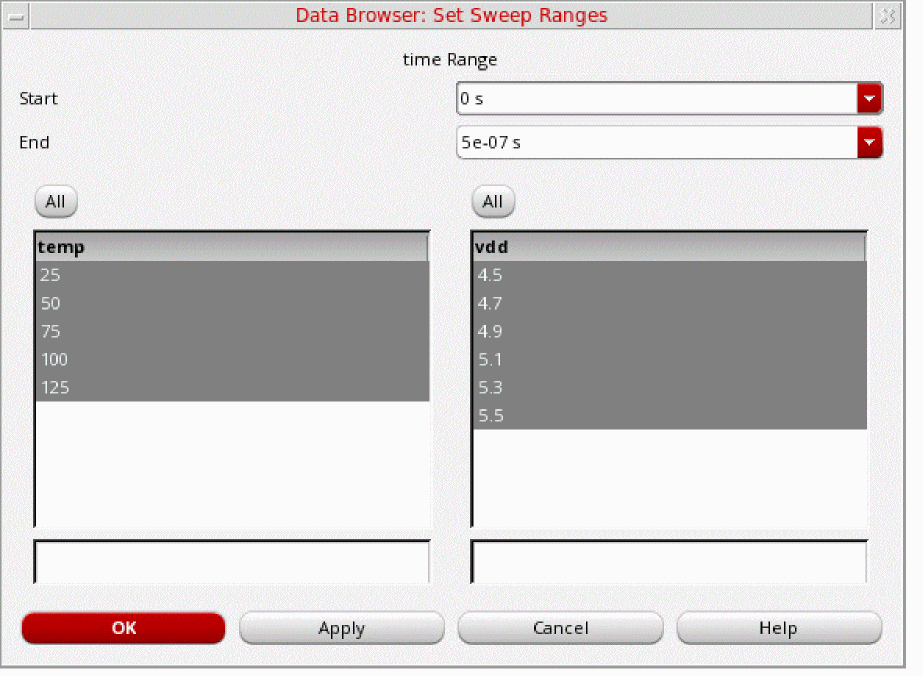

The Data Browser: Set Sweep Ranges form opens. The Start and End fields display the range of the signal. All the temp (temperature) and vdd (inner sweep variable) values are selected by default.
From the temp list, click 25.0. Hold down the Ctrl key to select multiple values, and click 75.0, and 125.0.
From the vdd list, click 4.5. Hold down the Ctrl key, and click 4.7, 5.1, and 5.3.

You can also use this form to filter and sort sweep variables by typing their values in the boxes at bottom.
Click OK.
In the Results Browser, right-click the out signal and choose New Window.

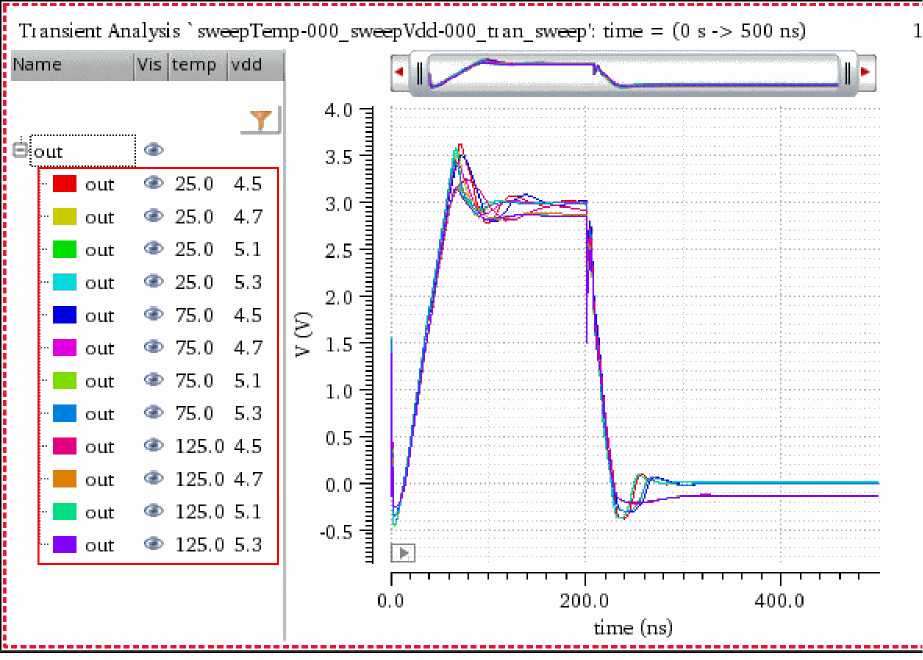

The graph window appears with the traces plotted for the parametric family. Each trace in the family is annotated by a sweep path that describes the parameter-value pair.

Plotting the Difference of Two Signals

To plot the difference of two signals:

In the Results Browser, select the first signal. For example, out.
In the Results Browser, select the second signal (for example, in_p), and then click Diff of 2 Signals .
Alternatively, you can first click Diff of 2 Signals , and then select the second signal.

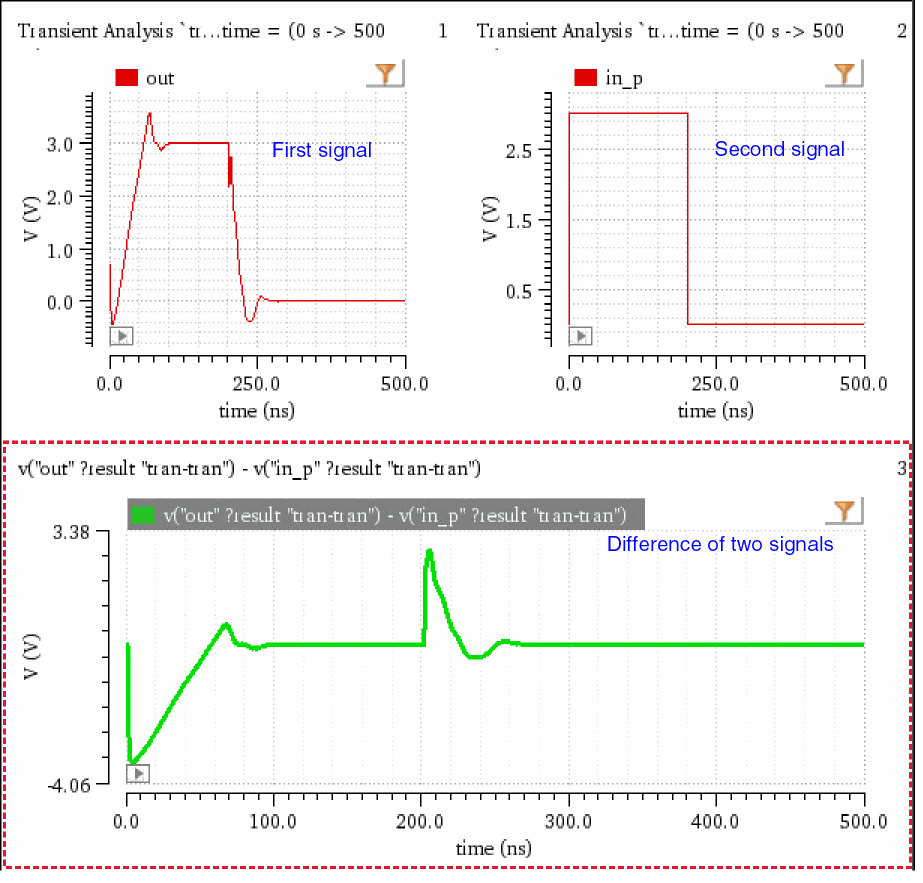

The difference of the two signals is plotted in the current subwindow.

Plotting YvsY for Two Signals

You can plot y-axis values of one signal versus y-axis values of another signal. You can plot YvsY to measure input offset voltage, which displays the offset between the input and output of the circuit.

To plot YvsY for two signals:

In the Results Browser, select the first signal. For example, out.
In the Results Browser, select the second signal (for example, in_p), and then click YvsY of 2 Signals .
Alternatively, you can first click YvsY of 2 Signals , and then select the second signal.

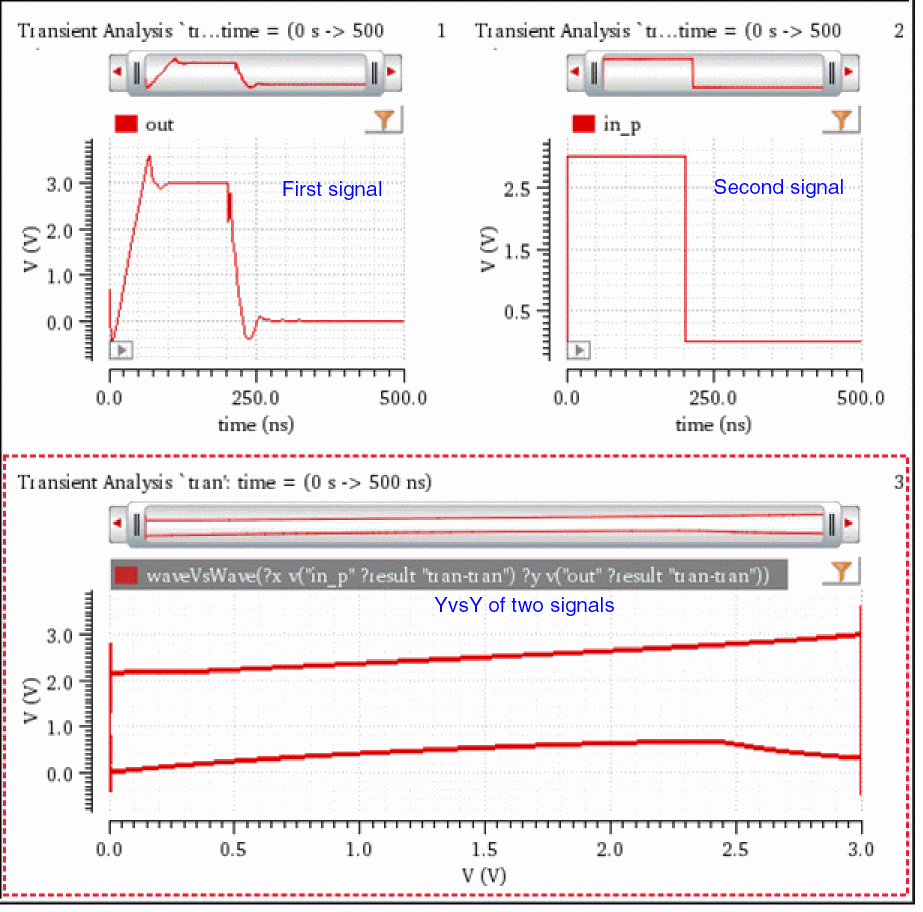

The YvsY of the two signals is plotted in the current subwindow.

Exporting Waveforms from a Single Results Directory

You can export a signal from a results directory in a variety of formats and later load these signals in the required application. You can also save a part of the dataset by specifying the start and end values or interpolate data before saving it.

To export a waveform from a single results directory:

Right-click a signal in the Results Browser and choose Export.
Alternatively, select a signal in the Results Browser and choose Browser – Results – Export from the menu bar of Virtuoso Visualization and Analysis XL.

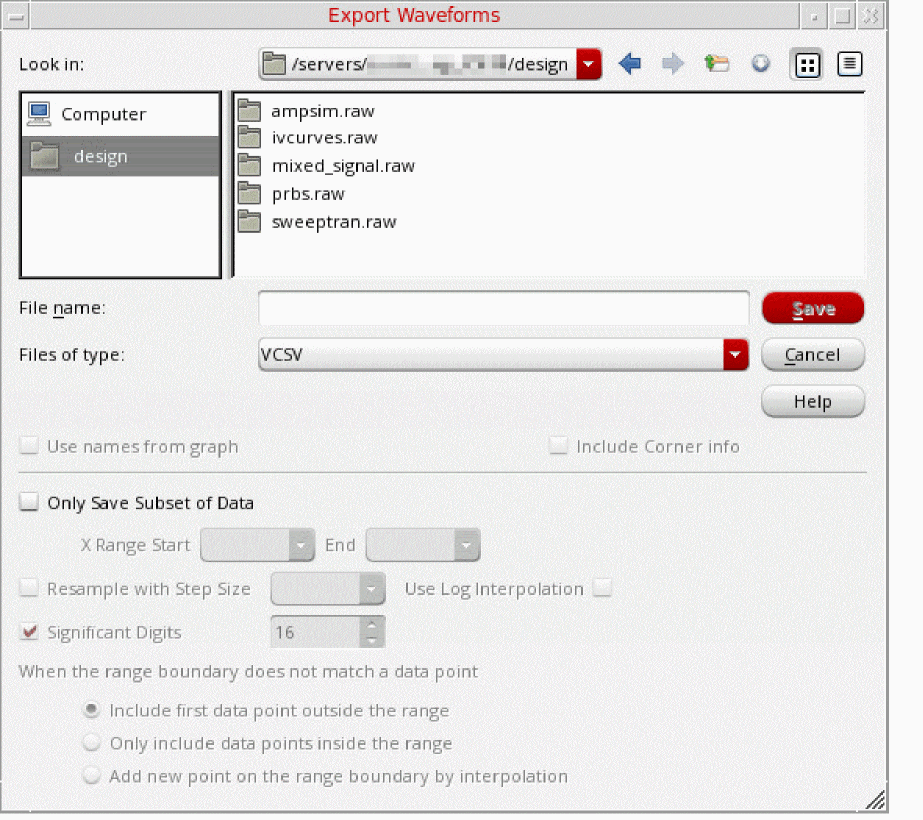

The Export Waveforms form opens.

You can select multiple signals by holding down the Ctrl key while you click the required signals in the Results Browser.
In the File name field, type the name of the file to which you want to export the selected waveforms.
From the Files of type drop-down list, select one of the following formats: VCSV, Matlab, PSF, SPECTRE, SST2, CSV, or PSFXL.
Select the Use names from graph check box to use the trace names that are displayed on the graph.
This check box is disabled when you export a signal from the Results Browser.
If you are exporting signals in CSV format, select the Include Corner info check box to print the corner information in the header of the CSV file.
The Include Corner info check box appears dimmed and becomes available only if CSV is selected from the Files of type drop-down list.
Select the Only Save Subset of Data check box to export only the required part of the waveform or signal.
In the X Range Start and End fields, specify the start and the end points of the x range for which you want to export the waveform.
Select the Resample with Step Size check box to specify the step size to resample the exported data based on linear interpolation. The greater the step size, the fewer data points in the exported data.
Select the Use Log Interpolation check box to use the logarithmic scale for interpolation.
In the Significant Digits field, specify the number of significant digits in the exported values from waveform data.
From the When the range boundary does not match a data point options, select one of the following:
- Include first data point outside the range: Includes the first data point that immediately falls before the specified X Range Start value and the last data point that falls immediately after the specified X Range End value when there are no actual data points corresponding to the specified X Range Start and End values
- Only include data points inside the range: Includes only actual data points inside the specified x range.
- Add new point on the range boundary by interpolation: Includes the interpolated values for the specified range boundary (X Range Start and End values) when there are no actual data points corresponding to the specified X Range Start and End values.
Click Save.

Waveform data is exported to a file in the specified format.

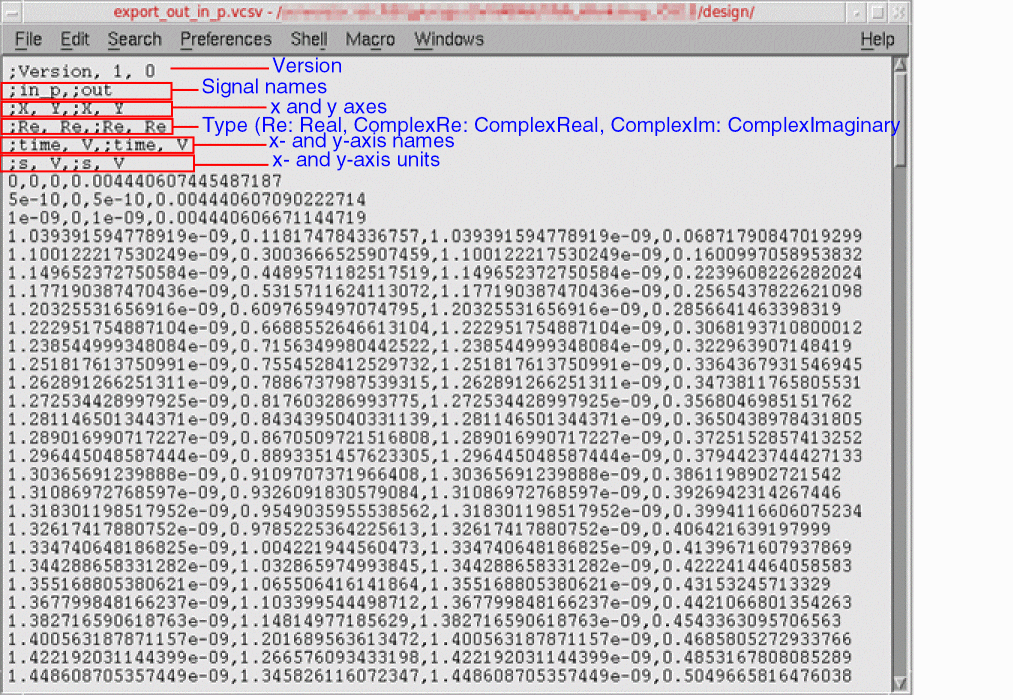

The following example shows the contents of the VCSV file when you export signals out and in_p in VCSV format.

When you export a signal in the MATLAB format, a file with the.matlab extension is created, for example, test.matlab. To open this file in MATLAB, type the following command in the MATLAB terminal window:

T=readtable('test.matlab','FileType','text')

This command creates a text-based table from the file and lists the file contents in tabular format.

Contents of the Exported VCSV File

The header of the VCSV file contains the version, signal names, x and y axes names, type of data, and x and y axes units.

The description of the VCSV file format is as follows.

<ASCII> ::= <HEADER> <WAVEFORMS> <br>

<HEADER>    ::= <VERSION> <TITLES> <AXES> <TYPES> <AXISNAMES> <UNITS> <br>

<VERSION>   ::= <COM> Version, <MAJOR>, <MINOR> <br>

<TITLES>    ::= <COM> <TITLE> [,<TITLE>]... <br>

<AXES>      ::= <COM> <X_AXIS>, <Y_AXIS> [,<X_AXIS>, <Y_AXIS>]...<br>

<TYPES>     ::= <COM> <X_TYPE>, <Y_TYPE> [,<X_TYPE>, <Y_TYPE>]...<br>

<UNITS>     ::= <COM> <X_UNIT>, <Y_UNIT> [,<X_UNIT>, <Y_UNIT>]...<br>

<WAVEFORMS> ::= <XVAL>|<BLANK>, <YVAL>|<BLANK> [, <XVAL>|<BLANK>, <YVAL>|<BLANK>]

<TITLE>     ::=     string representing signal name<br>

<MAJOR>     ::=     non-negative integer<br>

<MINOR>     ::=     non-negative integer<br>

<X_AXIS>    ::=     Re | Logic | LogicBus | String | Int

<Y_AXIS>    ::=     Re | Logic | LogicBus | String | Int | WRe | ComplexRe,ComplexIm

<X_TYPES>   ::=     string with the name of the axes

<Y_TYPES>   ::=     string with the name of the axes

<X_UNIT>    ::=     string with the name of the unit

<Y_UNIT>    ::=     string with the name of the unit

<XVAL>      ::=     string representing the value of corresponding <X_TYPE>

<YVAL>      ::=     string representing the value of corresponding <Y_TYPE>

<COM>       ::=     ;

Note the following points:

The number of titles, axes, type and unit pairs match the number of VAL|BLANK pairs.
The VCSV format can hold any number of waveforms.
The waveform data is displayed in a tabular format. Each column of the table holds an XVAL and a YVAL for each point in the waveform.
The column may be padded with blank entries for each waveform that is shorter than the longest waveform.
Each XVAL or YVAL can either be a single real number or a pair of real numbers. If it is a pair, then the value is a complex number and the pair represents the real and imaginary portions. All elements after the semicolon are separated using commas (,).

Exporting Waveforms from Multiple Results Directories

You can select signals either from the same or form different results directories and export them to a common file.

To export signals from multiple results directories:

Open a results directory in the Results Browser.
Right-click a signal and choose Send to Export List. Hold down the Ctrl key to select multiple signals from the same results directory.

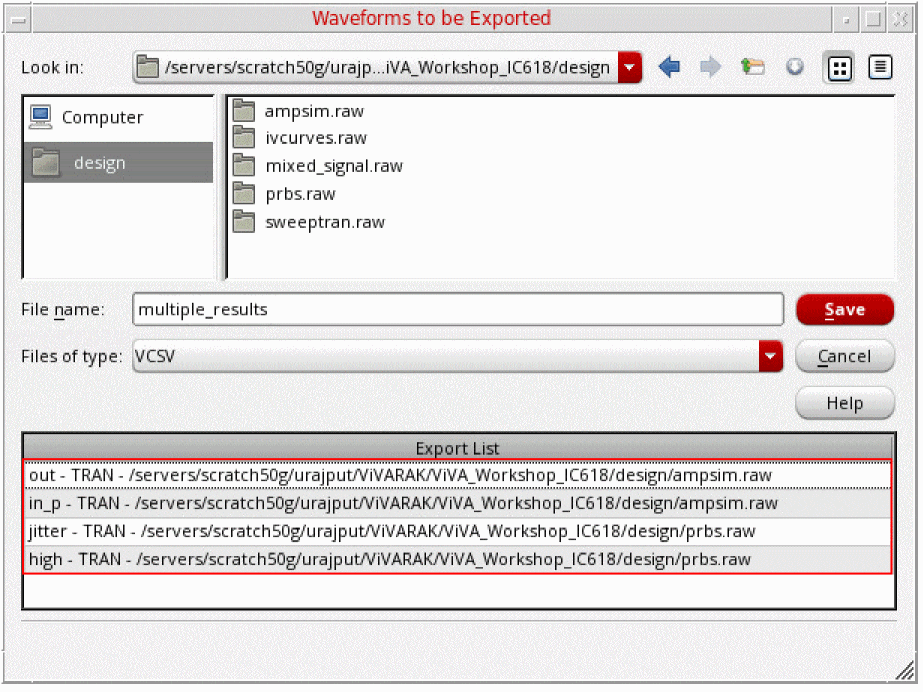

The Waveforms to be Exported form opens with the selected signals displayed in the Export List.

To delete a signal from the Export List, right-click the signal and choose Delete. To delete all signals from the Export List, right-click any signal and choose Delete All.
Open another results directory in the Results Browser, and repeat step 2.
In the File name field, enter the name of file to which you want to export the signals.
From the Files of type drop-down list, select one of the following formats: VCSV, Matlab, PSF, SPECTRE, SST2, CSV, or PSFXL
Click Save.
The selected signals are exported to file of specified format. For example, mutiple_results.vcsv file contains signals out and in_p exported from ampsim.raw results directory and signals jitter and high exported from prbs.raw results directory.

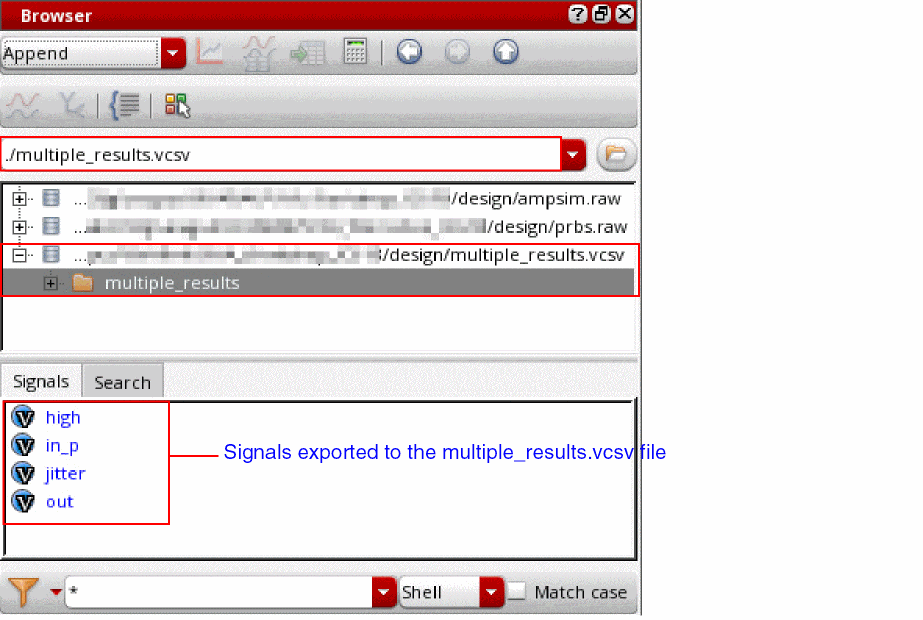

You can reload these signals into the Results Browser using the exported file, as shown in the following figure.

Sending a Signal to Calculator from Results Browser

To send a signal to Calculator from the Results Browser:

In the Results Browser, select a signal. Hold down the Ctrl key to select multiple signals.
From the toolbar of the Results Browser, click the Send to Calculator icon.
Alternatively, right-click the selected signals in the Results Browser and then choose Calculator.
The Calculator window opens, displaying the selected signals. The results directory of these signals is also set as the in-context results database in the Calculator.

Setting Colors to Signal Types

You can set different colors to different signal types, such as voltage, current, analog, and digital signals. This makes it easy to differentiate between various signal types.

The following figure shows the default colors set for various signal types, such as voltage, power, and

To set a different color for a signal type:

From the toolbar of the Results Browser, click the Change color of signals icon.
The Select Color form opens.
From the list of signal types, select the signal type for which you want to change the color.
Click the corresponding color and choose a different color you want to set for the selected signal type.
Click Apply and then click OK.

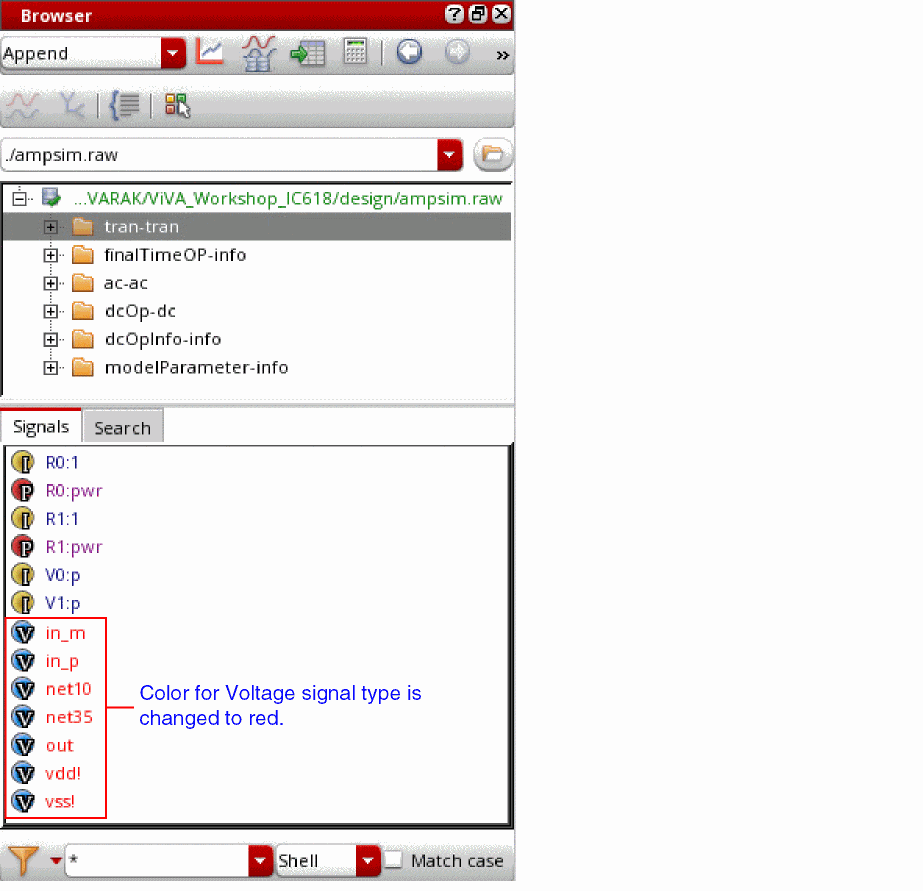

The color for the selected signal type is changed, as shown in the following figure.

Automatic Calculation of Two-Port Impedance Equivalent Parameters

Virtuoso Visualization and Analysis XL supports the industry-standard Touchstone format that can read data files created by any simulator. This format also helps plot n-port S-Parameter data if you use Spectre and SpectreRF as simulators.

The touchstone file is an ASCII file, which is also known as the SnP file. This file includes a large signals S-Parameter results. The touchstone files are of .snp extension, where n is the number of network ports of the device. For example, if the touchstone file contains the network parameters for a two-port device, it has a.s2p extension.

For a two-port network, the two-port impedance equivalent parameters, C, L, and R and the quality factor Q are calculated using the following formula:

Parameter	Formula
Effective Resistance
Effective Inductance
Effective Capacitance
Effective Quality Factor (Q-Factor)

Where:

These calculations are done automatically when you load the .s2p file in the Results Browser.

Using the S-Parameter touchstone file for a two-port network, you can also plot these values directly from Results Browser.

Searching for Signals in the Results Browser

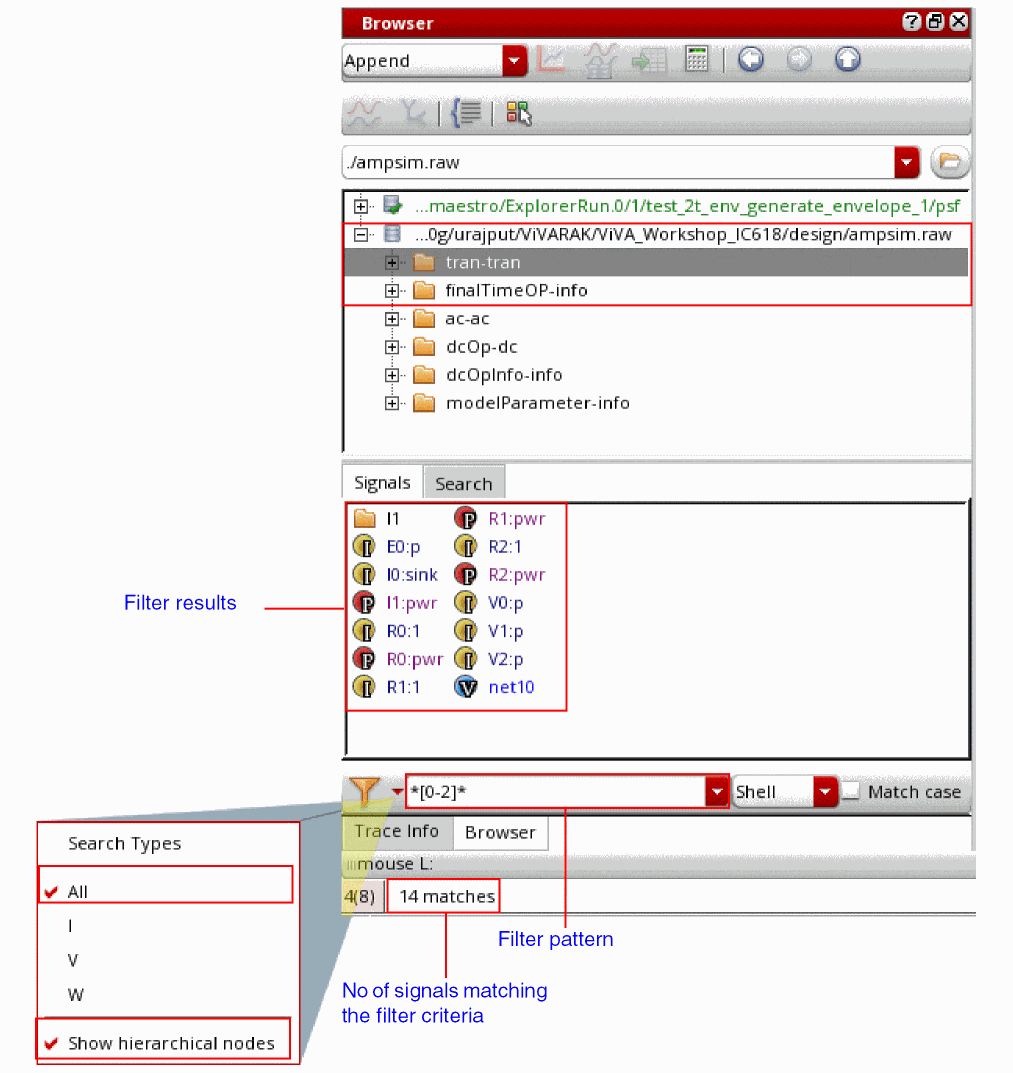

You can use the Search tab in the bottom panel of the Results Browser to search for the signals in the currently selected database or in databases that are currently open.

By default, signal search is performed at the directory level, which means only the currently selected directory and its subdirectories are searched to find the signals that match the specified search pattern.

However, you can also search for a signal in all databases that are currently open in the Results Browser by selecting the All DBs check box.

To search for a signal:

Click the Search tab in the bottom panel of the Results Browser.

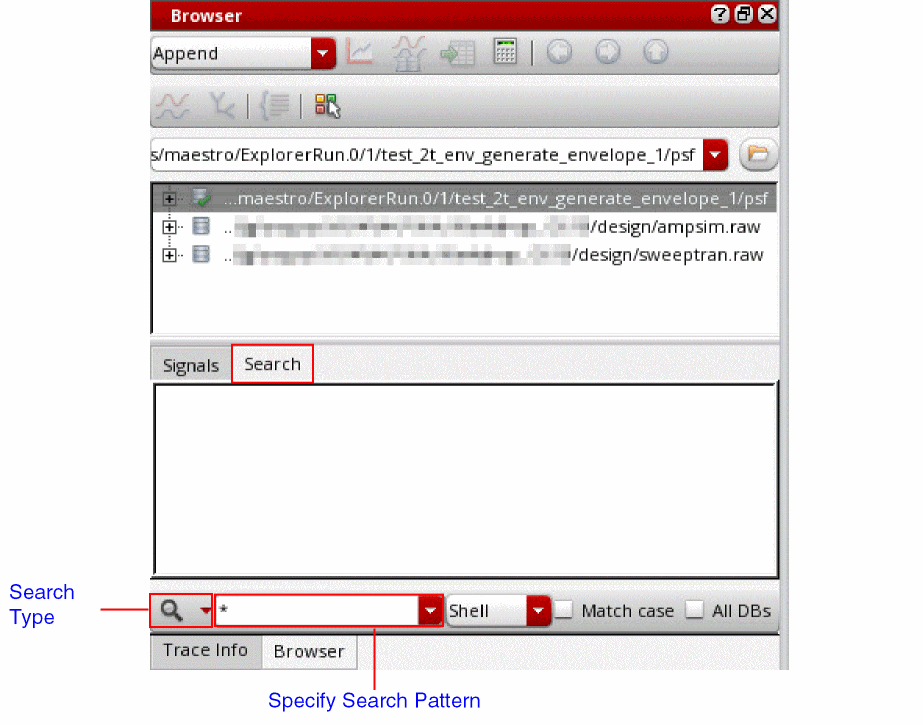

Click the down arrow next to the Search Type icon to specify the type of signal you want to search.
In the Specify Search Pattern field, type the search pattern for the signals you want to search. For example, type:
- v[dd|ss]* to search signals that contain vdd and vss in their names.
- net[1-9]* to search signals that contain net and any number from 0–9 in their names.
From the drop-down list, select one of the following options:
- Shell: To search signals using a shell expression. This is the default selection.
- RegExp: To search signals using a regular expression.
Select the Match Case check box to perform a case-sensitive search. By default, search is not case sensitive.
Select the All DBs check box to search signals in all open results databases in the Results Browser. If this check box is not selected, the signals are searched only in the currently selected results database.
Either click the Search icon or press the Enter key on the keyboard.
The signals that match the specified search pattern are displayed.

Examples

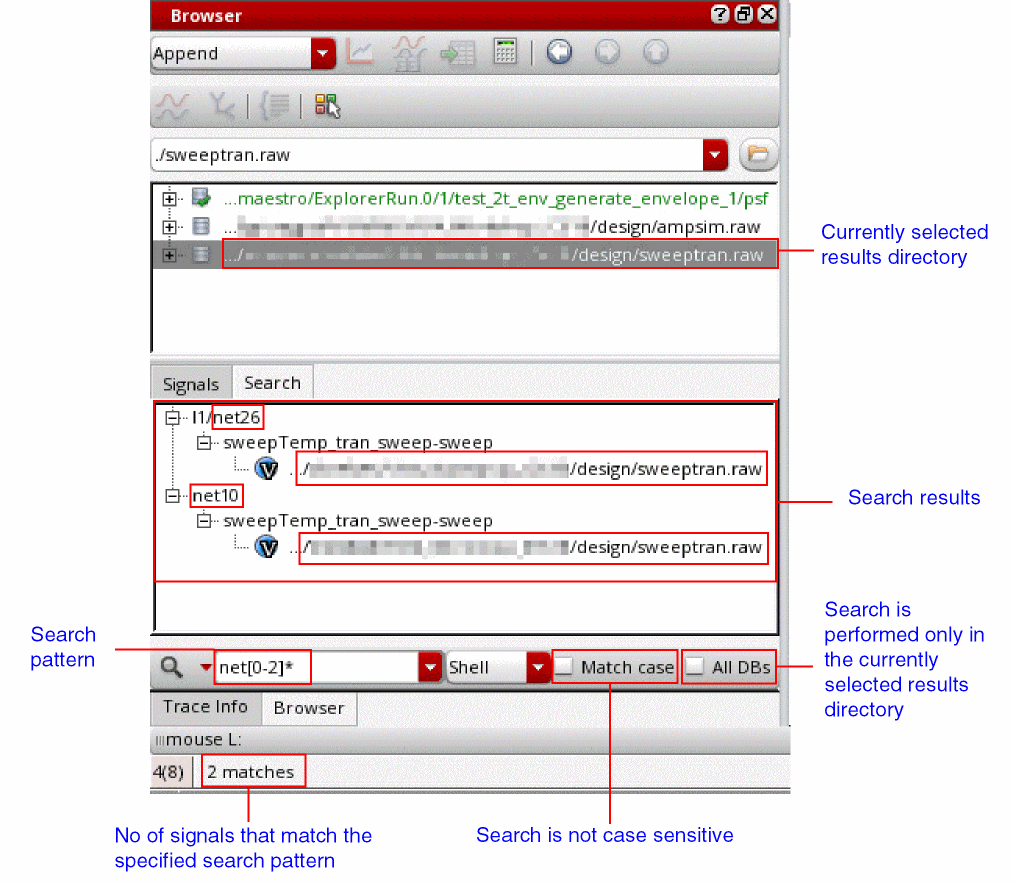

The following example searches the signals that have net and a number between 0–2 in their names. Signals are searched only in the currently selected results directory. The search is not case sensitive.

When you click the Search icon or press the Enter key on the keyboard, following search results are displayed. Signals that are returned in the search results are net26 and net10.

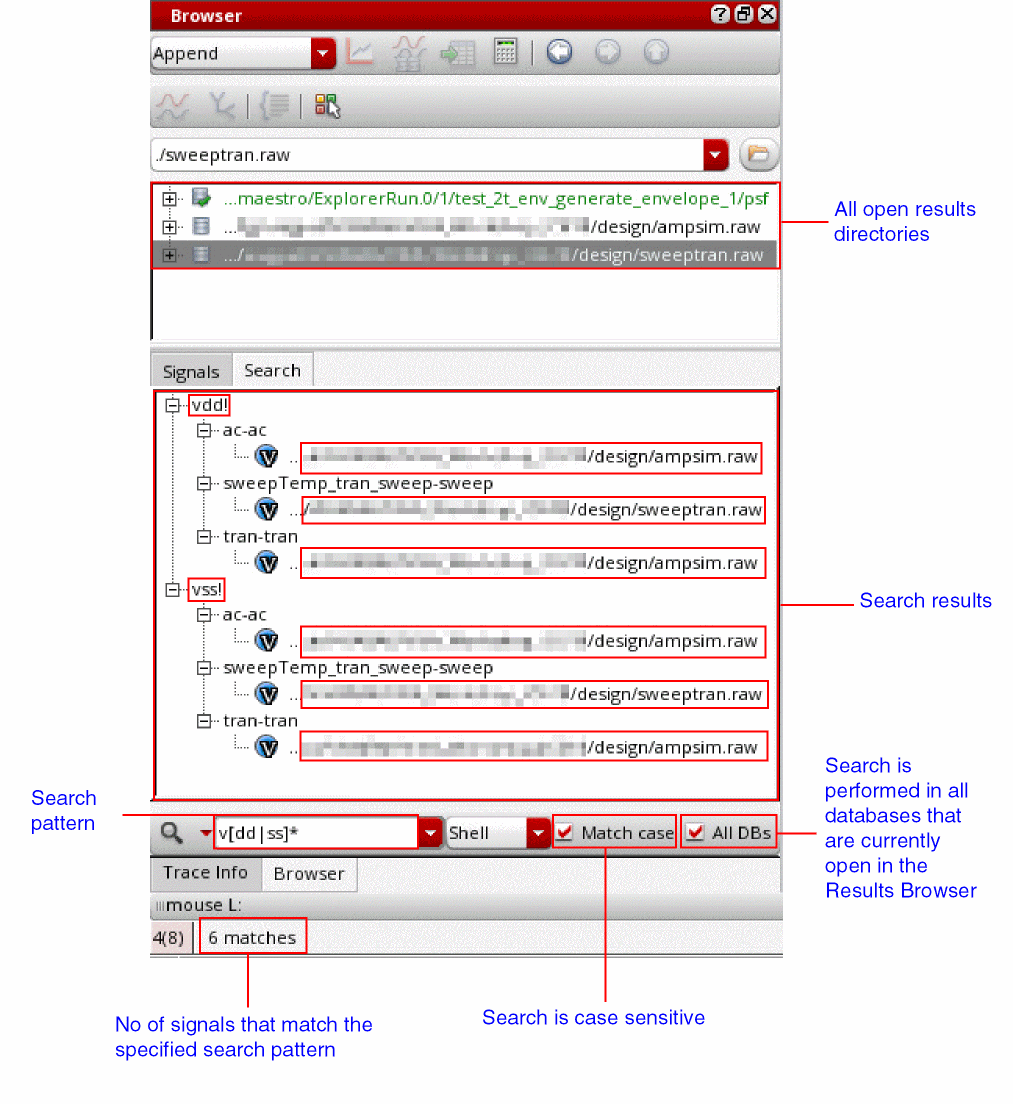

The following example searches the signals that have either vdd or vss in their names. Signals are searched in all results databases that are currently open in the Results Browser. The search is case sensitive.

When you click the Search icon or press the Enter key on the keyboard, following search results are displayed. Signals that are returned in the search results are vdd and vss.

Plotting Modes

The first graph that you plot in a session is displayed in a new graph window. If you already have a graph window open, you need to specify the destination to plot the new signals.

You can plot a new signal in any of the following modes:

Append
Appends the trace for the selected signal to the graph that is already plotted in the graph window or subwindow. It the new trace does not share the same y-axis unit as that of the existing trace, the new trace is assigned a new y-axis. If the graph window already has four y axes, or if the units do not match, Virtuoso Visualization and Analysis XL plots the new signal in a new subwindow in that graph window.

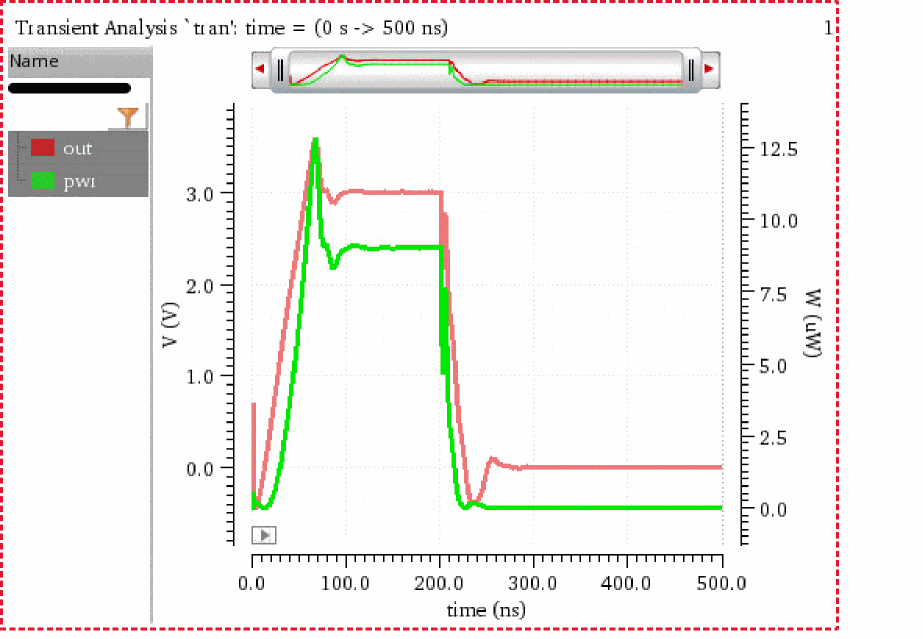

The following example shows the signal pwr appended to the signal out that is already plotted in the subwindow 1 of a graph window. The signal out has volt as its y axis, whereas the signal pwr has watt as its y axis.
Replace
Replaces a signal or group of signals in the selected graph window or subwindow with the new signals.
New Subwindow
Plots the selected signals in a new subwindow of the current graph window.
New Window
Plots the selected signals in a new graph window.

Virtuoso Visualization and Analysis XL User GuideProduct Version IC23.1, November 2023

2

Results Browser

Related Topics

Opening the Results Browser

Opening the Results Browser in Standalone Mode

Opening the Results Browser from Virtuoso

Opening the Results Browser from Virtuoso Analog Design Environment

Related Topics

Results Browser Graphical User Interface

Toolbar of the Results Browser

Top Panel of the Results Browser

Bottom Panel of the Results Browser

Related Topics

Opening a Results Directory

Related Topics

Setting the In-Context Results Directory

Related Topics

Selecting a Signal in the Results Browser

Related Topics

Plotting a Signal from the Results Browser

Related Topics

Plotting a Transient Signal Over a Time Range

Related Topics

Plotting an AC Signal over a Frequency Range

Related Topics

Plotting Parametric Sweep Data

Related Topics

Plotting the Difference of Two Signals

Related Topics

Plotting YvsY for Two Signals

Related Topics

Comparing Signals from Different Results Directories

Related Topics

Exporting Waveforms from a Single Results Directory

Related Topics

Contents of the Exported VCSV File

Related Topics

Exporting Waveforms from Multiple Results Directories

Related Topics

Sending a Signal to Calculator from Results Browser

Related Topics

Sending a Signal to Table from Results Browser

Related Topics

Setting Colors to Signal Types

Related Topics

Automatic Calculation of Two-Port Impedance Equivalent Parameters

Searching for Signals in the Results Browser

Examples

Related Topics

Filtering Signals in the Results Browser

Related Topics

Plotting Modes

Related Topics

Virtuoso Visualization and Analysis XL User Guide
Product Version IC23.1, November 2023
