Creating Advanced Transmission Lines

The Bend Style option lets you customize the corners of your transmission lines into standard bends, chamfers, and radial corners.

To create an advanced transmission line:

1. In the layout window, from Create – Microwave, choose trl or Bend.
2. Press F3 to open the Transmission Line Bend form or the Transmission Line form, depending on the command you chose.
3. Choose a style from Bend Style. You can choose bend, chamfer or radial.

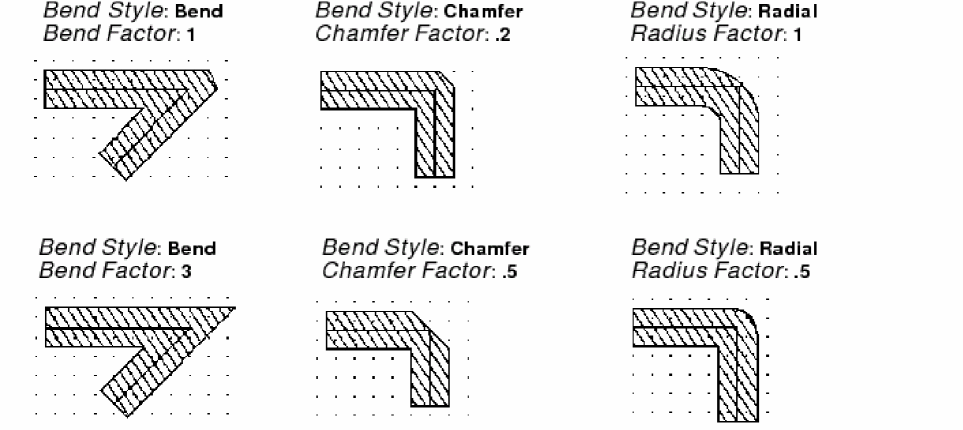

4. Type the corresponding factor to use, as shown in the following image.


5. On the canvas, click each of the three points of the bend.
