Fillet Creation Between Curved Path and Other Objects

A fillet is an extra etch added to improve wire to pad or wire to via connection. It is created on analog and high-speed circuits, or areas of a design where shock and vibration to the design might disrupt connections. In Virtuoso, a fillet is created as a curved polygon.

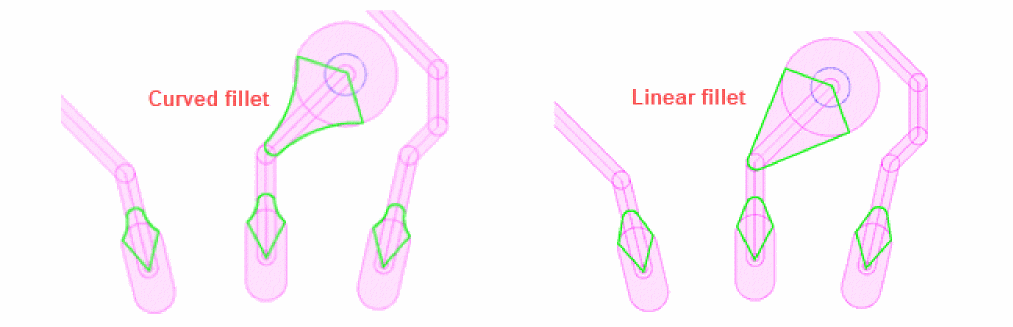

A fillet is created from the center of the shape to the intersection of the shape and can be either curved or linear.

A fillet is inserted between a curved path and other objects, such as other curved paths, pins, vias, and bond fingers.

• Other Curved Paths

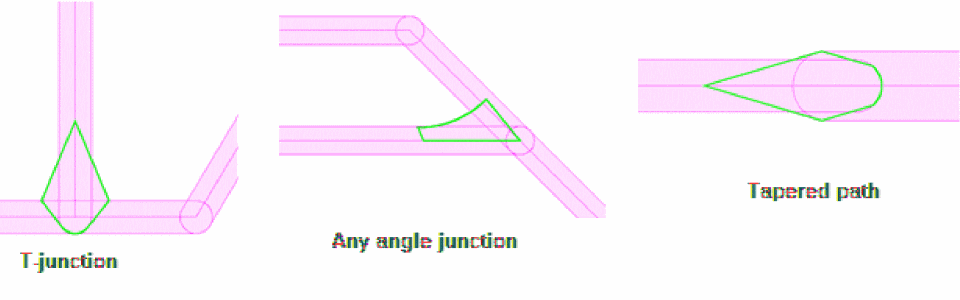

  The following figure shows fillet creation between a curved path and other curved paths, including T-junctions, any angle crossing, or intersections. Tapered paths are also considered.


• Bond Fingers

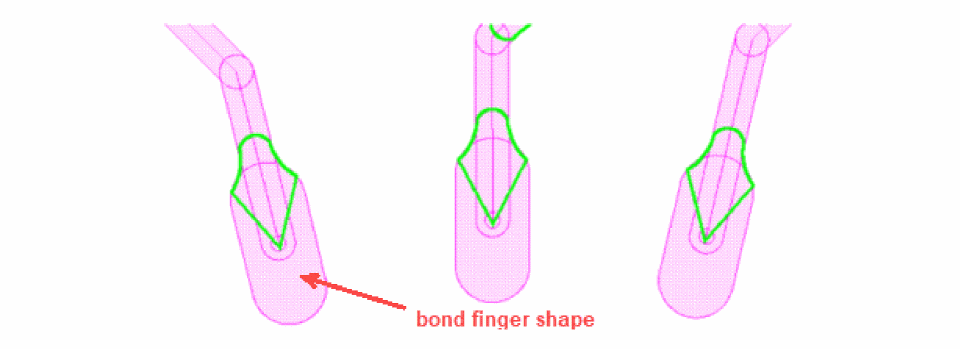

  The following figure shows fillets created between a curved path and bond fingers.


• Pins

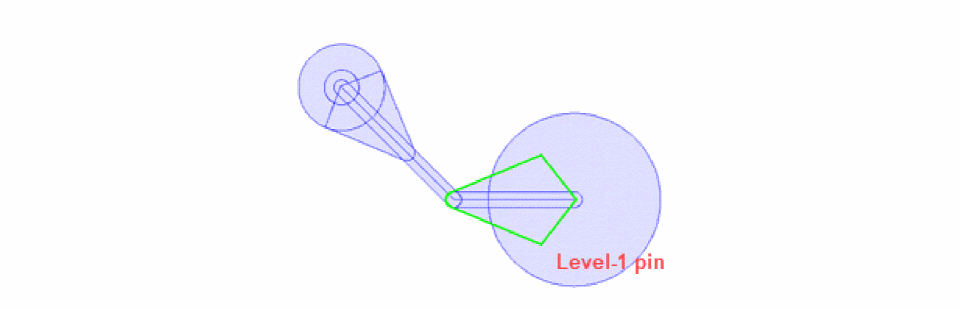

  The following figure shows a fillet created between a curved path and a pin.


• Vias

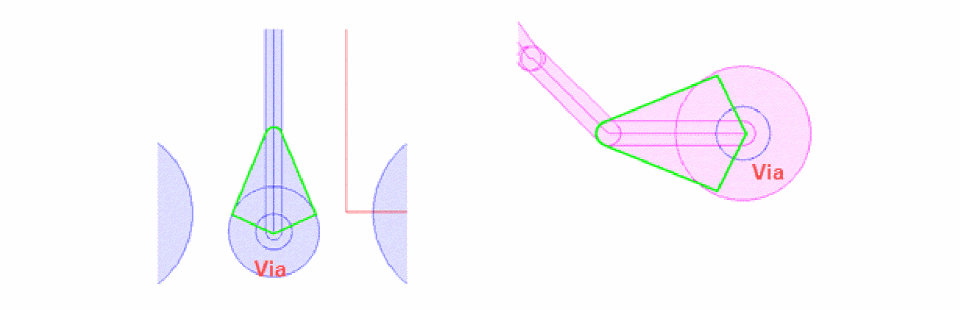

  The following figure shows a fillet created between a curved path and a via.



Fillets are created using the Fillet icon on the Metal Density toolbar and the scope and parameters are defined using the Fillet tab on the Metal Density Options form.
