Flip Chip Parameters

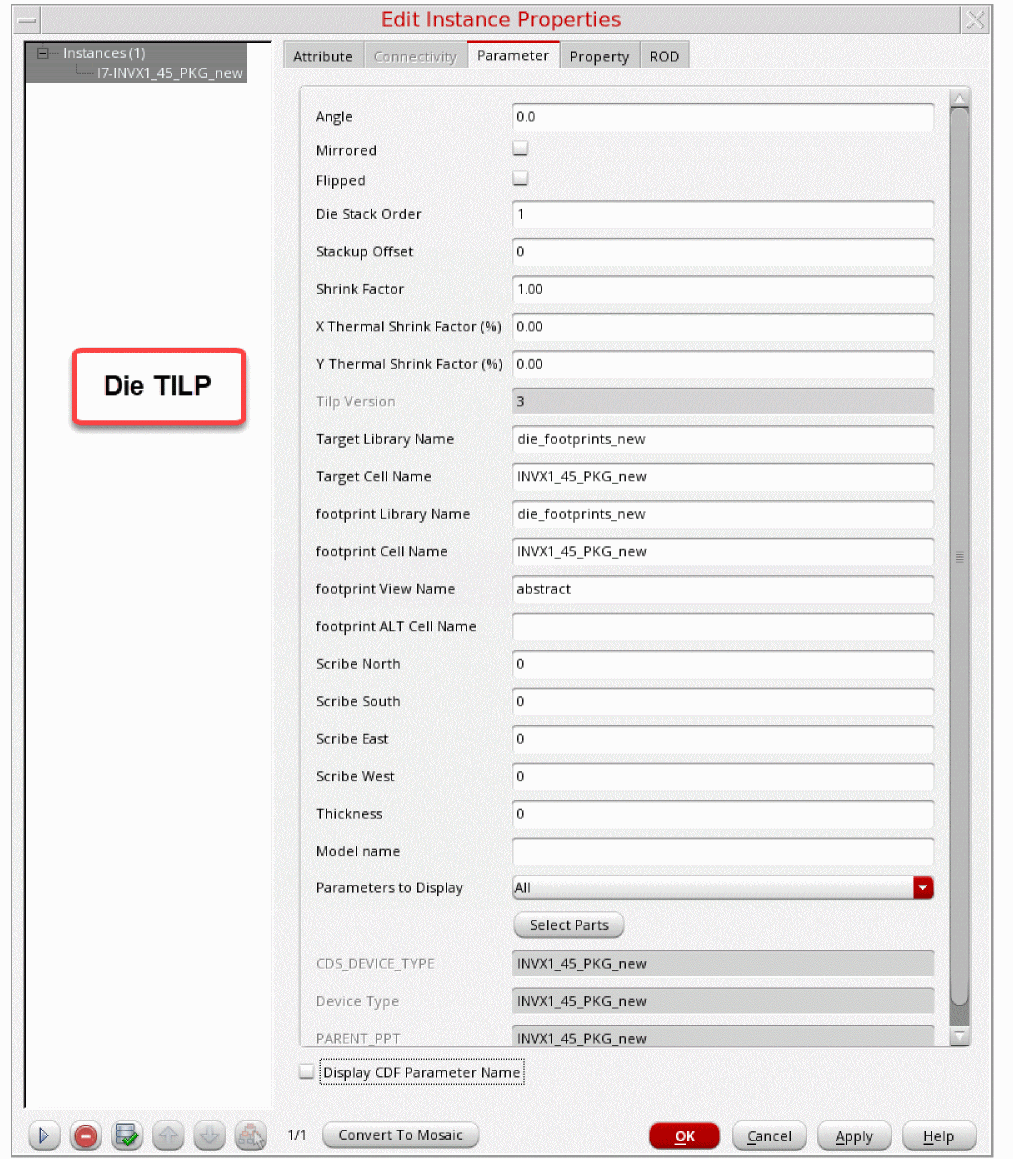

The image below shows the parameters to be set when attaching a die or package TILP to the appropriate side of the substrate. Select the die instance in the package layout and right-click to view the Parameter tab of the Edit Instance Properties form.

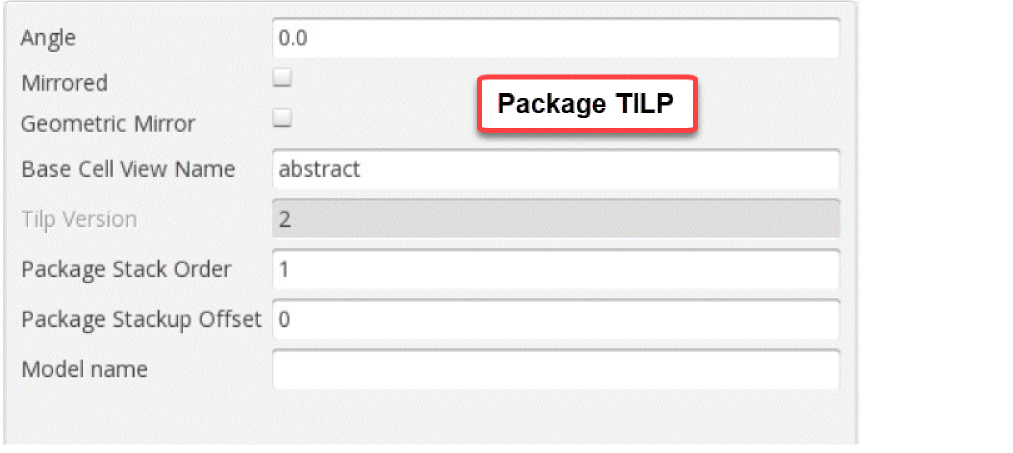

This image shows the parameters for a package TILP.

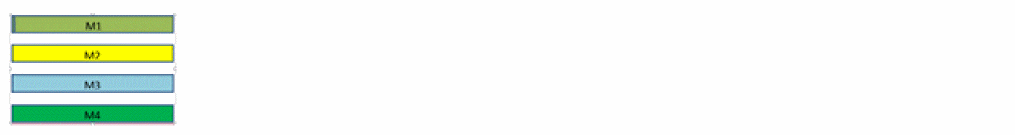

Refer to the following illustration when choosing the parameters. A sample package stackup is shown with four layers (intervening dielectrics are not shown).
