Summary Report

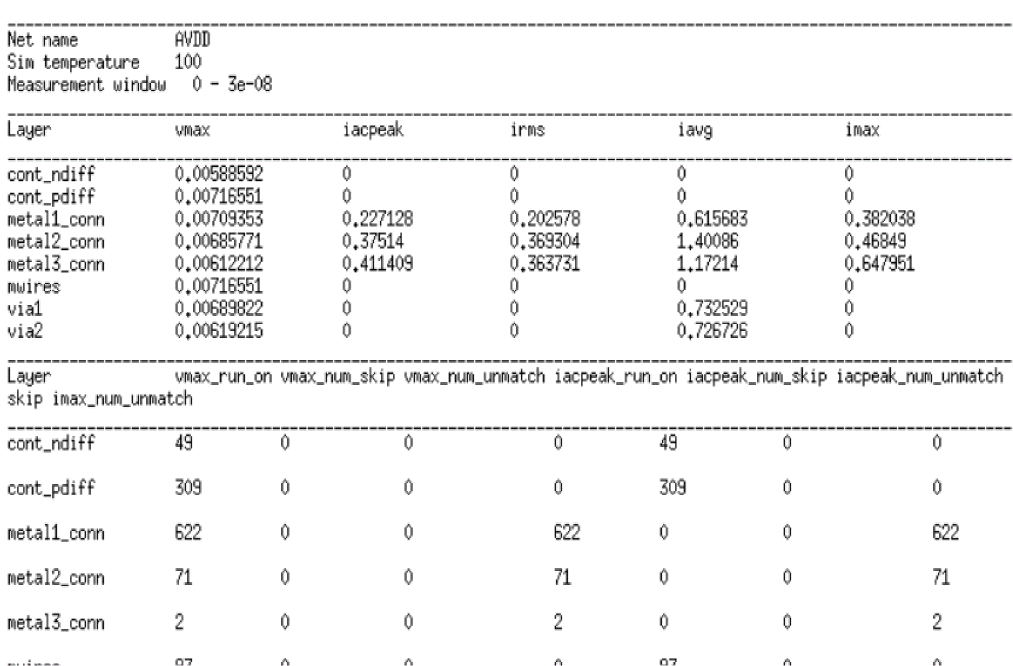

In the summary report (summary.rpt), there are two tables of information for each net. The first table provides, in its header, the name of the net, the simulation temperature, and the measurement window or the start and stop time for the analyses. For each net, the table lists the layer name and the corresponding maximum value of each analysis type for that layer. Information for different types of analyses is displayed in different columns.

The second table lists the layer names. For each layer and analysis type, there are two columns of information. The first column lists the number of resistors on which the analysis was run (analysistype_run_on) and the second column lists the number of resistors that were ignored in the analysis (analysistype_num_skip). The two columns are repeated for different types of analyses.
