Setting Up an Extraction Job Policy

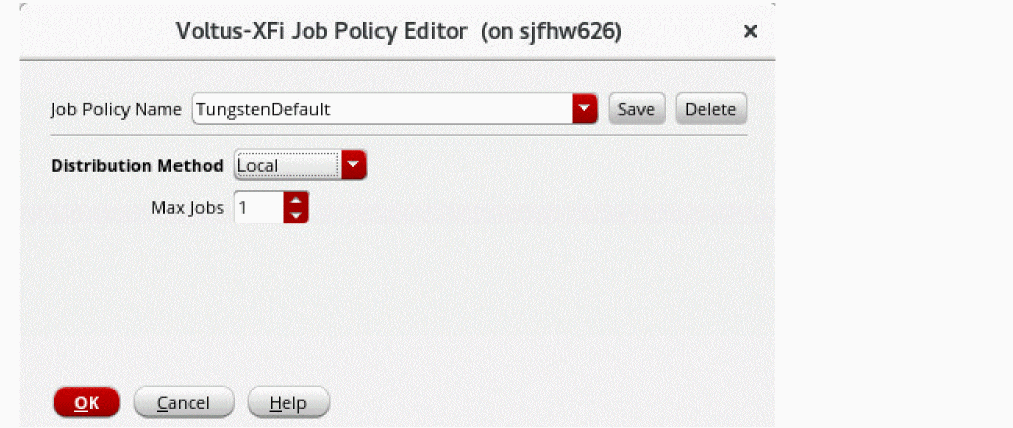

1. Choose Options – Job Setup from the menu bar to open the Voltus XFi Job Policy Editor form.


2. In the Job Policy Name field, specify a name for the job policy. If no job policy has been set up earlier, the Job Policy Name field displays TungstenDefault as the default job policy name.
3. From the Distribution Method drop-down list, choose one of the following methods:
   • Command: To submit the extraction job to a job distribution engine.
   • Local: To run extractions on the local host.
4. Depending upon the Distribution Method you selected, specify the fields described as follows:


   Distribution Method	Fields	Description
   Command	Command	bsub command to submit a job for batched execution by a distributed load-sharing batch system.
   	Max Jobs	Maximum number of simultaneous jobs that you want to run.
   Local	Max Jobs	Maximum number of simultaneous jobs that you want to run.

5. Click Save to save the changes.
   The Job Policy Name drop-down list displays the name of the job policy you specified.
6. Click OK.

Editing a Job Policy

1. On the Voltus XFi Job Policy Editor form, from the Job Policy Name drop-down list, select the job policy that you want to edit.
2. From the Distribution Method drop-down list, select a distribution method.
3. Depending upon the Distribution Method you selected, update other fields, as required.
4. Click Save to save the changes.
5. Click OK.

Deleting a Job Policy

• In the Voltus XFi Job Policy Editor form, from the Job Policy Name drop-down list, select the job policy you want to delete, and then click Delete.
  The selected job policy is deleted.
