Using an Existing DSPF File

1. Choose Setup – Extraction from the task pane.
2. Click Add Setup.
3. In the Name field, specify a name for the extraction setup.

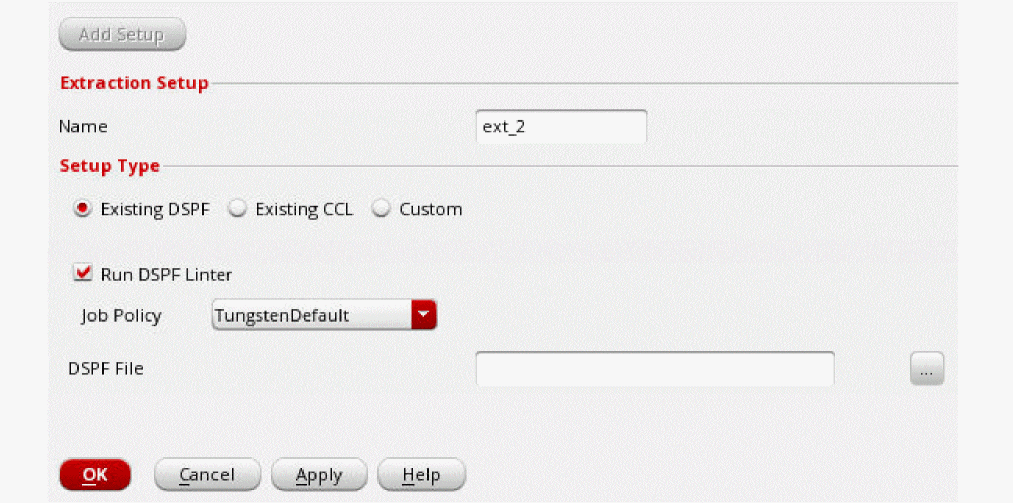

4. In the Setup Type section, select Existing DSPF, and specify the DSPF file that you want to use for EM-IR analysis.


5. Select Run DSPF Linter if you want to run the spfchecker utility on DSPF.
6. Select a job policy from the Job Policy Name drop-down list.
7. Click OK.
   The extraction details will be displayed in the Extraction tab. You can click Add Setup again to add additional extraction setups.
