SiP Layout Option to Virtuoso Schematic Editor Flow

When creating a schematic in the Virtuoso RF solution from a SiP file, you can inherit all the netlist information already described in the SiP file instead of recreating them from scratch. You can use this schematic view to run the connectivity-driven flow in the Virtuoso RF solution, EM extraction, and simulation flows.

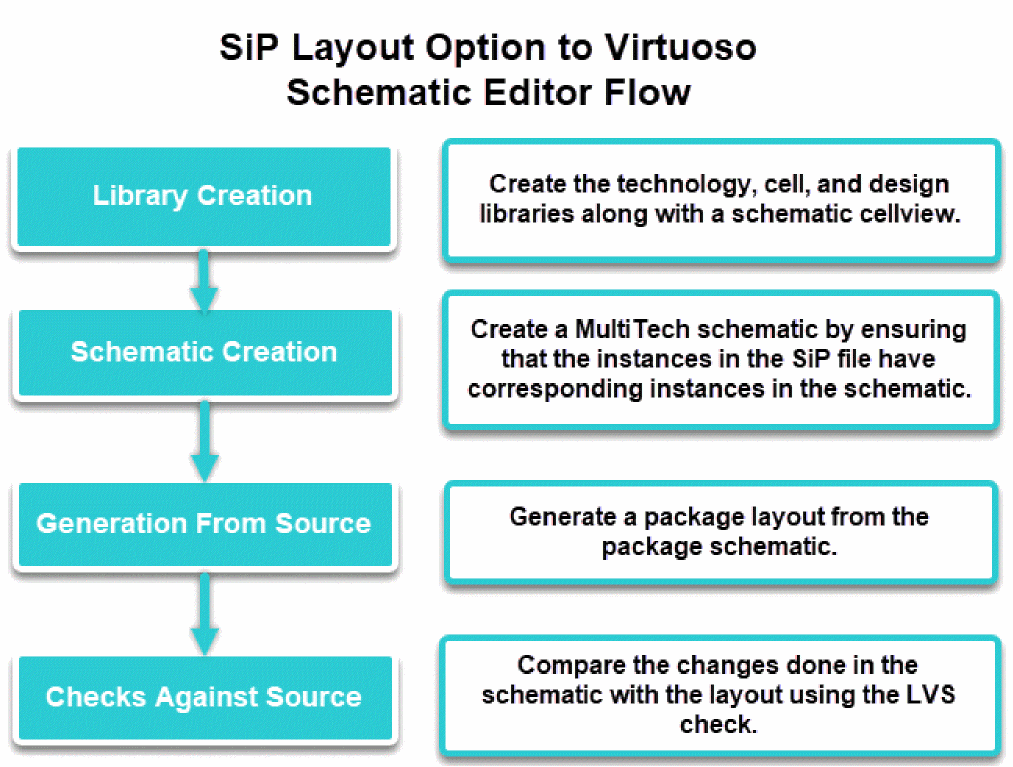

The following diagram depicts the overall flow.
