Virtuoso RF ECO Flow

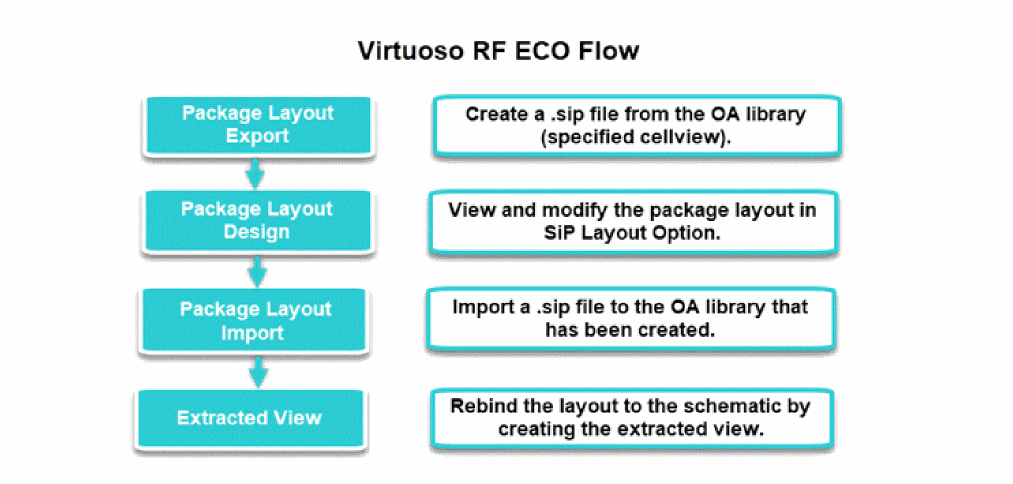

The ECO flow involves exchanging the package layout between the Virtuoso Studio and SiP Layout Option to complete designing the package layout before sending for manufacturing. Use Allegro translators for creating technology file and importing libraries from the Allegro Package Designer Plus. Package designers place and route parts in the SiP layout. Subsequently, the layout is imported into Virtuoso and verification checks are done.
