figGroups in Abstracted Mode
The following features define the display of figGroups in Abstracted mode:
- An orientation marker is displayed in the abstracted view of a figGroup.
- A colored bounding box for each figGroup can be added.
The abstract display changes with the selected display level.
- At display level 0, the name of the figGroup is displayed but the visibility of instances within the figGroup is blocked, which is similar to the display of regular instances at that level.
- At display level 1, you can look inside the figGroup, although the figGroup name is not displayed any more and dimming is not supported.

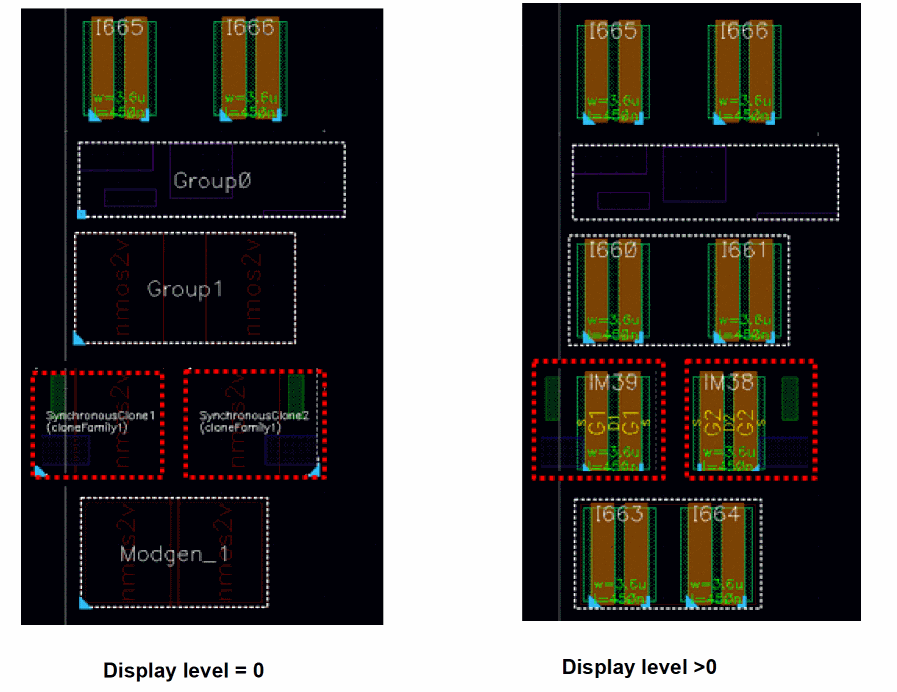

The figures below illustrate how the abstract display of figGroups changes based on the selected level of display.
