EEnet for Network Evaluation

The following are some of the basic extensions of how the built-in UDN, EEnet can be used for network evaluation:

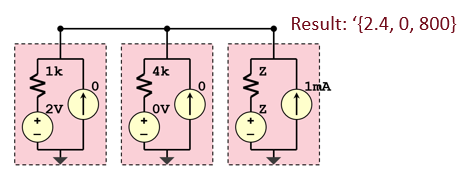

• EEnet resolution function directly solves linear (V, I, R) interaction at a single node; the result is updated when any driver changes.

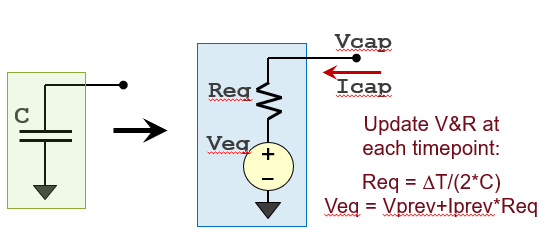

• Capacitor operation can define the relation between DV and DI over each timestep. The resulting model is just a voltage source plus resistor updated at each time point, same as the SPICE trapezoidal integration.

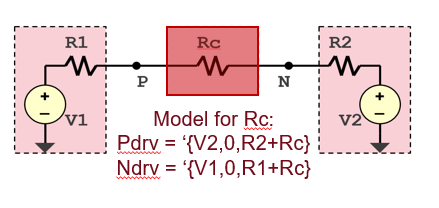

• Interconnection between two nets can be defined by mirroring the effective resistance between nets since the effective resistance at each net is known.
