Configuring the Virtuoso Studio Design Environment

---

The Virtuoso Studio Licensing and Configuration User Guide describes how to configure the Virtuoso^® Studio software as well as provides the following information about the environment:

• Executables needed to run the software - see and Setting the Installation Path for Cadence Tools for more information
• Operating system requirements - see Product Tier Features and Verifying Your System Configuration for more information
• Directory hierarchy for storing executables and data files - see Virtuoso Studio Design Environment Hierarchy and Setting the Installation Path for Cadence Tools for more information
• Key licensing characteristics - see Virtuoso Studio Design Environment Licensing Setup for more information

Prerequisites

This user guide is aimed at developers and designers of integrated circuits and assumes that you are familiar with:

• The Virtuoso Studio and application infrastructure mechanisms designed to support consistent operations between all Cadence^® tools.
• The applications used to design and develop integrated circuits in the Virtuoso Studio, notably, the Virtuoso Layout Suite, and Virtuoso Schematic Editor.

The Virtuoso Studio design environment technology file.The following topics are discussed in this chapter:

• Virtuoso Studio
• Advanced Features and Token Licenses

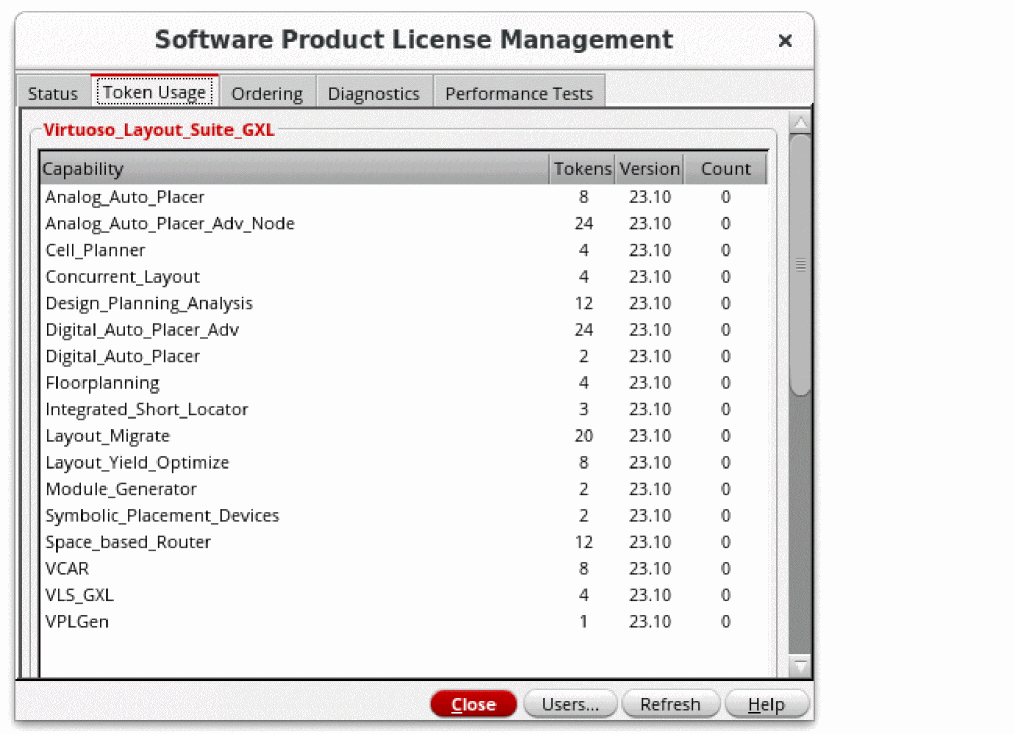

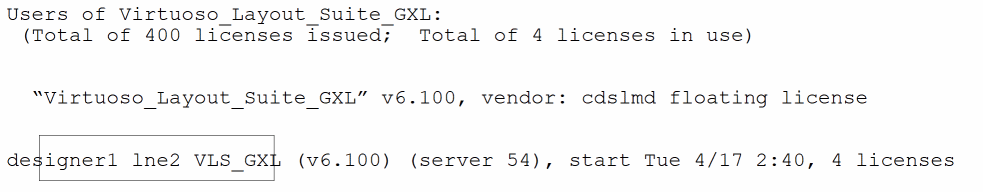

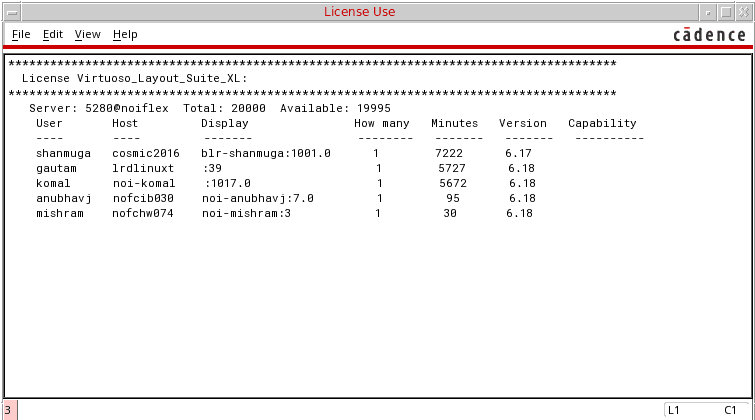

• Methods to Track Token Licenses

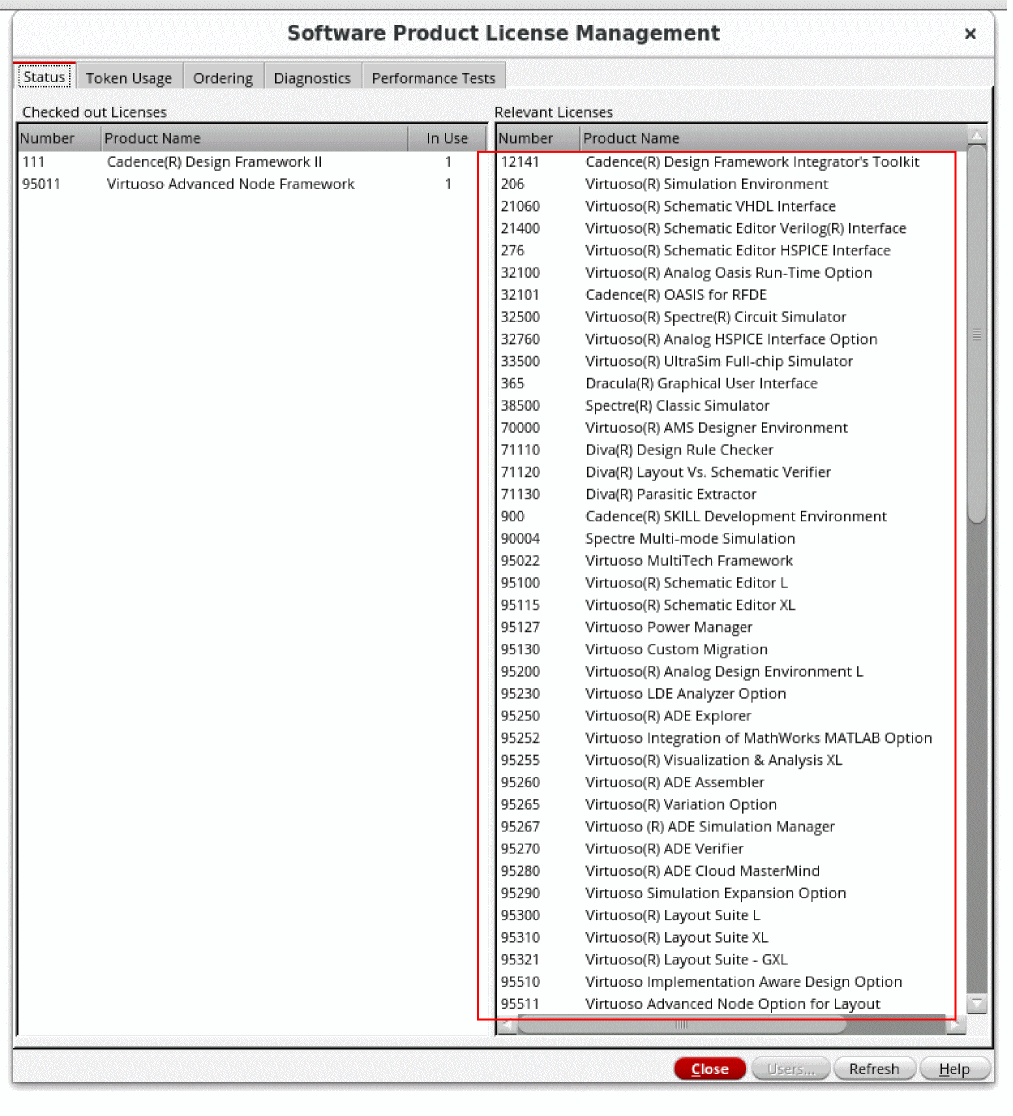

• Software Product License Management Form
• Product Tier Features

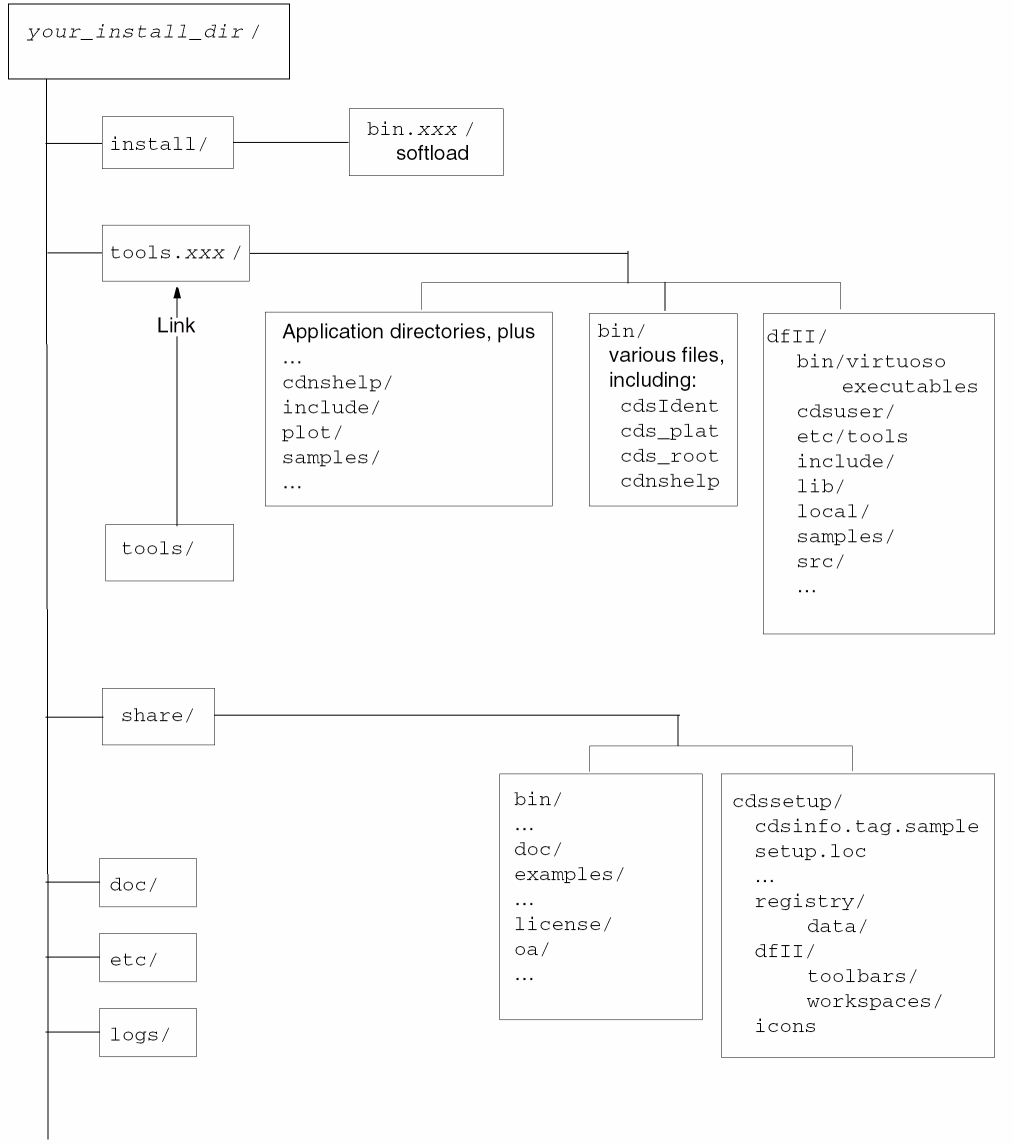

• Virtuoso Studio Design Environment Hierarchy
• Virtuoso Studio Design Environment Licensing Setup

Use the Cadence Installation Guide and Cadence License Manager to install the Virtuoso^® Studio software and configure the licenses.

Virtuoso Studio

Virtuoso Studio provides a seamless transition from one Virtuoso Studio design environment to another with help of the common user interface (UI) and the automated license checkout process.

This platform provides a unified front-to-back design environment. The front-end design environment consists of Virtuoso Schematic Editor^® (VSE) and ADE product families. The back-end consists of the Virtuoso Layout Suite^® (VLS) product family.

Each of the product families contains applications in a tiered packaging structure, and conform to common and consistent licensing behavior and operation.

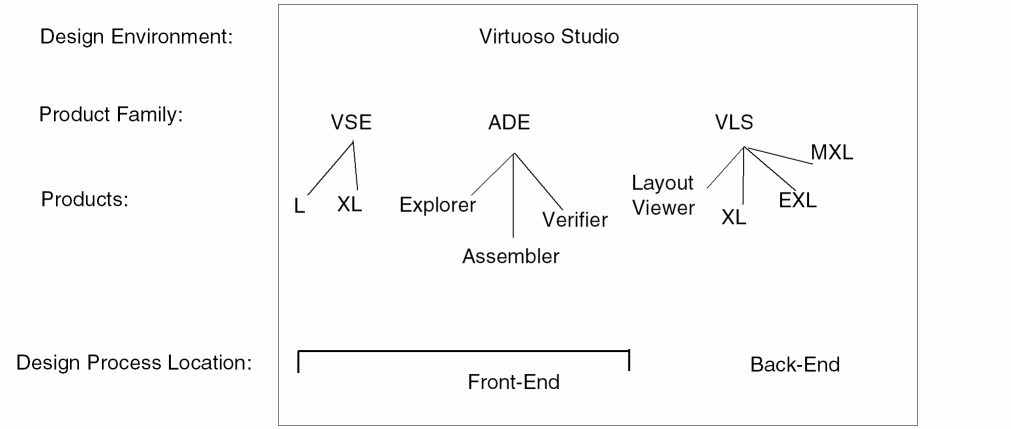

Overview of Virtuoso Studio Product Families

Virtuoso Studio Licensing

When you purchase a Virtuoso product, you also purchase licenses that entitle you to use the applications that are part of that product. Most of these licenses are floating licenses that are available to anyone in the work group. They are checked out from a central license pool at the beginning of work and checked back in when work is done. A few licenses might be restricted to specific users or servers.

When you run Virtuoso software, you are more likely to use applications in combination with each other and the software checks out the necessary licenses automatically when you run the command to start an application. Alternatively, you can check licenses in and out from the Command Interpreter Window (CIW).

Application Levels of Virtuoso Studio License

Some Virtuoso applications are available at two or three different levels. The most basic read-only tier is Viewer, unassisted tier is L; the standard, assisted tier is XL; the advanced, automated tiers are  EXL and MXL. Each higher tier provides additional features with more automated design assistance and you can also set the default application level for a cellview.

The following table shows the tiers for various Virtuoso applications:

Application	Family Tiers
Schematics	L, XL
Layout	XL, EXL, MXL
ADE	Explorer, Assembler, Verifier

The file your_install_dir/share/license/products.dfII contains product numbers and feature strings for Virtuoso software licenses.

You can check out and use applications of different levels together. The software always checks out the highest level license you need. If you descend in your design hierarchy, the software maintains the application level you are using.

If your attempt to check out a particular license level fails, the program asks whether you want to check out the next “higher-tiered” license. For example, if you cannot check out a license for Layout XL, the program asks whether you want to check out a higher-tiered license to run the Layout application. Your answer can be Session, Skip, Always, or Never. The Session and Skip options are stored in the memory.  If you answer Always, the program automatically tries for a higher-tiered license without asking you again. If you answer Never, the program never tries for a higher-tiered license and never asks you again.The Always and Never options are automatically written in the .cdsenv file. When Always and Never options are used, current values for the licenses VLSAdvOpt_UseNextLicense (95511) and VLSAdvStd_UseNextLicense (95512) are used.

For L, XL, and EXL applications, such as Schematic, you can check out licenses one per user, host, display. You can open more than one session with a single license.

For GXL applications in the Layout applications, the software allocates tokens for the features you use.

Types of Licenses

• User, host, and display (UHD) licenses: The L, XL, EXL, and MXL product tiers have UHD licenses.
• Job (J)-based and token-based licenses: The Layout GXL product offers flexible licensing that can be used to invoke Layout XL and enable some advanced features in the Layout XL and EXL tiers. These are job-based (J) licenses which cannot be shared.

License Consumption in Product Tiers

Product Tier: L

The L product tier offers basic design creation and implementation capabilities.

Base Product Name	License Feature Name	License Type
Virtuoso Schematic Editor L	Virtuoso_Schematic_Editor_L (95100)	UHD

Product Tier: XL

The XL product tier contains IC design products that introduce new technologies and advancements in design automation. The XL tier offers tightened linkage between design and implementation phases in the areas of creation, analysis, implementation, and repair.

Base Product Name	License Feature Name	License Type
Virtuoso Layout Suite XL	Virtuoso_Layout_Suite_XL (95310)	UHD
Virtuoso Schematic Editor XL	Virtuoso_Schematic_Editor_XL (95115)	UHD

Product Tier: EXL

The EXL product tier offers full access to all the Layout XL functionality in addition to providing access to all the functionality that was accessible under Layout EAD in previous releases. The Layout EXL product tier is also the default application for advanced applications such as concurrent layout editing, design planning, congestion analysis and interactive simulation driven routing.

Layout EXL is also the minimum base application required for fully integrated access to layout tools and flows facilitating advanced layout design at 5nm process nodes and below.

For more information on enabling the EAD workspace and engines within Layout EXL, see Virtuoso Electrically Aware Design Flow Guide

Base Product Name	License Feature Name	License Type
Virtuoso Layout Suite EXL	Virtuoso_Layout_Suite_EXL (95800)	UHD

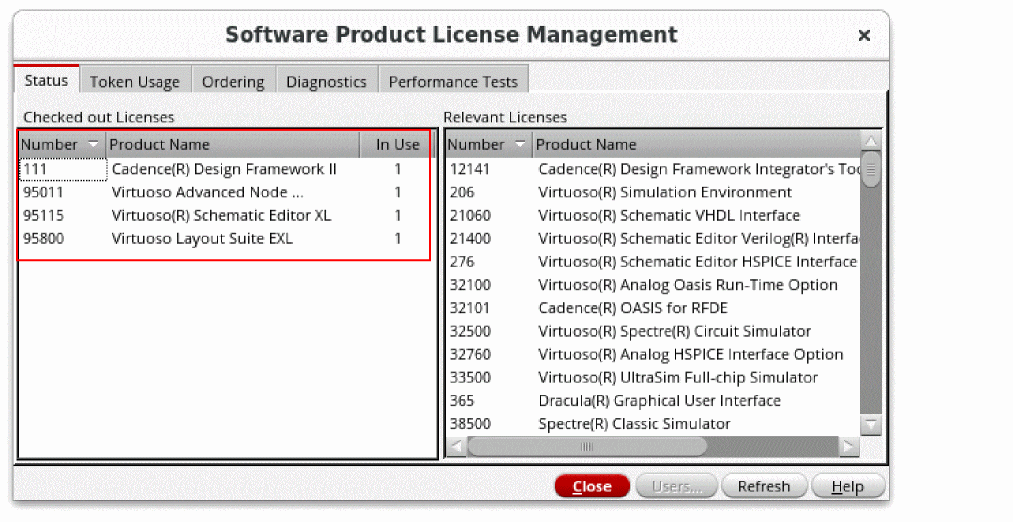

Only one base license per product family tier is checked out at a time. As a result:

• The VLS EXL tier does not require an VLS XL tier license. A higher checked out license allows you to run lower-tier applications. For example, you can run VLS XL and VLS EXL in the same session with only a VLS EXL license checked out. However, the higher checked out license will remain checked out until all VLS windows are closed.
  The following license is required in addition to the base license:
  • Token-based features in VLS GXL can be launched from the VLS XL or VLS EXL tier. (Tokens per Feature (VLS GXL))

Product Tier: MXL

The MXL product tier is the highest tier for layout application introduced in the Virtuoso Studio IC 23.1 release. It offers full access to all the Layout EXL functionality in addition to the integrated automated placement and routing solutions with unified interface to cater to all the design styles across both mature and advanced process nodes.

The Layout MXL tier is also the default cockpit for designing the integrated circuits in the context of the larger system-level design by providing technologies to address heterogeneous design, such as co-design and multi-fabric electromagnetic and thermal analysis.

Products that are not Tier-Based

Product Name	License Feature Name	License Type
Virtuoso Layout Viewer	Virtuoso_Adv_Node_Framework (95011)	UHD
Virtuoso ADE Explorer	Virtuoso_ADE_Explorer (95250)	UHD
Virtuoso ADE Assembler	Virtuoso_ADE_Assembler (95260)	UHD
Virtuoso ADE Verifier	Virtuoso_ADE_Verifier (95270)	UHD

For information on the specific features in each of the product tiers, see Software Product License Management Form: Diagnostics Tab.

Additional Feature Licenses

Some product features require you to check out additional licenses on top of the base product license for the product you are using.

Similarly, advanced node features require the Virtuoso_Adv_Node_Opt_Layout (Product Number 95511), the Virtuoso_Adv_Node_Opt_Lay_Std (Product Number 95512),or the Virtuoso_Adv_Node_Layout_GAA (Product Number 95513) license.

Some of the additional licenses are not needed in the MXL tier as shown in table below.

Layout Tier	VLS-XL (95310)	VLS-EXL (95800)	VLS-MXL (95810)
Virtuoso MultiTech Option		+95022	✓
VLS GXL - Automation	+95323	+95323
Virtuoso Photonics Basic optical editing and ORC		+ 95550	+ 95550
Virtuoso RF Multi-fabric RF and EM Analysis		+ 95560	+ 95560
Advanced Node > 10nm	+ 95512	+ 95512	+ 95512
Advanced Node <10nm	+ 95511	+ 95511	+ 95511
Advanced Node <5nm		+ 95511	+ 95511
Advanced Node GAA / 2nm		+ 95513	+ 95513

You can start applications in each Virtuoso product family using one of the following methods:

• File – Open and File – New from the CIW
• Library Manager
• Launch menu from the design windows
• File – Open and File – New from the design windows
• Hierarchy Editor
• Navigator Assistant
• History
• Bookmarks

Choosing Default Applications

Use one of the following methods to open a design in a specific product family tier and keep that setting as the default upon startup:

• File – Open and File – New from the CIW.
• Library Manager.
• File – Open and File – New from the design windows
• File – Set Default Application from the design windows

To set the default application using any of the methods above:

1. Choose the desired application in the Application field.
2. Select the Always use this application for this type of file option.
   This field is mapped to the environment variables
   • maskLayoutDefaultApp
   • schematicDefaultApp
   • schematicSymbolDefaultApp

In the event that the default application is not a base application (L tier), only the license of the chosen application will be checked out, not the base application. Only one of the base licenses in a given family is ever checked out at any one time.

Setting the CDS_Netlisting_Mode Environment Variable

When working in ADE, you need to set the CDS_Netlisting_Mode SHELL environment variable to Analog using one of the following methods:

• Type the following at the command line prior to launching virtuoso
setenv CDS_Netlisting_Mode=Analog
• Type the following SKILL in the command interpreter window (CIW)
  setShellEnvVar("CDS_Netlisting_Mode=Analog") cdsSetNetlistMode() t cdsGetNetlistMode() "Analog"

Design Framework II Licenses

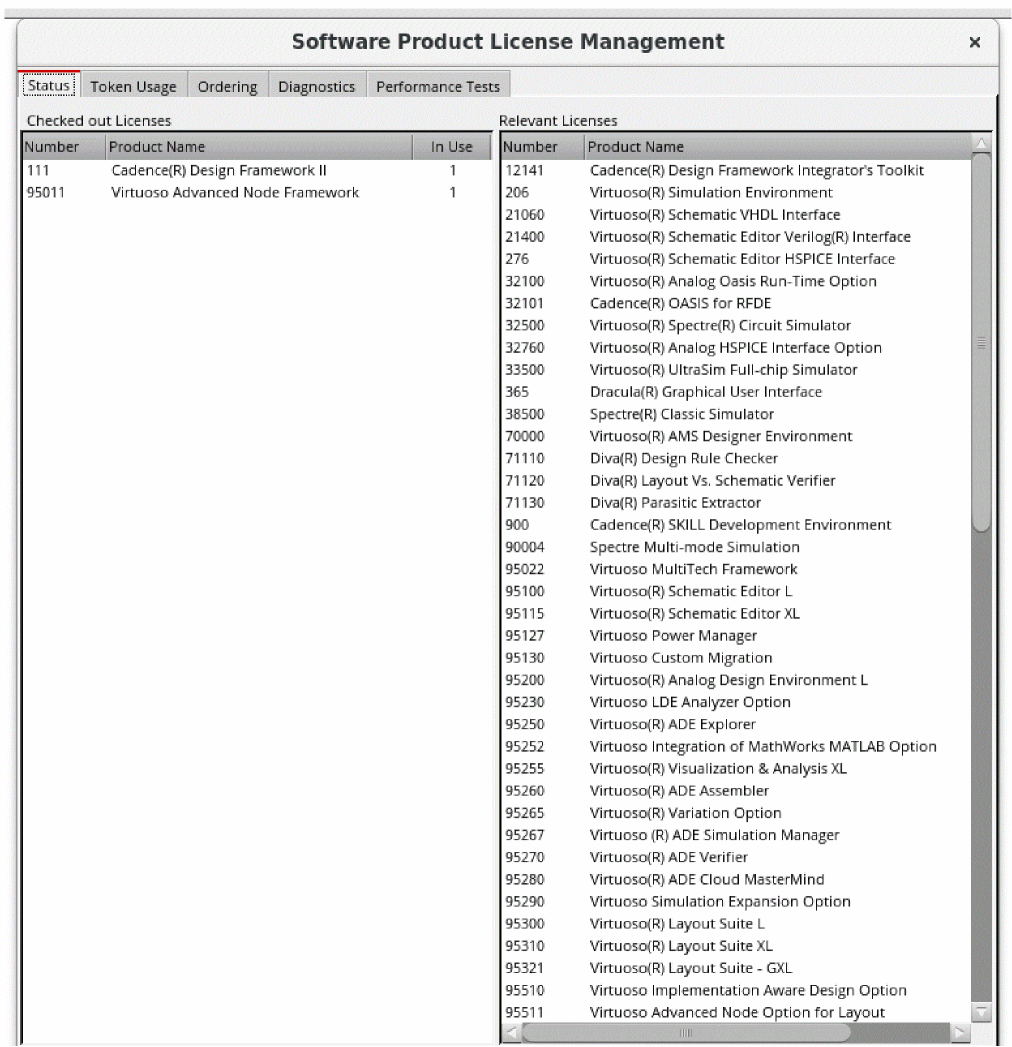

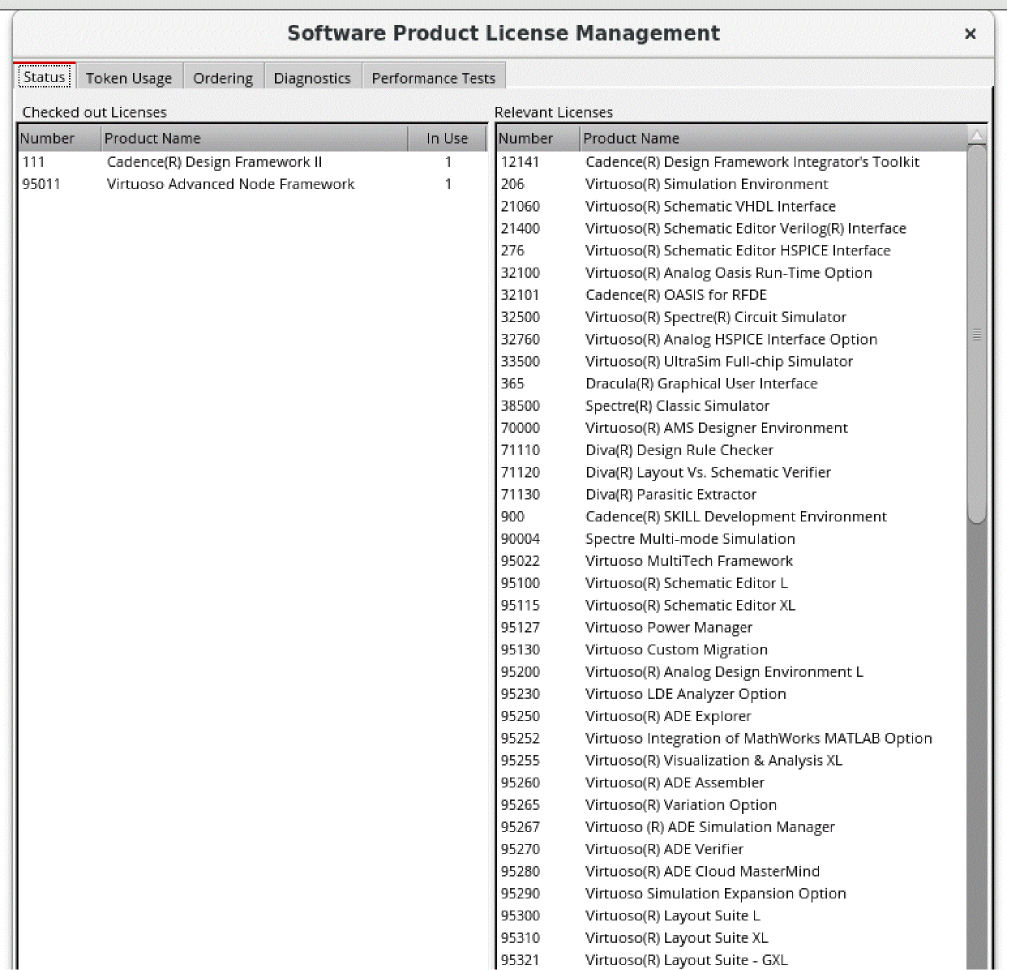

Product licenses 111 and 95011 (Virtuoso_Adv_Node_Framework) are checked out at workbench start and while performing the following activities:

• Starting Virtuoso applications in either graph or non-graph mode
• Launching routines that interact with design framework II^® (DFII) data (for example, CDF, Pcells, and param)
• Accessing Cadence data using itkDb
• Launching open simulation system (OSS) netlisters

In the event of a DFII license failure at startup, the Virtuoso application exits and an error message is displayed in the CIW as well as a log file.

License Check Out/Check In Behavior

This topic discusses:

• License Usage When Using Interactive Commands
• License Usage When Using Non-Interactive Commands

License Usage When Using Interactive Commands

• Product Tier: L
  In the L product tier, if a schematic design is opened in read-only mode or changed to read-only mode by choosing File – Make Read Only, no license checkout is required.
  However, when a schematic design is opened for editing or when it is made editable by choosing File – Make Editable in the application window, the Virtuoso_Schematic_Editor_L license is checked out.
• Product Tier: XL
  In the XL product tier, the Virtuoso_Layout_Suite_XL license is checked out when a layout is opened. An additional Virtuoso_Adv_Node_Opt_Layout, Virtuoso_Adv_Node_Opt_Lay_Std, or Virtuoso_Adv_Node_Layout_GAA is checked out when the layout design contains Advanced Node features (). These licenses are checked in when all layout windows are closed, including all Layout Viewer, Layout XL, and Layout EXL windows.
• Product Tier: EXL
  In the EXL product tier, opening a design in Layout EXL checks out a Virtuoso_Layout_Suite_EXL license. An additional Virtuoso_Adv_Node_Opt_Layout, Virtuoso_Adv_Node_Opt_Lay_Std, or Virtuoso_Adv_Node_Layout_GAA is checked out when the layout design contains Advanced Node features ().
• Product Tier: MXL
  In the MXL product tier, opening a design in Layout MXL checks out a Virtuoso_Layout_Suite_MXL license. An additional Virtuoso_Adv_Node_Opt_Layout, Virtuoso_Adv_Node_Opt_Lay_Std, or Virtuoso_Adv_Node_Layout_GAA is checked out when the layout design contains Advanced Node features ().
• GXL Feature

When you launch a GXL-based feature from the XL or EXL tier, the following token license activities occur:

• A token license is checked out during the execution of a command from a selected feature menu or toolbar.
• A token license is checked in automatically after completion of a command for some features.

The Context and Window – Toolbar menus do not affect the state of a token license. These menus are navigation aids and are not linked to license activity.

For all of the Virtuoso GXL features, with the exception of the Custom Digital Placer and Floorplanning, licenses are checked in after completion of the command. For the Custom Digital Placer and Floorplanning, the license is checked in only when the task is disabled or the XL or EXL session is exited.

License Usage When Using Non-Interactive Commands

Non-interactive, lengthy, and batch commands check out the license at the beginning of the command and automatically check in the license upon completion of the command activity. This model applies to automatic placers and routers.

License Activity for Various Applications

License Requirements for Advanced Node and Advanced Methodologies Features

When you open or edit a design, the application checks if there is constraint or design element in use that requires the use of the layout advanced option license and the application requests for that license to be checked out. This license is referred to as the minimum data license. These licenses are listed in the table below from highest capability to the lowest capability.

License Feature (licName)	Product Number	Product Description
Virtuoso_Adv_Node_Layout_GAA	95513	Virtuoso Advanced Node Option for GAA
Virtuoso_Adv_Node_Opt_Layout	95511	Virtuoso Advanced Node Option for Layout
Virtuoso_Adv_Node_Opt_Lay_Std	95512	Virtuoso Advanced Node Option for Layout Standard

The following table lists the license requirements for different advanced node features:

Product Capability/Feature	License Required
Technology database contains features related to GAA	Virtuoso_Adv_Node_Layout_GAA
Technology database contains a layer with more than two masks	Virtuoso_Adv_Node_Opt_Layout or Virtuoso_Adv_Node_Layout_GAA
Layout XL cellview or the technology database contains WSP data. The license is not required in Layout EXL or higher tiers. See Virtuoso Width Spacing Patterns User Guide.	Virtuoso_Adv_Node_Opt_Lay_Std
Cellview or technology database contains a constraint or constraint parameter that requires 95511 license. See Supported Constraints and Parameters: ICADVM20.1 Only-95511.	Virtuoso_Adv_Node_Opt_Layout or Virtuoso_Adv_Node_Layout_GAA
Technology database contains snap pattern definitions.	Virtuoso_Adv_Node_Opt_Lay_Std
Technology database contains a layer with 2 masks and no layer with more than 2 masks.	Virtuoso_Adv_Node_Opt_Lay_Std or Virtuoso_Adv_Node_Opt_Layout or Virtuoso_Adv_Node_Layout_GAA
Cellview or technology database contains a constraint or constraint parameter that requires 95512 license. See Supported Constraints and Parameters: Advanced Nodes Only.	Virtuoso_Adv_Node_Opt_Lay_Std or Virtuoso_Adv_Node_Opt_Layout or Virtuoso_Adv_Node_Layout_GAA
Advanced node features that are not listed in this table.	Virtuoso_Adv_Node_Opt_Lay_Std or Virtuoso_Adv_Node_Opt_Layout or Virtuoso_Adv_Node_Layout_GAA
When no advanced node data is present.	Neither Virtuoso_Adv_Node_Opt_Lay_Std nor Virtuoso_Adv_Node_Opt_Layout or Virtuoso_Adv_Node_Layout_GAA

Advanced Node License Checkout Order

The checkout order of these licenses is controlled by the VLSAdvOptLicenseCheckoutOrder cadence environment variable. The default checkout order is:

"license" "VLSAdvOptLicenseCheckoutOrder" 'string "95512 95511 95513"

The license checkout order works when the license checkout request is being processed. This process always starts from the first license in the list until it finds a license that meets the checkout requirement and is available for checkout.

As you can use VLSAdvOptLicenseCheckoutOrder to change checkout order based on your requirements, Virtuoso takes the requesting license and goes over the checkout order value until it finds the first value that meets the requirements and can be checked out successfully.

License requested >	95512	95511	95513
License Available
95512	Eligible for checkout	Not eligible	Not eligible
95511	Eligible for checkout	Eligible for checkout	Not eligible
95513	Eligible for checkout	Eligible for checkout	Eligible for checkout

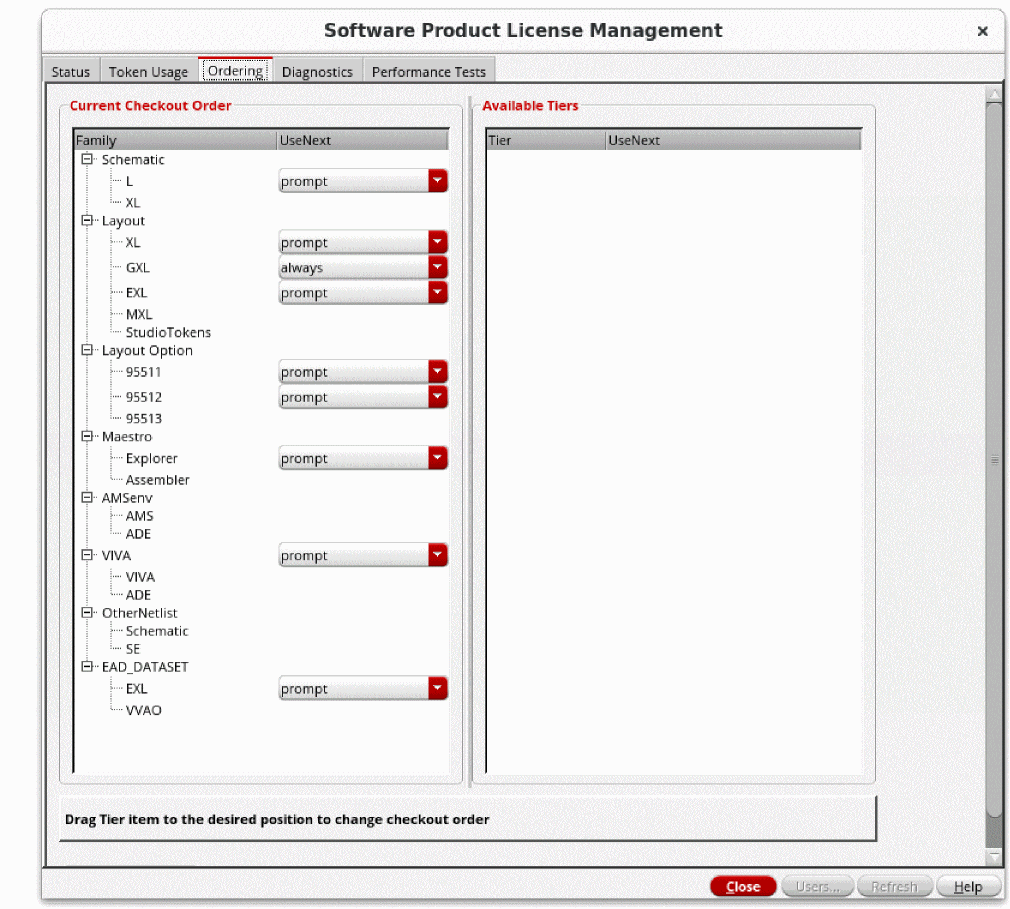

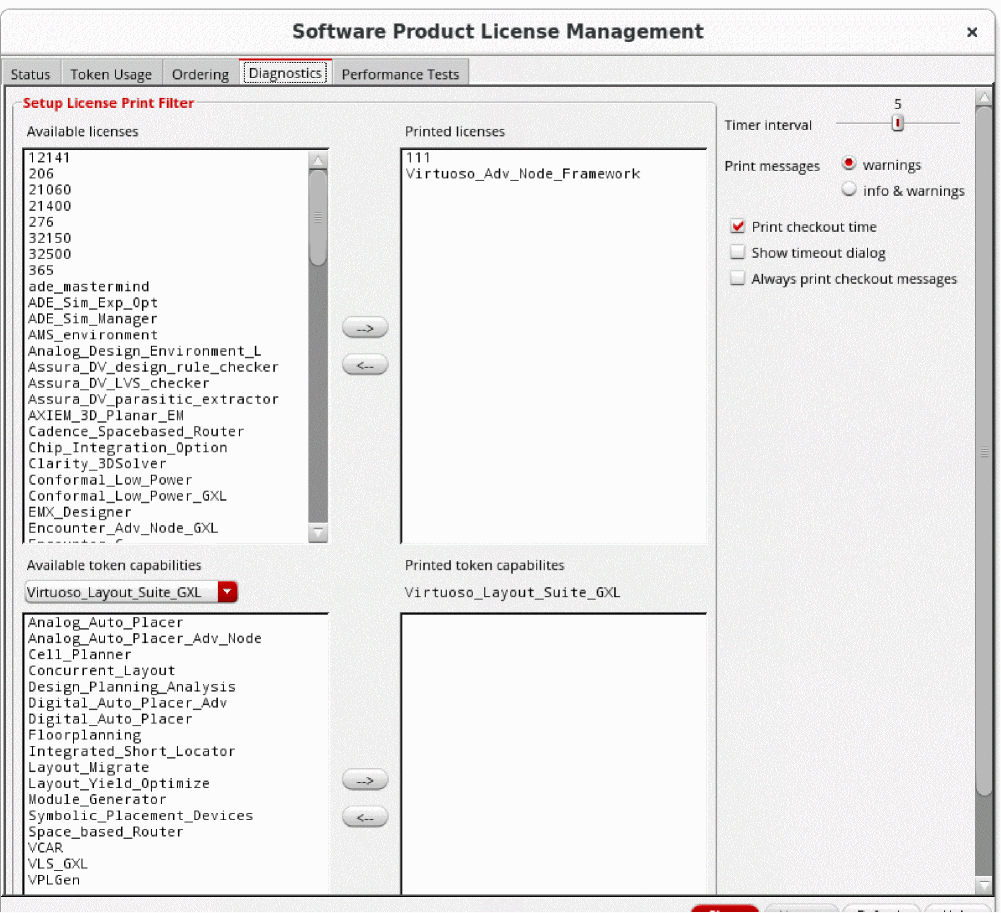

You can also reset the checkout order using the controls in the Software Product License Management Form: Ordering Tab.

Virtuoso Visualization and Analysis XL and ADE Licenses

Virtuoso Visualization and Analysis tool runs only in the XL mode, which supports all the features of Virtuoso Visualization and Analysis L and XL from previous releases. It follows the license check out procedure given below.

• If Virtuoso Visualization and Analysis XL is opened from within ADE Explorer or ADE Assembler, it shares the same license tokens as that of the product.
• If Virtuoso Visualization and Analysis XL is opened in stand-alone mode or from Virtuoso, it can either check out the Virtuoso Visualization and Analysis XL license or a tier of Maestro license, depending upon the preferences you set in the VIVALicenseCheckoutOrder cdsenv variable. By default, this variable is set to VIVA, ADE, Verifier which results in the following license check out tasks being performed:
  • Checks out the Virtuoso Visualization and Analysis XL license.
  • If the checkout operation in the previous step fails, checks out a Maestro (Virtuoso ADE Explorer or Virtuoso ADE Assembler) license according to the checkout order specified in the checkoutOrder .cdsenv variable.

  If this variable is set to ADE, VIVA, Verifier, the license check out tasks are performed in the following order:
  • Checks out the license of ADE Explorer or ADE Assembler according to the checkout order specified in the checkoutOrder .cdsenv variable.
  • If the checkout operation in the previous step fails, checks out the Virtuoso Visualization and Analysis XL license.
• When Virtuoso Visualization and Analysis XL is opened in stand-alone mode or from Virtuoso, the tool releases license when all the Virtuoso Visualization and Analysis XL windows are closed.
• When Virtuoso Visualization and Analysis XL is opened from within ADE and you close the ADE window, the Virtuoso Visualization and Analysis XL process holds the ADE license and continues to operate until all the main windows are closed.

License Usage in ADE Explorer and ADE Assembler

Depending on the run mode and feature being used ADE Explorer and ADE Assembler require different licenses. The following table describes the license consumption:

Table 1-1 License Checkout Behavior for ADE Explorer and ADE Assembler

Action	License Checkout Preference Order (depending on the availability)
Open ADE Explorer	Virtuoso_ADE_Explorer Virtuoso_ADE_Assembler
Open ADE Assembler	Virtuoso_ADE_Assembler
Switch from ADE Explorer to ADE Assembler	Check in Virtuoso_ADE_Explorer license and check out Virtuoso_ADE_Assembler license
Switch from ADE Assembler to ADE Explorer	Use only Virtuoso_ADE_Assembler license

In addition to the Virtuoso ADE Assembler license, you would require the Virtuoso_Variation_Option (95265) license for the following advanced options in Virtuoso ADE Assembler:

• High-sigma MC analysis to identify the worst-case behavior.
• Sensitivity accuracy and mismatch contribution.
• Assisted Yield Improvement flow.
• Advanced Optimization algorithms.

When running a large number of parallel jobs from ADE Explorer or Assembler, the Virtuoso Simulation Expansion Option (95290) license is required for every increment of 400 jobs. Also, Virtuoso ADE Simulation Manager (95237) license is required to enable maximum simulation throughput and responsiveness in ADE Assembler.

License Checkout When Running the Virtuoso Schematic and Verilog Driven Mixed-Signal Flow

To run the Virtuoso Schematic and Verilog Driven Mixed-Signal Flow, you must set the CDS_ENABLE_VMS environment variable before starting Virtuoso.

License Checkout While Running the Electrically Aware Design (EAD) Flow

While running simulations in Virtuoso ADE Assembler to generate electrical data and save datasets for the EAD flow, in addition to the base license for Virtuoso ADE Assembler, the EAD flow requires either of the following licenses:

• Virtuoso_Layout_Suite_EXL (Product Number 95800)
• Virtuoso_Variation_Analysis_Op (Product Number: 95510)

  If 95800 is already checked out, 95510 is not used.

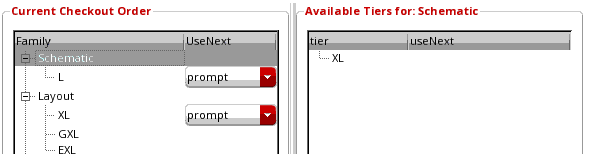

You can change the default license checkout order using the EADdatasetCheckoutOrder environment variable.

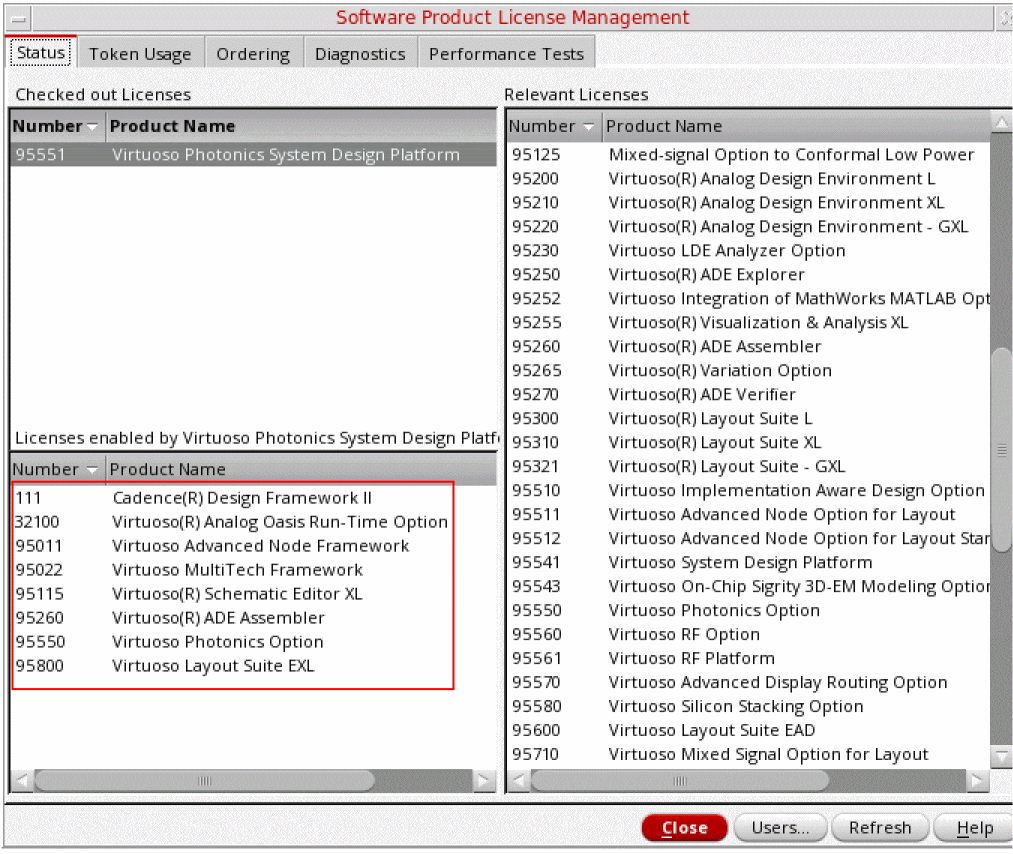

License Checkout for Virtuoso Photonics Platform

To enable the photonics flows, you can set either the Virtuoso_Photonics_Platform shell or the Virtuoso_Photonics_Option environment variable.

After setting the Virtuoso_Photonics_Platform variable, when you start Virtuoso, an attempt is made to check out and initialize the Virtuoso_Photonics_Platform license (Product Number 95551). If this license is available, you will not need separate licenses for Virtuoso CurvyCore technology, Virtuoso Schematic Editor, Virtuoso Layout Suite, and Analog Design Environment features.

Alternatively, you can also set the Virtuoso_Photonics_Option environment variable to enable the photonics features. After setting this environment variable, when you start any Virtuoso application, such as Virtuoso, stream, itkDB-based binaries, an attempt is made to check out and initialize the Virtuoso_Photonics_Option license (Product Number 95550). Subsequently, as you open editing cockpits, relevant product licenses will be checked out (for example, VLS-EXL for layout editing), as needed.

In both the cases, if the specified license is not found, the launch of the executable fails.

To enable Virtuoso CurvyCore technology, you would need the Virtuoso_MultiTech_Framework license in addition to the Virtuoso_Photonics_Option license. However, in case of Virtuoso_Photonics_Platform license, Virtuoso CurvyCore technology is enabled automatically.

License Checkout for Virtuoso MultiTech Framework

To enable Virtuoso MultiTech Framework, you need to set the shell environment variables Virtuoso_MultiTech.

After setting one of the above shell environment variables, when you start Virtuoso, the following licenses are checked out:

• Cadence Design Framework II (Product Number 111)
• Virtuoso_Adv_Node_Framework (Product Number 95011)
• Virtuoso_MultiTech_Framework (Product Number 95022)

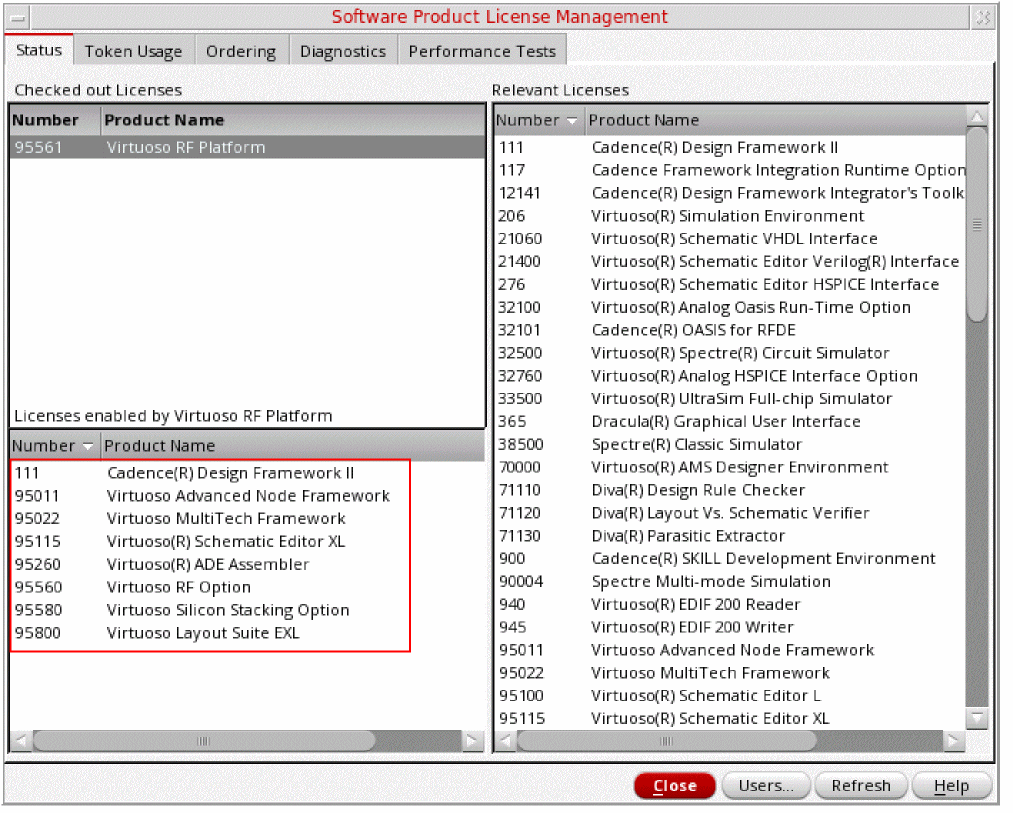

License Check out for Virtuoso RF IC Design Solution

• Virtuoso_Adv_Node_Framework
• Virtuoso_Schematic_Editor_XL
• Virtuoso_Layout_Suite_EXL

One of the following Cadence EM Solvers:

• EMX
• Clarity_3DSolver

Virtuoso Layout Suite EXL includes:

• Virtuoso_Adv_Node_Framework license feature.
• The Electromagnetic Assistant and the interface to EM solvers.

License Check out for Virtuoso RF System Design Solution - Module Layout in Virtuoso

• Virtuoso_MultiTech_Framework
• Virtuoso_Schematic_Editor_XL
• Virtuoso_Layout_Suite_EXL
• Clarity_3DSolver

Virtuoso Layout Suite EXL includes the Electromagnetic Assistant and the interface to EM solvers.

You must set the following shell environment variable before you launch Virtuoso:

• Virtuoso_MultiTech

This environment variable is not needed in Layout MXL.

License Check out for Virtuoso RF System Design Solution - Module Layout in Allegro

• Virtuoso_MultiTech_Framework
• Virtuoso_Schematic_Editor_XL
• Allegro Package Designer Plus
• SiP Layout Option
• Clarity_3DSolver

You must set the following shell environment variable before you launch Virtuoso:

• Virtuoso_MultiTech

License Checkout for Virtuoso Power Manager

• Virtuoso_Schematic_Editor_XL
• VIRTUOSO_POWER_MANAGER

License Checkout When Running PVS-CV in Virtuoso

When running Physical Verification System (PVS) Constraint Validation (CV) in Virtuoso, the following license is checked out in addition to the base product licenses, which are checked out depending on the requirement of other features being used:

• Phys_Ver_Sys_Const_Validator (Product Number 96300)

  Use PVE12.1.1 version or later for running the PVS-CV feature.

License Checkout When Running Virtuoso IPVS

Virtuoso Integrated Physical Verification System (IPVS) requires the following licenses:

Basic Licenses:

• Virtuoso_DRC_Opt: Virtuoso Integrated Physical Verification System Option for Virtuoso Layout Suite license (Product Number: 96400)
• Phys_Ver_Sys_Results_Mgr: Cadence Physical Verification System Results Manager (Product Number: 96240)

Advanced Licenses:

• Virtuoso_IPVS_Adv_Ana_Opt: Virtuoso Integrated Physical Verification System Advanced Analysis Option (Product Number:96310)

License Checkout for Running Third-party Simulators

For running third-party (non-MMSIM) simulators in ADE product family (Explorer/Assembler) the Virtuoso^® Analog Oasis Run-Time Option license (OASIS_Simulation_Interface, Product Number 32100) is required. Prior to usage, the simulator must be authorized for integration into the simulation environment. To integrate a commercially available simulator contact Cadence Connections (connections@cadence.com) and to integrate a proprietary simulator, contact Cadence Customer Support.

Once the integration is complete, the Oasis Run-Time Option license will be checked out and held during netlisting and simulation. The license is checked back in when the netlisting and simulation run is complete.

License Checkout When Running Express Pcell in Virtuoso

The Express Pcell capabilities are available through Cadence Design Framework II (Product Number 111) without a need to check out the VLS XL license.

Abstract Generator License Usage

Abstract Generator requires the Virtuoso_Layout_Suite_XL, Virtuoso_Layout_Suite_EXL, or Virtuoso_Layout_Suite_MXL and Virtuoso_Adv_Node_Opt_Layout,  Virtuoso_Adv_Node_Opt_Lay_Std, or Virtuoso_Adv_Node_Layout_GAA licenses.

License Checkout When Running Design Planning and Analysis

Design Planning and Analysis requires Virtuoso_Layout_Suite_EXL and 12 GXL Tokens or Virtuoso_Layout_Suite_MXL.

Pcells and License Usage

Pcell Interoperability and Performance: The actions of saving, editing, or opening a database using Core Cached Pcells capability, from either the GUI or SKILL and from any application, causes a Virtuoso_Layout_Suite_XL license to be checked out.

Process Rule Editor: The use of the Process Rule Editor, or associated SKILL function, to save, edit, or open a techDB or design object requires a Virtuoso_Layout_Suite_XL or Virtuoso_Schematic_Editor_XL license to be checked out.

Summary of License Checkout Behavior

The following table summarizes the license check-out behavior for different product features:

Table 1-2 Summary of License Check-Out Behavior

Product Capability/Feature	Base Product License Required	Additional License Required	Close Application Window1
VSE L (Read only mode)	None	None	NA
VSE L (Edit mode)	Virtuoso_Schematic_Editor_L	None	License checked in
VSE XL	Virtuoso_Schematic_Editor_XL	None	License checked in
ADE Explorer	Virtuoso_ADE_Explorer or Virtuoso_ADE_Assembler	None	License checked in
ADE Assembler	Virtuoso_ADE_Assembler	None	License checked in
ADE Verifier	Virtuoso_ADE_Verifier	The implementations whose simulations are started from Verifier require their appropriate licenses.	License checked in
Command-Line IP Selector	AMS_environment (Product Number 70000)	None	License checked in
VLS XL	Virtuoso_Layout_Suite_XL or Virtuoso_Layout_Suite_EXL or Virtuoso_Layout_Suite_MXL	Virtuoso_Adv_Node_Opt_Layout or Virtuoso_Adv_Node_Opt_Lay_Std or Virtuoso_Adv_Node_Layout_GAA	License checked in
VLS EXL	Virtuoso_Layout_Suite_EXL or Virtuoso_Layout_Suite_MXL	Virtuoso_Adv_Node_Opt_Layout or Virtuoso_Adv_Node_Opt_Lay_Std or Virtuoso_Adv_Node_Layout_GAA	License checked in
VLS MXL	Virtuoso_Layout_Suite_MXL	Virtuoso_Adv_Node_Opt_Layout or Virtuoso_Adv_Node_Opt_Lay_Std or Virtuoso_Adv_Node_Layout_GAA	License checked in
1 Close all windows running this application except the CIW.
* The Virtuoso_Adv_Node_Opt_Layout,  Virtuoso_Adv_Node_Opt_Lay_Std, or Virtuoso_Adv_Node_Layout_GAA license is checked in when the last layout window is closed.

Setting License Check Environment Variables

There are a range of license check environment variables that can be used for detailed license checkout reporting. For example, you can set an environment variable to report whether a license check is taking too long or if a particular license or token has been checked out.

These license environment variables, as shown in an example for each below, can be set in one of two ways:

1. Using setenv before running Virtuoso.
2. Using the SKILL function setShellEnvVar() during a Virtuoso session.
   • CDS_LIC_PRINT_FILTER
     This environment variable can contain a string with the names of license features and token capabilities, for detailed license checkout reporting using the format:
     "Feature1:Token1,Token2,...:TokenN,Feature2, ...,FeatureM"
     If CDS_LIC_PRINT_FILTER is not defined, the license feature “111” will be the default.
     You can obtain a list of all registered token capabilities by examining the content of the Software Product License Management Form: Token Usage Tab.
     For example:

     setenv CDS_LIC_PRINT_FILTER "111, Virtuoso_Layout_Suite_XL, Virtuoso_Layout_Suite_GXL:VLS_GXL"

     setShellEnvVar("CDS_LIC_PRINT_FILTER=111, Virtuoso_Layout_Suite_XL, Virtuoso_Layout_Suite_GXL:VLS_GXL")

     You can also use a number of aliases with the CDS_LIC_PRINT_FILTER environment variable to cover multiple feature settings:


     Environment Variable Value Alias	License Tool Interprets CDS_LIC_PRINT_FILTER for
     all	All tiered licenses, including all token capabilities and license “111”.
     vlsall	All licenses related to the Virtuoso Layout Suite family.
     adeall	All licenses related to the Analog Design Environment family.
     vseall	All licenses related to the Virtuoso Schematic Editor family.


     When setting the CDS_LIC_PRINT_FILTER environment variable value, you can also combine application names and aliases, for example:

     setenv CDS_LIC_PRINT_FILTER "Virtuoso_Layout_Suite_XL,vseall,adeall":virtuoso

     setenv CDS_LIC_PRINT_FILTER "vlsall,vseall,adeall,111":virtuoso



     If you set "Virtuoso_Layout_Suite_GXL:all", the license tool will interpret CDS_LIC_PRINT_FILTER as containing all token capabilities for the token license “Virtuoso_Layout_Suite_GXL”.
   • CDS_LIC_PRINT_TIME
     This boolean environment variable can be set to output the time (in milliseconds) to the CIW that is taken during a license check-out process. The values that can be set for CDS_LIC_PRINT_TIME are 0 (do not print time) and 1 (print time), the default being 1.
     For example:

     setenv CDS_LIC_PRINT_TIME 0
     or
     setShellEnvVar(“CDS_LIC_PRINT_TIME=0”)

   • CDS_LIC_PRINT_ALWAYS

     This boolean environment variable can be set to output messages for a particular license feature each time that license feature is checked out. The values that can be set for CDS_LIC_PRINT_ALWAYS are 0 (do not print each time) and 1 (print each time), the default being 0.
     If CDS_LIC_PRINT_ALWAYS is not defined, or its value is 0, the message will be output only one time to the CIW.
     For example:

     setenv CDS_LIC_PRINT_ALWAYS 1
     or
     setShellEnvVar(“CDS_LIC_PRINT_ALWAYS=1”)

   • CDS_LIC_TIMER_INTERVAL
     This environment variable is used to set the number of seconds required to pass, for a license search, before a timeout occurs. If the license check time exceeds the value of CDS_LIC_TIMER_INTERVAL, a message will be output to the CIW informing you that the check time has been exceeded. The default value is 15 seconds.
     For example:

     setenv CDS_LIC_TIMER_INTERVAL 10
     or
     setShellEnvVar(“CDS_LIC_TIMER_INTERVAL=10”)

   • CDS_LIC_PRINT_TYPE
     This environment variable can be set to output all license call related messages (information and warning) to the CIW, or only the warning messages. If the value of CDS_LIC_PRINT_TYPE is set to “warn”, then only warning messages will be output to the CIW. If set to “all”, both information and warning messages will be output. The default is “warn”.
     For example:

     setenv CDS_LIC_PRINT_TYPE “all”
     or
     setShellEnvVar(“CDS_LIC_PRINT_TYPE=all”)

   • CDS_LIC_TIMEOUT_DIALOG
     This environment variable is used to display the timeout dialog when the license checkout time of a license feature, as defined by CDS_LIC_PRINT_FILTER, exceeds the timer interval specified by CDS_LIC_TIMER_INTERVAL. The value of CDS_LIC_TIMEOUT_DIALOG can be either “1” (which will display the dialog) or “0” (which will not display the dialog). The default value is “0”.

     For the initial 111 license, the timeout dialog will be displayed even when there is no license 111 in CDS_LIC_PRINT_FILTER and irrespective of CDS_LIC_TIMEOUT_DIALOG being set.
   • CIC_ENABLE_LIC_PERF
     This environment variable tests the license checkout performance of license features. If the license checkout time exceeds the specified threshold, a warning message is printed to the CIW.
     For example:

     setenv CIC_ENABLE_LIC_PERF "limit=0.08 pings=4 interval=0.5"

     Where,
     limit = [time] is the threshold value for checkout time (in seconds).
     pings = [count] is the number of pings sent to the license server. When this option is set, a specified number of pings will be sent to each license server (defined in CDS_LIC_FILE), when the license request time exceeds the threshold value. The default is 0, which means no pings are sent to the license server.
     interval = [time] defines the time interval (in seconds) between pings.
     The results from the ping commands are printed to the CIW.

Advanced Features and Token Licenses

The advanced technology features in the XL and EXL tiers are accessed by tokens or multi-feature licenses which are defined by a multi-feature license model.

A token is one copy of a multi-feature license. Each feature requires a specific number of tokens. GXL multi-feature licenses are Job-based (J) licenses which are not shared between processes.

GXL Multi-Feature License Tokens

A specific number of tokens is required to access advanced features in Virtuoso_Layout_Suite_XL and Virtuoso_Layout_Suite_EXL. Tokens are not needed when same features are accessed from the Layout MXL tier.

If all of your license tokens are currently in use, or you have insufficient tokens to access a particular feature, additional tokens can be obtained by contacting your local Cadence representative. The following table lists the tokens needed for the VLS GXL multi-feature licenses:

Table 1-3 Tokens per Feature (VLS GXL)

Features	VLS_XL	VLS_EXL	Version
Analog_Auto_Placer	8	8	23.1
Congestion Analysis		12	23.1
Concurrent Layout Editing	4	0	23.1
Design_Planning_Analysis		12	23.1
Digital_Auto_Placer	2	2	23.1
Digital_Auto_Placer_Adv		24	23.1
Floorplanning	4	4	23.1
Integrated_Short_Locator	3	3	23.1
Module_Generator	2	0	23.1
Slotting	4	0	23.1
Space_based_Router	12	12	23.1
Symbolic_Placement_Devices	2	2	23.1
VPLGen	1		23.1

Important Points to Note

• All of the features listed in Table 1-3 can be started in the XL, EXL, or MXL window.
• VPLGen: Using any of the Virtuoso Parameterized Layout Generator commands or Virtuoso Layout Generator commands to create, edit, or update a VPLGen or VLGen causes one VLS GXL token to be checked out. This GXL token remains checked out for the duration of the VLS XL or EXL session.
• Slotting does not require any GXL tokens in the Layout EXL and Layout MXL tier.

Virtuoso Space-based Router Tokens

Some Virtuoso Space-based Router features, such as viewing, navigation, and DRC checking, can be run from Virtuoso Layout Suite XL or EXL without additional licensing. Space_based Router tokens are required to perform routing and other tasks that modify the routing and routing environment, based on the number of nets in the design. When you invoke the first command that requires Space_based Router tokens, the tokens are checked out and are not released until you exit Virtuoso Space-based Router.

Some Virtuoso Space-based Router commands can use multiple processors in one workstation to accelerate processing. Additional Space_based Router tokens are required for the additional processors. The below table shows the number of additional tokens that you will need, based on the number of processors, or threads, that you want to use. License tokens can be reserved globally for use by all commands in a session or can be checked out as needed for a command. Tokens Per Feature: VSR for Automatic Routing (Space_based_Router)

Number of Nets	Number of Processors	Number of Tokens
0 to 1	N/A	VLS XL license required
2 to 9999	1	12
2 to 9999	2 to 4	24 (+12)
2 to 9999	5 to 8	36 (+12)
2 to 9999	9 to 12	48 (+12)
2 to 9999	each additional 4 processors (over 4 processors)	+ 12 tokens
10,000 to 249,999	1	24
10,000 to 249,999	2 to 4	48 (+24)
10,000 to 249,999	5 to 8	72 (+24)
10,000 to 249,999	9 to 12	96 (+24)
10,000 to 249,999	each additional 4 processors (over 4 processors)	+ 24 tokens
>= 250,000	1	48
>= 250,000	2 to 4	72 (+24)
>= 250,000	5 to 8	96 (+24)
>= 250,000	9 to 12	120 (+24)
>= 250,000	each additional 4 processors (over 4 processors)	+ 24 tokens

For example, if your design has 100,000 nets and you want to run Virtuoso Space-based Router using six (6) processors, you will need 48 Space_based Router tokens, 24 for the net count plus 24 for the thread count.

Methods to Track Token Licenses

The following methods can be used to track token license activity.

• lmstat Command
• Software Product License Management Form

lmstat Command

The lmstat command can be used to track token license activity from the command line. It reports activity for one license server only. Use the following arguments with the lmstat command.

Option	Description
-a	Display everything
-c license_file	Use "license_file" as license file
-f [feature_name]	List usage info about specified (or all) features
-i [feature_name]	List info about specified (or all) feature(s) from the increment line in the license file
-S [DAEMON]	Display all users of DAEMON licenses
-s [server_name]	Display status of all license files on server node(s)
-t timeout_value	Set connection timeout to "timeout_value"
-v	Display FLEXlm version, revision, and patch
-old	Allow communications with an old server that uses communications version 1.2 or earlier
-help	Print this message

Example

1. Type the following in a shell window:


   lmstat -c <license.file> -f "<feature.name>"

   For example,

   lmstat -c sj234flex4 -f "Virtuoso_Layout_Suite_GXL"

2. Review the output.
   In this example, designer1 on host lne2 has the VLS_GXL license checked out (4 tokens).


   For more information about the lmstat command, see the Cadence License Manager.

   The tokenPrintCapabilities SKILL function that printed the details of registered token licenses, including the number of tokens required for each capability and whether or not it is in use, no longer prints the token details. It will be deprecated in a future release. For more information on tokenPrintCapabilities, refer to the Virtuoso Studio Design Environment SKILL Reference.

Software Product License Management Form

You can use the Software Product License Management form to manage the licensing activity.

To open the form:

• Select Options – License in the CIW. The Software Product License Management form is displayed. In this form, you can get all the Cadence-product license related information.



The form contains the following tabs to handle the licensing process:

• Status: Displays the license status in two panes – Checked Out Licenses and Relevant Licenses. For more information, see the Software Product License Management Form: Status Tab.
• Ordering: Contains the options related to license ordering. For more information, see the Software Product License Management Form: Ordering Tab.
• Diagnostics: Contains the options for configuring the license diagnostic settings. For more information, see the Software Product License Management Form: Diagnostics Tab.

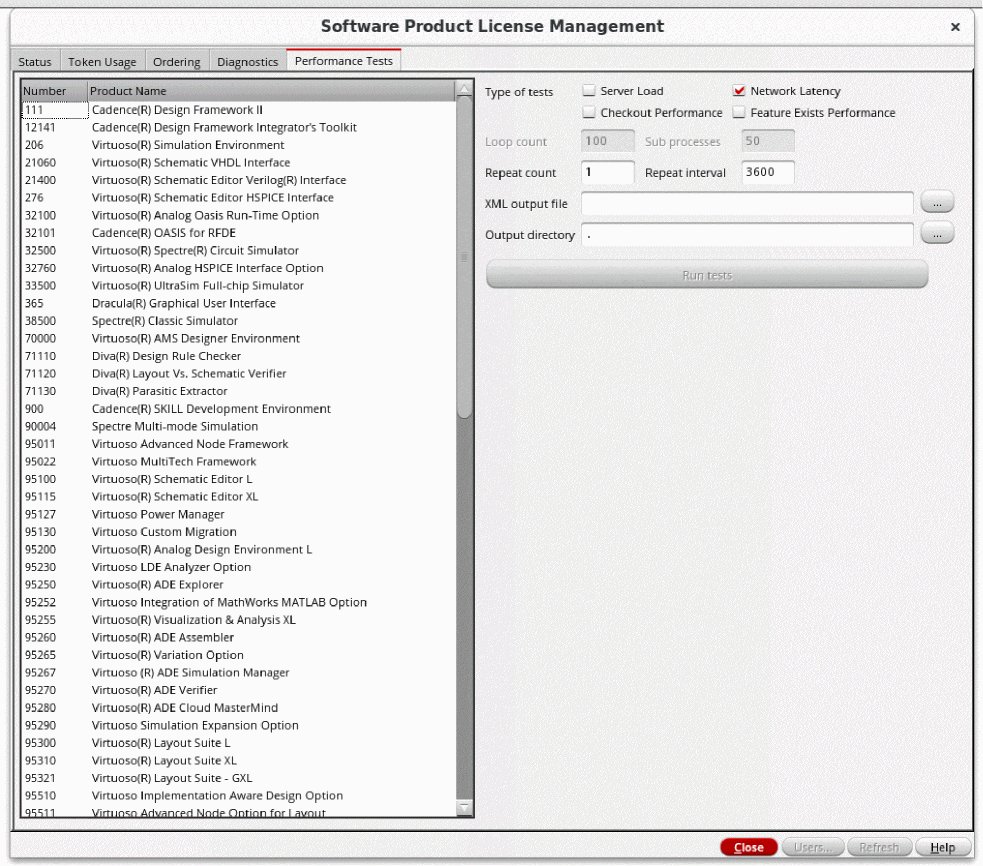

• Performance Tests: Contains the options to run a diagnostic test that determines the license-checkout performance on a feature-by-feature basis and across each license server. The tests can be looped and repeated over a period of time to calculate the average, median, max, and min times for each checkout. For more information, see the Software Product License Management Form: Performance Tests Tab.

Software Product License Management Form: Status Tab

To open the Software Product License Management form - Status tab

• Select Options – License in the CIW. The Software Product License Management form is displayed with the Status tab selected by default.



Checking the License Status

You can check the license status using either of the following ways:

• Use the Checked Out Licenses pane of the Status tab.
  This pane lists the licenses that are currently checked out, and their count.


• Run the lbuiGetCheckedOutLicenses SKILL function to return a list of checked out licenses, which appear in the Checked Out Licenses pane.
  The list contains each license feature name and the number of licenses (tokens) checked out. In addition, the license activity information gets recorded in the CDS.log file. This log file can be used later for creating reports to analyze the license usage.
  For more information on lbuiGetCheckedOutLicenses, refer to the Virtuoso Studio Design Environment SKILL Reference.

Viewing Relevant Licenses

The Relevant Licenses pane on the Status tab lists the DFII licenses relevant to all of the tools incorporated into the workbench.

Viewing Solution-based Licenses

Licenses checked-out for a solution can be viewed when you set the specific environment.

The following licenses are checked out when the Virtuoso Photonics solution is enabled:

The following licenses are checked out when the Virtuoso RF solution is enabled:

Adding Custom Products to the Status Tab

To add custom products and their license information to the Status tab, set the CDS_PRODUCTS_DFII_LIC_UI shell variable. The CDS_PRODUCTS_DFII_LIC_UI variable points to the file where the information about the custom products and license is stored in the following format:

<Product Number><separator><Product Name><separator><License Feature Name><endl>
where,
<separator> is ':'
and
is '\n'

Here, the definition for the custom product and license information use this format in one line and any blank lines are ignored.

Refreshing the License Status

To update the Checked Out Licenses and Relevant Licenses panes, click Refresh.

This action will update the Checked Out Licenses and Relevant Licenses lists to show the current list of products being run, and the respective license count, along with any changes to the available license list since the initial access of the Software Product License Management form.

Displaying the License Usage Information

You can display the license status using either of the following ways:

• Select a license from one of the lists on the Software Product License Management Form and click Users to display the License Use form.

  The Users button is disabled by default. It gets enabled when you select a license in the Software Product License Management form and click Refresh.
  The License Use form displays the license usage information (for example: user logins, host names, display time, number of licenses, and license version) for the selected licenses, independent of the license-checkout status. Information in this form is read from the license servers that are defined in the CDS_LIC_FILE and is extracted from more than one license server. If you do not have any licenses for a selected feature in any license file, the License Use form will display total and available licenses as “0”.


  You can display the license usage information of more than one license in the License Use form. To do so, hold the CTRL key to select multiple licenses or hold the SHIFT key to select a contiguous range of licenses before clicking Users.
  Hold the CTRL or SHIFT key and click to deselect any previously highlighted licenses before choosing a new license for viewing in the License Use form.
• Run the lbuiPrintLicenseUseReport SKILL function to display the license usage report (for example: user logins, host names, display time, number of licenses, and license version) in the CIW or the specified output log file.
  For more information on lbuiPrintLicenseUseReport, refer to the Virtuoso Studio Design Environment SKILL Reference.

Software Product License Management Form: Token Usage Tab

The Token Usage tab displays the number of tokens required to run each capability of the Virtuoso Layout Suite GXL and the respective usage status.

Note:

• When an application that requires tokens is being launched, the Total Tokens and Total available tokens fields on the Token Usage form display the message “Collecting data from server”. This message is replaced with the token information once the launching process of the application completes.
• The L and XL product tiers have user, host, and display (UHD) based licenses. If you are using the same host and the same display, you can use the same L or XL license for multiple sessions of an application. However, the GXL tier uses job-based licenses, which are not shared. It means that each run of a GXL feature will check out the required number of tokens and multiple runs will require multiple sets of tokens. For more information on tokens, and licensing in general, see Advanced Features and Token Licenses

Software Product License Management Form: Ordering Tab

The Ordering tab provides an interface for defining the license checkout order of the Virtuoso application tiers.

Each of the product families (Schematic, Layout, Layout Option, ADE, and VIVA) contains applications in a tiered packaging structure. Each higher-tier application provides additional features with more automated design assistance.

Only one license per product family tier is checked out at a time. Lower-tier applications require either their own tier license or a higher-tier license to run. For example, you can run VLS XL and VLS EXL in the same session with only a VLS EXL license checked out. If an attempt to check out the license of a lower-tier application fails, the application looks for a higher-tier license. You can set the license checkout order using the Ordering tab, as shown below.

To view and use the displayed controls and buttons:

1. Click the Ordering tab in the Software Product License Management form. The Ordering tab has two panes: Current Checkout Order and Available Tiers.


   • Current Checkout Order:
     Displays the list of product families along with their current checkout order and UseNext settings.
     Family: Lists the names of the product license families. For example, Schematic, Layout, Layout Option, ADE, AMSenv, VIVA, and EAD_DATASET.
     To change the checkout order of a product family, click and drag the required tier up or down to move it to the desired location.

     The GXL and EXL tiers in the Layout family cannot be separated; they must appear together in the checkout order.
     EAD licenses will automatically forward-enable Layout EXL.
     UseNext: Displays the UseNext setting, which controls whether to check out the next available license for Virtuoso tier-based applications when the license required for a requested application is not available.
     If a tiered application has an associated UseNext setting, a drop-down list appears next to its name. If you reorder a tier within the product family, the UseNext drop-down moves along with it.
     The UseNext drop-down list provides the following options:
     • prompt: Confirm before checking out a higher-tier license.
     • always: Always check out the higher-tier license (as per selected checkout order).
     • never: Never check out the higher-tier license and display an error message instead.

     When prompt is set as the UseNext drop-down value and the license for a requested application is not available, the Next License dialog box displays, which lets you check out a higher tier license, subject to availability. Four options are offered: Session, Skip, Always, or Never.
     • Session: Checks out a higher-tier license, if available, for the current session. If a higher-tier license is unavailable, the Next License dialog box will only be displayed once. However, a new virtuoso session will cause the dialog box to display again.
       The Session option does not override the setting in the local .cdsenv file and updates only the internal or in-memory value of the corresponding UseNextLicense .cdsenv variable. Because of this, the Session response is applicable for the current session only. However, if you want to restore the Next License dialog box settings in the same session, reset the UseNextLicense .cdsenv variable to prompt using the envSetVal function in the CIW or select prompt from the UseNext drop-down list.
     • Skip: Skips the next license. For example, if L license is not available, and you click Skip in the Next License dialog box, the XL license will be skipped and an attempt to check out the GXL license will be made.
     • Always: Virtuoso will always try to check out the next license, if the requested license is not available. The Next License dialog box is not displayed again when virtuoso is restarted.
     • Never: Virtuoso will never try to check out the next license, if the requested license is not available. The Next License dialog box is not displayed again when virtuoso is restarted.

     The Always and Never options are stored in the following environment variables in ~/.cdsenv as soon as they are set.
     For example,

     license VLSXL_UseNextLicense string "prompt"/"always"/"never"
     license VSEL_UseNextLicense string "prompt"/"always"/"never"

     If a license is not available warning messages will be displayed in the CIW.

     The settings selected in the Current Checkout Order pane are reflected in the .cdsenv variables CheckoutOrder and UseNextLicense.
   • Available Tiers:
     By default, the Current Checkout Order pane displays all applicable tiers for each product family. However, you can choose to deselect a tier and remove it from the current checkout order list by dragging and moving it to Available Tiers.

     If there is only one tier in the family tree, you are not allowed to remove it from the Current Checkout Order list by dragging and moving it to Available Tiers list, because a family tree cannot be empty.
     When you select a product family in the Current Checkout Order pane, you can see the current checkout order of its tiers in the left pane and the list of available (applicable) tiers in the right pane. For example, in the image below, the XL tier for the product family Schematic has been moved to the Available Tiers for: Schematic pane.


2. Click Save to File to save the selected options in the .cdsenv file. You can also edit your preferences in the.cdsenv file.

Software Product License Management Form: Diagnostics Tab

The Diagnostics tab provides an interface for setting the parameters needed for license-checkout reporting. For example, you can set these parameters to report whether a license check is taking too long or if a particular license or token has been checked out. By using the options available in this tab, you can set the values of the license diagnostic variables without needing to remember the shell variable names.

• Click the Diagnostics tab in the Software Product License Management form to view and use the displayed panes and controls.



Software Product License Management Form: Performance Tests Tab

In an environment where you have licenses served across multiple servers spread over a network, there can be significant delays during the application start up because Cadence applications search all the license servers to acquire a license.

In such situations, you can run a diagnostic test from the Performance Tests tab to test the license checkout performance on a feature-by-feature basis and across each server. This tab is an interface to the perf_test utility.

• Click the Performance Tests tab in the Software Product License Management form to use the displayed controls and buttons.


  For testing the network latency, selecting the Cadence Design Framework II license is sufficient. However, if you suspect that a particular license feature is taking more time to check out, you can select the required license feature name for testing.

Product Tier Features

The following table shows the feature details included in each application.

Virtuoso Layout Features

Virtuoso Layout Features

In the table:

• ✓ Specifies that the feature is included with the Base Product .
• ✓+ Specifies that the feature requires both Base Product and Option .


  Virtuoso Layout Features	New in IC23.1	VLS XL 95310	VLS EXL 95800	VLS MXL 95810	VLX GXL Option 95323
  Schematic Driven Layout		✓	✓	✓
  Constraints and Design Intent		✓	✓	✓
  Schematic Assistant	New	✓	✓	✓
  Incremental Check Against Source	New	✓	✓	✓
  Multi-threaded Connectivity Extractor	New	✓	✓	✓
  Wire and Bus Editing	New	✓	✓	✓
  Auto Via	New	✓	✓	✓
  GroupArray	New	✓	✓	✓
  In-design DRC with iPegasus	New	✓	✓	✓
  In-design Metal Fill with iPegasus	New	✓	✓	✓
  Design Review Editor	New	✓	✓	✓
  Modgen		✓    +	✓	✓	+
  Symbolic Placement of Devices		✓    +	✓    +	✓	+
  Concurrent Layout Editing		✓    +	✓	✓	+
  Simulation Driven Routing			✓	✓
  In-design EM/IR + RC			✓	✓
  Partial Layout Resimulation	New		✓	✓
  Capture and Replay	New		✓	✓
  Row based layout flow			✓	✓
  Auto Placer and Fill			✓	✓
  Assisted Routing		✓    +	✓    +	✓	+
  Copy Route	New		✓	✓
  Design Planner			✓    +	✓	+
  Congestion Analysis			✓    +	✓	+
  Electromagnetics Assistant			✓	✓
  Device Level Auto Routing	New			✓
  GigaPlace and NanoRoute Integration	New			✓
  Spine style routing for memory	New			✓
  Chip + Block Assembly Auto Routing	New			✓
  Unified Routing Assistant	New			✓
  Multi-fabric and Multi-Tech support	New			✓
  EMX and Clarity Integration for RF	New			✓
  Layout Reuse and Migration	New			✓
  Analog_Auto_Placer		✓        +	✓        +	✓	+
  Digital_Auto_Placer		✓        +	✓        +	✓	+
  Digital_Auto_Placer_Adv			✓        +	✓	+
  Floorplanning		✓        +	✓        +	✓	+
  Integrated_Short_Locator		✓        +	✓        +	✓	+
  Slotting		✓        +	✓	✓	+
  Space_based_Router		✓        +	✓        +	✓	+
  VPLGen		✓        +	✓	✓	+

ADE Product Family Features

The following table lists the features available in the ADE product family:

In the table:

• ✓* Specifies not all features within the GUI are available to OASIS integrated (third-party) simulators. Contact Cadence CPG Marketing team for individual situations.
• ✓* Specifies that the feature may also require Legato Reliability Solution license.


  Virtuoso ADE Suite Features	New in IC23.1	ADE Explorer 95250	ADE Assembler 95260	ADE Verifier 95270	Virtuoso Variation Option 95265
  Single Test-bench support		✓	✓
  Device Instance Parameters and Design Variables Sweep Support (Parameterization)		✓	✓
  Built-in variation analysis (Corner, Monte-Carlo, Sensitivity, Reliability analysis )		✓	✓
  Filtering in outputs setup, corners setup and results, filtering in dataview or setup assistant		✓	✓
  Spec-driven measurements with pass or fail results display		✓	✓
  Waveform plotting with extensive capabilities in ViVA incl plotting templates support		✓	✓
  On schematic waveform thumbnails/info balloons		✓	✓
  Integration with Cadence Spectre Simulation Platform		✓	✓
  Third-party simulators integration support		✓*	✓*
  Measurements across Sweeps, Corners and Dimensions		✓	✓
  Assertions and Device Checks Support (SPECTRE ONLY)		✓	✓
  HTML Spec Sheets for design review		✓	✓
  Scripting support with OCEAN or Mastero APIs (simpler vs OCEAN)		✓	✓
  Mathworks Matlab expression support,data post-processing/script development in Matlab environment		✓ +95252	✓ +95252
  Faster MC post-processing (histograms, scatter plots, etc.) with new db for statistical parameter data storage	New	✓	✓
  Distributed processing with farms (LSF, SGE, etc.) support		✓	✓
  Parasitic Resimulation w/ Extracted View (including Smart View)		✓	✓
  Real-time circuit tuning with dynamic waveform display		✓
  Multiple test-bench support			✓
  Data View/History Assistant (including Merge History support)			✓
  Reconnect simulations/results when Virtuoso/ADE exits	New		✓ +95267
  Distributed results plotting and re-evaluation	New		✓
  Support for pre-calibration scripting			✓
  Run Plans for mini-verification runs			✓
  Waveform specs to autocheck wave repsonses			✓
  Global and Local Circuit Optimization (Classic)			✓
  Partial Layout device extraction resimulation w/ EAD flow			✓ +95800
  Spectre Interactive Environment (SIE)			✓
  Worst Case Corners Analysis			✓
  Advanced Statistical/Optimization/Sensitivity Support
  High-sigma MC Analysis to identify the worst-samples using Spectre FMC (3-6s+)	New	✓ +	✓ +		+
  Sensitivity Accuracy and Mismatch Contribution analysis incl Mismatch tuning		✓ +	✓ +		+
  Assisted Yield Improvement Flow			✓ +		+
  New Advanced AI Optimization (Use Algorithms/Integrate)	New		✓ +		+
  Legato Reliability Solution
  Electro-thermal analysis		✓**	✓**
  Advanced aging analysis		✓**	✓**
  Analog Defect simulation			✓**
  ADE Verifier Electrical Verification
  Creation of analog verification plans with requirements/specs				✓
  Running large regression setups from Verifier				✓
  Setup library assistance to define sweep, corner, simulation setting setups and share across multiple Assembler/Verifier views				✓
  Analog verification coverage report with spec tracing across users				✓
  Connection to Cadence’s Verisium Manager for mixed-signal coverage				✓
  Results traceability to support ISO requirements				✓
  Support for composite requirements to for complex verification setups and results slicing according to verification spaces	New			✓
  Verification snapshots				✓
  ADE Run Modes <Sweet Spots>
  Classic ICRP < 100 parallel jobs		✓	✓	✓
  LSCS <500 parallel jobs			✓	✓
  ADE Simulation Manager < 5000 parallel jobs	New		✓ +95267	✓ +95267
  Expand to more than 400 jobs running in parallel	New		✓ +95290	✓ +95290

Hardware and Software Requirements

For hardware and software requirements needed to run the Virtuoso Studio, see Hardware and Software Requirements in the Virtuoso Studio Design Environment User Guide.

Software Layers

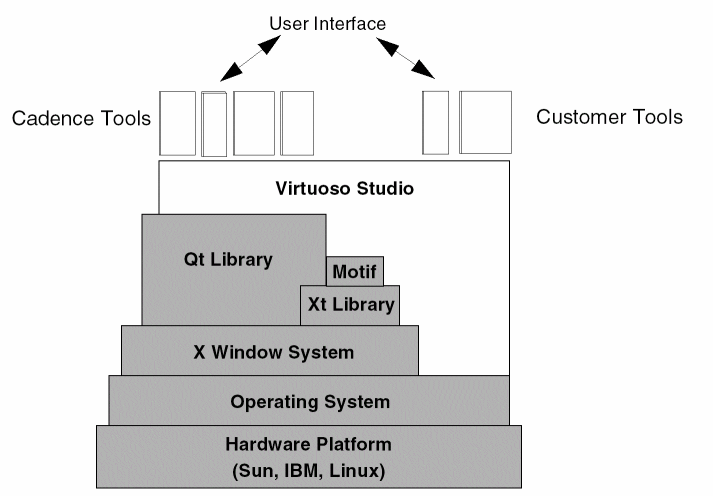

The figure below shows how the Virtuoso Studio resides on top of several layers of software (bottom layer is your hardware platform).

For More Information	Refer to
Installation	Cadence Installation Guide
Licensing	Cadence License Manager
File locking	Cadence Application Infrastructure User Guide
Plotting	Plotter Configuration User Guide
Design flow	Your Cadence applications engineer (AE)

Virtuoso Studio Design Environment Hierarchy

The software uses the following directory hierarchy to store executables and data files.

The your_install_dir/tools/dfII directory includes the directories listed below. The files in these directories depend on which Cadence^® products are installed.

bin	Virtuoso Studio design environment software executables for your platform.
bin.xxx	Link to bin directory.
cdsuser	Sample home directory environment setup files such as .Xdefaults, .cdsinit, .cshrc, .mwmrc, .simrc, .xinitrc, and arrowKeys.map.
etc/tools	Directories corresponding to particular applications or core pieces of infrastructure such as layout, schematic, and cdba. Each directory contains a default .cdsenv file and might also contain other sample files.
include	C header files to go with licensed Cadence products.
local	CAD group customization files and site-specific configuration files. Installing new software does not overwrite this directory.
lib	Programming libraries.
samples	Sample user files. Some of the samples include the following:
	.cdsenv	Sample environment variable file
	local	Sample customization files
	plot	Schematic plotting files
	techfile	Technology files and libraries
	tutorials	Tutorials for various products
script	Configuration scripts.
src	More customization files.

Virtuoso Studio Design Environment Executables

Virtuoso Studio design environment executables include:

• virtuoso: All Virtuoso software executables are integrated into one executable called virtuoso. Both 32- and 64-bit platform variants exist for the virtuoso workbench.
• dbAccess: dbAccessis a non-graphical UNIX command-line executable for using the core SKILL functionality and accessing DFII OpenAccess design and technology file data. You can also use this executable to debug Pcells and verify that they run in other environments and have no dependencies on product packages or licenses. dbAccess supports db, dd, rod, and tech functions. Since it does not have a graphical user interface, it does not support hi and ge functions.
  Command Switches
  dbAccess [{-32 | -64 | -32only | -64only | -3264 | -6432}] [-quiet3264][-debug3264] [-plat platform] [-v3264] [-help3264] <[-load fileName] [-cdslib fileName]>
  Description


  -32	Select the 32-bit version; if the 32-bit version is not available, print a warning message and try to launch the 64-bit version.
  -64	Select the 64-bit version; if the 64-bit version is not available, print a warning message and try to launch the 32-bit version.
  -32only	Select the 32-bit version; if the 32-bit version is not available, print an error message and exit.
  -64only	Select the 64-bit version; if the 64-bit version is not available, print an error message and exit.
  -3264	Select the 32-bit version; if the 32-bit version is not available, print an info message and try to launch the 64-bit version.
  -6432	Select the 64-bit version; if the 64-bit version is not available, print an info message and try to launch the 32-bit version.
  -quiet3264	Suppress the warning/error/info messages of the -32/- 32only/-3264 and -64/-64only/-6432 options. -debug3264 Print the environment updated by the wrapper and the command launched.
  -plat platform	Override the default platform selection when the tool is launched from the <install_root>/bin directory.
  -v3264	Print the wrapper's version string
  -help3264	Display detailed help of dbAccess generic options.
  -load	Loads and executes the specified SKILL file.
  -cdslib fileName	Reads the specfied filename for library definitions. By default dbAccess reads the cds.lib file in the current working directory.


  If you do not provide a command-line option, dbAccess switches to interactive mode and accepts commands from the keyboard or stdin.
  In addition, dbAccess accepts the Virtuoso command-line options, such as:


  -V	Displays Cadence release version.
  -W	Displays Cadence release subversion.


  However, it ignores options that require a graphical user interface.
  Example
  Suppose you have a SKILL file, listLibs.il, which includes commands to display the libraries specified in the cds.lib file. If a cds.lib file is not present, the default cds.lib from the installation directory is used.
  The file contents are as follows:
  foreach(lib ddGetLibList() printf("%s\n" lib~>name))
  Now, if you run the dbAccess command and loads this SKILL file, the following output is displayed on a terminal window:

  dbAccess -load listLibs.il

  Virtuoso Framework License (111) was checked out successfully. Total checkout

  time was 0.64s.

  cdsDefTechLib

  basic

  US_8ths

  rfLib

  rfExamples

  ahdlLib

  analogLib

  functional

  The above output is generated using the default cds.lib from the installation directory.

Virtuoso Studio Design Environment Licensing Setup

The key licensing characteristics of the Virtuoso Studio design environment are outlined in the following table.

Licensing Characteristic	Virtuoso Studio Design Environment
Licensing software	SoftShare
Licensing DAEMON	cdslmd
License file	license.HOSTID
Path to DFII	your_install_dir/tools/dfII
Path to the license directory	your_install_dir/share/license
Variable for license file	See the Cadence License Manager
File locking	CLS

For more information about license files and variables, see the Cadence Installation Guide and Cadence License Manager.

Frequently Asked Questions Related to Virtuoso Studio Licensing

The following table answers frequently asked licensing questions:

Question	Answer
In interactive mode, when are licenses checked in?	Licenses are checked in automatically when you exit an application.
Do all Cadence products support global TIMEOUT?	Yes. TIMEOUT sets the time after which an inactive license is reclaimed by the vendor daemon. You can amend the default TIMEOUT setting in the options file to specify how long it is before a product license times out. The value entered will be valid as long as it exceeds the minimum setting (3600 secs). TIMEOUTALL, which applies a timeout to all features is also supported in DFII products. For example, TIMEOUT featurename seconds TIMEOUTALL seconds
What happens to my work and any open windows when products lose their licenses?	When you execute the next command, it will re-check out the license automatically. You will only notice an issue if the license you need (the license that timed out) is no longer available.
After startup, how often does a product check for a valid license?	The license-checking interval depends on the product. In general, interactive products (for editing) check at the start of every editing command and batch-mode products check every five minutes.
Can I wait for a license?	No. You cannot wait for a license.
If prolonged batch jobs require multiple licenses, are all licenses reserved or checked out up front?	This depends on the application.

Return to top
