Editing Cell Properties

To edit the properties associated with a cell:

1. On the Library Manager form, select the cell whose properties you want to edit.
2. Choose Edit – Properties.

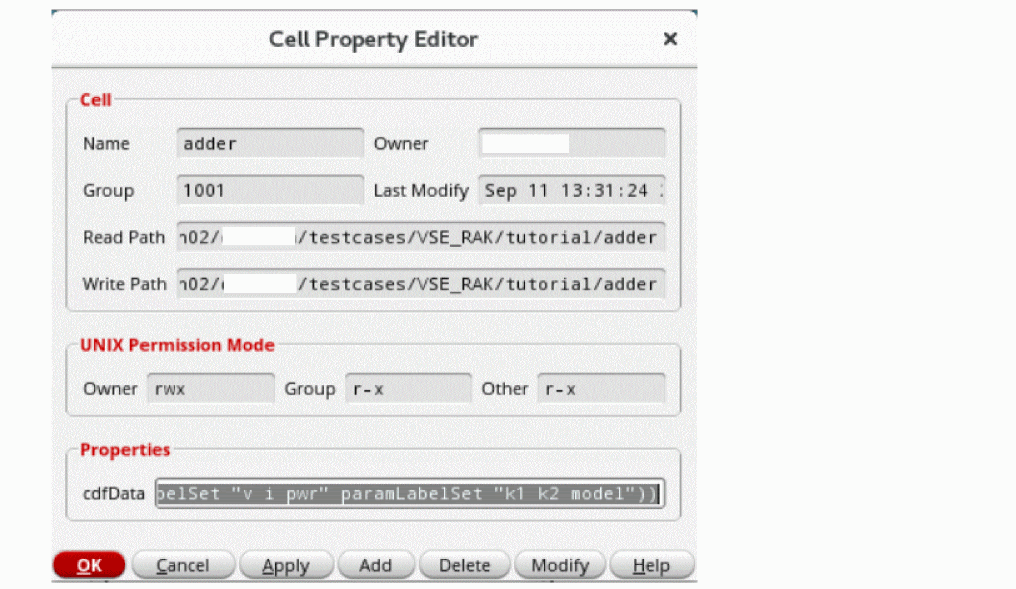

   The Cell Property Editor form appears. The properties of the selected cell appear at the bottom of the form.


   If you do not have write permission for the selected cell, you can display but not edit the properties. The Cell Property Viewer appears instead of the Cell Property Editor.
3. In the Cell Property Editor form, you can add, delete, and modify cell properties:
   • To add a property, click Add.
   • To delete a property, select the property and click Delete.
     The selected property is removed from the form.
   • To modify a property, select the property and click Modify.
4. Click Apply.
