Equivalent Circuit

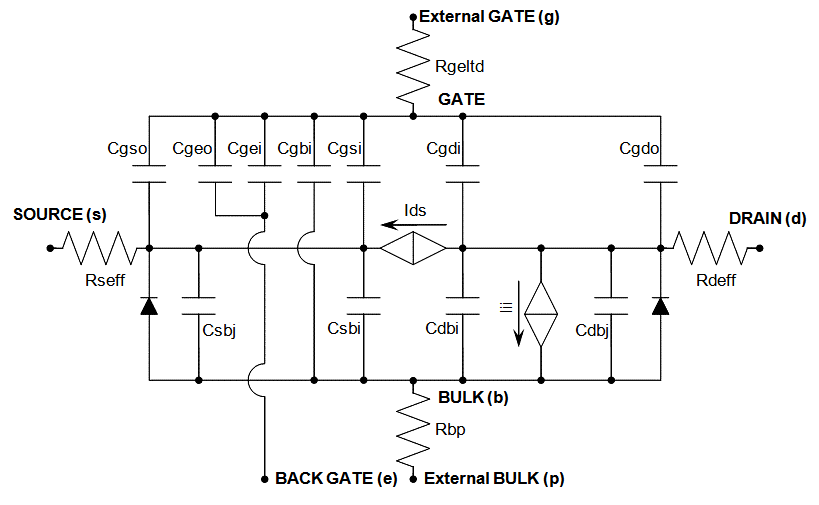

Because the BSIMSOI model is developed based on the BSIM3v3 model, it shares the similar basic equivalent circuit with the BSIM3v3 model except the part of floating body. The followings show the equivalent circuits for BSIMSOI devices:
