Viewing the Virtual Hierarchy Overrides

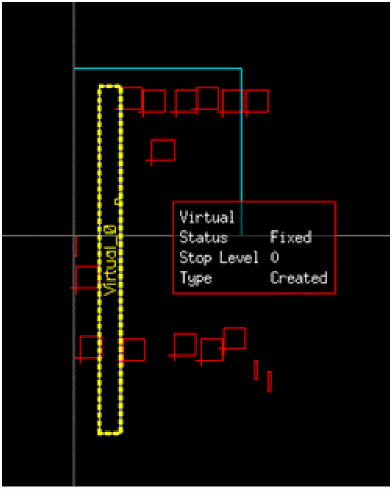

For designs that have individual virtual hierarchies set to different stop levels, types, placement status, and so on, you can view the individual virtual hierarchy overrides using the information balloon. You can customize the information balloon to selectively display measurements such as Placement Status, Stop Level, and Type, as displayed, when the cursor is hovered over a virtual hierarchy.
