Virtuoso IPVS Toolbar

---

VIPVS gives you the ability to customize default graphical interface, such as toolbar itself as well as its default run behavior. This chapter goes over each topic in great details.

The content of this chapter is organized as following:

• Overview
• Toolbar Icons
  • Verify-Design
  • Default Active Snapshot
  • Run Option
  • Error Browsing Utility
• Virtuoso IPVS Run Options
  • Run Settings for Verify Design
  • Run Settings for SignOff Fill
  • Run Settings for Density Analysis

Overview

VIPVS is an interactive DRC utility available in Virtuoso. It can:

• Directly access OA database and run DRC without data translation
• Refer to PVS compiled design rules database, snapshot, without compiling rule deck prior to DRC

Thus, for a quick DRC during layout editing, VIPVS is more effective than the traditional batch DRC for in design verification solution.

VIPVS allows you to:

• Edit layout within Virtuoso when VIPVS is conducting DRC
• Run DRC on either editable or the read-only cellview
• Allows you to analyze density for your design
• Generate metal fill in OA database.

Following figure shows the VIPVS toolbar:

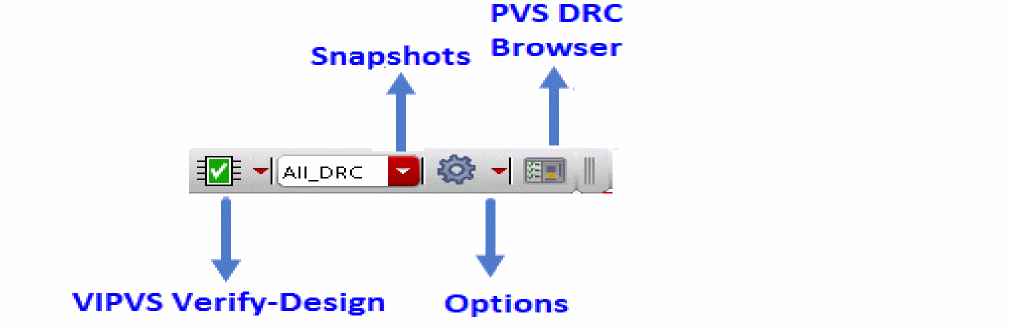

Figure 2-1 VIPVS Toolbar Icons

• VIPVS Verify-Design or VIPVS Post-Edit: DRC operate modes. For detailed description on their usages, see Invoke Design Rule Checking.
• Snapshots: For more details on the usage of this toolbar refer to Manage Snapshots.
• VIPVS Run Options: For more details on the usage of this toolbar refer to Run Settings for Verify Design
• PVS DRC Browser: For more details on the usage of this toolbar refer to Error Viewing.

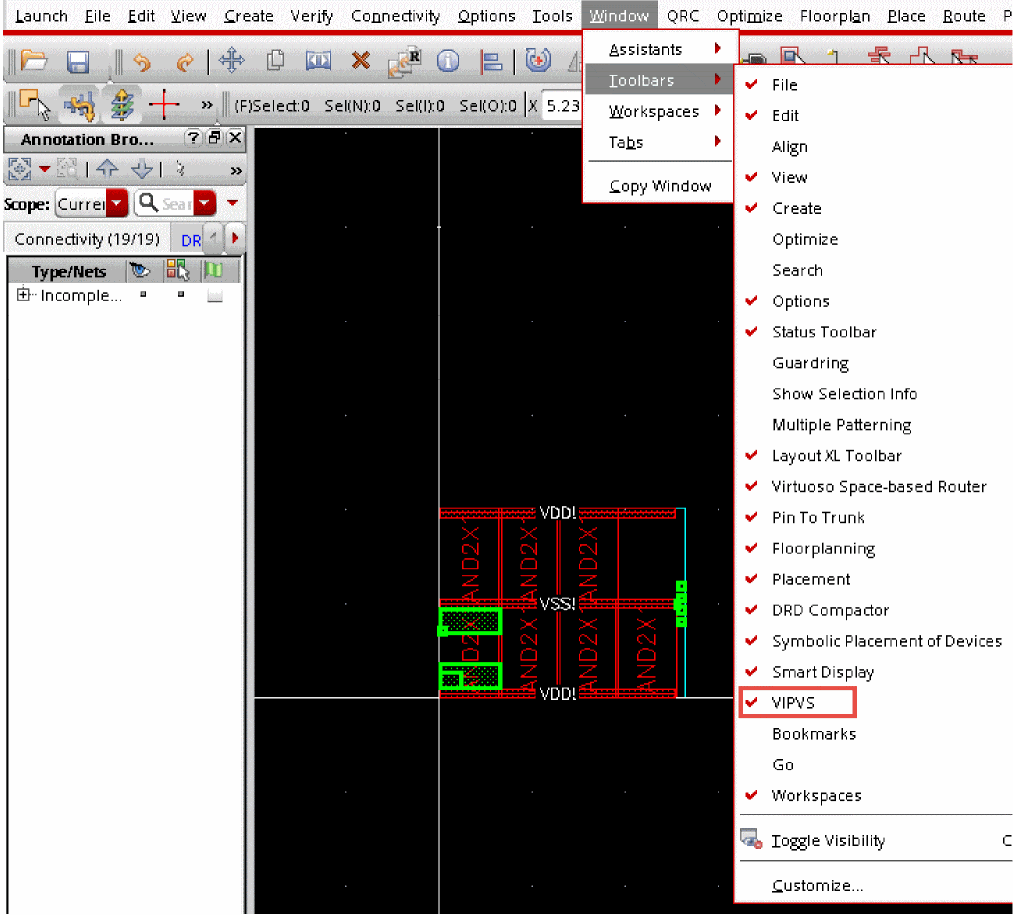

You can set VIPVS toolbar availability through Window > Toolbars > VIPVS. If VIPVS is not part of Toolbars selection, this is the indication that you did not point to the proper PVS installation.

Figure 2-2 Setting VIPVS toolbar visibility

You can also set the visibility of VIPVS toolbar by setting ipvsSettings.hideToolbar=t | n in .cdsinit.

Toolbar Icons

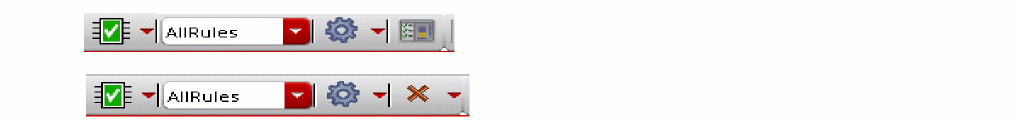

You can customize the toolbar. Following figure shows different ways of customizing the default VIPVS toolbar.

Figure 2-3 VIPVS Toolbar Customization

Verify-Design

Verify-Design is an area specific check. Therefore, you can set the default area check to any of following through Virtuoso_IPVS_initArea:

• Current CellView (Default)
• Changed Area
• Visible Area

For details of Virtuoso_IPVS_initArea setup, refer to the Virtuoso CDS Environmental Variables section.

Following example sets area of checking based on current visible area.

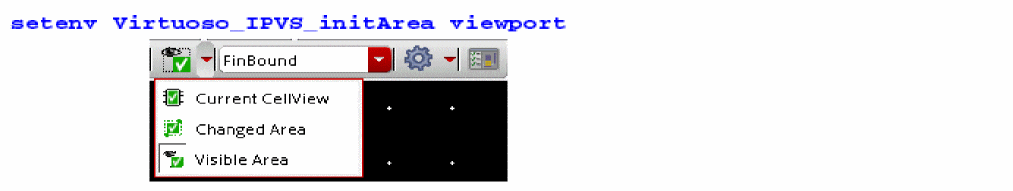

Figure 2-4 Default Area check to "Visible Area"

Default Active Snapshot

By default, items in the snapshot combo field are sorted alphabetically. The first item on the sorted list will be set as an active snapshot and displayed in the combo field. If you prefer to customize a default active snapshot other than tool's selection, you can define it through VirtuosoIPVS_initSnapshot.

Once it is set, VIPVS first searches for the existence of this snapshot and displays it as an active snapshot after VIPVS toolbar initialization. If your preferred snapshot is not found, VIPVS will resolve to its default behavior.

Following example shows VIPVS' default behavior on determining the active snapshot by setting the first item from the alphabetical sorted list. To override this behavior, Virtuoso_IPVS_initSnapshot is set to FinBound prior to launching Virtuoso. Once the layout is opened, FinBound is displayed in the snapshot combo field.

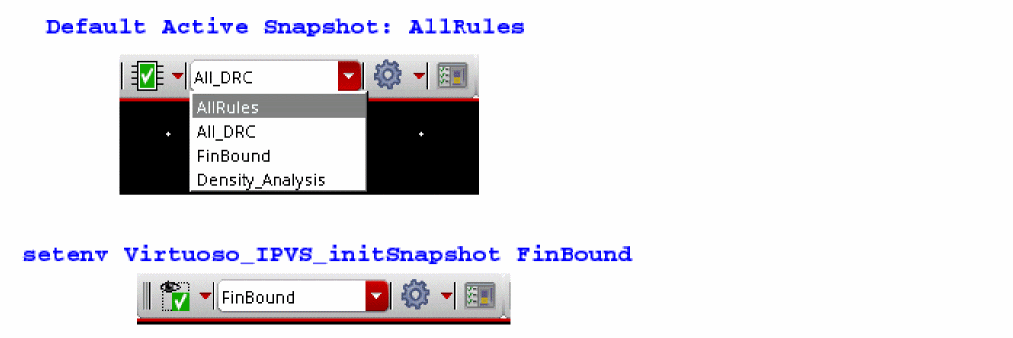

Figure 2-5 Set active snapshot

Run Option

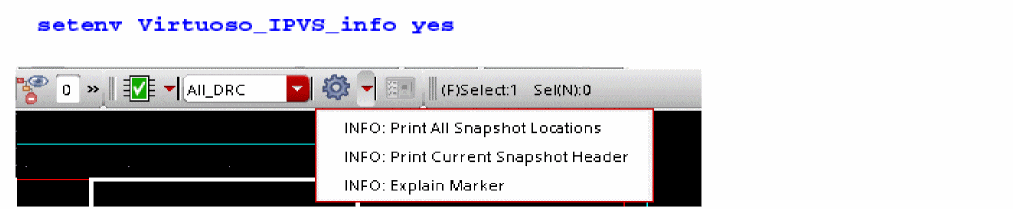

You can query the snapshot header information through a snapshot info inquiry utility. It is part of the Run Option icon drop-down list. By default, this utility is not enabled. VirtuosoIPVS_Info controls the visibility of this feature.

Figure 2-6 Enable Snapshot Info Inquiry

For details of snapshot info inquiry, refer to Snapshots Inquiry.

Error Browsing Utility

VIPVS allows you to view violations through following options:

• Annotation Browser
• DRC Design Environment (DRCDE)
• PVS Results Viewer (PVS RV)

PVS RV is the default error browser. To customize the default browser, you can specify the setting through Virtuoso_IPVS_markerBrowser.

Figure 2-7 Customize default Error Browser

Virtuoso IPVS Run Options

The Virtuoso IPVS Run Options form contains three tabs: Verify Design, SignOff Fill and Density Analysis.

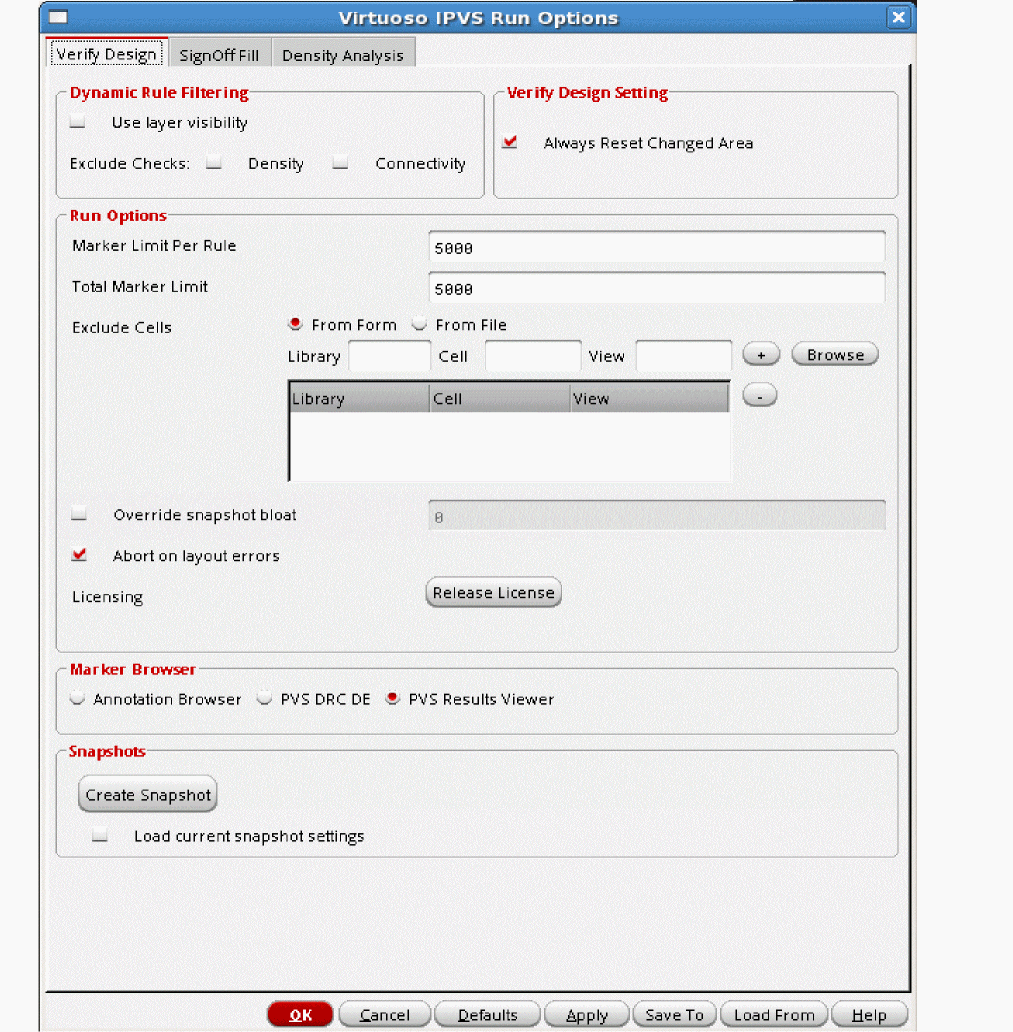

Figure 2-8 Virtuoso IPVS Run form

Run Settings for Verify Design

Following outlines the topics described in this section:

• Enable Dynamic Rule Filtering
• Customize Run options
• Set error browsing utility
• Snapshot Creation and Management

To interactively change current VIPVS behavior, you can invoke the Virtuoso IPVS Run Options form by clicking on the VIPVS Run Options icon on the toolbar.

All options described in this section are applicable to entire Virtuoso session only, and are not window specific. If new layout is opened within the Virtuoso session, it will inherit settings set in the Virtuoso IPVS Run Options form. Once Virtuoso session is closed, the options interactively set by you are not retained.

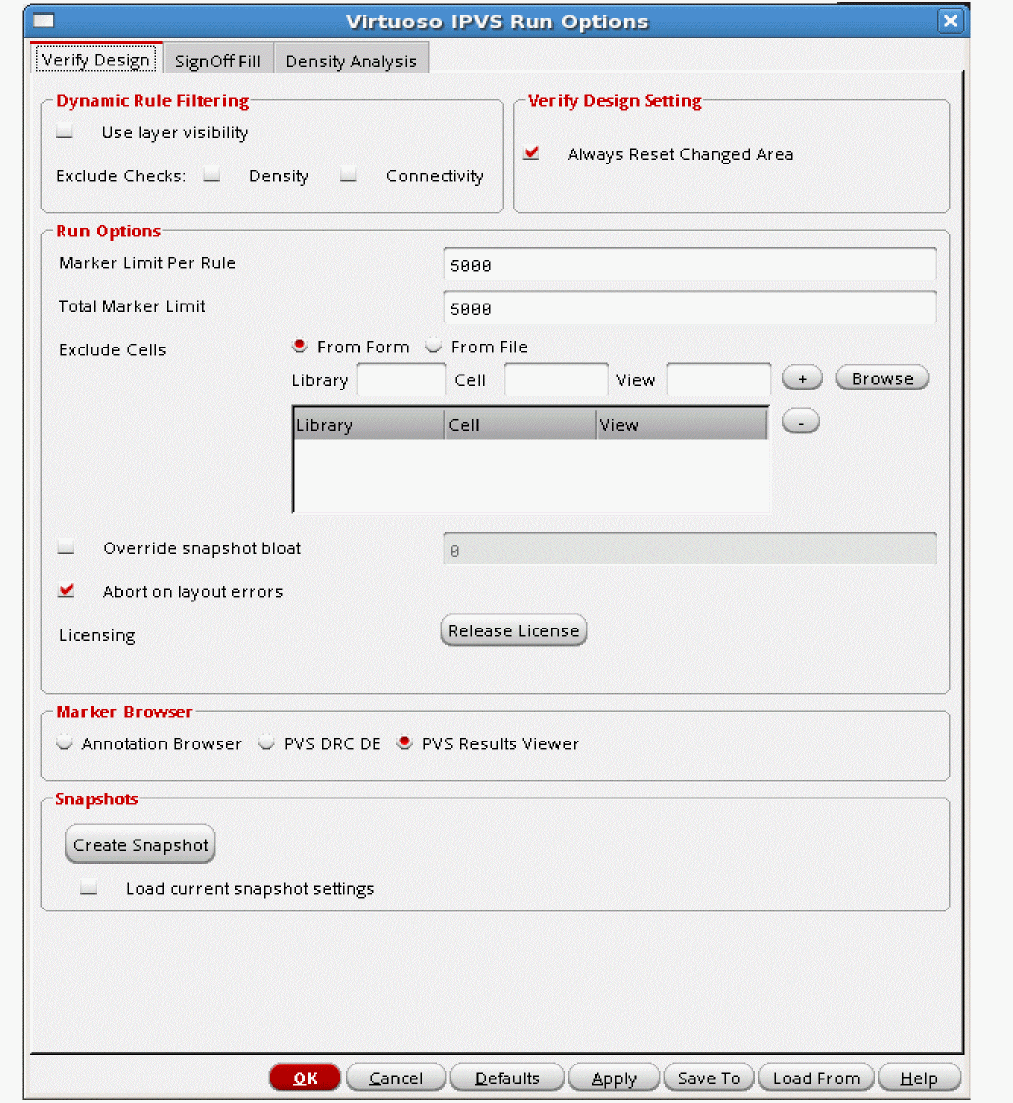

Figure 2-9 Default Option Form

Dynamic Rule Filtering (DRF)

Virtuoso IPVS has a built-in intelligence to select rules based on the layer visibility. In other words, you can ask VIPVS to select checks based on current visible layers displayed in the Palette. To effectively use this feature, this dynamic rule filtering capability should be paired up with Virtuoso valid LPP utility. Then, VIPVS further performs rule selection based on current visible layers display status in the Palette. Essentially, it becomes a What-You-See-Is-What-You-Check utility when they are paired up. Tool makes the assumption that for any visible layer displayed in the Palette that matters to you, you only want to ensure editing does not introduce any unforeseen DRC violations which are avoidable during layout editing and planning.

In Virtuoso IPVS Run Options, you can enable the Use layer visibility option located in the Rules for Visible Layers field. Once it is enabled, rules are selected based on visible layers to its adjacent layers, which may or may not be visible in the Palette. For example, if Metal1 is visible in the Palette, rules for Metal1 itself checks, Metal1-Vias checks as well as Metal1-Metal2 checks will be selected.

Furthermore, you can exclude density or connectivity checks by enabling Exclude Checks: density or Exclude Checks: connectivity options.

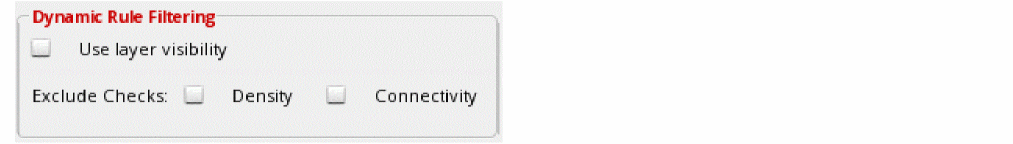

Figure 2-10 Dynamic Rule Filtering Options (IC6.1.7ISR2 or ICADV12.2ISR2 or newer)

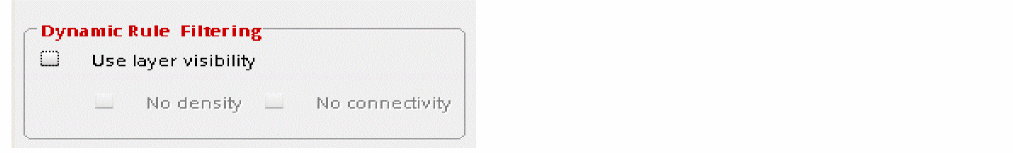

Figure 2-11 Dynamic Rule Filtering Options (IC6.1.7ISR1 or ICADV12.2ISR1 or older)

This option needs to be paired up with Virtuoso valid LPP utility. It can be set interactively through Layout Editor Options GUI. It is one of options under the Editor Controls field.

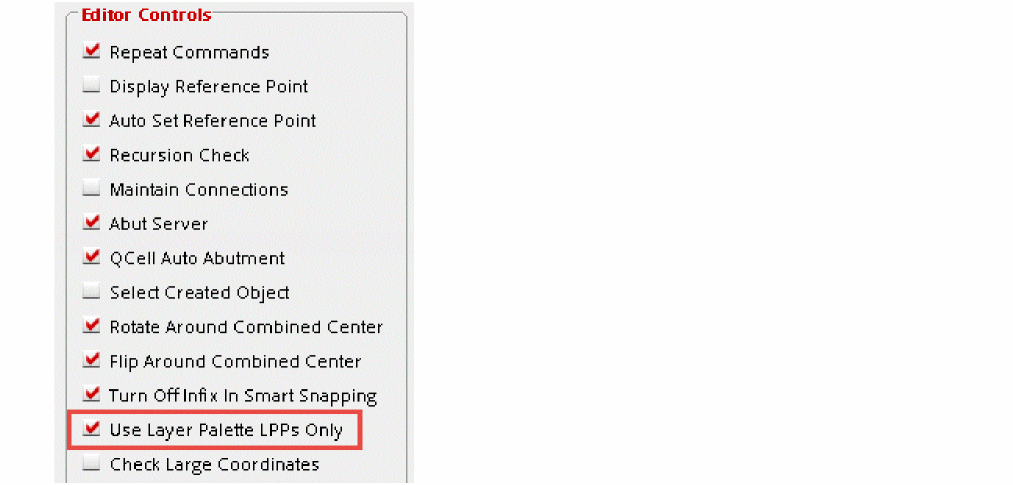

Figure 2-12 Setting Valid LPP utility

Its default option can also be set by using validLppFilterOn CDS environmental variable as following:

envSetVal("layout" "validLppFilterOn" 'boolean 't)

Furthermore, you can exclude density or connectivity checks:

• If you use Virtuoso IC6.1.6ISR1 or ICADV12.2ISR1 or older then to exclude density or connectivity checks you need to enable Use layer visibility and then No density or No connectivity options.
• If you use Virtuoso IC6.1.6ISR2 or ICADV12.2ISR2 or newer then to exclude density or connectivity checks you need to enable Exclude checks: Density or Connectivity options. These options are independent of Use layer visibility.

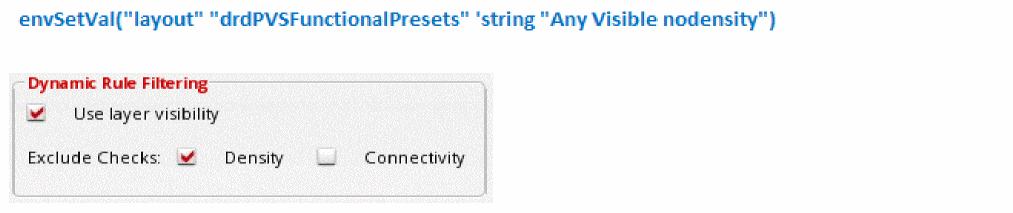

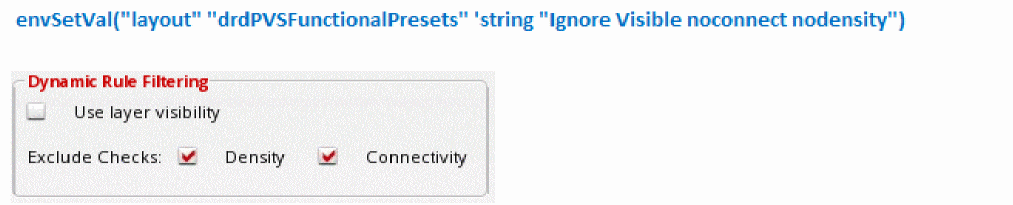

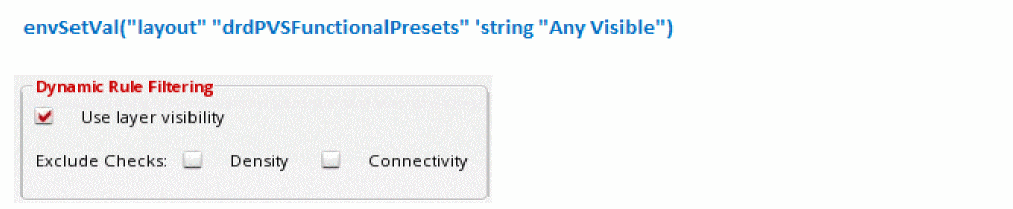

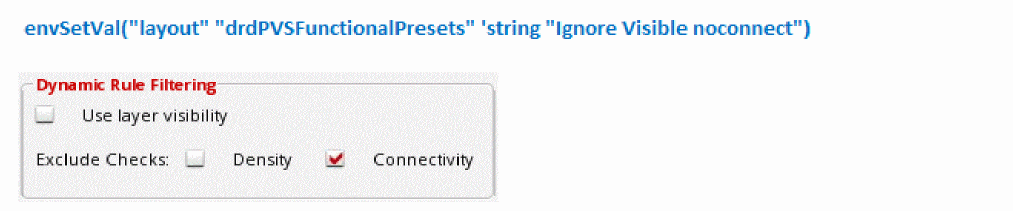

Similarly, DRF default behavior can be controlled using drdPVSFunctionalPresets CDS environmental variable as following:

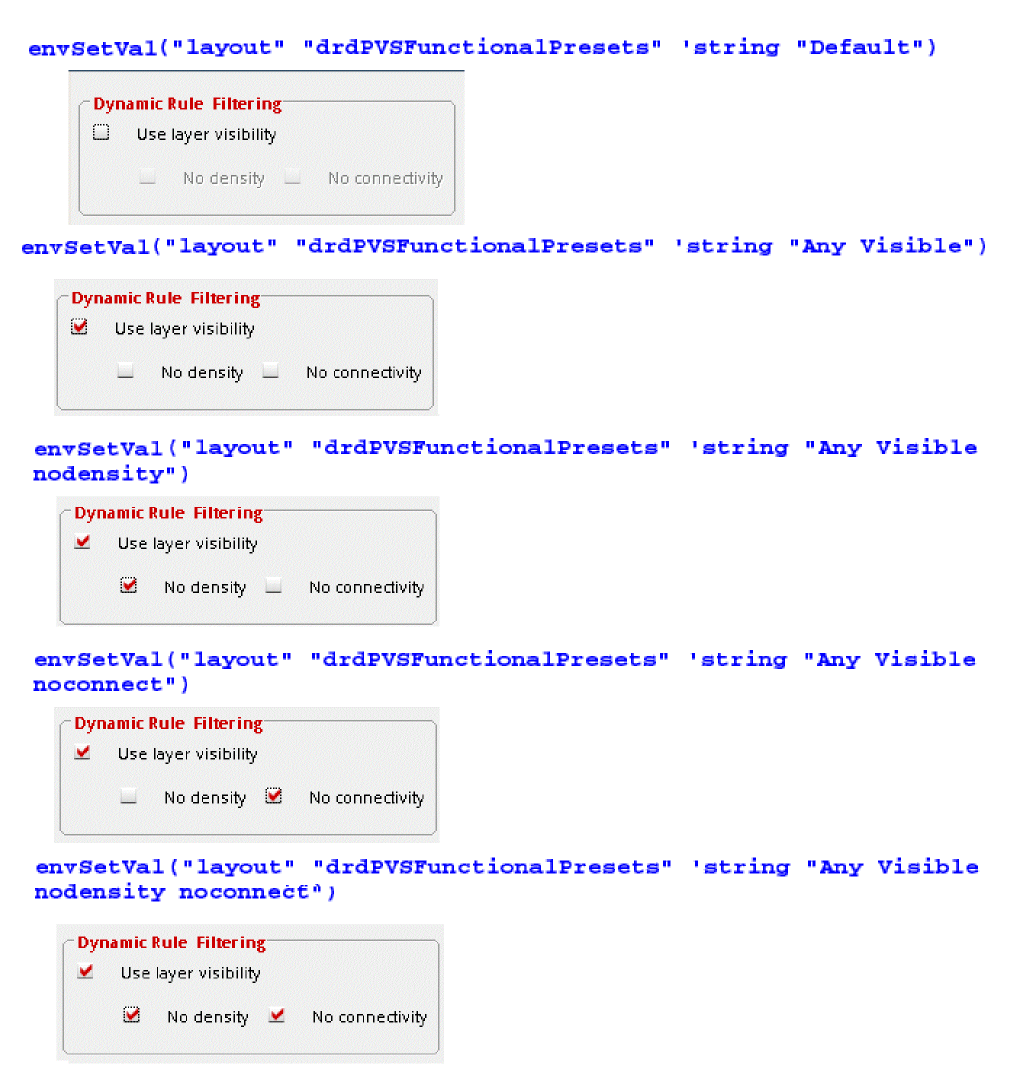

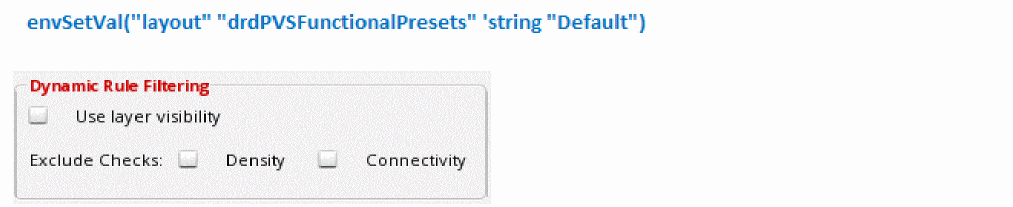

Figure 2-13 Customize default DRD setting (IC6.1.7ISR1 or ICADV12.2ISR1 or older)

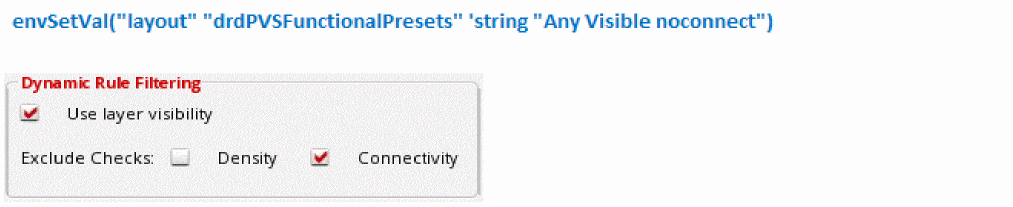

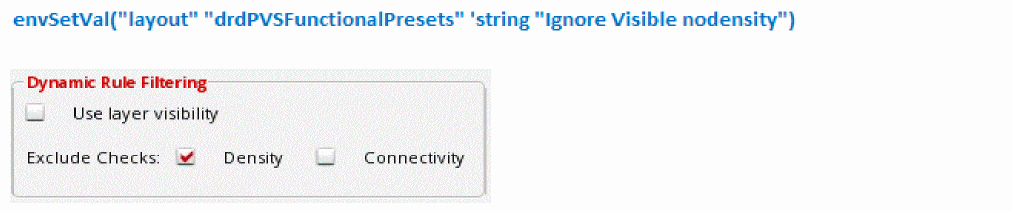

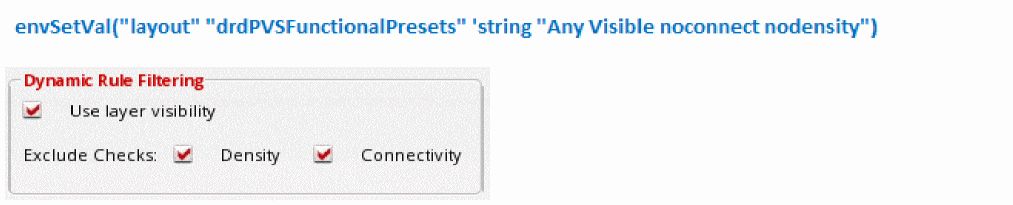

Figure 2-14 Customize default DRD setting (IC6.1.7ISR2 or ICADV12.2ISR2 or newer)

Run Options

Four elements are grouped under general run option field:

• Marker Limit
• Exclude Cells
• Run Termination Control
• Licensing Control

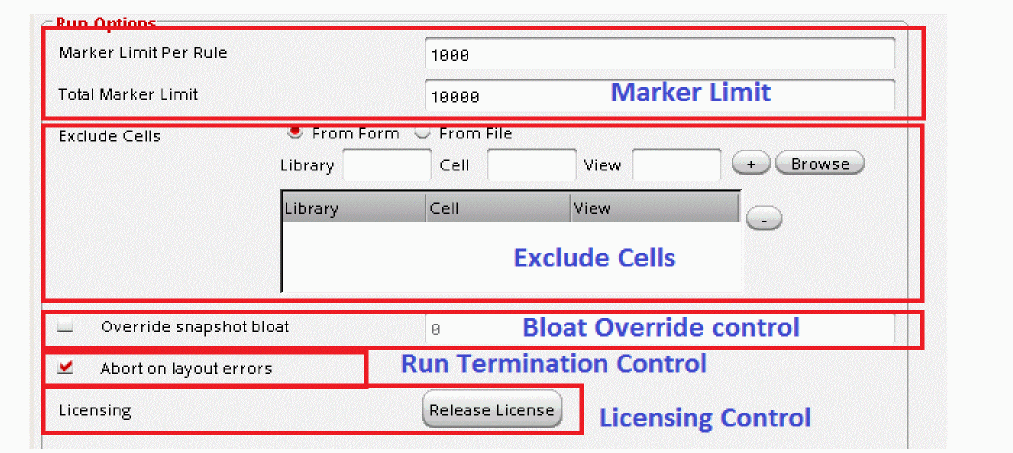

  Figure 2-15 General Run Option content outline


These elements are described in following sections:

Marker Limit

For a given run regardless of operate modes, you can set a limit on the total violation counts in the Total Marker Limit text box. Once total count of markers exceeds this threshold, only maximum amounts of markers are generated and displayed in the layout. Furthermore, you can define maximum marker counts per rule interactively in the Marker Limit Per Rule text box.

In addition to the interactive setting of these marker limits, you can set the default values through following CDS environment variables:

• drdBatchVioLimit
• drdVioLimitPerRule

Exclude Cells

You can also choose to exclude certain cells from a given run. There are two ways of declaring excluded cell:

• From Form: Library management user interface.
• From File: A file containing cellview information.

By selecting the From Form option, you can either fill cell information explicitly in the Library, Cell and View text boxes or through the Library Browser form. Latter automatically fills in the Library, Cell and View text boxes once you finalize selection in the library browser.

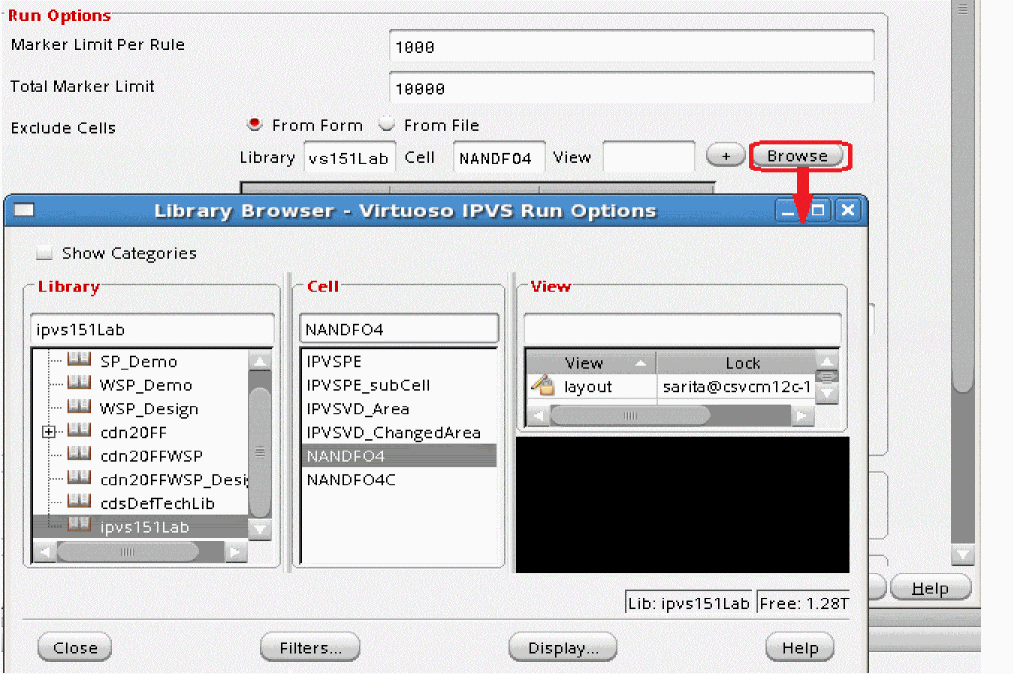

Figure 2-16 Set Cellview information through Library Browser

Also, if you would like to select a set of cells have similar naming convention, you can issue wildcard on any entry in Library, Cell and View fields.

Two types of wildcards are supported:

• * : Match zero or more characters
• ? : Match exact one character

For example, you would like VIPVS to exclude all of cell has name starts with NANDFO in any library found, you can fill Library, Cell and View fields as following:

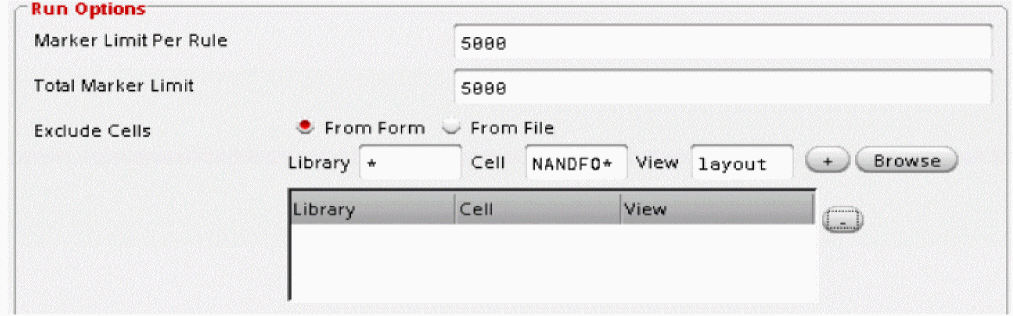

Figure 2-17 Exclude Cell based on searching criteria

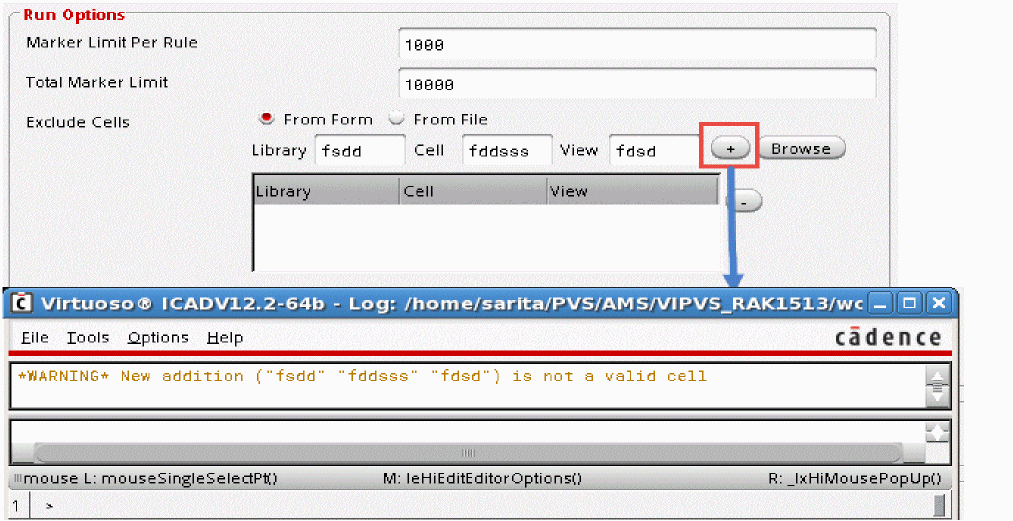

Commit the selection by clicking the plus sign (+) button. If the Information is insufficient, a warning message is issued in CIW. Following example shows entered cellview information is insufficient for VIPVS to process.

Figure 2-18 Cellview validity check

In general, VIPVS checks cellview information against libraries declared in cds.lib. If it is not in cds.lib, it is considered not accessible by VIPVS.

You can also declare a list of excluded cells in the file and then load the content through From File option. By clicking the "…" button. The Select Exclude cell File form is available for you to select the file interactively.

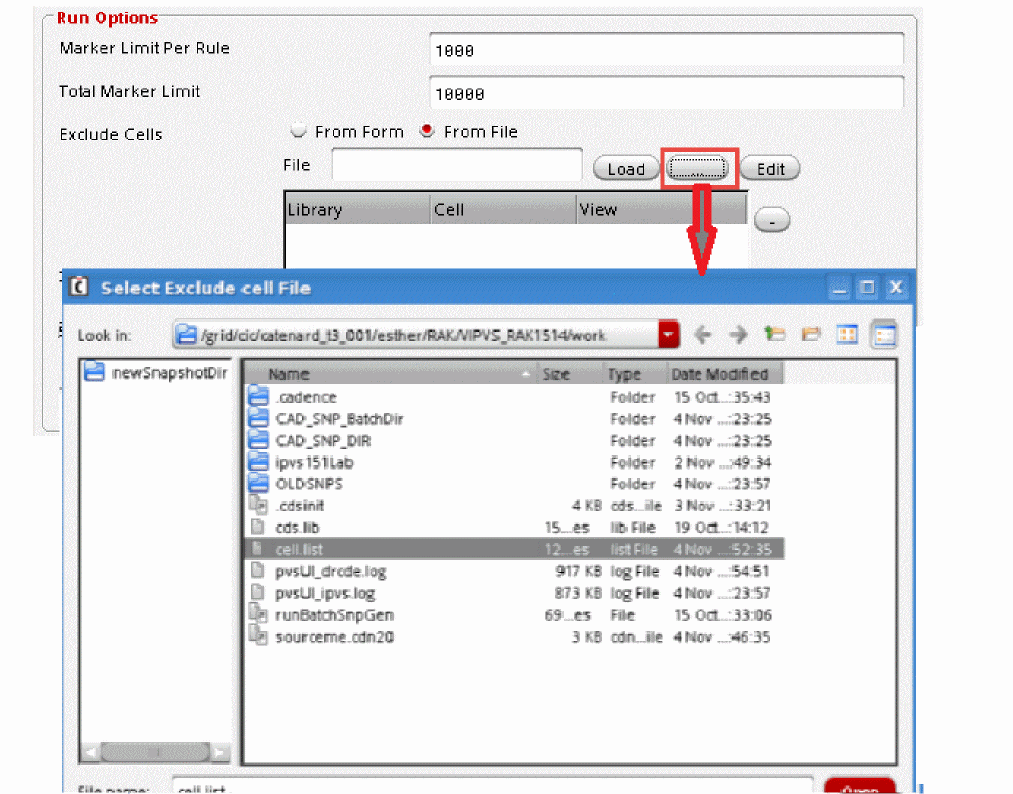

Figure 2-19 Select file contains cell information

Once the file is selected, its path will be populated under File text box. To commit the cell selection via file, click Load. During the loading, VIPVS checks:

• Availability of the cell
• Cell duplication
• Cell declaration syntax

If any insufficient information is detected, warning messages are displayed in CIW.

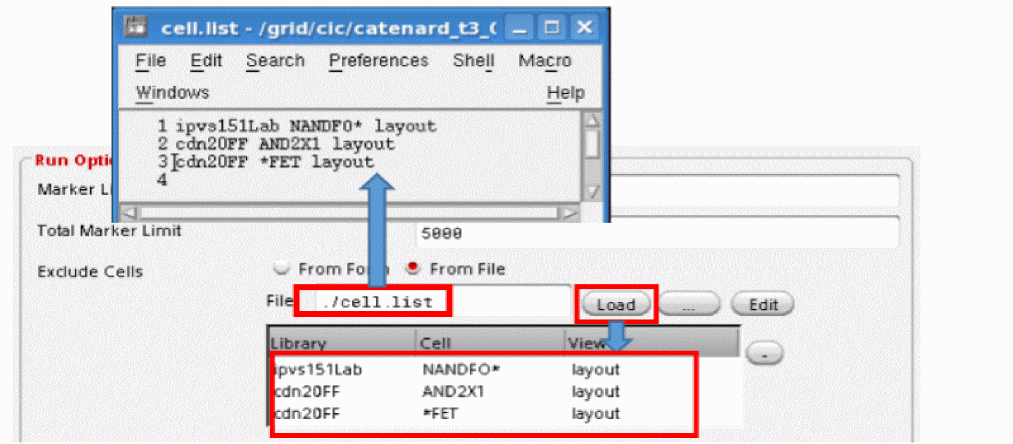

Correct syntax for cell declaration in the file should be in the order of library, cell and view and they are delimited by space between declarations. Also, you can declare wildcard, either ? or *, to conduct batch cell selection. Following example shows correct syntax declared in cell.list. Complete cell information is loaded into exclude cell table after clicking Load.

Figure 2-20 Load cell.list content

You can sort column alphabetically in the Exclude Cells table by clicking the column header: Library, Cell or View.

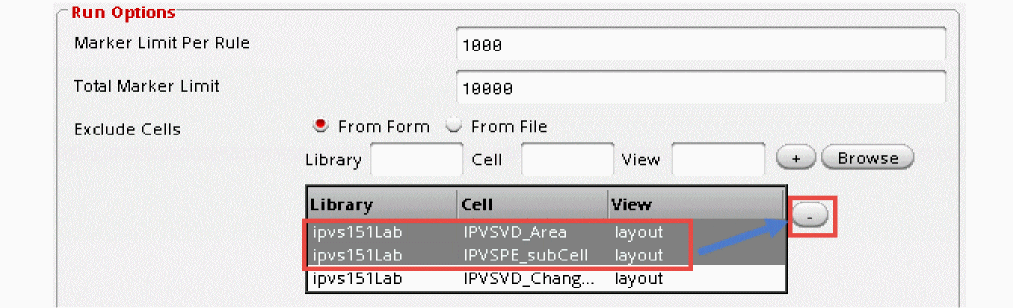

To remove one or multiple cells from the Exclude Cells table, select one or more rows by clicking the minus sign (-) button.

Figure 2-21 Remove cell from Exclude Cells table

You can declare default exclude cells file path through Virtuoso_IPVS_excludeCellFile.

Bloat Override Control

Virtuoso IPVS allows you to check DRC on certain area of the cellview. Basically the final area of checking is determined by the maximum bloat value found between the value stored in the snapshot or defined through drdPVSMinPostEditBloat CDS environmental variable.

However, you can override bloat value for current Virtuoso IPVS session without re-generating of snapshot using Override snapshot bloat option of the Virtuoso IPVS Run Option form:

Figure 2-22 Override snapshot bloat option of Virtuoso IPVS Run Option form

By default, Override snapshot bloat is disabled. Once you enable it you can enter any positive float value including "0". If you enter "0" bloat value, it would mean that you want to check area "as-it-is".

If you specified override snapshot bloat value, then following message will be printed to Virtuoso CIW window prior VIPVS DRC run:

VIPVS: Bloat value for current snapshot (3.00) is now set to 5.00 (inspect Run Options form)

After VIPVS DRC run regardless operate modes, run complete message includes the bloat value used during the run. Example:

*INFO* VIPVS

Cellview Name: top

Snapshot: Default

Bloat Value: 5

Summary: 12 markers created

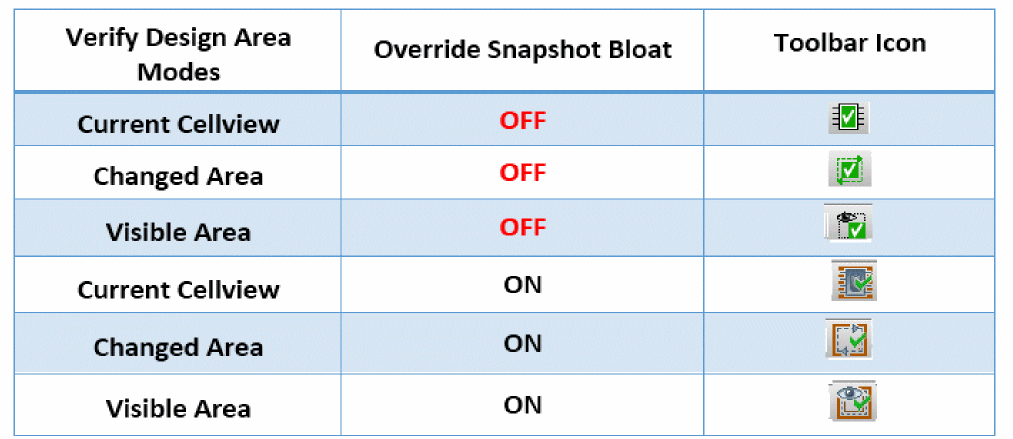

Also, enabling of Override snapshot bloat triggers the Verify Design and Post-Edit icons update in the VIPVS toolbar for all of opened layout window:

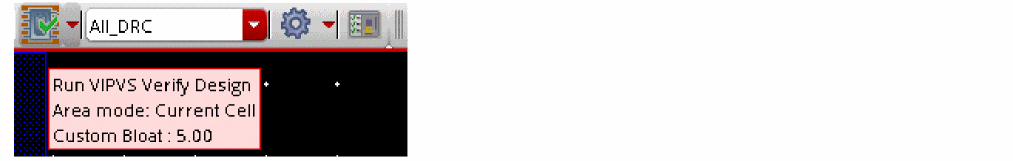

In addition, the bloat value is shown as tooltip of toolbar icon:

Figure 2-23 Bloat Value tooltip

Run Termination Control

By default, VIPVS terminates the run if it detects following errors:

• Missing cell masters
• Mismatch rule precision values with the input database precision

This default behavior can be altered through the Abort on Layout Error option.

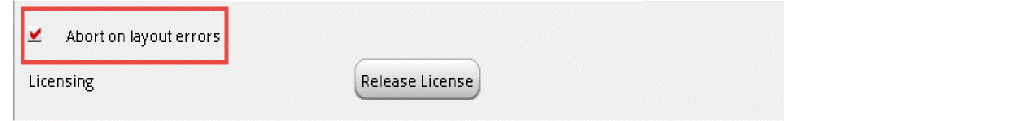

Figure 2-24 Default VIPVS run termination setting

To continue DRC despite of outcome of layout validity, deselect the check box. In this case, errors found during layout validity check will be treated as soft errors and run proceeds as it-is.

Licensing Control

As described in Licenses Requirements and Behaviors, VIPVS checks out licenses and holds them until termination condition is met. Within a Virtuoso session, you can release the license anytime through the Release License button. It terminates any existing VIPVS session. Only license(s) documented in snapshot header is released. License pertaining to DRCDE is controlled by its own activity process.

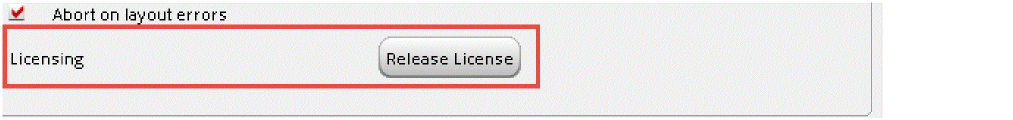

Figure 2-25 Release License Trigger

Marker Browser

This field allows you to switch between three different types of browsers. If there are any existing OA markers created by VIPVS or error highlighted on the layout, they are erased when you switch from DRCDE or PVS Results Viewer to Annotation Browsers or vice versa.

Since VIPVS retains last run result in an ascii format, you can reload this data any time by invoking DRCDE or PVS Results Viewer through the toolbar. On the contrary, you cannot view last run results via Annotation Browser on demand. For example, VIPVS’ latest run generates OA markers on the layout. You would like to first view results in DRCDE or PVS Results Viewer and then use Annotation Browser for DRC fixing afterward. In this case, error highlights are generated on the layout and errors are automatically reported in DRCDE or PVS Results Viewer when you toggle from Annotation Browser to DRCDE or PVS Results Viewer. However, OA markers are not restored once you toggle back to Annotation Browser from DRCDE or PVS Results Viewer.

Figure 2-26 Default Browser setting

For details on interactive setting browser preference and for details on each browser behavior and customization, refer to Error Viewing.

Snapshots

The content of snapshot setting field can be customized. The intent of this use model is to give CAD administrator control on the snapshot accessibility to target users. CAD administrator determines whether snapshot should be generated or maintained either globally or locally. Based on this decision, snapshot field content display can be controlled through following shell environmental variables:

• Virtuoso_IPVS_maintenance
• Virtuoso_IPVS_enableSNPCreation
• Virtuoso_IPVS_enableSNPManagement

Condition One: Global Snapshot Control by CAD Only

In this case, CAD wants a full control of snapshot creation and maintenance. Since users are not allowed to create local snapshot, snapshot creation trigger can be hidden through Virtuoso_IPVS_enableSNPCreation. Depending on the number of snapshot directories, CAD can decide whether to disable or enable Snapshots management field through Virtuoso_IPVS_enableSNPManagement.

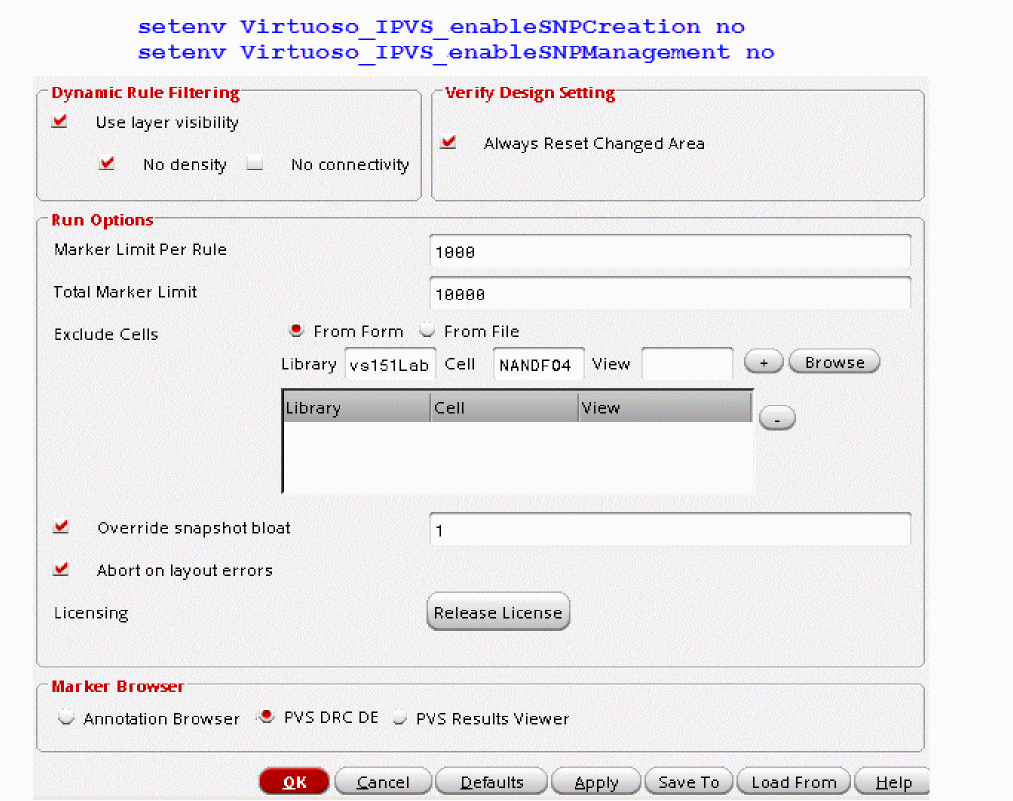

Following example shows the complete removal of the Snapshots field by setting both shell environment variables to no.

Figure 2-27 Disable Snapshots Field

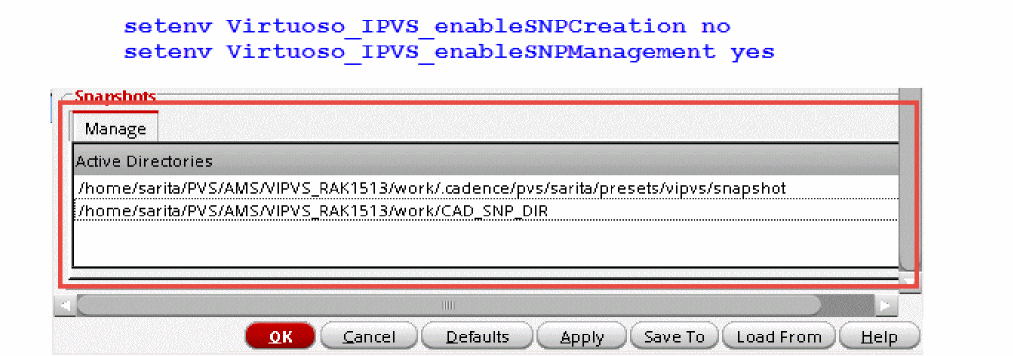

If there are more than one snapshot directories maintained by CAD and end user can access them, the CAD can enable snapshot management utility as following:

Figure 2-28 Snapshot management utility

For details of snapshot management, refer to Manage Snapshots.

Scenario Two: Local Snapshot Control by User Only

CAD only maintains technology setup and user is responsible of creating and maintaining local snapshots. Snapshot management utility needs to be available for you to upgrade any out of sync snapshots detected by VIPVS. This utility can be enabled through Virtuoso_IPVS_maintenance.

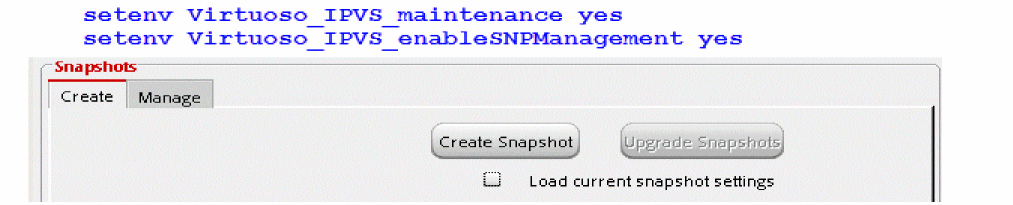

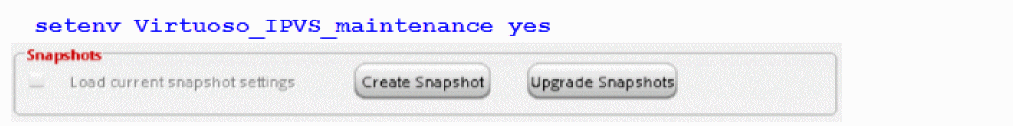

Figure 2-29 Enable Snapshot management

For details of creating snapshot, refer to Quick Start: Create Snapshot.

For details of upgrading snapshot, refer to Snapshots Upgrade.

Scenario Three: Global and Local Snapshot Control by User

For this use model, CAD provides a set of generic global snapshots and user can create custom snapshots that are derived from these global snapshots.

Figure 2-30 Complete Snapshots field

Run Settings for SignOff Fill

Click the SignOff Fill tab to define run settings for SignOff Fill.

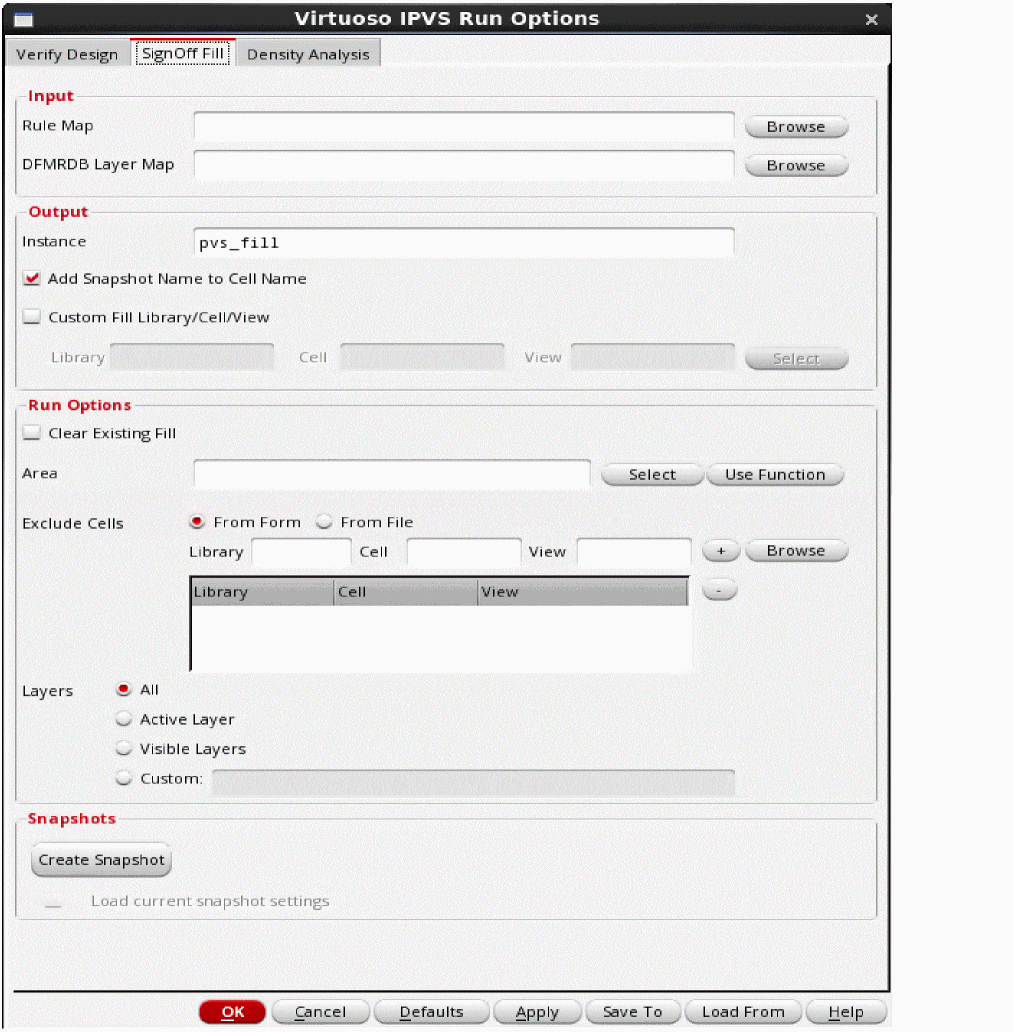

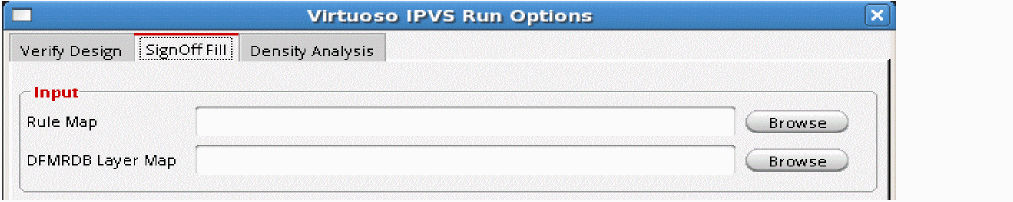

Figure 2-31 SignOff Fill tab

Input

Figure 2-32 Input Section

• Rule Map: Enter the name of the sign-off rule map file or click Browse to select it. Use this file when fill rule deck uses the output PVL command to output metal fills. The syntax of the file is:


  <rulename> dfII_layer dfII_purpose

  Example:

  fill.rul

  …

  rule m1_fill_output { copy m1_fill }

  output -drc m1_fill_output -gds 15 35 fill.gds -output all

  rule m2_fill_output { copy m2_fill }

  output -drc m2_fill_output -gds 17 35 fill.gds -output all

  rulemap.file:

  m1_fill_output Metal1 fill

  m2_fill_output Metal2 fill

• DFMRDB Layer Map: By default VIPVS SignOff fill uses technology layermap file to read generated dummy fills and map them into Virtuoso to specific layer/view purpose. You can redefine it using this field.

Output

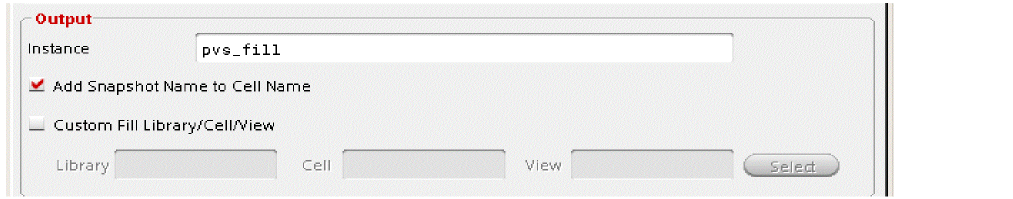

Figure 2-33 Output Section

• Instance: Specifies prefix of instance name of fill cell. VIPVS SignOff fill puts all generated fills into specific cell and then inserts this cell as instance into the block. Use this field to redefine instance name prefix. Default instance name prefix is pvs_fill. Full instance name is <prefix>_RUN_FILL.
• Add Snapshot Name to Cell Name: Select the check box to add the snapshot name to the name of the cell with generated fills as secondary prefix. When enabled, the fill cell name is pvs_fill_<snapshot name>_<original cell name>.
• Custom Fill Library/Cell/View: Select the check box to customize the library, cell and view of the cell with generated fills.

Run Options

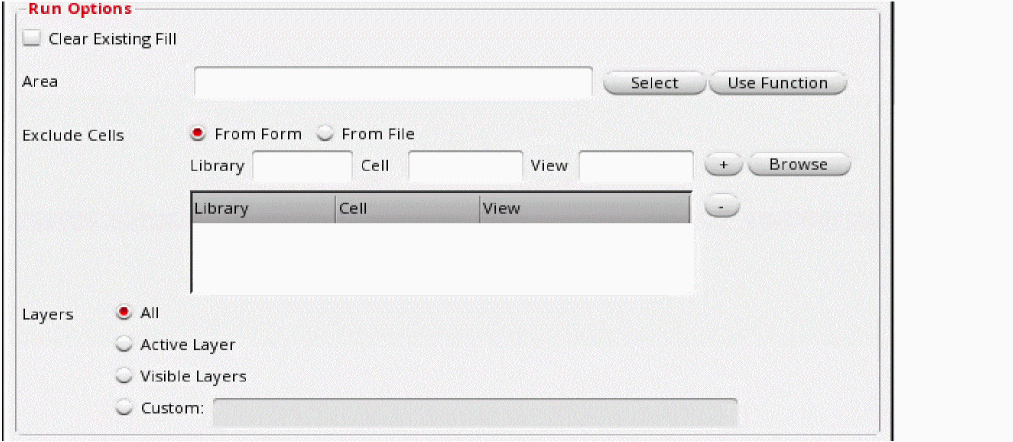

Figure 2-34 Run Options Section

• Clear Existing Fill: Select the check box to delete fills, generated by previous SignOff Fill runs before the new run. The tool deletes existing fills, generated by previous SignOff Fill runs. Do not select the check box to retain existing fills in each new run.
• Area: Enter the coordinates or click Select to generate dummy fills for the specified area. Dummy fills will not be generated outside this specified area. You can define pgssUserSelectedFillArea() function to select area to fill. If you have defined this function then clicking on the Use Function button fills the area field with already defined coordinates. If you have not defined the function then an error message is displayed.
• Exclude Cells: Use this option to exclude cells from fill insertion. The Exclude Cells option is similar to the Exclude cells option of Run Settings for Verify Design. For detailed description, see: Exclude Cells.
• Layers: Use this option to define layers to be used in the run.
  • All: Select this radio button to process all layers.
  • Active Layer: Select this radio button to perform the run on the currently active layer on Virtuoso layer palette.
  • Visible Layer: Select this radio button to generate dummy fills for layers, which are visible on Virtuoso layer palette.
  • Custom: Select this radio button to generate dummy fills for the custom layers defined in the text box. The syntax for specifying layer/purpose in the Custom layer field is the following:


    <layername>/<purposename> ... <layername>/<purposename>

    Wildcards are supported.
    Example 1:

    Metal1/drawing

    Fills will be generated for Metal1 layer.
    Example 2:

    Metal1/drawing Metal2/drawing Metal3/drawing

    Fills will be generated for Metal1, Metal2, and Metal3 layers.
    Example 3:

    Metal*/drawing

    Fills will be generated for all layers, which start with Metal.

Run Settings for Density Analysis

Density analysis generates density results from VIPVS toolbar for layers of interest. Rule deck is not required. Results are shown in PVS Results Viewer as heatmap and histograms.

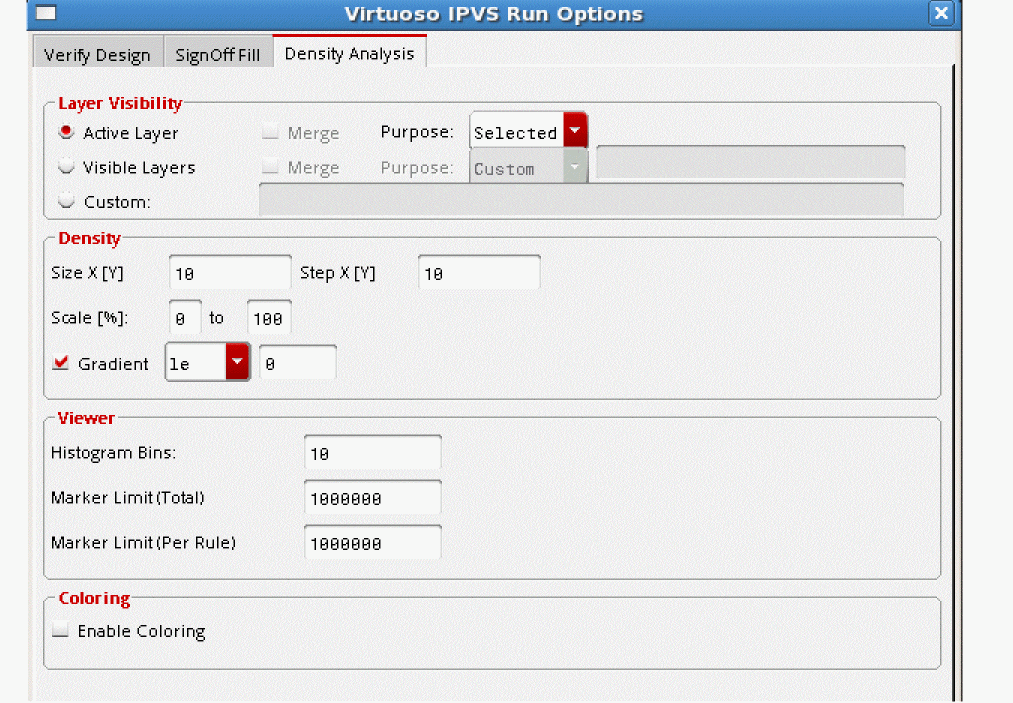

Figure 2-35 Density Analysis Tab

Layer Visibility

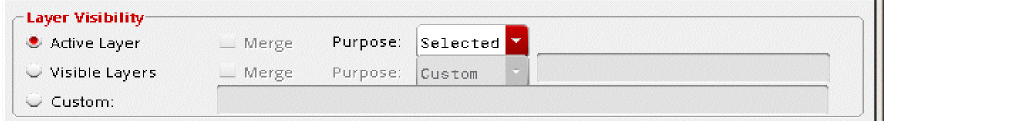

Figure 2-36 Layer Visibility Section

• Active Layer: Select this radio button to perform density analysis on the active layer on Virtuoso Palette.
  • Purpose: By default density results will be generated only for layer/purpose pair, selected on Virtuoso Layer palette. Use the Purpose drop-down list to redefine list of layer purpose.
    • All: Density results will be generated for all purposes of selected layer. Each layer/purpose result will be shown in separate tabs of DRC RV.
    • Selected: Density results will be generated for selected purpose only.
    • Custom: Density results will be generated for purposes defined in the custom field. Each layer/purpose results will be shown in separate tabs of DRC RV.
  • Merge: This option is valid when the Purpose field is either All or Custom. Select this check box to merge the result for layer purposes into a single tab. This is useful when you have metal and fills in different purposes (Metal1/drawing and Metal1/fill) and want to generate density results for merged drawing and fill purposes.
• Visible Layers: Select this radio button to perform density analysis for layers, which are visible on Virtuoso layer palette.
  • Purpose: By default density results will be generated only for layer/purpose pair, visible on Virtuoso Layer palette. Use the Purpose drop-down list to redefine list of layer purpose.
    • All: Density results will be generated for all purposes of selected layer. Each layer/purpose result will be shown in separate tabs of DRC RV.
    • Visible: Density results will be generated for visible purposes only.
    • Custom: Density results will be generated for purposes defined in the custom field. Each layer/purpose results will be shown in separate tabs of DRC RV.
  • Merge: This option is valid when the Purpose field is either All or Visible. Select this check box to merge the result for layer purposes into a single tab. This is useful when you have metal and fills in different purposes (Metal1/drawing and Metal1/fill) and want to generate density results for merged drawing and fill purposes.
• Custom: Select this radio button to perform density analysis for the custom layers defined in the text box. The syntax for specifying layer/purpose in the Custom layer field of the Density Analysis form is the following:
  Example 1:

  Metal1/drawing

  Density Anlaysis of Metal1/drawing will be output.
  Example 2:

  (Metal1/drawing Metal2/drawing) Metal3/drawing

  Density Analysis histograms of Metal1/drawing and Metal2/drawing will be merged to create one tab in the viewer. Density Analysis histogram of Metal3/drawing would be created as a separated tab in the viewer.
  Example 3:

  Met*/drawing

  All histograms of layers having "Met" in their name and having drawing purpose will be created as separate tabs.
  Example 4:

  (Met*/drawing)

  All histograms as explained in Example 3 will be merged in a single tab.

Density

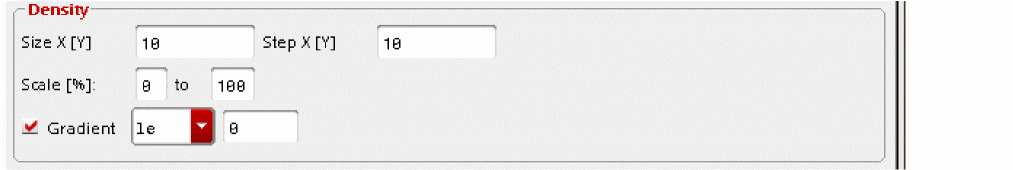

Figure 2-37 Density Section

• Size X[Y] and Step X[Y]: Specify the size of the rectangle window, which is used to calculate density. This is equivalent of the -window option of PVL command density. Default window size is 10x10.
• Scale [%]: Specify the scale range between which you want to check the density.
• Gradient: Optional keyword specifies the gradient value that windows must satisfy. This is equivalent of the -gradient option of PVL command density. For more details, refer to PVS Developer Guide.

Viewer

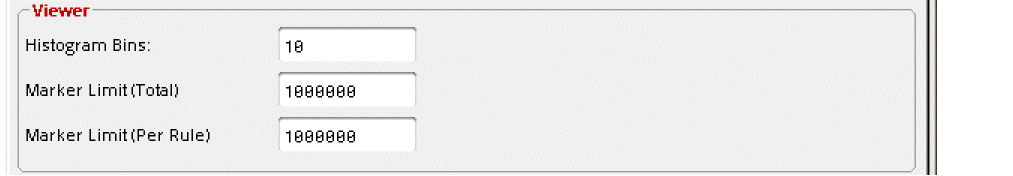

Figure 2-38 Viewer Section

• Histogram Bins: Specify the number of histogram data bins.
• Marker Limit (Total): Specify the number to set a limit on the total violation counts shown in the histogram.
• Marker Limit (Per Rule): Specify the number to set a limit on the total violation counts per rule shown in the histogram.

Coloring

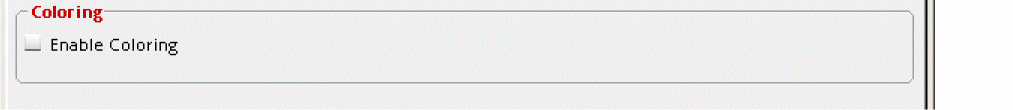

Figure 2-39 Coloring Section

• Enable Coloring: For a given Layer-Purpose pair, a set of polygons can have additional color attributes assigned on them: color and color state in the layout. By selecting Enable Coloring check box, VIPVS understands color implications set on these polygons.

Buttons at the Bottom of the Form

• OK - Closes the Preferences form, saving any changes you have made.
• Cancel - Closes the Preferences form without saving any changes.
• Defaults - Loads the default form setting.
• Apply - Applies any preference changes that you have made. This does not close the form.

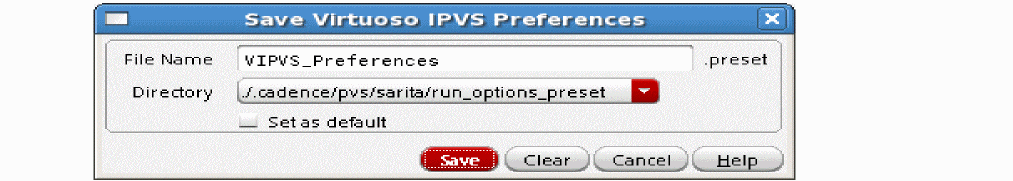

• Save to - Saves the changes you have made to a preset file. You can use that preset whenever you want to use the settings set in the file. Clicking the button opens the Save Virtuoso IPVS Preferences form:


  • File Name: Enter the file name for the VIPVS Run Options form settings you have made.
  • Directory: Select the location where you want to save the file. The Directory drop-down list allows you to set the directory path that preset is going to save to. By default the Directory field allows you to select two locations: the local .cadence/pvs/$USER directory and .cadence/pvs/$USER at the $HOME directory. However, its drop-down items can be expanded using CDS_WORKAREA environment variable.
  • Set as default: Select this check box to save the settings as default.
  • Click Save to save the settings.

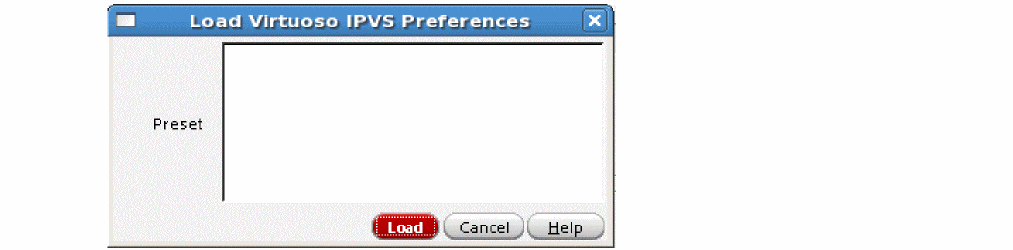

• Load From - Loads the form settings from an already saved preset file. Clicking Load Form opens the Load Virtuoso IPVS Preferences form:


  The form lists presets saved by user in different locations. These locations and search order are defined by setup.loc file, which
  Cadence provides in $PVS_INSTAL_DIR/share/cdssetup/setup.loc. Default setup.loc file defines search order as follows:
  . : cwd should always be searched first.
  $CDS_WORKAREA: User workarea if defined.
  $CDS_SEARCHDIR: This is set by various tools during tool startup.
  $HOME
  $CDS_PROJECT: Project storage area, ignored if not defined.
  $CDS_SITE : Site Setup Info - default is $CDS_INST_DIR/share/local.
  $(compute:THIS_TOOL_INST_ROOT)/share: Cadence Default Setup Info.
• Help - Brings up context-sensitive help.

Return to top
