Instantiating TLine Instances

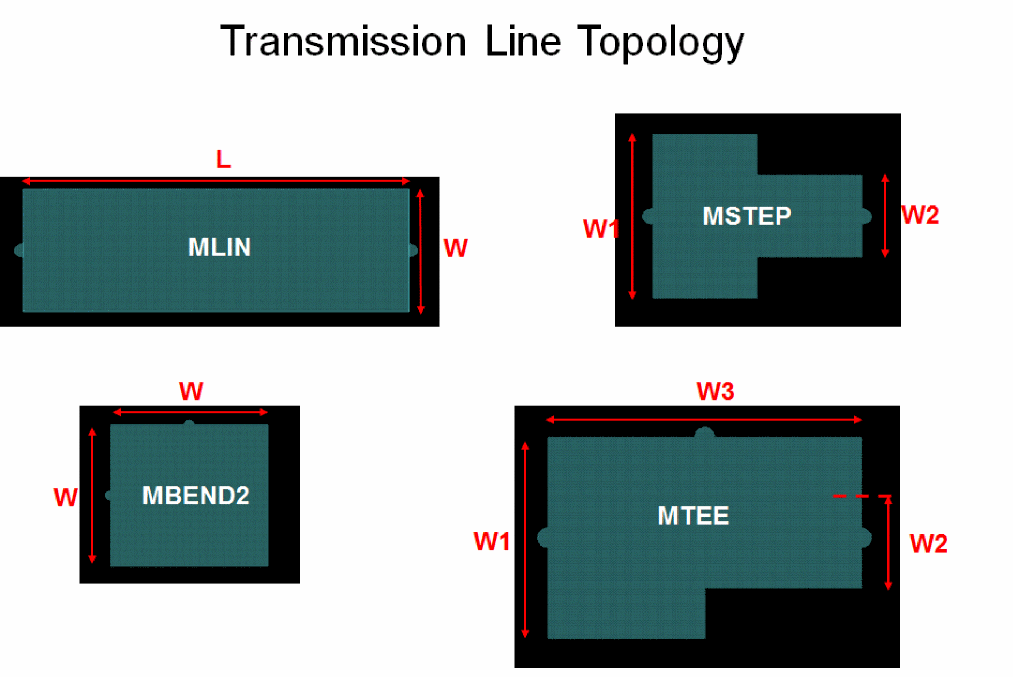

rfTlineLib includes an interactive graphical stack-up editor for storing the substrate geometry and material properties. The TLine topologies that are used as TILPs in the Virtuoso RF Solution are shown in this illustration.

To instantiate TLines instances:

1. Instantiate the TLines TILP from rfTlineLib.The library contains the symbol, simulation, and OA layout view.
2. Specify TLine parameters, such as length and width.
3. Simulate the package schematic using the Tline simulation model.
4. Generate the package layout by using Layout Suite MXL.
