Net Tracing in Editing-In-Concert Mode

Multi-technology fabrics, such as dies and packages, can be traced for nets while editing-in-concert. Multiple traces are created from layers in a package to layers in a die.

To trace nets across multi-technology fabrics:

1. Open a design in Edit-In-Concert mode.
2. Select a net using the Navigator assistant.

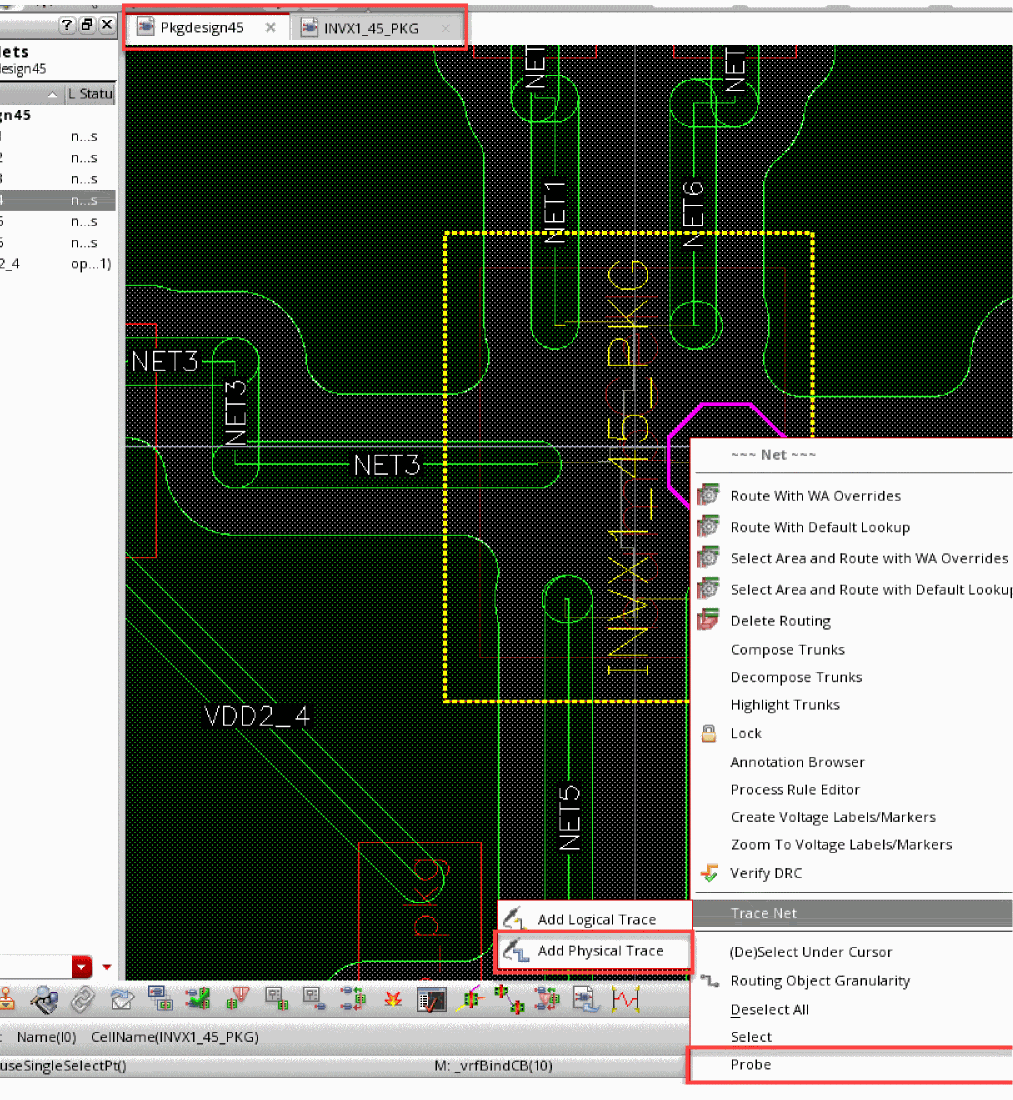

3. Click Trace Net – Add Physical Trace in the context menu to trace through a die and package. Alternatively, you can use the IntAddTrace SKILL function to create a trace starting from the specified figure or net name in the specified window.


4. Click Probe – Add in the context menu to make a net visible through color tracing. You can use Probe – Remove and Probe – Remove All to remove color tracing.
