Data Requirements for Voltus-XFi

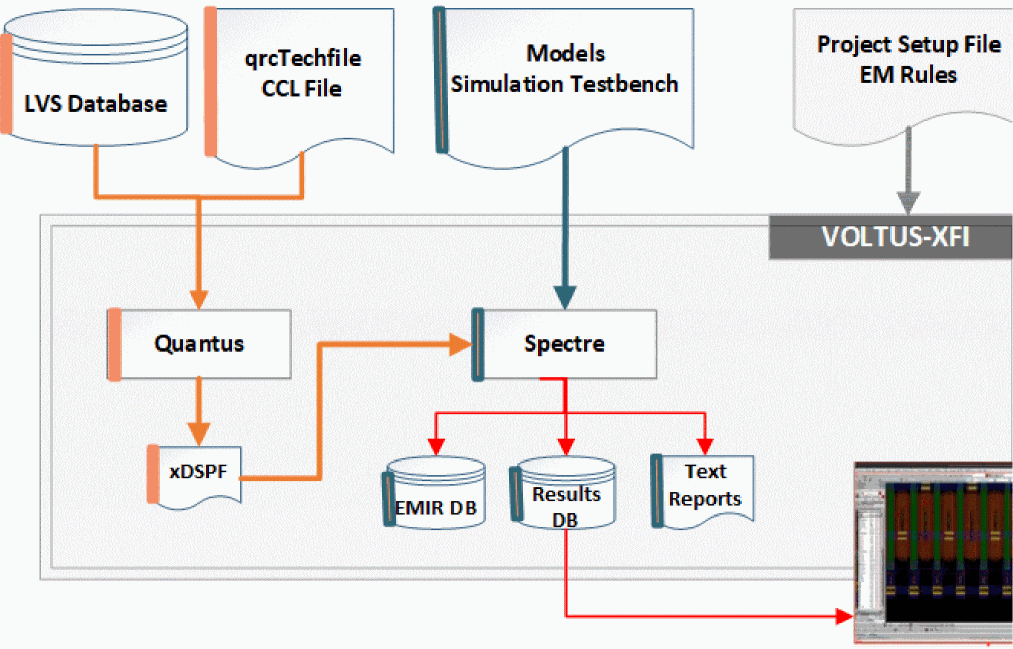

The following diagram illustrates the inputs required for EM-IR analysis in Voltus-XFi:

The following inputs are required for EM-IR analysis in Voltus-XFi:

• xDSPF – parasitic netlist of the design
• EM Rules
• Power and Signal Nets
• Type of analysis to be performed (peak, avg, rms, absAvg)
