2 Accessing Information about ROD Objects

This chapter describes Virtuoso^® relative object design (ROD) objects, ROD object IDs, ROD object attributes, and how to access ROD object attributes. The topics covered are

About ROD Objects and ROD Object IDs

Accessing ROD Object Attributes

rodCoord Objects

About ROD Objects and ROD Object IDs

Every named database object, such as an instance, layout cellview, or named shape, automatically has relative object design information associated with it. This information is stored in a ROD object. A ROD object is also a database object, but it exists in relation to its associated named database object. A ROD object is identified by a unique ROD object ID.

A ROD object for a named shape, instance, or cellview contains the following information:

hierarchical name cellview ID database ID transformation information (rotation, magnification, and offset) alignment information, if any number of segments (for shapes) names and values of user-defined handles, if any names of system-defined handles

A ROD object ID is similar to a database ID. The database ID for an object is the temporary address in memory for the object. A ROD object ID is the temporary address for the ROD object associated with a specific database object. When you look at these two IDs in the Command Interpreter Window (CIW) for a database object, the database ID might be db:98342974 and the ROD object ID rodObj:23970843.

You can create a new ROD database shape and its associated ROD object by using one of the rodCreate functions, such as rodCreateRectangle. You can also use the rodNameShape function to assign a name to an existing, unnamed database shape; the rodNameShape function creates a new associated ROD object for the shape.

The value of the ROD object ID is returned when you execute the function rodGetObj, rodNameShape, or a rodCreate function, such as rodCreateRect. You might want to store the value returned in a variable so that you can refer to it later. You can also get the ROD object IDs for all of the named shapes in a cellview with a ROD function; see rodGetNamedShapes.

In the current release, ROD functionality is not implemented for mosaics.

Getting the ROD Object ID

You can get the ROD object ID for a named shape, instance, or cellview in the current open design window by performing one of the following steps.

For a named shape, or instance, type the rodGetObj function using as input either the database ID of the object or both the hierarchical name of the object and the top-level layout cellview ID:
```
rodId = rodGetObj( dbId )
```
or
```
rodId = rodGetObj( "hierarchical_name" cellview_ID )
```
where dbId is the database ID, hierarchical_name is the hierarchical name of the object, and cellview_ID is the cellview ID. When you want the cellview ID (the database ID for the cellview) for the current open cellview, you can use the deGetCellView function without any arguments.
For example, you can get the names of all attributes for the named shape polyRect, where polyRect is in instance ptr1 and ptr1 is in instance INV1, by typing the following statements in the CIW:
```
cvId = deGetCellView()
```
```
rodId = rodGetObj( "INV1/ptr1/polyRect" cvId )
```
where the statement cvId = deGetCellView() returns the cellview ID for the active cellview.
To get the ROD object ID for a cellview, use an empty string ("") for the hierarchical name:
```
rodId = rodGetObj( "" cvId )
```

Getting the ROD Object ID Interactively

You can get the ROD object ID for one or more objects in an open layout cellview window by selecting the object(s) and typing commands in the Command Interpreter Window (CIW). Depending on whether you want to select a single object or multiple objects, do one of the following:

Getting the ROD Object ID for a Single Object

Get the cellview ID for the active cellview window by typing in the CIW
```
cvId = deGetCellView()
```
Select one object in the layout cellview window.
Get the database ID of the selected object and set it equal to the variable dbId by typing in the CIW
```
dbId = car(geGetSelectedSet(cvId))
```
where the SKILL list operator car returns the first item in the list; in this case, the only item.
Get the ROD object ID of the selected object by typing in the CIW

 rodId = rodGetObj(dbId)

Getting the ROD Object ID for Multiple Objects

Get the cellview ID for the active cellview window by typing in the CIW

 cvId = deGetCellView()

Select two or more objects in the layout cellview window.
Set a variable equal to a list of the database IDs of the selected objects by typing in the CIW

 dbIdList = geGetSelectedSet(cvId)

To get the ROD object ID for a specific object in the list, use the SKILL list operators, such as car and cdr.

Storing the ROD Object ID as a Variable (Avoid)

There are circumstances under which a ROD object ID might change. For example, doing an Undo and Redo assigns new ROD object IDs to all ROD objects in the cellview. Therefore, rather than storing a ROD object ID in a variable, it is safer to retrieve it when you need it. For example, rather than stating:

r = rodCreateRect( ?name "a" ?cvId cv ... )

...       ; More lines of code here

rodAlign( ?alignObj r ... )

state the following:

rodCreateRect( ?name "a" ?cvId cv ... )

...       ; More lines of code here

rodAlign( rodGetObj( "a" cv) ... )

For more information about the effect of Undo and Redo on ROD object IDs, see Appendix H, “ROD object ID changes after Undo”.

Checking Whether an Object Is a ROD Object

The easiest way to find out if an object is a ROD object is with the Virtuoso layout editor Edit Properties command. You can also verify whether an object is a ROD object in the CIW or within a program.

Checking with the Edit Properties Command

To check whether an object is a ROD object, do the following:

In your layout cellview window, select the object.
Choose Edit – Properties or press q.
The Edit Properties from appears.
Look at the bottom of the for a ROD Name field.
If there is a ROD Name field, the object is a ROD object; otherwise, the object is not a ROD object.
To see the ROD properties for a ROD object, click the ROD button at the top of the Edit Properties form.
The form changes to show ROD properties for the selected object.

For more information about this form, see “Editing and Defining Properties” in the Virtuoso Layout Suite XL: Basic Editing User Guide.

Checking in the CIW

To check in the CIW whether an object is a ROD object, you must first assign the object to a variable, then test the variable in either of the two ways shown below, where variable_name is a variable whose value might be a ROD object ID:

Use the rodIsObj function by typing
```
rodIsObj( variable_name )
```
If rodIsObj returns t, the object is a ROD object.
Test for equivalency with the internal name of the ROD object data type (‘rodObj) by typing
```
if( type( variable_name ) == ‘rodObj
 then ...
  ) ; end if
```
where ‘rodObj is a symbol.

If you edit an object identified by variable_name and then undo the edit, the system no longer associates variable_name with the object. Therefore, further references to variable_name result in nil or rod:invalid. For more information see ROD object ID changes after Undo.

Checking in a Program

To verify whether an input parameter to a procedure you write contains a ROD object ID, you can test to see if the data type is R, the data type for ROD objects. The following sample procedure tests parameter_name to see if the data type is R:

procedure(printObjType( parameter_name "R" )
printf("ROD object type is: %L" parameter_name~>dbId~>objType)
) ; end procedure

When the data type for parameter_name is R, the procedure prints the type of ROD object, such as inst, rect, polygon, or path, as shown below:

ROD object type is: "rect"

When the data type for parameter_name is not R, the procedure returns an error message similar to the following:

*Error* printObjType: argument #1 should be rodObj (type template = "R") - db:21218404

For information about basic Cadence^® SKILL language functions, including list operators, refer to the SKILL Language Reference Manual.

Accessing ROD Object Attributes

You can access predefined attributes for any of the following named objects: instances, cellviews, and named rectangles, polygons, paths, lines, dots, labels, and text-display objects.

Use the ROD object ID and the database access operator (~>) with

The name of an attribute to get the value of that attribute
One question mark (?) to get a list of the names of all attributes
Two question marks (??) to get the names and values of all attributes

The following table shows the information you can access with the ROD object ID and the database access operator (~>).

Table 2-1 Using ~> to Access Information about ROD Objects
Attribute, Handle, or ?	Value Returned
`~>?`	List of names for all ROD object attributes.
`~>??`	List of the names and values for all attributes.
`~>align`	Alignment information for the ROD object.
`~>chopHoles`	List of lists, where each list contains the coordinates of a chop hole in a MPP; `nil` where there are no chop holes in the MPP.
`~>cvId`	ID of the top-level cellview containing the ROD object.
`~>dbId`	Database ID of the ROD object at the lowest level. For multipart paths, `dbId` identifies the master path.
`~>name`	Hierarchical name for the ROD object.
`~>numSegments`	For shapes with segments (rectangles, polygons, and paths), the number of segments in the shape.
`~>subShapes`	For multipart paths, the ROD object ID identifies the master path. Use `~>subShapes` to list the database IDs for all subshapes (subpaths and subrectangles) associated with a multipart path. The list includes one database ID for each individual subrectangle.
`~>systemHandleNames`	List of the names of all system-defined handles for the ROD object.
`~>transform`	Transform information for the ROD object, converted to the coordinate system of the top-most cellview. Transform information is a list of the rotation, magnification, and offset.
`~>userHandleNames`	List of the names of all user-defined handles for the ROD object.
`~>`any_handle_name	Value of the specified handle.

For information about how to get the ROD object ID, see Getting the ROD Object ID.

Accessing Subpart Attributes

Table 2-2 Using ~> to Access Information about Subpart Attributes
Subpart Attribute	Value Returned
`mppId~>subPart`	List of MPP subPartIds.
`subPartId~>name`	Name of the specified subPartId.
`subPartId~>type`	Type of the specified subpart. Returns "rectangle", "enclosure path", or "offset path".
`subPartId~>layer`	Layer name of the specified subpart.
`subPartId~>purpose`	Purpose name of the specified subpart.
`subPartId~>lpp`	List of strings signifying the layer-purpose pair of the specified subpart.
`subPartId~>choppable`	Boolean(t/nil) depending on whether the specified subpart is choppable or not.
`subPartId~>netName`	String signifying the name of the net with which the specified subpart is associated.
`subPartId~>termName`	String signifying the name of the terminal with which the specified subpart is associated.
`subPartId~>pin`	The pinId of the specified subpart.
`subPartId~>paramList`	List of parameters of the specified subpart.
`offsetSubPathId~>width`	Width of the specified offset subpath.
`offsetSubPathId~>separation`	The distance between the specified offset subpath and the master path.
`offsetSubPathId~>justification`	The type of justification of the specified offset subpath.
`offsetSubPathId~>beginOffset`	The beginOffset value of the specified offset subpath.
`offsetSubPathId~>endOffset`	The endOffset value of the specified offset subpath.
`encSubPathId~>enclosure`	The enclosure value of the specified enclosure subpath.
`encSubPathId~>beginOffset`	The beginOffset value of the specified enclosure subpath.
`encSubPathId~>endOffset`	The endOffset value of the specified enclosure subpath.
`subRect~>width`	The width of the specified rectangle subpart.
`subRect~>length`	The length of the specified rectangle subpart.
`subRect~>gap`	The subrectangle distribution gap value ("minimum" or "distribute") of the specified rectangle subpart.
`subRect~>space`	The spacing value between individual rectangles in the specified rectangle subpart.
`subRect~>justification`	The type of justification of the specified rectangle subpart.
`subRect~>beginOffset`	The beginOffset value of the specified rectangle subpart.
`subRect~>endOffset`	The endOffset value of the specified rectangle subpart.
`subRect~>beginSegOffset`	The beginSegmentOffset value of the specified rectangle subpart.
`subRect~>endSegOffset`	The endSegmentOffset value of the specified rectangle subpart.

When you use the ROD object ID to access a point handle for a named object, the system automatically transforms (converts) the coordinates of the point up through the hierarchy into the coordinate system of the top-most cellview containing the object. The values of system-defined handles are calculated on demand, when you reference them.

Examples of Using ~> to Display Information

The following examples show some of the ways to display information about ROD objects in the CIW.

Example 1: Alignment Information

You can query any named object to see what the object is aligned to. When you query a hierarchical object, the system displays all top-level alignments for the object.

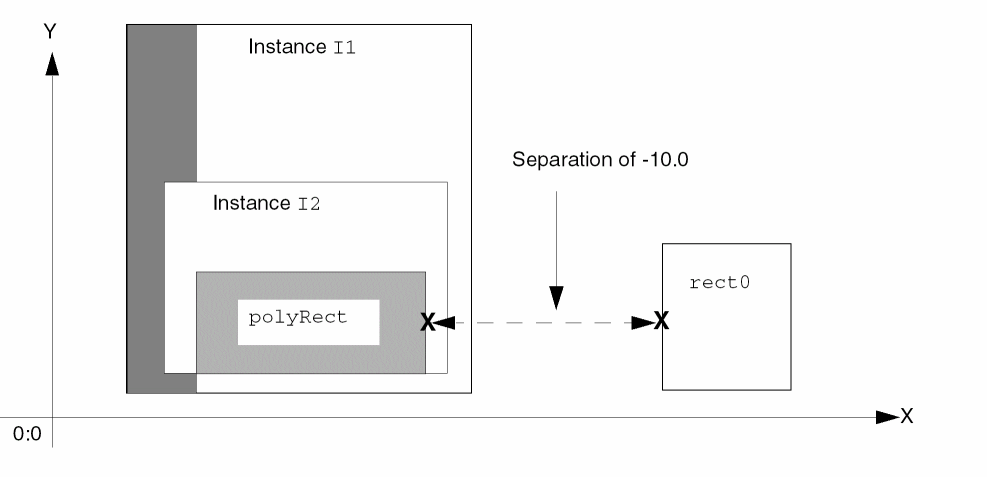

The figure below shows instance I1 and rectangle rect0. Instance I1 contains instance I2. Instance I2 contains the polygon I1/I2/polyRect. The polygon I1/I2/polyRect is aligned to rect0 with a separation of -10.0.

To query rect0 for alignments, type the following in the CIW:

cvId = deGetCellView()
rodGetObj( "rect0" cvId )~>align

The system displays text similar to the following in the CIW:

((rodObj:2585108 "cR" rodObj:2585114 "cL" -10.0
        0.0
    )
)

The text above means the centerRight (cR) handle on I1/I2/polyRect (rodObj:2585108) is aligned to the centerLeft (cL) handle on rect0 (rodObj:2585114), with a separation of -10.0 along the X axis and no separation along the Y axis.

Example 2: Attribute Names

To display all attribute names for a ROD object, get its ROD object ID and type in the CIW:

rodId~>?

where the variable rodId contains the ROD object ID.

The system displays a list of attribute names similar to the following list:

(name cvId dbId transform align
             numSegments userHandleNames systemHandleNames
)

The attribute numSegments appears in the list only for shapes with segments: rectangles, polygons, and paths.

Example 3: Attribute Names and Values

To display all attribute names and values for any ROD object (a named shape, instance, or cellview), get its ROD object ID and type in the CIW:

rodId~>??

where the variable rodId contains the ROD object ID. If you do not want to use variables and the object is in the current open cellview, the following statement gets the same result:

rodGetObj( "hierarchical_name" deGetCellView() )~>??

Example 4: Value of One Attribute

To get the value for a particular attribute, use the attribute name instead of a question mark:

rodId~>attribute_name

For example, to display the value of the system-defined handle for the point in the center of the bounding box around a ROD object, type

rodId~>centerCenter

Example 5: Names of User-Defined Handles

To display the names of all user-defined handles for an object, type in the CIW:

rodGetObj( "hierarchical_name" cellview_ID )~>userHandleNames

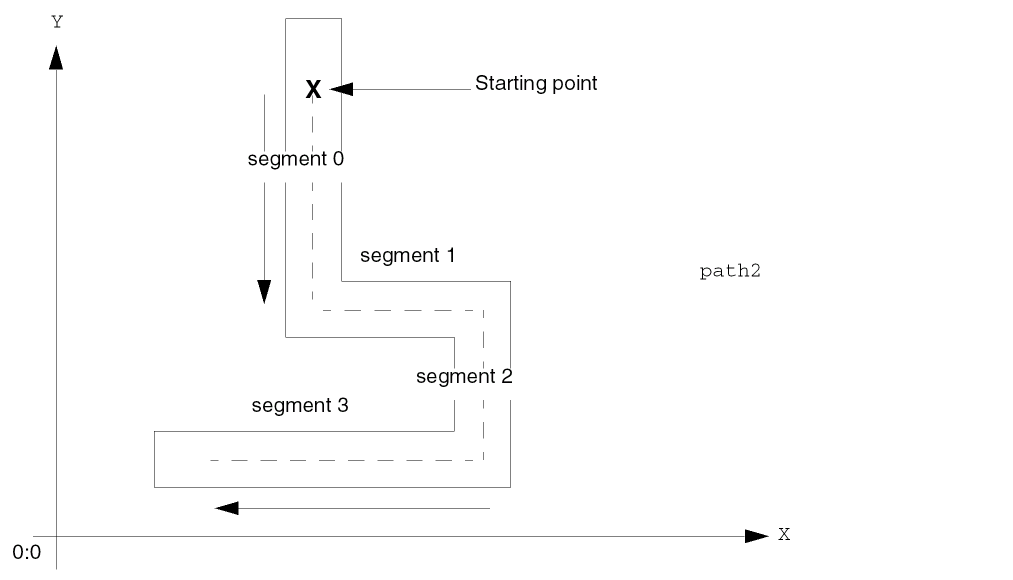

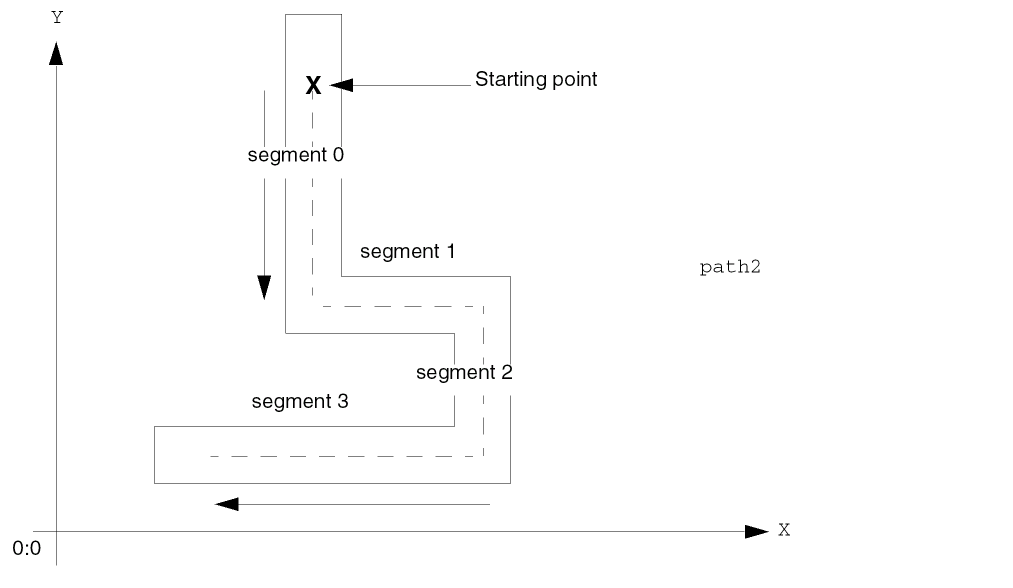

For example, assume the following four-segment, single-layer path named path2 is in the active cellview window, and that it has several user-defined handles.

You can use the deGetCellView function (without any arguments) to get the database ID for the current open cellview.

For this example, you would type:

cvId = deGetCellView()

userHandNames = rodGetObj( "path2" cvId )~>userHandleNames

The system displays the following information in the CIW:

("stringHandle" "intHandle" "floatHandle" "trueHandle" "falseHandle"

"ILExprHandle" "pointHandle"

Example 6: Names of System-Defined Handles

To display the names of all system-defined handles for an object, type in the CIW:

rodGetObj( "hierarchical_name" cellview_ID )~>systemHandleNames

For more information about using rodGetObj, see rodGetObj.

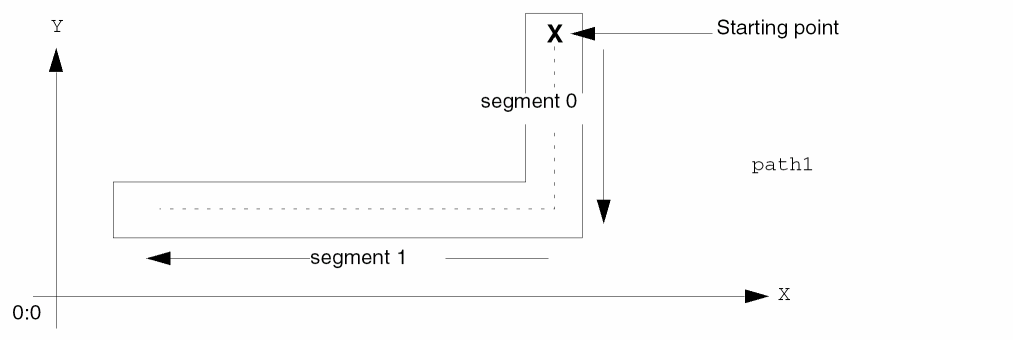

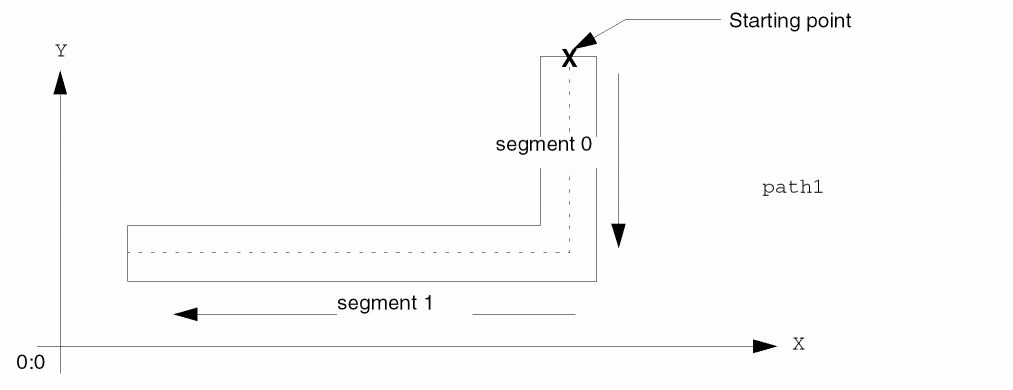

For example, assume the following two-segment, single-layer path named path1 is in the active cellview window.

You can use the deGetCellView function (without any arguments) to get the database ID for the current open cellview. For this example, you would type:

cvId = deGetCellView()

sysHandNames = rodGetObj( "path1" cvId )~>systemHandleNames

The system displays the following information for path1 in the CIW:

("width" "length" "lowerLeft" "lowerCenter" "lowerRight"
    "centerLeft" "centerCenter" "centerRight" "upperLeft"
    "upperCenter" "upperRight" "length0" "start0" "startCenter0"
    "startLeft0" "startRight0" "mid0" "midLeft0" "midRight0" "end0"
    "endLeft0" "endRight0""length1" "start1" "startLeft1"
    startRight1" "mid1" "midLeft1""midRight1" "end1" "endLeft1"
    "endRight1" "lengthLast" "startLast""startLeftLast"
    "startRightLast" "midLast" "midLeftLast" "midRightLast" "endLast"
    "endCenterLast" "endLeftLast" "endRightLast" "mmpBBox" "chopHoles"
)

Example 7: Names and Values of Attributes

To display the names and values for all attributes of an object, type in the CIW:

rodGetObj( "hierarchical_name" cellview_ID )~>??

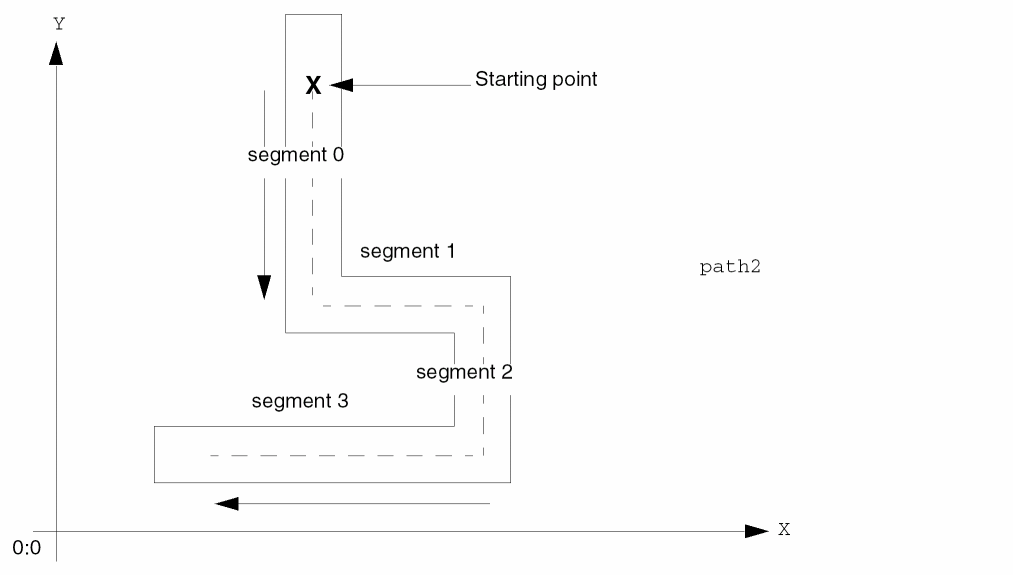

Using the same example, assume the following four-segment, single-layer path named path2 is in the active cellview window.

You can use the deGetCellView function (without any arguments) to get the database ID for the current open cellview. For this example, you would type:

cvId = deGetCellView()

rodGetObj( "path2" cvId )~>??

The system displays information in the CIW that looks like this:

("rodObj:17653796" name "path2" cvId db:16324652

 dbId db:16325104 transform
 ((0.0 0.0) "R0" 1.0) align
 nil numSegments 4 userHandleNames

 ("stringHandle" "intHandle" "floatHandle" "trueHandle"
  "falseHandle" "ILExprHandle" "pointHandle"
 )
 systemHandleNames
 ("width" "length" "lowerLeft" "lowerCenter" "lowerRight"
  "centerLeft" "centerCenter" "centerRight" "upperLeft"
  "upperCenter" "upperRight" "length0" "start0" "startCenter0"
  "startLeft0" "startRight0" "mid0" "midLeft0" "midRight0"
  "end0" "endLeft0" "endRight0" "length1" "start1" "startLeft1"
  "startRight1" "mid1" "midLeft1" "midRight1" "end1"
  "endLeft1" "endRight1" "length2" "start2" "startLeft2"
  "startRight2" "mid2" "midLeft2" "midRight2" "end2"
  "endLeft2" "endRight2" "length3" "start3" "startLeft3"
  "startRight3" "mid3" "midLeft3" "midRight3" "end3"
  "endLeft3" "endRight3" "lengthLast" "startLast"
  "startLeftLast" "startRightLast" "midLast" "midLeftLast"
  "midRightLast" "endLast" "endCenterLast" "endLeftLast"
  "endRightLast" "mppBBox"
 )
)

Getting System-Defined Handle Values with a Script

You can display in the CIW the values for all system-defined handles for a selected ROD object in a cellview by using the SKILL procedure rodPrintSystemHandleValues. The procedure requires the ROD object ID as input.

Problem 2-4 Getting Values of System-Defined Handles for a Path

You want to know the values of the system-defined handles for a particular ROD object in your active cellview. Use the rodPrintSystemHandleValues procedure to display the names and values of all system-defined handles.

You can load the procedure from the Cadence hierarchy or create a procedure file yourself and load your file. Instructions for accessing or creating the rodPrintSystemHandleValues procedure are presented in the following Solution section. To access the ROD object path1 using its name, you need the cellview ID.

For example, there is a two-segment single-layer path named path1. Use the rodPrintSystemHandleValues procedure to display the names and values of all system-defined handles for path1.

Solution 2-4 Getting Values of System-Defined Handles for a Path

First, you need to load the rodPrintSystemHandleValues procedure into your system. You can access the rodPrintSystemHandleValues.il file from the samples/ROD/skill directory in your Cadence hierarchy or create the procedure yourself and load your file.

Access the rodPrintSystemHandleValues procedure in one of the following ways:

To create the procedure yourself, use a text editor to open a new file named rodPrintSystemHandleValues.il and type or copy the following statements:

 ; rodPrintSystemHandleValues.il

 procedure( rodPrintSystemHandleValues(rodObj)

 prog(( handleValue handleList)
  handleList = rodObj~>systemHandleNames
  if(handleList then
   printf( "System handle names and values for %L (%L):\n"
    rodObj~>name
    rodObj
   ) ; end of printf
   foreach( handle handleList
    handleValue = rodGetHandle(rodObj handle)
    printf("%L %L\n" handle handleValue)
   ) ; end of foreach
  else
   printf("%L has no system-defined handles.\n"
    rodObj
   ) ; end of printf
  ) ; end of if
 ) ; end of prog

 t ; procedure always returns t

 ) ; end of procedure

To load the rodPrintSystemHandleValues.il file you created, type the following in the CIW:

load "your_path/rodPrintSystemHandleValues.il"

where your_path is the path to your procedure file.

To load the procedure from the Cadence hierarchy, type

The rodPrintSystemHandleValues procedure requires the ROD object ID as input, so next you get the ROD object ID.

Get the ROD object ID for a selected object in the active cellview window by typing the following statements in the CIW:
```
cv = deGetCellView()
```
```
rodId = rodGetObj( "hierarchical_object_name" cv )
```
where the first statement gets the cellview ID for the active cellview and hierarchical_object_name is the name of your selected ROD object. For example:
```
rodId = rodGetObj( "path1" cv )
```
Run your rodPrintSystemHandleValues procedure by typing the following statement in the CIW:
```
rodPrintSystemHandleValues(rodId)
```

In the CIW, the system displays a list of all handle names and their values. For example, for path1, the system displays the following information in the CIW:

rodPrintSystemHandleValues(rodId)
System handle names and values for "path1" (rodObj:29057048)

"width" 21.0
"length" 11.0
"lowerLeft" (2.7 1.4)
"lowerCenter" (13.2 1.4)
"lowerRight" (23.7 1.4)
"centerLeft" (2.7 6.9)
"centerCenter" (13.2 6.9)
"centerRight" (23.7 6.9)
"upperLeft" (2.7 12.4)
"upperCenter" (13.2 12.4)
"upperRight" (23.7 12.4)
"length0" (20.0)
"start0" (2.7 2.4)
"startCenter0" (2.7 2.4)
"startLeft0" (2.7 3.4)
"startRight0" (2.7 1.4)
"mid0" (12.7 2.4)
"midLeft0" (12.2 3.4)
"midRight0" (13.2 1.4)
"end0" (22.7 2.4)
"endLeft0" (21.7 3.4)
"endRight0" (23.7 1.4)
"length1" 10.0
"start1" (22.7 2.4)
"startLeft1" (21.7 3.4)
"startRight1" (23.7 1.4)
"mid1" (22.7 7.4)
"midLeft1" (21.7 7.9)
"midRight1" (23.7 6.9)
"end1" (22.7 12.4)
"endLeft1" (21.7 12.4)
"endRight1" (23.7 12.4)
"lengthLast" 10.0
"startLast" (22.7 2.4)
"startLeftLast" (21.7 3.4)
"startRightLast" (23.7 1.4)
"midLast" (22.7 7.4)
"midLeftLast" (21.7 7.9)
"midRightLast" (23.7 6.9)
"endLast" (22.7 12.4)
"endCenterLast" (22.7 12.4)
"endLeftLast" (21.7 12.4)
"endRightLast" (23.7 12.4)
"mppBBox" (((2.7 1.4) (23.7 12.4)))
t

Getting User-Defined Handle Names with a Script

You can display in the CIW the values for all user-defined handles for a selected ROD object in a cellview by using the SKILL procedure rodPrintUserHandleValues. The procedure requires the ROD object ID as input.

Problem 2-5 Getting Values of User-Defined Handles for a Path

You want to know the values of the user-defined handles for a particular ROD object in your active cellview. Use the rodPrintUserHandleValues procedure to display the values of all handles assigned to the four-segment, single-layer path named path2. Assign the results to the local variable userHandValues.

You can load the rodPrintUserHandleValues.il file from the samples/ROD/skill directory in your Cadence hierarchy or create the procedure file yourself and load your file. Instructions for creating and loading the rodPrintUserHandleValues procedure are presented in the Solution section.

To access the ROD object path2 using its name, you need the cellview ID.

Solution 2-5 Getting Values of User-Defined Handles for a Path

Access and load the rodPrintUserHandleValues procedure in one of the following ways:

To create the procedure yourself, use a text editor to open a new file named rodPrintUserHandleValues.il and type or copy the following statements:

    ; rodPrintUserHandleValues.il

procedure( rodPrintUserHandleValues(rodObj)
  prog((handle handleValue handleList)
        handleList = rodObj~>userHandleNames
        if(handleList then
        printf( "User handle names and values for %L (%L):\n"
                 rodObj~>name
                 rodObj

        ) ; end printf
        foreach(handle handleList
                 handleValue = rodGetHandle(rodObj handle)
                 printf("%L %L\n" handle handleValue)
        ) ; end foreach

        else
           printf("%L has no user-defined handles.\n" rodObj)
        ) ; end if
  ) ; end of prog
t ; procedure always returns t
) ; end of procedure

To load the rodPrintUserHandleValues procedure you created, type the following statements in the CIW:

load "your_path/rodPrintUserHandleValues.il"

where your_path is the path to your procedure file.

To load the procedure from the Cadence hierarchy, type

load prependInstallPath("samples/ROD/skill/rodPrintUserHandleValues.il")

The rodPrintUserHandleValues procedure requires the ROD object ID as input, so next you get the ROD object ID.

Get the ROD object ID for a selected object in the active cellview window by typing the following statements in the CIW:
```
cv = deGetCellView()
```
```
rodId = rodGetObj( "hierarchical_object_name" cv )
```
where the first statement gets the cellview ID for the active cellview and hierarchical_object_name is the name of your selected ROD object. For example:
```
rodId = rodGetObj( "path2" cv )
```
Run your rodPrintUserHandleValues procedure by typing the following statements in the CIW:
```
rodPrintUserHandleValues(rodId)
```

In the CIW, the system displays a list of all user-defined handle names and their values. For example, for path2, the system displays the following information in the CIW:

rodPrintUserHandleValues(rodId)

User handle names and values for "path2" (rodObj:29057048)

"stringHandle" "aaa"
"intHandle" 311
"floatHandle" 3.3
"trueHandle" t
"falseHandle" nil
"ILExprHandle" 1.8
"pointHandle" (6.6 7.7)
t

rodCoord Objects

A rodCoord object is a user type implemented by C/C++ in the Virtuoso environment. It is used to store values given in user unit as an integer after applying the arithmetic resolution factor and supported with arithmetic, logical, and snapping to grid operations.

A rodCoord object contains the following information:

User input in arithmetic resolution unit
Grid information in arithmetic unit
Arithmetic resolution factor

A rodCoord object can be used in many basic operations, such as arithmetic and logical operations, snapping, and determining the maximum or minimum value. The main objective of using rodCoord is to standardize the solution for handling rounding orsnapping requirements.

Advantages of using rodCoord

A rodCoord object is useful for transmitting the scale information. An arithmetic operation using both rodCoord and a scalar value is not acceptable because the operands are not compatible.

For example,

rodCoord(0.01) + 20 = ??

Therefore, operands for the plus operation should be rodCoord. The same use model is true for most arithmetic and logical operators, as well as most related APIs.

Return to top

Virtuoso Relative Object Design User GuideProduct Version IC23.1, August 2023

2

Accessing Information about ROD Objects

About ROD Objects and ROD Object IDs

Getting the ROD Object ID

Getting the ROD Object ID Interactively

Getting the ROD Object ID for a Single Object

Getting the ROD Object ID for Multiple Objects

Storing the ROD Object ID as a Variable (Avoid)

Checking Whether an Object Is a ROD Object

Checking with the Edit Properties Command

Checking in the CIW

Checking in a Program

Accessing ROD Object Attributes

Table 2-1 Using ~> to Access Information about ROD Objects

Accessing Subpart Attributes

Table 2-2 Using ~> to Access Information about Subpart Attributes

Examples of Using ~> to Display Information

Example 1: Alignment Information

Example 2: Attribute Names

Example 3: Attribute Names and Values

Example 4: Value of One Attribute

Example 5: Names of User-Defined Handles

Example 6: Names of System-Defined Handles

Example 7: Names and Values of Attributes

Getting System-Defined Handle Values with a Script

Problem 2-4 Getting Values of System-Defined Handles for a Path

Solution 2-4 Getting Values of System-Defined Handles for a Path

Getting User-Defined Handle Names with a Script

Problem 2-5 Getting Values of User-Defined Handles for a Path

Solution 2-5 Getting Values of User-Defined Handles for a Path

rodCoord Objects

Advantages of using rodCoord

Virtuoso Relative Object Design User Guide
Product Version IC23.1, August 2023
