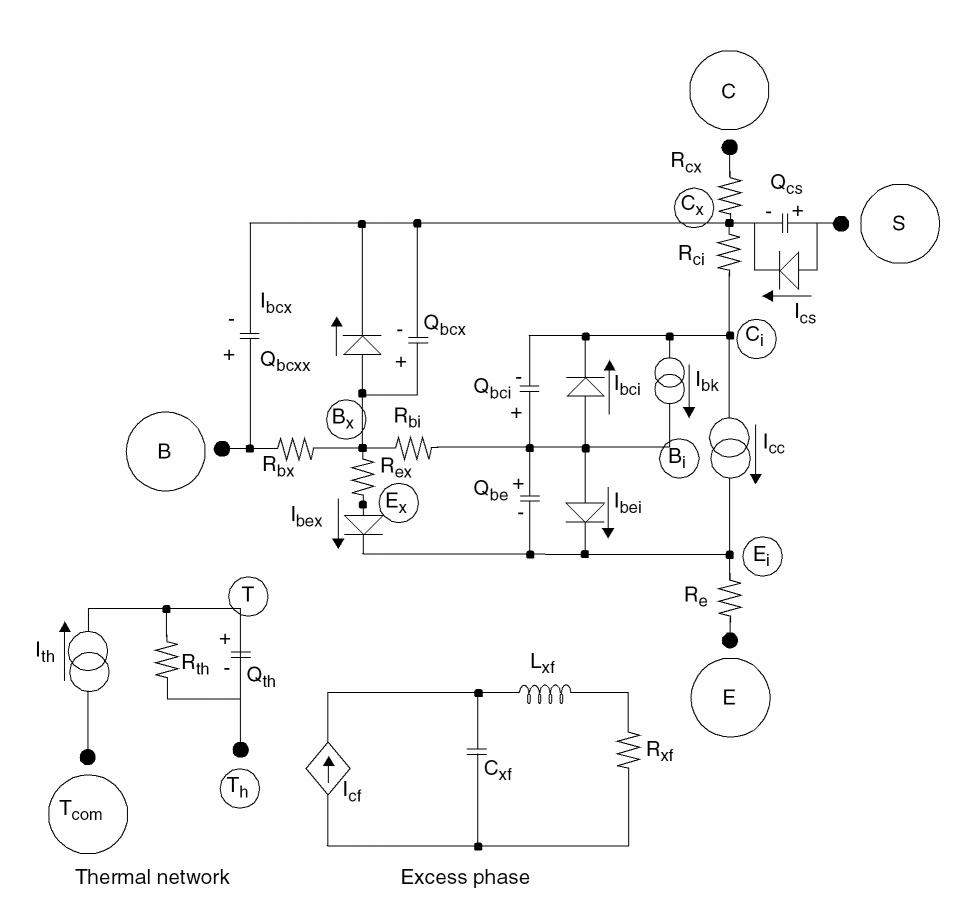

version=2
|
Model Version.
|
|
level=2
|
Model Level.
|
|
compatible=0
|
Possible values are SPECTRE and NI.
|
|
abel=0.0 A
|
Base-Emitter current: Portion of base-emitter current allocated to extrinsic region.
|
|
af=1.5
|
Flicker noise exponent.
|
|
area=1.0
|
Device area factor (Does not scale parasitic inductors or capacitors).
|
|
cjc=0.0 F
|
Base-collector capacitance: zero-bias capacitance.
|
|
cje=0.0 F
|
Base-emitter capacitance: zero-bias capacitance.
|
|
cjs=0.0 F
|
Substrate depletion capacitance at zero voltage.
|
|
cpbc=0.0 F
|
Parasitic / fringing base-collector capacitance.
|
|
cpbe=0.0 F
|
Parasitic / fringing base-emitter capacitance.
|
|
cpce=0.0 F
|
Parasitic / fringing collector-emitter capacitance.
|
|
dtmax=500 C
|
Alias of ETMAXTEMP. Maximum temperature rise above heatsink in Celsius degrees.
|
|
etmaxtemp=500 C
|
Maximum temperature rise above heatsink in Celsius degrees.
|
|
eaa=0.0 V
|
Temperature dependence of ISA.
|
|
eab=0.0 V
|
Temperature dependence of ISB.
|
|
ffe=1.0
|
Flicker noise frequency exponent.
|
|
ics=1.0e-30 A
|
Saturation value for collector-substrate current.
|
|
ik=1e10 A
|
High current roll-off in Beta.
|
|
ikrk=1e3 A
|
Kirk effect: critical current for Kirk effect at Vbc=0.
|
|
imax=10.0 A
|
Explosion current.
|
|
is=1e-25 A
|
Collector-Emitter current: Forward collector saturation current.
|
|
isa=1e10 A
|
Base-emitter heterojunction saturation current (BE barrier effects).
|
|
isb=1e10 A
|
Base-collector heterojunction saturation current (BC barrier effects).
|
|
isc=1e-30A
|
Base-Collector current: Non-ideal base-collector saturation current.
|
|
ise=1e-30 A
|
Base-Emitter current: Non-ideal base-emitter current.
|
|
itc=0 A
|
Collector transit time: midpoint in collector current between TFC0 and TCMIN.
|
|
itc2=0 A
|
Collector transit time: transition width in collector current between TFC0 and TCMIN.
|
|
kf=0
|
Flicker noise coefficient.
|
|
lpb=0 H
|
Parasitic base inductance.
|
|
lpc=0 H
|
Parasitic collector inductance.
|
|
lpe=0 H
|
Parasitic emitter inductance.
|
|
mjc=0.33
|
Base-collector capacitance: grading factor (0.1<MJC).
|
|
mje=0.5
|
Base-emitter capacitance: grading factor (0.1<MJE).
|
|
mjs=0.5
|
Exponent for voltage variation of C-S Cj.
|
|
na=2
|
Base-emitter heterojunction ideality factor.
|
|
nb=2
|
Base-collector heterojunction ideality factor.
|
|
nc=2
|
Base-Collector current: Non-ideal base-collector current ideality factor.
|
|
ncs=2
|
Ideality factor for collector-substrate current.
|
|
ne=2
|
Base-Emitter current: Non-ideal base-emitter current ideality factor.
|
|
nf=1
|
Collector-Emitter current: Forward collector current ideality factor.
|
|
nr=1
|
Collector-Emitter current: Reverse emitter current ideality factor.
|
|
rbi=0 W
|
Intrinsic base resistance.
|
|
rbx=0 W
|
Extrinsic base resistance.
|
|
rci=0 W
|
Intrinsic collector resistance.
|
|
rcx=0 W
|
Extrinsic collector resistance.
|
|
re=0 W
|
Emitter resistance.
|
|
tbp=298.15 K
|
Base-plate temperature. Specifying this parameter enables partial Self Heating. Self-consistent (or dynamic) temperature is obtained by adding temperature rise due to power dissipation and TBP.
|
|
tfb=0 s
|
Base transit time: delay through the base.
|
|
tfc0=0 s
|
Collector transit time: low current transit time.
|
|
tkrk=0 s
|
Kirk effect: Kirk effect delay time.
|
|
tnom=27 C
|
Parameters measurement temperature. Default value is set by options.
|
|
tr=0.35e-9 s
|
Reverse transit time.
|
|
tvjc=0 V/K
|
Rate of change in temperature of VJC (Volt/K).
|
|
tvje=0 V/K
|
Rate of change in temperature of VJE (Volt/K).
|
|
tvjs=0 V/K
|
Coefficient for VJS temperature dependence.
|
|
vaf=1000 V
|
Forward Early voltage.
|
|
var=1000 V
|
Reverse Early voltage.
|
|
vjc=1.4 V
|
Base-collector capacitance: built-in voltage.
|
|
vje=1.6 V
|
Base-emitter capacitance: built-in voltage.
|
|
vjs=1.4 V
|
Built-in potential for substrate capacitance.
|
|
vkrk=10.0 V
|
Kirk effect: rate of change of IKRK with Vcb.
|
|
xrb=0
|
Temperature exponent for RBI and RBX.
|
|
xrc=0
|
Temperature exponent for RCI and RCX.
|
|
xre=0
|
Temperature exponent for RE.
|
|
xikrk=0
|
Alias of XTIKRK. Temperature exponent for IKRK.
|
|
xtikrk=0
|
Temperature exponent for IKRK.
|
|
xitc=0
|
Alias of XTITC. Temperature exponent for ITC.
|
|
xtitc=0
|
Temperature exponent for ITC.
|
|
xitc2=0
|
Alias of XTITC2. Temperature exponent for ITC2.
|
|
xtitc2=0
|
Temperature exponent for ITC2.
|
|
xttkrk=0
|
Temperature exponent for TKRK.
|
|
xtkrk=0
|
Alias of XTTKRK. Temperature exponent for TKRK.
|
|
xtvkrk=0
|
Temperature exponent for VKRK.
|
|
xvkrk=0
|
Alias of XTVKRK. Temperature exponent for VKRK.
|
|
selft=0
|
Self-Heating flag.
|
|
bkdn=0
|
Breakdown current flag.
|
|
ext_flag=0
|
ADS-Extensions flag.
|
|
compat=0
|
Compatible flag.
|
|
partialsh=0
|
Partial self-heating flag.
|
|
nflag=0
|
Noise flag.
|
|
type=1
|
Transistor type. Possible values are pnp and npn.
|
|
bf=10000 A/A
|
Forward ideal current gain (beta).
|
|
br=10000 A/A
|
Reverse ideal current gain.
|
|
isex=1e-30 A
|
Saturation current for emitter leakage diode.
|
|
nex=2
|
Ideality factor for emitter leakage diode.
|
|
iscx=1e-30 A
|
Saturation current for extrinsic BC junction current.
|
|
ncx=2
|
Ideality factor for extrinsic BC junction current.
|
|
fa=0.9
|
Factor to specify avalanche voltage.
|
|
bvc=1000 V
|
C-B breakdown voltage (BVcb0); positive.
|
|
nbc=8
|
Exponent for BC multiplication factor vs. voltage.
|
|
rex=1e-3 W
|
Extrinsic emitter leakage diode series resistance.
|
|
cemin=1e-40 F
|
Min value of intrinsic BE capacitance.
|
|
fce=0.8
|
Factor for BE capacitance approximation near Vbi.
|
|
ccmin=1e-40 F
|
Min value of intrinsic BC capacitance.
|
|
fc=0.8
|
Factor for BC capacitance approximation near Vbi.
|
|
cjcx=0.0 F
|
Extrinsic BC capacitance at zero voltage.
|
|
vjcx=1.4 V
|
Extrinsic BC capacitance Vbi.
|
|
mjcx=0.33
|
Extrinsic base-collector capacitance: grading factor (0.1<MJCX).
|
|
cxmin=1e-40 F
|
Minimum extrinsic BC capacitance.
|
|
xcjc=1
|
Factor for partitioning BC capacitance.
|
|
tbcxs=0
|
Excess BC transit time.
|
|
tbexs=0
|
Excess BE transit time.
|
|
icrit0=1e3 A
|
Critical current for junction capacitance.
|
|
vtc=1e3 V
|
Characteristic voltage for TFC.
|
|
trx=0 s
|
Reverse storage time for extrinsic BC diode.
|
|
fex=0 s
|
Excess phase factor.
|
|
rth=1e-8 W
|
Thermal resistance of device.
|
|
cth=1e-6 F
|
Thermal capacitance of device.
|
|
xti=2
|
Exponent for IS temperature dependence.
|
|
xtb=2
|
Exponent for beta temperature dependence.
|
|
tnc=0
|
Coefficient for NC temperature dependence.
|
|
tne=0
|
Coefficient for NE temperature dependence.
|
|
tnex=0
|
Coefficient for nex temperature dependence.
|
|
eg=1.5 V
|
Activation energy for IS temperature dependence.
|
|
eac=0 V
|
Activation energy for ISC temperature dependence.
|
|
eae=0 V
|
Activation energy for ISE temperature dependence.
|
|
eax=0 V
|
Activation energy for ISEX temperature dependence.
|
|
xrex=0
|
Coefficient for REX temperature dependence.
|
|
tvjcx=0 V/C
|
Coefficient for VJCX temperature dependence.
|
|
xttf=0
|
Coefficient for TF temperature dependence.
|
|
xrt=0
|
Coefficient for RTH temperature dependence.
|
|
tvpe=0 V/K
|
Rate of change in temperature of VPTE (Volt/K).
|
|
tvpc=0 V/K
|
Rate of change in temperature of VPTC (Volt/K).
|
|
ege=1.55 V
|
Effective emitter bandgap parameter.
|
|
tnf=0
|
Rate of change in temperature of NF.
|
|
xtis=3
|
Temperature exponent for IS.
|
|
xtih=4
|
Temperature exponent for ISH.
|
|
xtie=3
|
Temperature exponent for ISE.
|
|
egc=1.5 V
|
Effective collector bandgap parameter.
|
|
tnr=0
|
Rate of change in temperature of NR.
|
|
xtir=3
|
Temperature exponent for ISR.
|
|
xtic=3
|
Temperature exponent for ISC.
|
|
xtirh=4
|
Temperature exponent for ISRH.
|
|
xtik3=0
|
Temperature exponent for IKDC3.
|
|
xtfb=0
|
Temperature exponent for TFB.
|
|
xtcmin=0
|
Temperature exponent for TCMIN.
|
|
xtfc0=0
|
Temperature exponent for TFC0.
|
|
rth1=1000 W
|
Thermal resistance #1 (Kelvin/Watt).
|
|
rth2=0 W
|
Thermal resistance #2 (Kelvin/Watt).
|
|
cth1=5e-10 F
|
Thermal capacitance #1 (Sec-Amp/Volt).
|
|
cth2=0 F
|
Thermal capacitance #2 (Sec-Amp/Volt).
|
|
xth1=0
|
Temperature exponent for RTH1.
|
|
xth2=0
|
Temperature exponent for RTH2.
|
|
kb=0
|
Burst noise coefficient.
|
|
ab=1
|
Burst noise exponent.
|
|
fb=1 Hz
|
Burst noise corner frequency.
|
|
vtc0inv=0.3 1/V
|
Collector transit time: rate of change of TFC0 with Vcb (in inverse voltage) (1/Volt).
|
|
vtr0=2.0
|
Collector transit time: transition width in Vcb to VMX0 (models velocity saturation).
|
|
vmx0=2.0
|
Collector transit time: maximum Vcb for TFC0 (models velocity saturation).
|
|
vtcmininv=0.5 1/V
|
Collector transit time: rate of change of TCMIN with Vbc (in inverse voltage) (1/Volt).
|
|
vtrmin=1
|
Collector transit time: transition width in Vcb to VMXMIN (models velocity saturation).
|
|
vmxmin=1
|
Collector transit time: maximum Vcb for TCMIN (models velocity saturation).
|
|
vtc2inv=0.1 1/V
|
Collector transit time: rate of change of ITC2 with Vcb (in inverse voltage) (1/Volt).
|
|
vtcinv=0.1 1/V
|
Collector transit time: rate of change of ITC with Vcb (in inverse voltage) (1/Volt).
|
|
fextc=0.8
|
Collector transit time: fraction of the collector transit time charge allocated to the base-collector junction.
|
|
ikrktr=1.0e-6
|
Kirk effect: transition width to prevent Ikirk=0 (use sparingly).
|
|
vkrk2inv=0.2 1/V
|
Kirk effect: rate of change of TKRK with Vcb (in inverse voltage) (1/Volt).
|
|
gkrk=4
|
Kirk effect: exponent of Kirk effect delay.
|
|
vktr=1.0
|
Kirk effect: transition width in Vcb to VKMX.
|
|
vkmx=1.0 V
|
Kirk effect: maximum Vcb for TKRK.
|
|
fexke=0.2
|
Kirk effect: fraction of the Kirk effect charge allocated to the base-collector junction.
|
|
tcmin=5.0e-13
|
Collector transit time: high current transit time.
|
|
fextb=0.2
|
Base transit time: fraction of base transit time charge allocated to the base-collector junction.
|
|
ccmax=9.0e-14 F
|
Base-collector capacitance: maximum value in forward bias.
|
|
vptc=3.0 V
|
Base-collector capacitance: punchthrough voltage.
|
|
mjcr=0.03
|
Base-collector capacitance: grading factor beyond punchthrough.
|
|
abcx=0.75
|
Ratio between extrinsic and total base-collector regions.
|
|
cemax=1.0e-13 F
|
Base-emitter capacitance: maximum value in forward bias.
|
|
vpte=1.0 V
|
Base-emitter capacitance: punchthrough voltage.
|
|
mjer=0.05
|
Base-emitter capacitance: grading factor beyond punchthrough.
|
|
abex=0
|
Base-emitter capacitance: ratio between extrinsic and total base-emitter regions.
|
|
ikdc1=1.0
|
Soft knee effect: Transition width in Ic of q3 function.
|
|
ikdc2inv=0.0
|
Soft knee effect: Slope of q3 function (1/Amp).
|
|
ikdc3=1.0 A
|
Soft knee effect: Critical current at which soft knee effect occurs at Vcb=VJC.
|
|
vkdcinv=0.1 1/V
|
Soft knee effect: Transition width of Vcb (in inverse voltage) (1/Volt).
|
|
nkdc=3.0
|
Soft knee effect: maximum value of q3.
|
|
gkdc=0.0
|
Soft knee effect: Exponent of q3 factor in base current.
|
|
isr=1e-15 A
|
Collector-Emitter current: Reverse emitter saturation current.
|
|
isrl=0 A
|
|
|
ish=1e-27 A
|
Base-Emitter current: Ideal base-emitter current.
|
|
nh=1
|
Base-Emitter current: Ideal base-emitter current ideality factor.
|
|
isrh=1e-25 A
|
Base-Collector current: Ideal base-collector saturation current.
|
|
nrh=2
|
Base-Collector current: Ideal base-collector current ideality factor.
|
