Noise Model

This topic contains model equations for the noise model.

Drain Resistance Thermal Noise

(-90)

Source Resistance Thermal Noise

(-91)

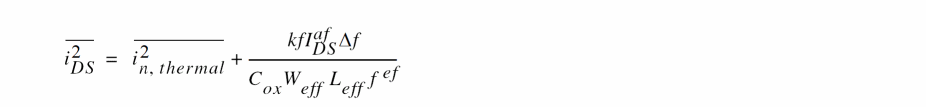

Channel Thermal and Flicker Noise

(-92)

where

(-93)

(-94)

g_m is the transconductance, g_ds is the channel conductance, and g_mb is the body transconductance. The Spectre^® circuit simulator default values for kf, af, and ef are 0.0, 1.0, and 1.0, respectively.
