LUTSOI Model

---

LUTSOI is a compact model dedicated to Fully-Depleted on Silicon-On-Insulator (FDSOI) technologies with low-doped channel. For more information, please refer to lutsoi model manual or contact info@cadence.com.

Model parameter "version" only accepts real number value, like 102.40 for version=102.4.0. The available versions are 102.40(102.4.0), 102.50(102.5.0), 102.60(102.6.0) and, 102.70(102.7.0).

This device is supported within altergroups.

The following figures illustrated the device architecture of this model.

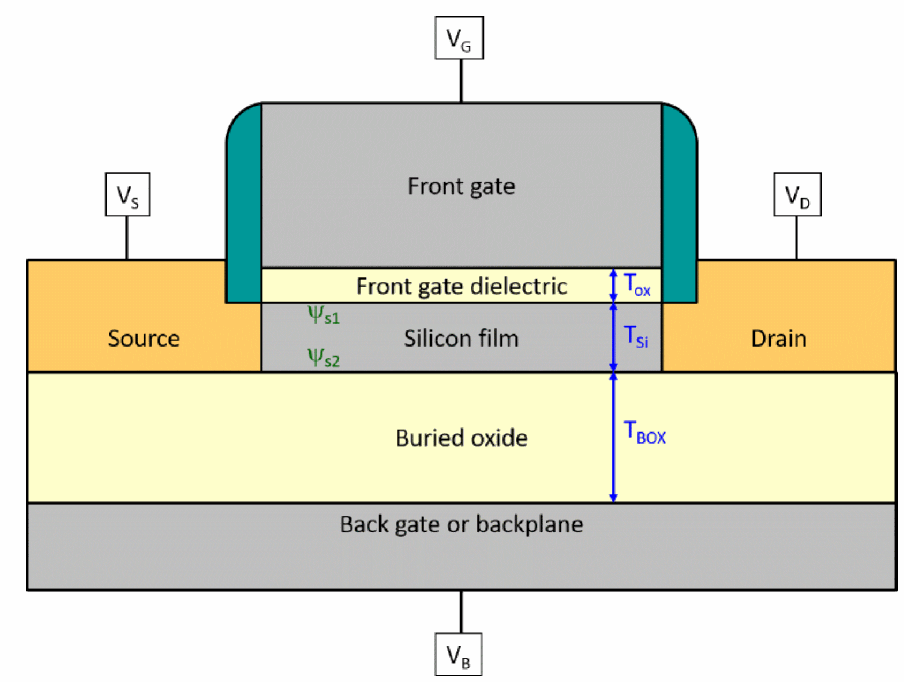

It is a schematic cross-section of a FDSOI transistor, describing the characteristic thicknesses and the surface potentials at the front ( ) and back ( ) interfaces.

This chapter contains the following information about the LUTSOI model:

• Model Structure
• Version Update and Enhancements
  • L-UTSOI 102.7 Enhancements
  • L-UTSOI 102.6 Enhancements
• Geometrical dependences, stress effects and junction asymmetry
  • Scaling Equations
  • Stress model for SWSTRESS = 1
  • Stress model for SWSTRESS = 2
  • Asymmetric junctions
• Model Equations
  • Internal parameters including temperature dependences
  • Terminal voltage conditioning
  • Backplane depletion
  • Channel current
  • Gate current, intrinsic charges and overlap related variables
  • Gate current
  • Impact ionization current
  • Charge model
  • Self-heating
  • Noise model
  • Total currents and charges
• Component Statements
