Through Silicon Vias (TSVs)

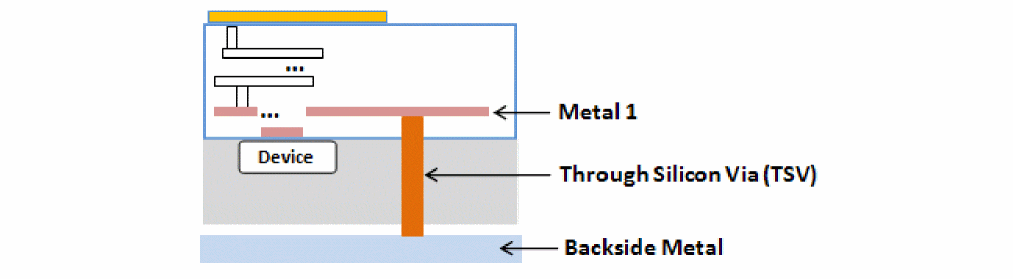

TSVs are copper vias with diameters ranging between 1 and 30 microns that pass through a silicon substrate.The top cap layer of a TSV is the first normal routing layer, Metal1, and the bottom cap layer of TSV is the backside metal layer. Therefore, TSVs enable signal propagation and power delivery between the top metal layer and the backside metal layer.
