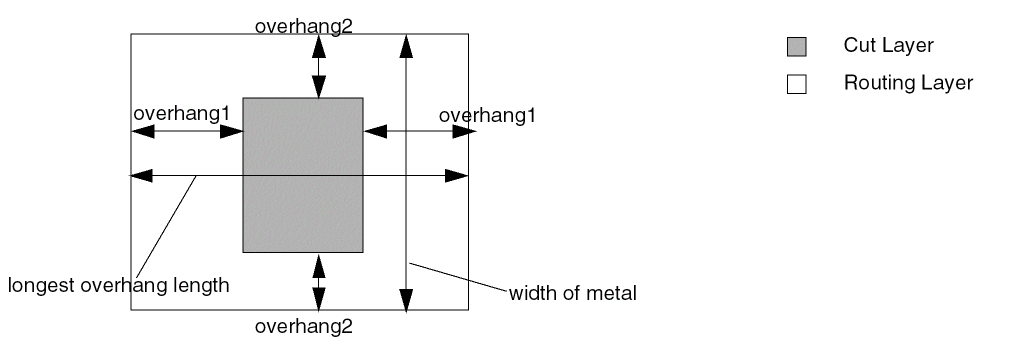

minDualExtension

Specifies, in user units, the minimum distance a shape on a routing layer must extend past a rectangle on a cut layer. The constraint specifies a pair of values which represents the required overhang in the horizontal and vertical directions and can be given in any order.

This constraint can specify a single pair of values (DualValue), or multiple pairs of values (OneDDualArrayTblValue or Dual1DTblValue) that are keyed by the width of the metal wire.

Optional Parameters can be used to qualify when the constraint applies. This constraint is not symmetric.

If you specify a minDualExtension for a layer pair, you should not specify a minExtension constraint.

In some processes, enclosure rules may only apply for rectangular cuts that do not collide with the centerline of the wire (offCenterline). In addition, in end-of-line enclosure rules which specify two enclosure values, it may be necessary for rectangular cut classes to specify that the end-of-line enclosure value is applied to the short edges, and the other overhang value should be applied to the long edges (endSideOverhang).

Usually, an OR constraint group should contain only settings of the same constraint with different parameters. If any of the settings is satisfied, the constraint requirement is met. The exception is that minQuadrupleExtension, minDualExtension, and minWireExtension can be bound together in an OR group and if any of the constraints is satisfied, the extension requirement is met.

minDualExtension Quick Reference

Value Types

minDualExtension constraints have the following value types:

• DualValue represents the minimum extension in each direction in user units (for example, {0.2 0.5} requires an extension of 0.2 in one direction and 0.5 in the opposite direction).
• Dual1DTblValue is two 1-D tables of values.
  The first table has width/extension pairs. The lookup key (width) represents the width of a shape on the first layer and the value represents the minimum extension of that first shape past a shape on the second layer. For example, {widthA extA1 widthB extB1…}.
  The second table is extension-based extensions. The lookup key (extension) is the minimum extension of a layer1 shape past a layer2 shape in one direction (horizontal or vertical) taken from the extension value in the first table, and the value is the minimum extension in the opposite direction. For example, {extA1 extA2 extB1 extB2…}, where the value of extA1 is the same in both of the 1-D tables.
• OneDDualArrayTblValue uses width values as the lookup key for the table of arrays. For each width, there is a count for the number of extension pairs associated with the width, and the extension pairs.


  {f_width1 i_numPair1 {f_ext f_ext}… {f_ext f_ext}i_numPair1
   f_width2 i_numPair2 {f_ext f_ext}… {f_ext f_ext}i_numPair2 …
   f_widthN i_numPairN {f_ext f_ext}… {f_ext f_ext}i_numPairN}

  If you specify multiple enclosure rules with different minWidth values, the largest minWidth rule that is still less than or equal to the wire width applies. For example, if you specify enclosure rules for 0.0 μm and 2.0 μm widths, then a 0.5 μm wire must meet a 0.0 μm rule, and a 2.0 μm wire must meet a 2.0 μm rule. A width of 0 implies that the extensions apply to minimum width wires. Widths greater than 0 imply extensions for wide wires of the given width.

Parameters

The minDualExtension constraint has the following parameters:

• coincidentAllowed (BoolValue, optional) specifies whether shapes must meet the minimum extension or their edges can be coincident (true). By default and when set to false, shapes must meet the minimum extension requirements and the edges cannot be coincident.
• cutClass (DualValue, optional) specifies that the constraint only applies to cut shapes whose width and length are equal to the values in the DualValue pair, specified in that order. Cut class applies to 32nm rules.
  • offCenterline (BoolValue, optional) When true, the constraint only applies to rectangular cuts that do not collide with the centerline of the wire. Must be used with the cutClass parameter.
  • endSideOverhang (BoolValue, optional) When true, the first extension value corresponds to the overhang of the end (short edge), and the second value corresponds to the overhang of the side (long edge). This parameter only applies to rectangular cut class constraints.
• sizedBy (Value, optional/custom) sizes (shrinks) extension values, in user units.
• length (Value, optional) specifies that the constraint only applies if the longest overhang length is greater than or equal to this parameter value.
• numCuts (IntValue, optional) specifies the minimum required number of same metal cuts for which this constraint applies (default: 1).
• redundantCutDistance (Value, optional) specifies that the constraint applies only if there is a redundant cut that is less than or equal to this distance from the original cut with the same metal shape above and below, and the redundant cut has the required enclosures for a cut given by a minDualExtension constraint without a specified redundantCutDistance parameter. The minDualExtension constraint value with the redundantCutDistance parameter will typically have smaller enclosure requirements.
• atLeastOne (BoolValue, optional) indicates that if at least one cut passes the minDualExtension constraint and there exists another minDualExtension constraint with redundantCutDistance defined, then any other cut within that distance satisfying the constraint with redundantCutDistance passes the via extension check.

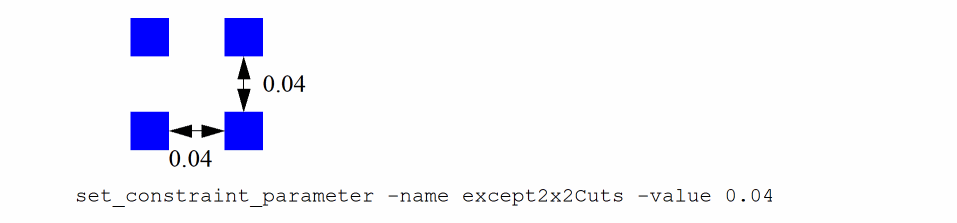

• except2x2Cuts (Value, optional) specifies that an aligned 2 x 2 array of cuts whose vertical and horizontal distance is less than or equal to this distance will apply and pass the constraint without any further checking. It is best not to put this parameter on a constraint with the redundantCutDistance parameter.


• exceptCutMetalEdgeExtension (BoolValue, optional) When true, if a metal shape of a cut via protrudes on a certain side of the wide wire, then the enclosure is not checked on that side. In addition, the enclosure based on the width of the protrusion must also be checked against the cut.
• oaSpacingDirection (IntValue, optional) is an integer specifying the direction in which the first extension value applies; the second value applies in the opposite direction. Valid values: 0 any 1 horizontal 2 vertical

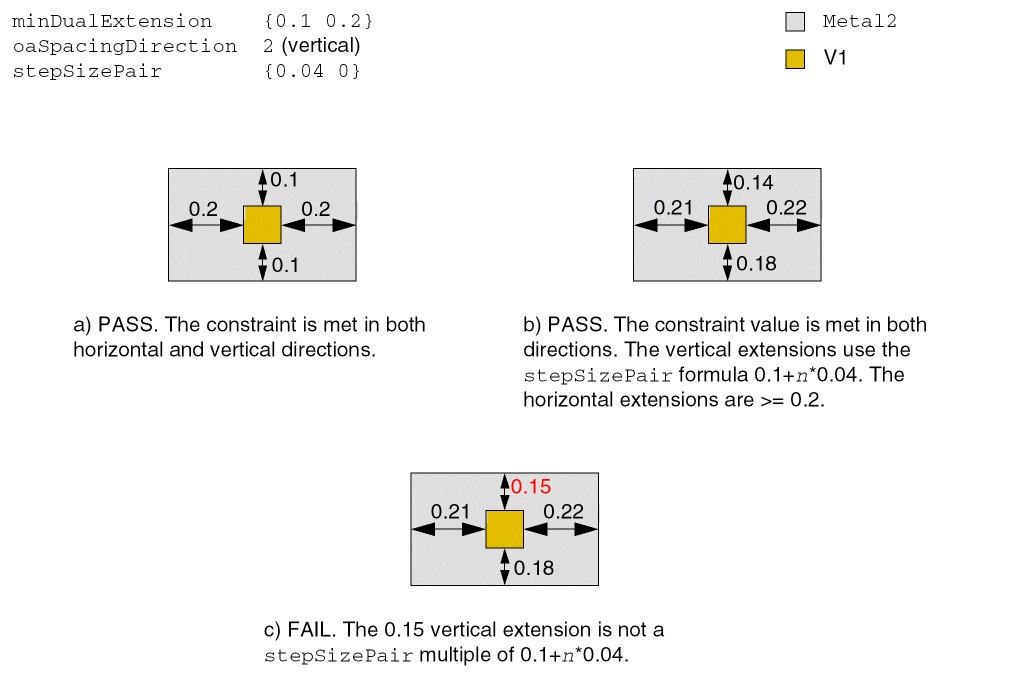

• stepSizePair (DualValue, optional) increases the required extension using the formula below:


  constraint value + n*stepSizePair

  The order of the two numbers corresponds to the order in the constraint value. If an entry is zero, then no stepped extension applies in that direction.
• Width-based constraint values of OneDDualArrayTblValue or Dual1DTblValue specify the extension requirements for wires that are greater than or equal to a given width value. A width of 0 implies that the extensions apply to minimum width wires. Widths greater than 0 imply extensions for wide wires of the given width. Some processes define exceptions to the via enclosure constraints provided that cut shapes on the wire shapes are sufficiently close, known as redundant vias. If you specify multiple enclosure rules with different minWidth values, the largest minWidth rule that is still less than or equal to the wire width applies. The following parameters can be used with wide wire minDualExtension values to specify conditions for redundant via exceptions:
  • oaCutDistance (Value, optional) specifies that if there is a neighbor cut that is less than or equal to this distance from a cut, then the neighbor cut is considered to be a redundant via.

  The following parameters are mutually exclusive:
  • oaNoSharedEdge (BoolValue, optional) determines whether vias on a shared edge that are within oaCutDistance can be counted as redundant. If the value of this parameter is true, only cuts that are less than or equal to oaCutDistance away but not along the same wire edge are considered to be redundant. The default of this parameter is false, meaning that cuts along the same wire edge and within oaCutDistance can be counted as redundant.
  • hasParallelRunLength (BoolValue, optional) specifies that the constraint does not apply if there is a redundant cut less than or equal to oaCutDistance away with a parallel run length > 0 on the opposite edges for all failed edges of the original cut shape which do not satisfy the minimum extension requirements. The default for this parameter is false.
• parallelRunLengthWidth (BoolValue, optional), if set to true, both cuts must be covered by a maximal rectangle that maps to the same width bucket. The default for this parameter is false.


  Redundant Cut Exceptions for minDualExtension

  Redundant cut exists?	oaNoSharedEdge	hasParallelRunLength	numCuts=1	numCuts=2
  yes, <= oaCutDistance from original cut	false	false	Constraint passes and no checking is done	Constraint applies and is checked for the original cut
  no	false	false	Constraint applies and is checked for the original cut	Constraint does not apply
  yes, <= oaCutDistance from original cut with no shared edge	true	false	Constraint passes and no checking is done	Constraint applies and is checked for the original cut
  no, there is no cut <= oaCutDistance from original cut with no shared edge	true	false	Constraint applies and is checked for the original cut	Constraint does not apply
  yes, <= oaCutDistance from original cut with PRL > 0 on opposite edges for all edges of the original cut that do not satisfy zero width constraint value	false	true	Constraint passes and no checking is done	Constraint applies and is checked for the original cut against the effective width of the wire that it is touching
  no, there is no cut <= oaCutDistance from original cut with PRL > 0 on opposite edges for all edges of the original cut that do not satisfy zero width constraint value	false	true	Constraint applies and is checked for the original cut	Constraint does not apply

Examples

Example 1—minDualExtension with DualValue

This example sets ground rules for Metal1 shapes overlapping via1 and Metal2 shapes overlapping via1.

set_layerpair_constraint -layer1 Metal1 -layer2 Via1 \
 -constraint minDualExtension -hardness hard -DualValue {0.05 0.20}
set_layerpair_constraint -layer1 Metal2 -layer2 Via1 \
 -constraint minDualExtension -hardness hard -DualValue {0.10 0.10}

LAYER Via1
  ENCLOSURE ABOVE 0.10 0.10 ;
  ENCLOSURE BELOW 0.05 0.20 ;

orderedSpacings (
  ( minOppExtension "Metal2" "Via1" ( 0.10 0.10 ))
  ( minOppExtension "Metal1" "Via1" ( 0.05 0.20 ))
)

Example 2—minDualExtension with OneDDualArrayTblValue

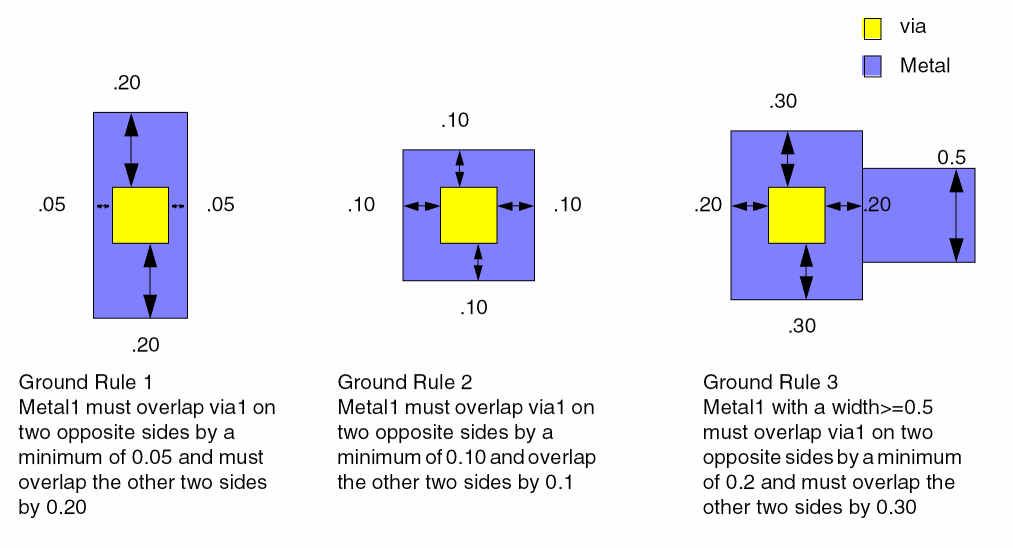

This example sets three ground rules for Metal1 shapes overlapping via1. For a Metal1 width of 0, two extension pairs are given, {0.05 0.20} and {0.10 0.10}. For Metal1 widths greater than or equal to 0.5, extensions must be 0.20 and 0.30 on opposite sides. The OneDDualArrayTblValue for this example is represented in Table .

To set the minDualExtension constraint for this example, you would use the following:

set_layerpair_constraint -layer1 Metal1 -layer2 via1 \
 -constraint minDualExtension -hardness hard -row_name width \
 -OneDDualArrayTblValue {0 2 0.05 0.20 0.10 0.10 0.5 1 0.20 0.30}

LAYER via1
ENCLOSURE BELOW 0.05 0.20 ;
ENCLOSURE BELOW 0.10 0.10 ;
ENCLOSURE BELOW 0.20 0.30 WIDTH 0.5 ;

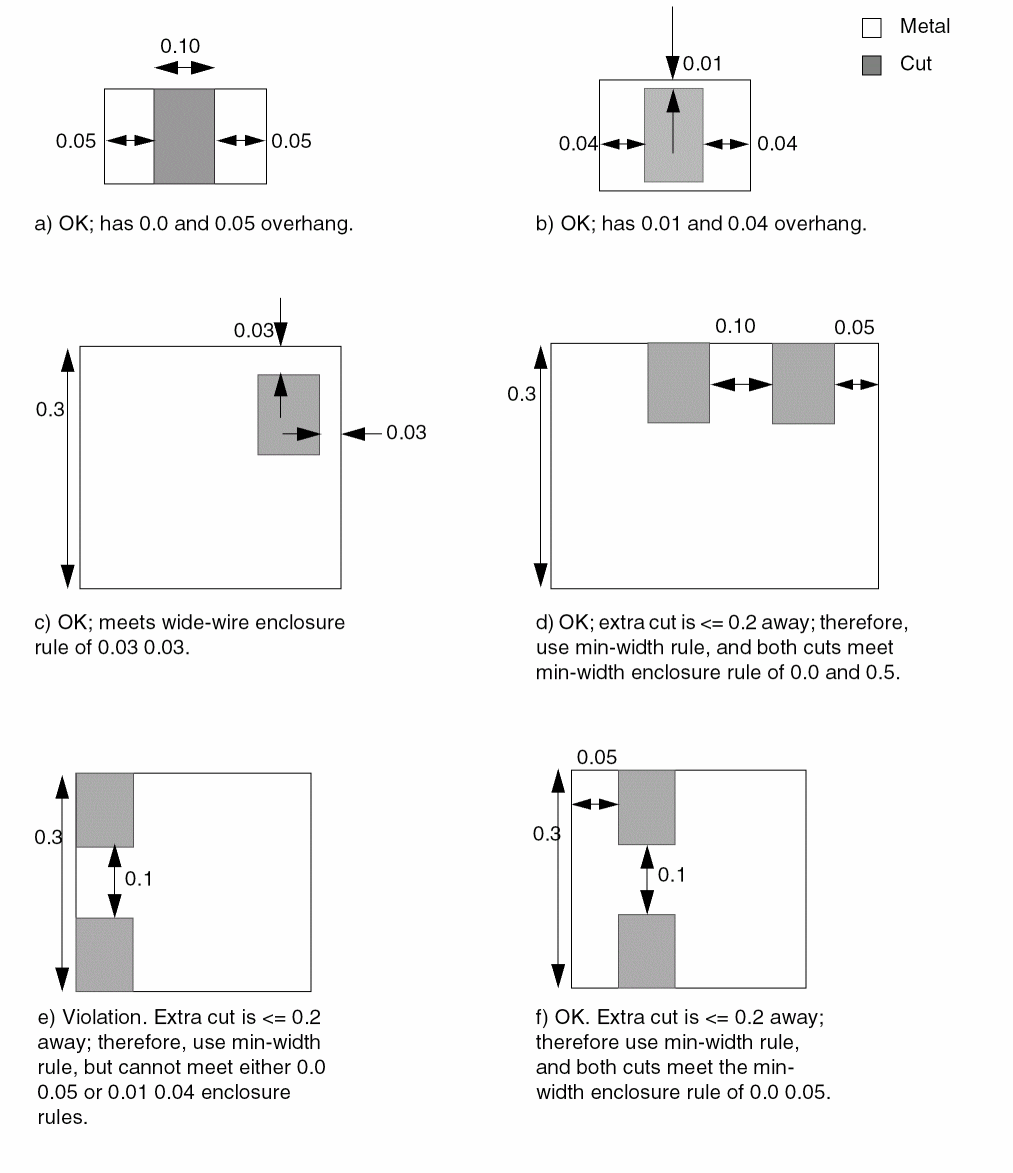

Example 3—minDualExtension with cutDistance

In this example, if the wire width is greater than or equal to 0.3 μm, then an enclosure of 0.03 μm in all directions is required except when there is a redundant cut within 0.2 μm, then a {0.0 0.05} or {0.01 0.04} enclosure is needed. Cuts along the same edge and within cutDistance can be considered to be redundant (by default, the oaNoSharedEdge parameter is false).

set_layer_constraint -constraint minWidth -layer via34 -Value 0.10
set_layer_constraint -constraint minSpacing -layer via34 -Value 0.10

create_constraint_group -name Ext34 -opType or

#minDualExtension settings for m3 layer below via34

set_layerpair_constraint -layer1 m3 -layer2 via34 \
 -create true -group Ext34 \
 -constraint minDualExtension -OneDDualArrayTblValue { \
   0   2 0.0  0.05   0.01 0.04 }

set_constraint_parameter -name numCuts -IntValue 2
set_constraint_parameter -name oaCutDistance -Value 0.2
set_layerpair_constraint -layer1 m3 -layer2 via34 \
 -create true -group Ext34 \
 -constraint minDualExtension -OneDDualArrayTblValue { \
   0.3 1 0.03 0.03}

#minDualExtension settings for m4 layer above via34

set_layerpair_constraint -layer1 m4 -layer2 via34 \
 -create true -group Ext34 \
 -constraint minDualExtension -OneDDualArrayTblValue { \
   0   2 0.0  0.05   0.01 0.04 }

set_constraint_parameter -name numCuts -IntValue 2
set_constraint_parameter -name oaCutDistance -Value 0.2
set_layerpair_constraint -layer1 m4 -layer2 via34 \
 -create true -group Ext34 \
 -constraint minDualExtension -OneDDualArrayTblValue { \
   0.3 1 0.03 0.03}

LAYER via34
TYPE CUT ;
WIDTH   0.10 ;               #minimum size of a cut
SPACING 0.10 ;               #minimum edge-to-edge spacing is 0.10
ENCLOSURE 0.0  0.05 ;        #overhang     0.0  0.05
ENCLOSURE 0.01 0.04 ;        #or, overhang 0.01 0.04
#if metal width >= 0.3, need 0.03 0.03, unless extra cut across
# wire within 0.2μm; applies to m4 and m3 layers above and below
ENCLOSURE 0.03 0.03 WIDTH 0.3 EXCEPTEXTRACUT 0.2 ;
...
END via34

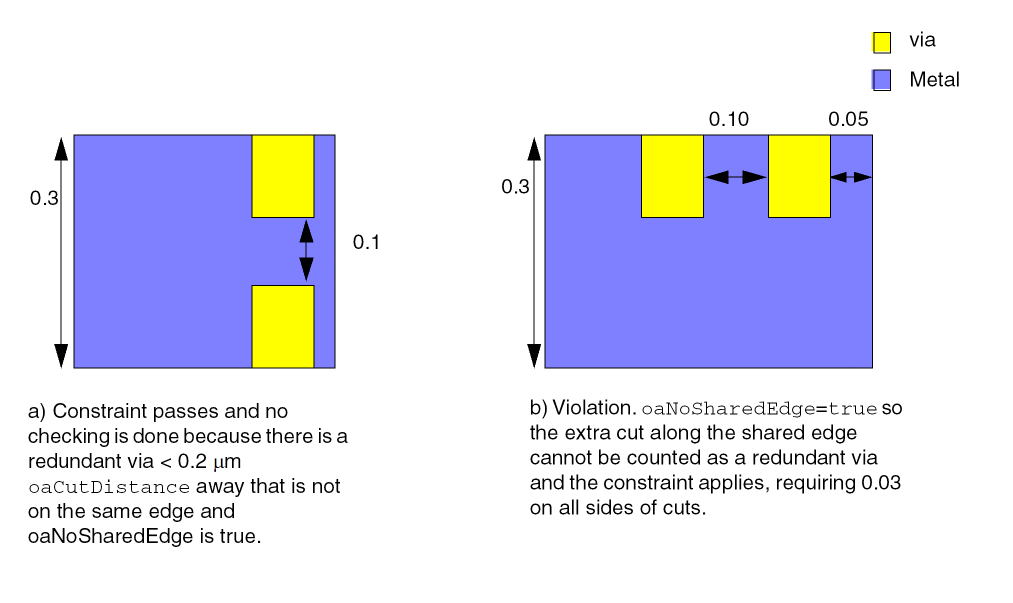

Example 4—minDualExtension with cutDistance and oaNoSharedEdge=true

In this example, if the wire width is greater than or equal to 0.3 μm, then an enclosure of 0.03 μm in all directions is required unless there is a redundant cut within 0.2 μm. In this case, via cuts that share a wire edge are not considered redundant.

set_constraint_parameter -name oaNoSharedEdge -BoolValue true
set_constraint_parameter -name cutDistance -Value 0.2
set_layerpair_constraint -layer1 Metal1 -layer2 via1 \
 -constraint minDualExtension -hardness hard -row_name width \
 -OneDDualArrayTblValue {0.3 1 0.03 0.03}

PROPERTY LEF58_ENCLOSURE
"ENCLOSURE BELOW 0.03 0.03
  WIDTH 0.3 EXCEPTEXTRACUT 0.2 NOSHAREDEDGE ;" ;

Example 5—minDualExtension with hasParallelRunLength Parameter

In this example, one of the following conditions must be satisfied:

• A {0.03 0.03} enclosure applies for wires >= 0.3 μm wide except when there is a redundant via on the opposite edge within cutDistance that has a common parallel run length on > 0.
• Minimum width wires must have {0.0 0.05} or {0.02 0.02} enclosures.


  Format	Example
  Tcl	create_constraint_group -name Ext34 -opType or #minDualExtension settings for m3 layer below via34 set_layerpair_constraint -layer1 m3 -layer2 via34 \ -create true -group Ext34 \ -constraint minDualExtension -OneDDualArrayTblValue { \ 0 2 0.0 0.05 0.02 0.02 } set_constraint_parameter -name oaCutDistance -Value 0.2 set_constraint_parameter -name hasParallelRunLength -BoolValue true set_layerpair_constraint -layer1 m3 -layer2 via34 \ -create true -group Ext34 \ -constraint minDualExtension -OneDDualArrayTblValue { \ 0.3 1 0.03 0.03} #minDualExtension settings for m4 layer above via34 set_layerpair_constraint -layer1 m4 -layer2 via34 \ -create true -group Ext34 \ -constraint minDualExtension -OneDDualArrayTblValue { \ 0 2 0.0 0.05 0.02 0.02 } set_constraint_parameter -name oaCutDistance -Value 0.2 set_constraint_parameter -name hasParallelRunLength -BoolValue true set_layerpair_constraint -layer1 m4 -layer2 via34 \ -create true -group Ext34 \ -constraint minDualExtension -OneDDualArrayTblValue { \ 0.3 1 0.03 0.03}
  LEF	PROPERTY LEF58_ENCLOSURE "ENCLOSURE 0.0 0.05 ; #overhang 0.0 0.05 ENCLOSURE 0.02 0.02 ; #or overhang 0.02 0.02 ENCLOSURE 0.03 0.03 WIDTH 0.3 EXCEPTEXTRACUT 0.2 PRL ;" ;

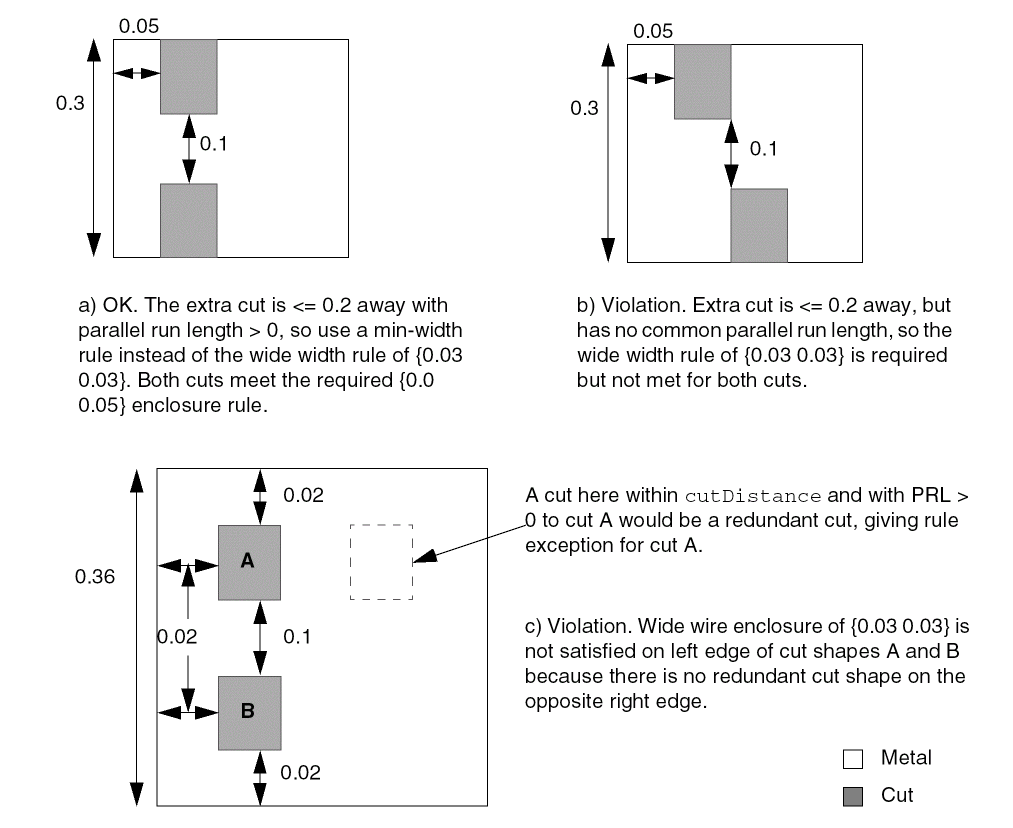

  Illustrations for minDualExtension with hasParallelRunLength Example


Example 6— minDualExtension with length and width Parameters

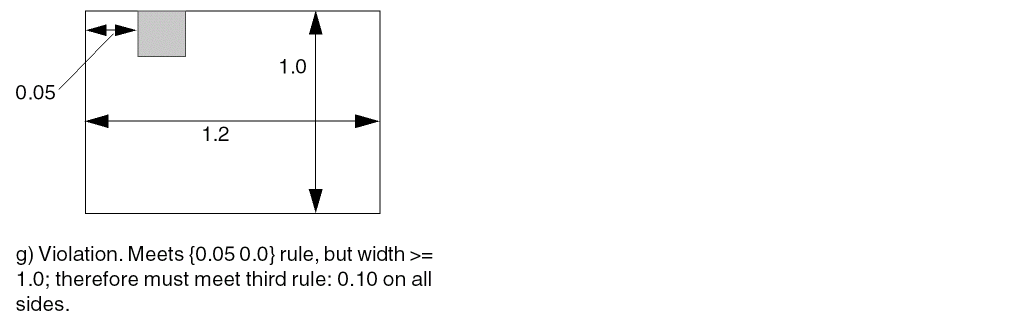

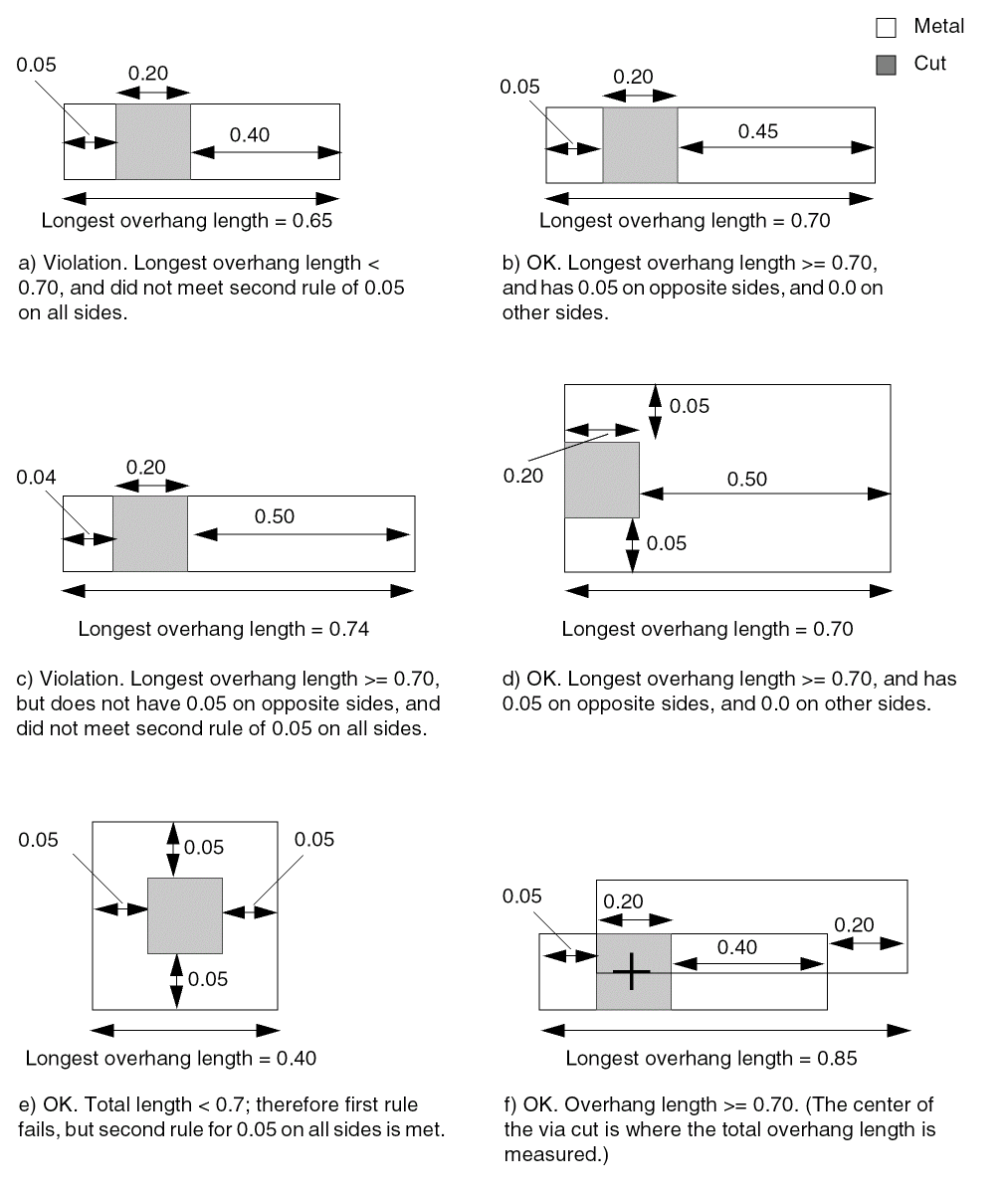

This example defines a cut layer that requires an enclosure of 0.05 μm on opposite sides and 0.0 μm on the other two sides, as long as the total length enclosure on any two opposite sides is greater than or equal to 0.7 μm. Otherwise, it requires 0.05 μm on all sides if the total enclosure length is less than or equal to 0.7 μm. It also requires 0.10 μm on all sides if the metal layer has a width that is greater than or equal to 1.0 μm. The following figure illustrates examples of violations and acceptable vias for the minDualExtension values)

set_layer_constraint -constraint minWidth -layer via34 -Value 0.20
set_layer_constraint -constraint minSpacing -layer via34 -Value 0.20

create_constraint_group -name Ext34 -opType or

# minDualExtension settings for m3 metal below via34 layer

set_constraint_parameter -name length -Value 0.7
set_layerpair_constraint -layer1 m3 -layer2 via34 \
 -create true -group Ext34 \
 -constraint minDualExtension -DualValue {0.05 0.0}

set_layerpair_constraint -layer1 m3 -layer2 via34 \
 -create true -group Ext34 \
 -constraint minDualExtension -OneDDualArrayTblValue { \
   0   1 0.05 0.05 \
   1.0 1 0.1  0.1}

# minDualExtension settings for m4 metal above via34 layer

set_constraint_parameter -name length -Value 0.7
set_layerpair_constraint -layer1 m4 -layer2 via34 \
 -create true -group Ext34 \
 -constraint minDualExtension -DualValue {0.05 0.0}

set_layerpair_constraint -layer1 m4 -layer2 via34 \
 -create true -group Ext34 \
 -constraint minDualExtension -OneDDualArrayTblValue { \
   0   1 0.05 0.05 \
   1.0 1 0.1  0.1}

LAYER via34
TYPE CUT ;
WIDTH 0.20 ;                    #cuts .20 x .20 squares
SPACING 0.20 ;                  #via34 edge-to-edge spacing is 0.20
ENCLOSURE 0.05 0.0 LENGTH 0.7 ; #overhang 0.05 0.0 if total >= 0.7
ENCLOSURE 0.05 0.05 ;           #or, overhang 0.05 on all sides
ENCLOSURE 0.10 0.10 WIDTH 1.0 ; #if width >= 1.0, always need 0.10
...
END via34

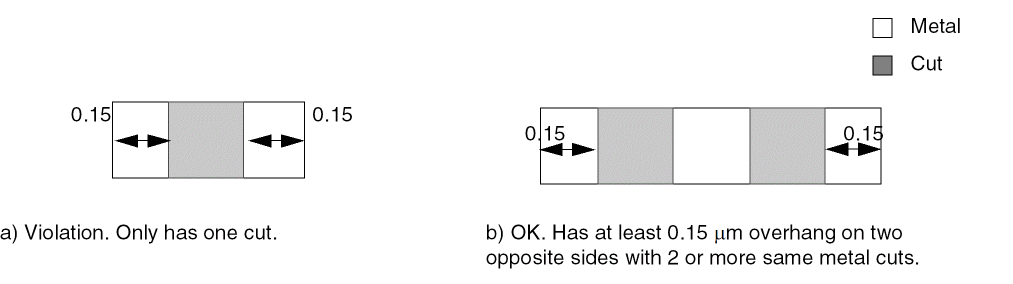

Example 7— minDualExtension with numCuts

In this example, VA vias with two or more same metal cuts must have 0.15 μm overhang on any two opposite sides of the routing layers. Otherwise, VA vias with only one cut must have an overhang of 0.20 μm on any two opposite sides of the routing layers.

create_constraint_group -name Ext34 -opType and

# minDualExtension settings for m3 metal below via34 layer

set_constraint_parameter -name cutClass -DualValue {0.5 0.3}
set_layerpair_constraint -layer1 m3 -layer2 via34 \
 -create true -group Ext34 \
 -constraint minDualExtension -DualValue {0.000 0.20}

# smaller extension required if there is an extra same metal cut

set_constraint_parameter -name cutClass -DualValue {0.5 0.3}
set_constraint_parameter -name numCuts -IntValue 2
set_layerpair_constraint -layer1 m3 -layer2 via34 \
 -create true -group Ext34 \
 -constraint minDualExtension -DualValue {0.000 0.15}

# minDualExtension settings for m4 metal above via34 layer

set_constraint_parameter -name cutClass -DualValue {0.5 0.3}
set_layerpair_constraint -layer1 m4 -layer2 via34 \
 -create true -group Ext34 \
 -constraint minDualExtension -DualValue {0.000 0.20}

# smaller extension required if there is an extra same metal cut

set_constraint_parameter -name cutClass -DualValue {0.5 0.3}
set_constraint_parameter -name numCuts -IntValue 2
set_layerpair_constraint -layer1 m4 -layer2 via34 \
 -create true -group Ext34 \
 -constraint minDualExtension -DualValue {0.000 0.15}

PROPERTY LEF58_ENCLOSURE
"ENCLOSURE CUTCLASS VA 0.000 0.20 ;
 ENCLOSURE CUTCLASS VA 0.000 0.15 EXTRACUT ; " ;

Example 8— minDualExtension with redundantCutDistance

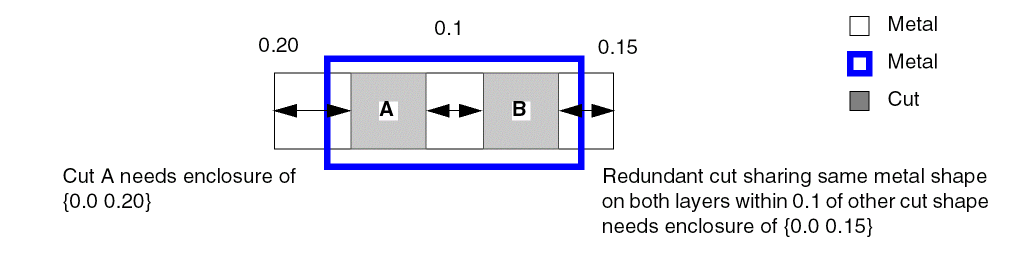

In this example, if there is a redundant cut < 0.10 μm from a cut that has a {0.0 0.20} enclosure, then the redundant cut must have a {0.0 0.15} enclosure.

create_constraint_group -name Ext34 -opType and

# minDualExtension settings for m3 metal below via34 layer

set_layerpair_constraint -layer1 m3 -layer2 via34 \
 -create true -group Ext34 \
 -constraint minDualExtension -DualValue {0.000 0.20}

# specify the redundantCutDistance and enclosures

set_constraint_parameter -name redundantCutDistance -Value 0.1
set_layerpair_constraint -layer1 m3 -layer2 via34 \
 -create true -group Ext34 \
 -constraint minDualExtension -DualValue {0.000 0.15}

# minDualExtension settings for m4 metal above via34 layer

set_layerpair_constraint -layer1 m4 -layer2 via34 \
 -create true -group Ext34 \
 -constraint minDualExtension -DualValue {0.000 0.20}

# specify the redundantCutDistance and enclosures

set_constraint_parameter -name redundantCutDistance -Value 0.1
set_layerpair_constraint -layer1 m4 -layer2 via34 \
 -create true -group Ext34 \
 -constraint minDualExtension -DualValue {0.000 0.15}

PROPERTY LEF58_ENCLOSURE
"ENCLOSURE 0.00 0.20 ;        #overhang     0.0  0.20
 ENCLOSURE 0.00 0.15 REDUNDANTCUT 0.1; " ;

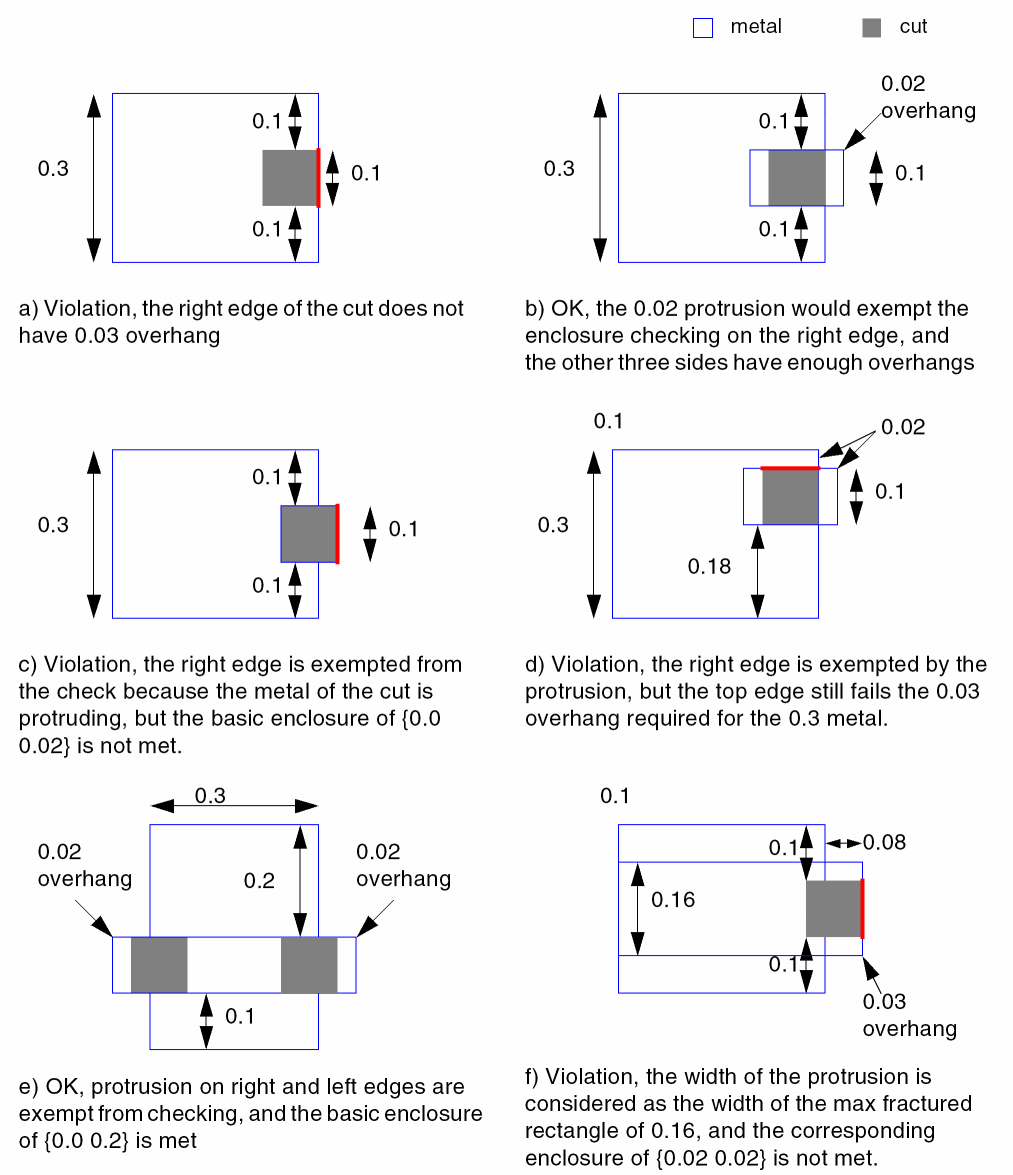

Example 9— minDualExtension with exceptCutMetalEdgeExtension

In this example, if a metal shape of a cut via protrudes on a certain side of the wide wire, then the enclosure is not checked on that side. In addition, the enclosure based on the width of the protrusion must also be checked against the cut.

• For a cut in a wire of any width, the enclosure must be 0.00 μm on two opposite sides and 0.02 μm on the other two opposite sides.
• For a cut in wire with width greater than or equal to 0.15 μm and less than 0.3 μm, 0.02 μm overhang on four sides is needed.
• For a cut in wire with width greater than or equal to 0.3 μm, 0.03 μm overhang on four sides is needed.


  Format	Example
  Tcl	set_constraint_parameter -name exceptCutMetalEdgeExtension \ -BoolValue true set_layerpair_constraint -layer1 v1 -layer2 m1 \ -constraint minDualExtension \ # width # ext1 ext2 -OneDDualArrayTblValue {0 1 0.00 0.02 0.15 1 0.02 0.02 0.30 1 0.03 0.03}
  LEF	PROPERTY LEF58_ENCLOSUREWIDTH "ENCLOSUREWIDTH VIAOVERLAPONLY ;" ENCLOSURE 0.00 0.02 ; ENCLOSURE 0.02 0.02 WIDTH 0.15 ; ENCLOSURE 0.03 0.03 WIDTH 0.3  ;

  Illustration for minDualExtension with exceptCutMetalEdgeExtension Example


Example 10—minDualExtension with offCenterline and endSideOverhang

In this example, there must be short/end extensions of 0.05 μm and long side extensions of 0.03 μm for Metal1 shapes beyond VxBAR cut class vias (0.02 x 0.04) on V1. The constraint applies only when the cut does not intersect with the centerline of the Metal1 shape that is equal to 0.15 μm wide.

set_constraint_parameter -name offCenterline   -BoolValue true
set_constraint_parameter -name endSideOverhang -BoolValue true
set_constraint_parameter -name cutClass -DualValue { 0.02 0.04}
set_layerpair_constraint -layer1 V1 -layer2 Metal1 \
 -constraint minDualExtension
#                     width  # ext1 ext2
-OneDDualArrayTblValue {0.15 1 0.05 0.03}

ENCLOSURE CUTCLASS VXBAR OFFCENTERLINE
  END 0.05 SIDE 0.03 WIDTH 0.15

spacingTables(
(minOppExtension "V1" "Metal1"
 (( "width" nil nil )
 'offCenterline
 'cutclass (0.02 0.04)
 'endSide )
 ( 0.15 ( (0.05 0.03) )
 ) )
) ;spacingTables

Example 11—minDualExtension with oaSpacingDirection and stepSizePair

Specifies that the vertical extensions for Metal2 shapes beyond V1 shapes must be greater than or equal to 0.1user units and the horizontal extensions must be greater than or equal to 0.2 user units. If greater than the minimum extension value, vertical extensions must be 0.1 plus an integer multiple of 0.04. The horizontal extensions have no step size restriction.

set_constraint_parameter -name oaSpacingDirection -IntValue 2
set_constraint_parameter -name stepSizepair -DualValue {0.04 0}
set_layerpair_constraint -constraint minDualExtension \
  -layer1 Metal2 -layer2 V1 -DualValue {0.1 0.2}

Related Topics

Extension Constraints

check_extension
