Checking Connectivity Using Batch Checker

The connectivity verification can be limited to specific set of violation checking. You can check for the following:

• Current cellview
• A selected set of nets
• Exclude selected nets
• Loops and dangling wires
• Exclude power and ground nets

To perform connectivity check on a design:

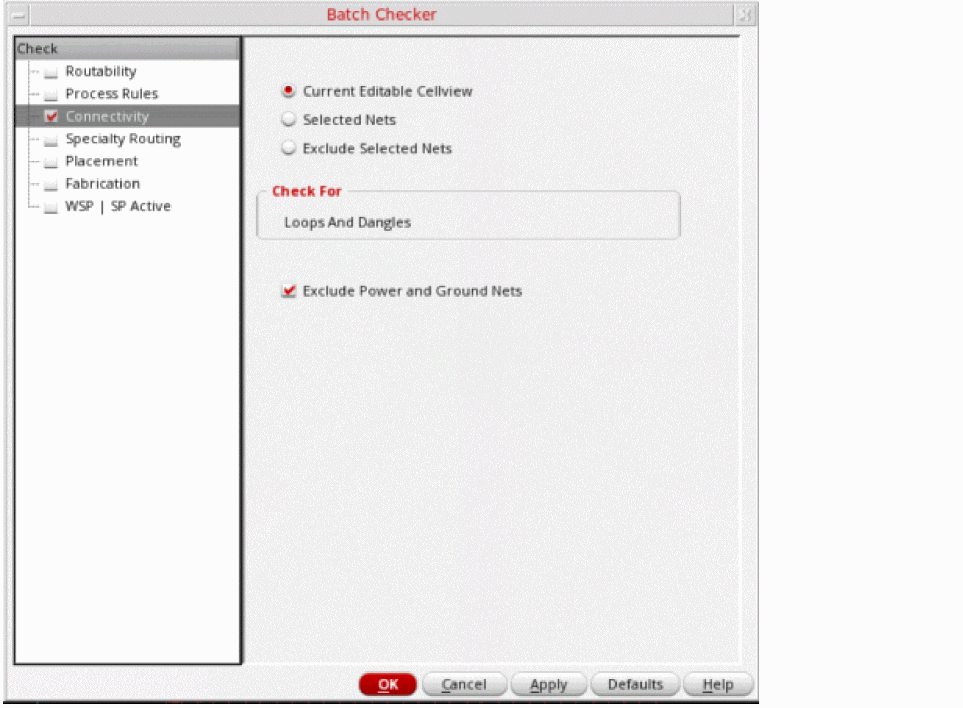

1. Select the Connectivity option. The connectivity checks are displayed in the right panel of the form as shown in the following figure.


2. From the Scope group box, select:
   • Current Editable Cellview
     Checks the current cellview.
   • Selected Net
     Checks only the nets that you currently have selected.
   • Exclude Selected Nets
     Checks all the nets except those selected.
3. The Check For group box checks for the dangling wires and wires with loops.
4. The Filter Options group box allows you to choose whether or not to check cellview for shorts and opens that involve power and ground nets.
