PSP-Based MOS Varactor Model (mosvar)
The PSP-based varactor model is intended for analog and radio-frequency circuit design. It includes dynamic inversion, finite poly doping, quantum mechanics, gate tunneling for different polarity combinations, and parasitics to model advanced MOS technologies.
Device Structure

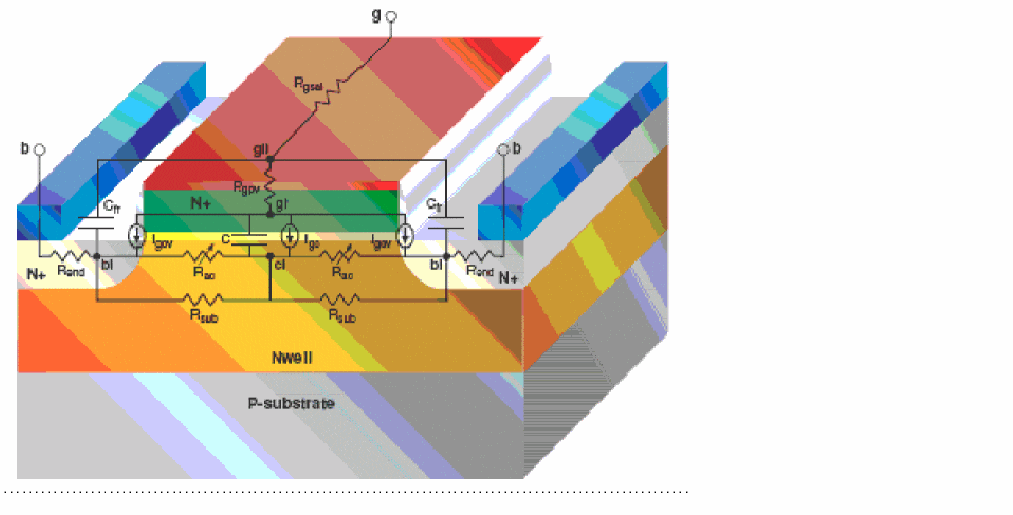

The following figure shows a cross section of the standard MOS varactor offered in the current MOS technologies with its equivalent circuit model overlapped on it. g, bi and b are the external terminals while gii, gi and ci are the internal nodes.
The following table explains the meanings of the symbols in the above figure.
| No. | Name | Description |
|---|---|---|
