Calculator Functions

This chapter describes the functions in the function panel for the SKILL mode. The following function categories are available in the SKILL mode:

Basic Steps For Running Calculator Functions

You need to perform the following steps in Virtuoso Visualization and Analysis XL to run the Calculator functions:

  1. Open the results database in the Results Browser window. For information about how to open and access result databases in Results Browser, see Opening a Results Directory.
  2. Right-click the signal you want to use as an input to the function and choose Calculator. Alternatively, you can plot the signal in the graph window and then send the plotted signal from graph to Calculator.
  3. The expression for the selected signal is displayed in the Buffer. This signal expression can then be used as an input signal while running the functions. For some functions, you need to input more than one signals. In this case, you can use Stack to store the signals. For information about how to use Stack, see Stack.
  4. Now, open the Function Panel and select the signal you want to run. For more information about how to use the Function Panel, see Function Panel.
  5. If the function includes argument fields, a form appears in Function Panel where you can provide the argument values. By default, the default values are populated in the argument fields. If signal does not require arguments, it is directly applied to the signal expression in the Buffer.
  6. Click OK. The expression for the function is displayed in the Buffer.
  7. Set the output plotting mode from the Plotting Mode drop-down on the Selection toolbar.
  8. Then, click the Evaluate Buffer icon .

If the result is a scalar value, it will be displayed in the Buffer. If the result is a waveform, it is plotted in the graph window in the specified plotted mode.

If you provide a digital logic signal as input in some Calculator functions, then upon evaluation, these functions return a value 5 to represent logic 1 signal and a value 0 to represent logic 0 signal. These values are hardcoded because it is not feasible to find out an analog value corresponding to a digtial logic value.

The affected functions include: clip, clipX, convolve, deriv, dft, dftbb, flip, frequency, gainMargin, iinteg, imag, integ, lshift, overshoot, phaseMargin, psd, psdbb, riseTime, root, settlingTime, slewRate, stddev, xmax, xmin, xval, ymax, and ymin.

When a Calculator function includes two input signal arguments, the first signal field in the function UI displays the content of the Buffer and the second signal field displays the first item on the Stack. Some examples of such functions are—compare, delay, intersect, dftbb, and so on.

Performing Floating-Point Comparison

A floating-point comparison function is used in many Calculator functions to find whether two floating-point values are equal within a relative tolerance limit. These functions include clip, value, leafValue and Set Sweep Range form in Result Browser.

When performing floating-point comparison, the equality between two doubles is determined by the following rules:

Using Unary Minus Operator

A unary minus operator takes precedence over the minus operator. The following expressions show how these operators are used in the SKILL code:

For example, if you write two expressions, VT(net1) and -VT(net2), they are treated as two different elements in SKILL.

Using Division Operator in the Expression for a Calculator Function

If you use the division operator in the expression for a calculator function, the expression returns nil, if the following conditions are met:

For example, the expression 1/100M returns 0 because the denominator (100M) contains the engineering suffix ‘M’ and the value of the denominator is less than 2G. Also, the value of numerator (1) is less than the value of the denominator (100M).

It is because of the integer division, that is, when you divide an integer by another integer, you get an integer as a result, not a floating-point number.

To get the desired result, you must change the expression to either 1.0/100M or 1/100.0M.

Special Functions

This section describes the following special functions available in the Virtuoso Visualization and Analysis XL Calculator:

aaSP

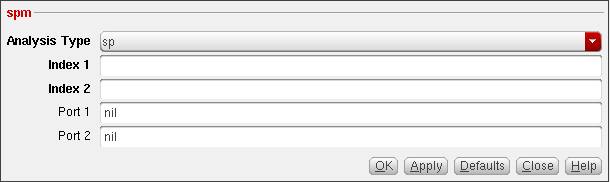

Plots the S-Parameter waveform for a multi-port network. S-Parameters describe the input-output relationship between two ports in a multi-port network. Generally, S-parameters vary with frequency.

This function includes the following arguments:

Example

The following example plots the s78 parameter waveform, which is the response at port 7 due to a signal at port 8.

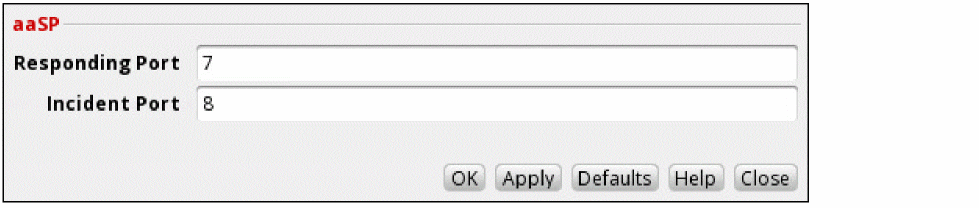

Specify the following arguments:

Before using this function, you need to set the results database context to the results database that contains the S-parameter data file. For more information about how to change the in-context results directory, see Setting the In-Context Results Directory.

The following expression is created in the Buffer:

aaSP(7 8 )

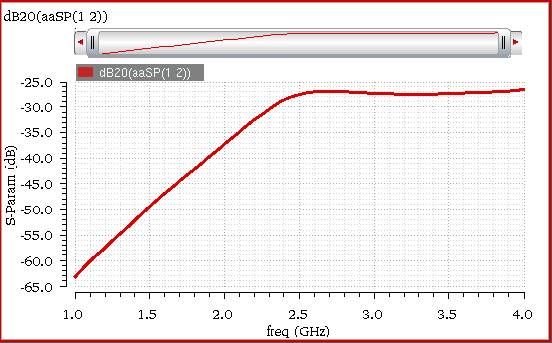

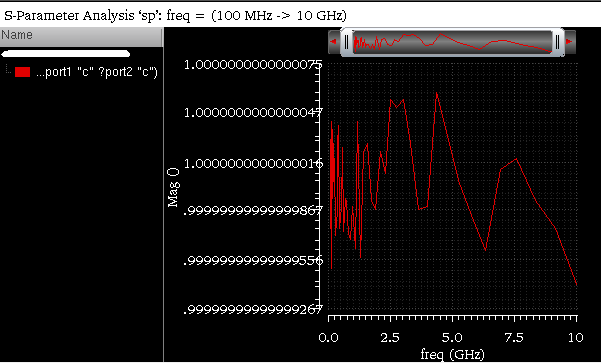

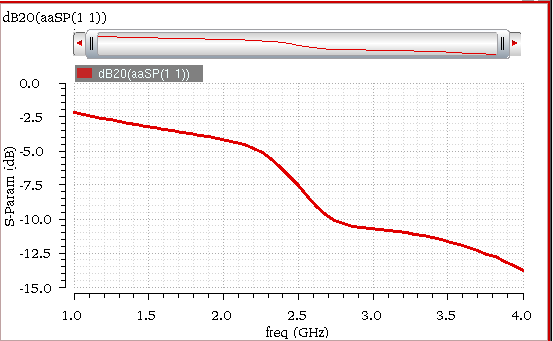

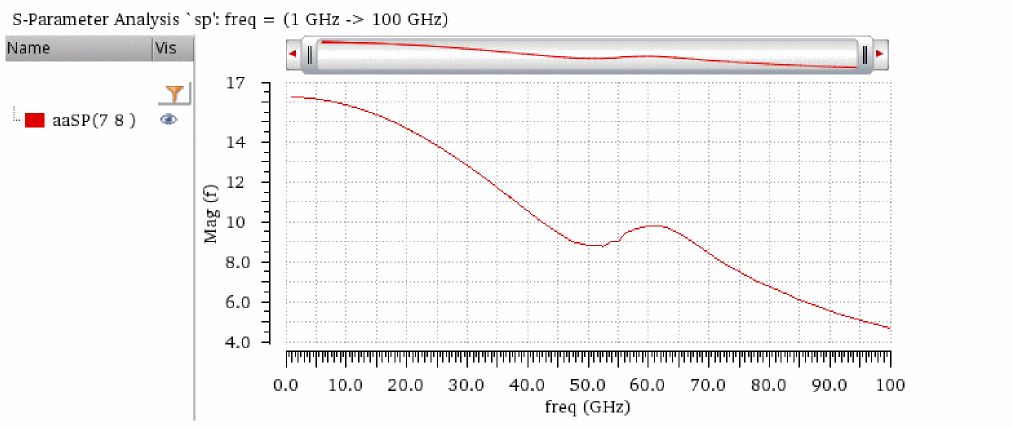

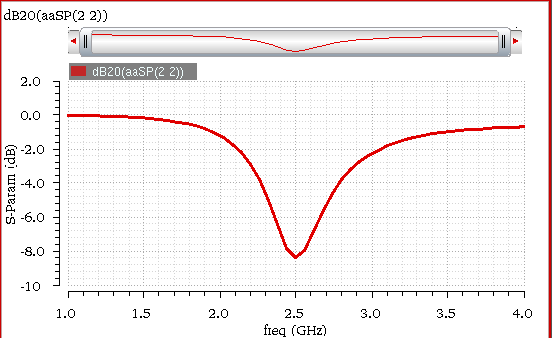

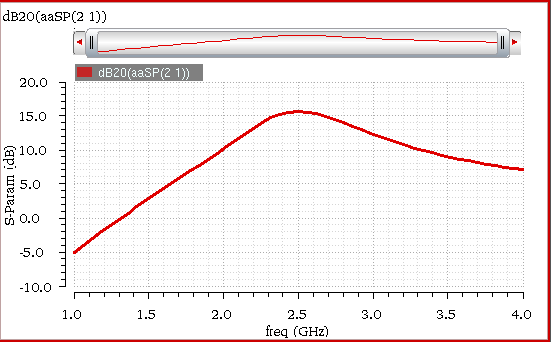

When you evaluate this expression, the function returns the following S-parameter waveform, which displays the variation of amplitude versus frequency.

analog2Digital

Returns the digital form of an analog input waveform, which may be a scalar, list or family of waveforms or a string representation of expressions. The corresponding SKILL command name for this function is awvAnalog2Digital.

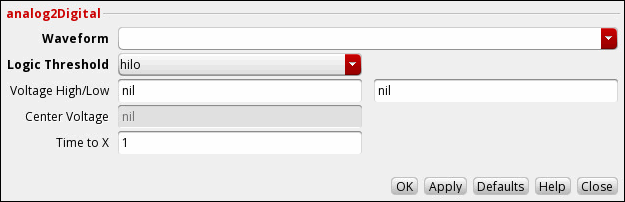

This function includes the following arguments:

Example 1

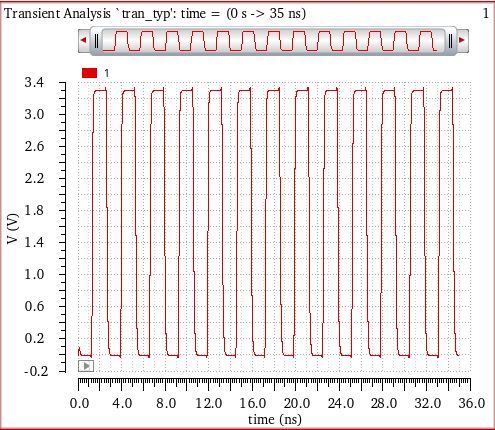

Consider the following input signal:

The analog2Digital function is applied on this input signal with the following arguments:

The corresponding expression created in the Buffer is as follows:

analog2Digital(v("clk" ?result "tran" ?resultsDir "./mixed/test/adc_8bit.raw")  "hilo" ?vHigh 1.78 ?vLow 0.2 ?timeX 1n)

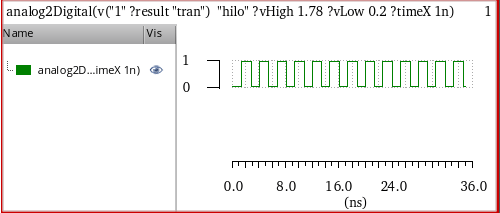

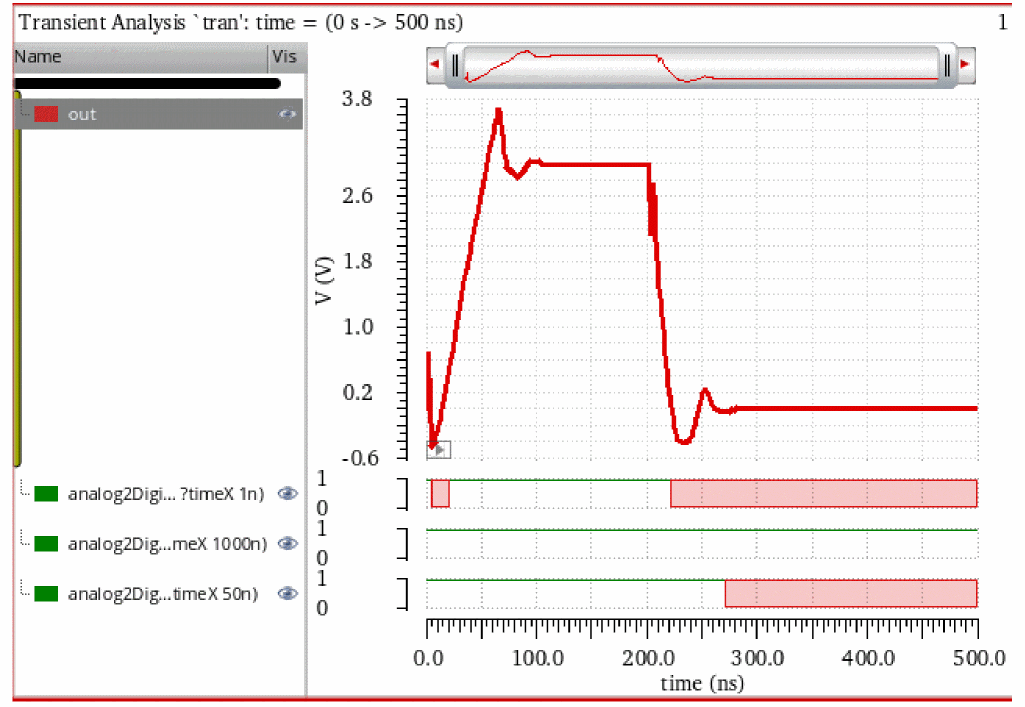

When you evaluate this expression and plot the results in the append mode, the given analog signal is converted into a digital signal as shown in the figure below.

Example 2

This example shows the output waveform generated when the Logic Threshold is hilo, but no voltage high and voltage low values are specified. The following expression is created in the Buffer:

analog2Digital(v("1" ?result "tran")  "hilo" ?vHigh nil ?vLow nil ?timeX 1)

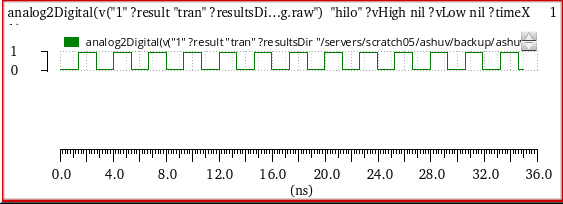

When you evaluate this expression, the following output waveform is generated.

Example 3

This example shows the output waveform generated when the Logic Threshold is center, but no center voltage value is specified. The following expression is created in the Buffer:

analog2Digital(v("1" ?result "tran")  "centre" ?vCentre nil ?timeX 1)

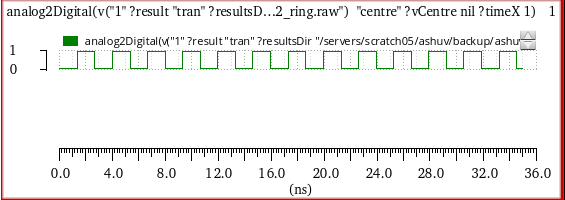

When you evaluate this expression, the following output waveform is generated.

Example 4

This example shows how the logix X of the generated digital waveform changes when you change the Time to X value. Consider the following waveform from a transient analysis. Run the analog2Digital function with Voltage High/Low=250mV and 1.0308, and Time to X=1ns,1000ns and 50ns, respectively.

Digital waveforms that are generated when you run the analog2Digital function for the given values of Time to X are displayed in the figure above.

Related OCEAN Function

The equivalent OCEAN command for analog2Digital is:

analog2Digital(
o_wave
t_thresholdType
[ ?vhi n_vhi ]
[ ?vlo n_vlo ]
[ ?vc n_vc ]
[ ?timeX n_timex ]
)
=> o_digWave / n_digval / nil

For more information, see analog2Digital in OCEAN Reference.

abs_jitter

Returns a waveform that contains the absolute jitter values in the input waveform for the given threshold. The output waveform can be expressed in degrees, radians, or unit intervals (UI). The absolute jitter can be plotted as a function of cycle number, crossing time, or reference clock time.

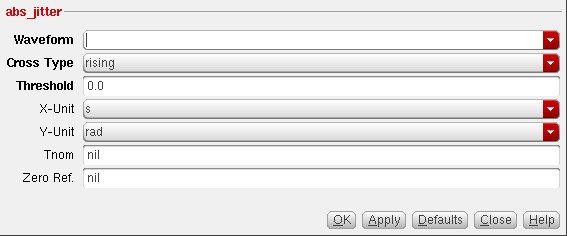

The function is available only in the SKILL mode and includes the following fields:

Additional Information

The absolute jitter can be defined as follows:

For a given waveform with the following properties:

The absolute jitter for the waveform can be defined as:

The period jitter of the waveform can be defined as:

The jitter can be expressed in units of time (seconds) or in units of phase (radians or unit intervals). These values can be converted by using the following formula:

Example

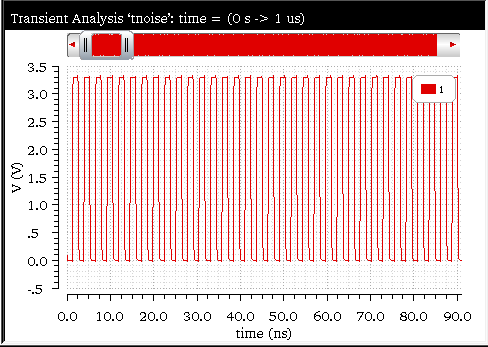

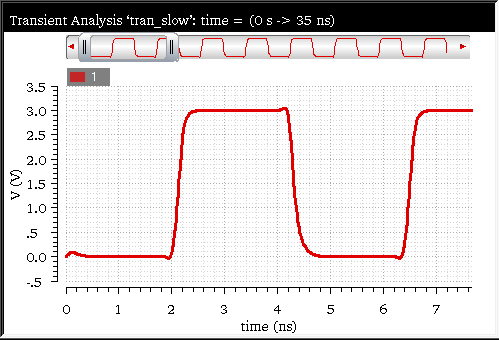

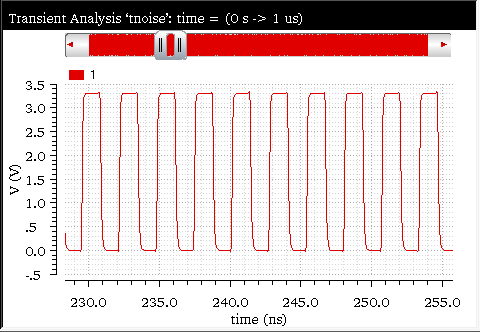

Consider the following input waveform:

The abs_jitter function is applied to this waveform with the following arguments:

The expression created in the Buffer is as follows:

abs_jitter(v("1" ?result "tran" ?resultsDir “nand2_ring_tnoise.raw”) "rising" 1.5)

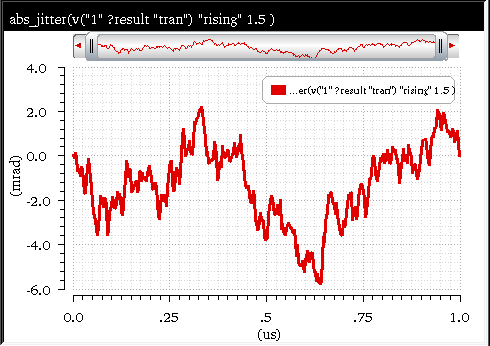

When you evaluate this expression, the following output waveform showing the absolute jitter values is displayed in the new graph window:

Related OCEAN Function

The equivalent OCEAN command for abs_jitter is:

abs_jitter(o_waveform t_crossType n_threshold
?xUnit t_xUnit ?yUnit t_yUnit ?Tnom n_Tnom)
=> o_waveform/nil

For more information, see abs_jitter in OCEAN Reference.

average

Computes the average of a waveform over its entire range.

This function can be applied to both scalar and vector inputs.

If y=f(x):

For a continuous signal, the average is calculated as the integral of the expression f(x) over the range of x, divided by the range of x.

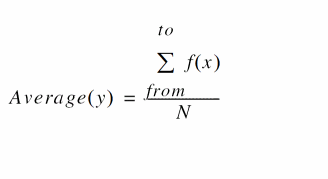

For a discrete signal, the average is calculated by dividing the sum of all y values by the total number of data points.

where, from is the initial value for x and to is the final value of x, and N is the total number of data points.

You need not explicitly specify the from and to values when calculating the average amplitude of a waveform using the average function because the function takes the length of the entire waveform.

If you want to calculate the average only for a part of a waveform, you can first use the clip function to specify the from and to values, and then apply the average function on the clipped part of the waveform.

clip(v("out" ?result "tran-tran") 100n 400n )
average(clip(v("out" ?result "tran-tran" ) 100n 400n ))

Where, v("out" ?result "tran-tran") is the waveform of the signal, and 100n and 400n are the from and to values, respectively.

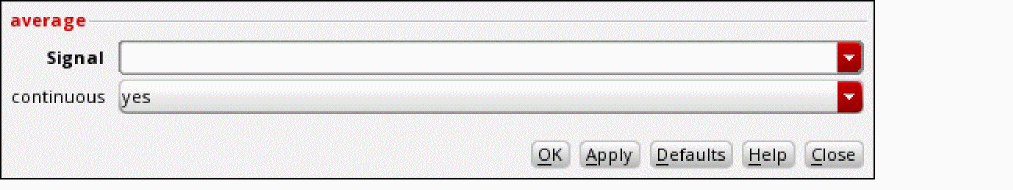

This function includes the following arguments:

Additional Information

When you use the average function to create expressions that are to be measured across corners, the function includes an additional argument, overall. The expression created is as follows:

average(v("out" ?results “tran”) ?overall t)

When the overall argument is set to t, it performs the calculation on the results of corner simulations for each design point that are treated as discrete values for evaluation. When set to nil, it creates a waveform from the data points and then calculates the average value of the waveform. If the input is a scalar and the overall argument is set to t, the ymax function returns the input scalar value.

Example (continuous = yes)

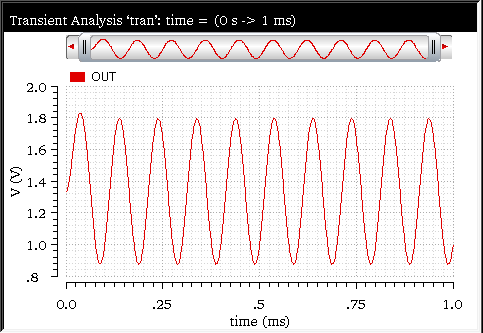

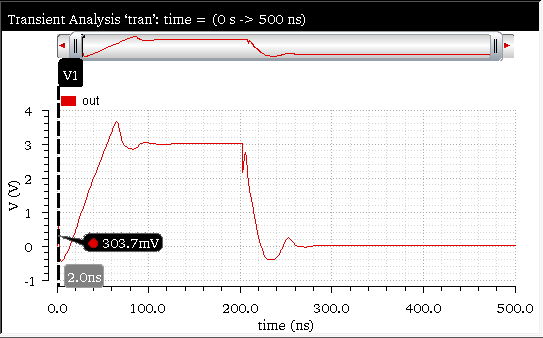

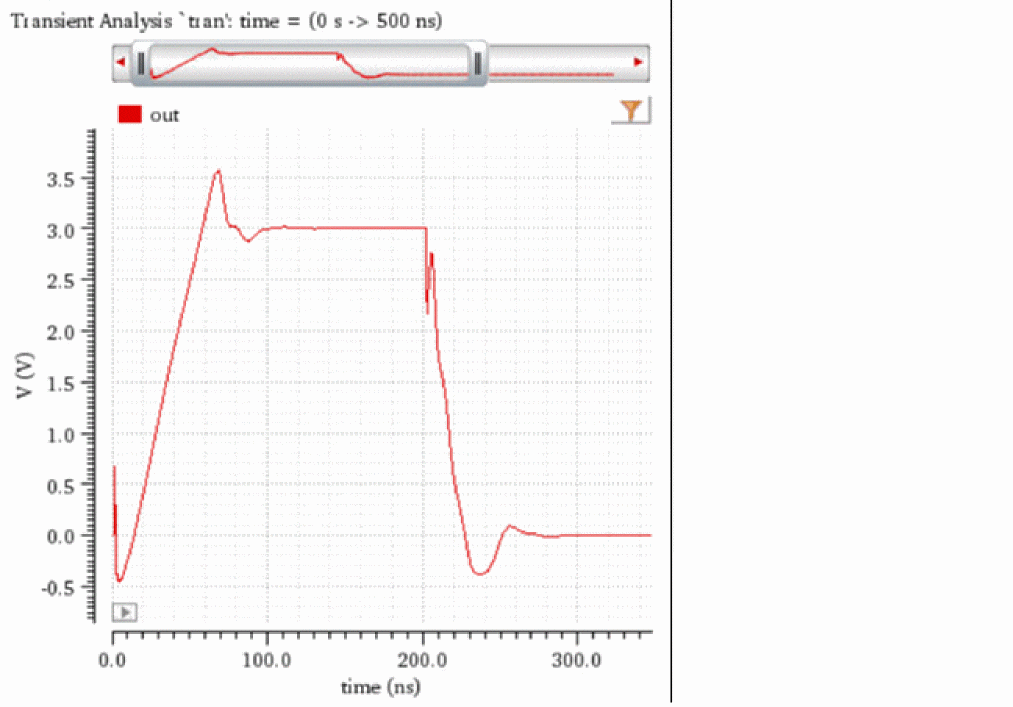

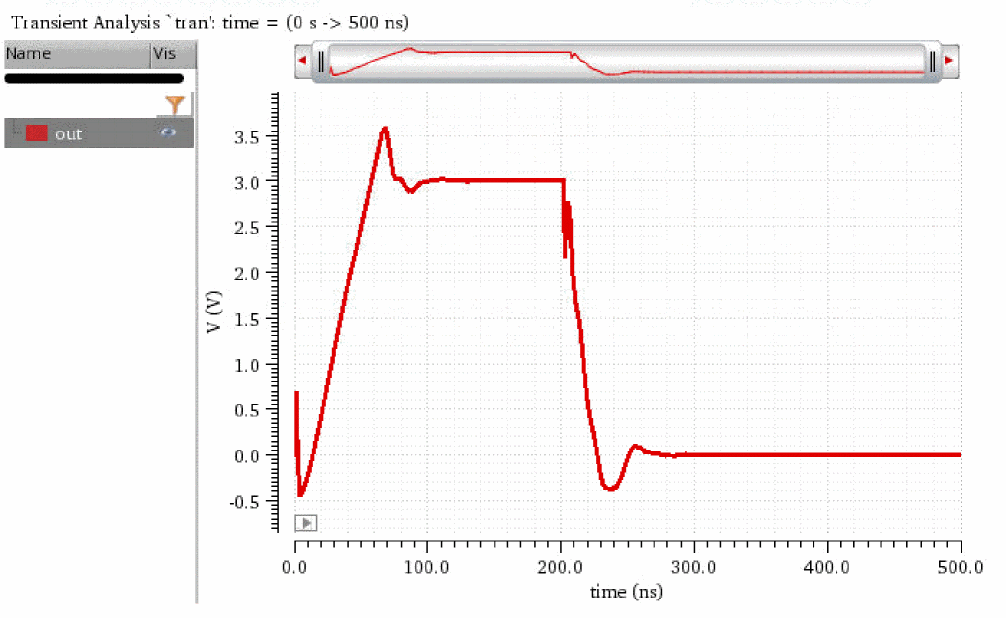

This example shows how the average amplitude is calculated when you apply the average function on the following input signal:

The following arguments are specified in this example:

When you apply the average function on this signal, the following expression is created in the Buffer:

average(v("out" ?result "tran-tran"))

Now, when you evaluate this expression, the following output is displayed in the Buffer:

Note that the average amplitude of the signal is calculated over its entire range (entire length of the waveform), that is from 0–500ns.

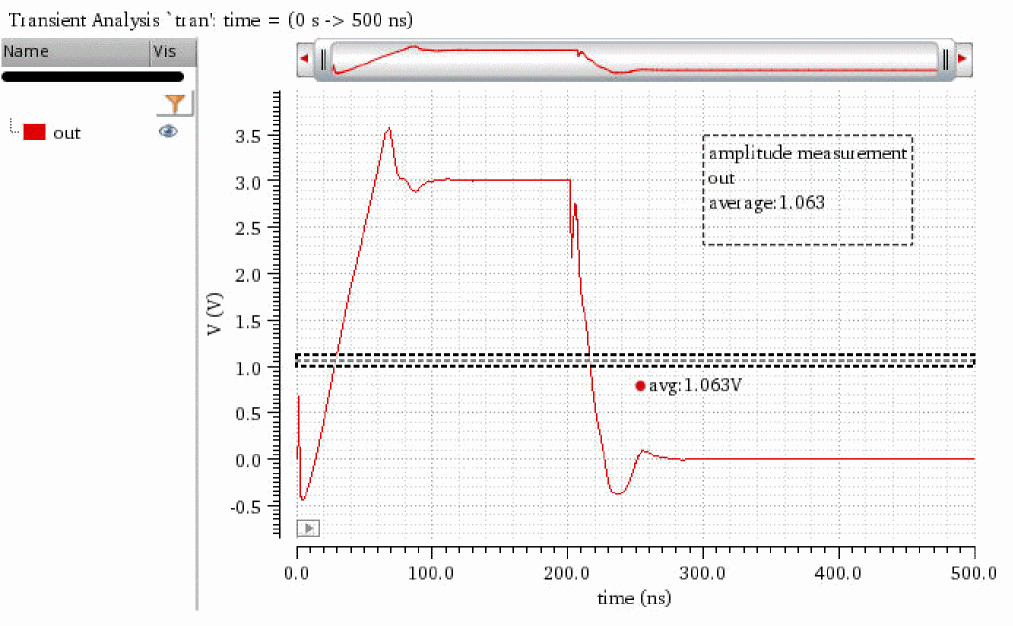

You can also use the Amplitude tab of the Direct Measurements assistant to calculate and annotate the average level of the signal.

For more information, refer to Specifying the Measurement Region and Measuring the Amplitude of a Signal.

Example (continuous = no)

This example shows how the average amplitude is calculated when you apply the average function on the following input signal:

The following arguments are specified in this example:

When you apply the average function on this signal, the following expression is created in the Buffer:

average(v("out" ?result "tran-tran")?continuous nil)

Now, when you evaluate this expression, the following output is displayed in the Buffer:

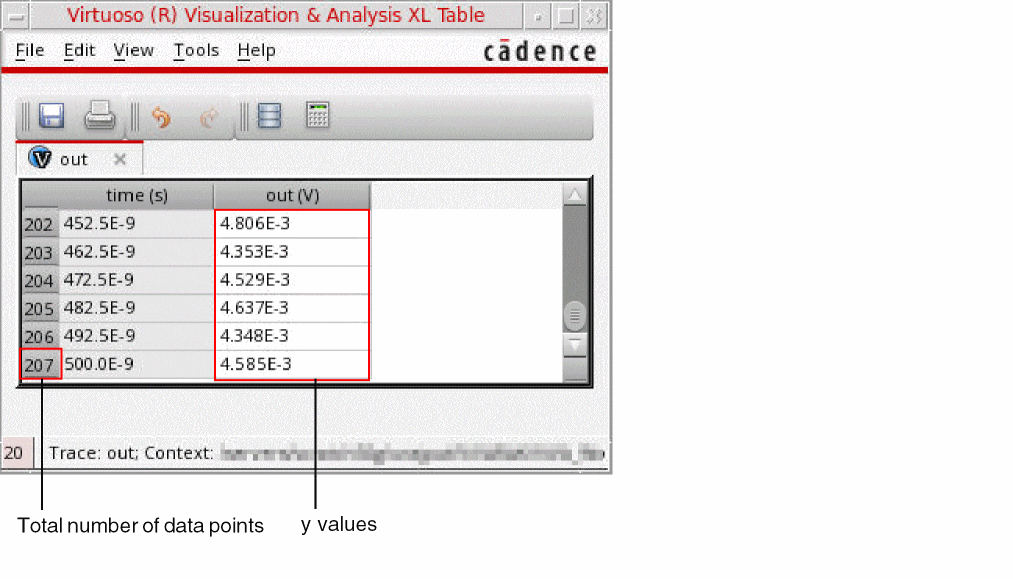

If you send this signal to Virtuoso Visualization and Analysis XL Table, you will observe that it has 207 data points and the sum of all y values is 231. If you manually calculate the average by dividing the sum of all y values with the total number of data points (231/207), it is equal to 1.11.

Related OCEAN Function

The equivalent OCEAN function for average is:

average( o_waveform )
=> n_average/o_waveformAverage/nil

For more information, see average in OCEAN Reference.

bandwidth

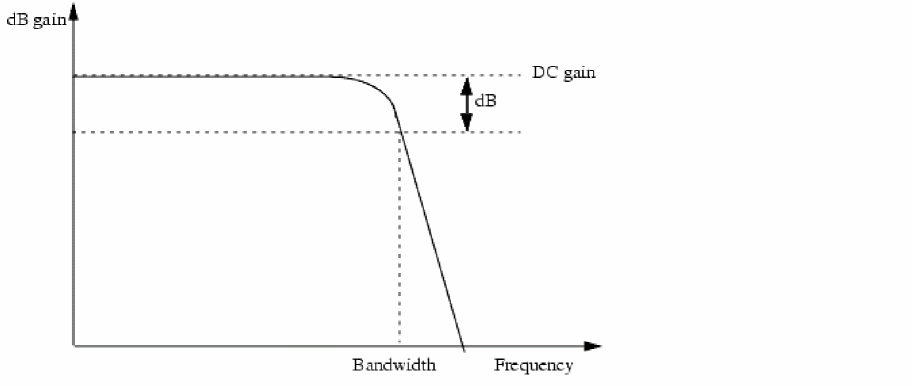

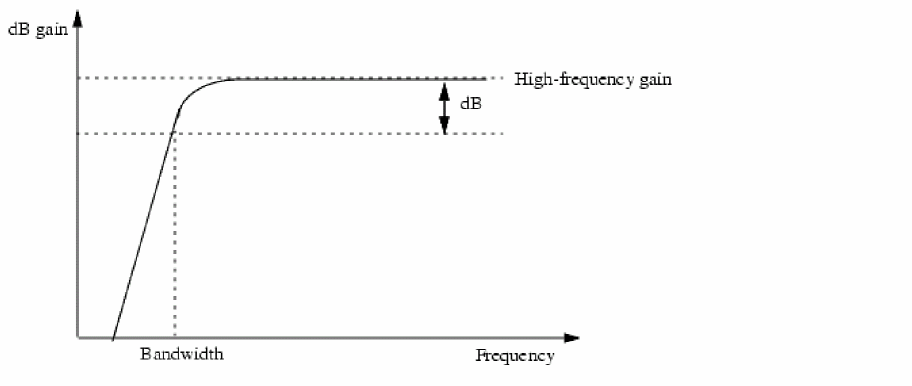

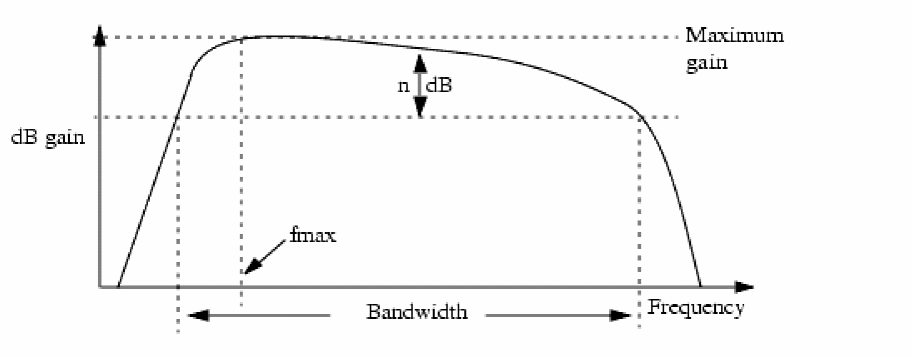

Measures the bandwidth of a low/high/band-pass freuqnecy-domain signal. Bandwidth is the frequency where the gain drops by 3dB (by default) as measured by the dB20 function.

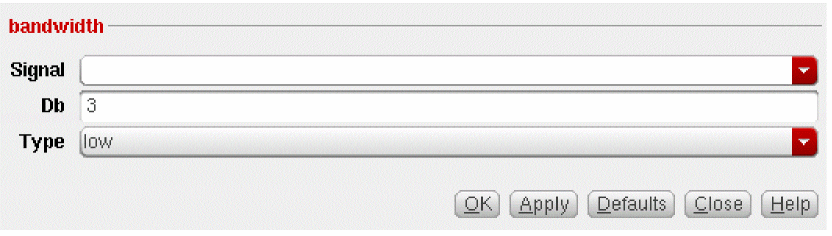

This function includes the following fields:

The bandwidth function includes the Db option; however, the signal is magnitude. This function modifies the magnitude signal to db scale internally.

Example

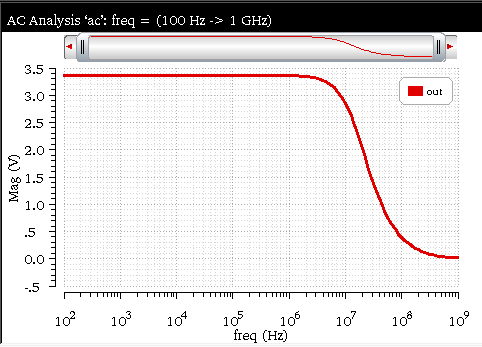

This example calculates the bandwidth of the following AC voltage signal, v("out" ?result "ac")

The following arguments are specified in this example:

The following expression is created in the Buffer:

bandwidth(mag(v("out" ?result "ac" ?resultsDir "./ampTest.raw")) 3 "low" )

Now, when you evaluate this expression, the following output value is displayed in the Buffer as result:

Related OCEAN Function

The equivalent OCEAN function for bandwidth is:

bandwidth( o_waveform n_db t_type )
=> n_value/o_waveform/nil

For more information about this OCEAN function, see bandwidth in OCEAN Reference.

busTransition

Returns the time when a bus value is changed from one specified value to another specified value.

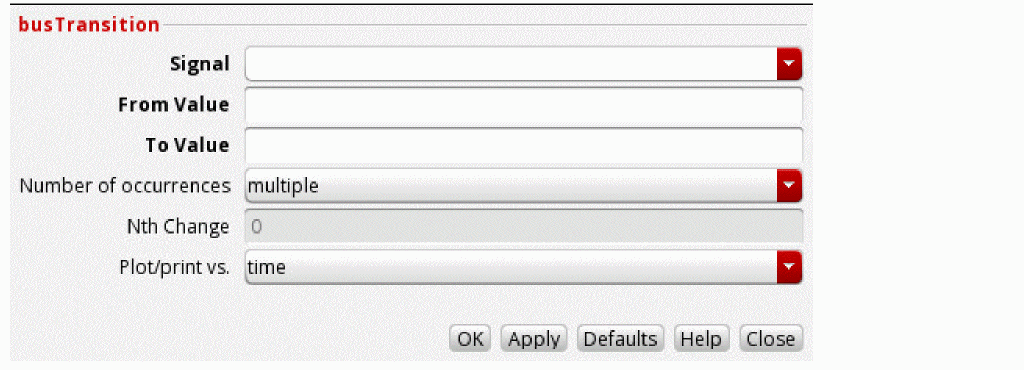

This function includes the following arguments:

Example

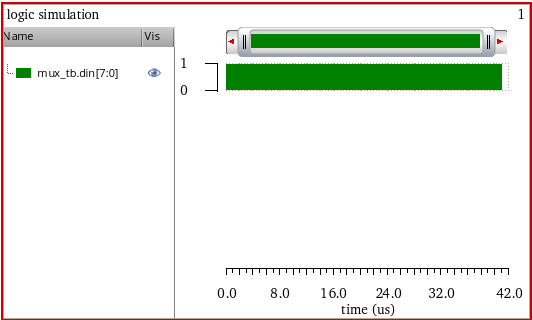

The example below shows the output values and waveforms generated when you apply busTransition function on the following input bus waveform, mux_tb.din[7:0]:

Now, specify the following argument values for this function:

After you click OK to apply the busTransition function, the following expression is created in the Buffer:

busTransition(getData("mux_tb.din[7:0]" ?result "sst2LargeBus") "0x10" "0x11"  1))

Now, when you click the evaluate button to run this function, a scalar value is displayed in the buffer, as shown in the figure below:

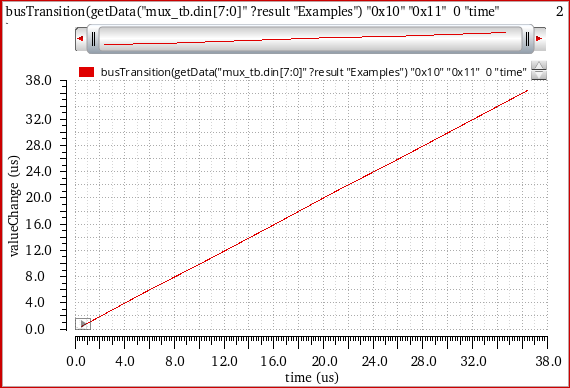

If you specify the argument value of Number of occurrence as multiple and run the busTransition function, an output waveform is displayed in the graph window, as shown in the figure below.

calcVal

Stores the output value from one test and passes it on to another test.

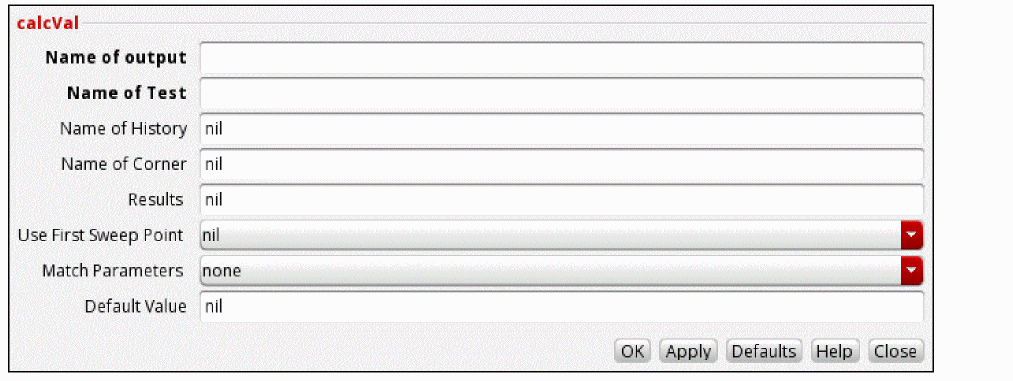

This function includes the following arguments:

Example

Consider the following example:

There are two tests, myTest1 and myTest2 in the Output Setup. myTest1 has an output, settlingTime of type expression.

myTest2 has an output expression calcValSettlingTime defined using the calcVal expression, which stores the value of the settlingTime output calculated from the myTest1 test.

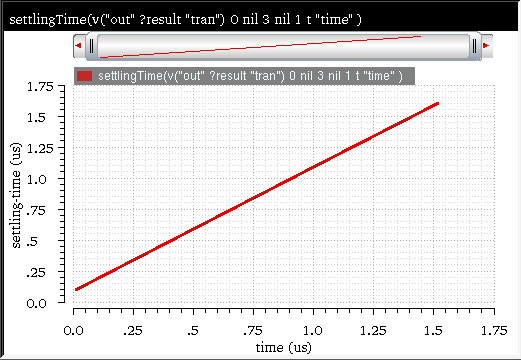

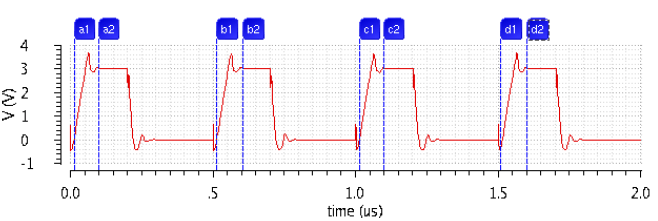

When you run the simulation, the calcValSettlingTime expression returns the same value that settlingTime returns, which is 16.74n, as shown in the following figure.

Now, calculate value of the settlingTime output from the myTest1 test using the calcVal Calculator function. Specify the arguments, as shown in the following figure.

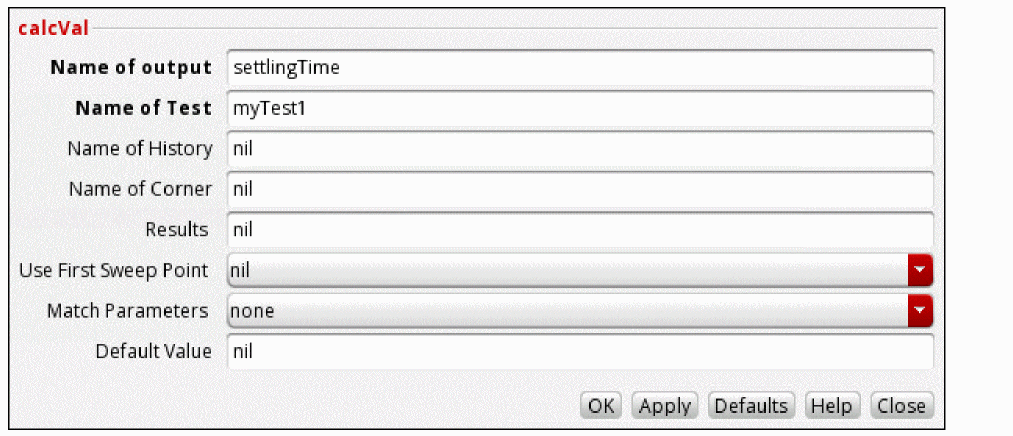

The following expression is created in the Buffer:

calcVal("settlingTime" "myTest1" )

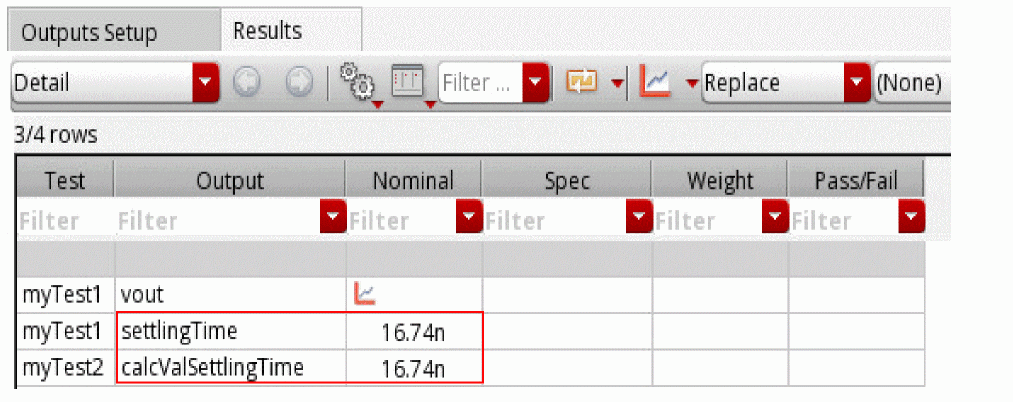

When you evaluate this expression, the function returns the same value, 16.74E-9.

For more information about the calcVal function, see calcVal in Virtuoso ADE SKILL Reference.

clip

Returns the portion of a signal between two points along the x axis.You can use the clip function to restrict the range of action of other special functions of the calculator such as integ, rms, and frequency.

The clip function works only for sorted data values. If you run this function on unsorted data values, an error message is displayed. The clip function is not supported for DC hysteresis sweep analysis.

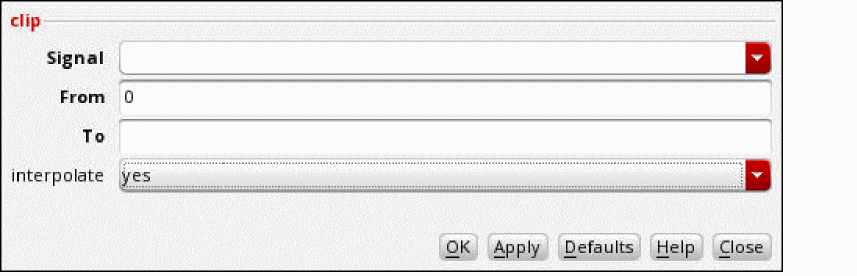

This function includes the following arguments:

Example 1

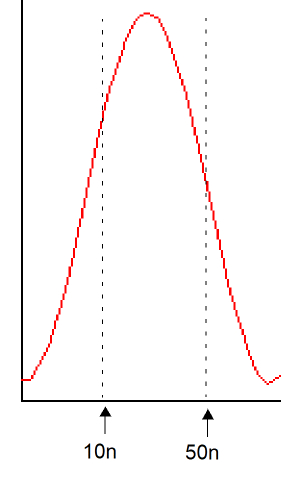

The following diagram illustrates how the result with the values clip (sig=V(sinewave), from=10n, to=50n ) is determined.

Example 2 (interpolate = no)

This example shows the clipped waveform generated when you apply the clip function on the following input signal:

The following arguments are specified in this example:

The following expression is created in the Buffer:

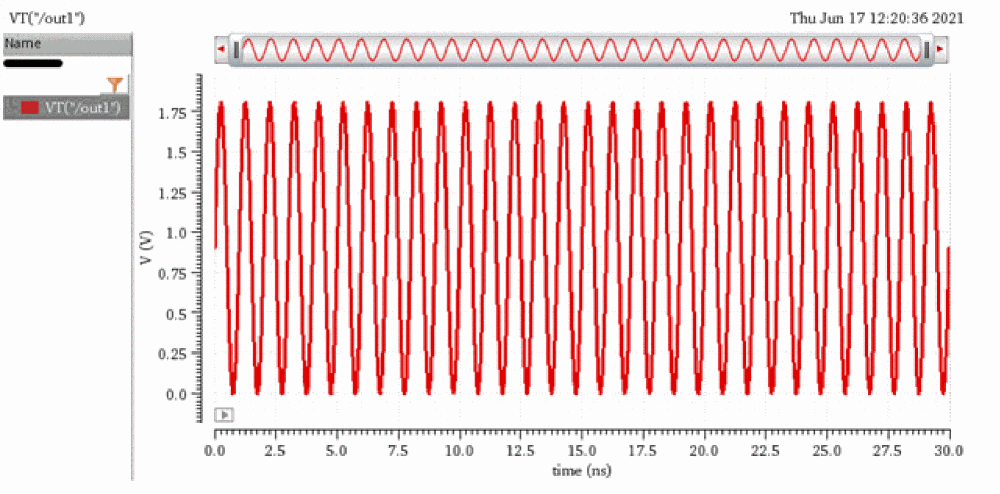

clip(leafValue( VT("/out1") "Design_Point" 1 ) 1e-9 4e-9 ?interpolate nil )

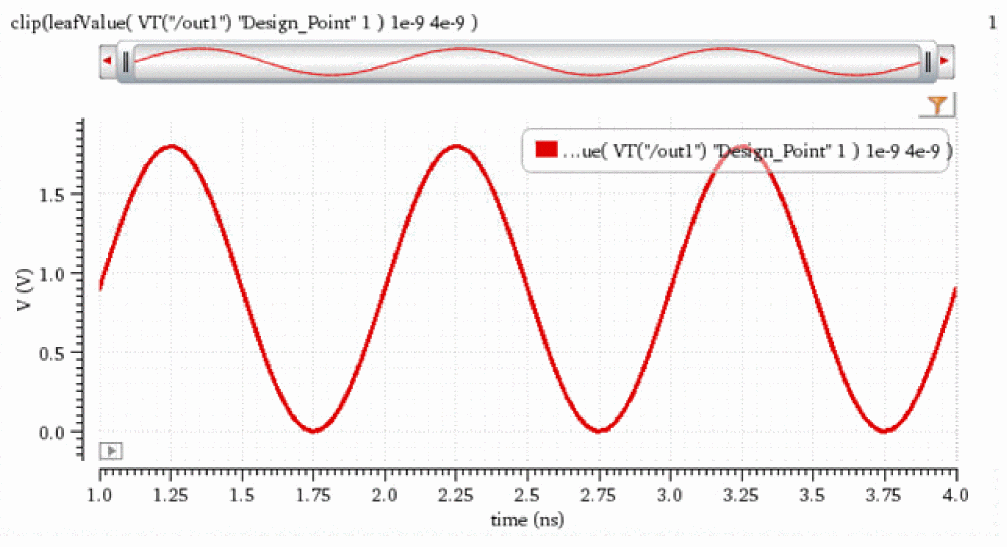

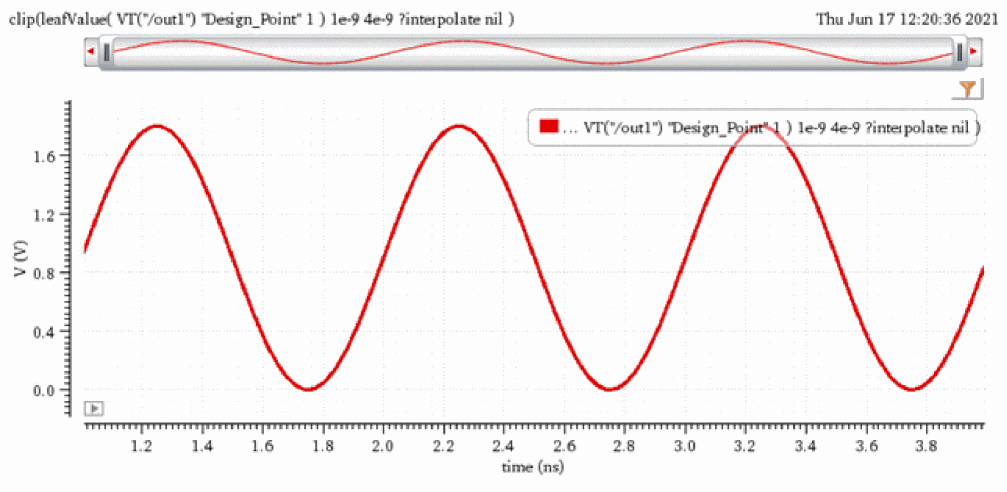

Now, when you evaluate this expression, the following output is displayed in the graph window.

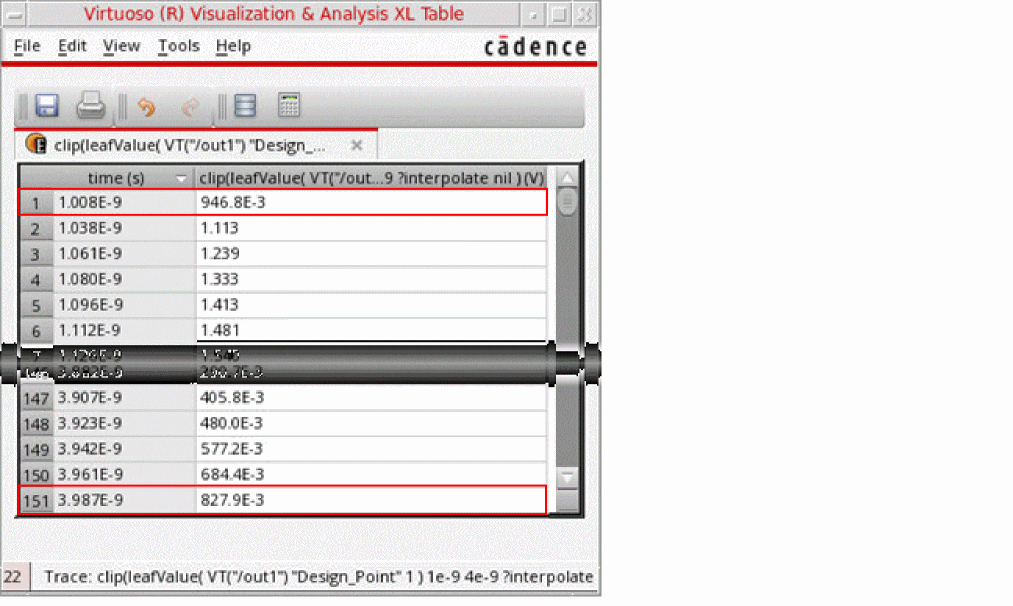

If you send this output waveform to the Virtuoso Visualization and Analysis XL Table, you will observe that the result includes only actual data points that exist between the specified From and To values because you set interpolate to no.

Example 3 (interpolate = yes)

This example shows the clipped waveform generated when you apply clip function on the following input signal:

The following arguments are specified in this example:

The following expression is created in the Buffer:

clip(leafValue( VT("/out1") "Design_Point" 1 ) 1e-9 4e-9 )

Now, when you evaluate this expression, the following output is displayed in the graph window.

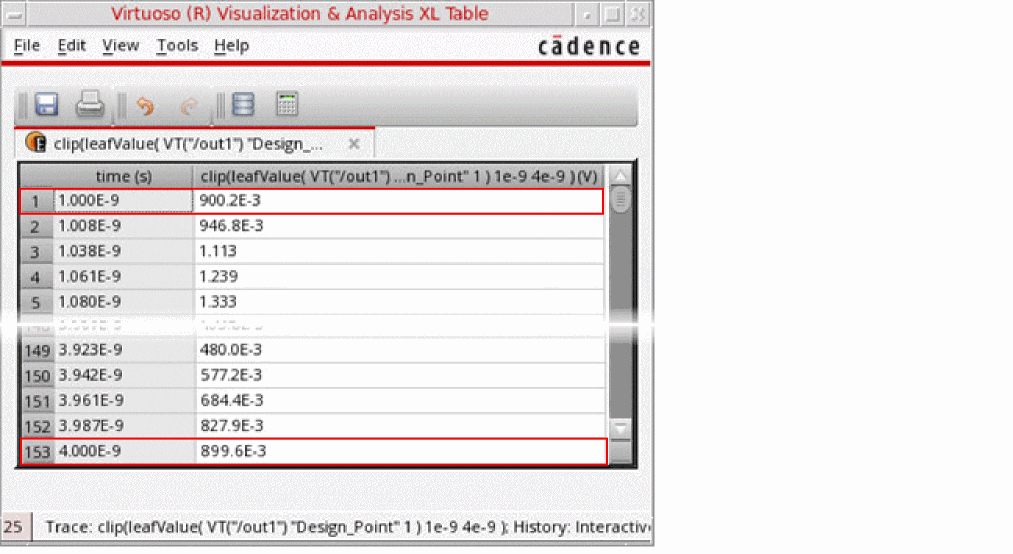

If you send this output waveform to the Virtuoso Visualization and Analysis XL Table, you will observe that the result includes interpolated values for the From and To fields because you set interpolate to yes.

Related OCEAN Function

The equivalent OCEAN function for clip is:

clip( o_waveform n_from n_to )
=> o_waveform/nil

For more information about this OCEAN function, see clip in OCEAN Reference.

compare

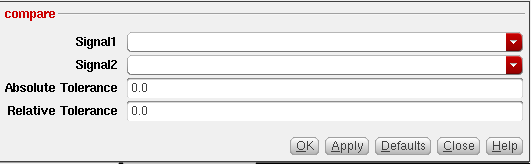

Compares the two given waveforms based on the specified values for absolute and relative tolerances. This function compares only the sections of the two waveforms where the X or independent axes overlap.

The function also compares parametric waveforms. However, for a successful comparison of parametric waveforms, the family tree structures of the two input waveforms should be the same. For both the input waveforms, the number of child waveforms at each level should also be the same, except at the leaf level where the elements are simple scalars.

Example

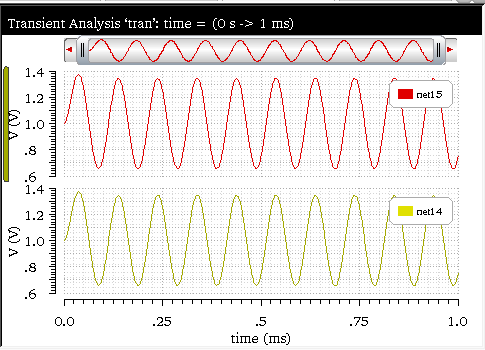

This example shows the output waveform generated when you apply the compare function on the following input signals:

The following arguments are specified in this example:

The following expression is created in the Buffer:

compare(v("net14" ?result "tran" ?resultsDir "./aExamples.raw") v("net15" ?result "tran" ?resultsDir "./aExamples.raw") 0.0 0.0 )

Now, when you evaluate this expression, the following output waveform is displayed in the graph window:

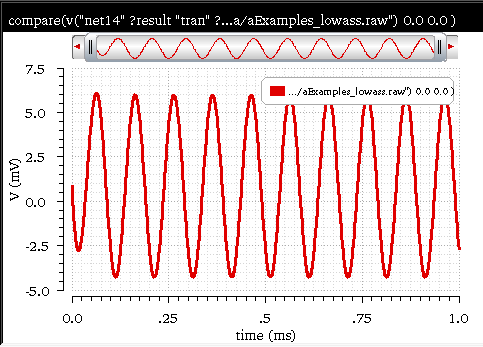

Related OCEAN Function

The equivalent OCEAN function for compare is:

compare( o_waveform1 o_waveform1 [f_abstol [f_reltol]] )
=> o_comparisonWaveform/nil

For more information about this OCEAN function, see compare in OCEAN Reference.

compression

Returns the Nth compression point value of a waveform at the specified extrapolation point. This function is available only in the SKILL mode.

The compression function uses the power waveform to extrapolate a line of constant slope (dB/dB) according to a specified input or output power level. This line represents constant small-signal power gain (ideal gain). The function finds the point where the power waveform drops n dB from the constant slope line and returns either the X coordinate (input referred) value or the Y coordinate (output referred) value.

Example

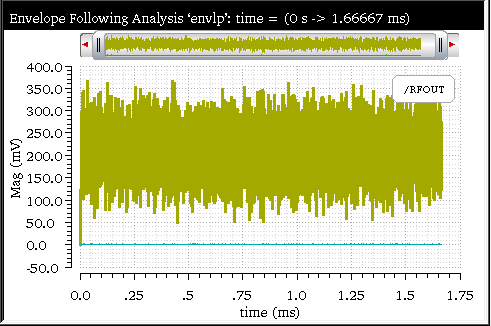

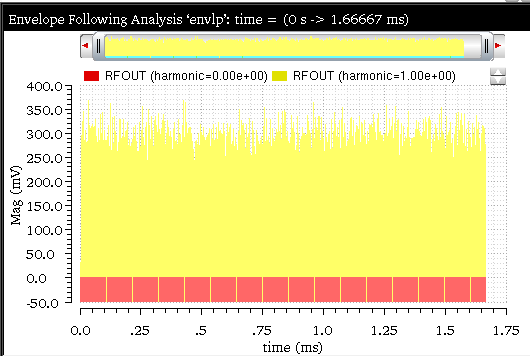

This example shows the compression value generated when you apply the compression function on the following input waveform:

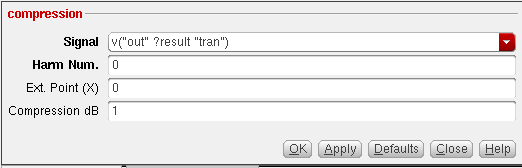

The following arguments are specified in this example:

The following expression is created in the Buffer:

compression(dB20(harmonic(mag(v("/RFOUT" ?result "envlp_fd" ?resultsDir "./viva/rfworkshop/simulation/EF_example_envlp/spectre/schematic/psf"“)), 1)), ?x -30, ?compress 1)

Now, when you evaluate this expression, the following output value is displayed in the Buffer:

Related OCEAN Function

The equivalent OCEAN function for compression is:

compression( o_waveform [ ?x f_x ] [ ?y f_y ]
[ ?compression f_compression ] [ ?io s_measure ] )
=> f_compPoint/nil

For more information about this OCEAN function, see compression in OCEAN Reference.

compressionVRI

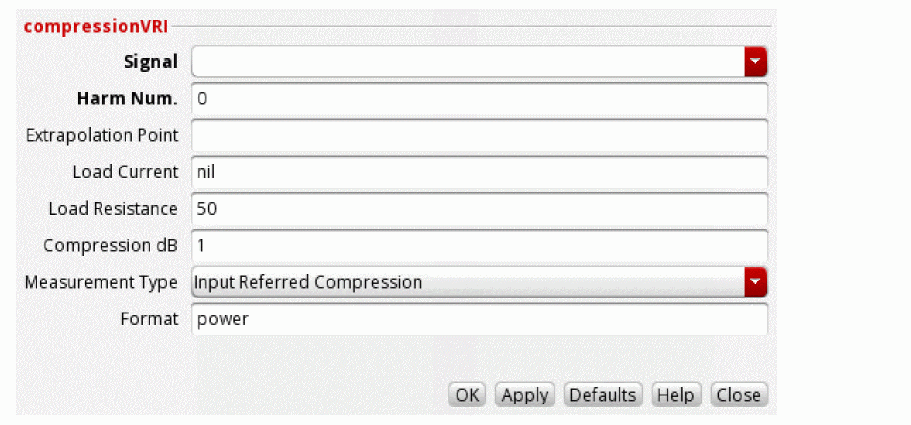

Performs an Nth compression point measurement on a power waveform. This function is available only in the SKILL mode.

You can use this function to simplify the declaration of a compression measurement.

This function extracts the specified harmonic from the input waveform(s), and uses dBm(spectralPower((i or v/r),v)) to calculate a power waveform. The function passes this power curve and the remaining arguments to the compression function to complete the measurement.

The compression function uses the power waveform to extrapolate a line of constant slope (dB/dB) according to a specified input or output power level. This line represents constant small-signal power gain (ideal gain). The function finds the point where the power waveform drops n dB from the constant slope line and returns either the X coordinate (input referred) value or the Y coordinate (output referred) value.

Example

This example shows the compression value generated when you apply the compressionVRI function on the following input waveform:

The following arguments are specified in this example:

The following expression is created in the Buffer:

compressionVRI(mag(v("/RFOUT" ?result "envlp_fd" ?resultsDir "./viva/rfworkshop/simulation/EF_example_envlp/spectre/schematic/psf")) 1 ?gcomp 1 ?epoint -30 ?rport 50 )

Now, when you evaluate this expression, the following output value is displayed in the Buffer:

Related OCEAN Function

The equivalent OCEAN function for compressionVRI is:

compressionVRI( o_vport x_harm [?iport o_iport] [?rport f_rport]
[?epoint f_epoint] [?gcomp f_gcomp] [?measure s_measure] )
=> o_waveform/n_number/nil

For more information about this OCEAN function, see compressionVRI in OCEAN Reference.

convolve

Returns a waveform consisting of the time domain convolution of two signals.

This function includes the following arguments in the SKILL mode:

Additional Information

Covolution is defined by the following equation:

Example

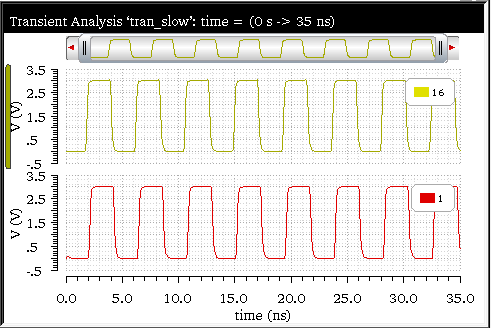

This example calculates the time domain convolution of the following two transient voltages, v(“/1”) and v(“/16”)and displays the output waveform generated:

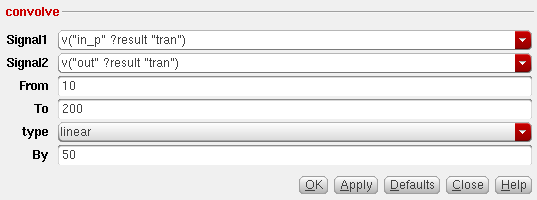

The following arguments are specified in this example:

The following expression is created in the Buffer:

convolve(v("1" ?result "tran") v("16" ?result "tran") 30n 33n "linear" 100p )

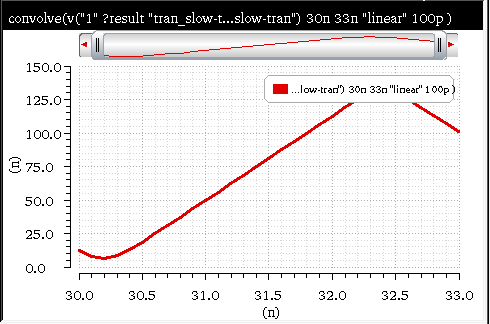

Now, when you evaluate this expression, the following output waveform showing the time domain convolution is displayed in the graph window:

Related OCEAN Function

The equivalent OCEAN function for convolve is:

convolve( o_waveform1 o_waveform2 n_from n_to t_type n_by )
=> o_waveform/n_number/nil

For more information about this OCEAN function, see convolve in OCEAN Reference.

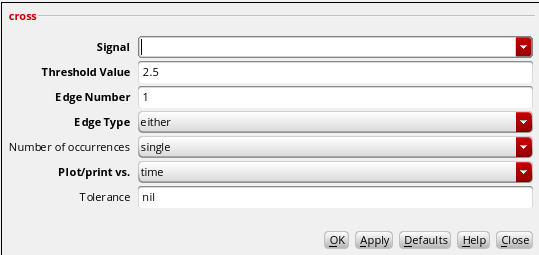

cross

Returns the X value where a signal crosses the threshold Y value.

This function includes the following arguments:

Example 1

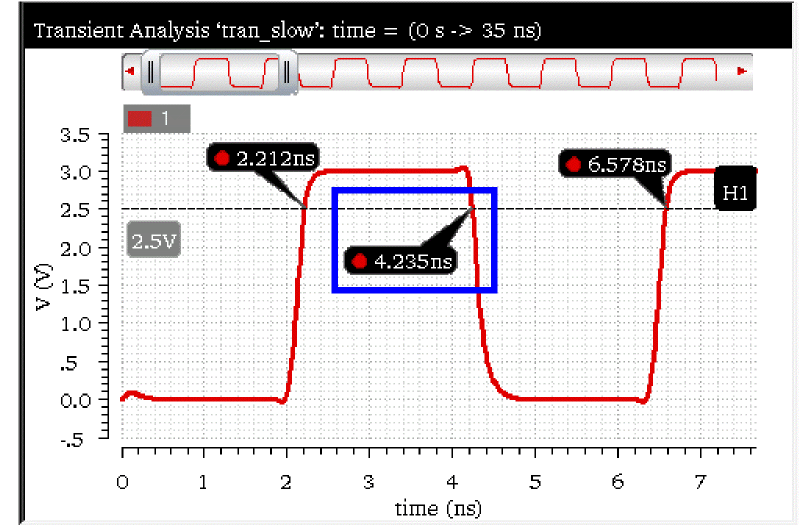

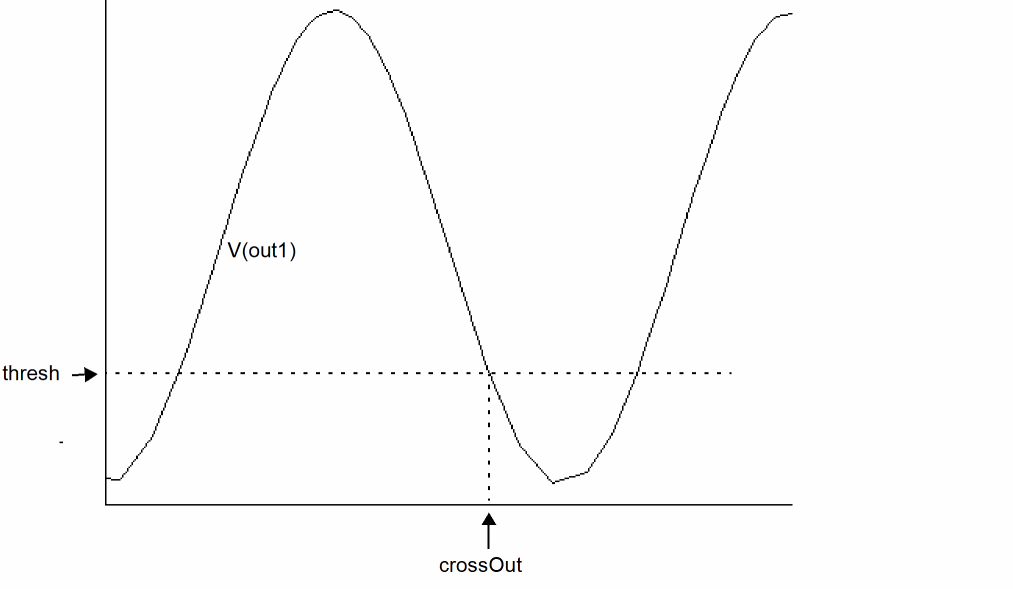

The following diagram illustrates how the result is determined for the values signal=V(out1), Threshold Value=1, Edge Number=1, and Edge Type=falling

Example 2

This example shows the output waveform generated when you apply the cross function on the following input waveform:

The following arguments are specified in this example:

The following expression is created in the Buffer:

cross(v("1" ?result "tran") 2.5 1 "either"  t "time" )

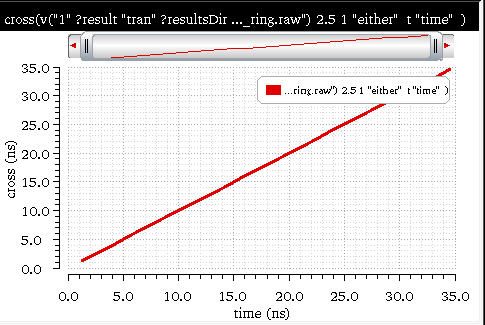

Now, when you evaluate this expression, the following output waveform is displayed in the graph window:

Related OCEAN Function

The equivalent OCEAN command for cross is:

cross( o_waveform n_crossVal x_n s_crossType [g_multiple [s_Xname]] )
=> o_waveform/g_value/nil

For more information about the OCEAN function, see cross in OCEAN Reference.

d2a

Returns the analog output from a given digital waveform.

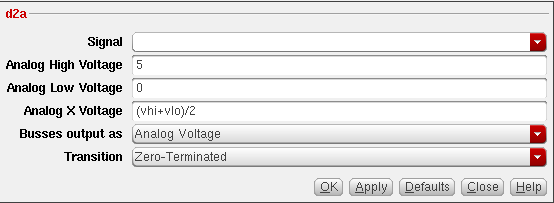

This function includes the following arguments:

Example

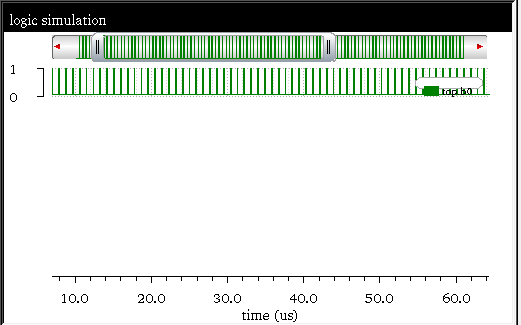

This example shows the conversion of digital waveform (logic signal) to an analog waveform. The input signal is as shown in the figure below:

The following arguments are specified in this example:

The following expression is created in the Buffer:

awvDigital2Analog(getData("top.b0" ?result "waves.shm") 1.8 0 "(vhi+vlo)/2" ?mode "busvalue" ?outWaveType "pwl")

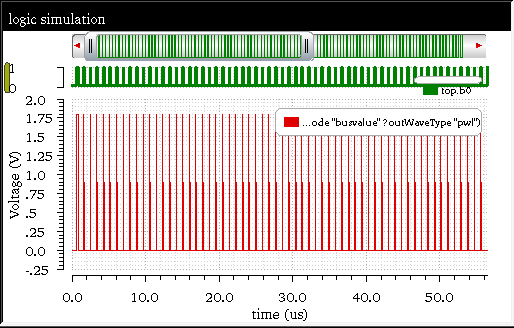

Now, when you evaluate this expression, the following output waveform, which is an analog signal, is displayed in the graph window.

Related SKILL Function

The equivalent SKILL command for d2a is:

awvDigital2Analog( o_waveform n_vhi n_vlo s_VX
@key s_mode s_outWaveType s_vprevSTART )
=> o_waveform | nil

For more information about this SKILL function, see awvDigital2Analog in Virtuoso Visualization and Analysis XL SKILL Reference.

dBm

Returns 10 times the log10 of the specified waveform object plus 30. This function converts a signal, in watts, to dbm, where dbm=10*log(x)+30.

Example

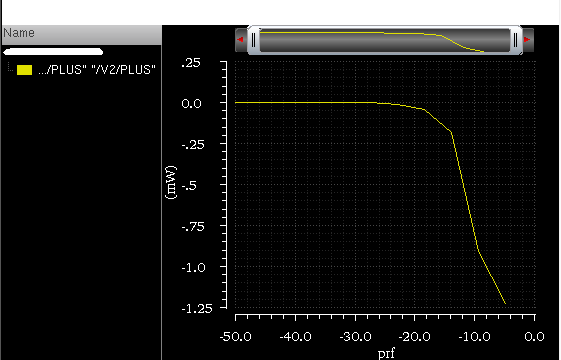

This example shows the output waveform generated when you apply the dBm function on the following input waveforms:

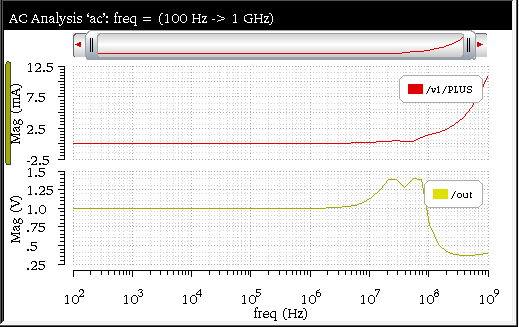

The above figure shows the current waveform, /v1/PLUS and voltage waveform, /out. If you want to calculate the dBm power of these signals, firstly you will have to multiply the terminal voltage and current signals.

mag(v("/out" ?result "ac"))*mag(i("/v1/PLUS" ?result "ac" ?resultsDir ./viva/ADE_ViVA/ADEviva/simulation/amp_sim/spectre/schematic/psf))

When you apply the dBm function, the following expression is created in the Buffer:

dBm(mag(v("/out" ?result "ac"))*mag(i("/v1/PLUS" ?result "ac" ?resultsDir ./viva/ADE_ViVA/ADEviva/simulation/amp_sim/spectre/schematic/psf)))

Now, when you evaluate this expression, the following output waveform is displayed in the graph window:

Related OCEAN Function

The equivalent OCEAN function for dBm is:

dbm( {o_waveform | n_number} )
=> o_waveform/n_number/nil

For more information about the OCEAN function, see dBm in OCEAN Reference.

delay

Computes the delay between two points or multiple sets of points in a waveform using the cross function. This function is available only in the SKILL mode.

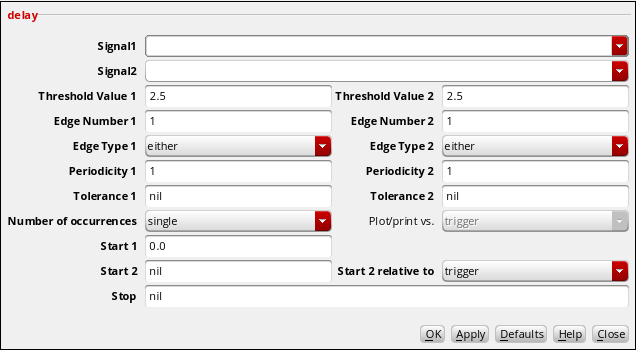

This function includes the following arguments:

Example 1

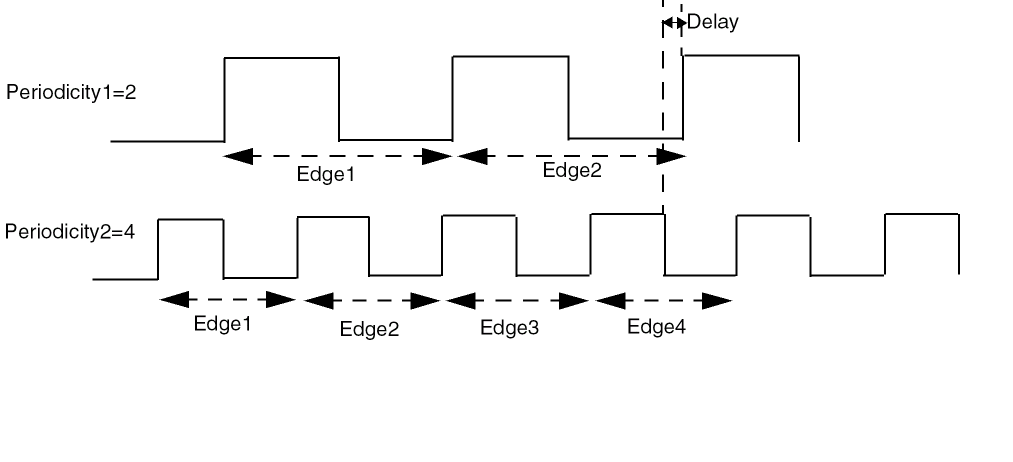

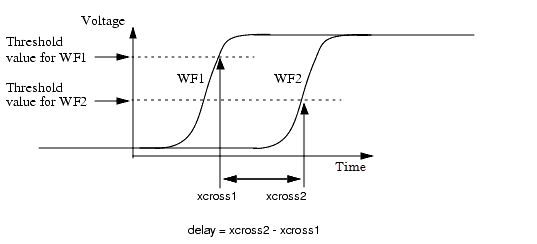

The delay algorithm for multiple occurrences returns the difference between the X points for the specified edges on the respective waveforms (with the specified periodicity). For example: if the edge number specified for both the waveforms is 1 and periodicity is 2, then it will compute the difference between the 1,3,5,7 ... edges for both the waveforms.

Example 2

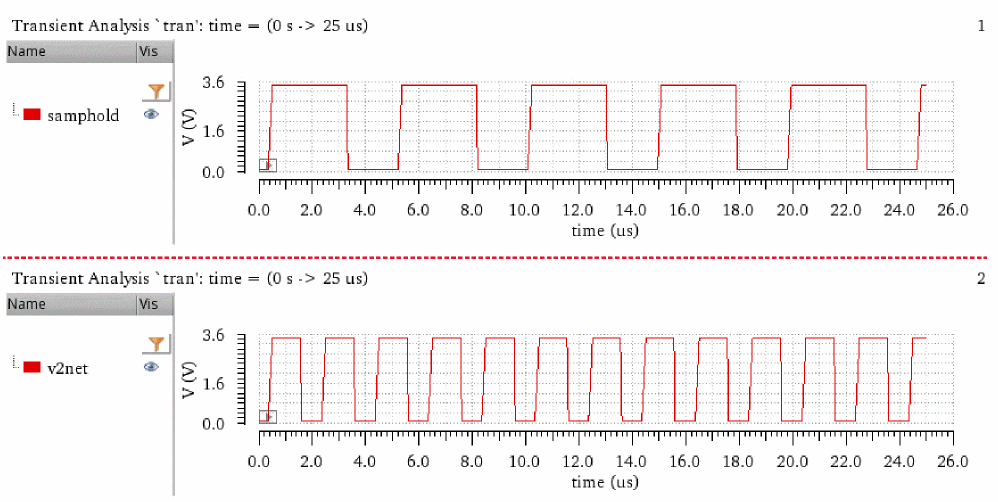

Consider the following example, where samphold is the first signal and v2net is the second signal.

To calculate the delay between the crossing points of the signals, samphold and v2net, specify the following arguments:

The following expression is created in the Buffer:

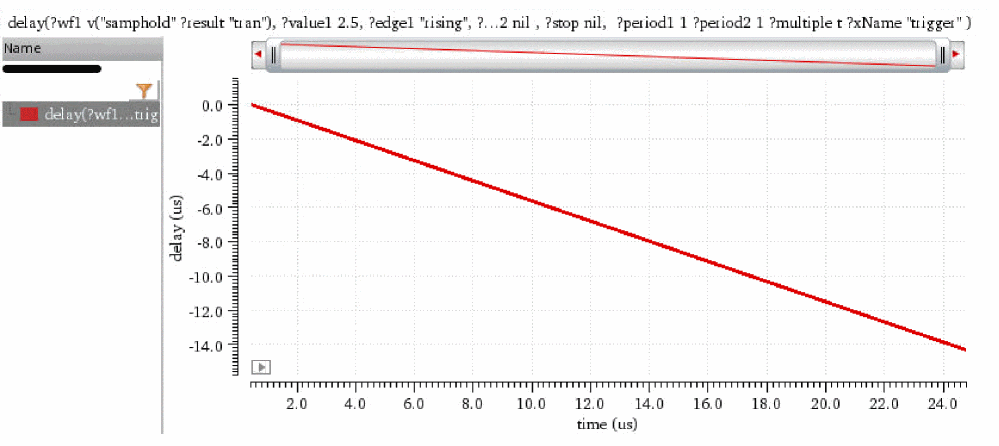

delay(?wf1 v("samphold" ?result "tran"), ?value1 2.5, ?edge1 "rising", ?nth1 1, ?td1 0.0, ?tol1 0.2e-6, ?wf2 v("v2net" ?result "tran"), ?value2 2.5, ?edge2 "rising", ?nth2 1, ?tol2 0.2e-6,  ?td2 nil , ?stop nil,  ?period1 1 ?period2 1 ?multiple t ?xName "trigger" )

Now, when you evaluate this expression, the following output waveform showing the delay between the two signals is displayed in the graph window:

Related OCEAN Function

The equivalent OCEAN command for delay is:

delay(
[ ?wf1 o_waveform1 ]
[ ?value1 n_value1 ]
[ ?edge1 s_edge1 ]
[ ?nth1 x_nth1 ]
[ ?td1 n_td1 ]
[ ?wf2 o_waveform2 ]
[ ?value2 n_value2 ]
[ ?edge2 s_edge2 ]
[ ?nth2 x_nth2
[ ?td2 n_td2 ]
[ ?td2r0 n_td2r0 ]}
[ ?stop n_stop ]
[ ?histoDisplay g_histoDisplay ]
[ ?noOfHistoBins x_noOfHistoBins ]
[ ?period1 period1 ]
[ ?period2 period2 ]
[ ?multiple multiple ]
[ ?xName xName ]
@rest args
)
=> o_waveform / n_value / nil

For more information about this OCEAN function, see delay in OCEAN Reference.

delayMeasure

Calculates the delay between a trigger event and a target event.

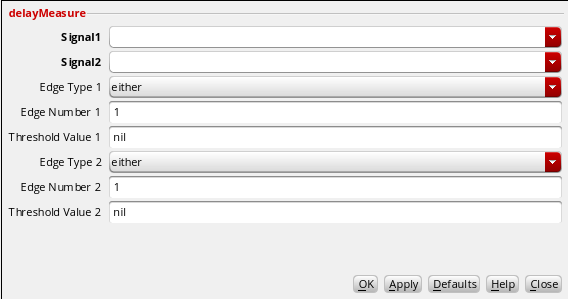

This function includes the following arguments:

The delayMeasure function outputs the same scalar value as that of the delay function when applied for a single occurrence.

Example

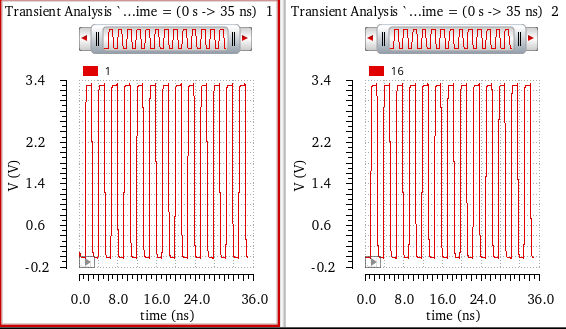

Consider the following example in which the delayMeasure function is applied on two transient waveforms shown in the figure below:

Specify only the required arguments:

The default values are used for the remaining optional arguments.

The following expression is created in the Buffer:

delayMeasure(v("1" ?result "tran") v("16" ?result "tran") )

Now, when you evaluate this expression, the following output measuring the delay in two signals is displayed in the Buffer:

Example 2

In this example, specify the following argument values:

The following expression is created in the Buffer:

delayMeasure(v("1" ?result "tran") v("16" ?result "tran") ?nth1 2 ?value1 2.5 ?nth2 2 ?value2 2.5 )

Now, when you evaluate this expression, the following output measuring the delay in two signals is displayed in the Buffer:

Related OCEAN Function

The equivalent OCEAN command for delayMeasure is:

delayMeasure(
o_waveform1
o_waveform2
[ ?edge1 s_edge1 ]
[ ?nth1 x_nth1 ]
[ ?value1 n_value1 ]
[ ?edge2 s_edge2 ]
[ ?nth2 x_nth2
[ ?value2 n_value2 ]
=> n_value / nil

For detailed information, see delayMeasure in OCEAN Reference.

deriv

Returns the derivative of a signal with respect to the X-axis.

Note:

Additional Information

The following three methods can be used to calculate the finite difference:

The deriv function uses the backward differencing method. For better understanding, consider the below example in which you have the following points:

(28C, 1.002V)

(30C, 1.012V)

(32C, 1.03V)

When you sweep from 0 to 100, the derivative is calculated as:

(30C, [1.012-1.002]/[30-28]) = (30C, 0.005V)

When you sweep from 100 to 0, the derivative is calculated as:

(30C, [1.012-1.03]/[30-32]) = (30C, 0.009V)

Example

This example shows the output waveform generated when you apply the deriv function on the following input waveform, (v("out" ?result "tran-tran"):

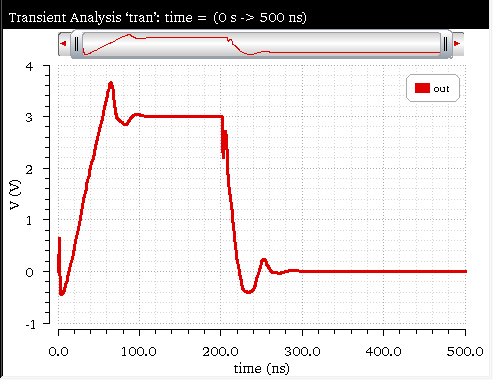

When you apply the deriv function on this waveform, the following expression is created in the Buffer:

deriv(v("out" ?result "tran-tran")

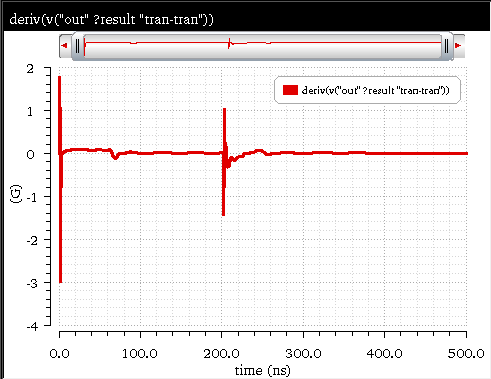

Now, when you evaluate this expression, the following output waveform showing the derivative is displayed in the graph window.

Related OCEAN Function

The equivalent OCEAN command for deriv is:

deriv( o_waveform )
=> o_waveform/nil

For more information about this OCEAN function, see deriv in OCEAN Reference.

dft

(Discrete Fourier Transform)

Computes the discrete Fourier transform of a signal. This function is available only in the SKILL mode.

The tool which converts a temporal (time domain) description of a signal (real or complex) into one in terms of its frequency components is called the Fourier Transform. dft (Discrete Fourier Transform) is the discrete formulation of the Fourier Transform, which takes such regularly spaced data values (samples in time domain), and returns the value of the Fourier Transform for a set of values in frequency domain which are equally spaced. Most of the time, however, we work on real-valued signals only.

Consider a complex series (signal) w(k) with N samples of the form:

w(0), w(1), w(2), ..., w(k), ..., w(N-1)

Further, assume that the series outside the range 0, N-1 is extended N-periodic, that is,
w(k)=w(k+N) for all k. The dft of this series will be denoted W(n), will also have N samples and will be defined as:

While the dft transform above can be applied to any complex valued series, in practice for large series it can take considerable time to compute, the time taken being proportional to the square of the number of points (samples) in the series. A much faster algorithm has been developed by Cooley and Tukey called the FFT (Fast Fourier Transform). The only requirement of the most popular implementation of this algorithm (Radix-2 Cooley-Tukey) is that the number of points in the series be a power of 2 i.e. N=2n.

Given N input points, the fft returns N frequency components, of which the first (N/2 +1) are valid. (The other components are mirror images and are considered invalid since the frequencies they represent do not satisfy the Nyquist Theorem above.) They start with the DC component, and are spaced apart by a frequency of (1/(n deltaT)). The magnitude of the complex number returned is the frequency's relative strength.

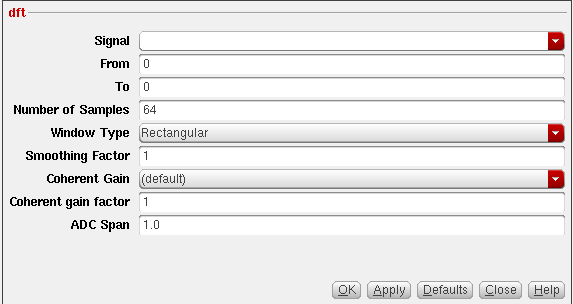

The dft function computes the discrete Fourier Transform of the buffer by fft algorithm where deltaT=(t2-t1)/N. The waveform is sampled at the following N timepoints:

t1, t1 + deltaT, t1 + 2 * deltaT, º, t1 + (N - 1) * deltaT

The output of dft() is a frequency waveform, W(f), which has (N/2+1) complex values: the dc term, the fundamental, and (N/2-1) harmonics.

The last time point, (t1+(N - 1)*deltaT), is (t2-deltaT) rather than t2. The dft function assumes that w(t1) equals w(t2).

This function includes the following arguments:

When you run the transient analysis, keep the maximum time step small enough to represent the highest frequency component accurately. The maximum time step should be smaller than the sampling period that you use for the dft of the time domain waveform. The samples in the dft will either find a data point (calculated by the simulator) or an interpolated point between two data points.

Choosing a maximum timestep during transient simulation that is smaller than the dft sampling period ensures that sampling maintains a resolution at least equal to that of the transient time-domain waveform.

The start and stop times should not coincide with the boundaries of the time-domain waveform. The boundary solutions might be imprecise and generate incorrect results if used in other calculations.

One of the uses of fast Fourier Transform windowing is to reduce discontinuities at window edges caused by having a non integral number of periods of a signal in a window. This removes the abrupt edges, making them fall off smoothly to zero, and can improve the validity of the fft components obtained. You can also use fft windowing to 'dig out' the details of signal components that are close Gin frequency or that consist of both large and small amplitudes.

The DFT function interpolates the From and To points in the following three cases:

Example

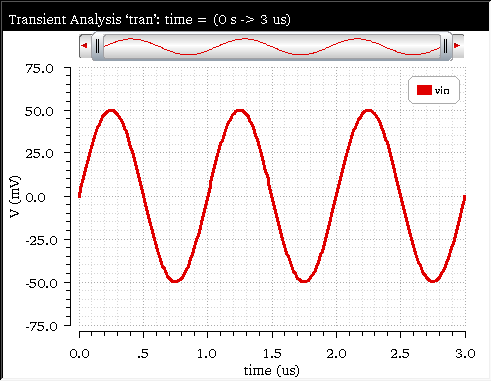

This example shows the DFT output generated when you apply the dft function on the following input signal:

The following arguments are specified in this example:

The following expression is created in the Buffer:

dft(v("vin" ?result "tran") 0 30u 128 "Rectangular" 1 "default" )

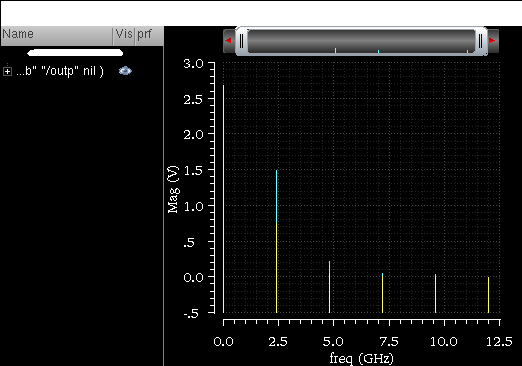

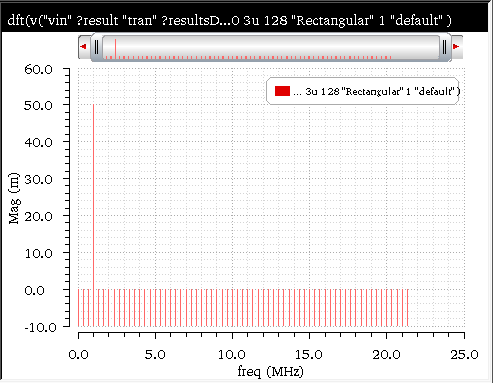

Now, when you evaluate this expression, the following output waveform is displayed in the graph window:

Related OCEAN Function

The equivalent OCEAN command for dft is:

dft( o_waveform n_from n_to x_num [t_windowName [n_param1]] )
=> o_waveform/nil

For more information about this OCEAN function, see dft in OCEAN Reference.

dftbb

(Discrete Fourier Transform Baseband)

Computes the Discrete Fourier Transform (fast Fourier transform) of a complex signal. This function is available only in the SKILL mode.

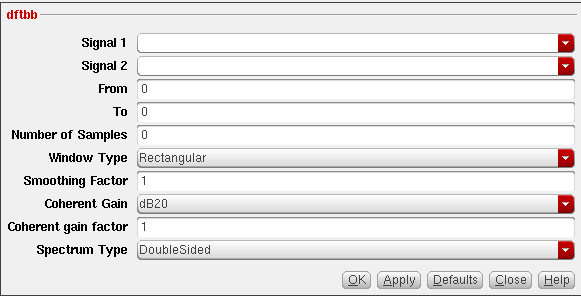

This function includes the following arguments:

Additional Information

Complex signal z(t)= x(t) + j*y(t):

N-1
Z(n)= ReZ(n) +j*ImZ(n)=SUM[ z(k)*exp(-j*theta*n*k)],
k=0

where,

theta=2*Pi/N; n=0, 1, ..., N-1.

Both waveforms are sampled at the following N timepoints:

t1, t1 + deltaT, t1 + 2 * deltaT, ..., t1 + (N - 1) * deltaT

The output of dftbb(waveform1, waveform2) are N complex values.

The dftbb function is required because the dft function gives out the amplitudes (sqrt(Re**2+Im**2)) of dfts of real signals only – not Re and Im. Therefore, you cannot replace one dft of the complex signal z(t)= i(t) + j*q(t) with two dfts of two real signals i(t) and q(t):

N-1
I(n)= ReI(n) +j*ImI(n)= SUM[ i(k)*exp(-j*theta*n*k)],
k=0
N-1
Q(n)= ReQ(n) +j*ImQ(n)= SUM[ q(k)*exp(-j*theta*n*k)],
k=0

and then compute:

ReZ(n)= ReI(n) - ImQ(n);
ImZ(n)= ImI(n) + ReQ(n); for n=0, 1, ..., N-1.

The above definition is for single-sided output waveforms. This holds true for double-sided output waveforms except that the previous output waveform is translated so that n varies from -N/2 to (N/2)-1.

Example

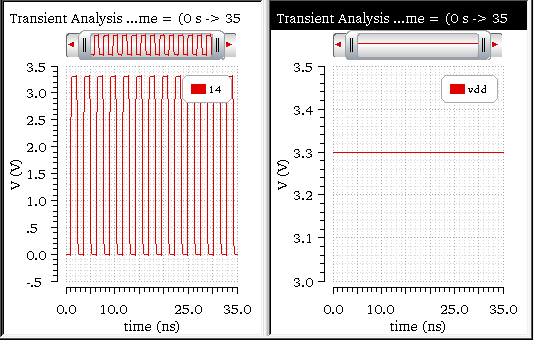

This example displays the output DFT waveform when you apply the dftbb function on the following input waveforms:

The following arguments are specified in this example:

The following expression is created in the Buffer:

dftbb(v("14" ?result "tran" ?resultsDir “nand2_ring.raw”) v("vdd" ?result "tran" ?resultsDir “nand2_ring.raw”) 0 30u 512 ?windowName "Rectangular" ?smooth 1 ?cohGain (10**(1/20)) ?spectrumType "DoubleSided" )

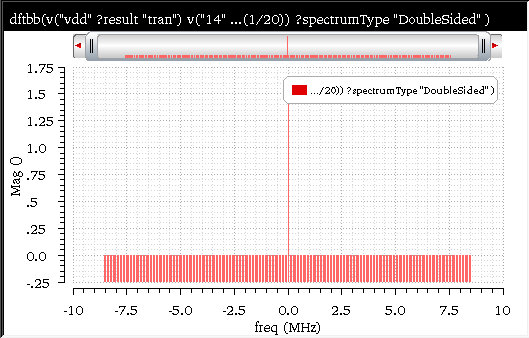

Now, when you evaluate this expression, the following output waveform is displayed in the graph window:

Related OCEAN Function

The equivalent OCEAN command for dftbb is:

dftbb( o_waveform1 o_waveform2 f_timeStart f_timeEnd x_num
?windowName t_windowName ?smooth x_smooth ?cohGain f_cohGain
?spectrumType s_spectrumType)
=> o_waveformComplex/nil

For more information about this OCEAN function, see dftbb in OCEAN Reference.

dnl

(Differential Non-Linearity)

Computes the differential non-linearity of a transient simple or parametric waveform.

DNL can be calculated as:

  • For lsb:

  • For abs:

To calculate the Ideal LSB size, a straight line is drawn on the input signal. If the method is end, the line is drawn by connecting first and last samples. If the method is fit, the line is a best-fit line based on all samples.

The Ideal LSB size is calculated as follows:

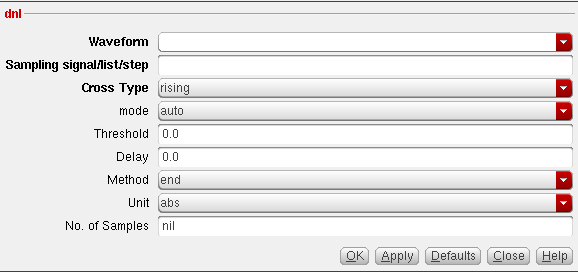

This function includes the following arguments:

For each of the three ways in which the sample points can be specified, only a few of the other optional arguments are significant,

Example

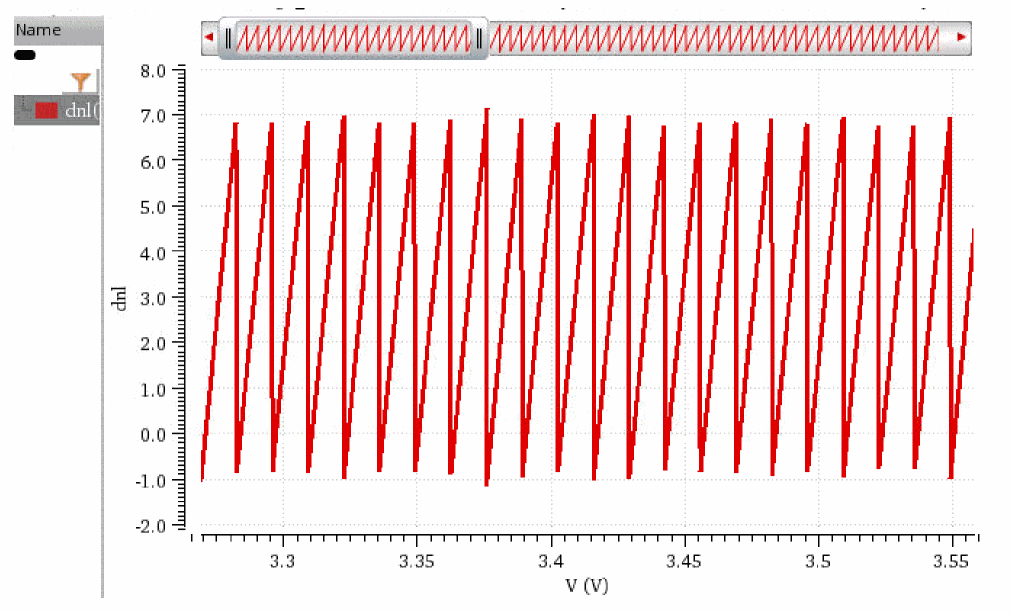

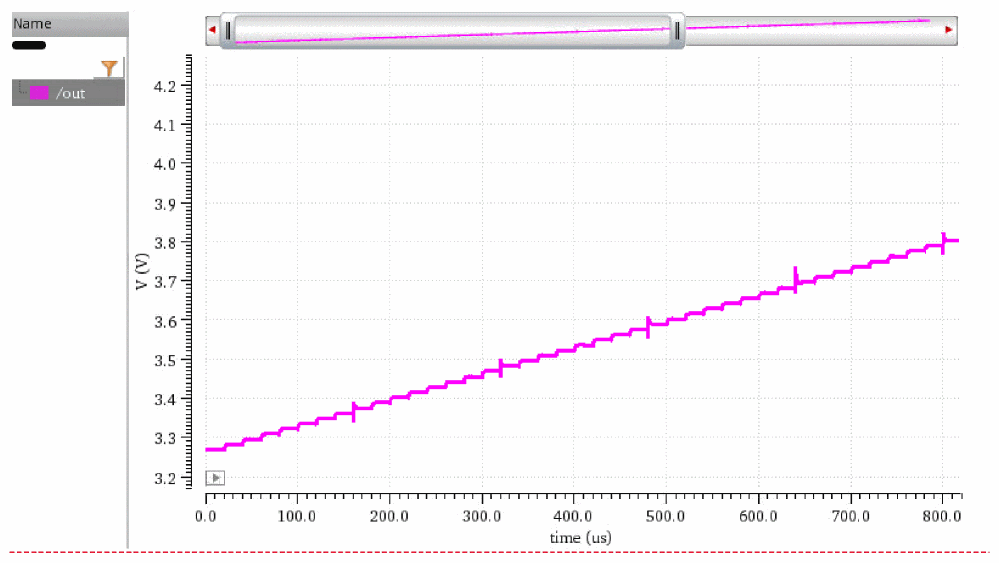

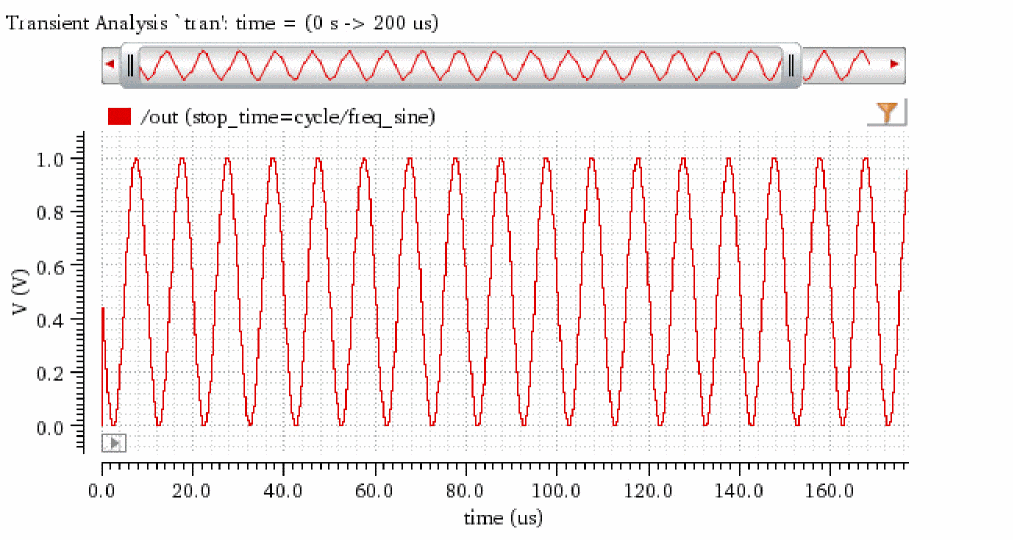

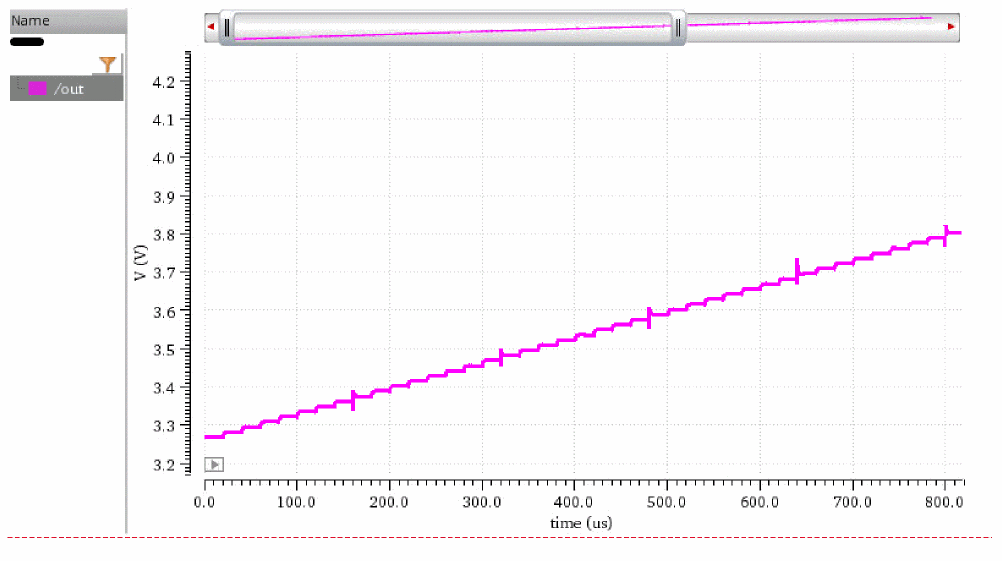

This example shows the output waveform generated when you apply the dnl function on the following input signal:

The following arguments are specified in this example:

The following expression is created in the Buffer with the specified arguments:

dnl(v("/out" ?result "tran") 1e-05  ?mode "auto"  ?crossType "rising" ?delay 4.5e-06 ?method "end" ?units "abs" ?nbsamples 512)

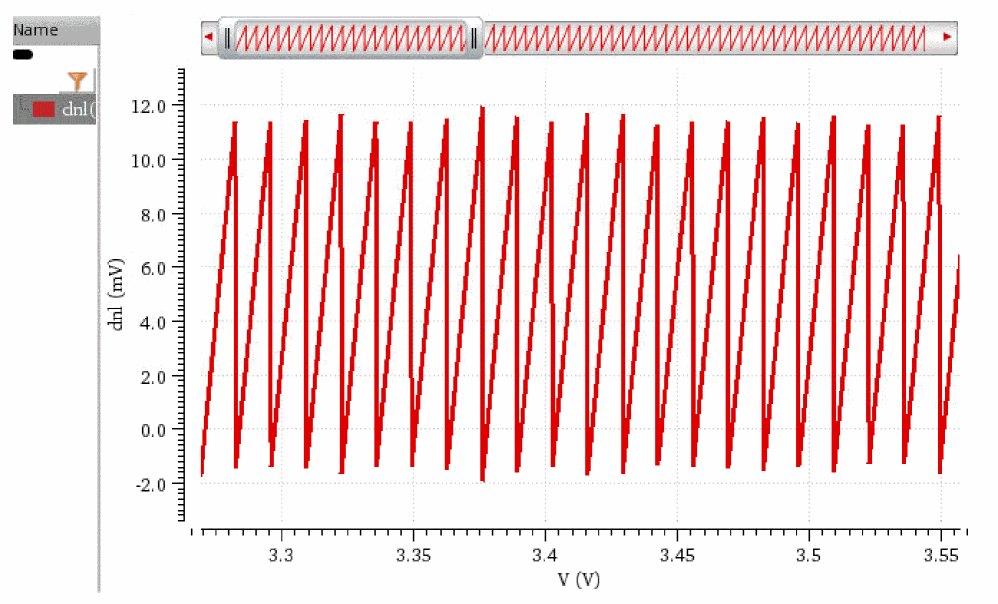

Now, when you evaluate this expression, the following output waveform is displayed in the graph window. Notice that the X-axis label of this waveform is same as that of the Y-axis label of the input waveform.

Now, if you change the unit to lsb and then evaluate the expression, the following output waveform is displayed in the graph window:

Related OCEAN Function

The equivalent OCEAN command for dnl is:

dnl( o_dacSignal o_sample|o_pointList|n_interval
[?mode t_mode] [?threshold n_threshold] [?crossType t_crossType]
[?delay f_delay] [?method t_method][?units x_units]
[?nbsamples n_nbsamples] )
=> n_dnl/nil

For more information about this OCEAN function, see dnl in OCEAN Reference.

dutyCycle

Calculates the ratio of the time for which the signal remains high to the period of the signal. This function should be used for the periodic signals only.

The calculation of duty cycle depends on whether the first complete interval starts with a low or a high interval. Therefore, results may vary depending on start time that determines whether cycles are low-to-high or high-to-low.

If the first complete interval is high1 and low1 follows, the period is high1+low1 and the duty cycle is high1/(high1+low1). If low1 is the first complete interval and high2 follows, the period is low1+high2 and the duty cycle high2/(low1+high2).

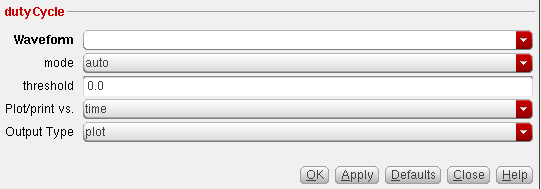

This function includes the following arguments:

Example

This example shows the output waveform generated when you apply the dutyCycle function on the following input waveform:

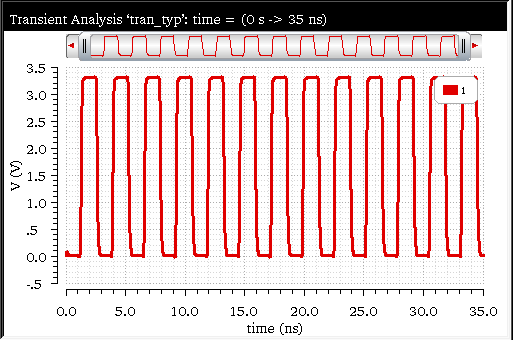

The following arguments are specified in this example:

The following expression is created in the Buffer:

dutyCycle(v("1" ?result "tran" ?resultsDir “nand2_ring.raw”) ?mode "auto" ?xName "time"   ?outputType "plot"  )

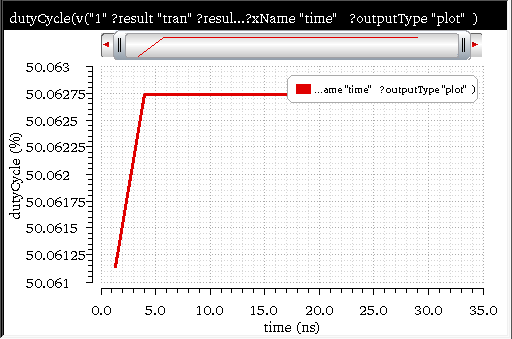

Now, when you evaluate this expression, the following output waveform is displayed in the graph window:

Related OCEAN Function

The equivalent OCEAN command for dutyCycle is:

dutyCycle( o_waveform
[?mode t_mode] [?threshold n_threshold]
[?xName t_xName] [?outputType t_outputType] )
=> o_waveform/f_average/nil

For more information about this OCEAN function, see dutyCycle in OCEAN Reference.

evmQAM

(Error Vector Magnitude Quadrature Amplitude Modulation)

Processes the I and Q waveform outputs from the transient simulation run to calculate the Error Vector Magnitude (EVM) for multi-mode modulations. The function plots the I versus Q scatterplot. EVM is a useful measurement to describe the overall signal amplitude and phase modulated signal quality. It is based on a statistical error distribution normalized from an ideal digital modulation. Quadrature Amplitude Modulation (QAM) is a typical modulation scheme where EVM is useful. The EVM is calculated by detecting the I and Q signal levels corresponding to the four possible I and Q symbol combinations and calculating the difference between the original signal level and the ideal signal level.

This function is not supported for families of waveforms. The evmQAM function is available only in the SKILL mode.

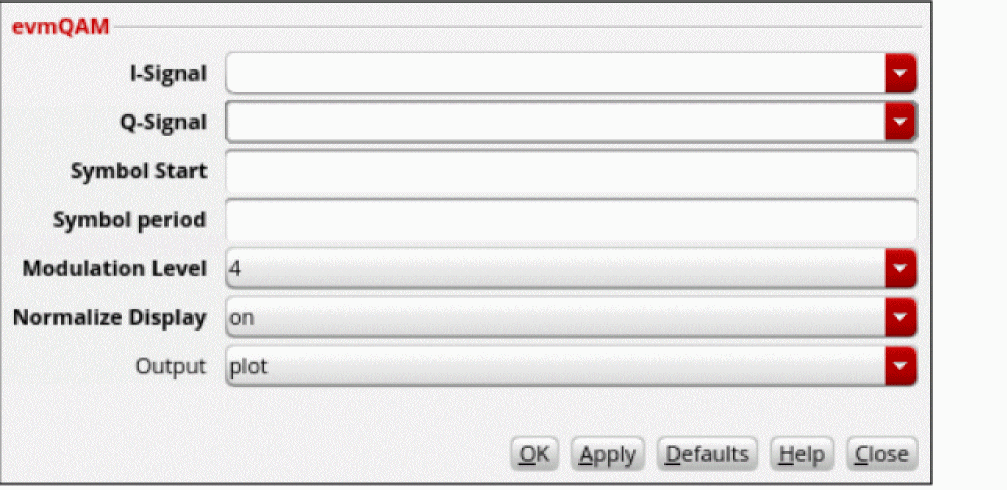

This function includes the following arguments:

Example

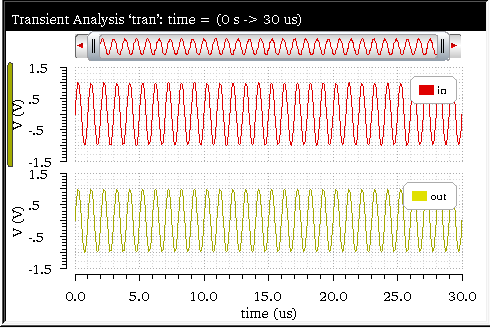

This example shows the scatter plot generated when you apply evmQpsk function on the following input waveforms:

The following arguments are specified in this example:

The following expression is created in the Buffer:

evmQAM(v("in" ?result "tran" ?resultsDir "./vsin_sim.raw"), v("out" ?result "tran" ?resultsDir "./vsin_sim.raw"), 0, 1e-8, 16, t ?output "rms")

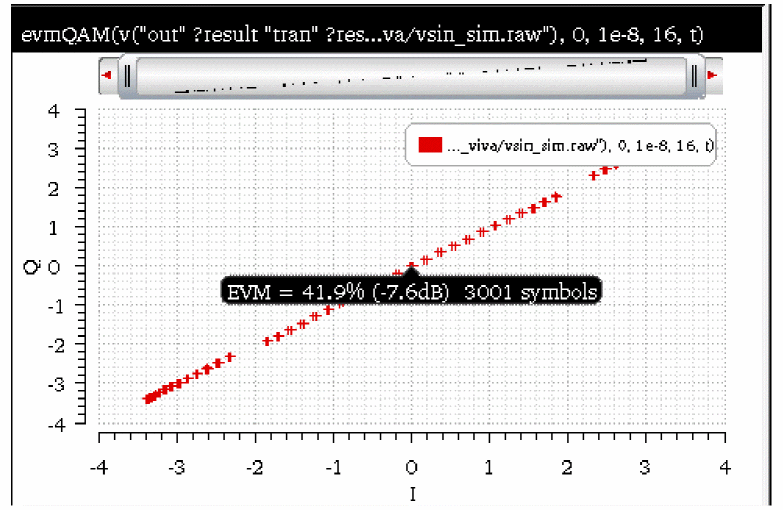

Now, when you evaluate this expression, the following scatter plot is displayed in the graph window:

Related OCEAN Function

The equivalent OCEAN function for evmQAM is:

evmQAM( o_waveformI o_waveformQ n_tDelay n_samplingT x_levels g_normalize )
=> o_waveform/nil

For more information about this OCEAN function, see evmQAM in OCEAN Reference.

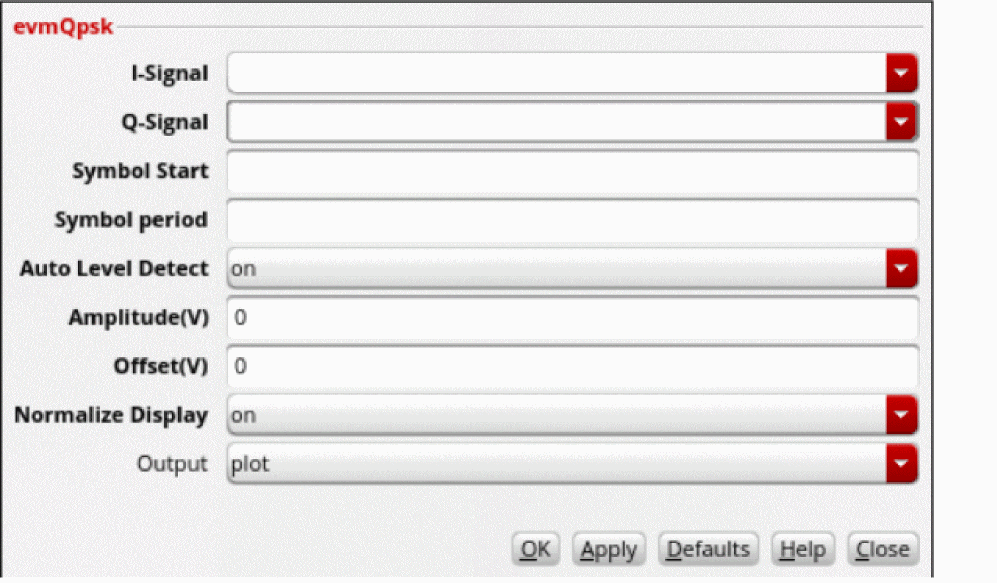

evmQpsk

(Error Vector Magnitude Quadrature Phase Shift Keying)

Processes the I and Q waveform outputs from the transient simulation run to calculate the Error Vector Magnitude (EVM) and plot the I versus Q scatter plot. EVM is a useful measurement to describe the overall signal amplitude and phase modulated signal quality. It is based on a statistical error distribution normalized from an ideal digital modulation. Quadrature Phase Shift Keying (QPSK) is a typical modulation scheme where EVM is useful. The EVM is calculated by detecting the I and Q signal levels corresponding to the four possible I and Q symbol combinations and calculating the difference between the original signal level and the ideal signal level.

This function is not supported for families of waveforms. This function is available only in the SKILL mode.

This function includes the following arguments:

Example

This example shows the scatter plot generated when you apply evmQpsk function on the following input waveforms:

The following arguments are specified in this example:

The following expression is created in the Buffer:

evmQpsk(v("in" ?result "tran" ?resultsDir "./vsin_sim.raw"), v("out" ?result "tran" ?resultsDir "./vsin_sim.raw"), 1u, 1.818182e-07, t, nil, nil , t ?output "rms")

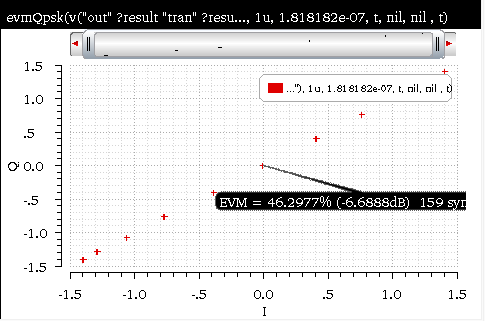

Now, when you evaluate this expression, the following scatter plot is displayed in the graph window:

Related OCEAN Function

The equivalent OCEAN function for evmQpsk is:

evmQpsk( o_waveform1 o_waveform2 n_tDelay n_sampling
g_autoLevelDetect n_voltage n_offset g_normalize )
=> o_waveform/nil

For more information about this OCEAN function, see evmQpsk in OCEAN Reference.

eyeDiagram

Gives an eye-diagram plot in which the waveform signal is divided into fixed time periods, which are then superimposed on each other. The result is a plot that has many overlapping lines enclosing an empty space known as the eye. The quality of the receiver circuit is characterized by the dimension of the eye. An open eye means that the detector can distinguish between 1's and 0's in its input, while a closed eye means that a detector placed on Vout is likely to give errors for certain input bit sequences.

This function is available only in the SKILL mode.

This function includes the following arguments:

Additional Information

Calculating Horizontal and Vertical Eye Width:

The waveform is folded on the X-axis between the start time (n_start) and stop time (n_stop) by the length n_period.

The function performs the following steps to calculate the horizontal eye opening:

The function performs the following steps to calculate vertical eye width:

Assumptions

The following assumptions have been made while calculating the advance option values:

For more information about eye diagram, see the Eye Diagram assistant.

Example

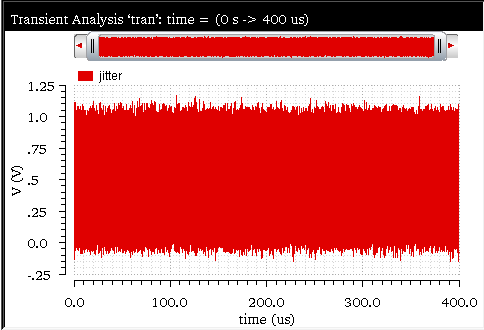

This example shows the eye diagram plot generated when you apply the eyeDiagram function on the following input signal:

The following arguments are specified in this example:

The following expression is created in the Buffer:

eyeDiagram(v("jitter" ?result "tran-tran") 200n 400u 80n   )

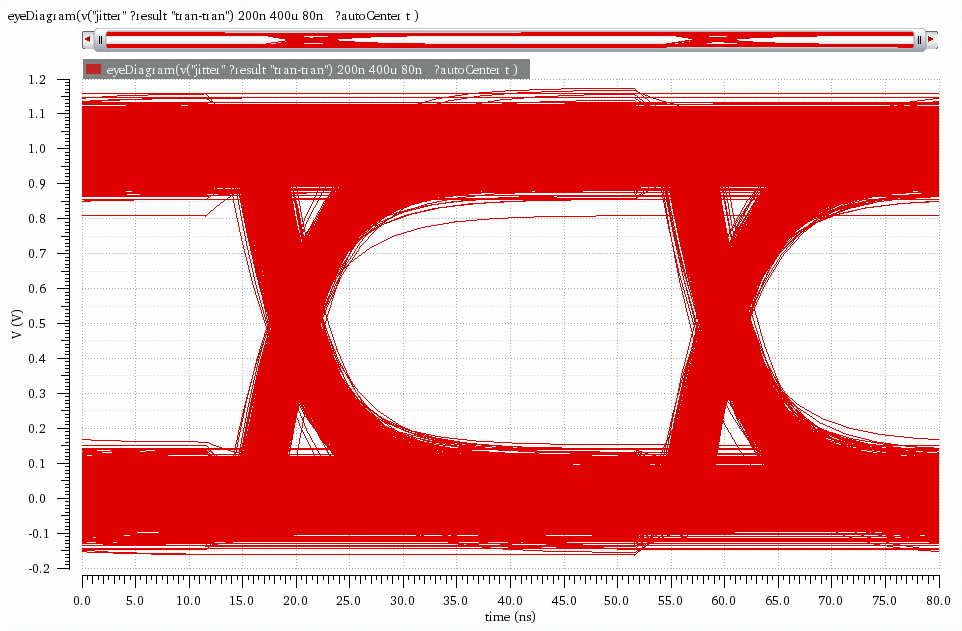

Now, when you evaluate this expression, the following eye diagram plot is displayed in the graph window:

Related OCEAN Function

The equivalent OCEAN command for eyeDiagram is:

eyeDiagram ( o_waveform n_start n_stop n_period ?advOptions t_advOptions )
=> o_waveform/nil

For more information about this OCEAN function, see eyeDiagram in OCEAN Reference.

eyeHeightAtXY

Calculates the height of an eye at the specified point (x,y) inside the eye diagram.

This function is available only in the SKILL mode.

This function includes the following arguments:

You can watch a video demonstration on how to use this function at Enhancements in eyeHeightAtXY and eyeWidthAtXY Functions. Also, read the related blog at Virtuoso Video Diary: Do More With eyeHeightAtXY and eyeWidthAtXY Calculator Functions in Virtuoso Visualization and Analysis XL.

Example 1

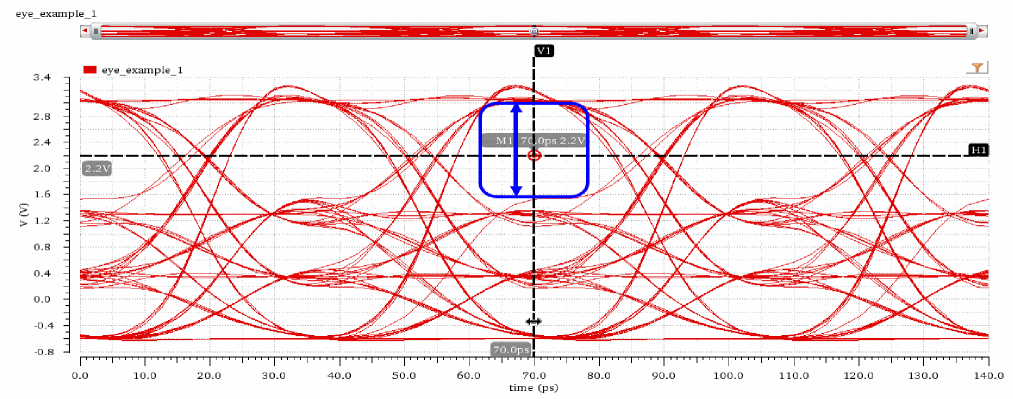

This example shows the height calculation of the highlighted eye at point M1 (70ps, 2.2v). Note that the point, M1, lies within the eye whose height is to be calculated.

Eye height is the difference of two intercepts made with the innermost traces of the eye in the Y-axis direction. You can calculate the eye height at 70ps and 2.2v with the help of an AB marker.

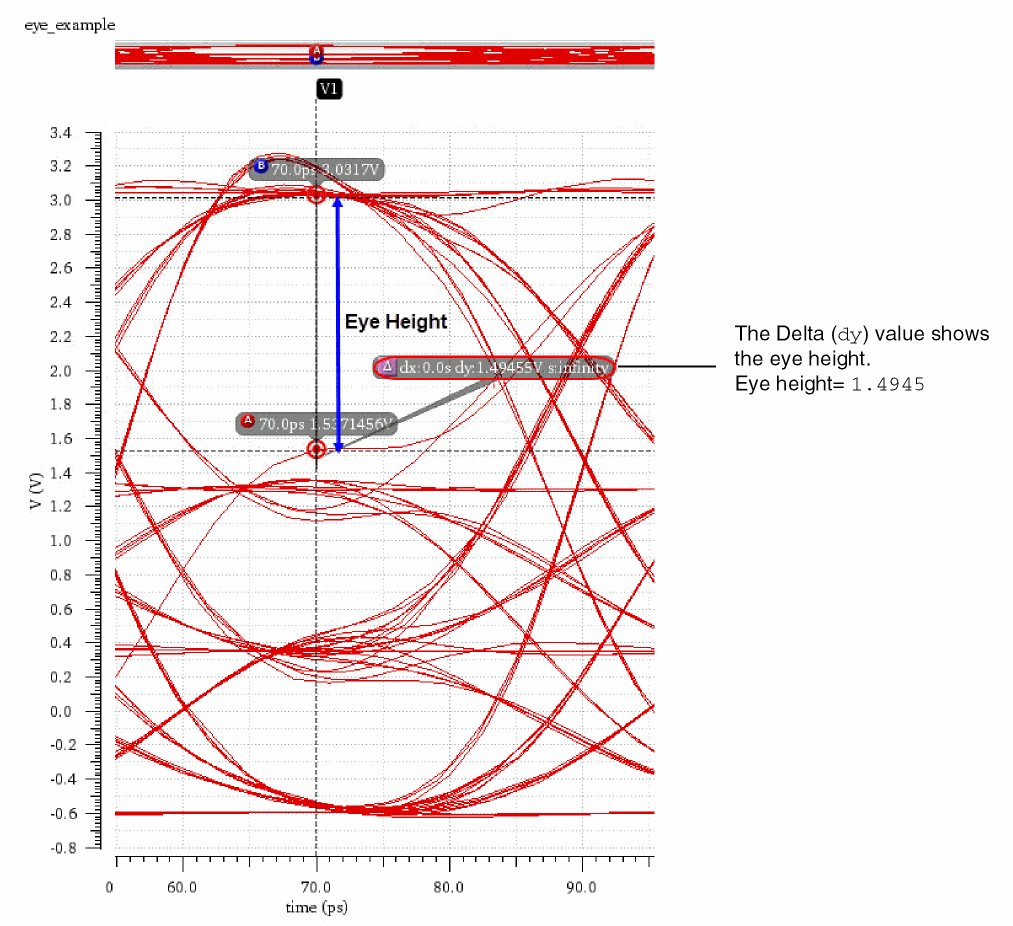

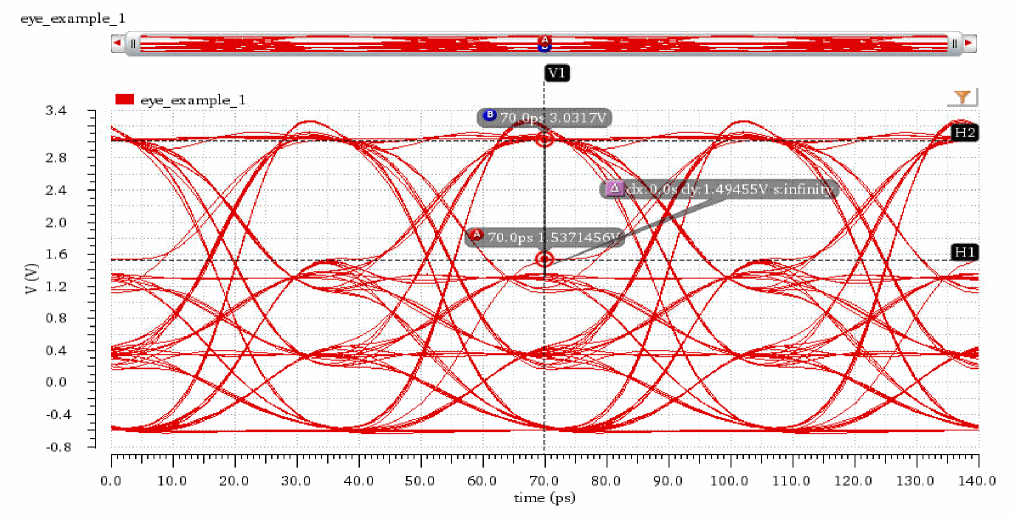

Create a vertical marker at 70ps and then insert the points, A and B, where the vertical marker intercepts the innermost traces of the eye. The delta of the AB marker (dy) indicates the difference of the Y-axis values of points B (3.0317v) and A (1.537145v), which is equal to 1.49455v. This is the eye height, as shown in the following figure.

The following snippet shows a magnified version of the information displayed in the previous figure.

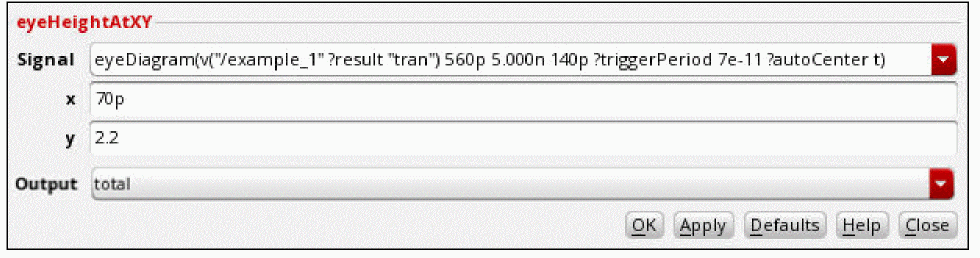

Now, calculate the total eye height using the eyeHeightAtXY function. Specify the following arguments:

The following expression is created in the Buffer:

eyeHeightAtXY(eyeDiagram(v("/example_1" ?result "tran") 560p 5.000n 140p ?triggerPeriod 7e-11 ?autoCenter t) 70p 2.2 ?output "total" )

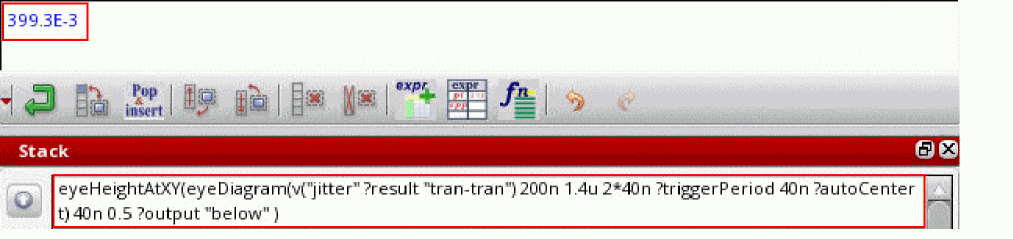

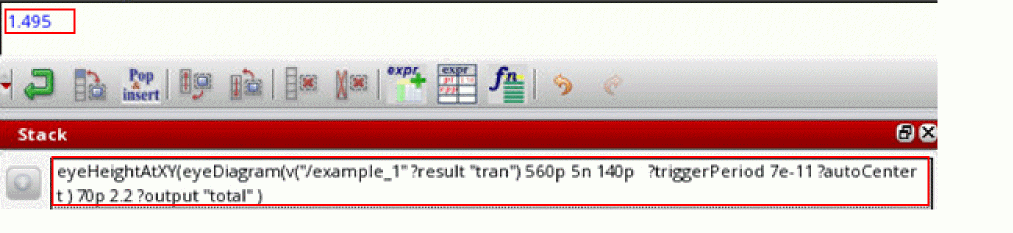

When you evaluate this expression, the function returns the value of eye height, as shown in the following figure.

Example 2

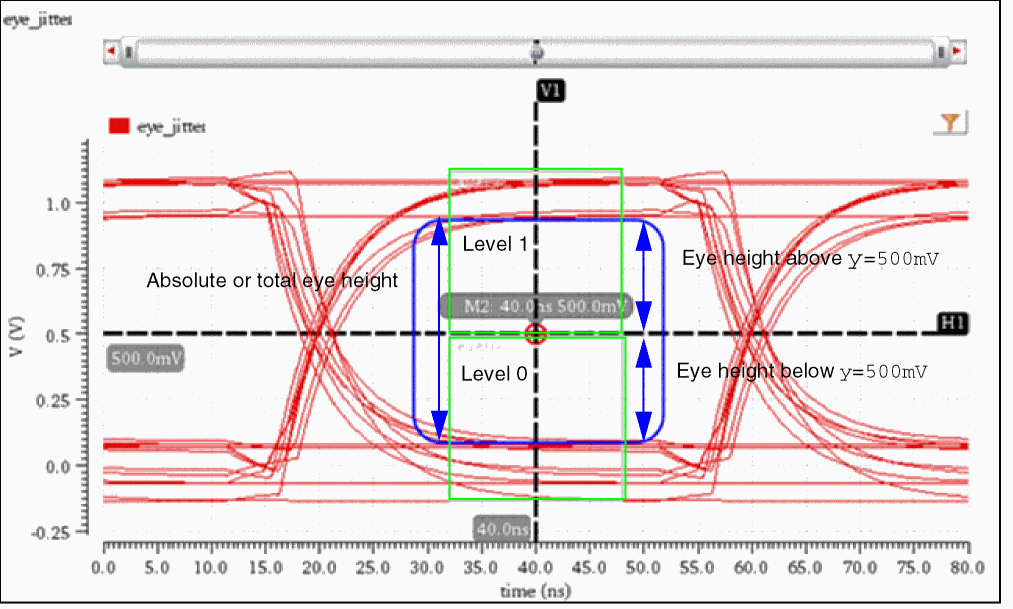

This example shows the height calculation of the highlighted eye at the point M2 (40ns, 500mV). Note that the point M2 lies within the eye whose height is to be calculated.

Now, we will calculate the total eye height at M2, eye height above y=500mV, and eye height below y=500mV by using the eyeHeightAtXY function.

To calculate the total eye height at M2 (x=40ns, y=500mV), specify the following arguments:

The following expression is created in the Buffer:

eyeHeightAtXY(eyeDiagram(v("jitter" ?result "tran-tran") 200n 1.4u 2*40n ?triggerPeriod 40n ?autoCenter t) 40n 0.5 ?output "total" )

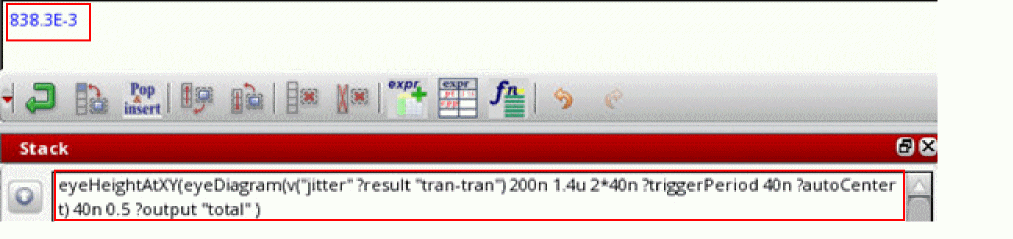

When you evaluate this expression, the function returns the value of total eye height, as shown in the following figure.

To calculate the eye height at M2 (x=40ns, y=500mV) below y=500mV (eye height in the region Level 0), specify the following arguments:

The following expression is created in the Buffer:

eyeHeightAtXY(eyeDiagram(v("jitter" ?result "tran-tran") 200n 1.4u 2*40n ?triggerPeriod 40n ?autoCenter t) 40n 0.5 ?output "below" )

When you evaluate this expression, the function returns the value of eye height that is below y=0.5V (500mV), as shown in the following figure.

To calculate the eye height at M2 (x=40ns, y=500mV) above y=500mV (eye height in the region Level 1), specify the following arguments:

The following expression is created in the Buffer:

eyeHeightAtXY(eyeDiagram(v("jitter" ?result "tran-tran") 200n 1.4u 2*40n ?triggerPeriod 40n ?autoCenter t) 40n 0.5 ?output "above" )

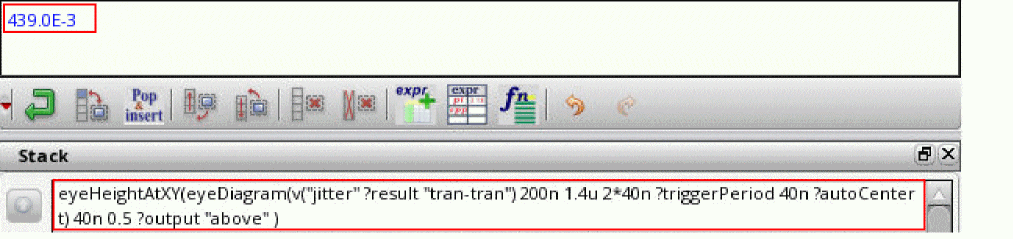

When you evaluate this expression, the function returns the value of eye height that is above y=0.5V (500mV), as shown in the following figure.

Observe that the total eye height at M2 is the sum of eye heights in the level 0 and level 1 regions.

Related OCEAN Function

The equivalent OCEAN command for eyeHeightAtXY is:

eyeHeightAtXY ( o_eyeDiagram f_x f_y ?output t_output)
=> f_eyeHeight/nil

For more information about this OCEAN function, see eyeHeightAtXY in OCEAN Reference.

eyePeakToPeakJitter

Calculates the peak-to-peak jitter at the specified threshold within the region of an eye diagram. The peak-to-peak jitter is the time between the first and the last crossing.

This function includes the following arguments:

Examples

The following figure shows the input waveform of the eye diagram for which peak-to-peak jitter is to be calculated.

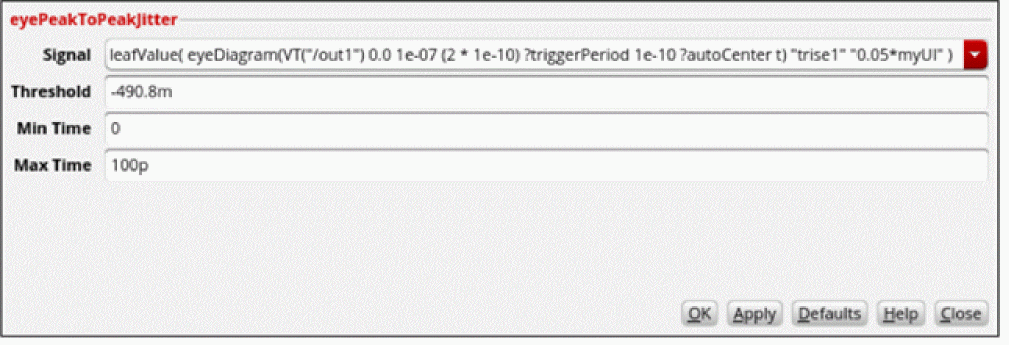

To calculate the peak-to-peak jitter the threshold value -490.8mV of this eye diagram using the calculator function eyePeakToPeakJitter, specify the following arguments:

The following expression is created in the Buffer:

eyePeakToPeakJitter(leafValue( eyeDiagram(VT("/out1") 0.0 1e-07 (2 * 1e-10) ?triggerPeriod 1e-10 ?autoCenter t) "trise1" "0.05*myUI" ) -490.8m 0 100p )

When you evaluate this expression, the function returns the value of the peak-to-peak jitter at the threshold value -490.8mV of the eye diagram. The peak-to-peak jitter is the distance between the first (0p) and last crossing (100p)at the threshold value -490.8mV of the eye diagram.

=> 18.44E-12

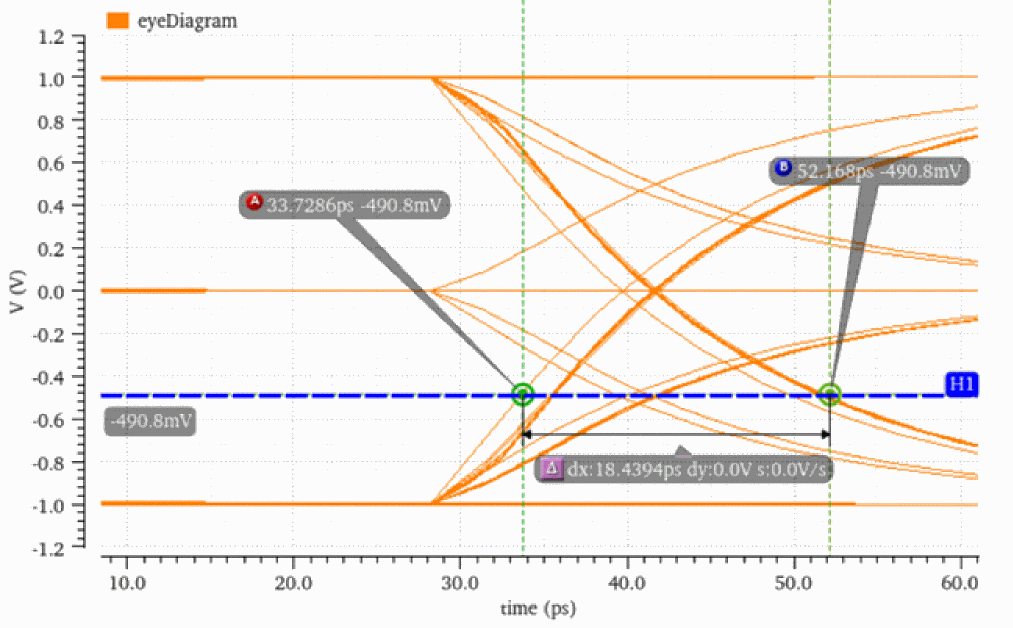

The calculated value of peak-to-peak jitter can be verified by placing the A and B markers on the first and last crossing at the threshold value of -490.8mV. The distance between these two markers is 18.4ps.

Related Topics

eyePeakToPeakJitter

eyeWidthAtXY

Calculates the width of an eye at the specified point (x,y) inside the eye diagram.

This function is available only in the SKILL mode.

This function includes the following arguments:

You can watch a video demonstration on how to use this function at Enhancements in eyeHeightAtXY and eyeWidthAtXY Functions. Also, read the related blog at Virtuoso Video Diary: Do More With eyeHeightAtXY and eyeWidthAtXY Calculator Functions in Virtuoso Visualization and Analysis XL.

Example 1

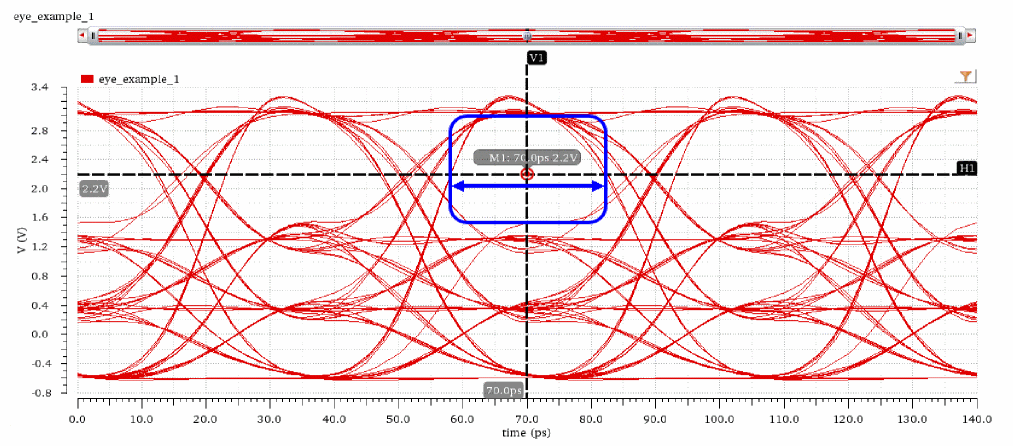

This example shows the width calculation of the highlighted eye at point M1(70ps, 2.2v). Note that the point M1 lies within the eye whose width is to be calculated.

Eye width is the difference of two intercepts made with the innermost traces of the eye in the X-axis direction. You can calculate the eye width at 70ps and 2.2V with the help of an AB marker.

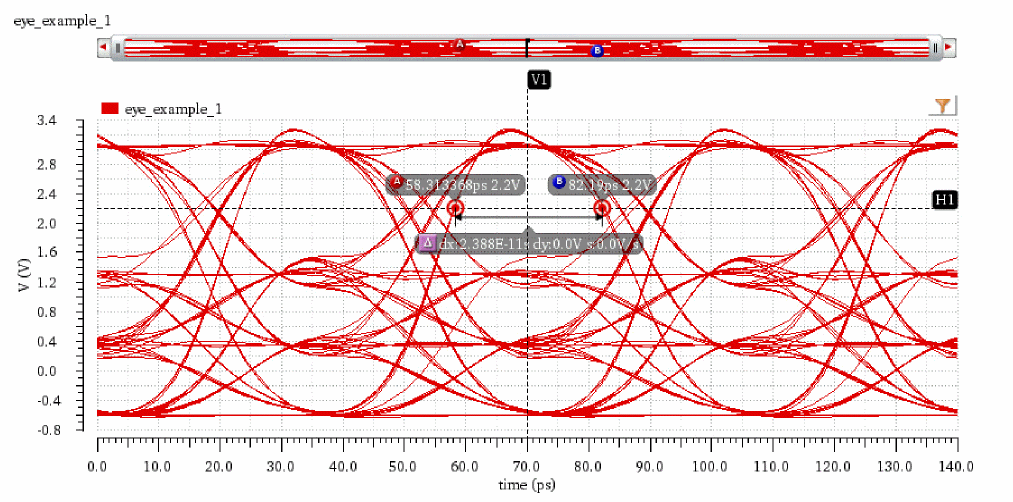

Create a horizontal marker at 2.2V and then insert the points, A and B, where the horizontal marker intercepts the innermost traces of the eye. The delta of the AB marker (dx) indicates the difference of the X-axis values of points B (82.19ps) and A (58.31ps), which is equal to 23.88ps or 2.388e-11 second. This is the eye width, as shown in the following figure.

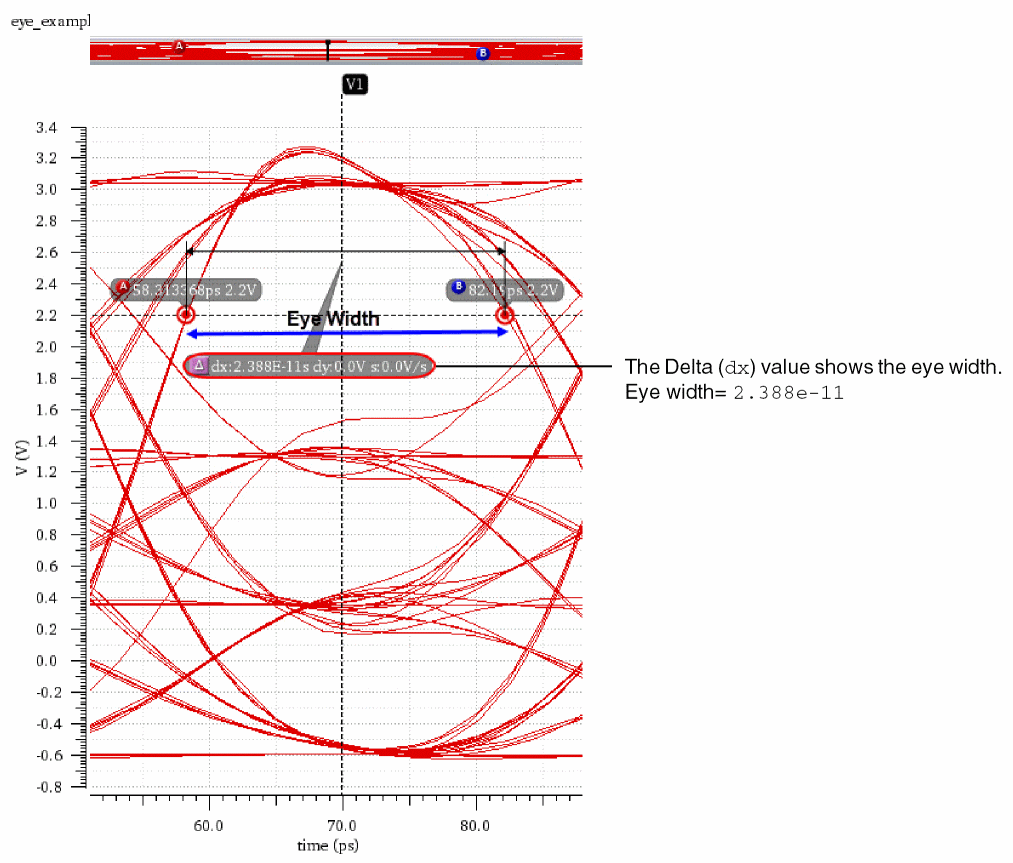

The following snippet shows a magnified version of information displayed in the previous figure.

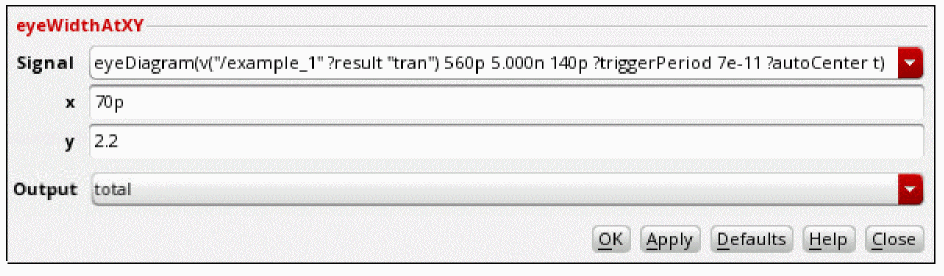

Now, calculate the total eye width using the eyeWidthAtXY function. Specify the following arguments:

The following expression is created in the Buffer:

eyeWidthAtXY(eyeDiagram(v("/example_1" ?result "tran") 560p 5.000n 140p ?triggerPeriod 7e-11 ?autoCenter t) 70p 2.2 ?output "total")

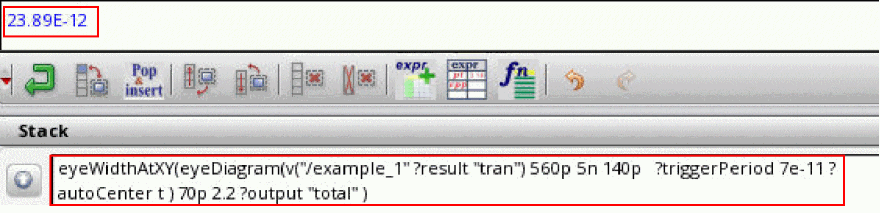

When you evaluate this expression, the function returns the value of eye width, as shown in the following figure.

Example 2

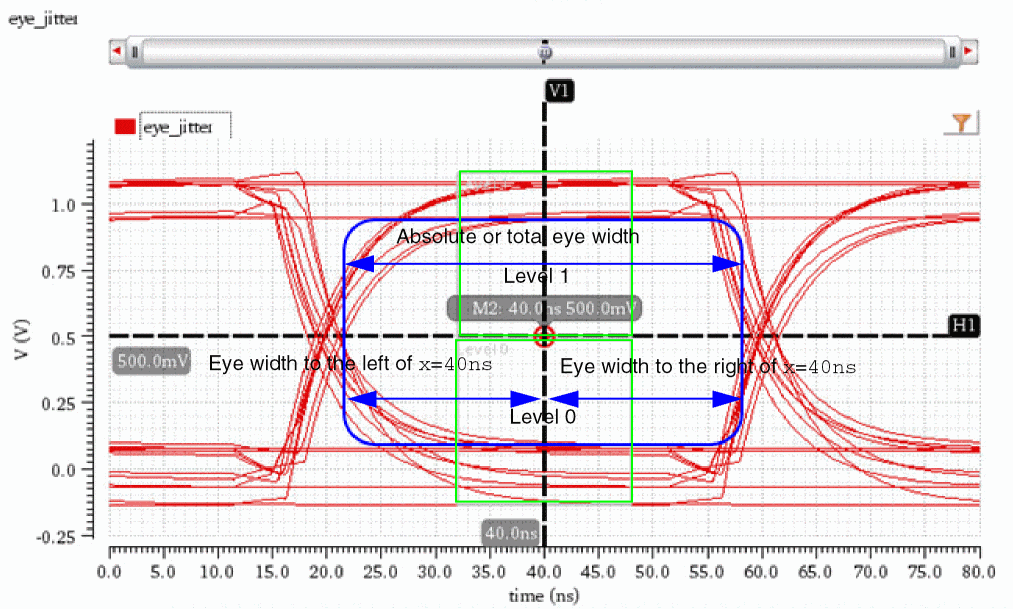

This example shows the width calculation of the highlighted eye at point M2 (40ns, 500mV). Note that the point, M2, lies within the eye whose width is to be calculated.

Now, calculate the total eye width at M2, eye width to the left of x=40ns, and eye width to the right of x=40ns by using the eyeWidthAtXY function.

To calculate the total eye width at M2 (x=40ns, y=500mV), specify the following arguments:

The following expression is created in the Buffer:

eyeWidthAtXY(eyeDiagram(v("jitter" ?result "tran-tran") 200n 1.4u 2*40n ?triggerPeriod 40n ?autoCenter t) 40n 0.5 ?output "total" )

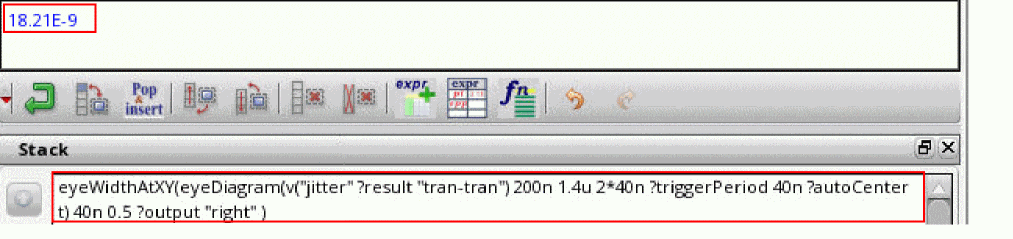

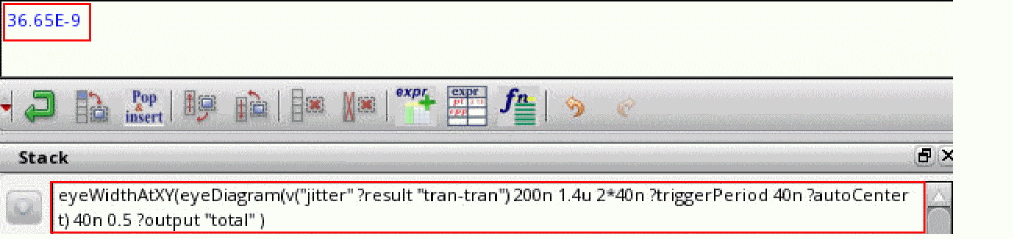

When you evaluate this expression, the function returns the value of total eye width, as shown in the following figure.

To calculate the eye width at M2 (x=40ns, y=500mV) to the left of x=40ns, specify the following arguments:

The following expression is created in the Buffer:

eyeWidthAtXY(eyeDiagram(v("jitter" ?result "tran-tran") 200n 1.4u 2*40n ?triggerPeriod 40n ?autoCenter t) 40n 0.5 ?output "left" )

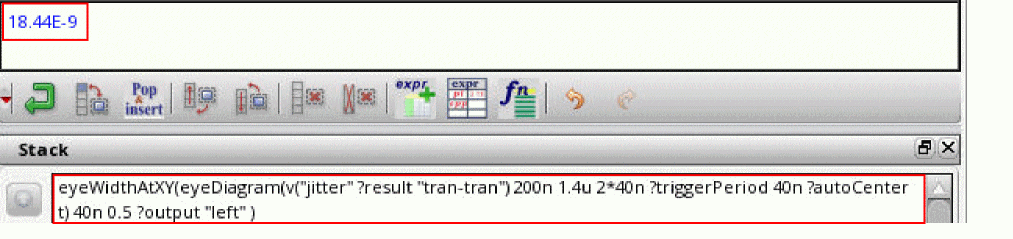

When you evaluate this expression, the function returns the value of eye width that is left to x=40ns, as shown in the following figure.

To calculate the eye width at M2 (x=40ns, y=500mV) to the right of x=40ns, specify the following arguments:

The following expression is created in the Buffer:

eyeWidthAtXY(eyeDiagram(v("jitter" ?result "tran-tran") 200n 1.4u 2*40n ?triggerPeriod 40n ?autoCenter t) 40n 0.5 ?output "right" )

When you evaluate this expression, the function returns the value of eye width that is right to x=40ns, as shown in the following figure.

Observe that the total eye width at M2 is the sum of eye widths to the left and to the right of the specified x value.

Related OCEAN Function

The equivalent OCEAN command for eyeWidthAtXY is:

eyeWidthAtXY ( o_eyeDiagram f_x f_y ?output t_output)
=> f_eyeWidth/nil

For more information about this OCEAN function, see eyeWidthAtXY in OCEAN Reference.

eyeAperture

Returns the aperture of the input eye diagram signal.

This function includes the following fields:

Note the following points:

The eyeAperture function results in an evaluation error in the following cases:

Examples

Part1: Calculating eye aperture on a single eye diagram waveform

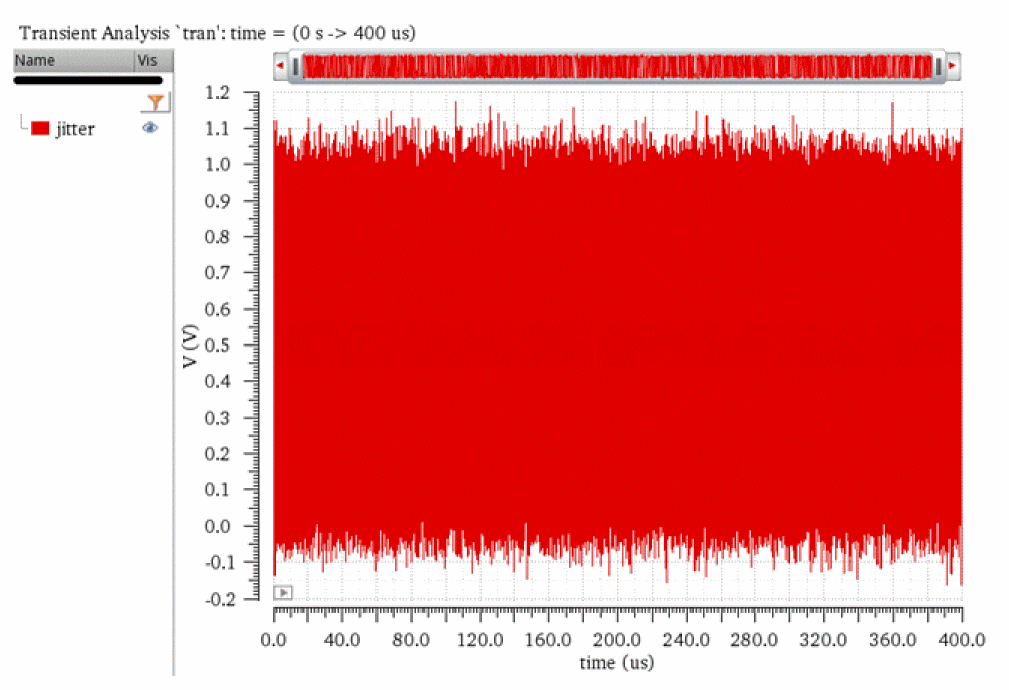

Consider the following input signal from the transient analysis:

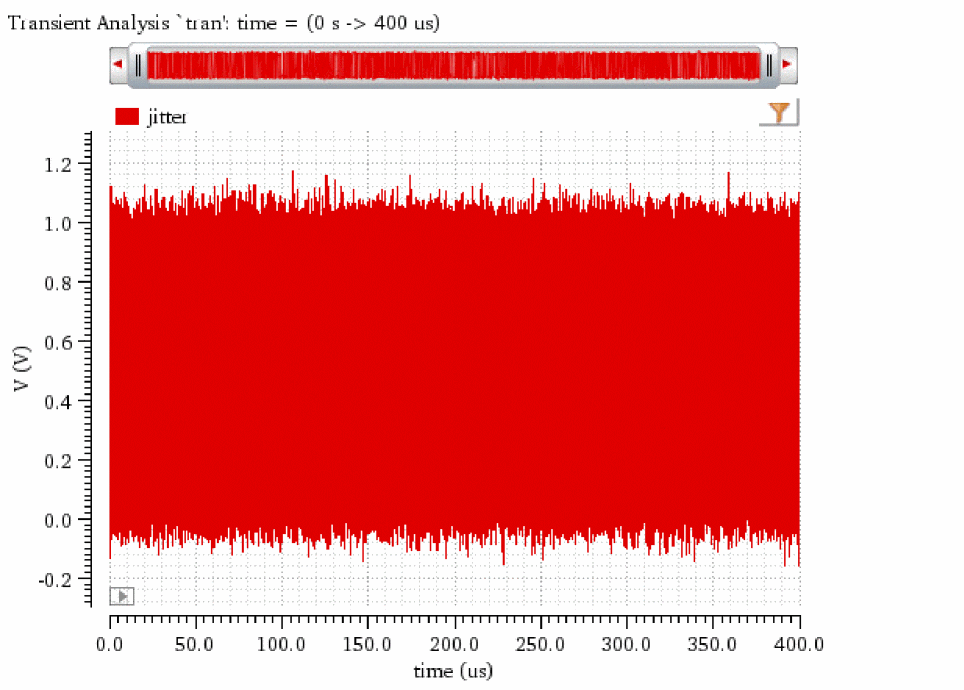

v("jitter" ?result "tran" ?resultsDir "./ViVA_Workshop_IC618/design/prbs.raw")

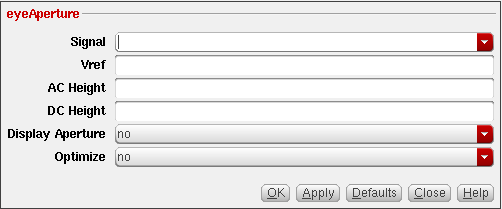

The eyeAperture function requires an eye diagram waveform as an input; therefore, firstly, you need to plot an eyeDiagram from this input signal. To plot the eye diagram, specify the following field values in the Eye Diagram assistant:

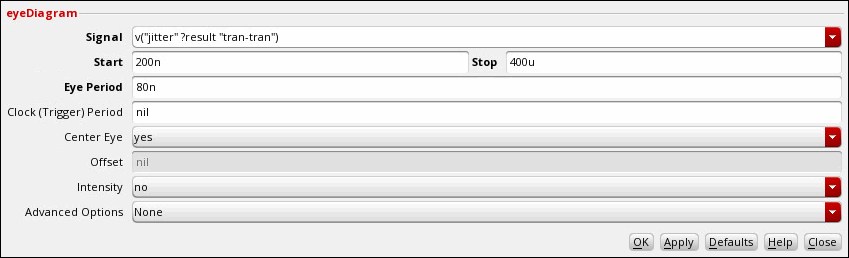

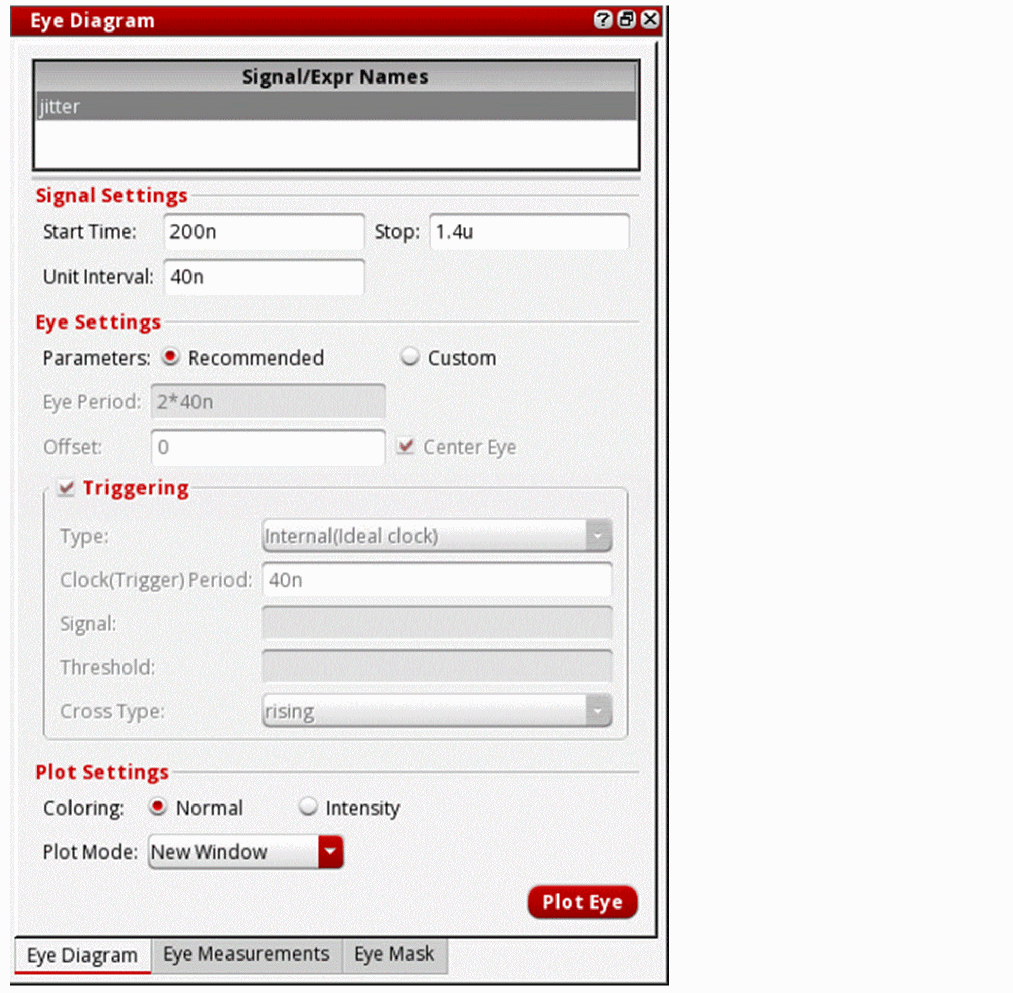

The following figure shows these settings configured in the Eye Diagram assistant.

Now, click the Plot Eye button. For more information about how to use the Eye Diagram assistant, see Eye Diagram Assistant.

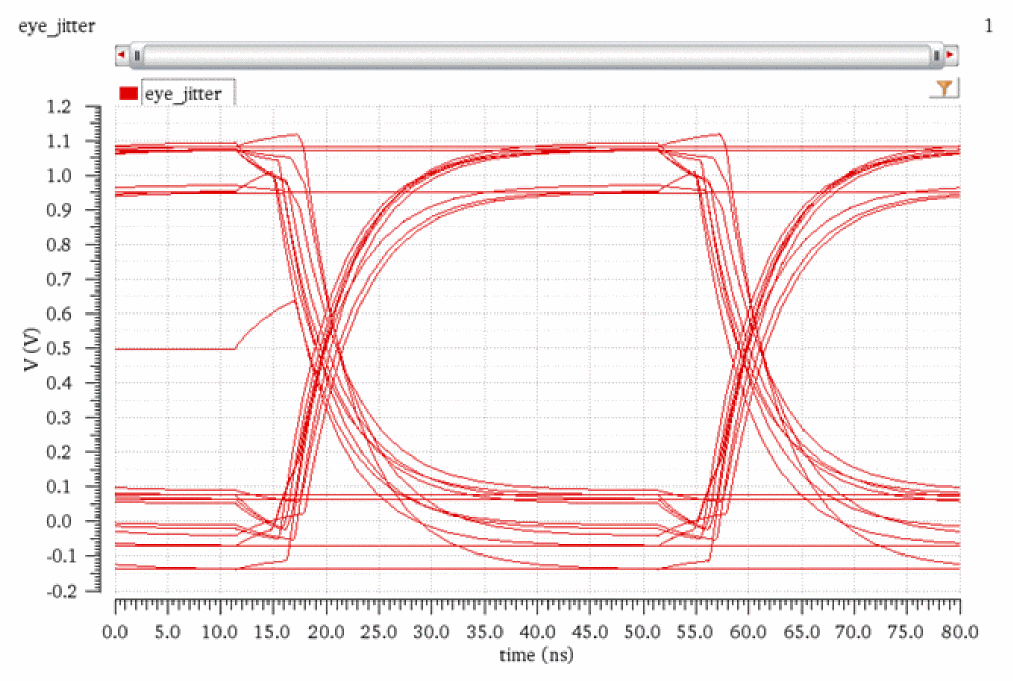

The following eye diagram is plotted in a new window.

Now, when you send this eye diagram to Calculator, the following expression is displayed in the Buffer:

eyeDiagram(v("jitter" ?result "tran-tran") 200n 1.4u 2*40n ?triggerPeriod 40n ?autoCenter t)

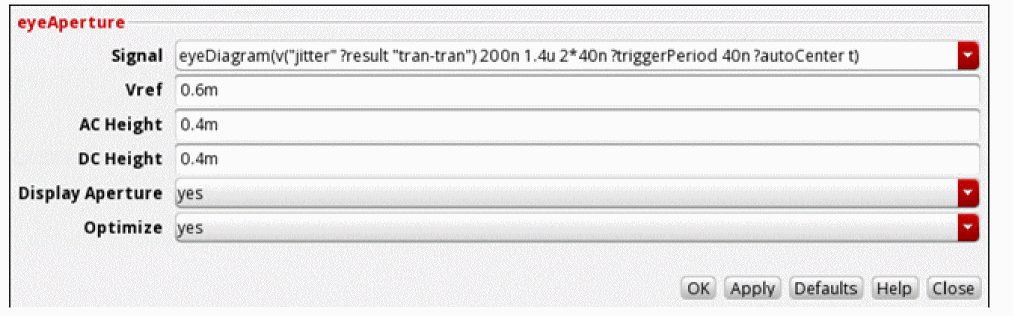

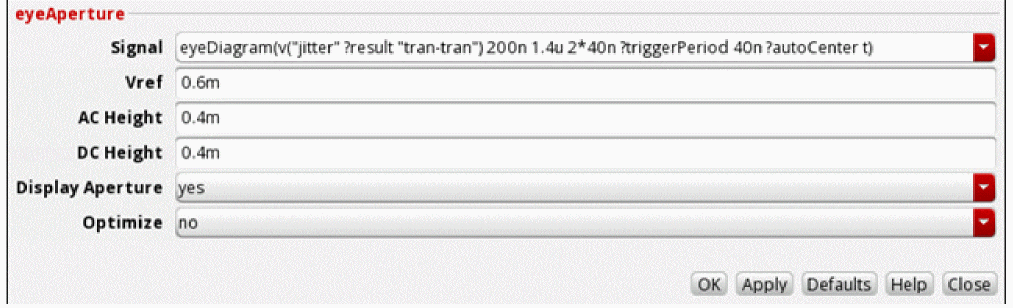

Now, apply the eyeAperture function on this Buffer expression with the following arguments:

After you apply the function, the following new expression is created in the Buffer:

eyeAperture(eyeDiagram(v("jitter" ?result "tran-tran") 200n 1.4u 2*40n ?triggerPeriod 40n ?autoCenter t) 0.6m 0.4m 0.4m t t )

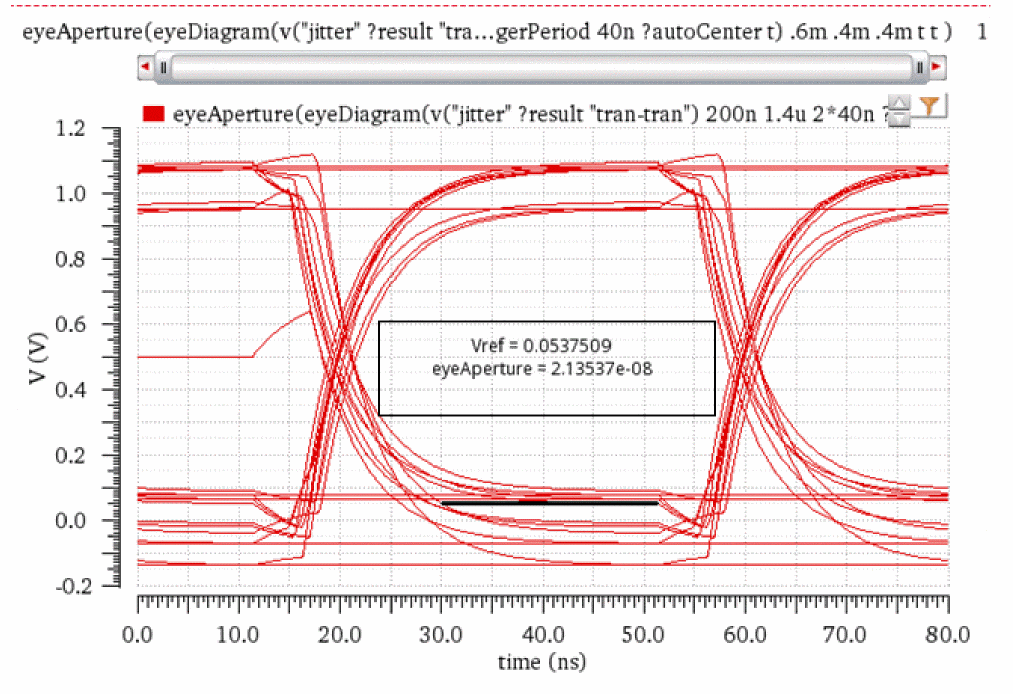

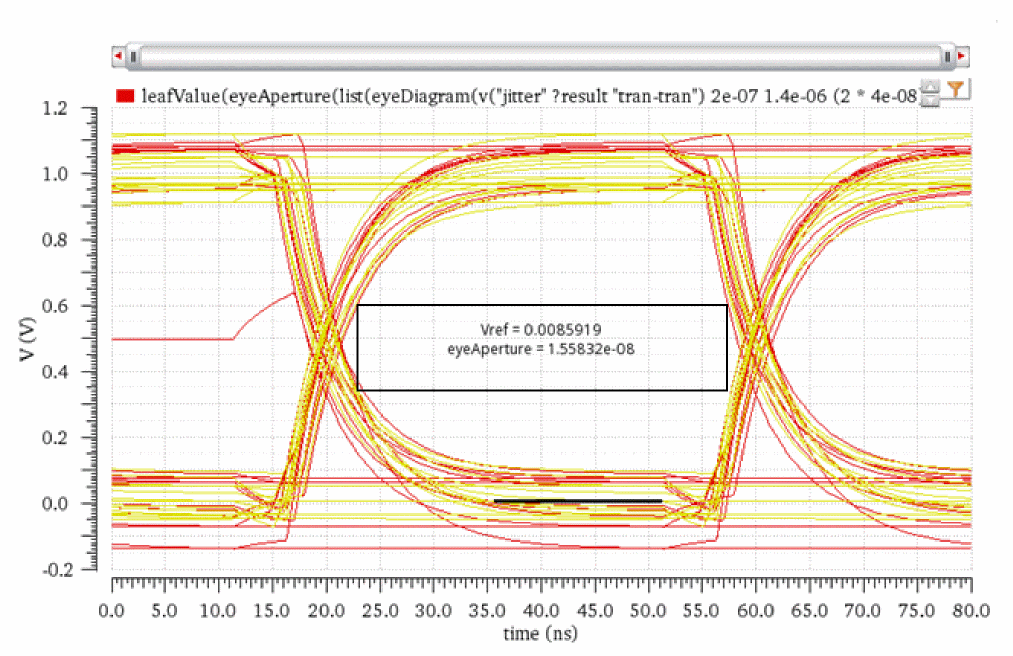

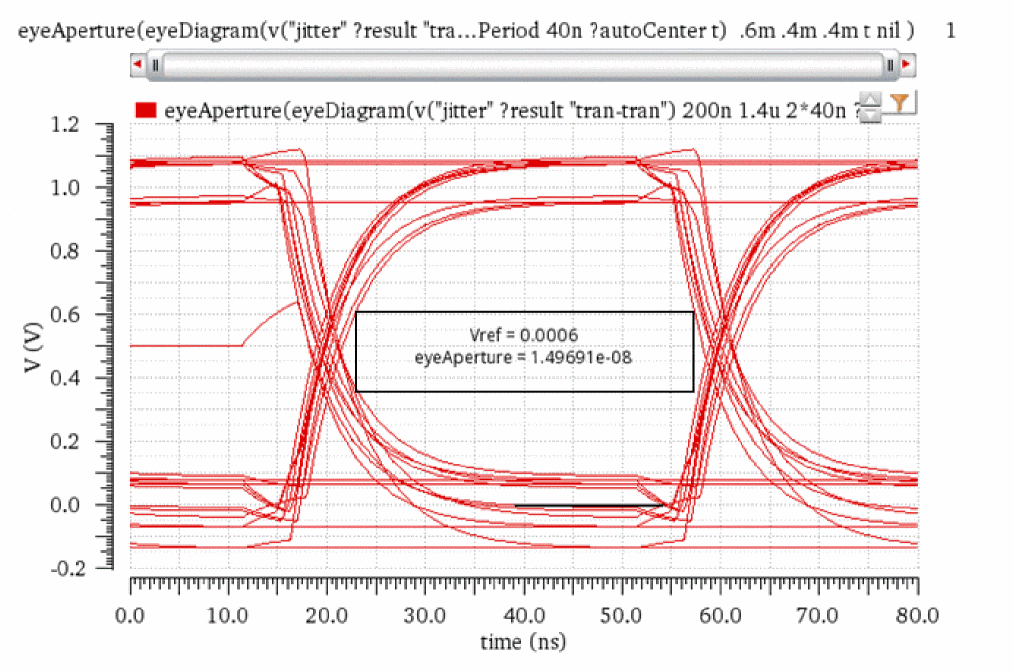

When you evaluate this expression, the following output is displayed in a new window:

Now, apply the eyeAperture function again with the Optimize value as no.

The following expression is created in the Buffer:

eyeAperture(eyeDiagram(v("jitter" ?result "tran-tran") 200n 1.4u 2*40n ?triggerPeriod 40n ?autoCenter t)  0.6m 0.4m 0.4m t nil )

When you evaluate this expression, the following output appears in a new window:

Part2: Calculating eye aperture on two eye diagram waveforms

Eye Diagram1: Create an eye diagram waveform for the jitter signal by using the Eye Diagram assistant with the following field values.

The following eye diagram plot appears:

Eye Diagram2: Create the second eye diagram for the jitter signal by using the Eye Diagram assistant with the following field values:

Plot the eye diagram in Append mode. This new eye diagram is plotted in the same window in which the first eye diagram (created in part1) was plotted.

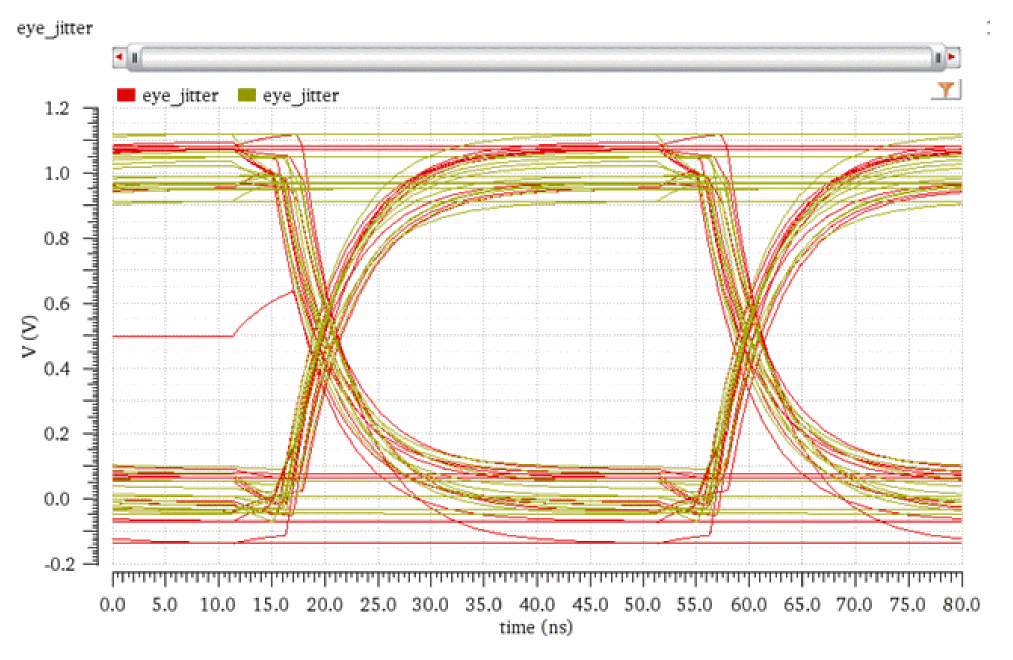

The following eye diagrams are displayed in the append mode.

Now, select both the eye diagram waveforms by holding down the Ctrl key, right-click and choose Send To – Calculator as a list.

The following expression is created in the Buffer:

list(eyeDiagram(v("jitter" ?result "tran-tran") 200n 1.4u 2*40n ?triggerPeriod 40n ?autoCenter t) eyeDiagram(v("jitter" ?result "tran-tran") 1.4u 2.8u 2*40n ?triggerPeriod 40n ?autoCenter t) )

Now, apply the eyeAperture function on this expression with the following argument values:

When you apply the function, the following expression is created in the Buffer:

eyeAperture(list(eyeDiagram(v("jitter" ?result "tran-tran") 200n 1.4u 2*40n ?triggerPeriod 40n ?autoCenter t) eyeDiagram(v("jitter" ?result "tran-tran") 1.4u 2.8u 2*40n ?triggerPeriod 40n ?autoCenter t) ) 0.6m 0.4m 0.4m t t )

When you evaluate this expression, the following output is displayed in a new window:

Additional Information

If you specify an output expression using eyeAperture and eyeDiagram functions in the ADE Outputs Setup pane, the output waveform for eyeAperture is generated after the simulation is complete. In addition, the scalar values for VREF and eyeAperture are displayed in CIW.

For example, create the following expression in ADE Outputs Setup:

eyeAperture(eyeDiagram(VT("/net3")0 VAR("a") 1e-10)0 (VAR("a")/100)

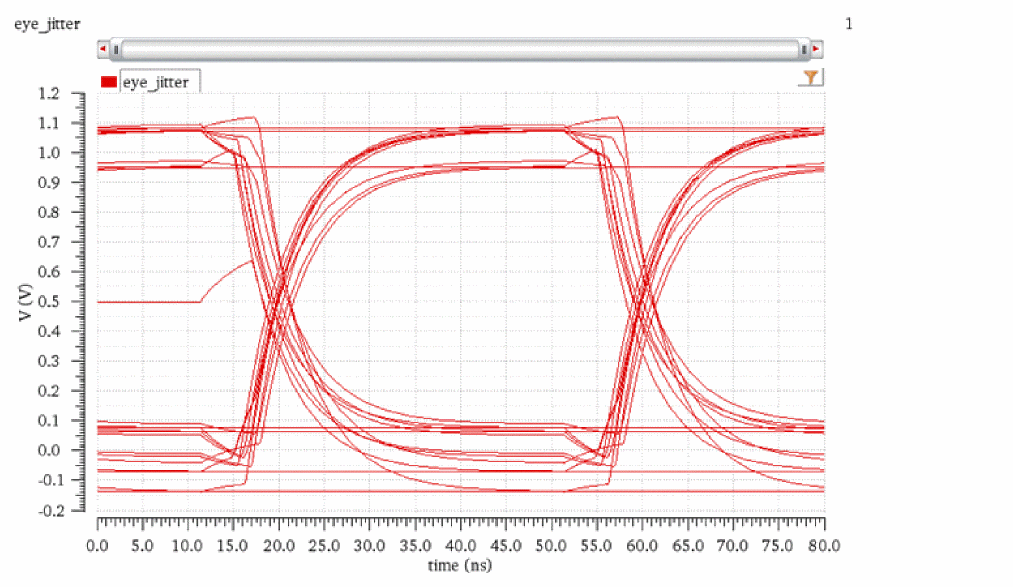

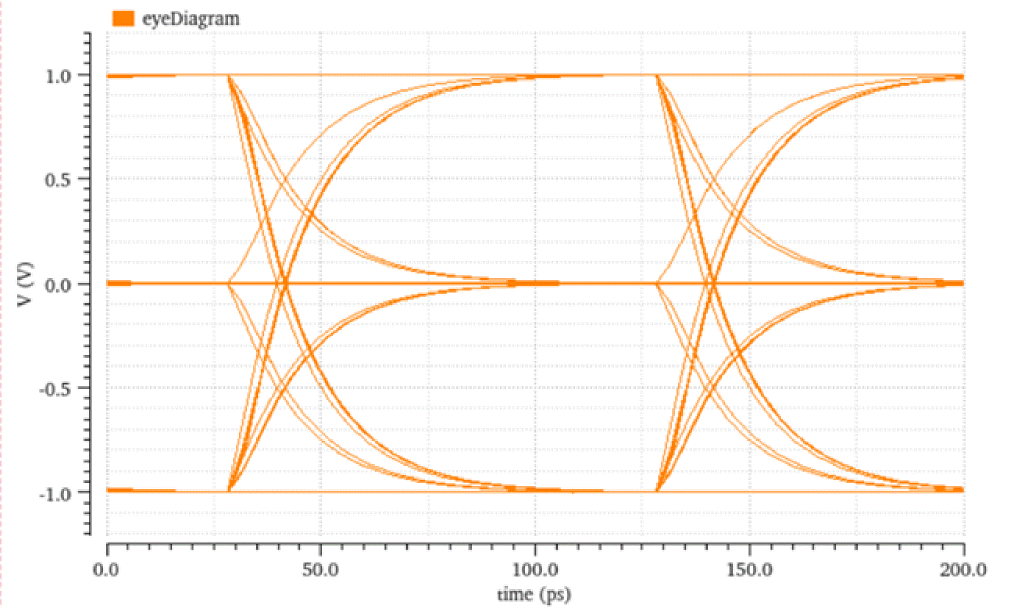

Now, when you run a simulation, the following output waveform is generated that displays the eyeAperture and Vref values.

Also, the Vref and eyeAperture scalar values are displayed in CIW:

fallTime

Returns the fall time measured between theta1 (percent high) to theta2 (percent low) of the difference between the initial value and the final value.

The fallTime function can also be used to compute the rise time if initVal is lower than finalVal.

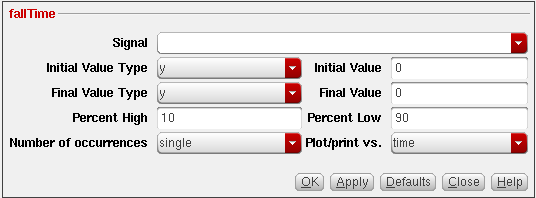

This function includes the following fields:

Additional Information

Consider the following equations:

Val1 = theta1 / 100.0 * diff + initVal

Val2 = theta2 / 100.0 * diff + initVal

The following table shows how the fallTime function works when you apply the above equations:

Function FallTime(w initVal nil finalVal nil theta1 theta2) initVal finalVal theta1 theta2 Val1 Val2 Output

Case 1

0

1

10

80

0.1

0.8

1.4n (time taken to rise from 200.0p ns to 1.6ns) See Figure for Case 1.

Case 2

0

1

80

10

0.1

0.8

0.7n (time taken to fall from 4.2ns to 4.9ns) See Figure for Case 2.

Case 3

1

0

10

80

0.9

0.2

0.7n (time taken to fall from 4.1ns to 4.8ns) See Figure for Case 3.

Case 4

1

0

80

10

0.2

0.9

1.4n (time taken to rise from 400.0p s to 1.8ns) See Figure for Case 4

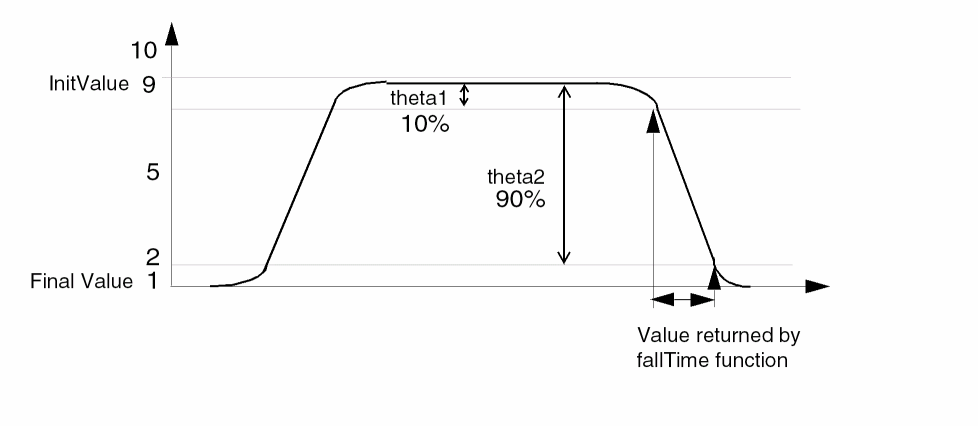

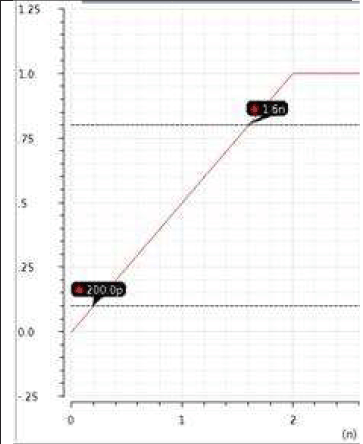

Figure for Case 1

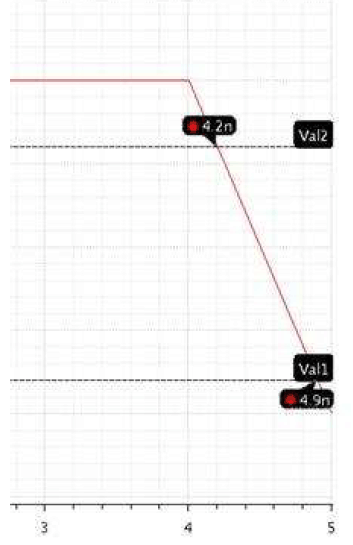

Figure for Case 2

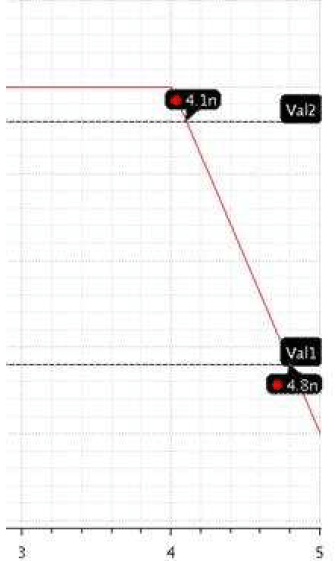

Figure for Case 3

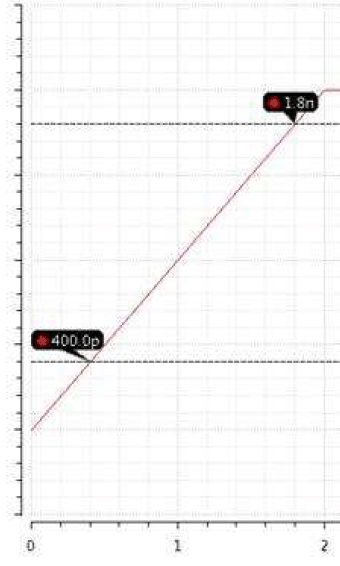

Figure for Case 4

Example

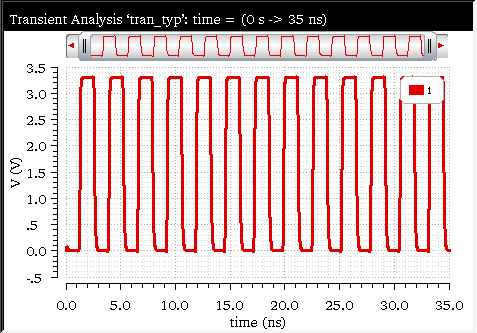

This example shows the output waveform genearted when you apply the fallTime function on the following input signal:

The following arguments are specified in this example:

The following expression is created in the Buffer:

fallTime(v("1" ?result "tran" ?resultsDir "./nand2_ring.raw") 3.3 nil 0 nil 90 10 t "time" )

Now, when you evaluate this expression, the following output waveform showing the falltime is displayed in the graph window:

Related OCEAN Function

The equivalent OCEAN command for fallTime is:

fallTime( o_waveform n_initVal g_initType
n_finalVal g_finalType n_theta1 n_theta2
[g_multiple [s_Xname][g_histoDisplay][x_noOfHistoBins] ] )
=> o_waveform/n_value/nil

For more information, see fallTime in OCEAN Reference.

firstVal

Returns the first value from where the waveform starts on the X-axis.

Example

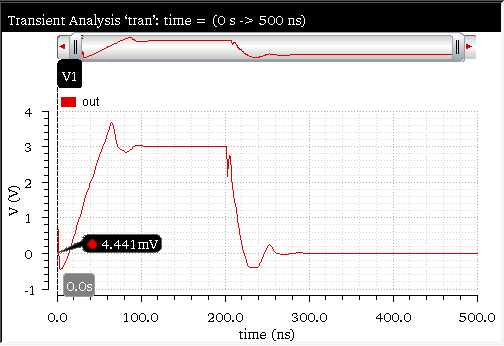

Consider the following example in which you run the firstVal function on the following transient signal:

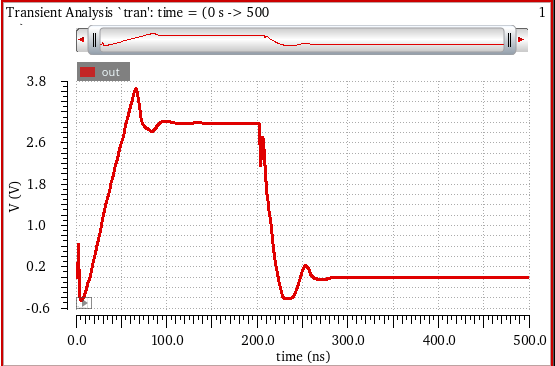

When you send this signal to Calculator, the following expression is created in the Buffer:

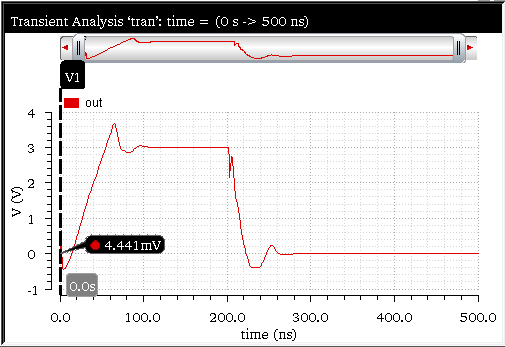

v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw")

When you select the firstVal function in Function Panel, it is applied directly on the expression in the Buffer:

firstVal(v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw"))

Now, when you evaluate this expression, the function returns the starting value of the out signal on the X-axis, as shown in the figure below:

flip

Returns a reversed version of a signal (rotates the signal along the Y-axis).

Example

This example displays the output waveform generated when you apply the flip function on the following input signal:

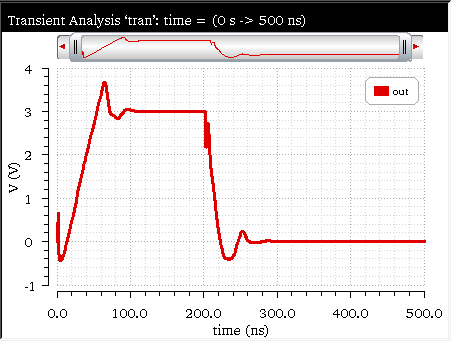

When you apply the flip function on this signal, the following expression is created in the Buffer:

flip(v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw"))

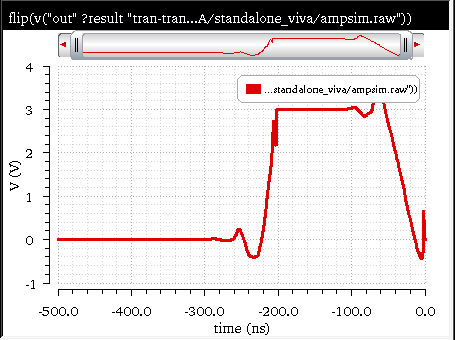

When you evaluate this expression, the following output waveform, which is the inverse of the input signal, is displayed in the graph window:

Related OCEAN Function

The equivalent OCEAN command for the flip function is:

flip( o_waveform )
=> o_waveform/nil

For more information about the OCEAN function, see flip in OCEAN Reference.

fourEval

Evaluates the Fourier series represented by the buffer expression. This function is an inverse Fourier transformation and thus the inverse of the dft (discrete fourier transform) function. It transforms the buffer expression from the frequency domain to the time domain.This function is available only in the SKILL mode.

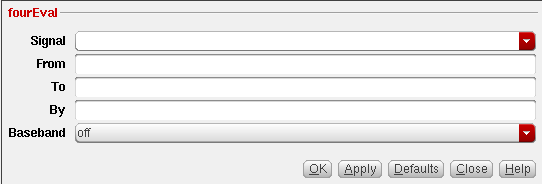

This function includes the following arguments:

Example 1

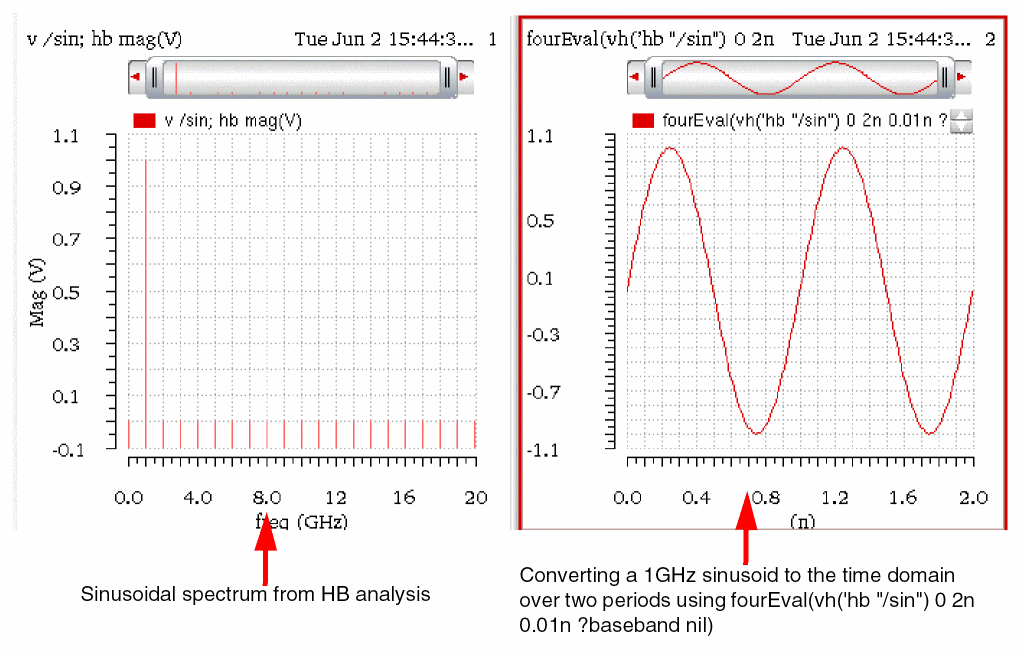

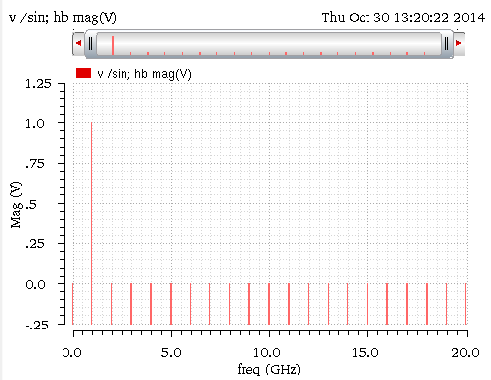

The first example converts the spectrum of a pure sinusoidal signal v/sin from SpectreRF Harmonic Balance (hb) analysis to the time domain.

The following argument values are specified in this example:

The following expression is created in the Buffer:

fourEval(mag(v("Plo" ?result "pss_fd" ?resultsDir "./pss_ne600.raw")) 0 15n 0.1n ?baseband nil)

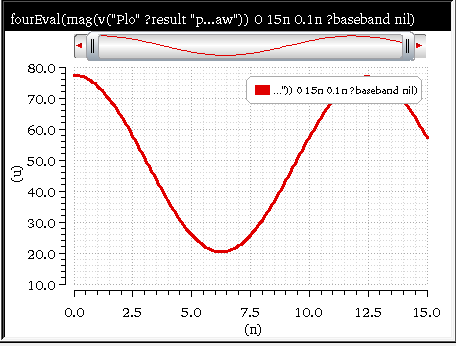

When you evaluate this expression, the output waveform for the Fourier series is displayed in the graph window (as shown in the figure below):

Example 2

This example converts the spectrum of a pure sinusoid from SpectreRF Harmonic Balance analysis to the time domain. The frequency of the sinusoid is 1GHz and evaluated from 0 to 2ns in increments of 0.01ns.

Consider the test_sin library in the fourtest test case. The following outputs are displayed window when you load the cellview test_sin:

When you run the simulation and plot the outputs, the following waveforms are displayed in the graph window:

Example 3

This example demonstrates that the frequencies in the spectrum are not required to be equally-spaced. Consider the example of two closely spaced sinusoids:

Consider the test_mod library in the fourtest test case. The following outputs are displayed when you load the cellview test_mod:

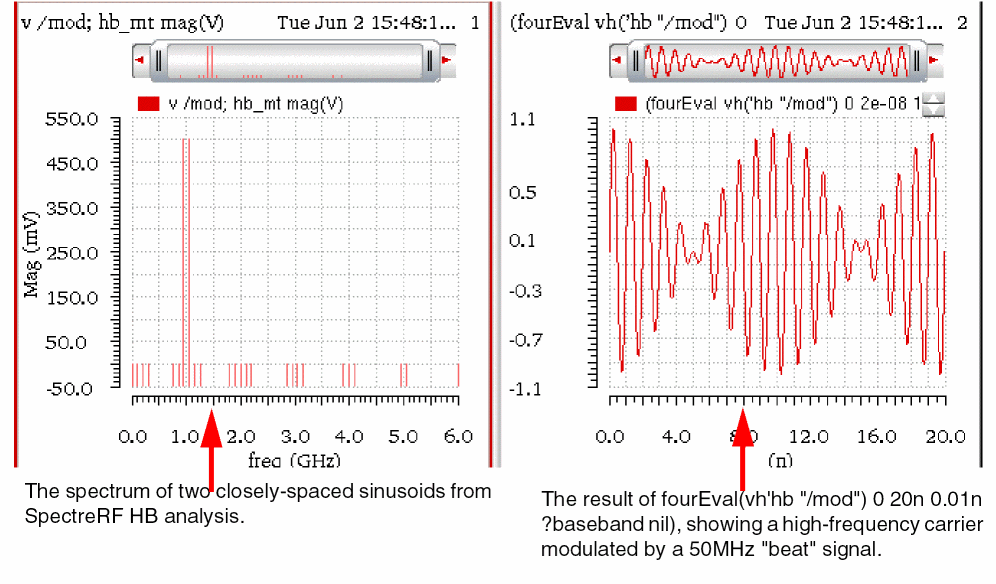

When you run the simulation and plot the outputs, the following waveforms are displayed in the graph window:

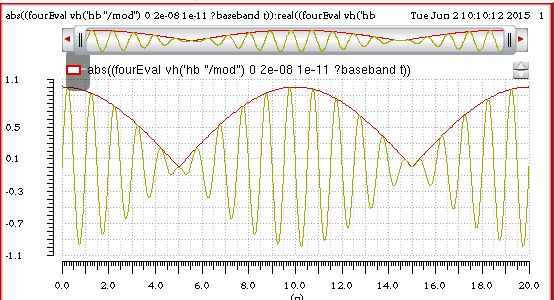

Example 4

This example applies fourEval() to the problem of envelope detection. The signal shown in Example 2 is amplitude-modulated by a 50 MHz sinusoid, and its envelope is |cos((2pi)t*50MHz)|

Consider the test_bb library in the fourtest test case. The following outputs are displayed when you load the cellview test_bb:

When you run the simulation and plot the output, the output waveform is displayed in the graph window. In this output waveform, the magnitude of the analytic signal (produced by fourEval() when baseband=t) represents the envelope of the signal.

Related OCEAN Function

The equivalent OCEAN command for fourEval function is:

fourEval( o_waveform n_from n_to n_by [?g_baseBand] )
=> o_waveform/nil

For more information about the OCEAN function, see fourEval in OCEAN Reference.

freq

In the SKILL mode, freq returns a waveform representing the frequency of a signal versus time or cycle.

Unlike the frequency function, which takes only waveform as input and returns the average frequency value, the freq function plots multiple occurrences of frequency based on the specified edge types. You can use this function to plot frequencies against time or cycle when the waveform includes a varying period.

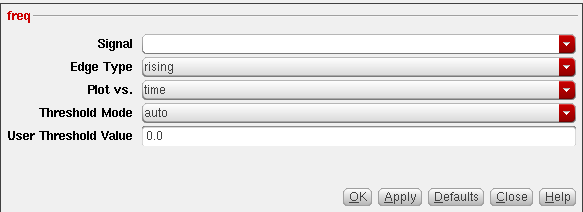

This function includes the following arguments:

Example 1

This example calculates the multi-occurences of frequency on the rising edges of the input transient waveform and plotted the output waveform against time. The freq function is applied on the following input signal:

Specify the following argument values:

The auto threshold mode is specified in this example. You can also set the threshold mode as user and specify a threshold value.The following expression is created in the Buffer:

freq("v(“in” ?results “tran” ?resultsDir “vsin_sim.raw”)” "rising" ?xName "time" ?mode "auto" ?threshold 0.0)

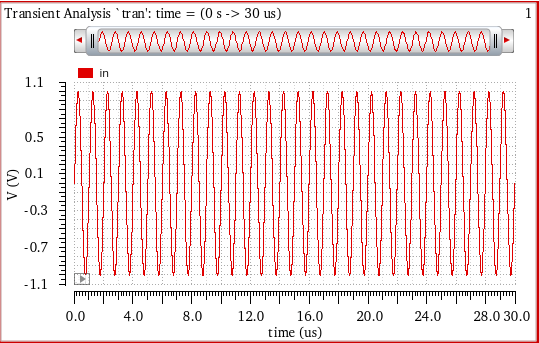

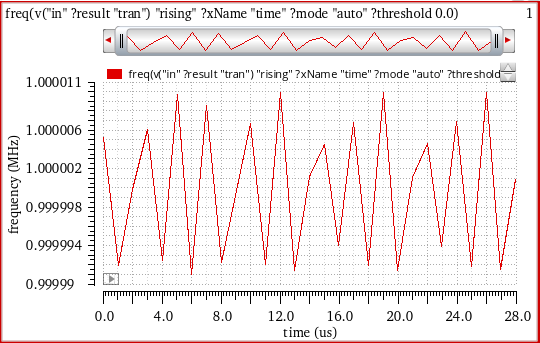

When you evaluate this expression, the frequency on the rising edges of the input waveform is calculated and plotted against time, as shown in the figure below.

Example 2

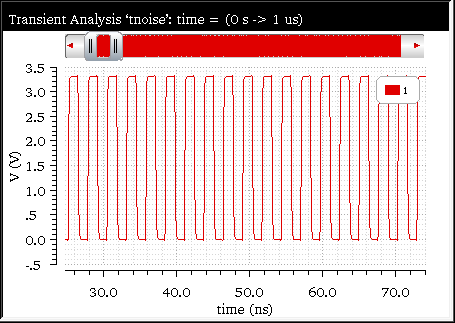

This example shows the output generated when you apply the freq function on the input signal plotted in the graph below:

Specify the following argument values:

The following expression is created in the Buffer:

freq("v(“1” ?results “tran” ?resultsDir “nand2_ring_tnoise.raw”)” "rising" ?xName "time" ?mode "user" ?threshold 1.5)

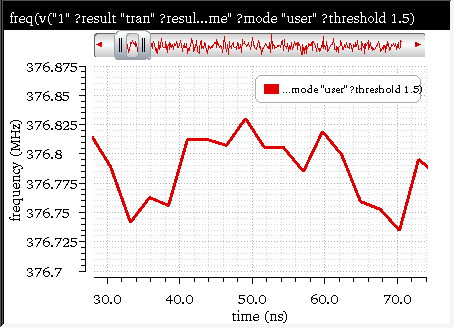

When you evaluate this expression, the following output waveform is displayed in the graph window:

Related OCEAN Function

The equivalent OCEAN function for freq is:

freq( o_waveform t_crossType
[ ?threshold n_threshold ]
[ ?mode t_mode ]
[ ?xName xName ]
[ ?histoDisplay g_histoDisplay ]
[ ?noOfHistoBins x_noOfHistoBins ] )
=> o_outputWave/nil

For more information about this OCEAN function, see freq in OCEAN Reference.

freq_jitter

Returns a waveform representing the deviation from the average frequency.

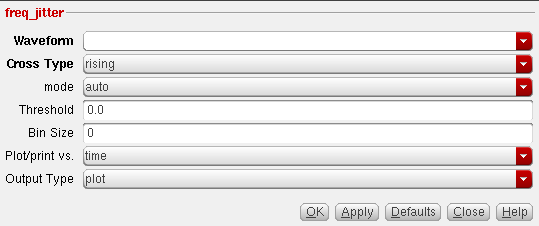

This function includes the following arguments:

Example

This example shows the output waveform generated when you apply the freq_jitter function on the following waveform:

The arguments specified in this example are as follows:

The following expression is created in the Buffer:

freq_jitter(v("1"?result "tran" ?resultsDir “nand2_ring_tnoise.raw”) "rising"  ?mode "auto"   ?binSize 30 ?xName "time"   ?outputType "plot" )

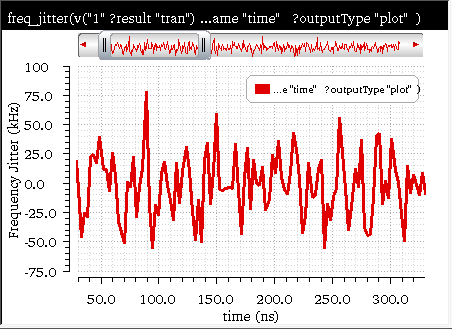

When you evaluate this expression, the following output waveform is displayed in the graph window:

Related OCEAN Function

The equivalent OCEAN function for freq_jitter is:

freq_jitter( o_waveform t_crossType
[?mode t_mode] [?threshold n_threshold] [binSize n_binSize]
[?xName t_xName] [?outputType t_outputType] )
=> o_waveform/f_val/nil

For more information about this OCEAN function, see freq_jitter in OCEAN Reference.

frequency

Returns the average frequency of all cycles plotted. This function is available only in the SKILL mode.

The following equation describes how the average frequency can be calculated:

Here, threshold is defined as:

Example

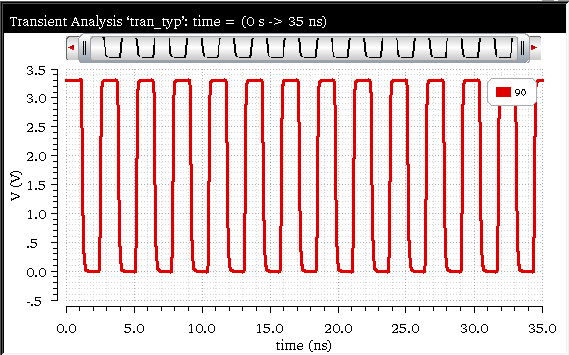

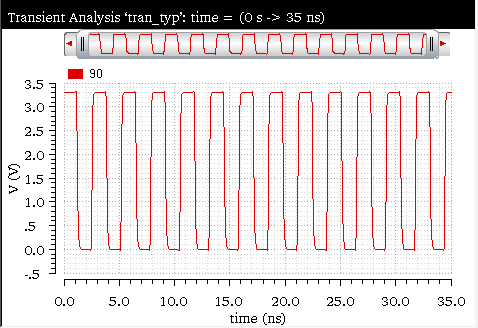

This example shows the output generated when you apply the frequency function on the following input waveform (shown in the figure below):

The following expression is created in the Buffer when you apply the frequency function:

frequency(v("90" ?result "tran" ?resultsDir “nand2_ring.raw))

When you evaluate this expression, the following output value is displayed in the Buffer (shown in the figure below):

Related OCEAN Function

The equivalent OCEAN function for frequency is:

frequency( o_waveform )
=> o_waveform/n_value/nil

For more information about this OCEAN function, see frequency in OCEAN Reference.

gainBwProd

Returns the product of DC gain and upper cutoff frequency for a low-pass type filter or amplifier. (Returns the product of the zero-frequency-gain and 3dB-gain-frequency). Calculates the gain-bandwidth product of a waveform representing the frequency response of interest over a sufficiently large frequency range.

The gain-bandwidth product is calculated as the product of the DC gain and the critical frequency. The critical frequency is the smallest frequency for which the gain equals 21 times the DC gain 0A.

Example

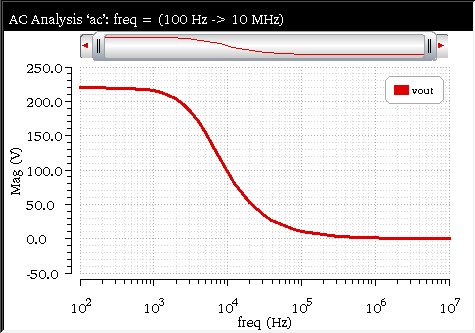

This example shows the gain bandwidth value generated when you apply the gainBwProd function on the following input waveform:

When you apply the function, the following expression is created in the Buffer:

gainBwProd(mag(v("vout" ?result "ac" ?resultsDir "./openloop_ampSim.raw")))

Now, when you evaluate this expression, the following result is displayed in the Buffer:

Related OCEAN Function

The equivalent OCEAN command for gainBwProd is:

gainBwProd( o_waveform )
=> o_waveform/n_value/nil

For more information about this OCEAN function, see gainBwProd in OCEAN Reference.

gainMargin

Computes the gain margin of the loop gain of an amplifier.

The gain margin is calculated as the magnitude (in dB) of the gain at f0. The frequency f0 is the smallest frequency in which the phase of the gain provided is -180 degrees. For stability, the gain margin must be positive.

The first argument is a waveform representing the loop gain of interest over a sufficiently large frequency range. This command returns the dB value of the waveform when its phase crosses negative pi.

Example

This example shows the gain margin value generated when you apply the gainMargin function on the following AC signal:

When you apply this function, the following expression is created in the Buffer:

gainMargin(v("out" ?result "ac" ?resultsDir "./ampTest.raw"))

Now, when you evaluate this expression, the following output value is displayed in the Buffer:

Related OCEAN Function

The equivalent OCEAN command for gainMargin is:

gainMargin( o_waveform [g_stable])
=> o_waveform/n_value/nil

For more information about this OCEAN function, see gainMargin in OCEAN Reference.

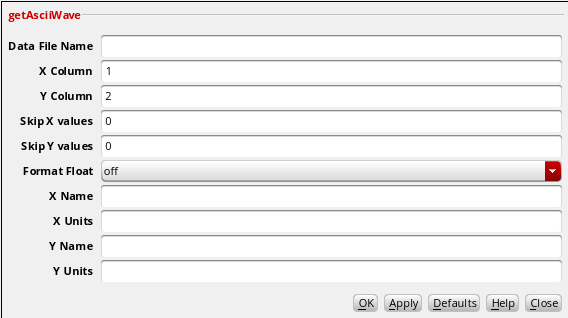

getAsciiWave

Returns a piece-wise linear function from a column of Xand Y values in a file. The getAsciiWave function is available only in the SKILL mode.

This function reads an ASCII data file and generates a waveform object from the specified data. The X-axis data must contain real numbers, whereas the Y-axis data can be real or complex values. Complex values are represented as (real imag) or complex(real imag). This function skips blank lines and comment lines. Comments are defined as the lines beginning with a semicolon.

The function includes the following arguments:

Example 1

This example shows the graph plotted when you apply the getAsciiWave function on the following data file:

./vout_tran_xy.csv

The text file contains the data in the following format:

Time V(OUT)

0

1.333820380642945

1e-06

1.335676012809686

:

:

:

:

Specify the following field values:

The following expression is created in the Buffer:

getAsciiWave("./vout_tran_xy.csv" 1 2 ?xskip 1 ?yskip 1 ?formatFloat nil ?xName "Time" ?xUnits "Secs" ?yName "V(Out)" ?yUnits "V")

When you evaluate this expression, the following output waveform is displayed in the graph window. The X- and Y-axis name and units are displayed accordingly to the specified values.

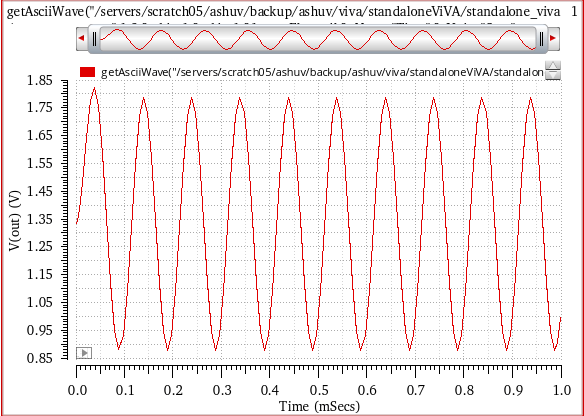

Example 2

This example shows the graph plotted when you apply the getAsciiWave function on the following data file:

./data.txt

This text file contains the data in the following format:

Time V(OUT)

2150000000

10

3000000000

20

4050000000

30

5055000000

40

Specify the following field values:

The following expression is created in the Buffer:

getAsciiWave("./data.txt" 1 2 ?xskip 0 ?yskip 0 ?formatFloat t ?xName "Time" ?xUnits "Secs" ?yName "V(Out)" ?yUnits "V")

When you evaluate this expression, the following output waveform is displayed in the graph window.

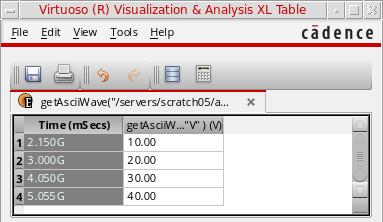

Now, if you send this trace to the Virtuoso Visualization and Analysis XL Table, the following X- and Y-axis values are displayed. The integer value format has been changed to float values.

Example 3

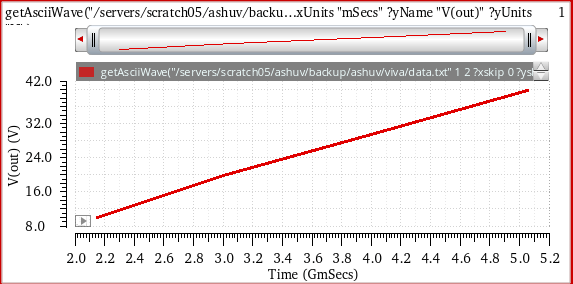

This example shows the graph plotted when you apply the getAsciiWave function on the following data file that includes complex numbers:

./complex.txt

This text file contains the data in the following format:

Time V(OUT)

0.25,-5.840062602800402e-08

3.407650965478429e-09

0.28,-5.839796008205289e-08

3.816413160905035e-09

0.3100000000000001,-5.839499666338922e-08

4.225122682762201e-09

0.3400000000000001,-5.839173715241753e-08

4.633774036876914e-09

0.3700000000000001,-5.838818306378015e-08

5.042361774051216e-09

0.4000000000000001,-5.838433604460925e-08

5.45088049412205e-09

0.4300000000000002,-5.838019787263262e-08

5.859324849942298e-09

0.4600000000000002,-5.837577045413842e-08

6.267689551277e-09

0.4900000000000002,-5.837105582180227e-08

6.675969368609005e-09

Specify the following field values:

The following expression is created in the Buffer:

getAsciiWave("./complex.txt" 1 2 ?xskip 0 ?yskip 0 ?formatFloat t ?xName "Time" ?xUnits "Secs" ?yName "V(Out)" ?yUnits "V")

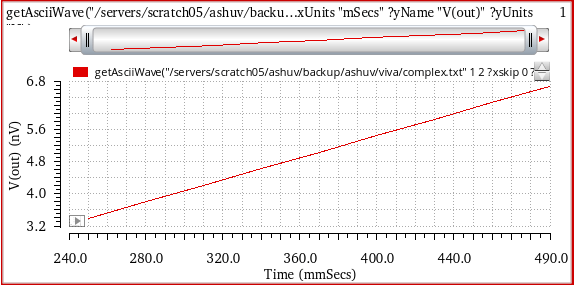

When you evaluate this expression, the following output waveform is displayed in the graph window.

Now, if you send this trace to the Virtuoso Visualization and Analysis XL Table, the following X- and Y-axis values are displayed. The complex values have been changed to float values.

Related OCEAN Function

The equivalent OCEAN command for getAsciiWave is:

getAsciiWave(
t_filename
x_xColumn
x_yColumn
[ ?xskip x_x_skip ]
[ ?yskip x_yskip ]
[ ?formatFloat g_formatFloat ]
[ ?xName t_xName ]
[ ?xUnits t_xUnits ]
[ ?yName t_yName ]
[ ?yUnits t_yUnits ]
)
=> o_wave / nil

For more information about the OCEAN function, see getAsciiWave in OCEAN Reference manual.

getData

Returns the number or the waveform for the specified signal.

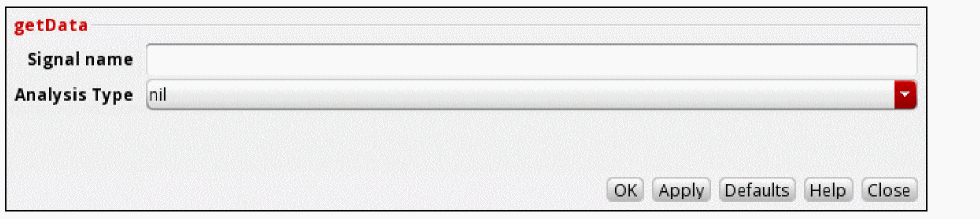

This function includes the following arguments:

Example 1

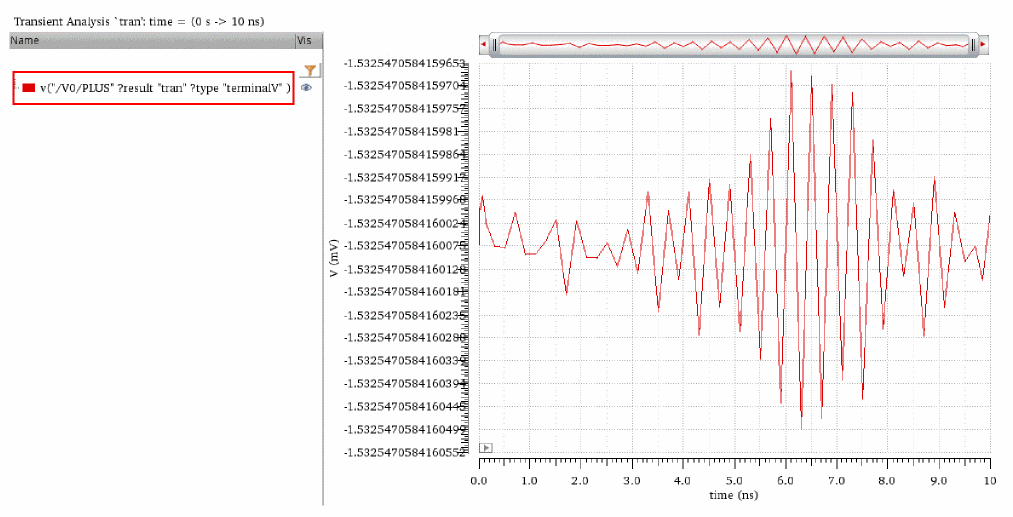

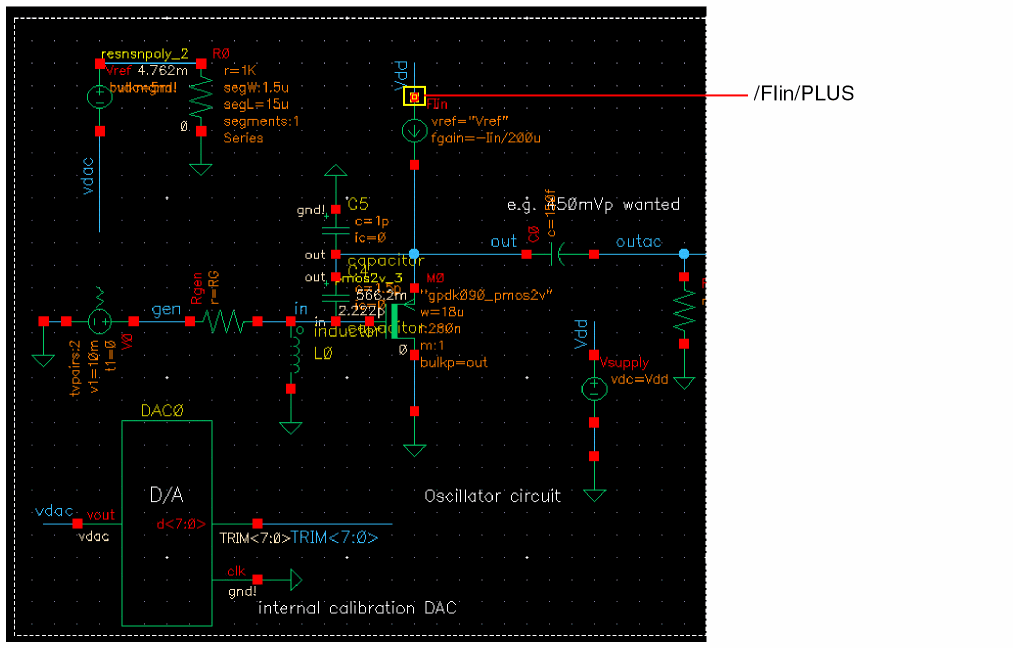

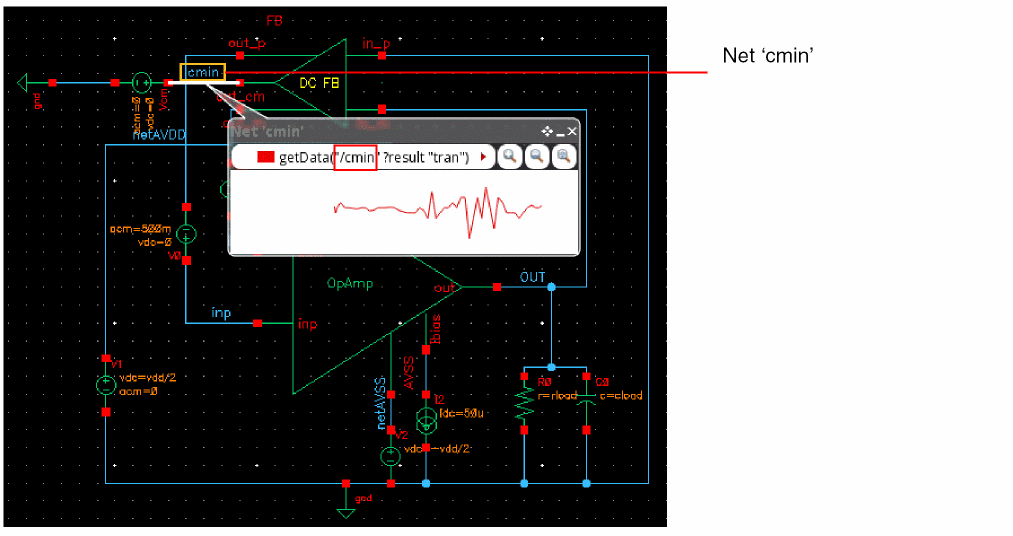

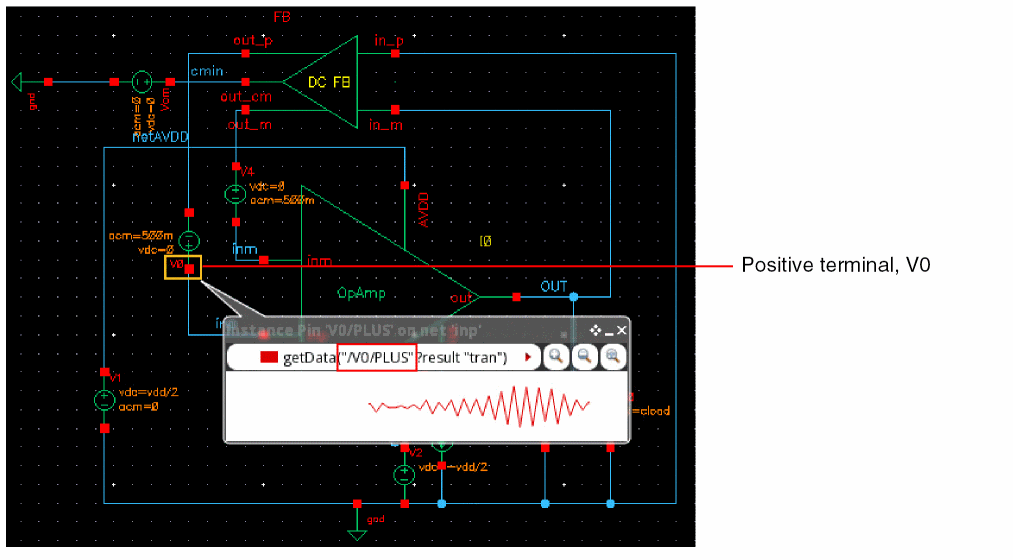

Consider the signal, /FIin/PLUS, in the following design:

This example shows the voltage calculation for the signal, /FIin/PLUS, using the getData function. Specify the following arguments:

Before using this function, you need to set the results database context to the results database that contains the input signal, such as /FIin/PLUS used in this example. For more information about how to change the in-context results directory, see Setting the In-Context Results Directory.

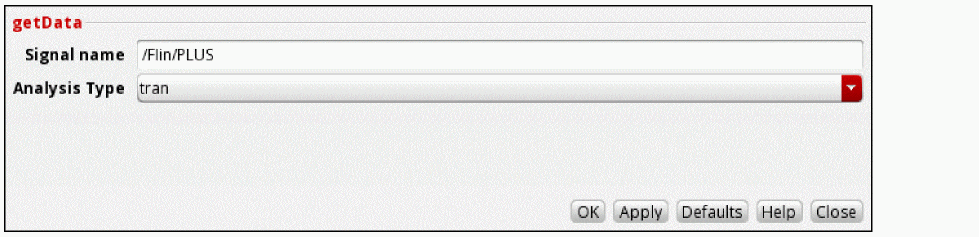

The following expression is created in the Buffer:

getData("/FIin/PLUS" ?result "tran" )

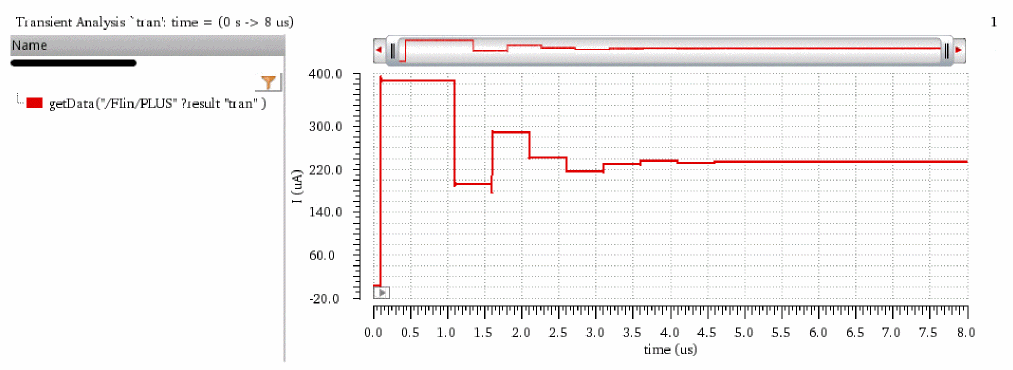

When you evaluate this expression, the function returns the following waveform for the specified signal.

Related OCEAN Function

The equivalent OCEAN command for getData is:

getData(
t_name
[ ?result s_resultName [ ?resultsDir t_resultsDir ] ]
)
=> x_number / o_waveform / nil

For more information about this OCEAN function, see getData in OCEAN Reference.

groupDelay

Computes the group delay of the expression in the buffer. Group delay is defined as the derivative of the phase with respect to frequency. Group delay is expressed in seconds. The following equation is used to calculate this function:

Example

Consider the following input signal form the AC analysis:

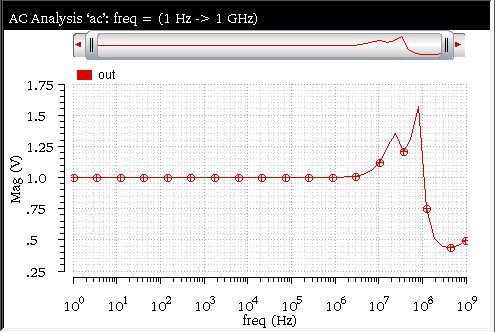

When you send this signal to Calculator, the expression for this signal is displayed in the Buffer. By default, this expression is based on the magnitude of the signal and represented as shown below:

mag(v("out" ?result "ac" ?resultsDir "./ampsim.raw"))

Edit this expression to remove the magnitude and select the groupDelay function in the Function Panel. The function is  applied to the signal expression in the Buffer. The corresponding expression created in the Buffer is as follows:

groupDelay(v("out" ?result "ac" ?resultsDir "./ampsim.raw"))

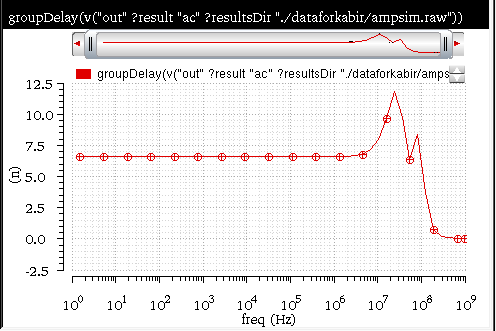

When you evaluate this expression, the group delay is calculated and the following output waveform is displayed in a new graph window.

Related OCEAN Function

The equivalent OCEAN command for groupDelay is:

groupDelay( o_waveform )
=> o_waveform/nil

For more information, see groupDelay in OCEAN Reference.

harmonic

Returns the harmonic waveform of the specified harmonic. This function is available only in the SKILL mode.

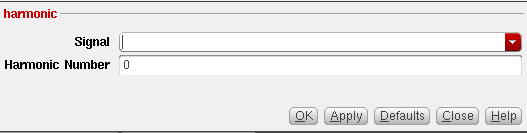

This function includes the following arguments:

Example

This example shows the harmonic value generated when you apply the harmonic function on the following input waveform:

Ensure that the dependent modifier displayed on Y-axis of the input waveform is dB20. For more details about how to change the dependent modifier, see Plotting Traces Using Different Modifiers.

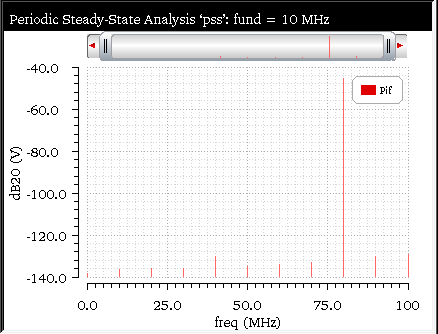

In this waveform, the dB20 of the input signal is plotted against frequency on X-axis.The following arguments are specified in this example:

The following expression is created in the Buffer:

harmonic(db20(v("Pif" ?result "pss_fd" ?resultsDir "./pss_ne600.raw")) 8 )

When you evaluate this expression, the following output value is displayed in the Buffer:

Related OCEAN Function

The equivalent OCEAN function for harmonic is:

harmonic( o_waveform h_index )
=> o_waveform/g_value/nil

For more information about this OCEAN function, see harmonic in OCEAN Reference.

harmonicFreq

Returns the frequency(s) of the harmonic waveform for the specified harmonic. This function is available only in the SKILL mode.

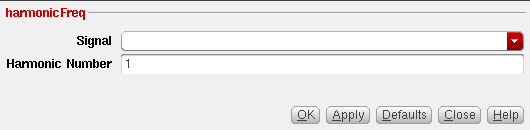

This function includes the following arguments:

Example

This example shows the harmonic frequency calculated when you apply the harmonicFreq function on the following input signal. Results Directory: ./pss_ne600.raw

Ensure that the dependent modifier displayed on Y-axis of the input waveform is dB20. For more details about how to change the dependent modifier, see Plotting Traces Using Different Modifiers.

The following arguments are specified in this example:

The following expression is created in the Buffer:

harmonicFreq(xval(db20(v("Pif" ?result "pss_fd" ))), 8)

When you evaluate this expression, the following output value is displayed in the Buffer:

Related OCEAN Function

The equivalent OCEAN command for harmonicFreq is:

harmonic( xval(o_waveform) h_index )

For more information about this OCEAN function, see harmonic in OCEAN Reference.

histogram2D

Returns a waveform that represents the statistical distribution of input data in the form of a histogram. The height of the bars (or bins) in the histogram represents the frequency of the occurrence of values within a specific period.

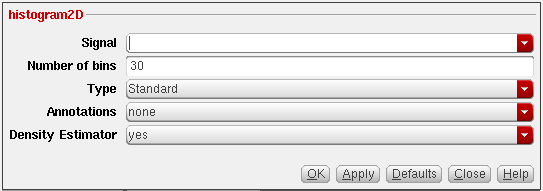

This function includes the following arguments:

Example

Consider the following input waveform from Monte Carlo analysis:

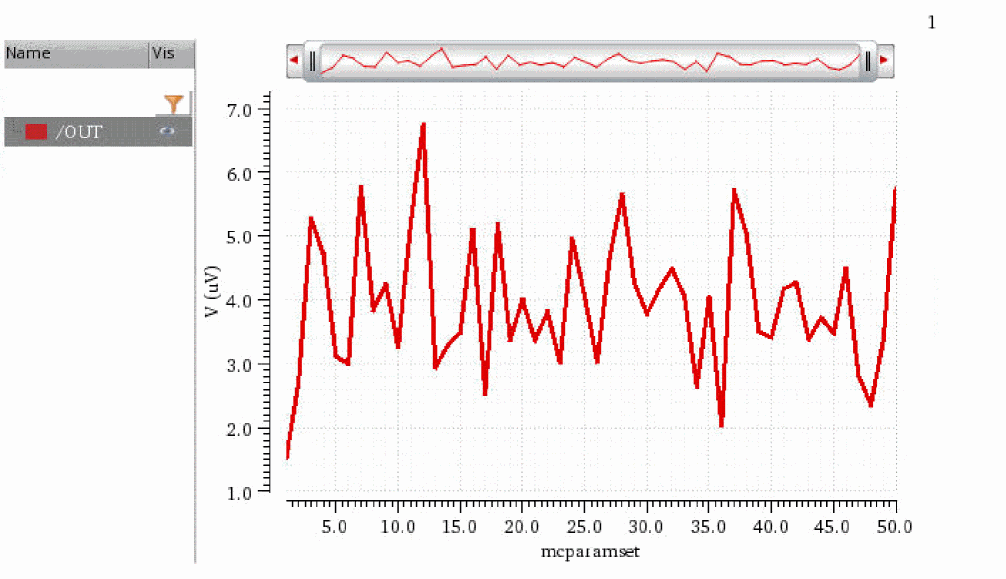

The histogram2D function is applied on this input waveform with the following arguments:

The corresponding expression created in the Buffer is as follows:

histogram2D(i("V1:p" ?result "dcOp" ?resultsDir "./monte/monte.out/monte.raw") 30 "standard" "stddev"t )

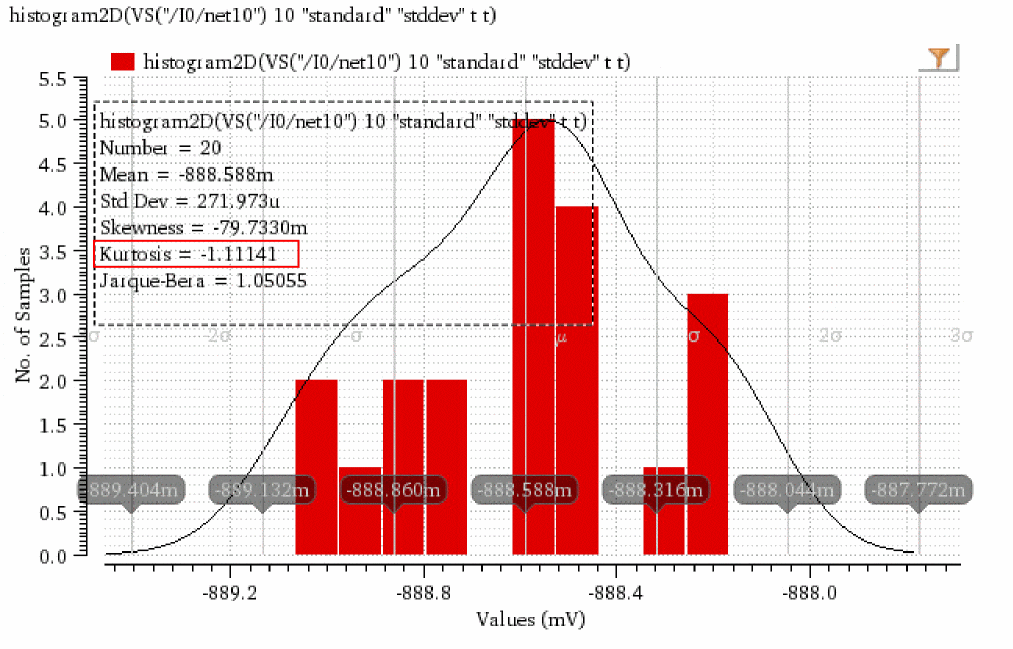

When you evaluate this expression, the following output waveform representing the data in histogram is displayed in a new graph window.

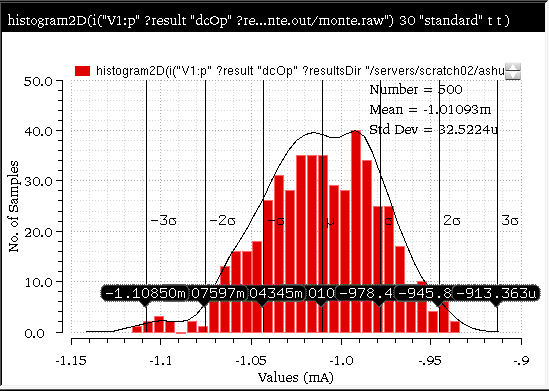

The following figure shows the output generated if you select Type as Comulative line:

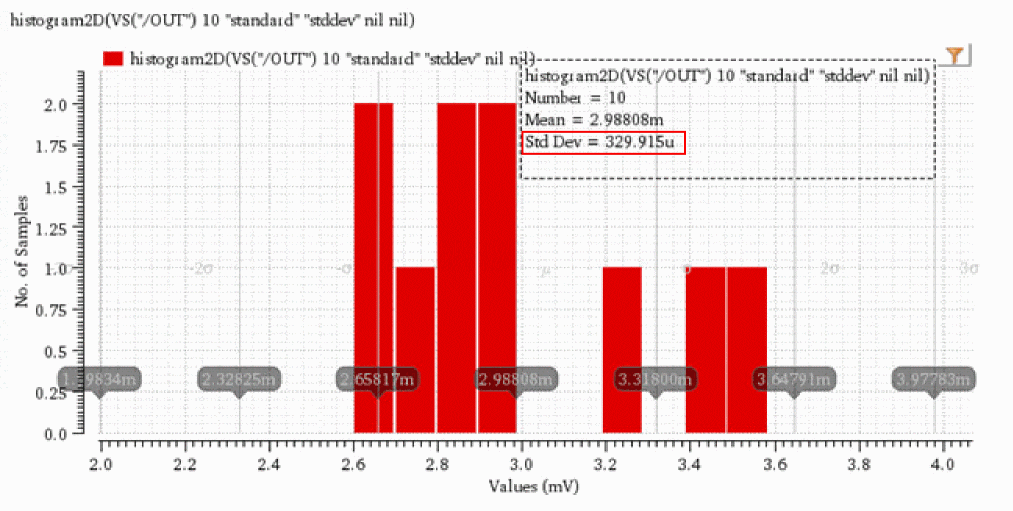

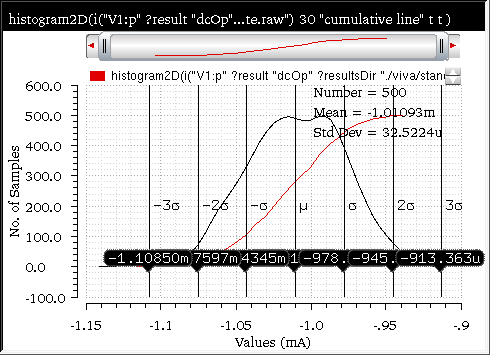

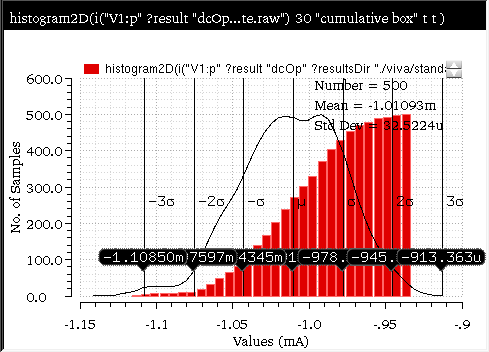

The following figure shows the output generated if you select Type as Comulative box:

Related OCEAN Function

The equivalent OCEAN command for histogram2D is:

histogram2D(o_waveform x_nbins s_type g_setAnnotation g_setDensityEstimator)
=> o_waveform/nil

For more information, see histogram2D in OCEAN Reference.

i

Calculates the current through the specified terminal.

This function includes the following arguments:

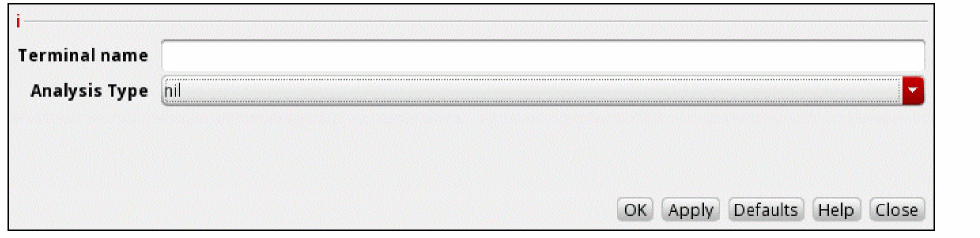

Example

Consider the terminal, /I0/inp, in the following design.

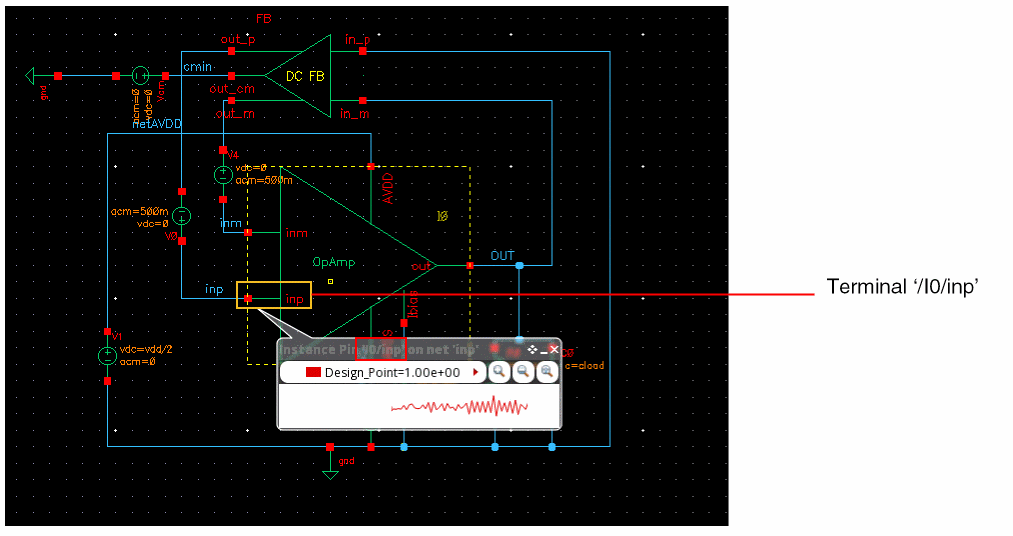

This example shows the current calculation for the terminal, /I0/inp, using the i function.

Specify the following arguments:

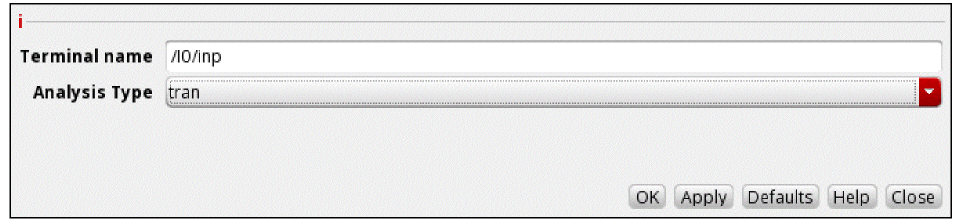

Before using this function, you need to set the results database context to the results database that contains the input terminal, such as /I0/inp used in this example. For more information about how to change the in-context results directory, see Setting the In-Context Results Directory.

The following expression is created in the Buffer:

i("/I0/inp" ?result "tran" )

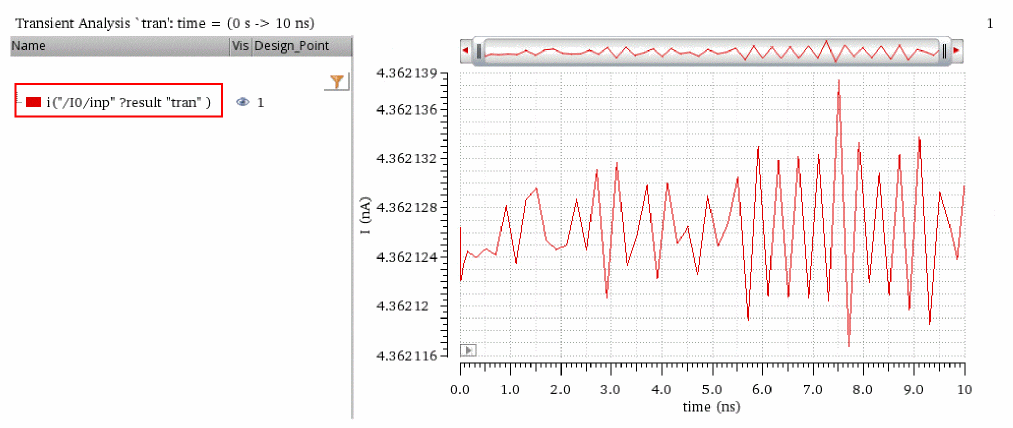

When you evaluate this expression, the function returns the following waveform, which displays the variation of current values with time through the specified terminal.

Related OCEAN Function

The equivalent OCEAN command for i is:

i (
t_component
[ ?result s_resultName ]
[ ?resultsDir t_resultsDir ]
)
=> o_waveform / nil

For more information about this OCEAN function, see i in OCEAN Reference.

iinteg

Returns the incremental area under the waveform.

Example

This example calculates the incremental area under the following input waveform:

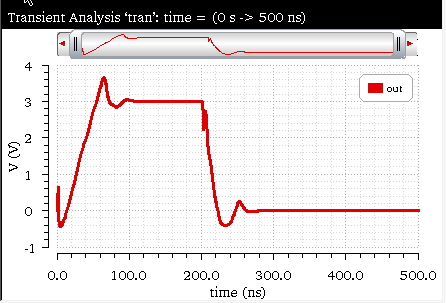

When you apply the iinteg function on this waveform, the following expression is created in the Buffer:

iinteg(v("out" ?result "tran-tran" ?resultsDir “ampsim.raw”))

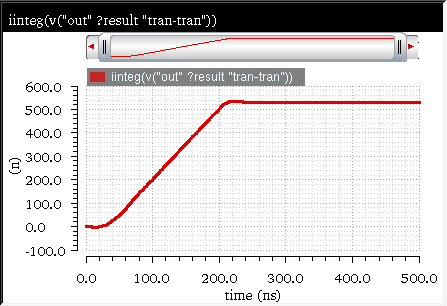

When you evaluate this expression, the following output waveform appears:

Related OCEAN Function

The equivalent OCEAN command for iinteg is:

iinteg( o_waveform )
=> o_waveform/nil

For more information about this OCEAN command, see iinteg in OCEAN Reference.

inl

Computes the integral non-linearity of a transient simple or parametric waveform. INL can be calculated by using the following expression:

The following table shows how the value of INL varies with that of DNL.

i

Voltage

INL(i-1)

DNL(i)

INL(i)=DNL(i)+INL(i-1)

1

3.269

0

-1.671E-3

-1.671E-3

2

3.283

-1.671E-3

11.70E-3

10.03E-3

3

3.282

10.03E-3

-1.718E-3

8.314E-3

4

3.296

8.314E-3

11.73E-3

20.04E-3

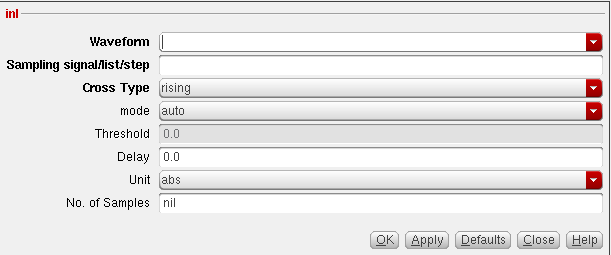

This function includes the following arguments:

For each of the three ways in which the sample points can be specified, only a few of the other optional arguments are meaningful,

Example

This example shows the output waveform generated when you apply the inl function on the following input waveform:

The following arguments are specified in this example:

The following expression is created in the Buffer with the specified argument

inl(v("/out" ?result "tran") 1e-05 ?mode "auto" ?crossType "rising" ?delay 4.5e-06 ?units "abs" ?nbsamples 512)

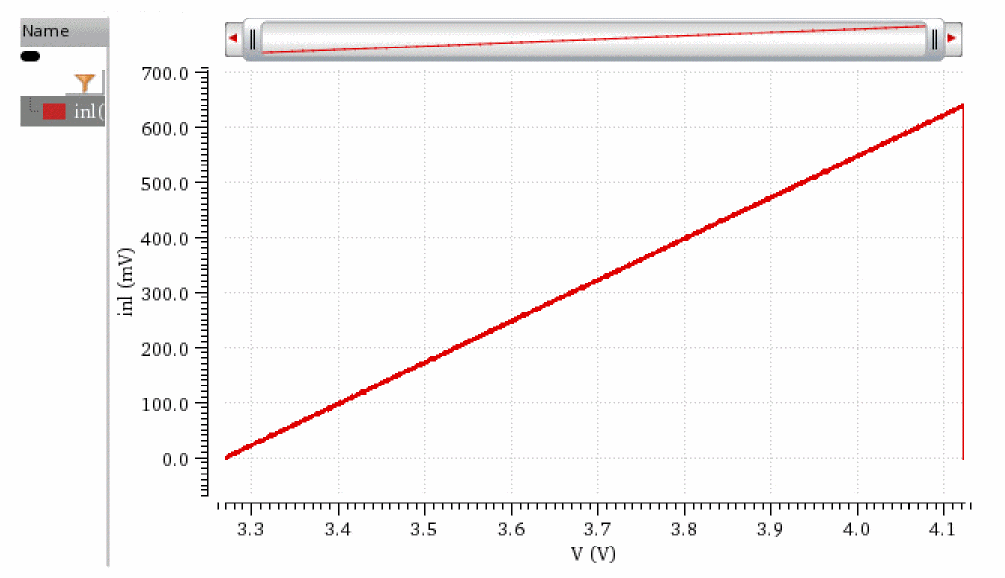

Now, when you evaluated this expression, the following output waveform is displayed in the graph window:

Since inl is calculated from the end-point dnl, the initial and final values are 0.

Related OCEAN Function

The equivalent OCEAN command for inl is:

inl( o_dacSignal o_sample|o_pointList|n_interval
[?mode t_mode] [?threshold n_threshold] [?crossType t_crossType]
[?delay f_delay] [?units x_units] [?nbsamples n_nbsamples] )
=> n_inl/nil

For more information about this OCEAN function, see inl in OCEAN Reference.

integ

Returns the area bounded under the curve. Computes the definite integral of the waveform with respect to a range specified on the X-axis of the waveform. The result is the value of the area under the curve over the range specified on the X-axis.

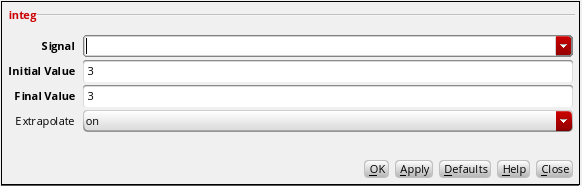

This function includes the following arguments:

Example

This example shows the definite integral value calculated when you apply the integ function on the following input waveform:

The following arguments are specified in this example:

The following expression is created in the Buffer:

integ(v("out" ?result "tran-tran" ?results "./ampsim.raw") 0 200n “”)

When you evaluate this expression, the following result value is displayed in the Buffer:

Related OCEAN Function

The equivalent OCEAN command for integ is:

integ( o_waveform,[n_intial_limit,n_final_limit] )
=> o_waveform/n_value/nil

For more information about this OCEAN function, see integ in OCEAN Reference.

intersect

Returns all the points at which two waveforms intersect each other. The intersect function can be used on families of traces swept on the same parameter names and values.

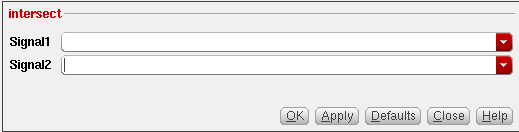

This function includes the following arguments:

Example

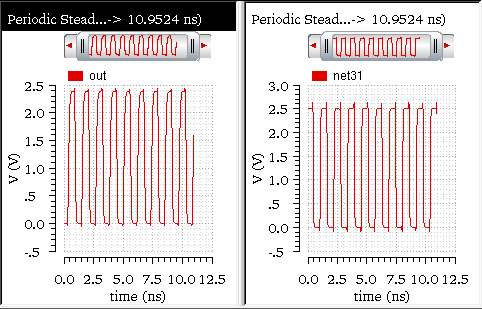

This example shows the output waveform generated when you apply the intersect function on the following input waveforms:

The following arguments are specified in this example:

The following expression is created in the Buffer:

intersect(v("out" ?result "pss_tran" ?resultsDir “osc13.raw”) v("net31" ?result "pss_tran" ?resultsDir “osc13.raw”))

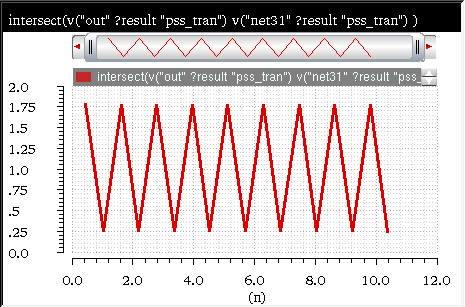

Now when you evaluate this expression, the following output waveform is displayed in the graph window:

Related OCEAN Function

The equivalent OCEAN command for intersect is:

intersect( o_waveform1 o_waveform2 )
=> o_wave/nil

For more information about this OCEAN function, see intersect in OCEAN Reference.

ipn

Plots the Nth order intercept between two harmonics of a waveform that you define. This function is available only in the SKILL mode.

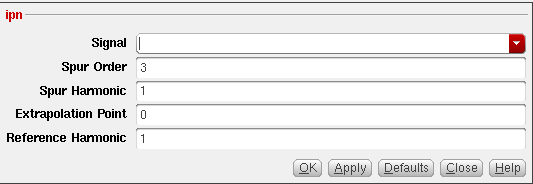

This function includes the following arguments:

Example

This example shows the output generated when you apply the ipn function on the following input signal:

The following arguments are specified in this example:

The following expression is created in the Buffer:

ipn(dB20(harmonic(v("/RFOUT" ?result "envlp_fd" ?resultsDir "./rfworkshop/simulation/EF_example_envlp/spectre/schematic/psf"),-2)), dB20(harmonic(v("/RFOUT" ?result "envlp_fd" ?resultsDir "./rfworkshop/simulation/EF_example_envlp/spectre/schematic/psf"), 0)), 3, 1, -50, -50)

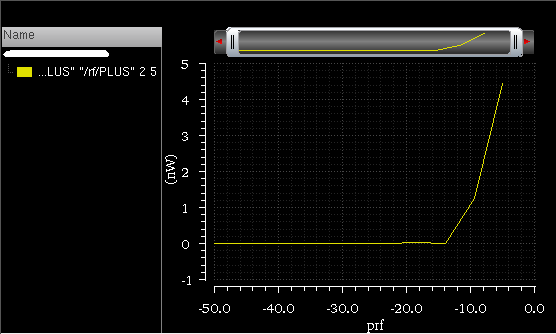

Now, when you evaluate this expression, the following output value is displayed in the Buffer:

Related OCEAN Function

The equivalent OCEAN function for ipn is:

ipn( o_spurious o_reference
[ f_ordspur f_ordref f_epspur f_epref g_psweep s_measure ] )
=> o_waveform/f_number/nil

For more information about this OCEAN function, see ipn in OCEAN Reference.

ipnVRI

Performs an intermodulation Nth-order intercept point measurement

You can use this function to simplify the declaration of an IPN measurement. This function extracts the spurious and reference harmonics from the input waveform(s), and uses dBm(spectralPower((i or v/r),v)) to calculate the respective powers. The function then passes these power curves or numbers and the remaining arguments to the IPN function to complete the measurement.

From each of the spurious and reference power waveforms (or points), the IPN function extrapolates a line of constant slope (dB/dB) according to the specified order and input power level. These lines represent constant small-signal power gain (ideal gain). The IPN function calculates the intersection of these two lines and returns the value of either the x coordinate (input referred) or y coordinate (output referred).

This function includes the following arguments:

Example

This example shows the output generated when you apply the ipnVRI function on the following input signal:

The following arguments are specified in this example:

The following expression is created in the Buffer:

ipnVRI(v("/RFOUT" ?result "envlp_fd" ?resultsDir "./EF_example_envlp/spectre/schematic/psf") -2 0 ?ordspur 3 ?epoint -50 ?rport 50 )

Now, when you evaluate this expression, the following output value is dispalyed in the Buffer:

Related OCEAN Function

The equivalent OCEAN command for ipnVRI is:

ipnVRI( o_vport x_harmspur x_harmref
[?iport o_iport] [?rport f_rport] [?ordspur f_ordspur]
[?epoint f_epoint] [?psweep g_psweep] [?epref f_epref]
[?ordref f_ordref] [?measure s_measure] )
=> o_waveform/f_number/nil

For more information about this OCEAN function, see ipnVRI in OCEAN Reference.

lastVal

Returns the last value at which the waveform ends on the X-axis.

Example

Consider the below example in which you run the lastVal function on the following transient signal:

When you send this signal to Calculator, the following expression is created in the Buffer:

v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw")

When you select the lastVal function in Function Panel, it is applied directly on the expression in the Buffer:

lastVal(v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw"))

Now, when you evaluate this expression, the function returns the end value of the out signal on the X-axis, as shown in the figure below:

loadpull

Plots load pull contour for the given waveform of PSS analysis. This function works only for two-dimensional sweep PSS results. The inner sweep should be phase and the outer sweep should be magnitude.

This function includes the following fields:

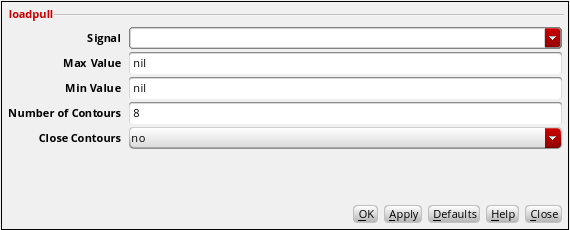

Example

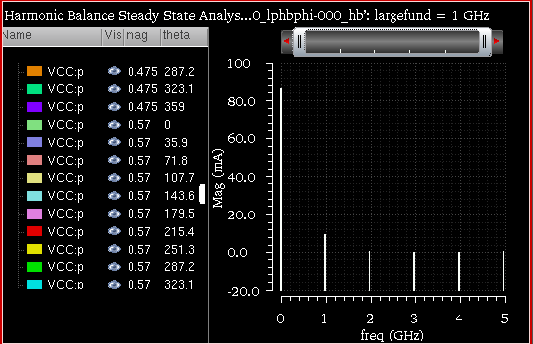

Consider the following input signal from the hb_fd analysis:

i("/VCC/PLUS" ?result "hb_fd" ?resultsDir "./viva/rfworkshop/simulation/EF_example_loadpull/spectre/schematic/psf")

The following arguments are specified in this example:

The following expression is created in the Buffer:

awvRfLoadPull(mag(i("/VCC/PLUS" ?result "hb_fd" ?resultsDir "./viva/rfworkshop/simulation/EF_example_loadpull/spectre/schematic/psf"))?maxValue 5 ?minValue 0 ?numCount 9 ?closeCont nil)

Before you evaluate this expression, ensure that the Polar option is selected in the Plot Destination drop-down.

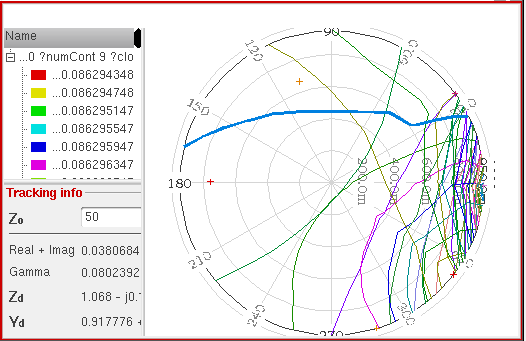

Now, when you evaluate the expression, the following output waveform is displayed in a new window.

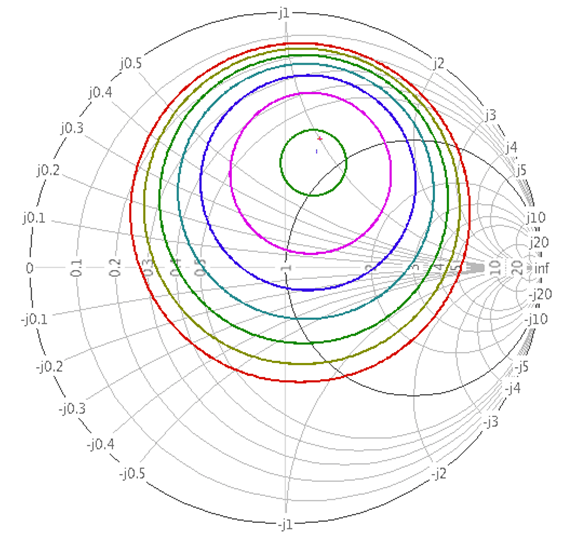

awvRfLoadPull(i("V2:p" ?maxValue nil ?minValue nil ?numCont 9 ?closeCont nil)

lshift

Shifts the data in the Graph Window to the left by the specified amount. A negative value shifts the data to the right. This function is available only in the SKILL mode.

Example

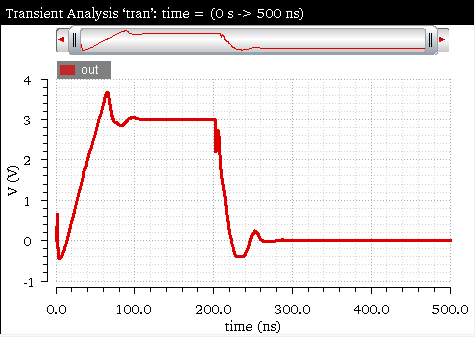

This example shows the output waveform is left shifted by the specified amount when you apply the lshift function on the following input waveform:

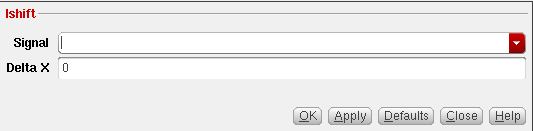

The following arguments are specified in this example:

The following expression is created in the Buffer:

lshift(v(out ?result “tran-tran” ?resultsDir "./ampsim.raw") 100n)

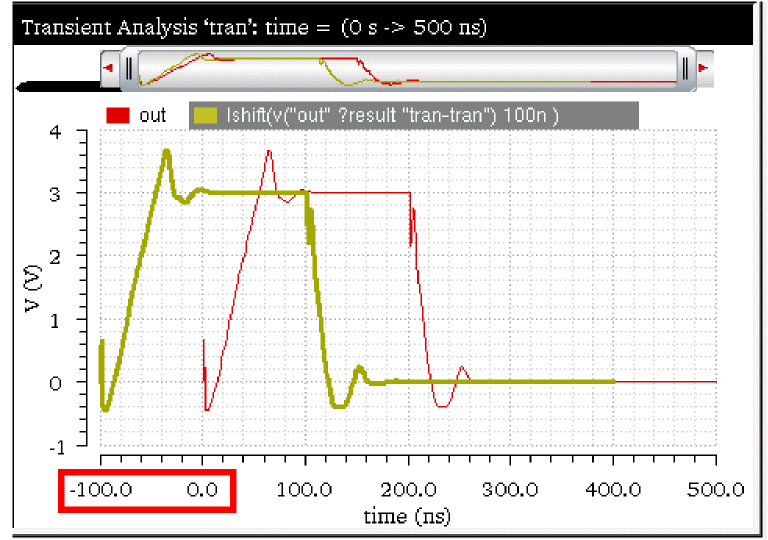

Now, when you evaluate this expression, the output waveform is shifted by a value of 100n on the X-axis as shown in the figure below.

Related OCEAN Function

The equivalent OCEAN command for lshift is:

lshift( o_waveform n_delta )
=> o_waveform/nil

For more information about this OCEAN function, see lshift in OCEAN Reference.

normalQQ

Returns a quantile-quantile plot of the sample quantiles versus theoretical quantiles from a normal distribution. If the distribution is normal, the plot is close to a linear waveform.

Example

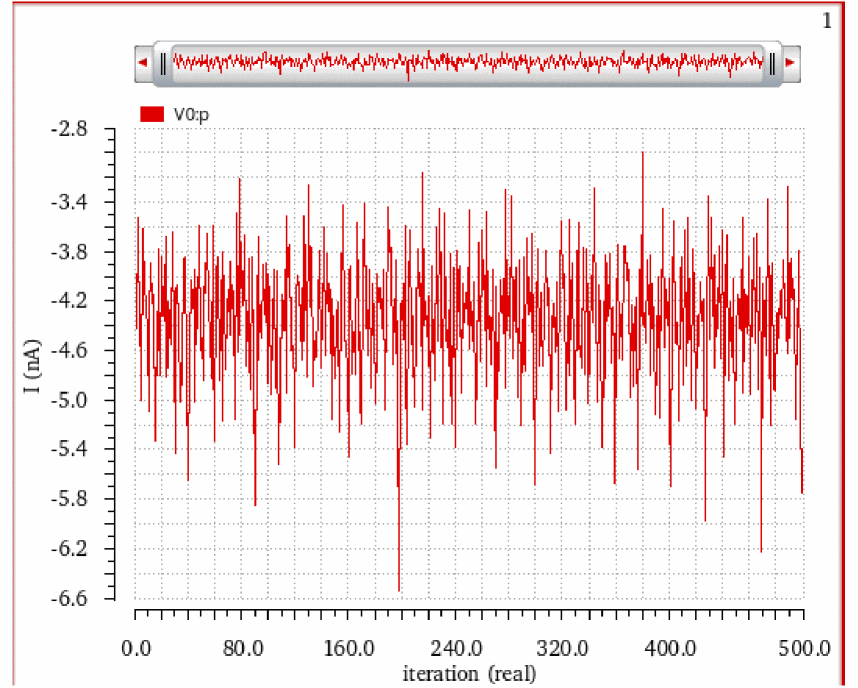

Consider the following waveform from the Monte Carlo analysis:

The histogram2D function is applied on this input waveform with the following arguments:

The corresponding expression created in the Buffer is as follows:

histogram2D(i("V0:p" ?result "dcOp" ?resultsDir "../normalQQ/psf") 30 "standard" "stddev" t )

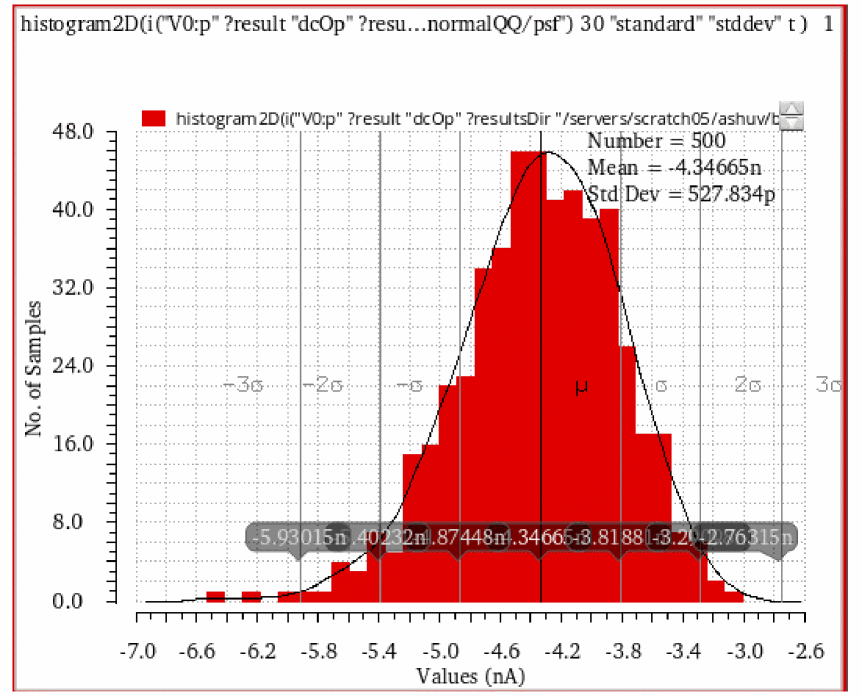

When you evaluate this expression, the following output waveform representing the data in histogram is displayed in a new graph window.

Now, apply the normalQQ function on the expression created for the histogram2D function. When you select normalQQ function from the Function Panel, the function is  applied on the expression in the Buffer. The corresponding expression created for normalQQ is as follows:

normalQQ(histogram2D(i("V0:p" ?result "dcOp" ?resultsDir "../normalQQ/psf") 30 "standard" "stddev" t ))

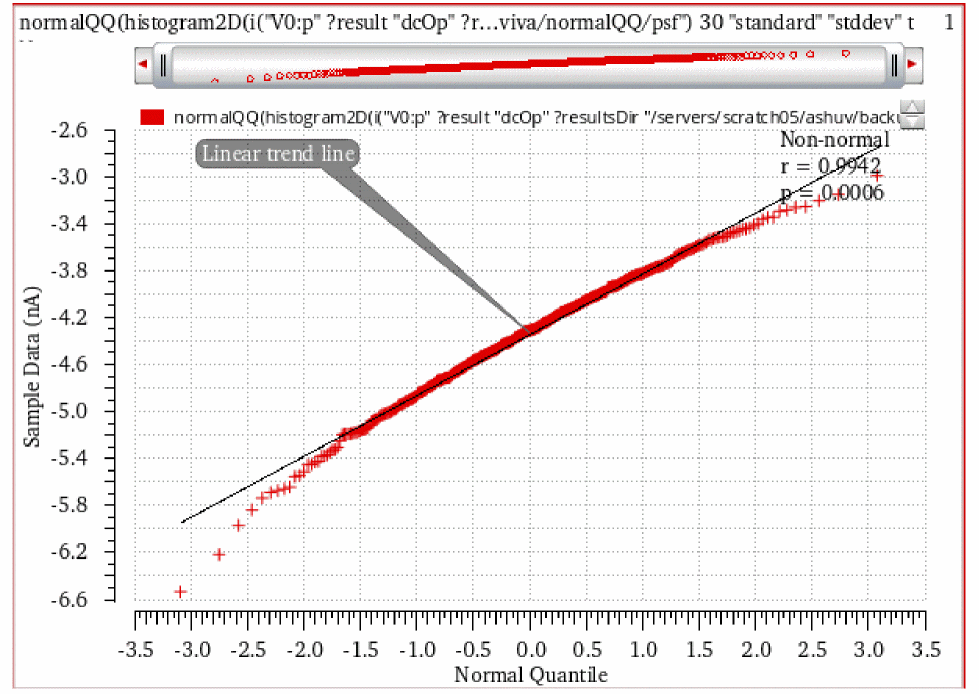

When you evaluate this expression, the quantile-quantile waveform is displayed in a new graph window, as shown in the figure below:

On the quantile-quantile plot, r stands for the correlation coefficient value between the Sample Data and Normal Quantile, which is a number between -1 and 1. A hypothesis test is then performed on the correlation coefficient, and the null hypothesis is that the distribution is normal. p stands for the p-value of this hypothesis test, and it means the probability a correlation coefficient smaller or equal to r can be generated under a normal distribution. Small p indicates that the distribution is unlikely to be normal, while large p means the distribution is close to normal. Conventionally, a distribution is considered to be non-normal when p is less than 0.05, and a label Non-normal is shown in this case. A label Normal is shown when p is significantly larger than 0.05, and a label Near-normal is shown when p is larger but close to 0.05.

Related OCEAN Function

The equivalent OCEAN command for normalQQ is:

normalQQ( o_waveform )
=> o_waveform/nil

For more information, see normalQQ in OCEAN Reference.

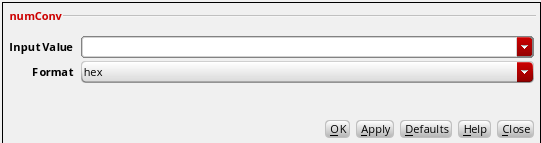

numConv

Converts a given bus value string into the specified format.

This function includes the following arguments:

Example

The example below converts a binary number, 0b1100, into hexadecimal, octal, decimal, signed decimal, and unsigned decimal formats:

overshoot

Returns the overshoot/undershoot of a signal as a percentage of the difference between initial and final values. Overshoot is calculated as:

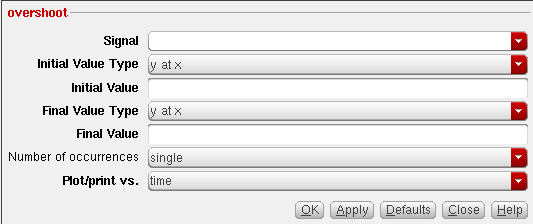

This function includes the following arguments in the SKILL mode:

Example

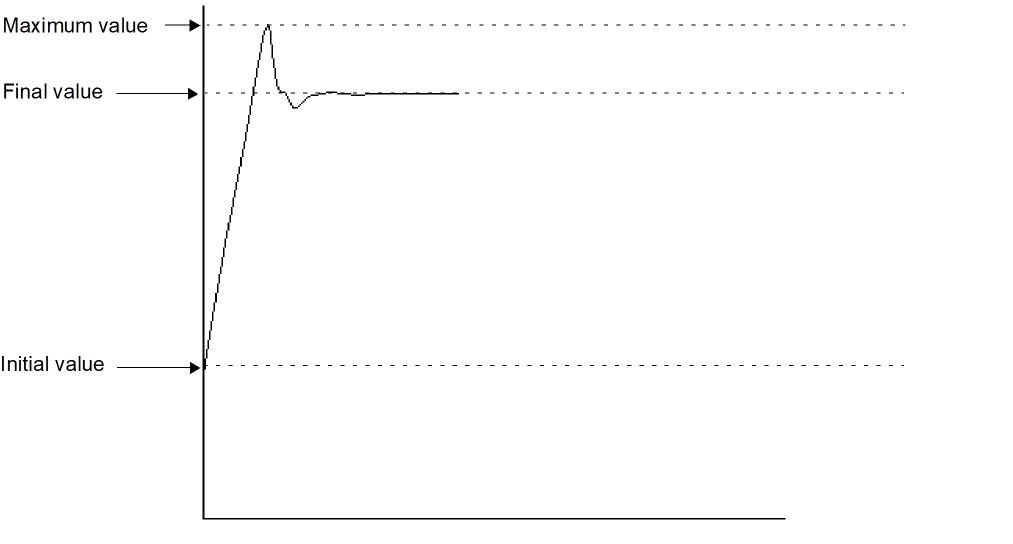

The following diagram illustrates how the result is obtained with the values signal=V(out), Initial Value Type=y, Final Value Type=y, Initial Value=1, and Final Value=3.

Example

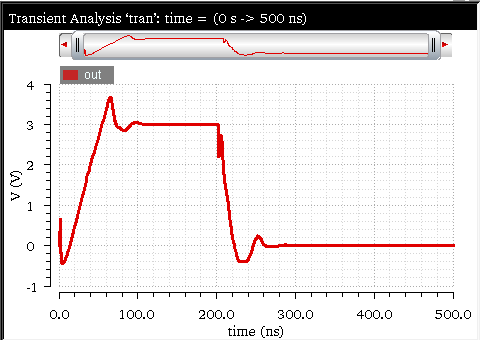

This example shows the overshoot value generated when you apply the overshoot function on the following input waveform:

The following arguments are specified in this example:

The following expression is created in the Buffer:

overshoot(v(out ?result “tran-tran” ?resultsDir “ampsim.raw”) 0 nil 3.0 nil nil “time”)

When you evaluate this expression, the following output is displayed in the Buffer:

Related OCEAN Function

The equivalent OCEAN command for overshoot is:

overshoot( o_waveform n_initVal g_initType n_finalVal g_finalType
[g_multiple [s_Xname]][g_histoDisplay][x_noOfHistoBins] )
=> o_waveform/n_value/nil

For more information about this OCEAN function, see overshoot in OCEAN Reference.

pavg

Returns the periodic average of a family of signals for each time point.

This function includes the following arguments:

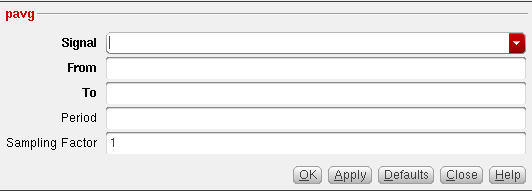

Additional Information

The periodic average of an input waveform is calculated by using the following equations:

pavg (signal from to period (sfactor 1) )

pavg(tk) = average(sample( o_waveform(t), from tk, to N*T, linear, by T))

where,

o_waveform(t) is the input waveform

N = floor((to-from) / T)

T = period

If the input waveform is a multi-dimensional waveform or a family of waveforms, the output is calculated as:

p(avg)=1/M E (pavg(tk) [for o_waveform_family[j]])

where,

o_waveform_family is the input waveform family

M is the number of leaf waveforms in the family.

o_waveform_family[j] is the jth leaf waveform of the family of waveform represented by the input waveform.

It calculates the pavg on each leaf, and then averages over the number of leaves in the family of waveform. In this case the resultant is not a family of waveforms, but a normal waveform of dimension 1.

Example

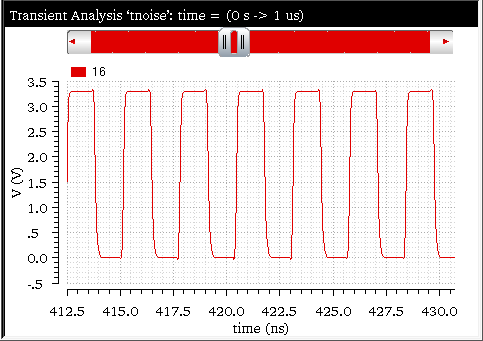

This example shows the output plot generated when you apply the pavg function on the following input waveform:

The following arguments are specified in this example:

The following expression is created in the Buffer:

pavg(v("16" ?result "tran" ?resultsDir "./nand2_ring_tnoise.raw") 0 1u 1.169E-9 1 )

Now, when you evaluate this expression, the following output waveform is displayed in the graph window:

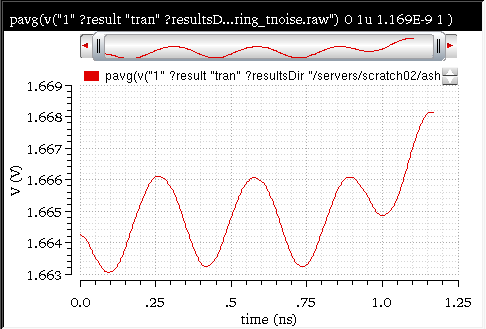

Related OCEAN Function

The equivalent OCEAN command for pavg is:

pavg( o_waveform n_from n_to [n_period [n_sfactor]])
=> o_waveform/nil

For more information about this OCEAN function, see pavg in OCEAN Reference.

peak

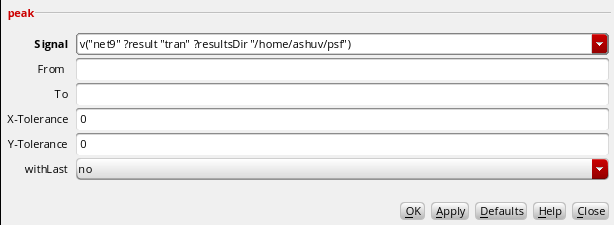

Detects the peaks in the input waveform and returns the X and Y coordinates of these peak points in the form of a waveform. The peak function will not work for waveforms that comprise of complex numbers.

This function is available only in the SKILL mode.

If only the X-Tolerance is specified, the peaks are filtered in the X-direction.

If only the Y-Tolerance is specified, the peaks are filtered in the Y-axis direction.

If both X-Tolerance and Y-Tolerance are specified, the filtering mechanism operates as follows:

  1. The maximum peak is selected first.
  2. All adjacent peaks in the neighborhood of both X-Tolerance in the X-axis direction and Y-Tolerance in the Y-axis direction are then filtered.
  3. All the peaks in the rectangular window thus formed are filtered based on both X-Tolerance and Y-Tolerance.

Example

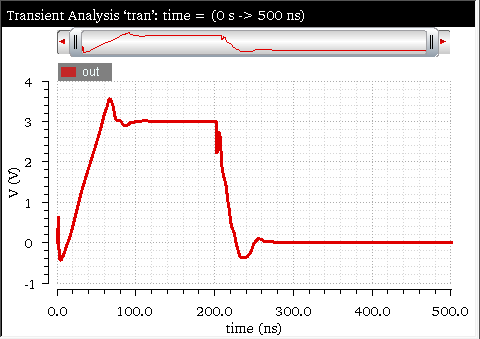

This example shows the output waveform generated when you apply the peak function on the following input signal:

The following arguments are specified in this example:

The following expression is created in the Buffer:

peak(v("out" ?result "tran" ?resultsDir "./ampsim.raw") ?from 0 ?to 500n ?xtol 0 ?ytol 0 ?withLast nil)

Now, when you evaluate this expression and plot the results in append mode, the following waveform is appended to the existing input waveform. This waveform shows the peak points of the input waveform.

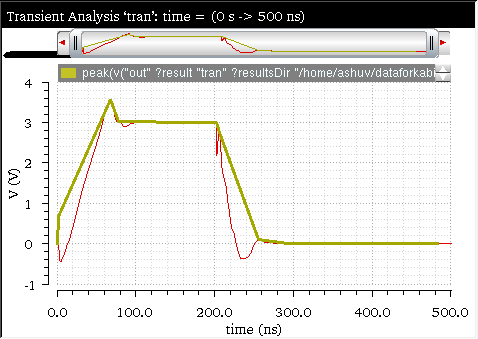

Related OCEAN Function

The equivalent OCEAN command for peak is:

peak( o_waveform ?from f_from ?to f_to ?xtol f_xtol ?ytol f_ytol )
=> o_waveform/nil

For more information about this OCEAN function, see peak in OCEAN Reference.

peakToPeak

Returns the difference between the highest and lowest values of a signal.

When you use this function to evaluate data for measurement across corners, a new key argument, overall, is added to this function. If the input is a scalar value and the overall argument is set to t, the peakToPeak function returns zero.

Example

This example calculates the peak to peak value when you apply the peakToPeak function on the following input signal:

The following expression is created in the Buffer when you apply this function:

peakToPeak(v("out" ?result "tran" ?resultsDir "./ampsim.raw"))

Now, when you evaluate this expression, the following output value is displayed in the Buffer:

Related OCEAN Function

The equivalent OCEAN command for peakToPeak is:

peakToPeak( o_waveform )
=> o_waveform/n_value/nil

For more information about this OCEAN function, see peakToPeak in OCEAN Reference.

period_jitter

Returns a waveform or a value representing the deviation from the average period.

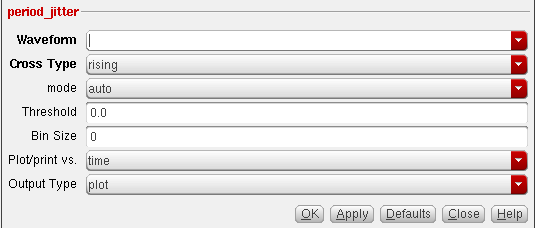

This function includes the following arguments in the SKILL mode,

Example

This example displays the period jitter waveform generated when you apply the period_jitter function on the following input waveform:

The following arguments are specified in this example:

The following expression is created in the Buffer:

period_jitter(v("1" ?result "tran" ?resultsDir "./nand2_ring_tnoise.raw") "rising"  ?mode "user" ?threshold 1.5   ?binSize 30 ?xName "time"   ?outputType "plot" )

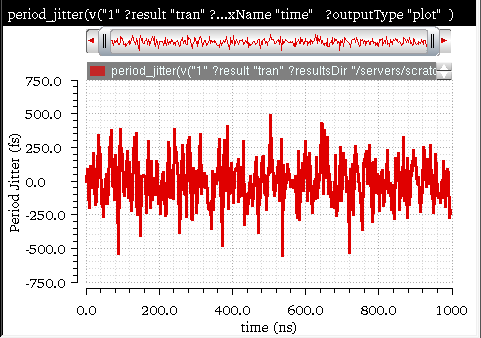

Now, when you evaluate this expression and plot the results, the following output waveform is displayed in the graph window:

Related OCEAN Function

The equivalent OCEAN command for period_jitter is:

period_jitter( o_waveform t_crossType
[?mode t_mode] [?threshold n_threshold] [?binSize n_binSize]
[?xName t_xName] [?outputType t_outputType] )
=> o_waveform/f_val/nil

For more information about this OCEAN function, see period_jitter in OCEAN Reference.

phaseMargin

Computes the phase margin of the loop gain of an amplifier. You supply a waveform representing the loop gain of interest over a sufficiently large frequency range.

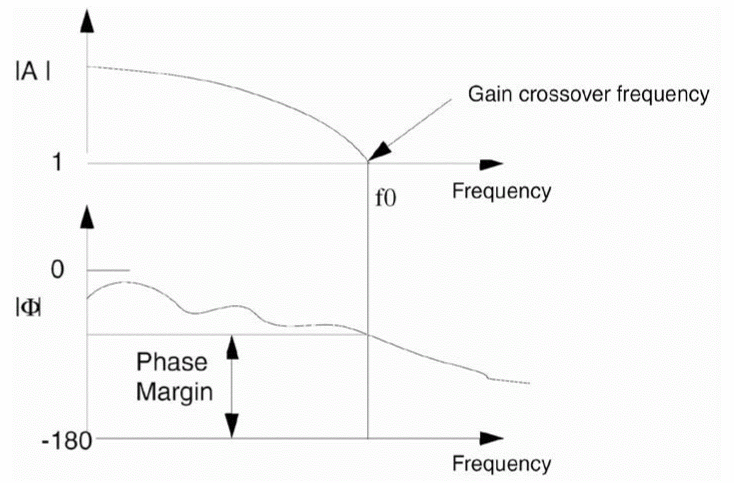

The phase margin is calculated as the difference between the phase of the gain in degrees at f0 and at -180 degrees. The frequency f0 is the smallest frequency where the gain is 1. For stability, the phase margin must be positive.

small-sig is the loop gain of interest over a sufficiently large frequency range.

Linear interpolation is performed in the phaseMargin function in the following two cases:

The interpolation is performed on the linear scale to find frequency 1, that is 0dB.

The phaseMargin function is equivalent to running the following expression:

wf = awvDigital2Analog(wf 5.0 0.0 2.5) freq = cross( abs(wf) 1) phaseDeg( -value(wf freq))

Example

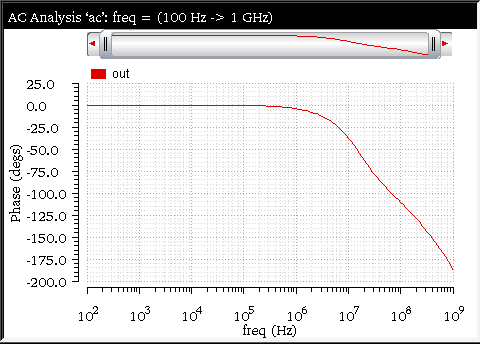

This example shows the phase margin value calculated when you apply the phaseMargin function on the following AC signal:

When you apply this function, the following expression is created in the Buffer:

phaseMargin(v("out" ?result "ac" ?resultsDir "/.ampTest.raw"))

Now, when you evaluate this expression, the following output value is displayed in the Buffer:

Related OCEAN Function

The equivalent OCEAN command for phaseMargin is:

phaseMargin( o_waveform )
=> o_waveform/n_value/nil

For more information about this OCEAN function, see phaseMargin in OCEAN Reference.

phaseNoise

Plots the phase noise waveform for noise analysis results.

This function is available only in the SKILL mode.

This function includes the following arguments:

Example

This example shows the output generated when you apply the phaseNoise function on the ./osc13.raw/pss_fd results database.

Firstly, ensure that the database context is set to the pss_fd results directory.

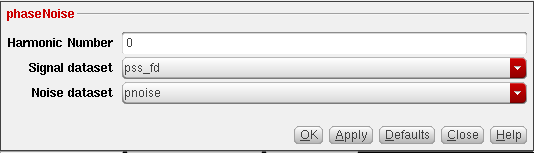

The following arguments are specified in this example:

The following expression is created in the Buffer:

phaseNoise(1 "pss_fd" ?result "pnoise")

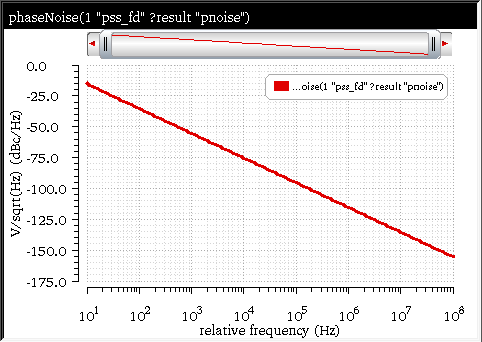

Now, when you evaluate this expression, the following waveform is displayed in the graph window.

Related OCEAN Function

The equivalent OCEAN command for phaseNoise is:

phaseNoise( g_harmonic S_signalResultName
[?result s_noiseResultName [?resultsDir t_resultsDir]] )
=> o_waveform/nil

For more information, see phaseNoise in OCEAN Reference.

PN

Returns a waveform for the transient phase noise of the input waveforms in decibels (dBc/Hz). Phase noise is defined as the power spectral density of the absolute jitter of an input waveform. This function is available only in the SKILL mode.

This function includes the following arguments:

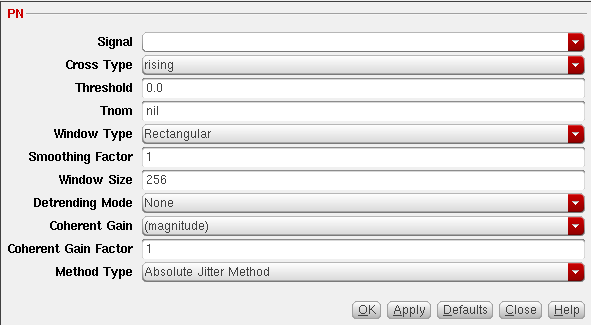

The Window Type, Smoothing Factor, Window Size, Detrending Mode, and Coherent Gain Factor, Coherent Gain arguments are used to calculate the power spectral density of the absolute jitter to obtain the phase noise.

Defining the Phase Noise

For a given waveform that has the following properties:

The phase noise, P(f), can be represented as the spectral density (in decibels) of absolute jitter in phase units as a function of reference clock time:

where, PSD is the power spectral density.

Example

Consider the following input signal from the transient analysis:

The PN function is applied on this input waveform with the following arguments:

The corresponding expression created in the Buffer is as follows:

PN(v("out" ?result "tran" ?resultsDir “nand2_ring_tnoise.raw”) "rising" 1.0 ?Tnom nil ?windowName "Rectangular" ?smooth 1 ?windowSize 8192 ?detrending "None" ?cohGain 1 ?methodType "absJitter" )

When you evaluate this expression, the following output waveform showing the transient phase noise is displayed in a new graph window:

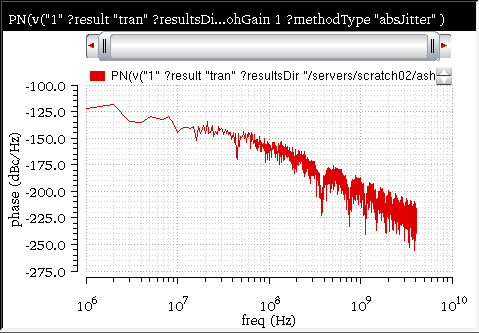

Related OCEAN Function

The equivalent OCEAN command for PN is:

PN( o_waveform t_crossType n_threshold ?Tnom n_tnom ?windowName t_windowName
?smooth x_smooth ?windowsize x_windowsize ?detrending t_detrending)
?cohGain f_cohGain ?methodType t_methodType)
=> o_waveform/nil

For more information, see PN in OCEAN Reference.

pow

Returns the value of base raised to the power of exponent (baseexponent).

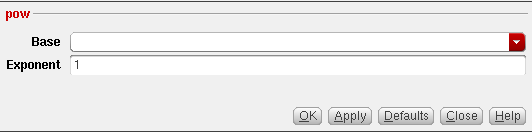

This function includes the following arguments:

Example

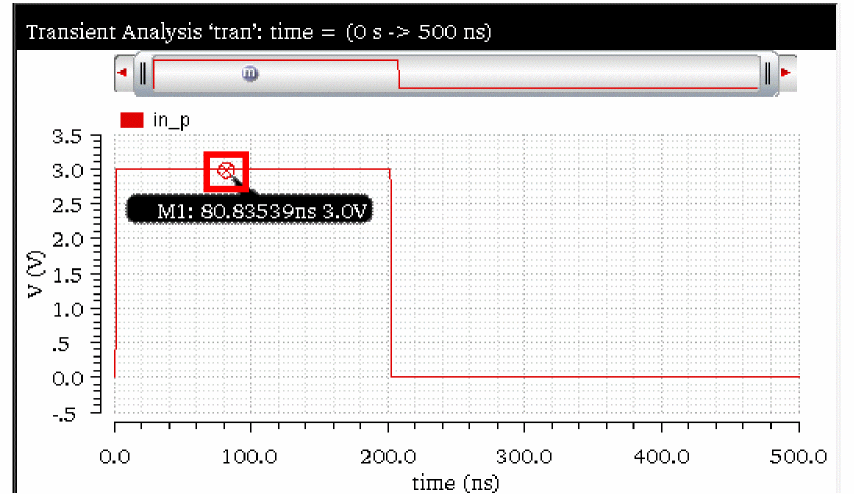

Consider the following input signal from the transient analysis. A point marker is placed on the input waveform at the voltage value 3.0V on Y-axis.

The pow function is applied to this input signal with the following arguments:

The corresponding expression created in the Buffer is as follows:

pow(v(“in_p” ?result “tran-tran” ?resultsDir “./ampsim.raw”)2)

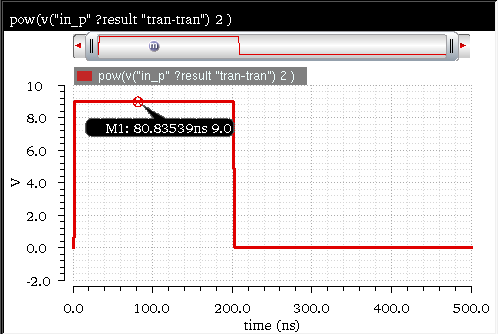

When you evaluate this expression, the power is calculated and the following output waveform is displayed in a new graph window. The voltage value for the point marker has been changed to 9.0V in the output waveform, which represents the pow(3,2) calculation.

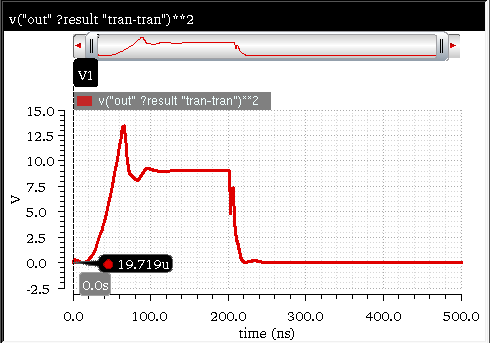

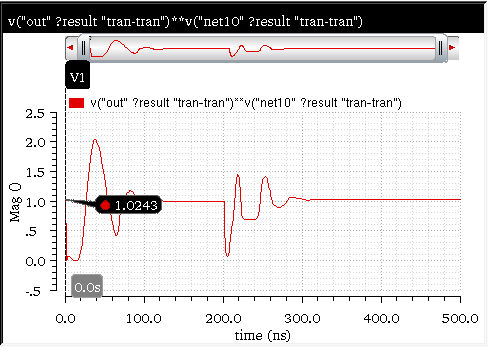

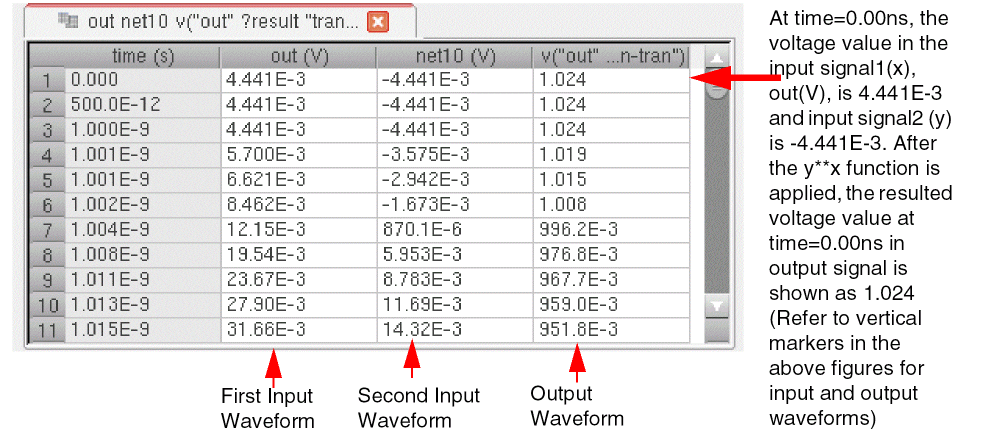

Below are additional examples to indicate the power calculation:

Related OCEAN Function

The equivalent OCEAN command for pow is:

pow( {o_waveformBase | n_numberBas} {o_waveformExpn | n_numberExpn} )
=> o_waveform/n_result/nil

For more information, see pow in OCEAN Reference.

prms

(Periodic Root Mean Square)

Returns the periodic root mean square of a family of signals for each time point, which is the square root of the periodic average of the square of input waveform and is represented as follows:

prms(o_waveform n_from n_to n_period n_sfactor) = sqrt(pavg(o_waveform*o_waveform) from to period sfactor)

For more information about the pavg function, see pavg.

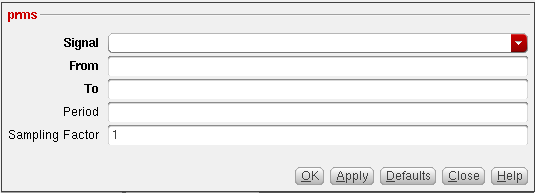

This function includes the following arguments:

Additional Information

The periodic root mean square is represented by the following equation:

prms(t)= sqrt( pavg( fam(t)**2  start_time end_time period sfactor))

Here,

pavg is the periodic average

fam(t) is the family of t waveforms

period=end_time-start_time

Example

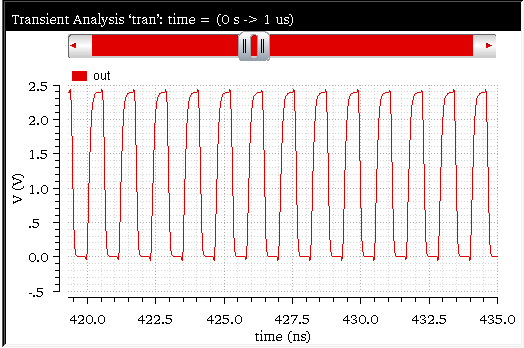

Consider the following input waveform from the transient analysis:

The prms function is applied on this input waveform with the following arguments:

The corresponding expression created in the Buffer is as follows:

prms(v("out" ?result "tran" ?resultsDir "./osc13.raw") 0 1u 1.169E-9 1 )

When you evaluate this expression, the following output waveform is displayed in a new graph window to represent the periodic root mean square values:

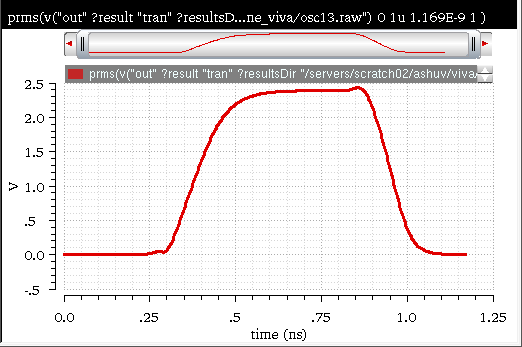

Related OCEAN Function

The equivalent OCEAN command for prms is:

prms( o_waveform n_from n_to [n_period [n_sfactor]])
=> o_waveform/nil

For more information, see prms in OCEAN Reference.

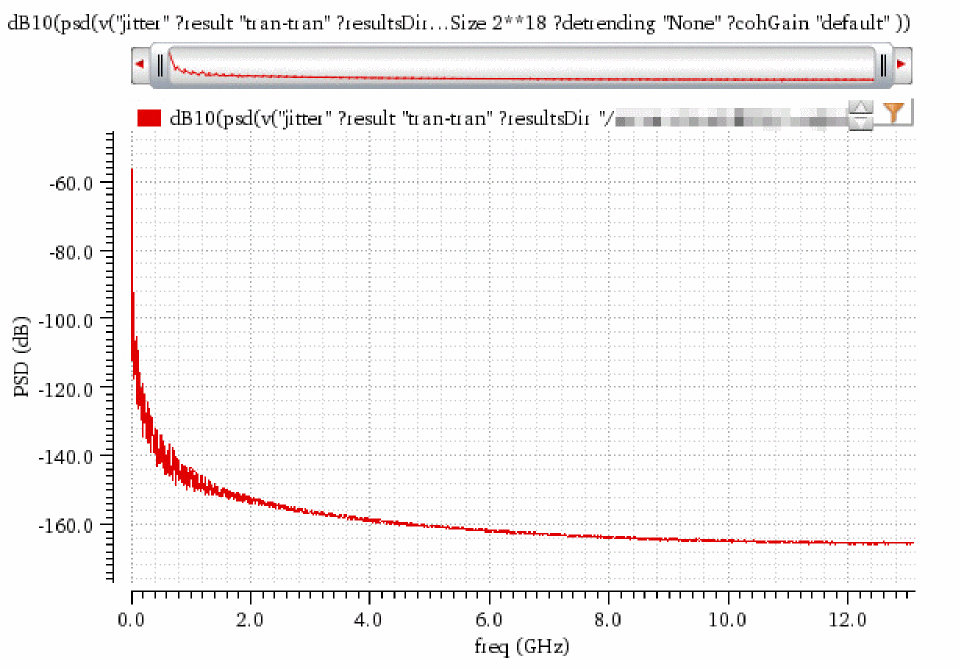

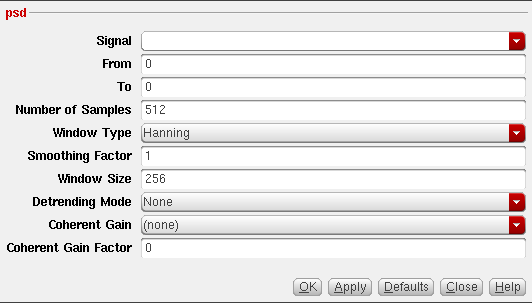

psd

Power Spectral Density

Describes how the power (or variance) of a time series (signal) is distributed with frequency. Mathematically, it is defined as the Fourier Transform of the auto correlation sequence of the time series (signal). The waveform is first interpolated to generate evenly spaced data points in time. The spacing of the data points is the inverse of the dft sampling frequency. The psd is computed by first breaking up the time interval into overlapping segments. Each segment is multiplied, time point by time point, by the specified windowing function. The dft is performed on each windowed segment of the baseband waveform. At each frequency, the dfts from all segments are averaged together and the squared modulus of these averages gives the psd.

This function is available only in the SKILL mode and includes the following arguments:

Example

Consider the following input signal from the transient analysis:

The psd function is applied on this input waveform with the following arguments:

The corresponding expression created in the Buffer is as follows:

psd(v("jitter" ?result "tran-tran" ?resultsDir "./prbs.raw") 0 40u 2**20 ?windowName "Rectangular" ?smooth 1 ?windowSize 2**18 ?detrending "None" ?cohGain "default" )

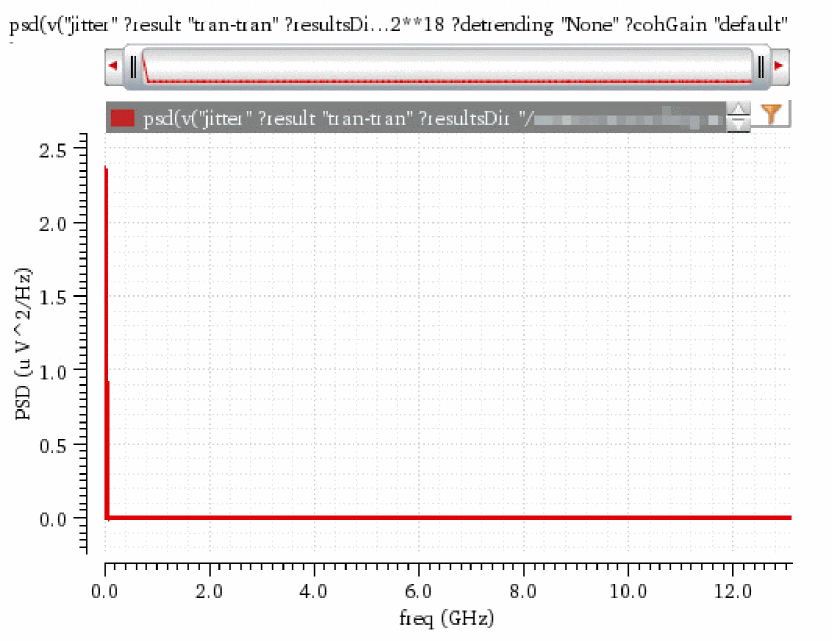

Then, the dB10 function is applied on this expression to modify the power spectral density calculation. The following expression is created in the Buffer.

dB10(psd(v("jitter" ?result "tran-tran" ?resultsDir "./prbs.raw") 0 40u 2**20 ?windowName "Rectangular" ?smooth 1 ?windowSize 2**18 ?detrending "None" ?cohGain "default" ))

When you evaluate this expression, the power spectral density is calculated and the spectrum is displayed, as shown in the following output waveform:

Related OCEAN Function

The equivalent OCEAN command for psd is:

psd( o_waveform f_timeStart f_timeEnd x_num
?windowName t_windowName ?smooth x_smooth ?cohGain f_cohGain
?windowsize x_windowsize ?detrending t_detrending)
=> o_waveformReal/nil

For more information, see psd in OCEAN Reference.

psdbb

(Power Spectral Density Baseband)

Returns an estimate for the power spectral density of a waveform1+j * waveform2. This function is available only in the SKILL mode.

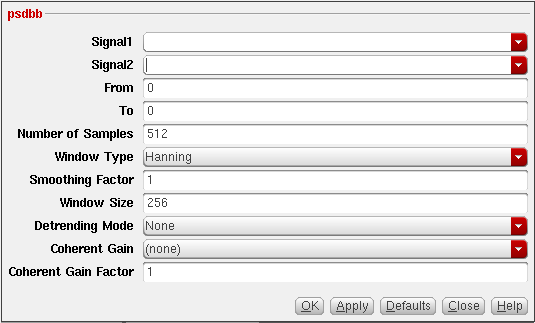

This function includes the following arguments:

Example

Consider the following input waveform from the transient analysis:

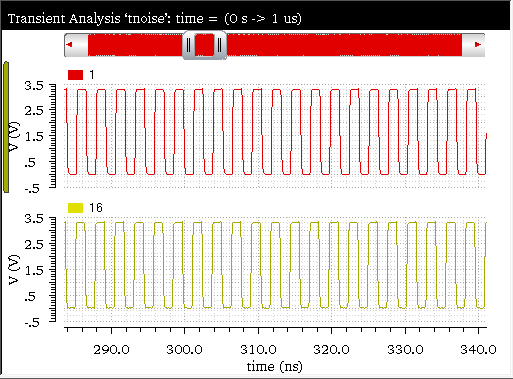

The psdbb function is applied on this input waveform with the following arguments:

The corresponding expression created in the Buffer is as follows:

psdbb(v("16" ?result "tran" ?resultsDir "./nand2_ring_tnoise.raw") v("1" ?result "tran" ?resultsDir "./nand2_ring_tnoise.raw") 0 1.2u 1024 ?windowName "Hanning" ?smooth 1 ?windowSize 512 ?detrending "None" ?cohGain 1 )

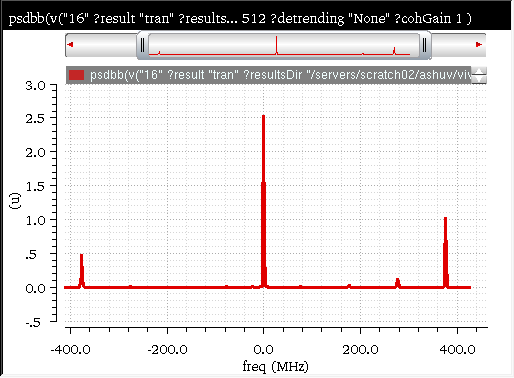

When you evaluate this expression, the power spectral density is calculated and a spectrum is displayed, as shown in the following output waveform:

Related OCEAN Function

The equivalent OCEAN command for psdbb is:

psdbb( o_waveform1 o_waveform2 f_timeStart f_timeEnd x_num
?windowName t_windowName ?smooth x_smooth ?cohGain f_cohGain
?windowsize x_windowsize ?detrending t_detrending)
=> o_waveformReal/nil

For more information, see psdbb in OCEAN Reference.

pstddev

(Periodic Standard Deviation)

Returns the periodic standard deviation of a family of signals for each time point.

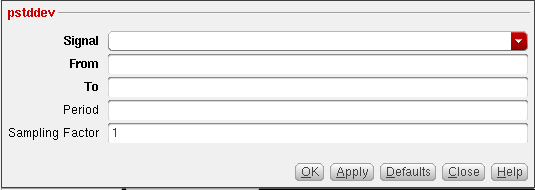

This function includes the following arguments:

Additional Information

The periodic standard deviation is represented by the following equation:

pstddev(tk) = stddev(sample( o_waveform(t), from tk, to N*T, linear, by T))

where,

o_waveform(t) is the input waveform

N = floor((to-from) / T)

T = period

If the input waveform is a multi-dimensional waveform or a family of waveforms, the output is calculated as:

where,

o_waveform_family is the input waveform family

M is the number of leaf waveforms in the family.

o_waveform_family[j] is the jth leaf waveform of the family of waveform represented by the input waveform.

It calculates the pstddev on each leaf, and then averages over the number of leaves in the family of waveform. In this case the resultant is not a family of waveforms, but a normal waveform of dimension 1.

Example

Consider the following input waveform from transient analysis:

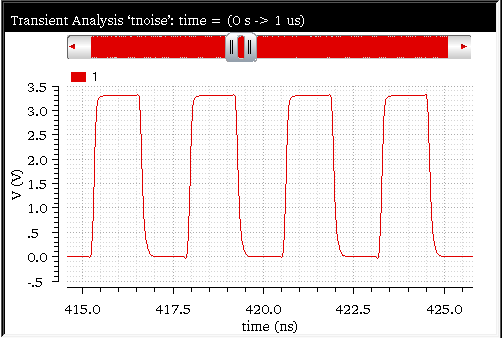

The pstddev function is applied on this input waveform with the following arguments:

The corresponding expression created in the Buffer is as follows:

pstddev(v("1" ?result "tran" ?resultsDir "./nand2_ring_tnoise.raw") 0 1u 1.169E-9 1)

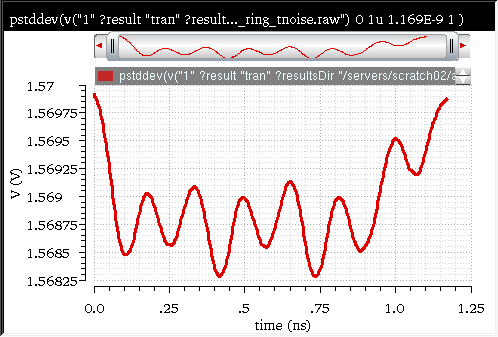

When you evaluate this expression, the following output waveform is displayed in a new graph window, which indicates the periodic standard deviation at each time point.

Related OCEAN Function

The equivalent OCEAN command for pstddev is:

pstddev( o_waveform n_from n_to [n_period [n_sfactor]])
=> o_waveform/nil

For more information, see pstddev in OCEAN Reference.

pzbode

Calculates and plots the transfer function for a circuit from pole zero simulation data.This function also works on the parametric or sweep data.

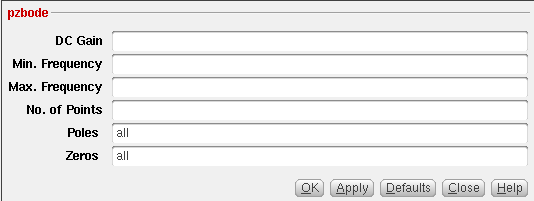

This function includes the following arguments:

Example 1

The following diagram illustrates how the result with the values poles=POLES‹I‹R_1››, zeroes=ZEROES‹I‹R_1››, c=I‹R_1›\[K\], minfreq=1e-3, maxfreq=1e3, and npoints=1000 is determined.

Polar Plot

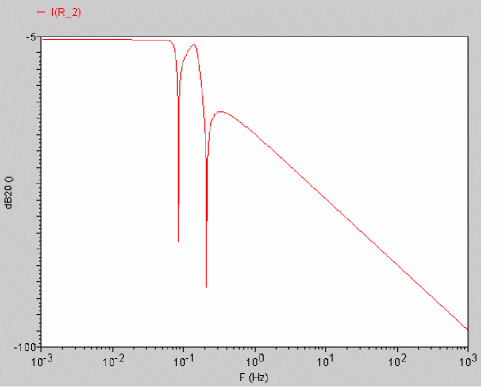

Corresponding bode plot

Example 2

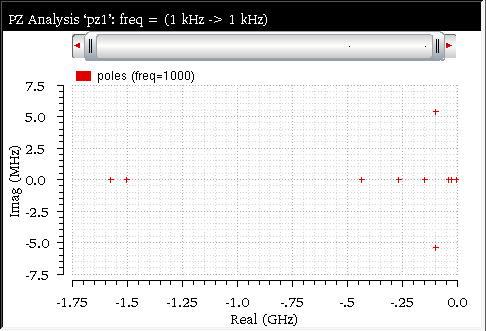

This example shows the bode plot generated when you apply the pzbode function on the following pole-zero results from the openloop_ampSim.raw database:

The following arguments are specified in this example:

The following expression is created in the Buffer:

pzbode(1 100 1G 20 ?poles "all" ?zeros "all")

Now, when you evaluate this expression, the following output waveform showing the bode plot is displayed in the graph window:

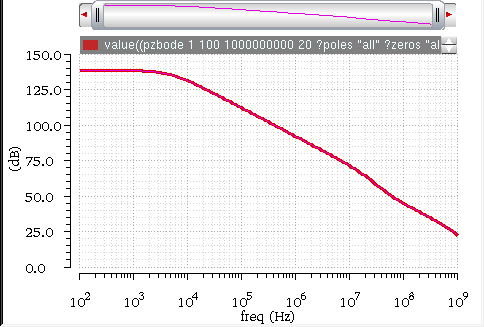

Related OCEAN Function

The equivalent OCEAN command for pzbode is:

pzbode( f_c f_minf f_maxf x_nponits ?poles o_waveform1 ?zeros o_waveform2)
=> o_waveform/nil

For more information about this OCEAN function, see pzbode in OCEAN Reference.

pzfilter

Filters the poles and zeroes according to the specified criteria. The pzfilter function works only on pole zero simulation data. In addition, this function also works on the parametric or sweep data.

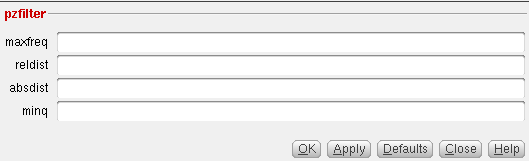

This function includes the followign arguments:

If you do not specify maxfreq, reldist, absdist, or minq, pzfilter filters out the poles and zeroes with a frequency higher than 10 GHz (default value of maxfreq).
You need to set the database context to the pz results directory for which you want to plot the pzfilter plot. For more information about how to set a results directory as in-context results directory, see Setting the In-Context Results Directory.

Additional Information

Equations Defining the Q-Factor of a Complex Pole or Zero

Filtration Rules

Example

The values poles=POLES‹I‹R_2››, zeroes=ZEROES‹I‹R_2››, absdist=0.05, and minq=10000 filters pole-zero pairs with a relative distance of less than 0.05 Hz from the plot on the left side. In the filtered plot shown on the right side, two pole-zero pairs have been filtered out.

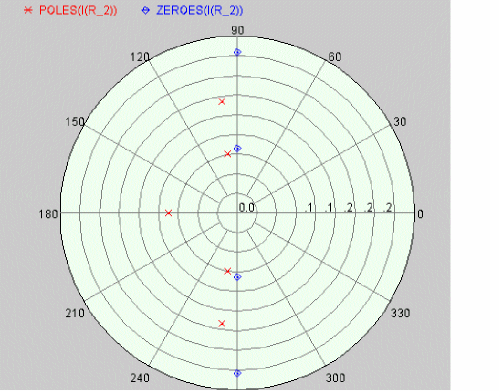

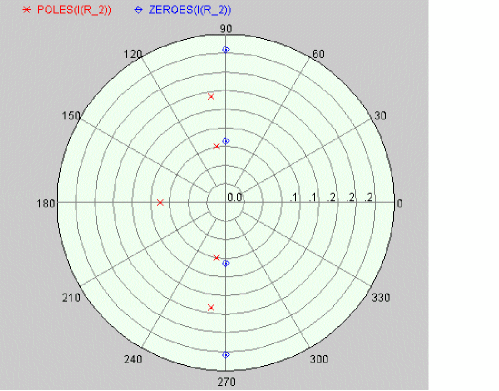

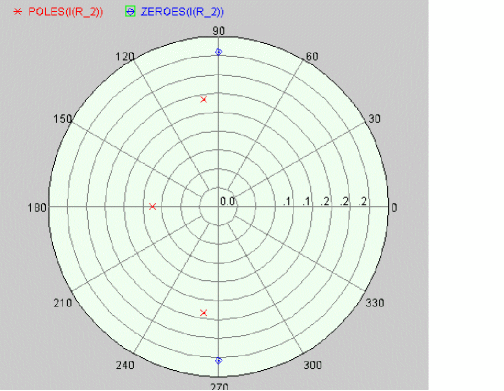

Original polar Plot

Filtered polar plot

Example

This example shows the output plot generated with the filtered pole-zero results when you apply the pzfilter function on the following pole-zero data:

Only the following argument is specified in this example:

The following expression is created in the Buffer:

pzfilter(?maxfreq 1G )

Now, when you evaluate this expression, the following output plot is displayed in the graph window:

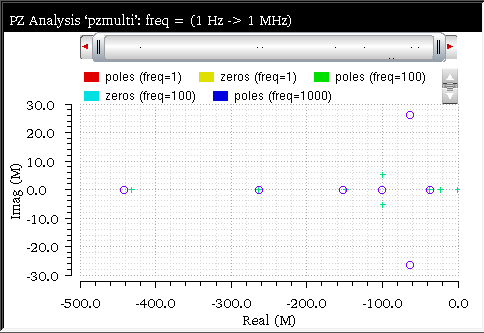

Related OCEAN Function

The equivalent OCEAN command for pzfilter is:

pzfilter( [o_PoleWaveform] [o_ZeroWaveform]
[?maxfreq t_maxfreq] [?reldist n_relDist] [?absdist n_absdist]
[?minq n_minq] [?output_type o_output] )
=> o_waveform/nil

For more information about this OCEAN function, see pzfilter in OCEAN Reference.

riseTime

Returns the rise time for a signal, which is the time taken by a signal to change from a specified low value to a specified high value. Typically, these values are 10% and 90% of the step height.

The following illustration shows how the rise time value is calculated:

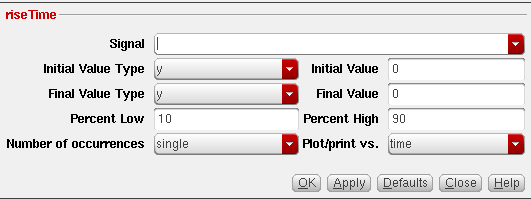

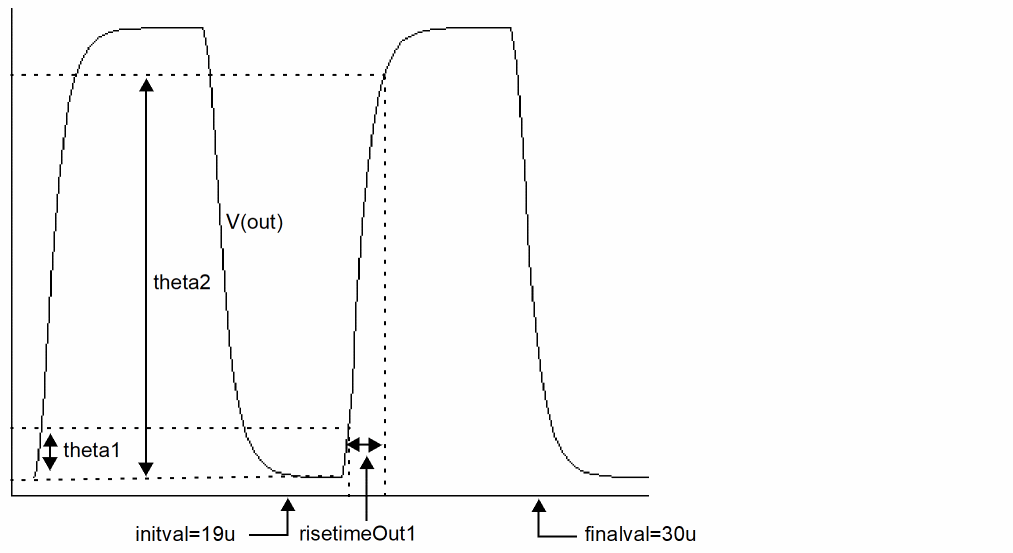

This function includes the following arguments in the SKILL mode:

Additional Information

Consider the following equations:

Val1 = theta1 / 100.0 * diff + initVal

Val2 = theta2 / 100.0 * diff + initVal

The following table shows how the riseTime function works when you apply the above equations:

Function riseTime(w initVal nil finalVal nil theta1 theta2) initVal finalVal theta1 theta2 Val1 Val2 Output

Case 1

0

1

10

80

0.1

0.8

1.4n (time taken to rise from 200.0p ns to 1.6ns) See Figure for Case 1.

Case 2

0

1

80

10

0.1

0.8

0.7n (time taken to fall from 4.2ns to 4.9ns) See Figure for Case 2.

Case 3

1

0

10

80

0.9

0.2

0.7n (time taken to fall from 4.1ns to 4.8ns) See Figure for Case 3.

Case 4

1

0

80

10

0.2

0.9

1.4n (time taken to rise from 400.0p s to 1.8ns) See Figure for Case 4.

Example 3

Consider the following input waveform from transient analysis:

The riseTime function is applied on this input waveform with the following arguments:

The corresponding expression created in the Buffer is as follows:

riseTime(v("90" ?result "tran" ?resultsDir "./nand2_ring.raw") 0 nil 3.3 nil 10 90 t "time" )

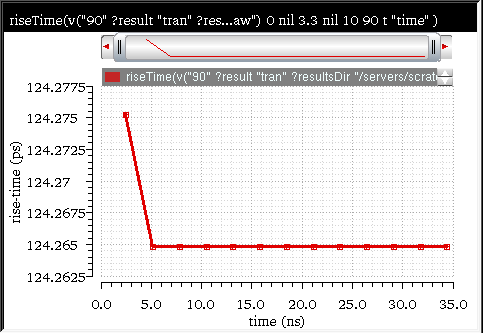

When you evaluate this expression, the rise time is calculated and the following output waveform is displayed in a new graph window:

Related OCEAN Function

The equivalent OCEAN command for riseTime is:

riseTime( o_waveform n_initVal g_initType n_finalVal g_finalType
n_theta1 n_theta2
[g_multiple [s_Xname][g_histoDisplay][x_noOfHistoBins] ] )
=> o_waveform/n_value/nil

For more information, see riseTime in OCEAN Reference.

rms

(Root Mean Square)

Returns the root mean square of a signal. The equation for rms is:

rms = sqrt(average(integ(f(x)**2)))

For harmonic data, rms is calculated by dividing the value at each non-DC frequency by sqrt(2).

Example

Consider the following input waveform from the transient analysis:

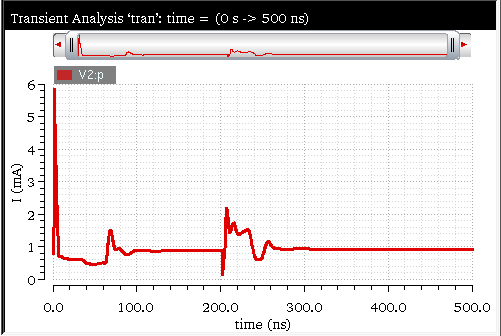

When you send this input signal to Calculator and apply the rms function, the function is  applied on the input waveform expression displayed in the Buffer. The corresponding expression created in the Buffer is as follows:

rms(i("V2:p" ?result "tran-tran" ?resultsDir "ampsim.raw")))

When you evaluate this expression, the following scalar output is displayed in the Buffer:

Related OCEAN Function

The equivalent OCEAN command for rms is:

rms( o_waveform )
=> o_waveform/n_value/nil

For more information, see rms in OCEAN Reference.

rms_jitter

Returns the root mean square jitter value in the specified frequency range. The RMS jitter value is calculated based on the following equation:

sqrt(integ(10**(PN/10) fmin fmax))/(2*pi/Tnom)

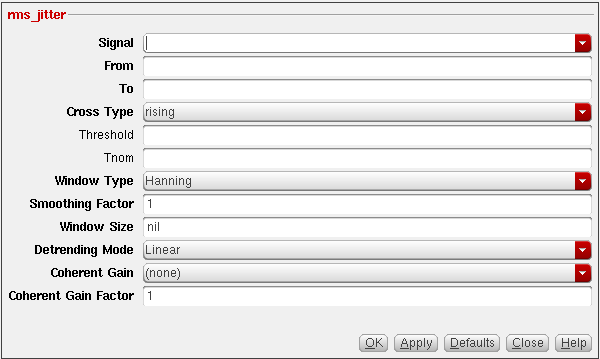

This function includes the following fields:

Example

Consider the following waveform from the transient analysis (Results Directory: nand2_ring_tnoise.raw)

The rms_jitter function is applied to this waveform with the following arguments:

The following expression is created in the Buffer:

rms_jitter(v("1" ?result "tran") 1M 376.79M ?crossType "rising" ?windowName "Hanning" ?smooth 1 ?cohGain "default" ?windowSize 376 ?detrending "Linear" )

When you evaluate this expression, the following rms_jitter value is displayed in the Buffer:

In addition, the Threshold, Tnom, and Window size values are displayed in CIW.

Note the following important points:

rmsNoise

Computes the integrated root-mean-square of the total output noise over the bandwidth specified in Hertz in the From and To fields.This function is available only in the SKILL mode.

The formula used to calculate rmsNoise is as follows:

rmsNoise = sqrt(integ(f(x)**2))

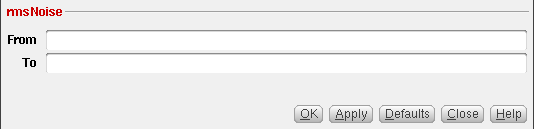

This function includes the following arguments:

Example

Consider the following input waveform from the noise analysis: v(“out” ?result “noise” ?resultsDir “./linear.raw”)

Before using this function, you need to set the results database context to the noise analysis results database that contains the input signal, such as linear.raw used in this example. For more information about how to change the in-context results directory, see Setting the In-Context Results Directory.

The rmsNoise function is applied on this input waveform with the following arguments:

The corresponding expression created in the Buffer is as follows:

rmsNoise(10 1M)

When you evaluate this expression, the following scalar output indicating the root mean square is displayed in the Buffer:

Related OCEAN Function

The equivalent command for rmsNoise is:

rmsNoise( n_from n_to )
=> o_waveform/n_value/nil

For more information, see rmsNoise in OCEAN Reference.

root

Computes the value of x at which f(x) equals the specified threshold. This function is available only in the SKILL mode.

This function includes the following arguments:

Example

Consider the following input waveform from transient analysis:

The root function is applied on this input waveform with the following arguments:

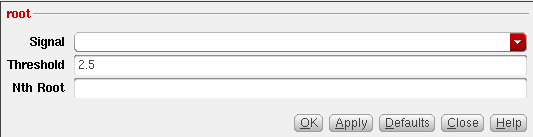

The corresponding expression created in the Buffer is as follows:

root(v("1" ?result "tran_slow-tran" ?resultsDir "./nand2_ring.raw") 2.5 2 )

When you evaluate this expression, the scalar output is displayed in the Buffer that indicates the second crossing point value at which the input signal crosses the threshold 2.5V.

You can also verify the output generated by placing a horizontal marker in the graph at Y-axis = 2.5V, as displayed in the figure below:

Related OCEAN Function

The equivalent OCEAN command for root is:

root( o_waveform n_rootVal x_n )
=> o_waveform/n_value/l_value/nil

For more information, see root in OCEAN Reference.

rshift

Shifts the data in the graph window to the right by the specified amount. A negative value shifts the data to the left. This function is available only in the SKILL mode.

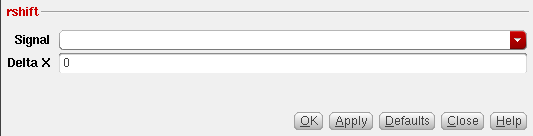

This function includes the following arguments:

Example

Consider the following input waveform from transient analysis:

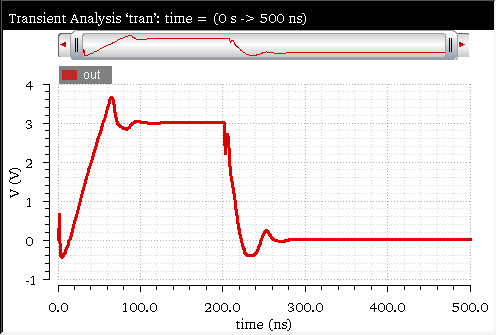

The rshift function is applied to this input waveform with the following arguments:

The corresponding expression created in the Buffer is as follows:

rshift(v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw") 100n )

When you evaluate this expression and plot the result in the same graph window in the append mode, the following output waveform is displayed in the graph window:

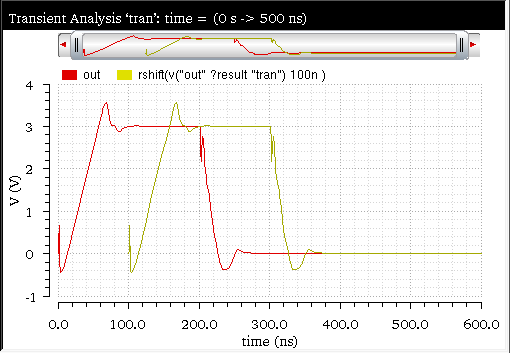

The output waveform starts from time=100n, which indicates that the X-axis has been shifted by 100n from the starting point 0.0n.

Now, again apply the rshift function on the input signal with Delta=-100. The expression created in the Buffer is as follows:

rshift(v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw") -100n )

Now, when you evaluate this expression and plot the results in an appned mode, the following output waveform appears in the graph window.

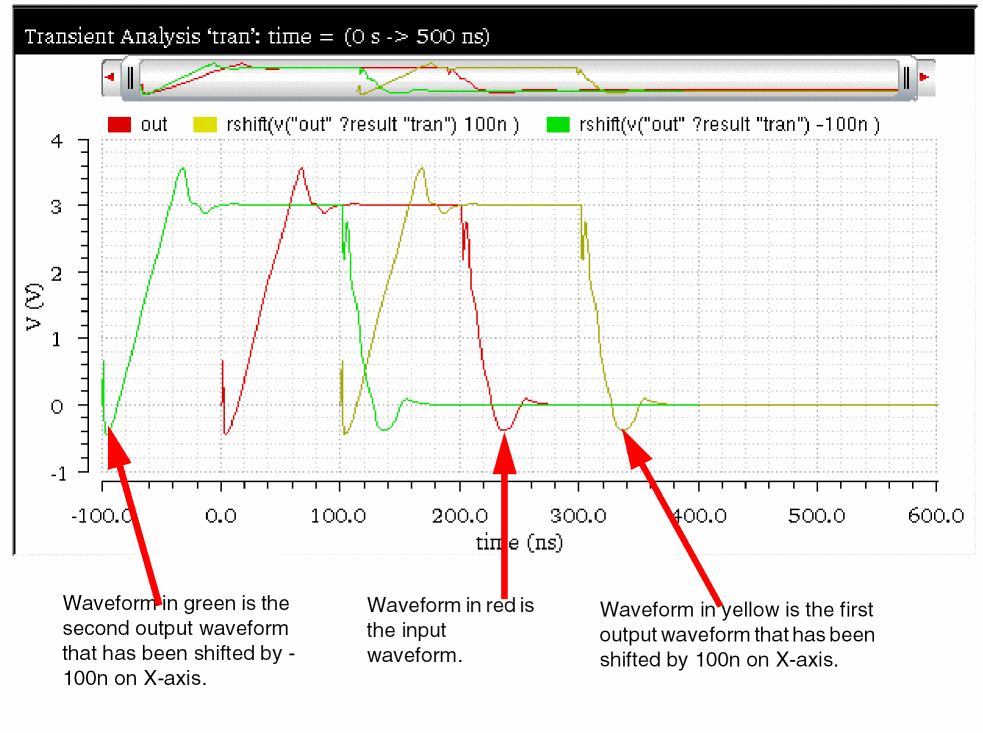

The output waveform starts from time=-100n, which indicates that the X-axis has been shifted by -100n from the starting point -100n.

Related OCEAN Function

The equivalent OCEAN command for rshift is:

rshift( o_waveform n_delta )
=> o_waveform/nil

For more information, see rshift in OCEAN Reference.

sample

Samples the given waveform over the specified interval.

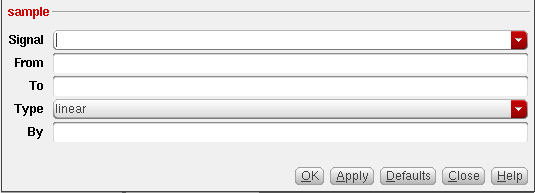

This function includes the following arguments in SKILL mode:

Example

Consider the following input signal from the transient analysis:

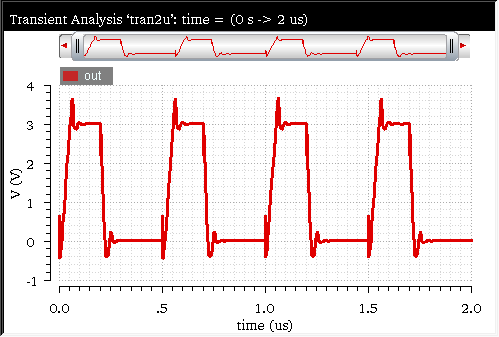

The sample function is applied on this input waveform with the following arguments:

The corresponding expression created in the Buffer is as follows:

sample(v("out" ?result "tran" ?resultsDir "/ampsim.raw") 0.5u 1.5u "linear" 50n )

When you evaluate this expression, the sample of the signal is calculated in the X-axis range 0.5u to 1.5u. The following output waveform is displayed in a new graph window:

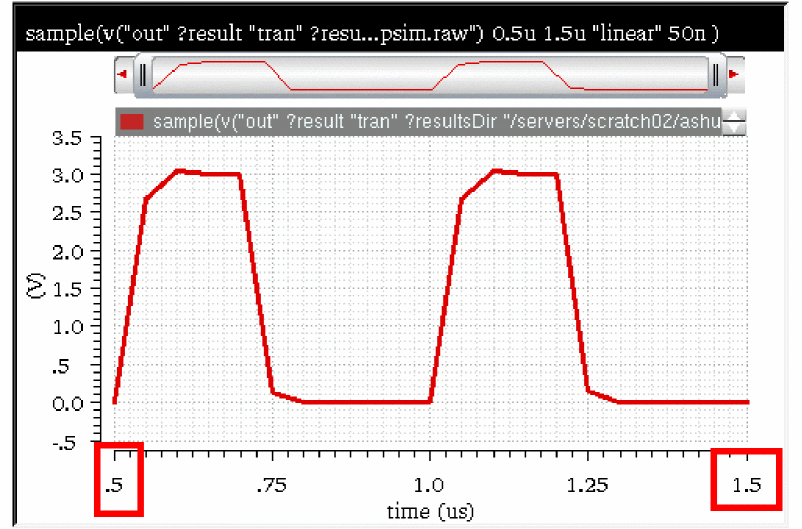

Related OCEAN Function

The equivalent OCEAN command for sample is:

sample( o_waveform n_from n_to t_type n_by )
=> o_waveform/n_number/nil

For more information, see sample in OCEAN Reference.

settlingTime

Calculates the time taken by a signal before it reaches to a value that remains within a certain percent of its final value.

The formula to calculate maximum deviation is:
maxDeltaY = ((theta/100.0) * abs(FinalVal -InitVal))
where, theta is the percentage of step, which is used as one of the function arguments that are passed to calculate the settling time.

For example, if the initial value of the signal is 0V, final value of the signal is 1V (1000mV), and the percent of step is 1:

maxDeltaY = ((1/100.0) * (1 -0)) = 0.01V = 10 mV

And the range within which the signal has to remain after the settling time = Final value± maxDeltaY = 1000±10 = 990mV to 1010mV

This function includes the following arguments in the SKILL mode:

Example 1

Consider the following example in which settlingTime function is applied on the vout signal as shown in the figure below:

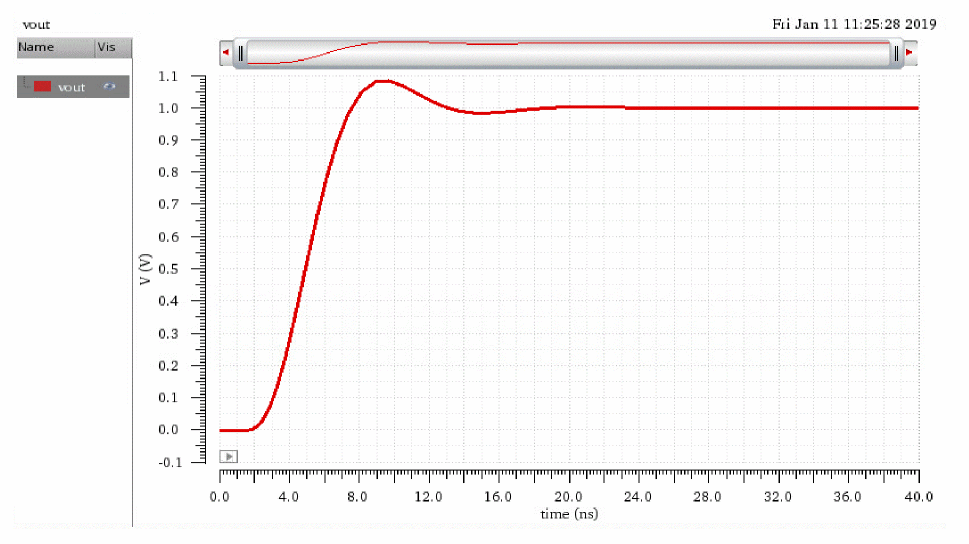

The initial and final values of this signal are 0 (at time, t = 0ns) and 1 (at time, t = 40ns), respectively. If the settling time for this signal is calculated at percent of step = 1, the signal must remain within 990mV to 1010mV after reaching its settling time.

Apply settlingTime function on this signal with the following argument values:

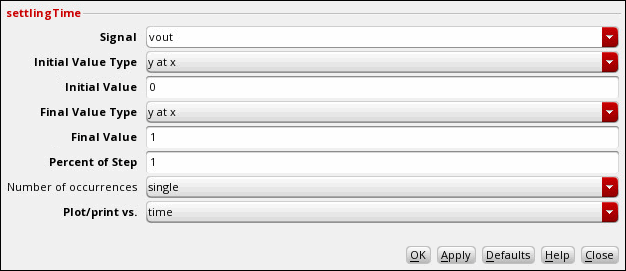

The corresponding expression created in the Buffer is as follows:

settlingTime(vout 0 t 1 t 1 nil "time")

Now, when you evaluate this expression, the following scalar value is displayed in the Buffer that indicates the time required by this signal to settle down.

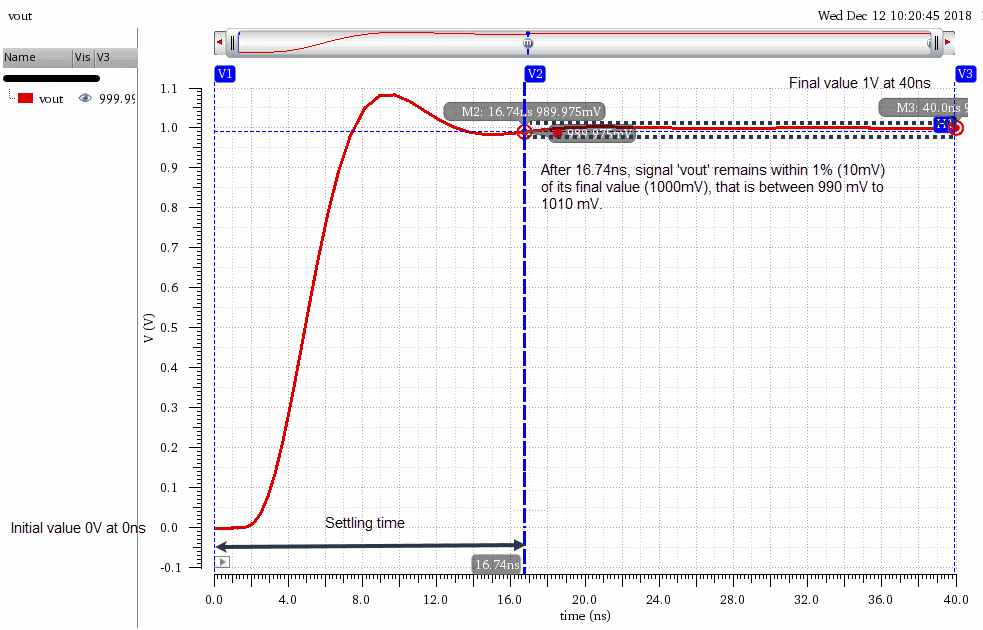

See the following figure to observe that after time, t = 16.74ns, the signal remains within 990mV to 1010mV range.

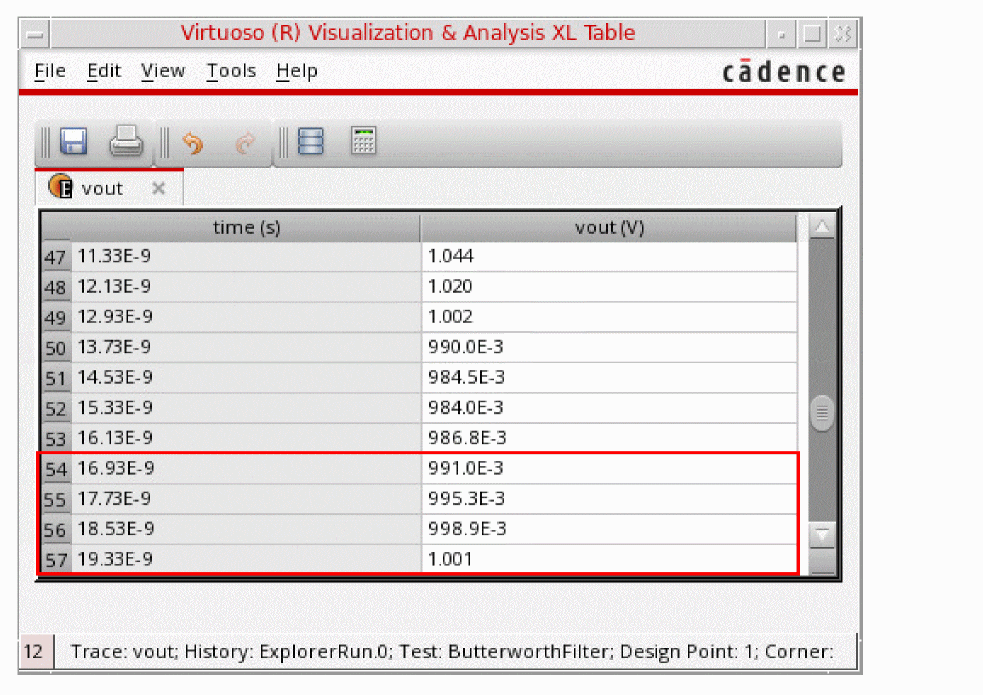

You can also analyze the signal by sending it to the table. To do so, right-click the signal and choose Send To – Table – New Window. The signal values are displayed in the table as shown in the following figure.

Example 2

Consider the following input waveform from the transient analysis:

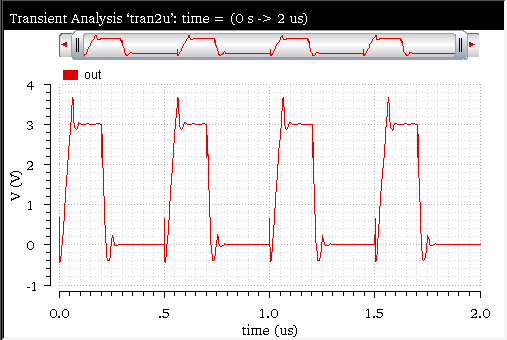

The settlingTime function is applied on this input waveform with the following arguments:

The corresponding expression created in the Buffer is as follows:

settlingTime(v("out" ?result "tran") 0 nil 3 nil 1 t "time" )

Now, when you evaluate this expression, the settling time is calculated and following output waveform is displayed in the graph window:

The above example calculates multiple settling time values because the Number of occurrences field has been set to multiple.

Perform the steps listed below to measure the individual settling times for the curves, such as a2-a1,...,d2-d1 marked on the input waveform shown below,

  1. Apply the xval function on the settling time waveform expression to measure the X values from the settling time signal. The corresponding expression created in the Buffer is as follows:
    xval(settlingTime(v("out" ?result "tran") 0 nil 3 nil 1 t "time" ))
  2. Calculate the difference between the two waveforms by subtracting the two waveforms. The corresponding expression created in the Buffer is as follows:
    settlingTime(v("out" ?result "tran") 0 nil 3 nil 1 t "time" )-xval(settlingTime(v("out" ?result "tran") 0 nil 3 nil 1 t "time" ))
  3. Evaluate the expression.

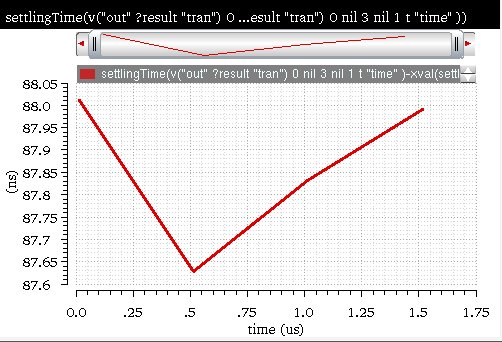

    The following output waveform appears in the graph window that indicates the individual settling time for each curve in the waveform.

Related OCEAN Function

The equivalent OCEAN command for settlingTime is:

settlingTime( o_waveform n_initVal g_initType n_finalVal g_finalType
n_theta [g_multiple [s_Xname]] )
=> o_waveform/n_value/nil

For more information, see settlingTime in OCEAN Reference.

kurtosis

Calculates the kurtosis of the specified waveform.

Kurtosis is a measurement of whether the data is heavy-tailed or light-tailed relative to a normal distribution. That is, data sets with high kurtosis tend to have heavy tails or outliers. Data sets with low kurtosis tend to have light tails or lack of outliers.

Example

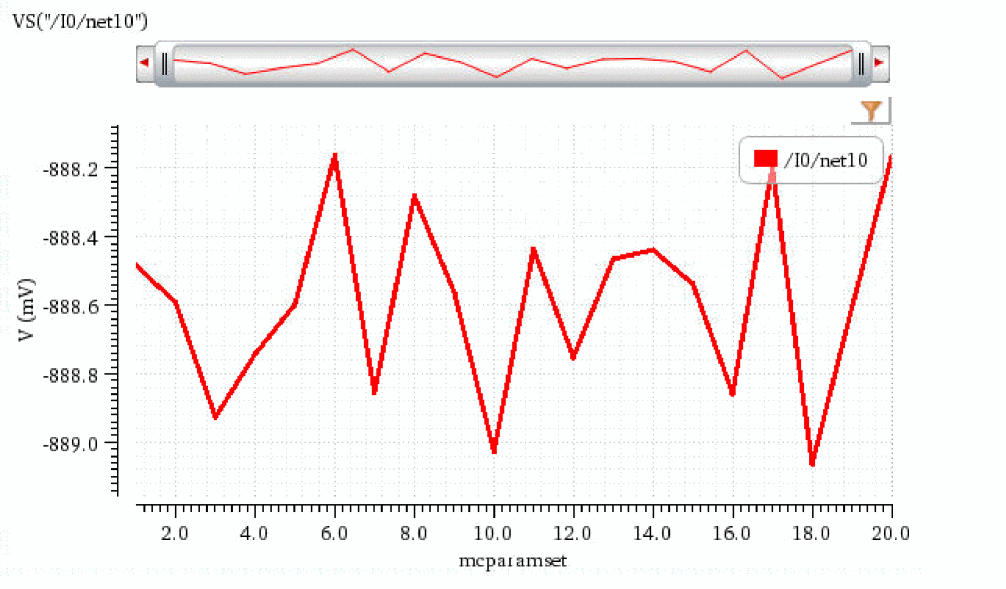

This example shows how the kurtosis is calculated when you apply the kurtosis function on the following input signal:

When you apply the kurtosis function on this signal, the following expression is created in the Buffer:

kurtosis(VS("/I0/net10"))

When you evaluate this expression, the following output is displayed in the Buffer:

You can also annotate kurtosis on the histogram plotted using the same input signal.

normalQQPValue

Returns the p-value of a QQ (quantile-quantile) plot. A QQ plot draws the correlation between a given sample and the normal distribution.

A small p-value indicates that the distribution is unlikely to be normal, while a large p-value indicates that the distribution is close to normal.

Example

This example shows how the p-value is calculated when you apply the normalQQPValue function on the following input signal:

When you apply the normalQQPValue function on this signal, the following expression is created in the Buffer:

normalQQPValue(v("/OUT" ?result "dcOp"))

When you evaluate this expression, the following output is displayed in the Buffer:

skewness

Calculates the skewness of the specified waveform.

Skewness is a measurement of symmetry or more precisely, the lack of symmetry. A perfectly symmetric waveform has zero skewness.

Example

This example shows how the skewness is calculated when you apply the skewness function on the following input signal:

When you apply the skewness function on this signal, the following expression is created in the Buffer:

skewness(v("/OUT" ?result "dcOp"))

When you evaluate this expression, the following output is displayed in the Buffer:

slewrate

Computes the average rate at which the Buffer expression changes from percent low to percent high of the difference between the initial value and the final value.

This function includes the following arguments in the SKILL mode,

Example

Consider the following input waveform from transient analysis:

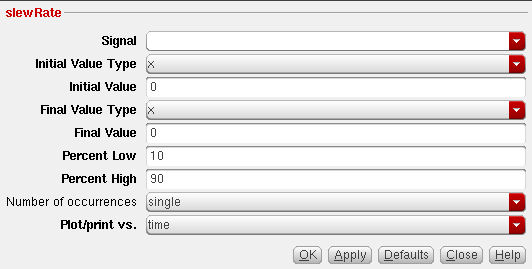

The slewrate function is applied on this input waveform with the following arguments:

The corresponding expression created in the Buffer is as follows:

slewRate(v("out" ?result "tran") 0 nil 3 nil 10 90 t "time" )

When you evaluate this expression, the slewrate is calculated and the output waveform is displayed in a new graph window. Notice that multiple slewrate values are calculated in this example because the Number of occurrences field has been set to multiplte.

Related OCEAN Function

The equivalent OCEAN command for slewRate is:

slewRate( o_waveform n_initVal g_initType n_finalVal g_finalType
n_theta1 n_theta2
[g_multiple [s_Xname]][g_histoDisplay][x_noOfHistoBins] )
=> o_waveform/n_value/nil

For more information, see slewRate in OCEAN Reference.

spectralPower

Plots the spectral power for the specified current waveform and voltage waveform. This function is available only in the SKILL mode.

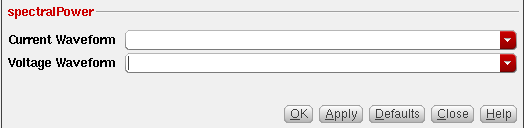

This function includes the following arguments:

Example

Consider the following input waveforms from PSS analysis:

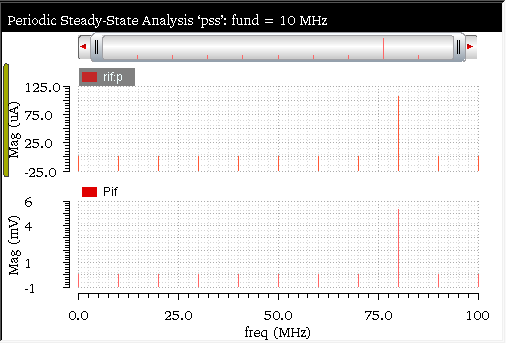

When you send these voltage and current waveforms to the Calculator, the waveform expression that is created in the Buffer is based on their magnitude, as shown below:

mag(i("rif:p" ?result "pss_fd" ?resultsDir "./pss_ne600.raw"))

Edit this expression to remove the magnitude and apply the spectralPower function with the following arguments:

The corresponding expression created in the Buffer is as follows:

spectralPower(i("rif:p" ?result "pss_fd" ?resultsDir "./pss_ne600.raw") v("Pif" ?result "pss_fd" ?resultsDir "./pss_ne600.raw") )

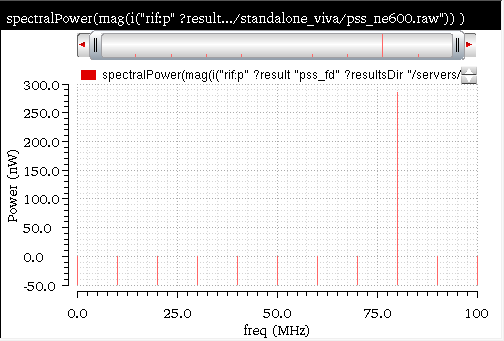

When you evaluate this expression, the spectral power for these voltage and current signals is calculated and the following output waveform is displayed in the graph window:

Related OCEAN Function

The equivalent OCEAN command for spectralPower is:

spectralPower( o_current o_voltage )
=> o_power/nil

For more information about, see spectralPower in OCEAN Reference.

spectrumMeasurement

Calculates Signal-to-Noise-and-Distortion Ratio (SINAD), Spurious Free Dynamic Range (SFDR), Effective Number of Bits (ENOB), and Signal-to-Noise Ratio (without distortion) by using Fast Fourier Transform (FFT) of any given input signal.

The spectrum measure is used for characterizing A-to-D converters and is typically supported for transient simulation data.This function is available only in the SKILL mode

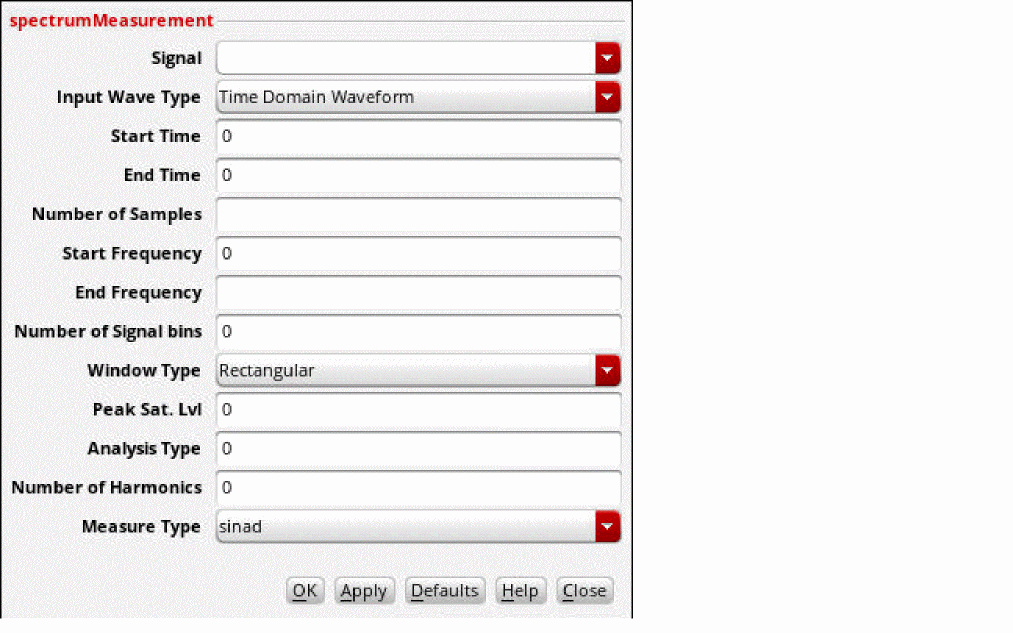

This function includes the following arguments:

Example

Consider the following input waveform from a transient analysis:

The spectrumMeasurement function is applied on this waveform with the following arguments:

The expression created in the Buffer is as follows:

spectrumMeasurement(VT("/out") t 0 3 1024 0 10000000 0 "Rectangular" 0 0 1 "sinad" )

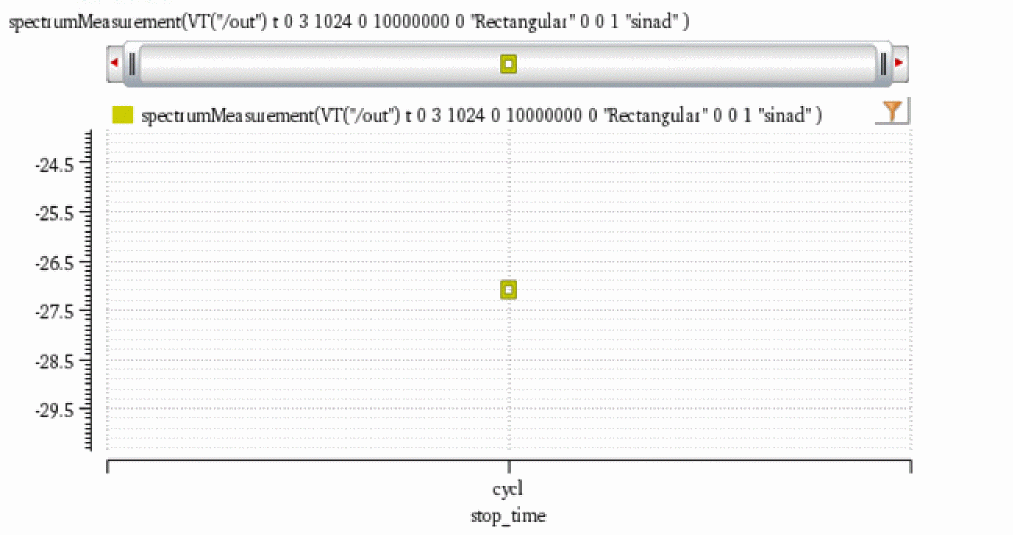

When you evaluate this expression, the following output value of the spectrum measurement sinad is displayed:

Related OCEAN Function

The equivalent OCEAN command for spectrumMeasurement is:



spectrumMeasurement( o_waveform g_isTimeWave n_from n_to x_numSamples n_startFreq n_endFreq x_signalBins t_windowName n_satLvl g_isNoiseAnalysis x_noOfHarmonics t_measType)


=> g_value / nil




For more information, see spectrumMeasurement in OCEAN Reference.










stddev




Computes the standard deviation of a waveform (or a family of waveforms) over its entire range. This function can be applied to both scalar and vector inputs.



You can calculate the standard deviation for a population as well as for a sample.



The population standard deviation is a parameter, which is a fixed value calculated from every individual in the population.



A sample standard deviation is a statistic, which means that it is calculated from only some of the individuals in a population.



Since the sample standard deviation depends upon the sample, it has greater variability. Thus, the standard deviation of the sample is greater than that of the population.



If y=f(x):



Standard deviation for a population is calculated as follows:













Standard deviation for a sample is calculated as follows:













Where N is the total number of data points.



When you use this function to evaluate data for measurement across corners, a new key argument, overall, is added to this function. If the input is a scalar and the overall argument is set to t, the stddev function returns zero.













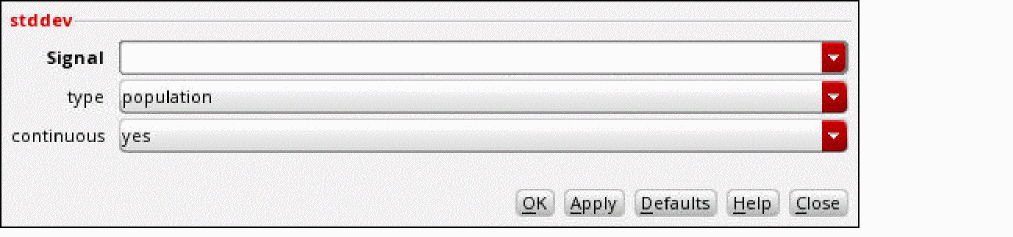

This function includes the following arguments:








Example




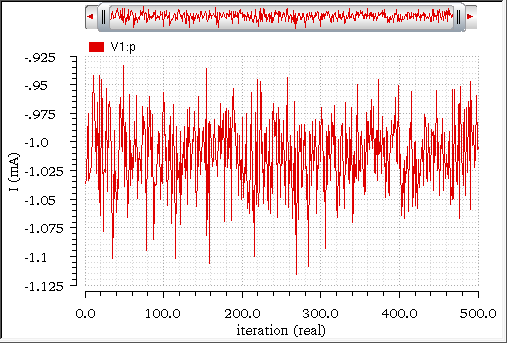

Consider the following input waveform:













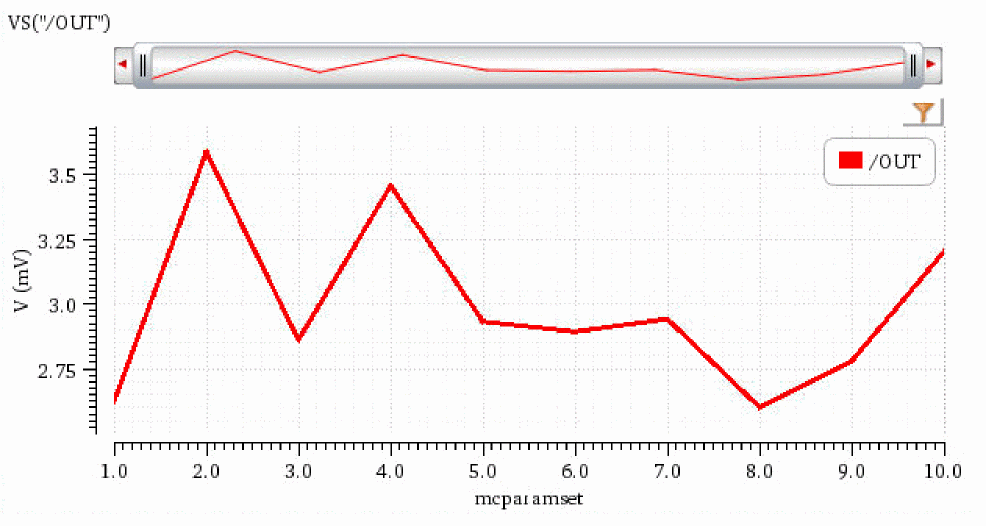

The following arguments are specified in this example:






When you apply the stddev function on this signal, the following expression is created in the Buffer:



stddev(VS("/OUT") ?type "sample" ?continuous nil )



When you evaluate this expression, the standard deviation is calculated and the following output is displayed in the Buffer:













If you specify the type argument as population and the continuous argument as yes, and then apply the stddev function on the same signal, the following expression is created in the Buffer:



stddev(VS("/OUT") )



When you evaluate this expression, the standard deviation is calculated and the following output is displayed in the Buffer:













Now, if you annotate the standard deviation on the histogram plotted using the same input signal VS("/OUT"), you will observe that the value is same as calculated by Calculator with the type argument specified as sample and the continuous argument specified as no.












Related OCEAN Function




The equivalent OCEAN command for stddev is:



stddev( o_waveform )
=> n_stddev/o_waveformStddev/nil




For more information, see stddev in OCEAN Reference.










swapSweep




Swaps the X-axis value with the specified sweep variable.













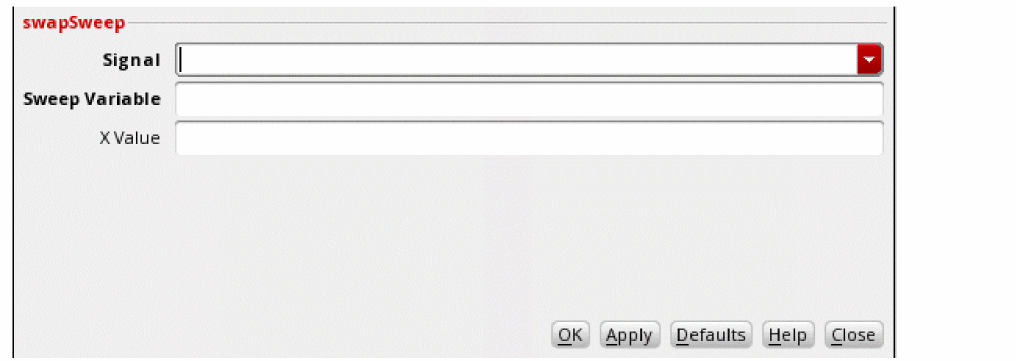

This function includes the following arguments:







Example




Consider the following input signal from a parametric data simulated using the sweep variables, vdd and temp.













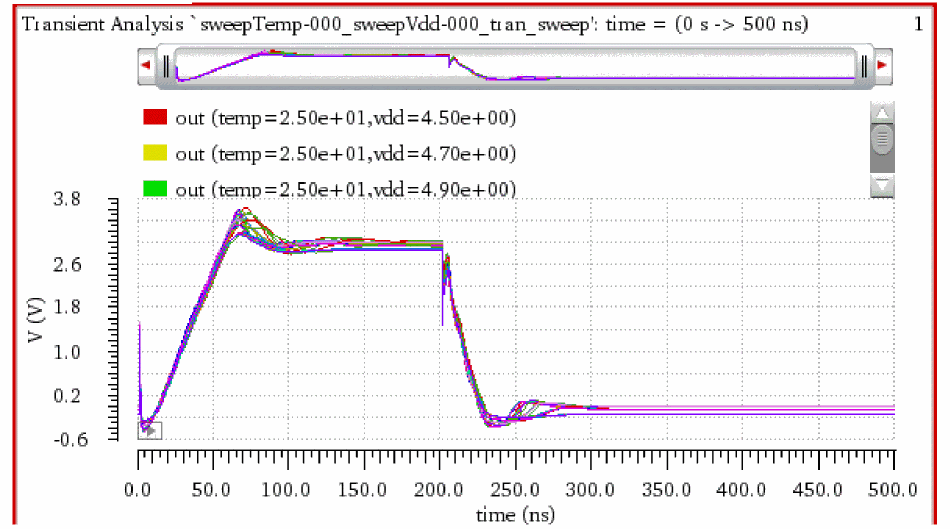

Now, specify the following argument values:






The following expression is created in the buffer:



SwapSweep(v("out" ?result "tran") "temp" 200)



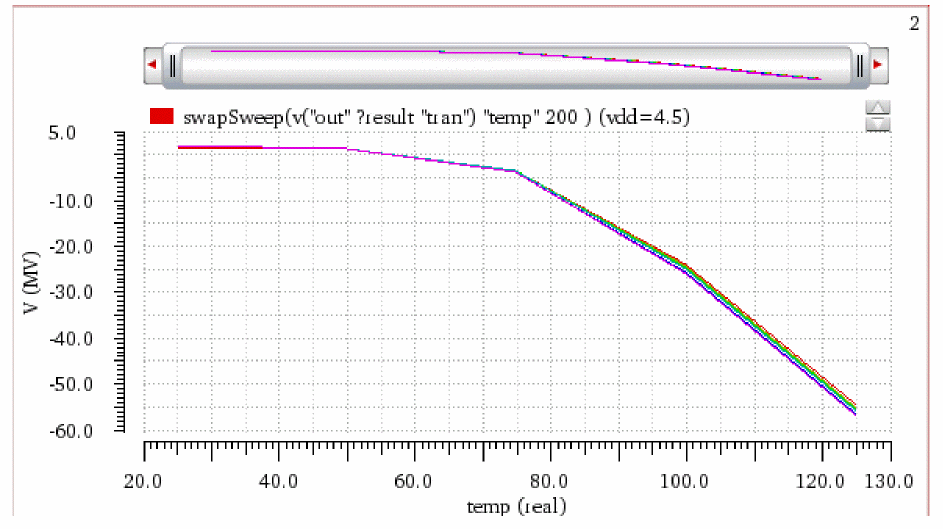

When you evaluate this expression, the following output waveform is displayed that has the X-axis values swapped with the specified variable, temp.












Related SKILL Function


swapSweep(
o_waveform
t_sweepVar
[ ?xValue n_xValue ]
)
=> o_waveform / nil




For more information see swapSweep.










tangent




(Tangent Line)



Plots a line that passes through x and y coordinates and the slope that you specify. This function is available only in the SKILL mode.













This function includes the following fields:








Example




Consider the following input waveform from the transient analysis:













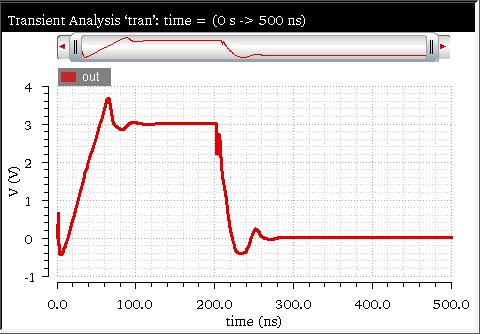

The tangent function is applied on this input waveform with the following arguments:







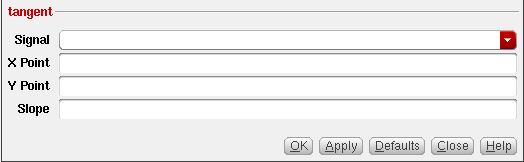

The corresponding expression created in the Buffer is as follows:



tangent(v("out" ?result "tran-tran" ?resultsDir “ampsim.raw”) ?x 100n ?y 3 ?slope 3.0M )



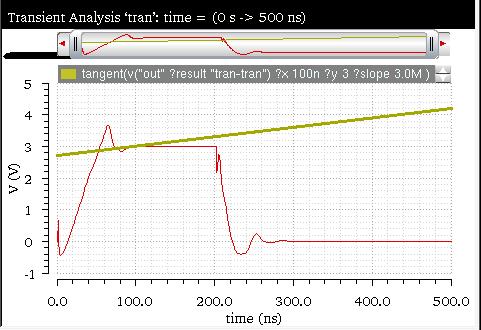

When you evaluate this expression and plot results in the append mode, a tangent line is displayed in the graph as shown in the figure below:












Related OCEAN Function




The equivalent OCEAN command for tangent is:



tangent( o_waveform [ ?x n_x ] [ ?y n_y ] [ ?slope n_slope ] )
=> o_waveform/nil




For more information, see tangent in OCEAN Reference.










thd




(Total Harmonic Distortion)



Computes the percentage of THD of a signal with respect to the fundamental frequency and is expressed as a voltage percentage.



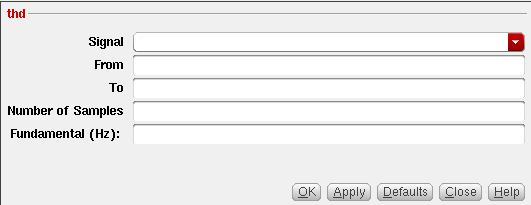

This function is available only in the SKILL mode.



















Additional Information




The computation uses the dft function. Assume that the dft function returns complex coefficients A0, A1..., Af , ... . The fundamental frequency f is the frequency contributing to the largest power in the signal. A0 is the complex coefficient for the DC component and Ai is the complex coefficient for the ith harmonic where i≠0,f. Then, total harmonic distortion is computed as:













The accuracy of the total harmonic distortion measurement depends on simulator options and the analysis parameters. To view the simulator options, do the following:





If you are using the Spectre simulator, the options listed in the table below are displayed in the main tab of the Simulator Options form. For an accurate measurement, set the following simulation options:













Option





Description









reltol





Relative convergence criterion. Default value is 1e-3









residualtol





Tolerance ratio for residual (multiplies reltol).









vabstol





Voltage absolute tolerance convergence criterion. Default value is 1e-6









iabstol





Current absolute tolerance convergence criterion. Default value is 1e-12









Set the option strobeperiod to the period of the signal to be analyzed divided by 128, and simulate enough cycles of this signal so that circuit can reach a steady-state. If that occurs in the 10th cycle, end the simulation just after the 10th cycle.



For the spectre, and some other simulator interfaces, the Options buttons in each Choosing Analyses form let you set options that apply to the specific analysis.



If you are using the HSPICE simulator, the following Tolerance options are displayed:













Option





Suggested Value









reltol





1e-5









abstol





1e-13









vntol





3e-8









trtol





1









method





gear









maxord





3









When you use transient analysis, it is difficult to generate the accurate values for THD because you need to be careful to avoid interpolation error in the dft() function and make sure that the waveform reaches a steady state. Also, you need to ensure that transient samples are at equal time, steps, and so on. The interpolation error occurs when the number of samples are large and cannot be fully processed by the simulator. Therefore, the waveform is interpolated for the remaining points and causes small numeric errors, which thereby, results in a non-zero value for THD.



In such cases, it is recommended to use RF simulations whenever possible (except for mixed-signal and verilog-A behavioral models). The direct plot includes the RF version of THD measurements and returns THD=0 with more accurate measurements of small distortions.




Example




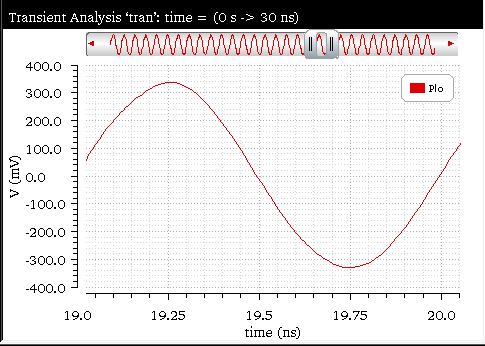

This example displays the total harmonic value generated when you apply the thd function on the following input waveform:













The following arguments are specified in this example:








The following expression is created in the Buffer:



thd(v("Plo" ?result "tran" ?resultsDir "./pss_ne600.raw") 19n 20n 8192 1G )



When you evaluate this expression, the output value generated is displayed in the Buffer (as shown in the figure below):












Related OCEAN Function




The equivalent OCEAN function for thd is:



thd( o_waveform n_from n_to x_num n_fund)
=> o_waveform/n_thdValue/nil




For more information about the OCEAN function, see thd in OCEAN Reference.










triggeredDelay




Calculates the delay from the trigger point on the edge (either rising or falling) of a triggering signal to the next edge (either rising or falling) of the target signal. This function is available only in the SKILL mode.









This function includes the following arguments:
















Example




Consider the following example, where samphold is the triggering signal and v2net is the target signal.









To calculate the delay from the trigger point on the first rising edge of the triggering signal, samphold, to the next edge (either rising or falling) of the target signal, v2net, specify the following arguments:















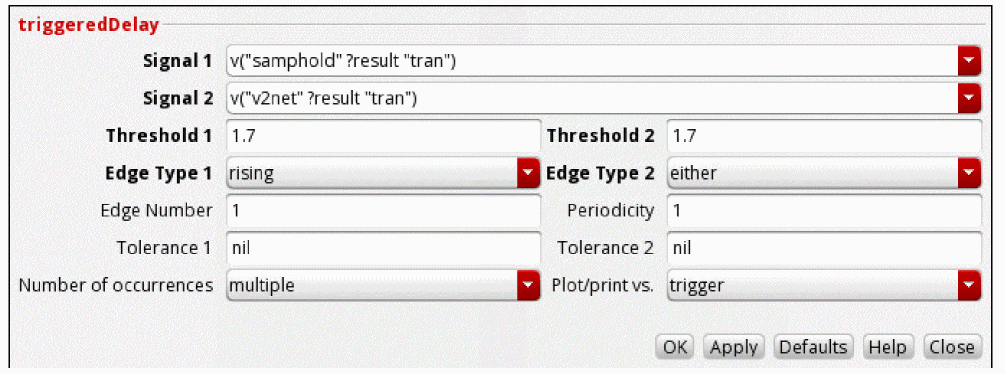

The following expression is created in the Buffer:



triggeredDelay(v("samphold" ?result "tran") v("v2net" ?result "tran") 1.7 "rising" 1.7 "either" )



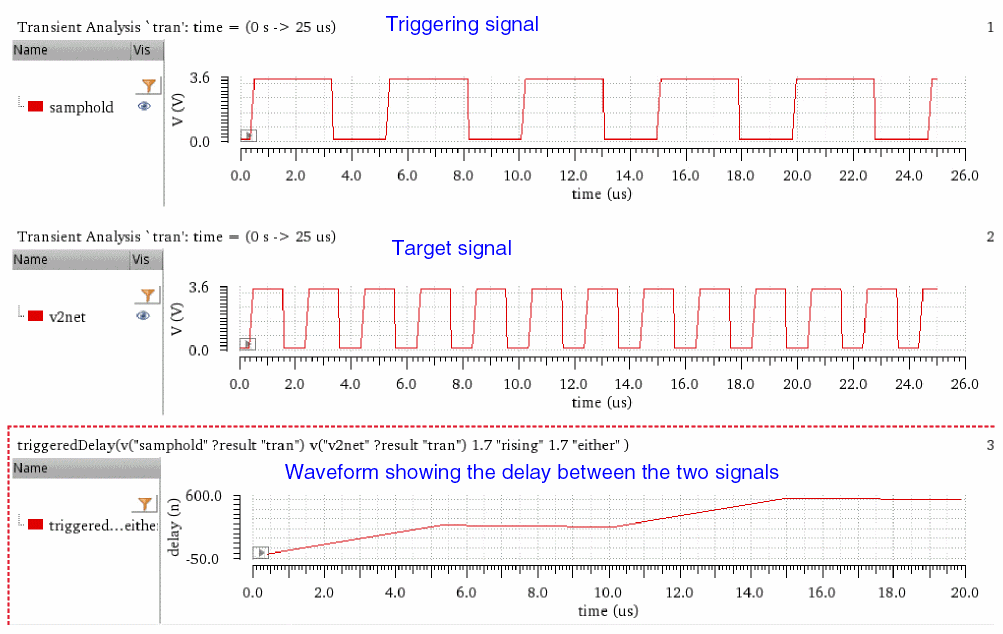

Now, when you evaluate this expression, the following output waveform showing the delay in two signals is displayed in the graph window:












Related OCEAN Function




The equivalent OCEAN command for delay is:



delay(
[ ?wf1 o_waveform1 ]
[ ?value1 n_value1 ]
[ ?edge1 s_edge1 ]
[ ?nth1 x_nth1 ]
[ ?td1 n_td1 ]
[ ?wf2 o_waveform2 ]
[ ?value2 n_value2 ]
[ ?edge2 s_edge2 ]
[ ?nth2 x_nth2
[ ?td2 n_td2 ]
[ ?td2r0 n_td2r0 ]}
[ ?stop n_stop ]
[ ?histoDisplay g_histoDisplay ]
[ ?noOfHistoBins x_noOfHistoBins ]
[ ?period1 period1 ]
[ ?period2 period2 ]
[ ?multiple multiple ]
[ ?xName xName ]
)
=> o_waveform / n_value / nil




For more information about this OCEAN function, see delay in OCEAN Reference.










unityGainFreq




Computes and reports the frequency at which the gain is unity. This function is available only in the SKILL mode.




Example




Consider the following input waveform from AC analysis:













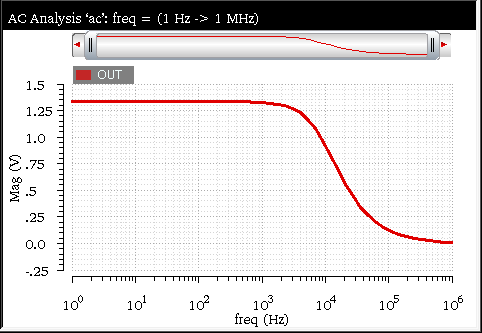

The expression for this signal is displayed in the Buffer. Now, when you select the unityGainFreq function from the Function Panel, the function is  applied to the signal expression in the Buffer. The corresponding expression created in the Buffer is as follows:



unityGainFreq(v("OUT" ?result "ac" ?resultsDir "./aExamples.raw"))



When you evaluate this expression, the following output value indicating the frequency is displayed in the Buffer:










Related OCEAN Function




The equivalent OCEAN command for unityGainFreq is:



unityGainFreq( o_gainFreqWaveform )
=> n_frequency/nil




For more information, see unityGainFreq in OCEAN Reference.










v




Calculates the voltage of the specified net or terminal.









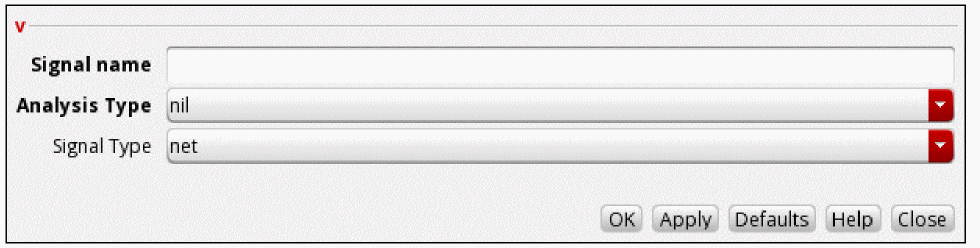

This function includes the following arguments:







Example 1




Consider the net, cmin, in the following design.









This example shows the voltage calculation for the net, cmin, using the v fuction. Specify the following arguments:










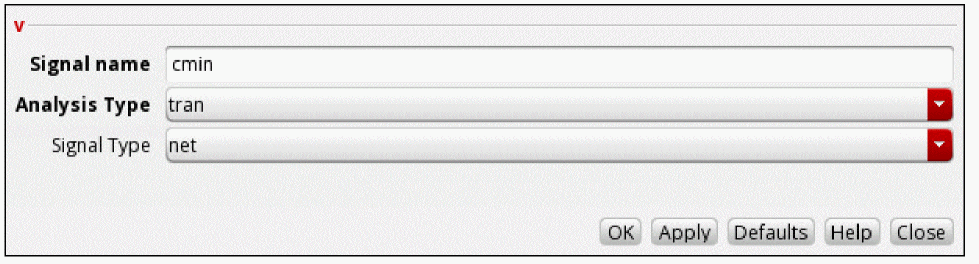

Before using this function, you need to set the results database context to the results database that contains the input signal, such as cmin used in this example. For more information about how to change the in-context results directory, see Setting the In-Context Results Directory.



The following expression is created in the Buffer:



v("cmin" ?result "tran" ?type "net")



When you evaluate this expression, the function returns the following waveform, which displays the variation of voltage values with time at the specified net.








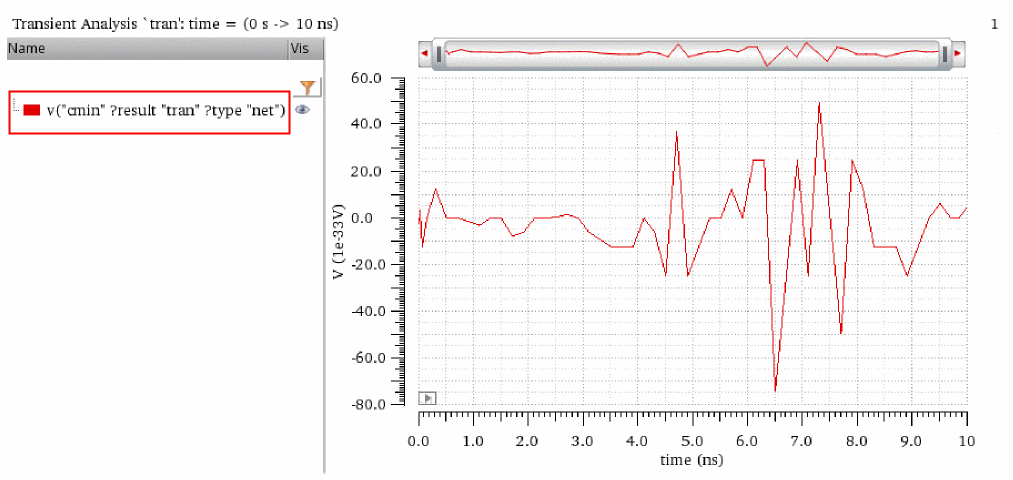

Example 2




This example shows the voltage calculation for the positive terminal of V0, as shown in the following design.









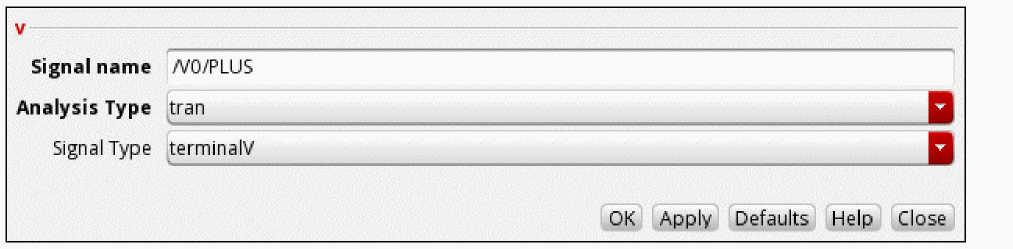

This example shows the voltage calculation for the positive terminal of V0 using the v function. Specify the following arguments:










Before using this function, you need to set the results database context to the results database that contains the input signal, such as /V0/PLUS used in this example. For more information about how to change the in-context results directory, see Setting the In-Context Results Directory.



The following expression is created in the Buffer:



v("/V0/PLUS" ?result "tran" ?type "terminalV")



When you evaluate this expression, the function returns the following waveform, which displays the variation of voltage values with time at the specified terminal.








Related OCEAN Function




The equivalent OCEAN command for v is:



v (
t_net
[ ?result s_resultName ]
[ ?resultsDir t_resultsDir ]
)
=> o_waveform / nil




For more information about this OCEAN function, see v in OCEAN Reference.










value




Computes the Y-axis value of the waveform at the specified X-axis value.













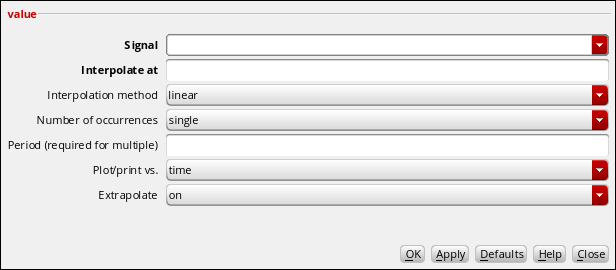

This function includes the following fields:












Additional Information




The X-axis interpolation is linear across the independent axis of the waveform.




Example 1




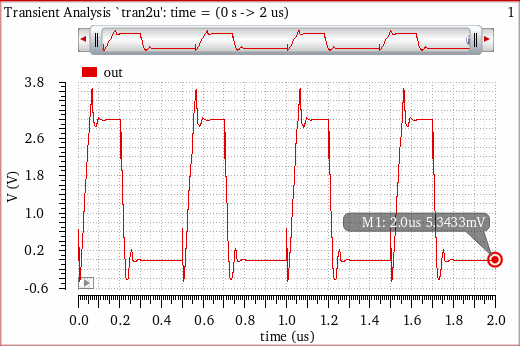

Consider the following input waveform from transient analysis:













The value function is applied on this input signal with the following arguments:









The corresponding expression created in the Buffer is as follows:



value(v("OUT" ?result "tran" ?resultsDir "./aExamples.raw") 0.1m ?period 0.2m ?xName "time" )



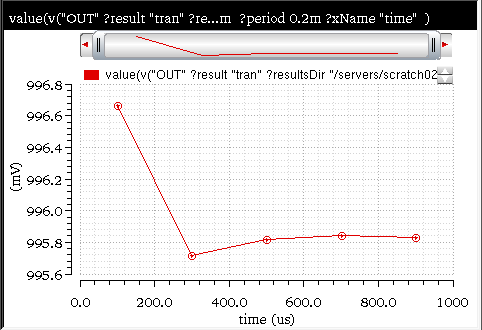

When you evaluate this expression, the Y points are measured and the following output waveform is displayed in a new graph window (symbols are enabled in this output waveform).













When you specify the Interpolation Method as roundDown, the following expression is created in the Buffer:



value(v("OUT" ?result "tran") 0.1m  ?period 0.2m ?xName "time"   ?extrapolate nil ?scale  '(roundDown) )



When you evaluate this expression, the following output waveform appears:












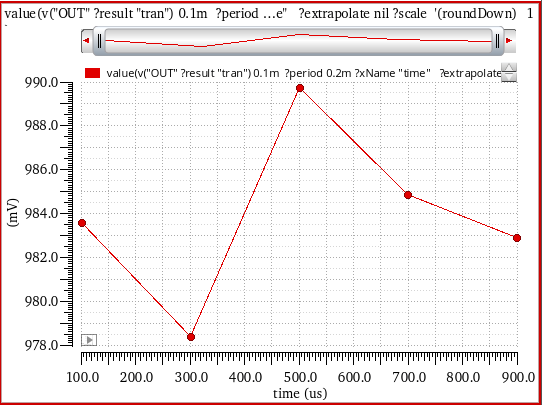

Example 2




Consider the following waveform from the transient analysis to find out the Y result at x=50u, which is past the end of the graph.













Now, apply the value function on this waveform with the following arguments:










The following expression is created in the Buffer:



value(v("out" ?result "tran") 50u   ?extrapolate nil )



When you evaluate this expression, the expression evaluation fails and an error message is displayed in CIW because the X-axis value specified in Interpolate At argument is outside the range of the given signal.



In this case, if you set the Extrapolate argument to its default value, yes, the following expression is created in the Buffer:



value(v("out" ?result "tran") 50u )



Now, when you evaluate this expression, the value function returns the last point of the signal waveform in the Buffer, as shown below:













Notice that this output value matches with the Y-axis value given in the marker M1 that displays the X and Y-axis values of the last point.




Related OCEAN Function




The equivalent OCEAN command for value is:



value( o_waveform [s_name] g_value ?period n_period
[g_multiple [s_Xname]] [g_histoDisplay][x_noOfHistoBins])
=> o_waveform/g_value/nil




For more information, see value in OCEAN Reference.










waveVsWave




Computes the YvsY function on the given input waveforms and plots the output waveform for which X- and Y- axes are created using the Y-axes of the specified input waveforms. When the specified input waveforms have different X-axes, this function performs the interpolation. You can also use this function to compare the Y-axis of a family of waveforms with the Y-axis of a single-leaf waveform.













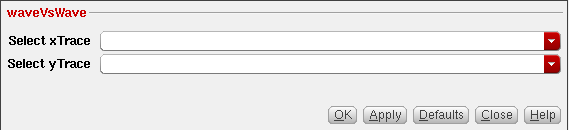

This function includes the following fields:






Example 1 (Wave versus Wave)




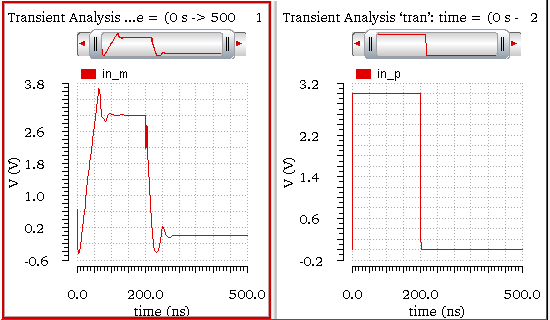

Consider the following input signals from the transient analysis: in_m and in_p:













Now, specify the following argument values in the waveVsWave function:





The following expression is created in the Buffer:



waveVsWave(?x v("in_p" ?result "tran-tran") ?y v("in_m" ?result "tran-tran"))



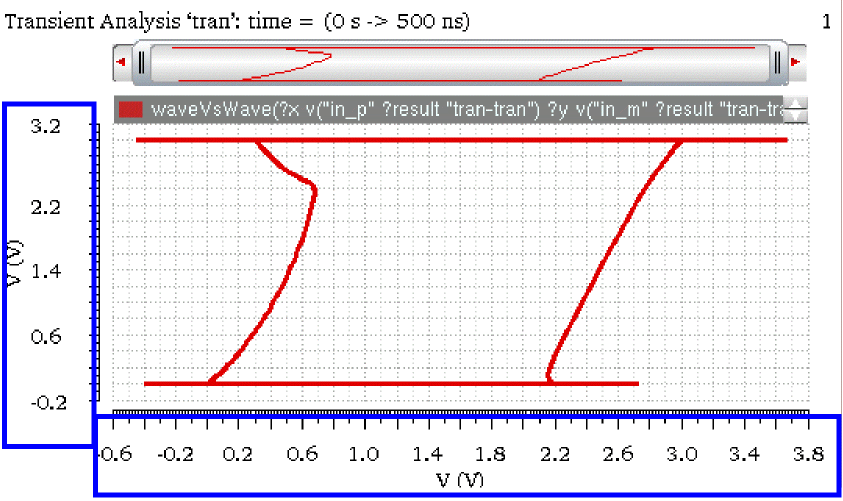

Now, when you evaluate this expression, the YvsY of these two input waveforms is computed and the output waveform, as shown in the below figure, is plotted in the graph window. The X-axis of this output waveform is same as that of in_m and Y-axis is same as in_p.













You can also use the expressions signals, such as BW and Abs, to calculate the YvsY of two waveforms.




Example 2 (Wave versus Wave)




This example shows how the waveVsWave function is applied on two transient signals. Consider the following input signals from a transient waveform: v("/vinput" ?result "tran") and v("/vcap1" ?result "tran")













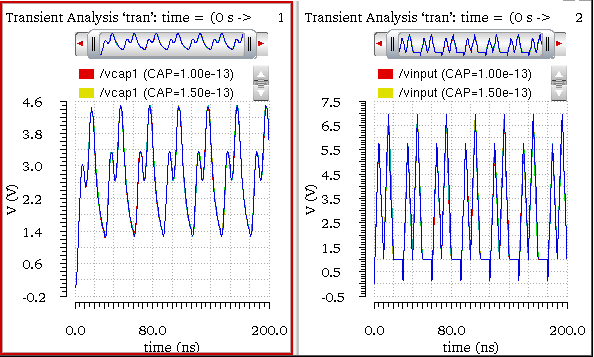

The following arguments are specified in this example:





The following expression is created in the Buffer:



waveVsWave(?x value(v("/vcap1" ?result "tran") "CAP" 1e-13) ?y value(v("/vinput" ?result "tran") "CAP" 1e-13))



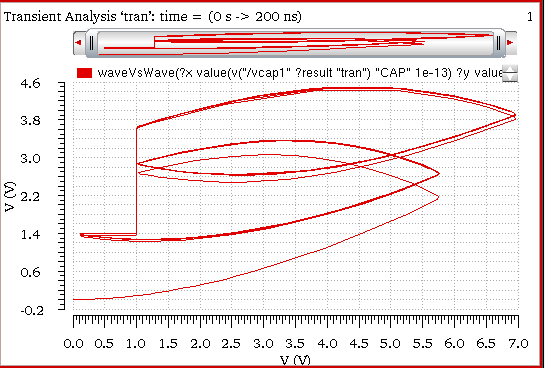

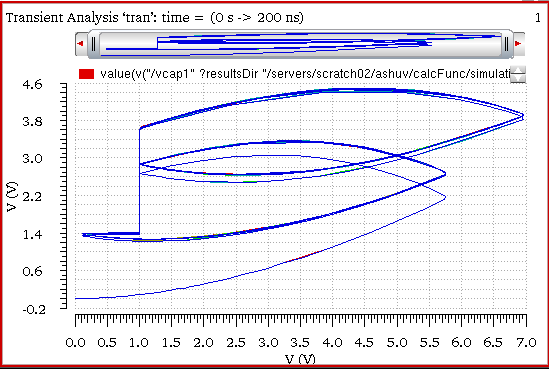

When you evaluate this expression, the YvsY of these two input waveforms is computed and the output waveform, as shown in the below figure, is plotted in the graph window. The X-axis of this output waveform is same as that of vinput and Y-axis is same as vcap1.












Example 3 (Family versus Family)




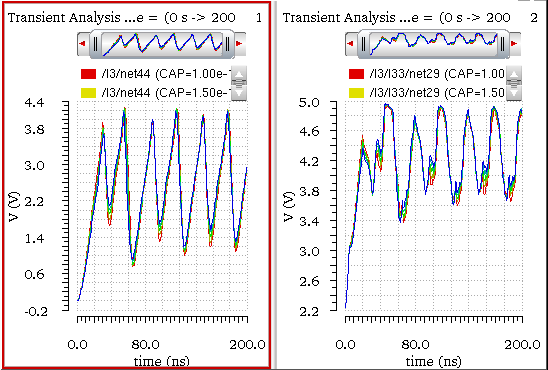

This example shows how the waveVsWave function is used to calculate the YvsY of two waveform families. Consider the following input signals from a transient waveform: v("/I3/net44" ?result "tran") and v("/I3/net29" ?result "tran")













The following arguments are specified in this example:





The following expression is created in the Buffer:



waveVsWave(?x v("/I3/net44" ?result "tran") ?y v("/I3/I33/net29" ?result "tran"))



When you evaluate this expression, the YvsY of these two families is computed and the output waveform, as shown in the below figure, is plotted in the graph window. The X-axis of this output waveform is same as that of /I3/net29 and Y-axis is same as /I3/net44.












Example 4 (Family versus Leaf)




This example show how waveVsWave function is used to calculate YvsY of a waveform family versus leaf waveform. Consider the input waveforms from the following two waveform families shown in Example 2:





The following arguments are specified in this example:





The following expression is created in the Buffer:



waveVsWave(?x v("/vcap1" ?result "tran") ?y value(v("/vinput" ?result "tran") "CAP" 2.5e-13))



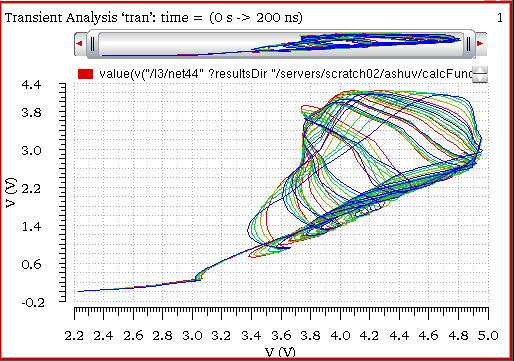

When you evaluate this expression, the YvsY of these two families is computed and the output waveform, as shown in the below figure, is plotted in the graph window. The X-axis of this output waveform is same as that of leaf waveform/vinput and Y-axis is same as family /vcap1.












Example 4 (Scalar versus Scalar)




When you apply the waveVsWave function on expression waveforms that result in a scalar value, the resultant output is a waveform.



Consider the following example in which you have created the following output in ADE for the waveVsWave function



waveVsWave(?x SettlingTime ?y SlewRate)



Ensure that the evaluation type for this expression should be selected as corners.



The settlingTime and slewrate functions generate a scalar value when they are evaluated individually.













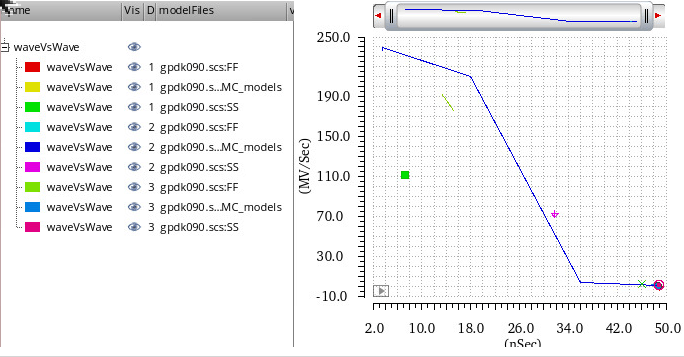

Now, after the simulation is run in ADE, this expression is evaluated and the following output waveform is plotted in the graph window.
























xmax




Computes the value of the independent variable x at which the expression attains its maximum value, that is, the value of x that maximizes y=f(x).



The maximum might occur at more than one point on the X-axis, so you must choose (in the Nth Maximizer field) which maximum value you want to see. The Calculator returns the value of the Nth Maximizer counting from the left, that is, toward increasing X-axis values. If you enter a negative integer, the direction of search is reversed toward decreasing X-axis values (counting from the right). This function is available only in the SKILL mode













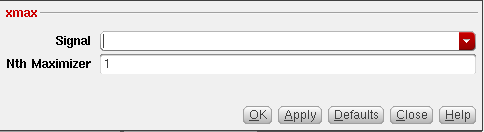

This function includes the following arguments:






Example




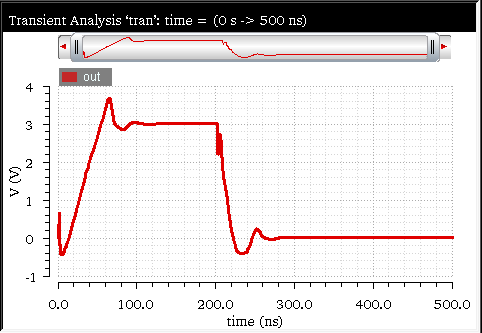

Consider the following input waveform from the transient analysis:













The xmax function is applied on this input waveform with the following arguments:





The corresponding expression created in the Buffer is as follows:



xmax(v("out" ?result "tran-tran") 1 )



When you evaluate this expression, the following output indicating the maximum X-value is displayed in the Buffer.












Related OCEAN Function




The equivalent OCEAN command for xmax is:



xmax( o_waveform x_numberOfPeaks )
=> o_waveform/g_value/l_value/nil




For more information, see xmax in OCEAN Reference.










xmin




Computes the value of the independent variable x at which the expression has its minimum value, that is, the value of x that minimizes y=f(x).



The minimum might occur at more than one point on the x axis, so you must choose (in the Nth Minimizer field) which minimum value you want to see. The calculator returns the value of the Nth Minimizer, counting from the left, that is, toward increasing X-axis values. If you enter a negative integer, the direction of search is reversed toward decreasing X-axis values (counting from the right). This function is available only in the SKILL mode.













This function includes the following arguments:






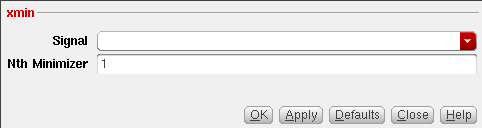

Example




Consider the following input waveform from the transient analysis:













The xmin function is applied on this input waveform with the following arguments:





The corresponding expression created in the Buffer is as follows:



xmin(v("out" ?result "tran-tran") 1 )



When you evaluate this expression, the following output indicating the minimum X value is displayed in the Buffer.












Related OCEAN Function




The equivalent OCEAN command for xmin is:



xmin( o_waveform x_numberOfValleys )
=> o_waveform/g_value/l_value/nil




For more information, see xmin in OCEAN Reference.










xval




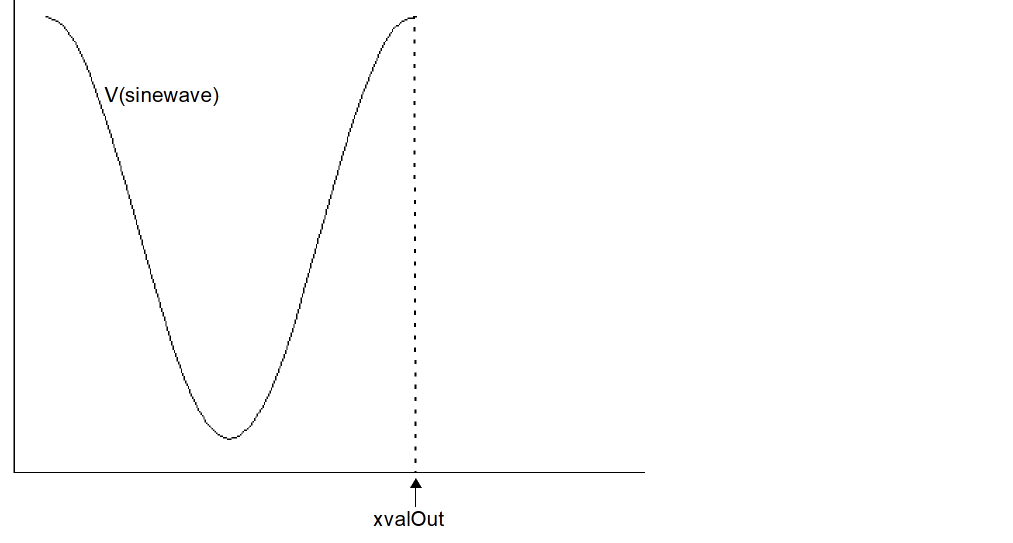

Returns the vector consisting of the X-axis values of the points in the signal. The following figure illustrates this function.












Example




Consider the following input waveform from the transient analysis:













The expression for this input signal is displayed in the Buffer. Now, when you select the xval function from the Function Panel, the function is  applied to the signal expression in the Buffer. The corresponding expression created in the Buffer is as follows:



xval(v("out" ?result "tran-tran"))



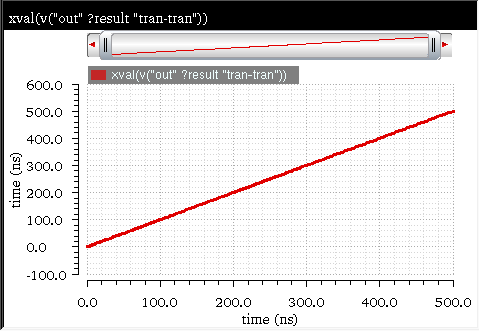

When you evaluate this expression, the corresponding X vector values are plotted in a new graph window as shown in the figure below:












Related OCEAN Function




The equivalent OCEAN command for xval is:



xval( o_waveform )
=> o_waveform/nil




For more information, see xval in OCEAN Reference.










ymax




Computes the maximum Y-axis value of the expression y=f(x). This function is available only in the SKILL mode.



This function can be applied to both scalar and vector inputs.




Example




Consider the following input waveform from the transient analysis:













The expression for this input signal is displayed in the Buffer. Now, when you select the ymax function from the Function Panel, the function is  applied to the signal expression in the Buffer. The corresponding expression is displayed in the Buffer as follows:



ymax(v("out" ?result "tran-tran"))



When you evaluate this expression, the following output showing maximum Y-axis value is displayed in the Buffer:













When you use this function to evaluate data for measurement across corners, a new key argument, overall, is added to this function. If the input is a scalar and the overall argument is set to t, the ymax function returns the input scalar value.




Related OCEAN Function




The equivalent OCEAN command for ymax is:



ymax( o_waveform )
=> n_max/o_waveformMax/nil




For more information, see ymax in OCEAN Reference.










ymin




Computes the minimum Y-axis value of the expression y=f(x). This function is available only in the SKILL mode.



This function can be applied to both scalar and vector inputs.




Example




Consider the following input waveform from the transient analysis:













The expression for this input signal is displayed in the Buffer. Now, when you select the ymin function from the Function Panel, the function is  applied to the expression in the Buffer. The corresponding expression created in the Buffer is as follows:



ymin(v("out" ?result "tran-tran"))



When you evaluate this expression, the following output showing minimum Y-axis value is displayed in the Buffer:













When you use this function to evaluate data for measurement across corners, a new key argument, overall, is added to this function. If the input is a scalar and the overall argument is set to t, the ymin function returns the input scalar value.




Related OCEAN Function




The equivalent OCEAN command for ymin is:



ymin( o_waveform )
=> n_min/o_waveformMin/nil




For more information, see ymin in OCEAN Reference.










Modifier Functions




This section describes the following modifier functions available in the Virtuoso Visualization and Analysis XL Calculator:





















conjugate




Returns the conjugate of a complex number. In the conjugate, the magnitudes of real and imaginary parts of the complex conjugate are same as that of the given complex number, and the imaginary part is of the opposite sign. For example, the conjugate of i+jk is i-jk.




Example




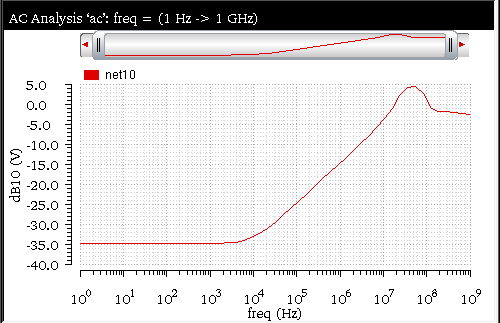

Consider the following signal expression from the AC analysis for the complex data:













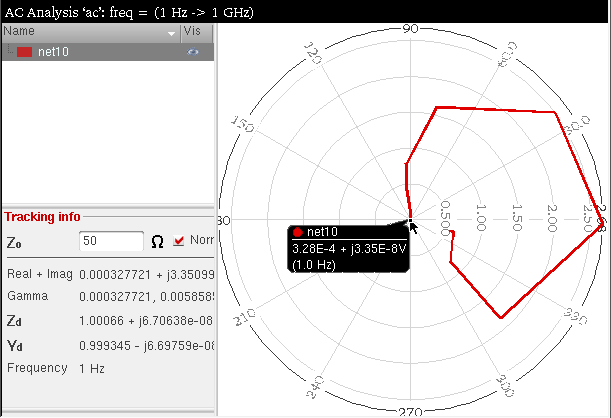

When you send this signal to Calculator, the following expression is displayed in the Buffer:



mag(v("net10" ?result "ac" ?resultsDir "./ampsim.raw"))



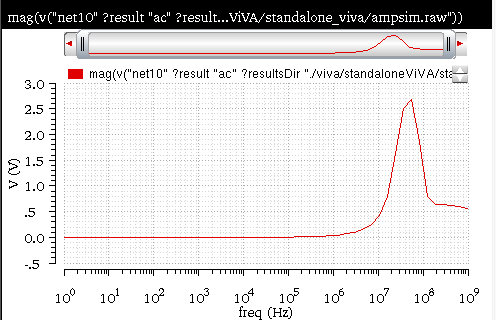

By default, the expression is displayed with the mag function. You need to remove this function from the Buffer expression manually When you select the conjugate function from the Function Panel, the function is applied on the expression in the Buffer. The expression created in the Buffer is as follows:



conjugate(v("net10" ?result "ac" ?resultsDir "./ampsim.raw"))



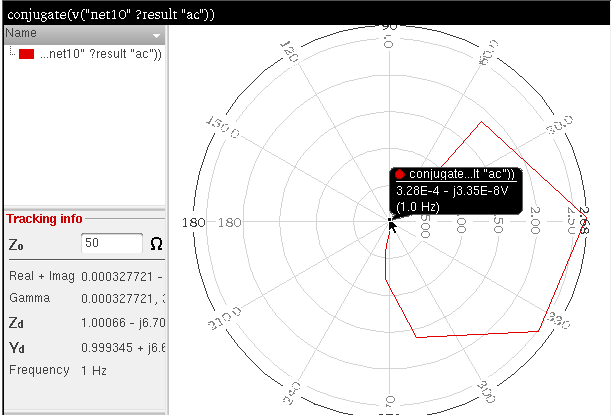

When you evaluate this expression, the following waveform is displayed in a new graph window that represents the conjugate of the input waveform.













To analyze these generated output values, you can display the input and output signals in the Virtuoso Visualization and Analysis XL Table. To send the input signal to the table, right-click the signal and choose Send To – Table – New Window. To compare the input and output values, it is required to display both the signals in the same table, side by side. Therefore, to send the output signal to the table, right-click the output signal and choose Send To – Table – Append. The output signal is appended to the existing table.



To view both the real and imaginary values in the table, right-click the table row and choose Display Complex As – Real and Imaginary. The following table contents are displayed when you send the input and output signals described in this example to the table and display the values in the complex number format.



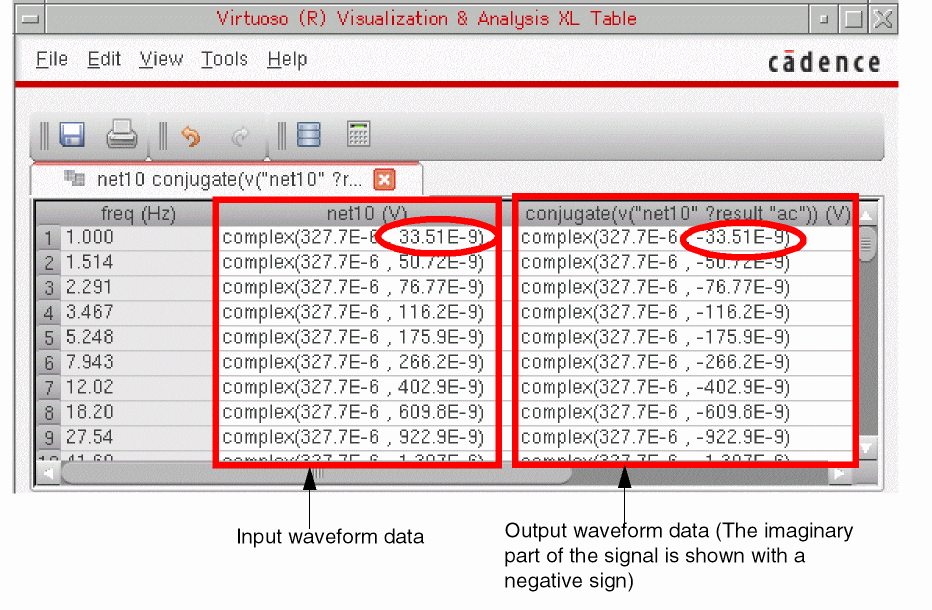

The following figure displays the tabular values for input and output signals.












Related OCEAN Function




The equivalent OCEAN command for conjugate is:



conjugate( {o_waveform | n_x} )
=> o_waveform/n_y/nil




For more information, see conjugate in OCEAN Reference.










dB10




Converts a signal to dB by using the following equation:



dB10(x)=10/log(10)*log(mag(x))




Example




Consider the following input signal waveform from the transient analysis:













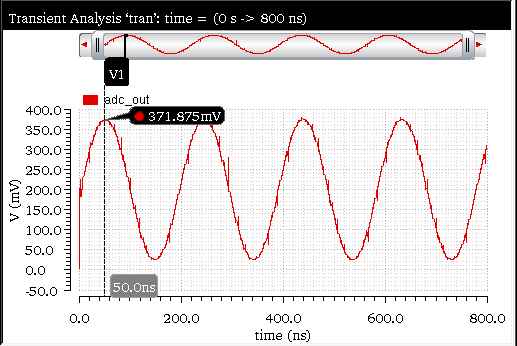

A vertical marker V1 is placed at time=50ns that displays the voltage value on Y-axis as 371.875mv.



When you send this signal to Calculator, the following expression is displayed in the Buffer:



v("adc_out" ?result "tran" ?resultsDir "./Modifier/spectrum/psf")



When you select the dB10 function from the Function Panel, the function is applied on the expression in the Buffer. The expression created in the Buffer is as follows:



dB10(v("adc_out" ?result "tran" ?resultsDir "./Modifier/spectrum/psf"))



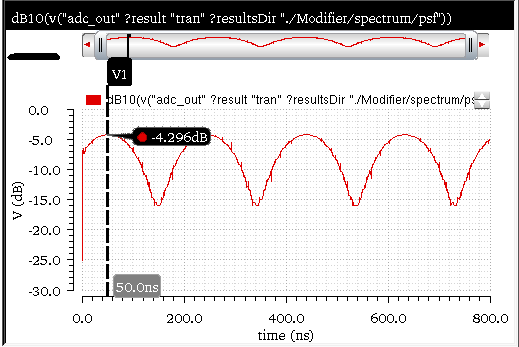

When you evaluate this expression, the following waveform is displayed in a new graph window that represents the dB10 calculation of the input waveform.













A point marker V2 is placed at time=50ns (where the marker V1 is placed in the input waveform) and after dB10 calculation it displays voltage as -4.296dB on the Y-axis.



To analyze these generated output values, you can display the input and output signals in the Virtuoso Visualization and Analysis XL Table. To send the input signal to the table, right-click the signal and choose Send To – Table – New Window. To compare the input and output values, it is required to display both the signals in the same table, side by side. Therefore, to send the output signal to the table, right-click the output signal and choose Send To – Table – Append. The output signal is appended to the existing table.



The following table contents are displayed when you send the input and output signals described in this example to the table:












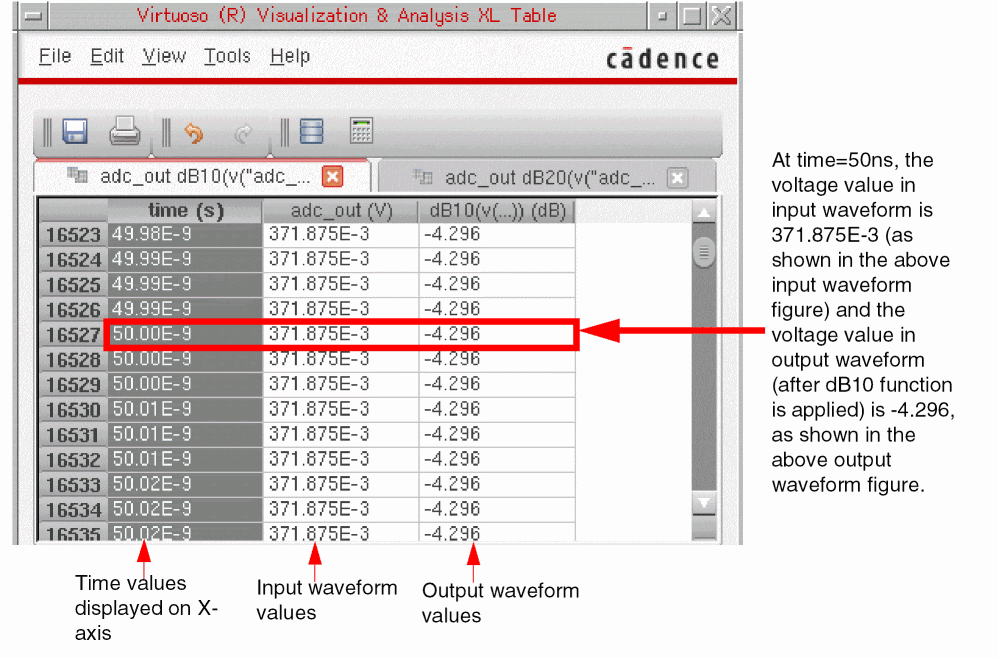

Related OCEAN Function




The equivalent OCEAN command for dB10 is:



db10( {o_waveform | n_number} )
=> o_waveform/n_number/nil




For more information, see dB10 in OCEAN Reference.










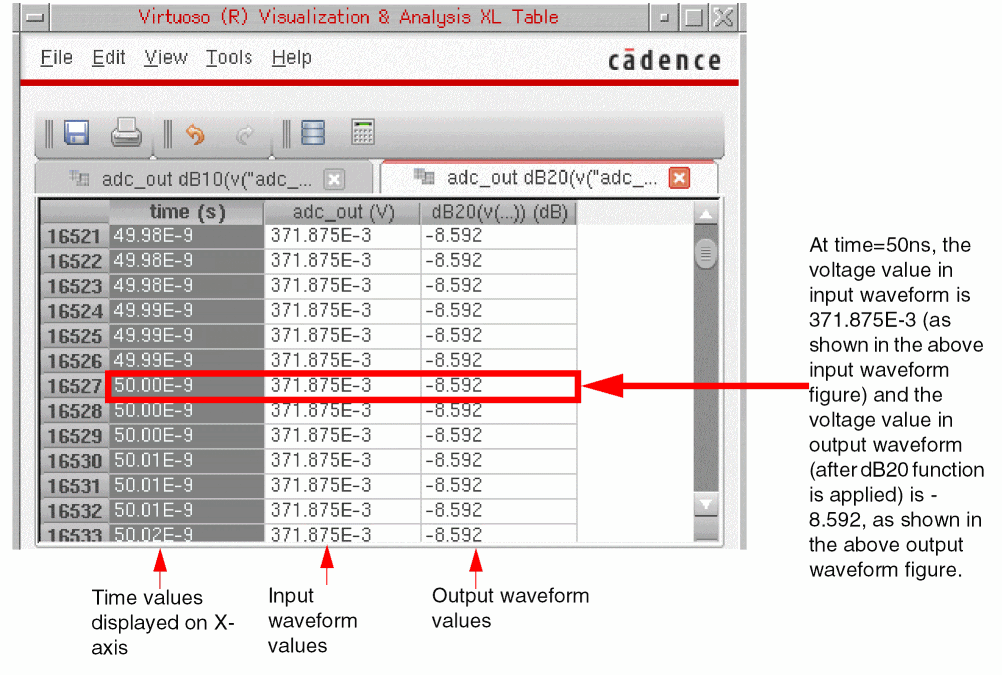

dB20




Converts a signal to dB by using the following equation:



dB20(x)= 20/log(10)*log(mag(x))



where, x is any number, waveform, or family of waveforms




Example




Consider the following input signal waveform from the transient analysis:













A vertical marker V1 is placed at time=50ns that displays the voltage value on Y-axis as 371.875mv.



When you send this signal to Calculator, the following expression is displayed in the Buffer:



v("adc_out" ?result "tran" ?resultsDir "./Modifier/spectrum/psf")



When you select the dB20 function from the Function Panel, the function is applied on the expression in the Buffer. The expression created in the Buffer is as follows:



dB20(v("adc_out" ?result "tran" ?resultsDir "./Modifier/spectrum/psf"))



When you evaluate this expression, the following waveform is displayed in a new graph window that represents the dB20 calculation of the input waveform.













A point marker M2 is placed at time=50ns (where the marker M1 is placed in the input waveform) and after dB20 calculation it displays voltage as -8.5921dB on the Y-axis.



To analyze these generated output values, you can display the input and output signals in the Virtuoso Visualization and Analysis XL Table. To send the input signal to the table, right-click the signal and choose Send To – Table – New Window. To compare the input and output values, it is required to display both the signals in the same table, side by side. Therefore, to send the output signal to the table, right-click the output signal and choose Send To – Table – Append. The output signal is appended to the existing table.



The following table contents are displayed when you send the input and output signals described in this example to the table:












Related OCEAN Function




The equivalent OCEAN command for dB20 is:



db20( {o_waveform | n_number} )
=> o_waveform/n_number/nil




For more information, see dB20 in OCEAN Reference.










imag




Returns the imaginary component of the input waveform. This function is available only in the SKILL mode.




Example




Consider the following signal expression from the AC analysis for the complex data:













When you send this signal to Calculator, the following expression is displayed in the Buffer:



mag(v("net10" ?result "ac" ?resultsDir "./ampsim.raw"))



By default, the expression is displayed with the mag modifier function. You need to remove this mag function from the Buffer expression manually. When you select the imag function from the Function Panel, the function is applied on the signal expression in the Buffer. The new expression created in the Buffer is as follows:



imag(v("net10" ?result "ac" ?resultsDir "./ampsim.raw"))



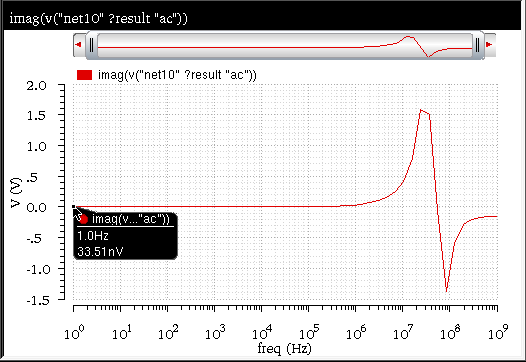

When you evaluate this expression, the following waveform is displayed in a new graph window that represents the conjugate of the input waveform.













To analyze the generated output values, you can send the input and output signals to the Virtuoso Visualization and Analysis XL Table. To compare the input and output values, it is required to display both the signals in the same table, side by side. Therefore, to send the output signal to the table, right-click the output signal and choose Send To – Table – Append. The output signal is appended to the existing table.



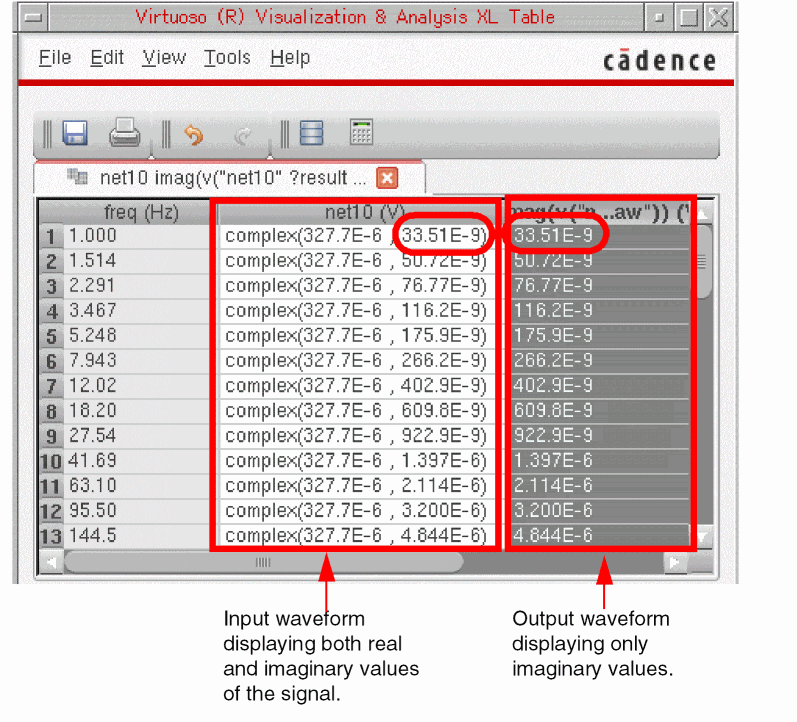

To view both the real and imaginary values in the table, right-click the table row and choose Display Complex As – Real and Imaginary. The following table contents are displayed when you send the input and output signals described in this example to the table and display the values in the complex number format.












Related OCEAN Function




The equivalent OCEAN command for imag is:



imag( {o_waveform | n_input} )
=> o_waveformImag/n_numberImag/nil




For more information, see imag in OCEAN Reference.










real




Returns the real component of the input signal.




Example




Consider the following signal expression from the AC analysis for the complex data:













When you send this signal to Calculator, the following expression is displayed in the Buffer:



mag(v("net10" ?result "ac" ?resultsDir "./ampsim.raw"))



By default, the expression is displayed with the mag modifier function. You need to remove this mag function from the Buffer expression manually. When you select the real function from the Function Panel, the function is applied on the signal expression in the Buffer. The new expression created in the Buffer is as follows:



real(v("net10" ?result "ac" ?resultsDir "./ampsim.raw"))



When you evaluate this expression, the following waveform is displayed in a new graph window that represents the conjugate of the input waveform.













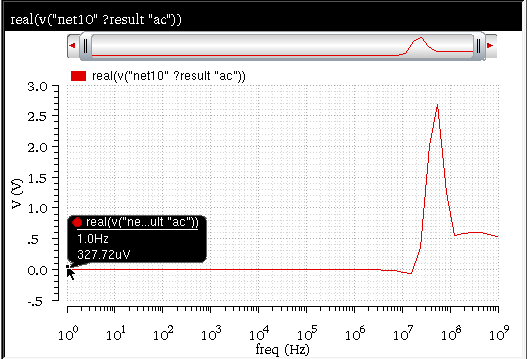

To analyze the generated output values, you can send the input and output signals to the Virtuoso Visualization and Analysis XL Table. To compare the input and output values, it is required to display both the signals in the same table, side by side. Therefore, to send the output signal to the table, right-click the output signal and choose Send To – Table – Append. The output signal is appended to the existing table.



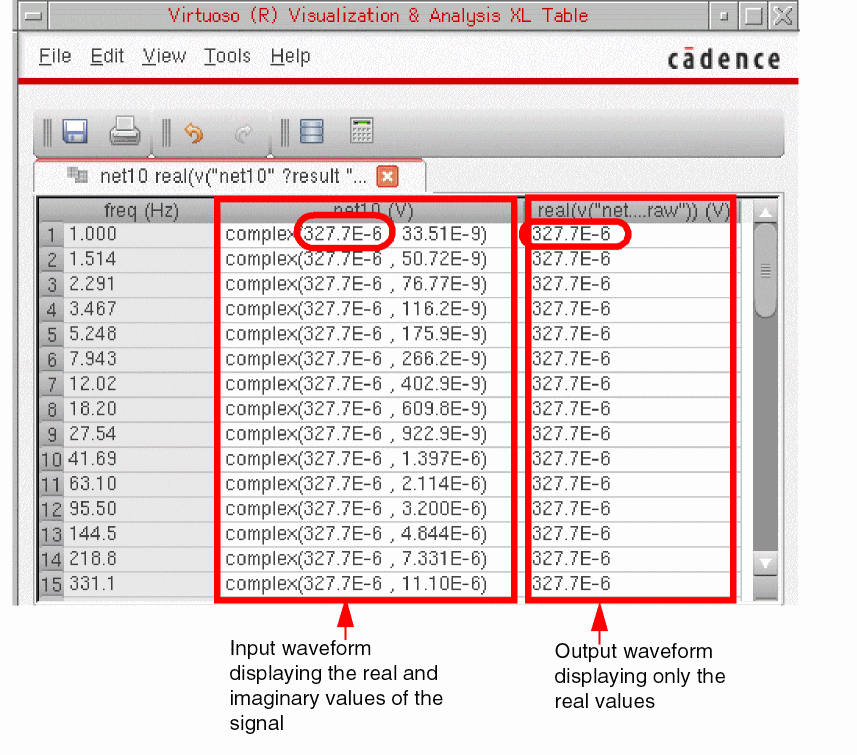

To view both the real and imaginary values in the table, right-click the table row and choose Display Complex As – Real and Imaginary. The following table contents are displayed when you send the input and output signals described in this example to the table and display the values in the complex number format.













Related OCEAN Function



The equivalent OCEAN command for real is:



real( {o_waveform | n_input} )
=> o_waveformReal/n_numberReal/nil




For more information, see real in OCEAN Reference.










mag




Returns the magnitude of a signal.




Example




When you plot a signal from AC analysis, by default it displays the magnitude values of the signal on Y-axis. This function is basically used when you have another modifier function, such as real, imag, dB10, plotted on Y-axis and you want to view the magnitude of the output signal. For example, consider the following waveform from AC analysis in which the dB10 values are plotted on the Y-axis of the waveform.













When you send this signal to Calculator, the expression displayed in the Buffer is as follows:



db10(v("net10" ?result "ac" ?resultsDir "./ampsim.raw"))



By default, the expression is displayed with the dB10 (db10) function. When you select the mag function from the Function Panel, the function is applied on the signal expression in the Buffer. The new expression created in the Buffer is as follows:



mag(db10(v("net10" ?result "ac" ?resultsDir "./ampsim.raw")))



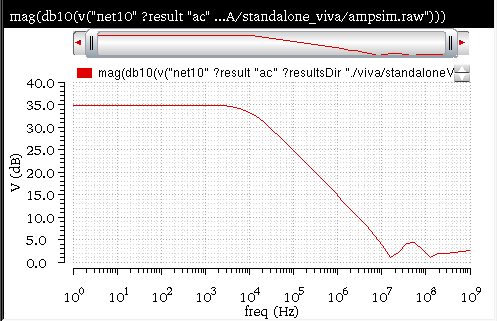

When you evaluate this expression, the following output waveform showing the magnitude of the db10 of the voltage signal (net10) is displayed in a new graph window.













If you manually remove the db10 function from the input signal and then apply the mag function, the following expression is created in the Buffer:



mag(v("net10" ?result "ac" ?resultsDir "./ampsim.raw"))



This expression calculates the magnitude of the voltage signal, net10, where as the previous expression calculated the magnitude of the waveform after the dB10 modifier function is applied.



When you evaluate this expression, the following output waveform appears in a new graph window.












Related OCEAN Function




The equivalent OCEAN command for mag is:



mag( {o_waveform | n_number} )
=> o_waveform/n_number/nil




For more information, see mag in OCEAN Reference.










phase




Returns the phase of a signal in degrees.




Example




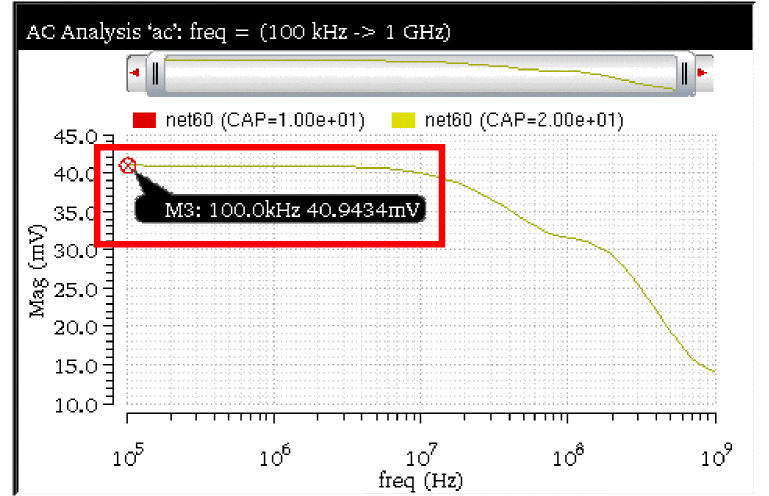

Consider the following input waveform from a AC analysis:













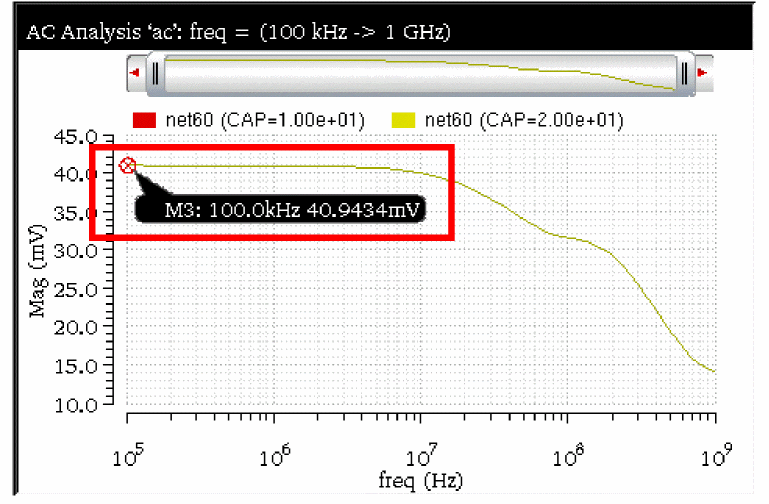

A point marker, M3, is placed at freq=100KHz and the voltage=40.9434mV.



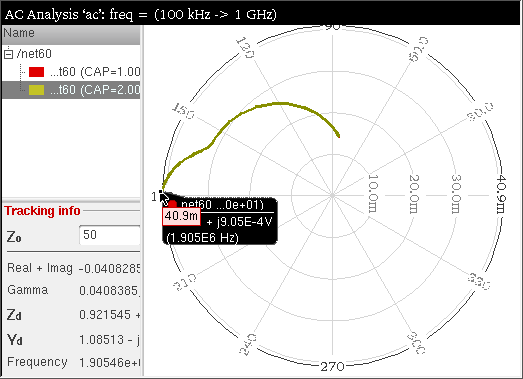

The following graph appears when you plot this input signal in a circular graph (plor plot):













When you send this signal to Calculator, the following expression is displayed in the Buffer:



mag(v("net60" ?result "ac" ?resultsDir "./Modifier/peakTest/spectre/schematic/psf"))



By default, the expression is displayed with the mag modifier function. You need to remove this mag function from the Buffer expression manually. When you select the phase function from the Function Panel, the function is applied on the signal expression in the Buffer. The new expression created in the Buffer is as follows:



phase(v("net60" ?result "ac" ?resultsDir "./Modifier/peakTest/spectre/schematic/psf"))



When you evaluate this expression, the following waveform is displayed in a new graph window that represents the phase of the input waveform.













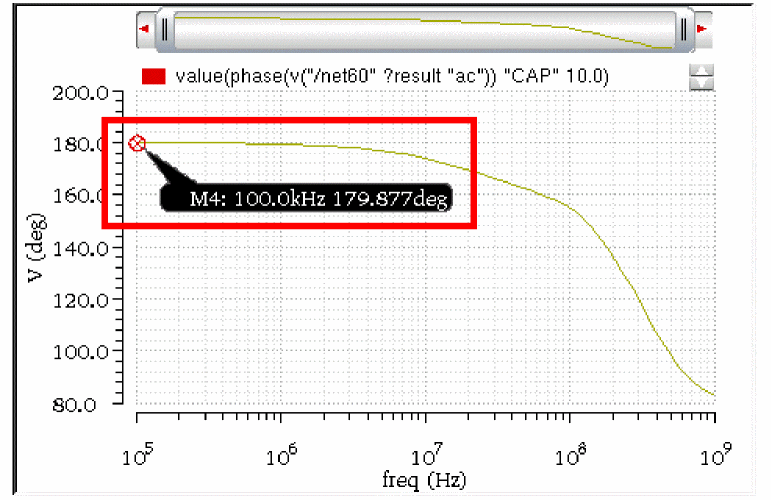

A point marker M4 is placed at freq=100.0KHz (where the point marker M3 was placed in the input waveform) and after phase calculation, it displays the voltage as 179.877 degrees.



To analyze these generated output voltage values, you can send the input and output signals to the Virtuoso Visualization and Analysis XL Table. To compare the input and output values, it is required to display both the signals in the same table, side by side. Therefore, to send the output signal to the table, right-click the output signal and choose Send To – Table – Append. The output signal is appended to the existing table.



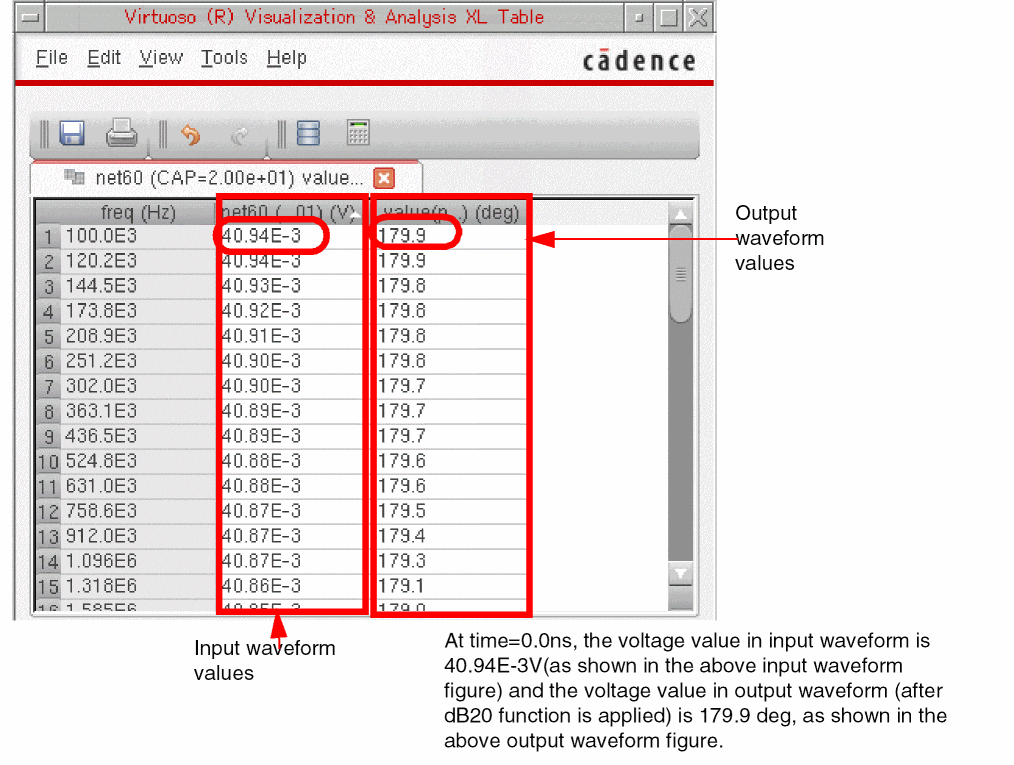

The following table contents are displayed when you send the input and output signals described in this example to the table.












Related OCEAN Function




The equivalent OCEAN command for phase is:



phase( {o_waveform | n_number} )
=> o_waveform/n_number/nil




For more information, see phase in OCEAN Reference.










phaseRad




Calculates the wrapped (discontinuous) phase in radians of a waveform.




Example




Consider the following input waveform from a AC analysis:













A point marker, M3, is placed at freq=100KHz and voltage=40.9434mV.



When you send this signal to Calculator, the following expression is displayed in the Buffer:



mag(v("net60" ?result "ac" ?resultsDir "./Modifier/peakTest/spectre/schematic/psf"))



By default, the expression is displayed with the mag modifier function. You need to remove this mag function from the Buffer expression manually. When you select the phaseRad function from the Function Panel, the function is applied on the signal expression in the Buffer. The new expression created in the Buffer is as follows:



phaseRad(v("net60" ?result "ac" ?resultsDir "./Modifier/peakTest/spectre/schematic/psf"))



When you evaluate this expression, the following waveform is displayed in a new graph window that represents the phase (in radians) of the input waveform.













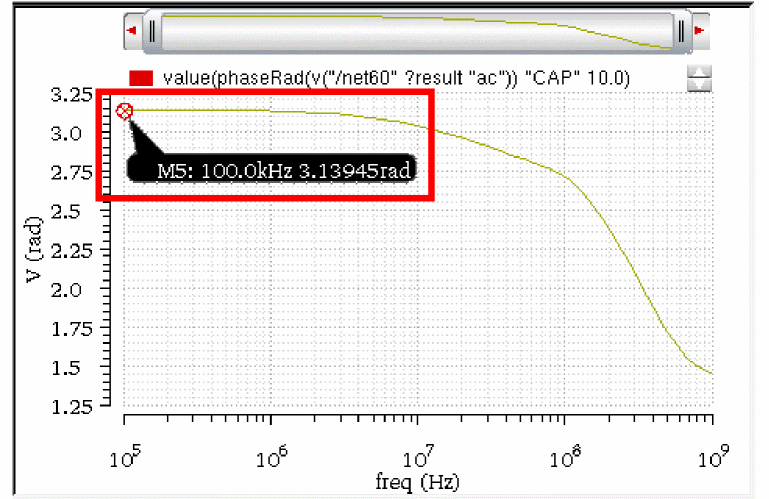

A point marker M5 is placed at freq=100.0KHz (where the point marker M3 was placed in the input waveform) and after phase calculation, it displays the voltage as 3.13945 degrees.



To analyze these generated output voltage values, you can send the input and output signals to the Virtuoso Visualization and Analysis XL Table. To compare the input and output values, it is required to display both the signals in the same table, side by side. Therefore, to send the output signal to the table, right-click the output signal and choose Send To – Table – Append. The output signal is appended to the existing table.



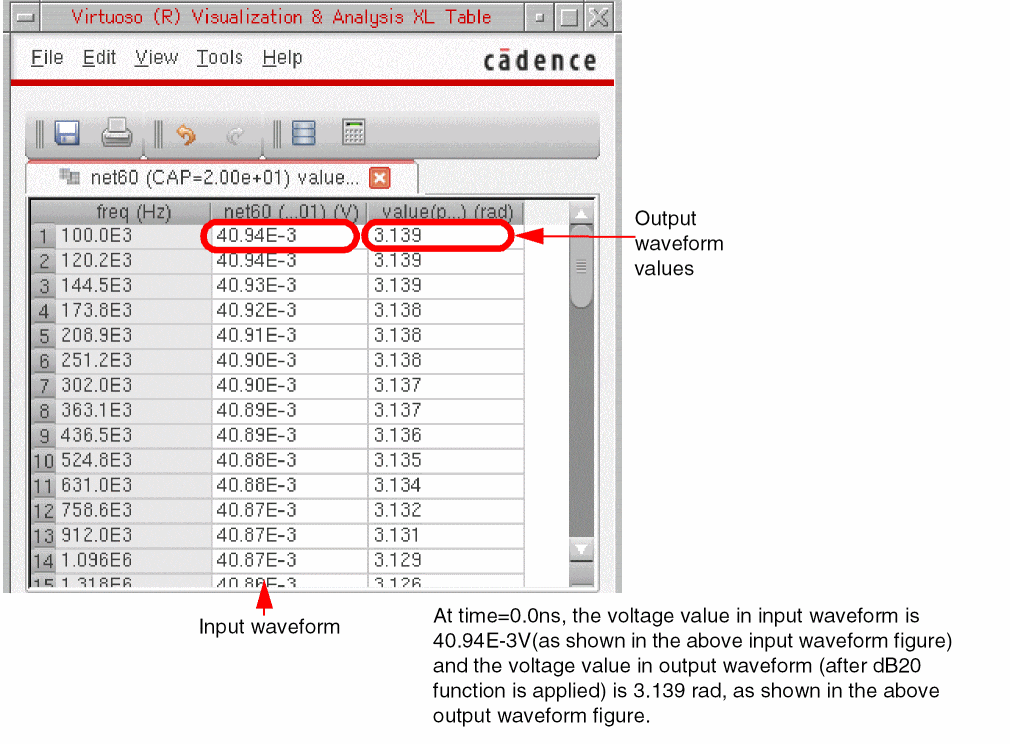

The following table contents are displayed when you send the input and output signals described in this example to the table.












Related OCEAN Function




The equivalent OCEAN command for phase is:



phaseRad( {o_waveform | n_number} )
=> o_waveform/n_number/nil




For more information, see phase in OCEAN Reference.










phaseDeg




Calculates the wrapped phase in degrees of a waveform and returns a waveform.



Example: phaseDeg(v("net9" ?result "tran"))










phaseDegUnwrapped




Calculates the unwrapped phase in degrees of a waveform and returns a waveform.



Example: phaseDegUnwrapped(v("net9" ?result "tran"))










phaseRadUnwrapped




Calculates the unwrapped (continuous) phase in radians of a waveform and returns a waveform.



Example: phaseRadUnwrapped(v("net9" ?result "tran"))



Takes the input waveform, representing the voltage of net9, and returns the waveform object representing the unwrapped phase in degrees.














Trigonometric Functions




This section covers the following Trigonometeric functions in Calculator:






















cos




Returns the cosine of a signal.




Example




Consider the following input signal from the transient analysis:













A vertical marker V1 is placed at time=0.0ns and voltage=4.441mV.



When you send this signal to Calculator, the following expression is created in the Buffer:



v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw")



When you apply the cos
function on this input signal, the function is directly applied on the signal expression in Buffer. The expression created in Buffer is as follows:



cos(v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw"))



When you evaluate this expression, the function returns the integer voltage values of the input waveform. The following output waveform is displayed in a new window:













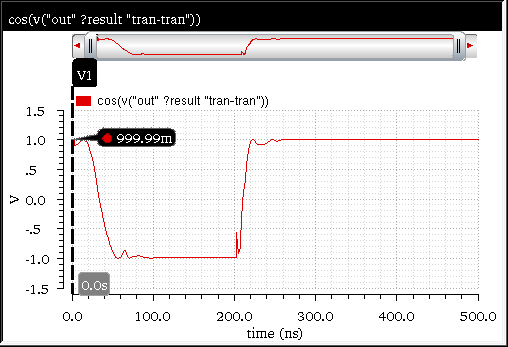

In the output waveform, the vertical maker V1 shows the voltage=999.99mV when placed at time=0.0ns.



To analyze the generated output values, you can send the input and output signals to the Virtuoso Visualization and Analysis XL Table. To compare the input and output values, it is required to display both the signals in the same table, side by side. Therefore, to send the output signal to the table, right-click the output signal and choose Send To – Table – Append. The output signal is appended to the existing table.



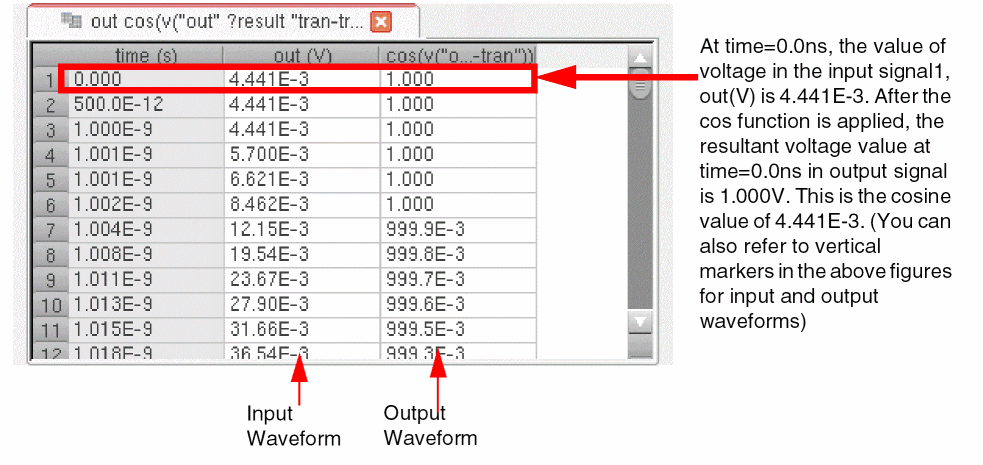

The following table contents are displayed when you send the input and output signals described in this example to the table:


















acos




Returns the inverse cosine of a ignal.




Example




Consider the following input signal from the transient analysis:













A vertical marker V1 is placed at time=0.0ns and voltage=4.441mV.



When you send this signal to Calculator, the following expression is created in the Buffer:



v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw")



When you apply the acos
function on this input signal, the function is directly applied on the signal expression in Buffer. The expression created in Buffer is as follows:



acos(v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw"))



When you evaluate this expression, the function returns the inverse cosine values of the input waveform. The following output waveform is displayed in a new window:













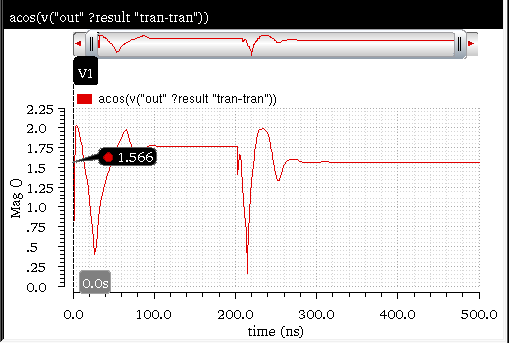

In the output waveform, the vertical maker V1 shows the voltage=1.566 when placed at time=0.0ns.



To analyze the generated output values, you can send the input and output signals to the Virtuoso Visualization and Analysis XL Table. To compare the input and output values, it is required to display both the signals in the same table, side by side. Therefore, to send the output signal to the table, right-click the output signal and choose Send To – Table – Append. The output signal is appended to the existing table.



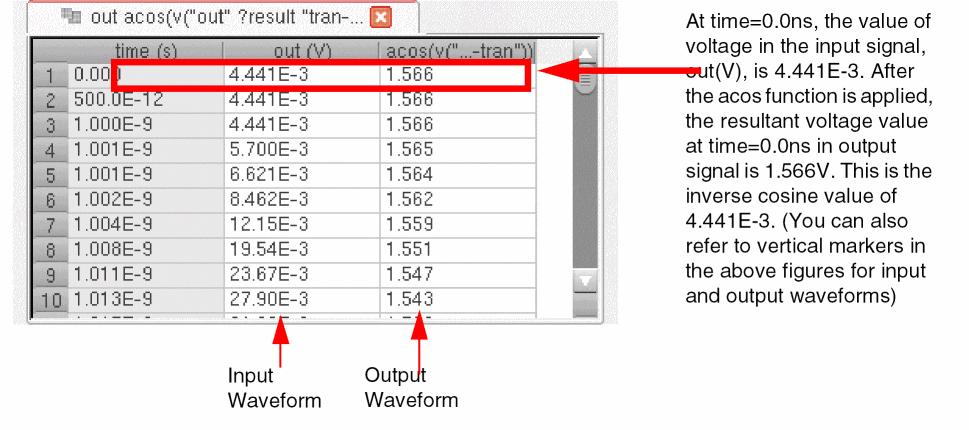

The following table contents are displayed when you send the input and output signals described in this example to the table:


















cosh




Returns the hyperbolic cosine of a signal.




Example




Consider the following input signal from the transient analysis:













A vertical marker V1 is placed at time=0.0ns and voltage=4.441mV.



When you send this signal to Calculator, the following expression is created in the Buffer:



v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw")



When you apply the cosh
function on this input signal, the function is directly applied on the signal expression in Buffer. The expression created in Buffer is as follows:



cosh(v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw"))



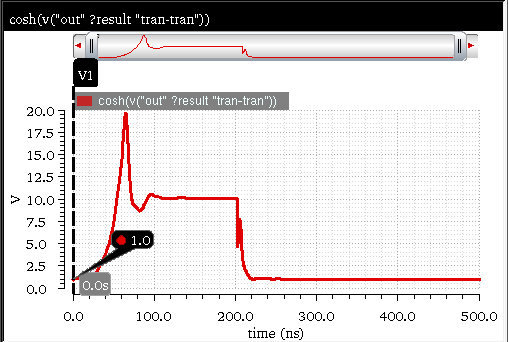

When you evaluate this expression, the function returns the hyperbolic cosine values of the input waveform. The following output waveform is displayed in a new window:













In the output waveform, the vertical maker V1 shows the voltage=1.0V when placed at time=0.0ns.



To analyze the generated output values, you can send the input and output signals to the Virtuoso Visualization and Analysis XL Table. To compare the input and output values, it is required to display both the signals in the same table, side by side. Therefore, to send the output signal to the table, right-click the output signal and choose Send To – Table – Append. The output signal is appended to the existing table.



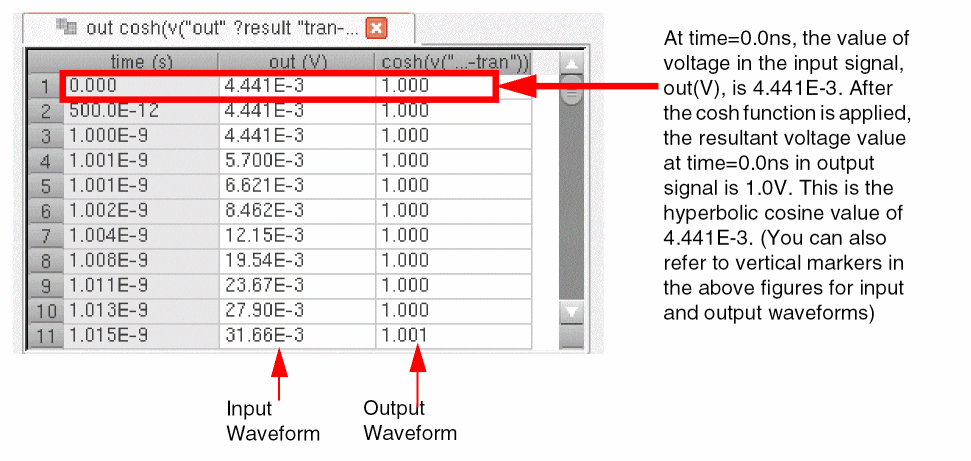

The following table contents are displayed when you send the input and output signals described in this example to the table:


















acosh




Returns the inverse hyperbolic cosine or hyperbolic arc-cosine of a signal.




Example




Consider the following input signal from the transient analysis:













A vertical marker V1 is placed at time=0.0s and voltage=4.441mV.



When you send this signal to Calculator, the following expression is created in the Buffer:



v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw")



When you apply the acosh
function on this input signal, the function is directly applied on the signal expression in Buffer. The expression created in Buffer is as follows:



acosh(v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw"))



When you evaluate this expression, the function returns the hyperbolic arc-cosine values of the input waveform. The following output waveform is displayed in a new window:













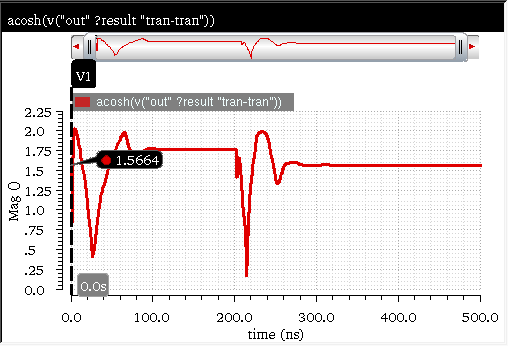

In the output waveform, the vertical maker V1 shows the voltage=1.5664V when placed at time=0.0ns.



To analyze the generated output values, you can send the input and output signals to the Virtuoso Visualization and Analysis XL Table. To compare the input and output values, it is required to display both the signals in the same table, side by side. Therefore, to send the output signal to the table, right-click the output signal and choose Send To – Table – Append. The output signal is appended to the existing table.



To view both the real and imaginary values in the table, right-click the table row and choose Display Complex As – Real and Imaginary. The following table contents are displayed when you send the input and output signals described in this example to the table and display the values in the complex number format.



The following table contents are displayed when you send the input and output signals described in this example to the table:


















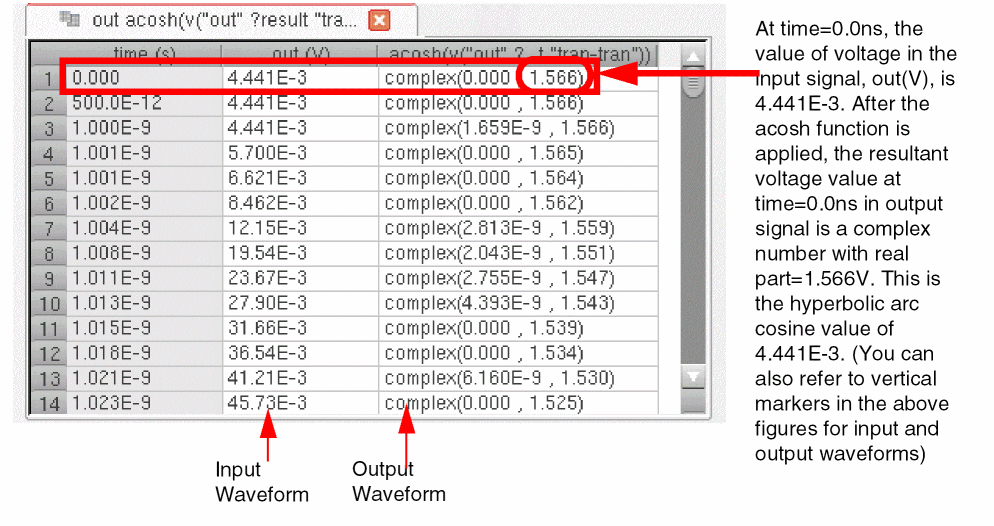

sin




Returns the sine of a signal.




Example




Consider the following input signal from the transient analysis:













A vertical marker V1 is placed at time=2.0ns and voltage=303.7mV.



When you send this signal to Calculator, the following expression is created in the Buffer:



v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw")



When you apply the sin
function on this input signal, the function is directly applied on the signal expression in Buffer. The expression created in the Buffer is as follows:



sin(v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw"))



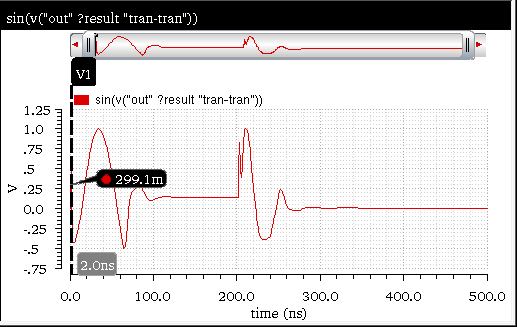

When you evaluate this expression, the function returns the sine values of the input waveform. The following output waveform is displayed in a new window:













In the output waveform, the vertical maker V1 shows the voltage=299.1mV when placed at time=2.0ns.



To analyze the generated output values, you can send the input and output signals to the Virtuoso Visualization and Analysis XL Table. To compare the input and output values, it is required to display both the signals in the same table, side by side. Therefore, to send the output signal to the table, right-click the output signal and choose Send To – Table – Append. The output signal is appended to the existing table.



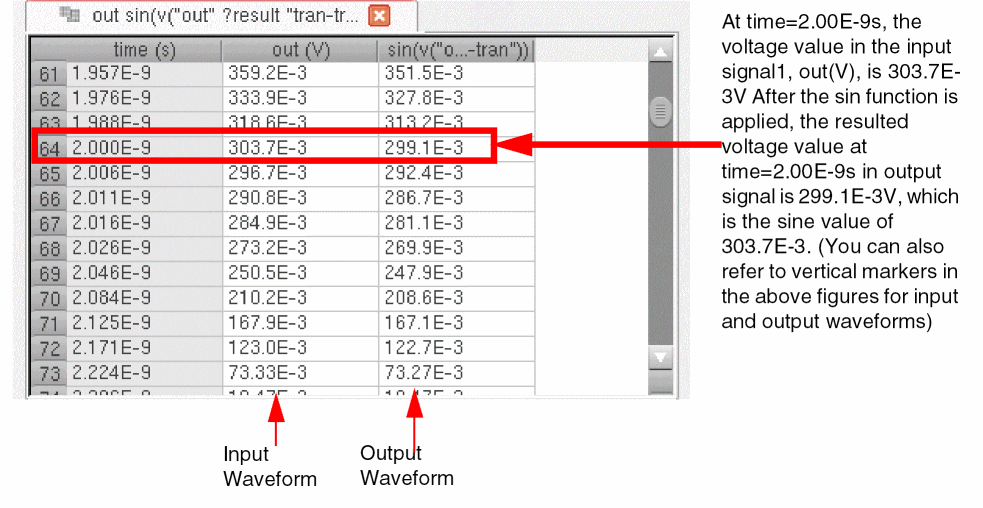

The following table contents are displayed when you send the input and output signals described in this example to the table:


















asin




Returns the inverse sine of a signal.




Example




Consider the following input signal from the transient analysis:













A vertical marker V1 is placed at time=2.0ns and voltage=303.7mV.



When you send this signal to Calculator, the following expression is created in the Buffer:



v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw")



When you apply the asin
function on this input signal, the function is directly applied on the signal expression in Buffer. The expression created in the Buffer is as follows:



asin(v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw"))



When you evaluate this expression, the function returns the inverse sine values of the input waveform. The following output waveform is displayed in a new window:













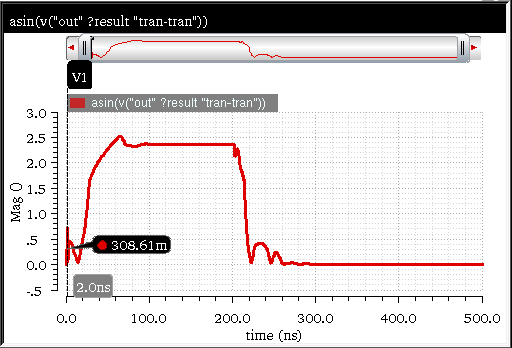

In the output waveform, the vertical maker V1 shows the voltage=308.61mV when placed at time=2.0ns



To analyze the generated output values, you can send the input and output signals to the Virtuoso Visualization and Analysis XL Table. To compare the input and output values, it is required to display both the signals in the same table, side by side. Therefore, to send the output signal to the table, right-click the output signal and choose Send To – Table – Append. The output signal is appended to the existing table.



The following table contents are displayed when you send the input and output signals described in this example to the table:


















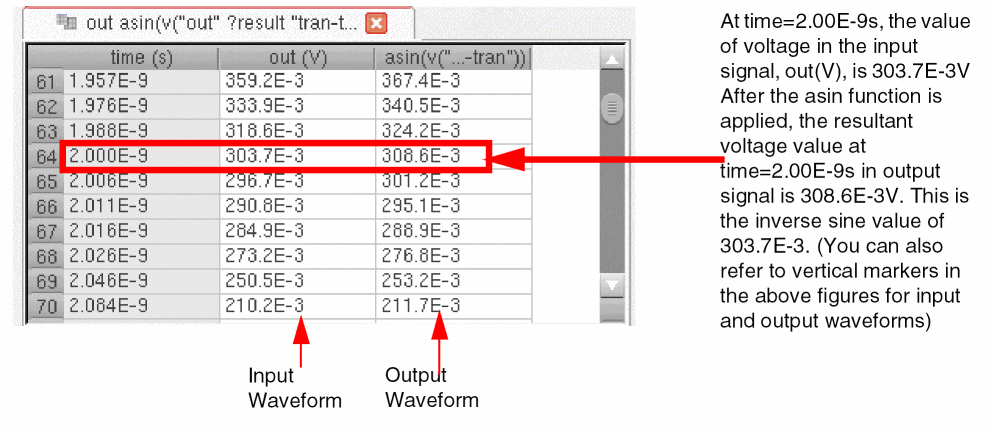

sinh




Returns the hyperbolic sine of a signal.




Example




Consider the following input signal from the transient analysis:













A vertical marker V1 is placed at time=2.0ns and voltage=303.7mV.



When you send this signal to Calculator, the following expression is created in the Buffer:



v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw")



When you apply the sinh
function on this input signal, the function is directly applied on the signal expression in Buffer. The expression created in the Buffer is as follows:



sinh(v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw"))



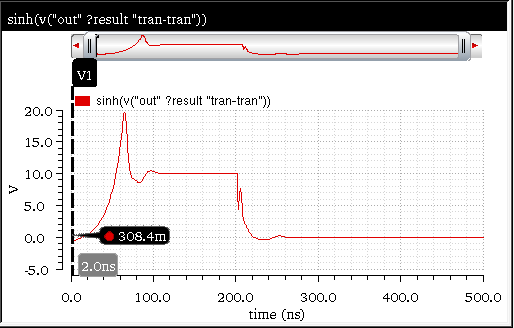

When you evaluate this expression, the function returns the hyperbolic sine values of the input waveform. The following output waveform is displayed in a new window:













In the output waveform, the vertical maker V1 shows the voltage=308.4mV when placed at time=2.0ns.



To analyze the generated output values, you can send the input and output signals to the Virtuoso Visualization and Analysis XL Table. To compare the input and output values, it is required to display both the signals in the same table, side by side. Therefore, to send the output signal to the table, right-click the output signal and choose Send To – Table – Append. The output signal is appended to the existing table.



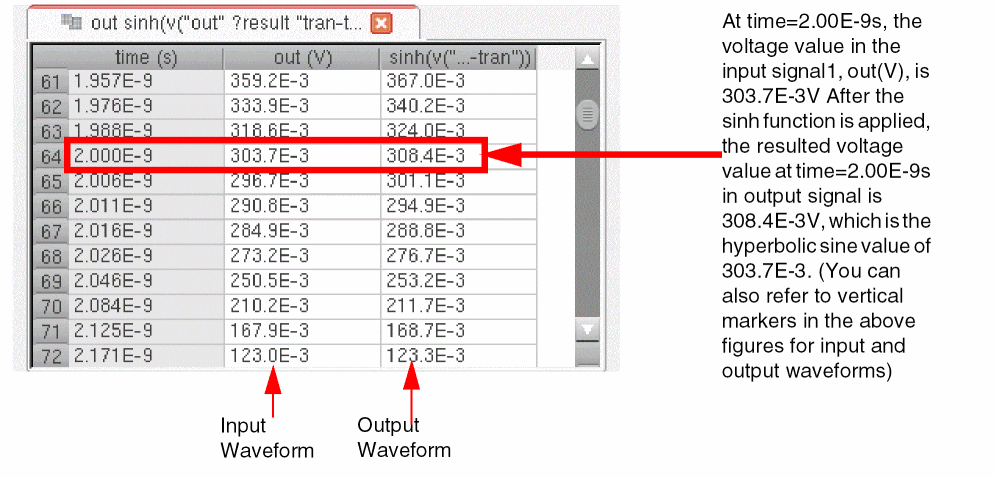

The following table contents are displayed when you send the input and output signals described in this example to the table:


















asinh




Returns the inverse hyperbolic sine or hyperbolic arc-sine of a signal.




Example




Consider the following input signal from the transient analysis:













A vertical marker V1 is placed at time=2.0ns and voltage=303.7mV.



When you send this signal to Calculator, the following expression is created in the Buffer:



v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw")



When you apply the asinh
function on this input signal, the function is directly applied on the signal expression in Buffer. The expression created in the Buffer is as follows:



asinh(v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw"))



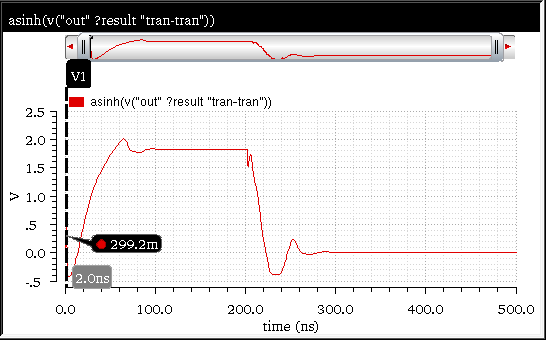

When you evaluate this expression, the function returns the hyperbolic arc-sine values of the input waveform. The following output waveform is displayed in a new window:













In the output waveform, the vertical maker V1 shows the voltage=299.2mV when placed at time=2.0ns.



To analyze the generated output values, you can send the input and output signals to the Virtuoso Visualization and Analysis XL Table. To compare the input and output values, it is required to display both the signals in the same table, side by side. Therefore, to send the output signal to the table, right-click the output signal and choose Send To – Table – Append. The output signal is appended to the existing table.



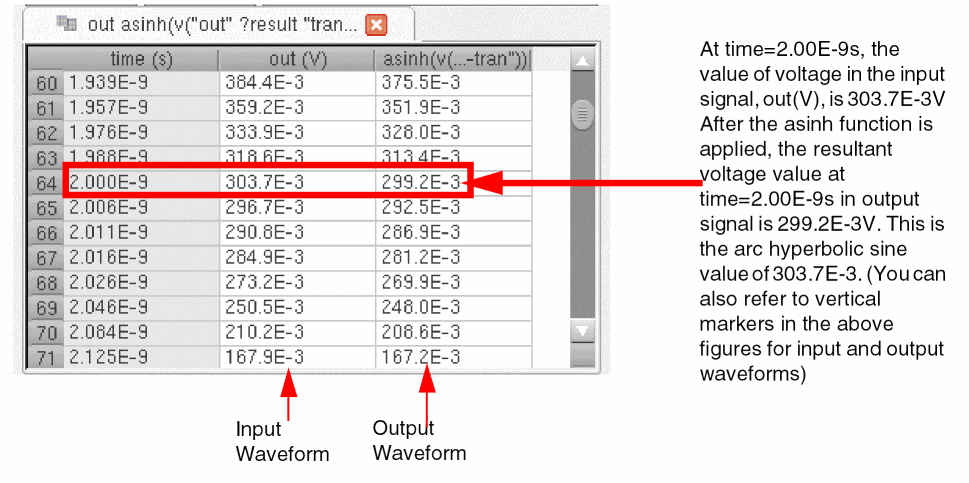

The following table contents are displayed when you send the input and output signals described in this example to the table:


















tan




Returns the tangent of a signal.




Example




Consider the following input signal from the transient analysis:













A vertical marker V1 is placed at time=2.0ns and voltage=303.7mV.



When you send this signal to Calculator, the following expression is created in the Buffer:



v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw")



When you apply the tan
function on this input signal, the function is directly applied on the signal expression in Buffer. The expression created in the Buffer is as follows:



tan(v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw"))



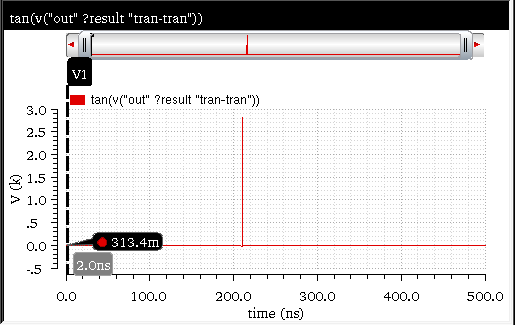

When you evaluate this expression, the function returns the tangent values of the input waveform. The following output waveform is displayed in a new window:













In the output waveform, the vertical maker V1 shows the voltage=313.4mV when placed at time=2.0ns.



To analyze the generated output values, you can send the input and output signals to the Virtuoso Visualization and Analysis XL Table. To compare the input and output values, it is required to display both the signals in the same table, side by side. Therefore, to send the output signal to the table, right-click the output signal and choose Send To – Table – Append. The output signal is appended to the existing table.



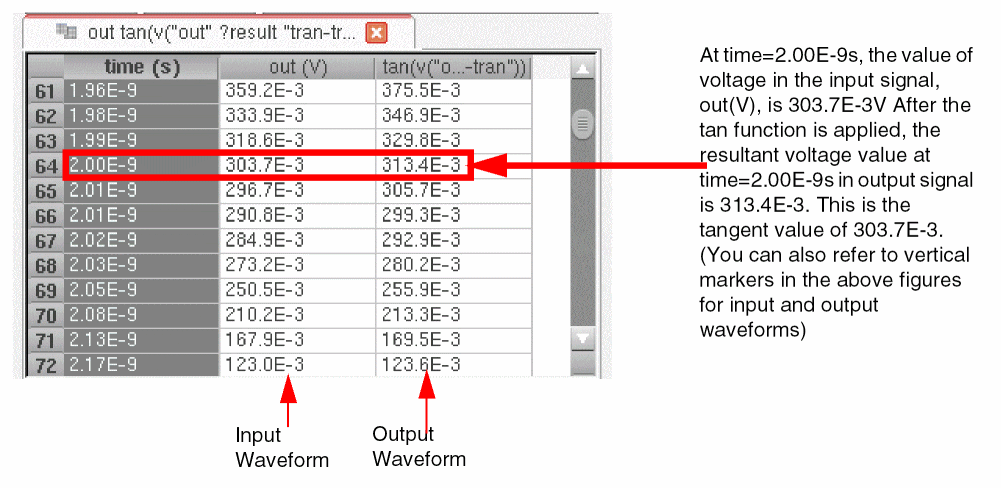

The following table contents are displayed when you send the input and output signals described in this example to the table:


















atan




Returns the nverse tangent of a signal.




Example




Consider the following input signal from the transient analysis:













A vertical marker V1 is placed at time=2.0ns and voltage=303.7mV.



When you send this signal to Calculator, the following expression is created in the Buffer:



v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw")



When you apply the atan
function on this input signal, the function is directly applied on the signal expression in Buffer. The expression created in the Buffer is as follows:



atan(v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw"))



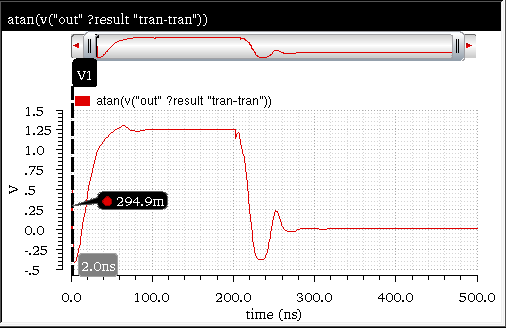

When you evaluate this expression, the function returns the inverse tangent values of the input waveform. The following output waveform is displayed in a new window:













In the output waveform, the vertical maker V1 shows the voltage=294.9mV when placed at time=2.0ns.



To analyze the generated output values, you can send the input and output signals to the Virtuoso Visualization and Analysis XL Table. To compare the input and output values, it is required to display both the signals in the same table, side by side. Therefore, to send the output signal to the table, right-click the output signal and choose Send To – Table – Append. The output signal is appended to the existing table.



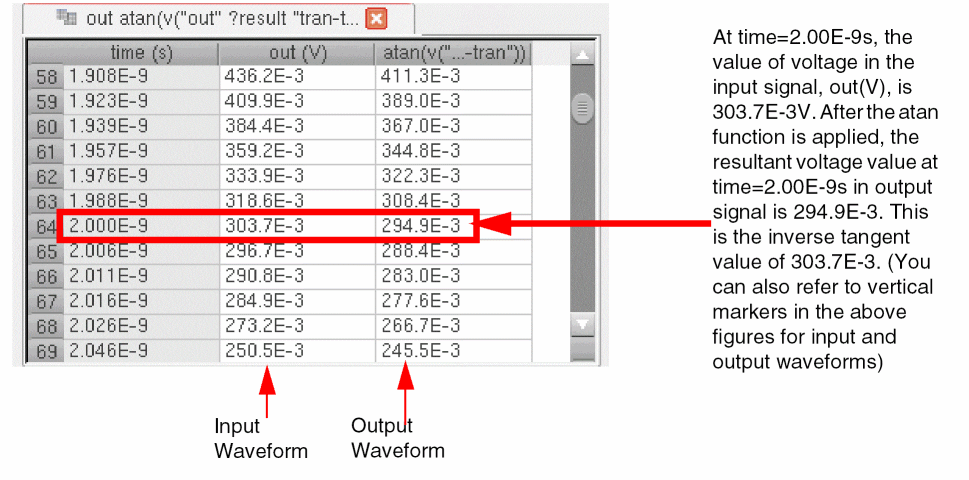

The following table contents are displayed when you send the input and output signals described in this example to the table:


















tanh




Returns the hyperbolic tangent of a signal.




Example




Consider the following input signal from the transient analysis:













A vertical marker V1 is placed at time=2.0ns and voltage=303.7mV.



When you send this signal to Calculator, the following expression is created in the Buffer:



v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw")



When you apply the tanh
function on this input signal, the function is directly applied on the signal expression in Buffer. The expression created in the Buffer is as follows:



tanh(v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw"))



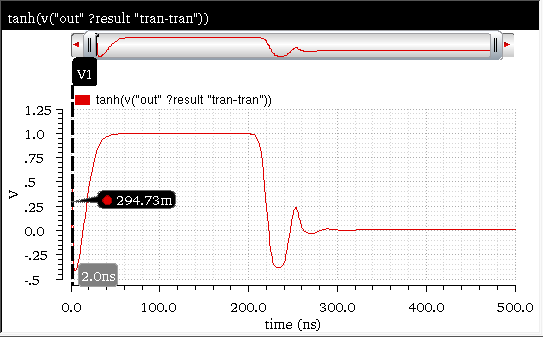

When you evaluate this expression, the function returns the hyperbolic tangent values of the input waveform. The following output waveform is displayed in a new window:













In the output waveform, the vertical maker V1 shows the voltage=294.93mV when placed at time=2.0ns.



To analyze the generated output values, you can send the input and output signals to the Virtuoso Visualization and Analysis XL Table. To compare the input and output values, it is required to display both the signals in the same table, side by side. Therefore, to send the output signal to the table, right-click the output signal and choose Send To – Table – Append. The output signal is appended to the existing table.



The following table contents are displayed when you send the input and output signals described in this example to the table:


















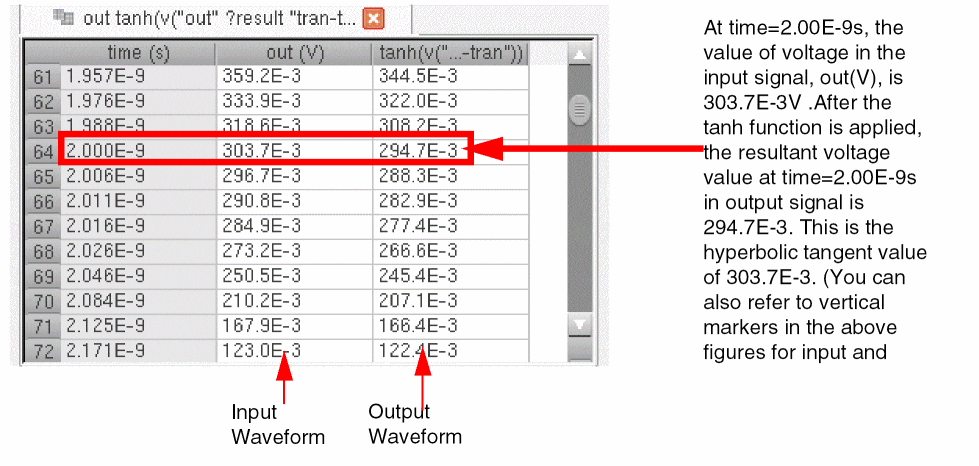

atanh




Returns the inverse hyperbolic tangent or hyperbolic arc tangent of a signal.




Example




Consider the following input signal from the transient analysis:













A vertical marker V1 is placed at time=2.0ns and voltage=303.7mV.



When you send this signal to Calculator, the following expression is created in the Buffer:



v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw")



When you apply the atanh
function on this input signal, the function is directly applied on the signal expression in Buffer. The expression created in the Buffer is as follows:



atanh(v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw"))



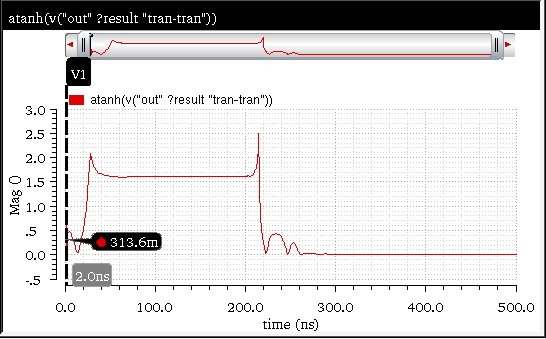

When you evaluate this expression, the function returns the arc hyperbolic tangent values of the input waveform. The following output waveform is displayed in a new window:













In the output waveform, the vertical maker V1 shows the voltage=313.6mV when placed at time=2.0ns.



To analyze the generated output values, you can send the input and output signals to the Virtuoso Visualization and Analysis XL Table. To compare the input and output values, it is required to display both the signals in the same table, side by side. Therefore, to send the output signal to the table, right-click the output signal and choose Send To – Table – Append. The output signal is appended to the existing table.



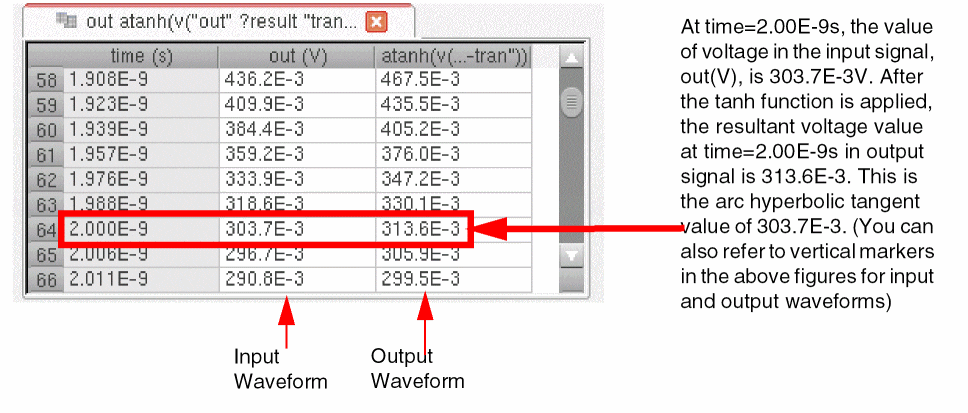

The following table contents are displayed when you send the input and output signals described in this example to the table:


















Math Functions




This section covers the following Math functions in Calculator:




















1/x




Returns the inverse value. This function is available only in the SKILL mode.




Example




Consider the following signal from the transient analysis:













When you send this signal to Calculator, the following expression is created in the Buffer:



v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw")



When you apply the 1/x function on this input signal, the function is directly applied on the signal expression in Buffer. The expression created in Buffer is as follows:



1/v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw")



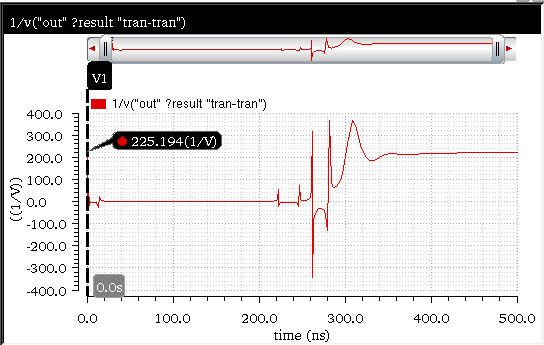

When you evaluate this expression, the inverse of the signal is calculated and the following output signal is displayed in a new graph window:













In the output waveform, the vertical maker V1 shows the voltage=225.194V when placed at time=0.0ns, which is the inverse of the voltage value (1/4.441mV) shown in the input waveform.



To analyze the generated output values, you can send the input and output signals to the Virtuoso Visualization and Analysis XL Table. To compare the input and output values, it is required to display both the signals in the same table, side by side. Therefore, to send the output signal to the table, right-click the output signal and choose Send To – Table – Append. The output signal is appended to the existing table.



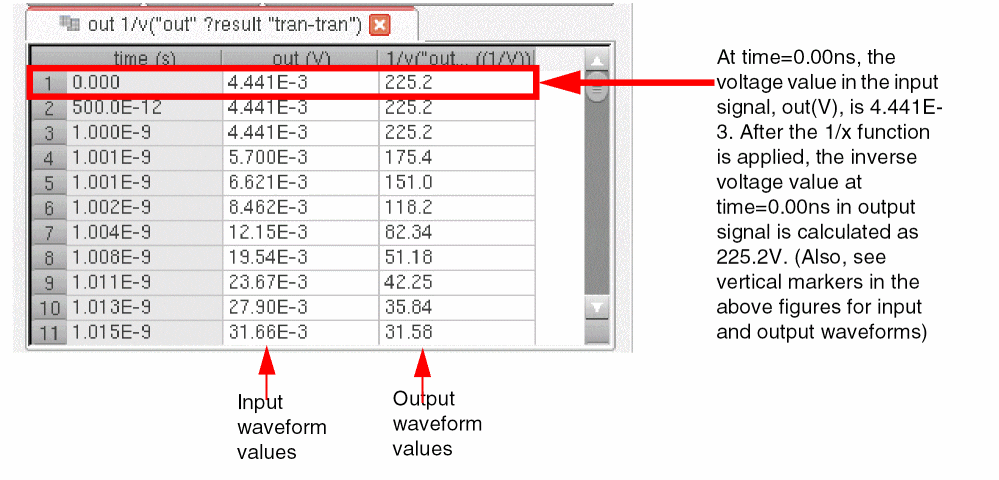

The following table contents are displayed when you send the input and output signals described in this example to the table:












Related OCEAN Function




The equivalent OCEAN command for 1/x is:







For more information, see 1/x in OCEAN Reference.










10**x




Returns the 10x value of the input signal. This function is available only in the SKILL mode.




Example




Consider the following input signal form a transient analysis:













A vertical marker V1 is placed at time=0.0ns and voltage=4.441mv.



When you send this signal to Calculator, the following expression is created in the Buffer:



v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw")



When you apply the 10**x function on this input signal, the function is directly applied on the signal expression in Buffer. The expression created in Buffer is as follows:



10**v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw")



When you evaluate this expression, the 10x of the signal is calculated and the following output is displayed in a new graph window:













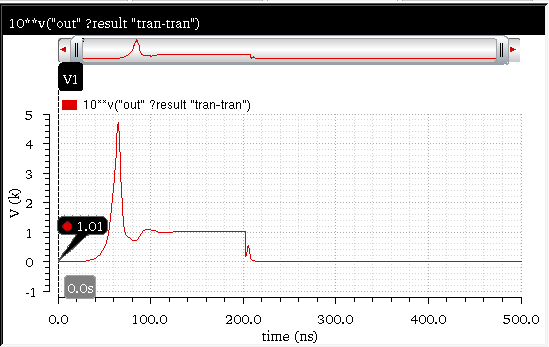

In the output waveform, the vertical maker V1 shows the voltage=1.01mV when placed at time=0.0ns, which is the 10x of the voltage value (4.441mV) shown in the input waveform.



To analyze the generated output values, you can send the input and output signals to the Virtuoso Visualization and Analysis XL Table. To compare the input and output values, it is required to display both the signals in the same table, side by side. Therefore, to send the output signal to the table, right-click the output signal and choose Send To – Table – Append. The output signal is appended to the existing table.



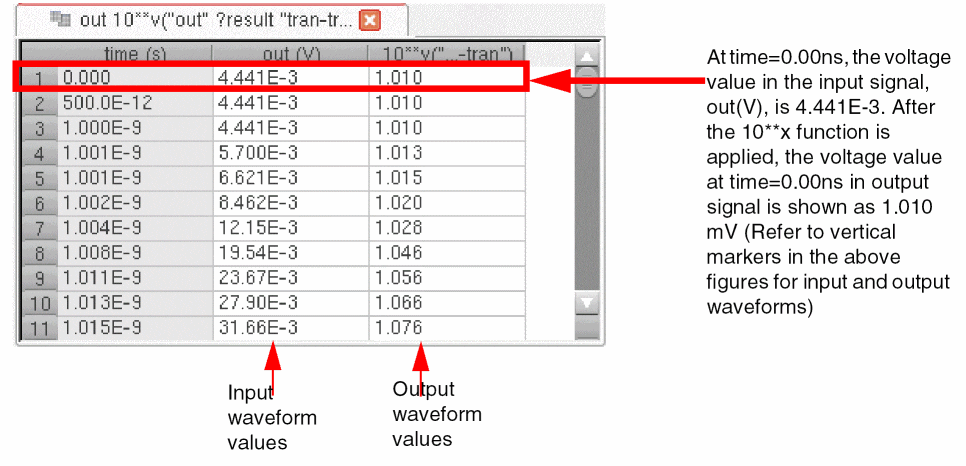

The following table contents are displayed when you send the input and output signals described in this example to the table:












Related OCEAN Function




The equivalent OCEAN command for 10**x is:







For more information, see 10**x in OCEAN Reference.




abs




Returns the absolute value of the specified value or signal.



The absolute value of y is represented by |y| and it is calculated using the following formula:













Therefore, the absolute value of y is always either a positive number or zero, but never a negative number.




Example




Consider the following input signal from a transient analysis.













The following expression is created in the Buffer when you send this signal to the Calculator.



v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw")




When you apply the function abs to this signal from the Function Panel, the following expression is created in the Buffer.



abs(v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw"))




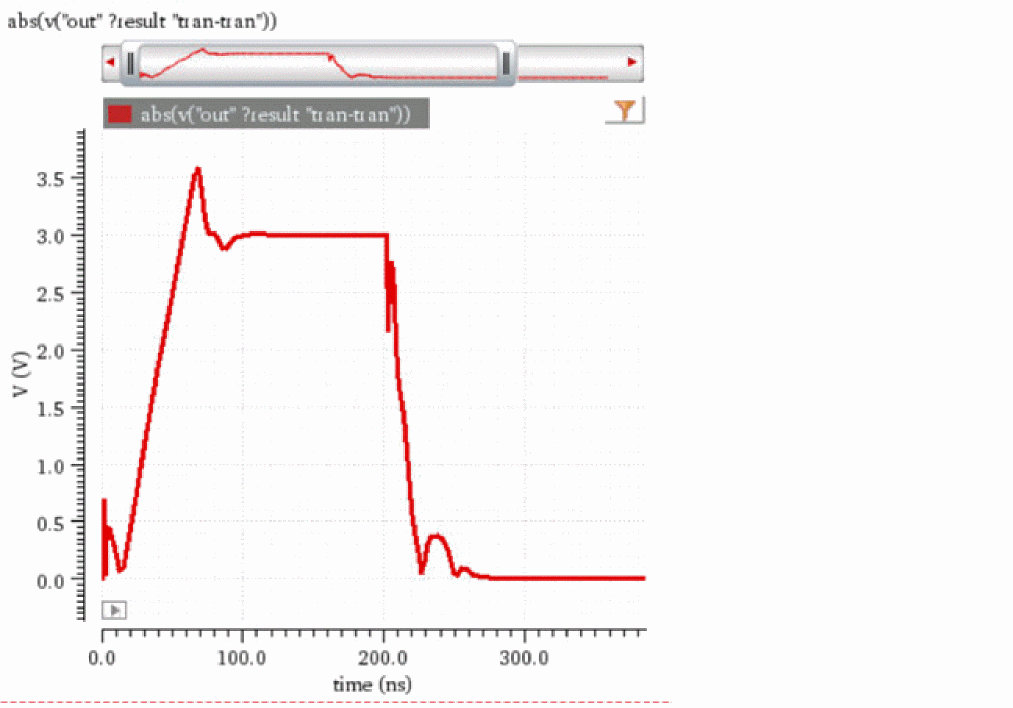

When you evaluate this expression, the absolute value of the signal is calculated and the resultant waveform is plotted in the graph window.













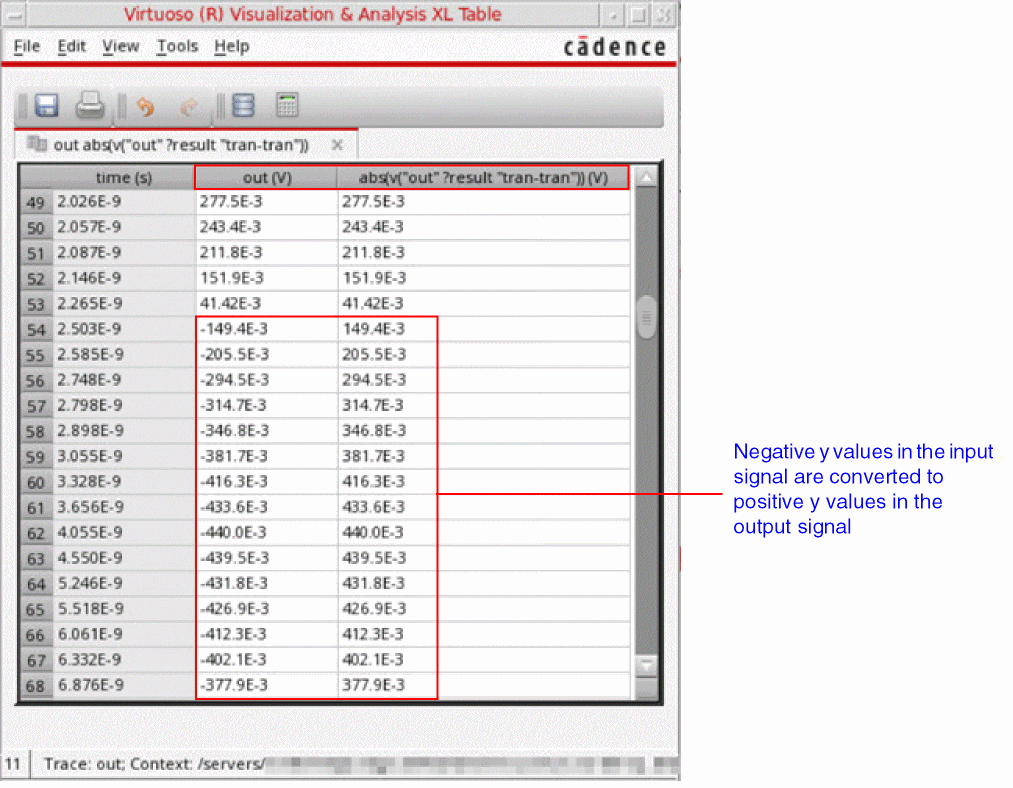

To analyze the output values, you can send the input and output signals to the Virtuoso Visualization and Analysis XL Table. To compare the input and output values, it is required to display both the signals in the same table, side by side. Therefore, to send the output signal to the table, right-click the output signal and choose Send To – Table – Append. The output signal is appended to the existing table.


















exp




Returns the exponential value (ex) of the signal.




Example




Consider the following input signal from transient analysis:













A vertical marker V1 is placed at time=0.0ns and voltage=4.441mv.



When you send this signal to Calculator, the following expression is created in the Buffer:



v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw")



When you apply the exp function on this input signal, the function is directly applied on the signal expression in Buffer. The expression created in Buffer is as follows:



exp(v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw"))



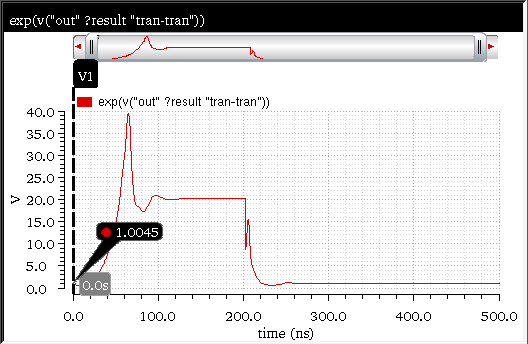

When you evaluate this expression, the exponential value of the input signal is calculated and the following output waveform is plotted in a new graph window:













In the output waveform, the vertical maker V1 shows the voltage=1.0045mV when placed at time=0.0ns, which is the exponential of the voltage value (4.441mV) shown in the input waveform.



To analyze the generated output values, you can send the input and output signals to the Virtuoso Visualization and Analysis XL Table. To compare the input and output values, it is required to display both the signals in the same table, side by side. Therefore, to send the output signal to the table, right-click the output signal and choose Send To – Table – Append. The output signal is appended to the existing table.



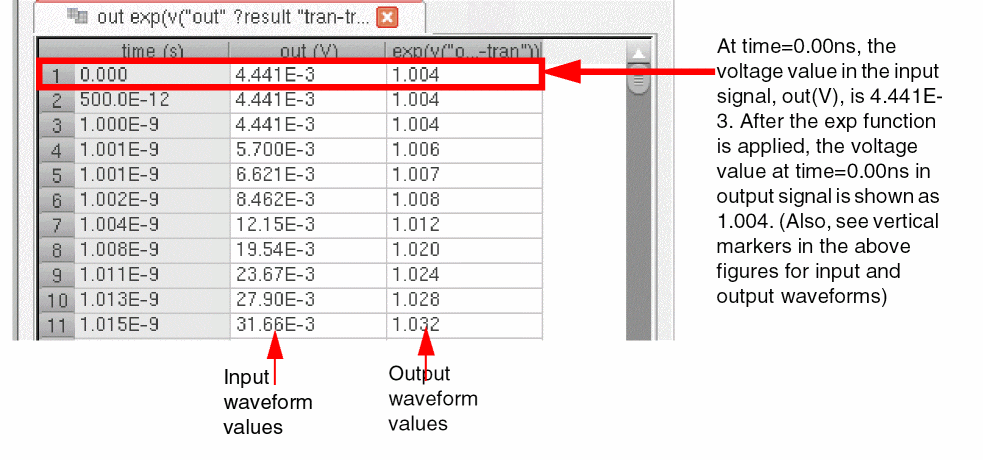

The following table contents are displayed when you send the input and output signals described in this example to the table:












Related OCEAN Function




The equivalent OCEAN command for exp is:



exp( n_number )
=> f_result




For more information, see exp in OCEAN Reference.










int




Returns the integer portion of a real value.



While performing the division of two integer or floating point values, if denominator is greater than numerator, the division results are truncated. For example, if you perform the division of 1/2, the int function displays the result as 0 instead of 0.5.



For more information about how the integer and floating point division is performed using SKILL, see Integer vs. Floating-Point Division in the in the Arithmetic and Logical Expressions chapter of Cadence SKILL Language User Guide.




Example




Consider the following input signal from the transient analysis:













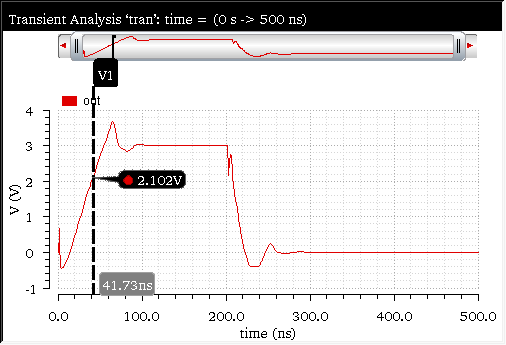

A vertical marker V1 is placed at time=41.73ns and voltage=2.102V.



When you send this signal to Calculator, the following expression is created in the Buffer:



v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw")



When you apply the int
function on this input signal, the function is directly applied on the signal expression in Buffer. The expression created in Buffer is as follows:



int(v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw"))



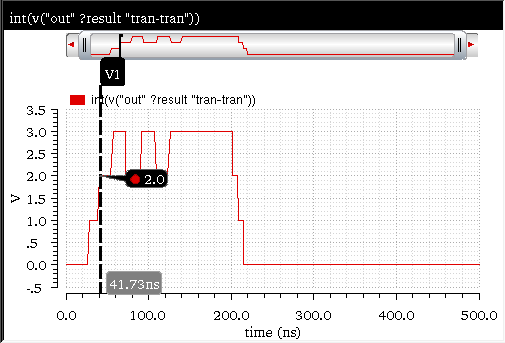

When you evaluate this expression, the function returns the integer voltage values of the input waveform. The following output waveform is displayed in a new window:













In the output waveform, the vertical maker V1 shows the voltage=2.0V when placed at time=41.73ns.



To analyze the generated output values, you can send the input and output signals to the Virtuoso Visualization and Analysis XL Table. To compare the input and output values, it is required to display both the signals in the same table, side by side. Therefore, to send the output signal to the table, right-click the output signal and choose Send To – Table – Append. The output signal is appended to the existing table.



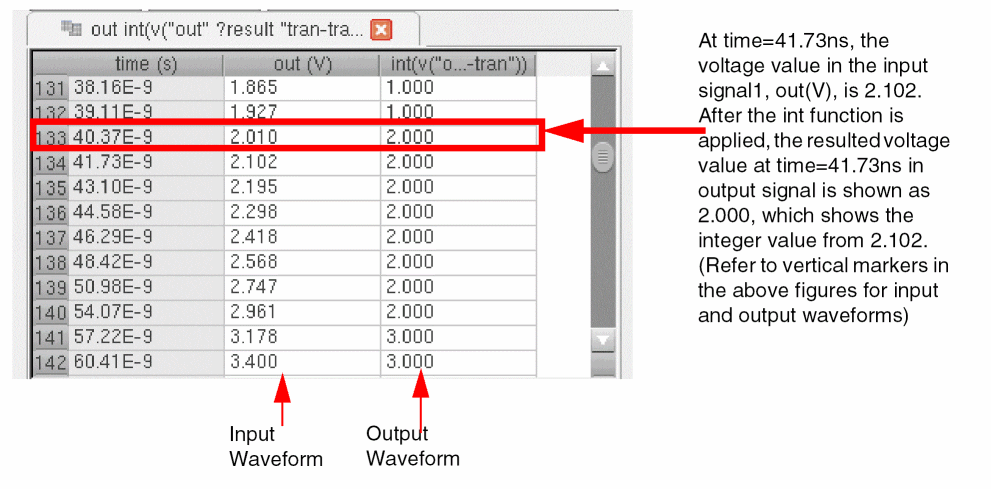

The following table contents are displayed when you send the input and output signals described in this example to the table:












Related OCEAN Function




The equivalent OCEAN command for int is:







For more information, see int in OCEAN Reference.










ln




Returns the natural logarithm value of the given signal.




Example




Consider the following input signal from transient analysis:













A vertical marker V1 is placed at time=0.0ns and voltage=4.441mv.



When you send this signal to Calculator, the following expression is created in the Buffer:



v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw")



When you apply the ln function on this input signal, the function is directly applied on the signal expression in Buffer. The expression created in Buffer is as follows:



ln(v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw"))



When you evaluate this expression, the exponential value of the input signal is calculated and the following output waveform is plotted in a new graph window:













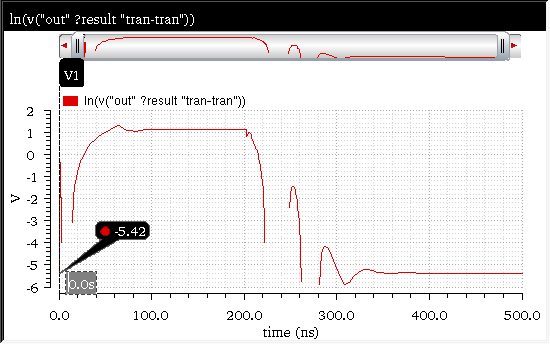

In the output waveform, the vertical maker V1 shows the voltage=-5.42mV when placed at time=0.0ns, which is the natural logarithmic value of the voltage value (4.441E-3mV) shown in the input waveform.



To analyze the generated output values, you can send the input and output signals to the Virtuoso Visualization and Analysis XL Table. To compare the input and output values, it is required to display both the signals in the same table, side by side. Therefore, to send the output signal to the table, right-click the output signal and choose Send To – Table – Append. The output signal is appended to the existing table.



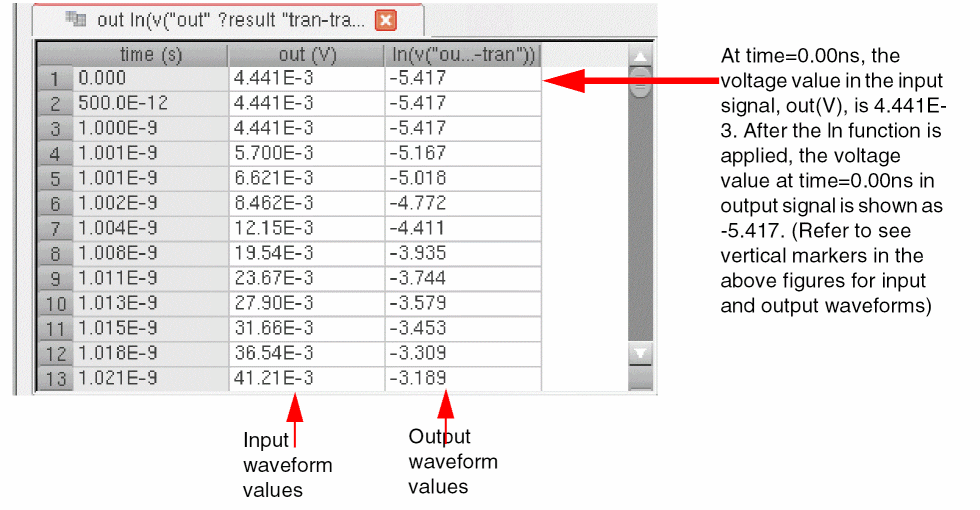

The following table contents are displayed when you send the input and output signals described in this example to the table:












Related OCEAN Function




The equivalent OCEAN command for ln is:







For more information, see ln in OCEAN Reference.










log10




Returns the base 10 logarithm of a signal.




Example




Consider the following input signal from transient analysis:













A vertical marker V1 is placed at time=0.0ns and voltage=4.441mv.



When you send this signal to Calculator, the following expression is created in the Buffer:



v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw")



When you apply the log10 function on this input signal, the function is directly applied on the signal expression in Buffer. The expression created in Buffer is as follows:



log10(v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw"))



When you evaluate this expression, the log10 value of the input waveform is calculated and the following output signal is displayed in a new window:













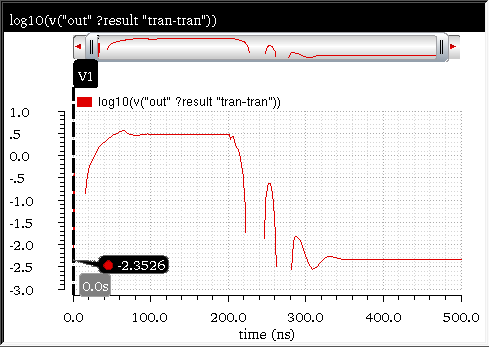

In the output waveform, the vertical maker V1 shows the voltage=-2.3526mV when placed at time=0.0ns, which is the logarithmic to the base 10 value of the voltage value (4.441E-3mV) shown in the input waveform.



To analyze the generated output values, you can send the input and output signals to the Virtuoso Visualization and Analysis XL Table. To compare the input and output values, it is required to display both the signals in the same table, side by side. Therefore, to send the output signal to the table, right-click the output signal and choose Send To – Table – Append. The output signal is appended to the existing table.



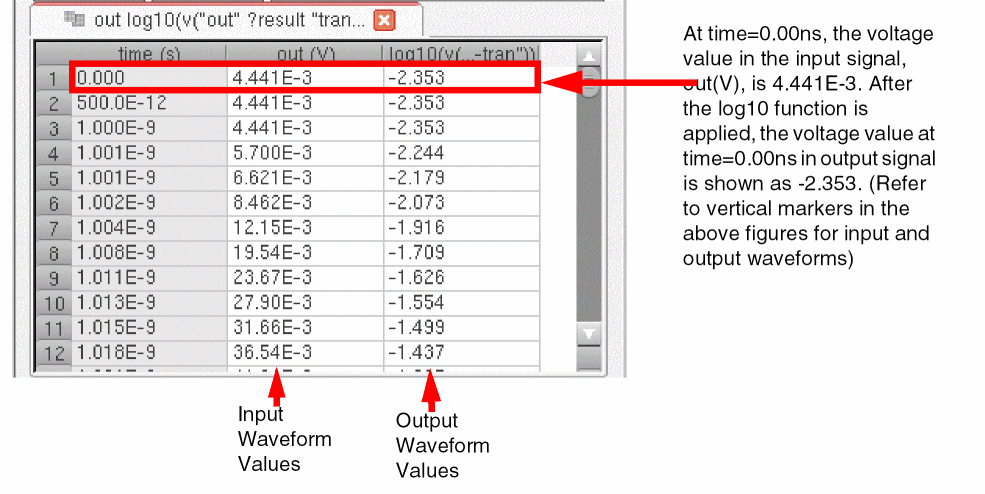

The following table contents are displayed when you send the input and output signals described in this example to the table:












Related OCEAN Function




The equivalent OCEAN command for log10 is:







For more information, see log10 in OCEAN Reference.










sqrt




Returns the square root of the given input waveform.




Example




Consider the following input signal from transient analysis:













A vertical marker V1 is placed at time=0.0ns and voltage=4.441mv.



When you send this signal to Calculator, the following expression is created in the Buffer:



v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw")



When you apply the sqrt function on this input signal, the function is directly applied on the signal expression in Buffer. The expression created in Buffer is as follows:



sqrt(v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw"))



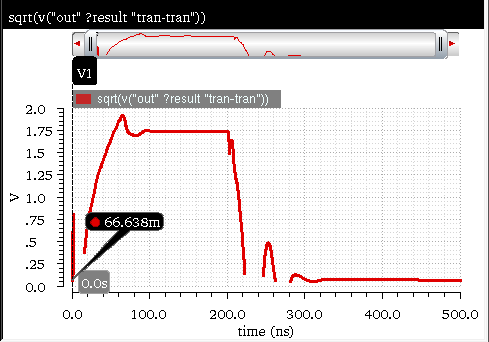

When you evaluate this expression, the square root of the input waveform is calculated and the following output signal is displayed in a new window:













In the output waveform, the vertical maker V1 shows the voltage=-2.3526mV when placed at time=0.0ns, which is the square root of the voltage value (4.441E-3mV) shown in the input waveform.



To analyze the generated output values, you can send the input and output signals to the Virtuoso Visualization and Analysis XL Table. To compare the input and output values, it is required to display both the signals in the same table, side by side. Therefore, to send the output signal to the table, right-click the output signal and choose Send To – Table – Append. The output signal is appended to the existing table.



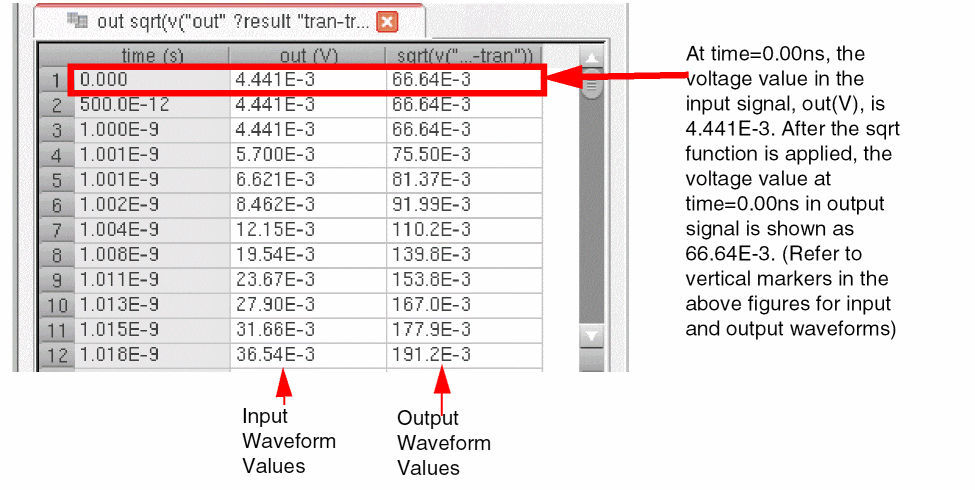

The following table contents are displayed when you send the input and output signals described in this example to the table:












Related OCEAN Function




The equivalent OCEAN command for sqrt is:



sqrt( n_number )
=> f_result




For more information, see sqrt in OCEAN Reference.










x**2




Returns the x2 (second power) value of the input signal. This function is available only in the SKILL mode.




Example




Consider the following input signal from transient analysis:













A vertical marker V1 is placed at time=0.0ns and voltage=4.441mv.



When you send this signal to Calculator, the following expression is created in the Buffer:



v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw")



When you apply the x**2 function on this input signal, the function is directly applied on the signal expression in Buffer. The expression created in Buffer is as follows:



v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw")**2



When you evaluate this expression, the second power of the input waveform is calculated and the following output signal is displayed in a new window:













In the output waveform, the vertical maker V1 shows the voltage=19.71mV when placed at time=0.0ns, which is the square root of the voltage value (4.441E-3mV) shown in the input waveform.



To analyze the generated output values, you can send the input and output signals to the Virtuoso Visualization and Analysis XL Table. To compare the input and output values, it is required to display both the signals in the same table, side by side. Therefore, to send the output signal to the table, right-click the output signal and choose Send To – Table – Append. The output signal is appended to the existing table.



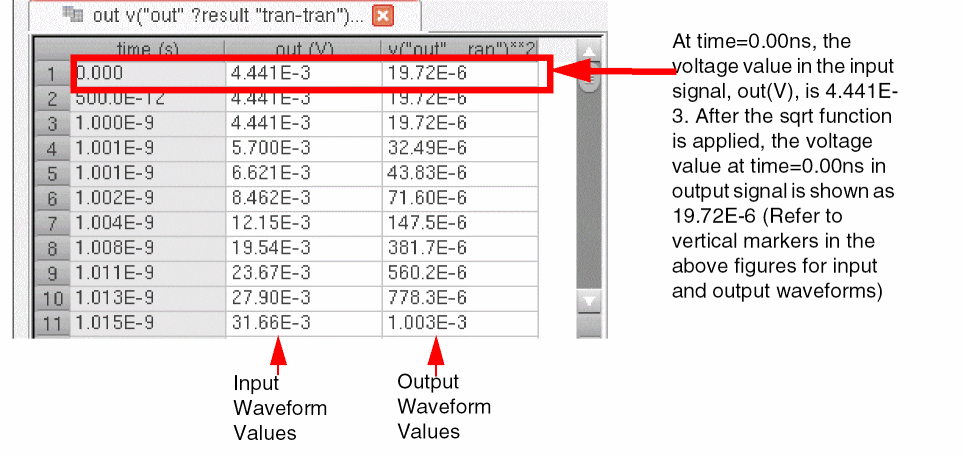

The following table contents are displayed when you send the input and output signals described in this example to the table:












Related OCEAN Function




The equivalent OCEAN command for x**2 is:







For more information, see x**2 in OCEAN Reference.










y**x




Returns the yx (y to the power x) value. This function is available only in the SKILL mode.




Example




Consider the following two input signals from transient analysis. The first signal v("out" ?result "tran-tran") denotes the y value whose power is to be calculated and second signal v("net10" ?result "tran-tran") denotes the power (x value in yx).



First Input Signal: v("out" ?result "tran-tran")













A vertical marker V1 is placed on the first signal at time=0.0ns and voltage=4.441mv.



Second Input Signal: v("net10" ?result "tran-tran")













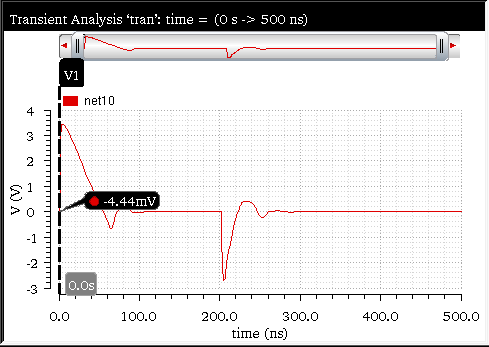

A vertical marker V1 is placed on the second input signal at time=0.0ns and voltage=-4.44mv.



When you send the first input signal to Calculator, the following expression is created in the Buffer:



v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw")



To add second signal to the Calculator, you need to send the expression for the first input signal in the Stack. Now, when you send the second input signal to Calculator, the following expression is created in the Buffer:



v("net10" ?result "tran-tran" ?resultsDir "./ampsim.raw")



When you apply the y**x function on this input signal, the function pops out the first signal expression from the Stack and uses the second signal expression from the Buffer. The new expression created in Buffer is as follows:



v("out" ?result "tran-tran" ?resultsDir "./ampsim.raw")**v("net10" ?result "tran-tran" ?resultsDir "./ampsim.raw")



When you evaluate this expression, the second power of the input waveform is calculated and the following output signal is displayed in a new window:













In the output waveform, the vertical maker V1 shows the voltage=1.0243mV when placed at time=0.0ns, which is the (4.441E-3)th power of the voltage value -4.44E-3 as marked by vertical markers in the input waveforms.



To analyze the generated output values, you can send the input and output signals to the Virtuoso Visualization and Analysis XL Table. To compare the input and output values, it is required to display both the signals in the same table, side by side. Therefore, to send the output signal to the table, right-click the output signal and choose Send To – Table – Append. The output signal is appended to the existing table.



The following table contents are displayed when you send the input and output signals described in this example to the table:












Related OCEAN Function




The equivalent OCEAN command for y**x is:







For more information, see y**x in OCEAN Reference.










RF Functions




This section describes the following RF functions available in the Virtuoso Visualization and Analysis XL Calculator:


































How to Run Examples?




The examples explained in these functions are created on the S-parameter analysis of the Low Noise Amplifier (LNA) design. Follow the following steps to run the examples:


  1.
Download and untar the test case rfworkshop.tar.Z from the latest MMSIM hierarchy saved at the following location: ./tools.lnx86/spectre/examples/SpectreRF_workshop/rfworkshop.tar.Z
  2.
Run Virtuoso and in the Library Manager, choose library as Rfworkshop, cell as Diff_LNA_test, and view as Lab1_sp.
  3.
Run the simulation.
  4.
Choose Tools – Calculator to open the Virtuoso Visualization and Analysis XL Calculator.
  5.
Click the function you want to apply in the Function Panel under the RF functions category. The related expression is displayed in the Buffer.
  6.
Click the Evaluate button to generate the output plot. The output waveform is displayed in the graph window.

Alternatively, you can evaluate these functions by performing the following steps:
    1.
After step 4, send the Buffer expression to ADE outputs by choosing Tools – Send Buffer to ADE Outputs.
    2.
The expression is displayed in the ADE L Outputs section. Ensure that the Plot check box is selected and run the simulation. After the simulation is complete and results are generated, the output waveform is displayed in the Virtuoso Visualization and Analysis XL graph window.












Note the following:













Rn




Returns the equivalent noise resistance as a function of frequency. This function is available only on a 2-port network from that uses a S-Parameter analysis.



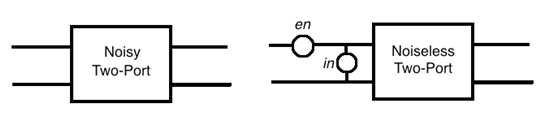

Consider a two-port network shown below. A noisy network can be converted into a noiseless network by connecting equivalent noise sources with the port.













In this case, Rn is defined as:













Here,







Example




This example applies the Rn function on the S-Parameter analysis of a Low Noise Amplifier (LNA) design. For detailed information, see How to Run Examples?.



When you select the Rn function in the Function Panel, the following expression is displayed in the Buffer:



Rn()



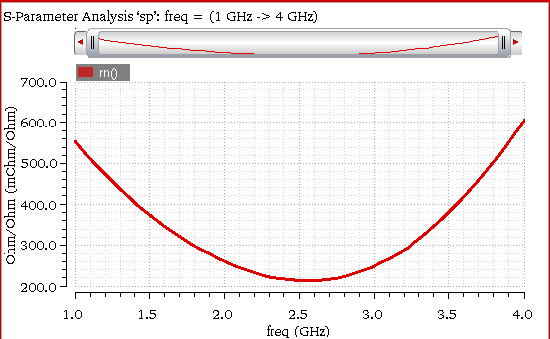

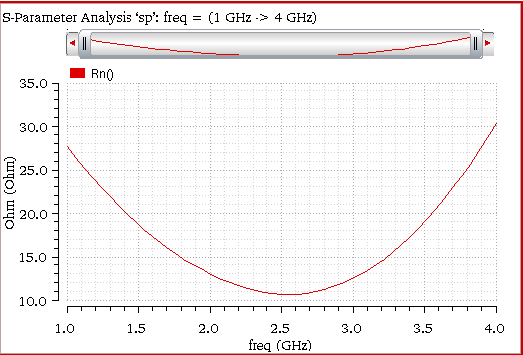

Now, when you evaluate this expression, the following output waveform appears in the graph window:


















B1f




Returns the alternative stability factor.



Kf and B1f plot the Rollet stability factor and its intermediate term. These parameters can be used only for two-port circuits.













Here,



















When Kf>1 and B1f>0, the circuit becomes unconditionally stable.




Example




This example applies the B1f function on Low Noise Amplifier (LNA) design. For detailed information, see How to Run Examples?.



When you select the B1f function in the Function Panel, the following expression is displayed in the Buffer:



B1f()



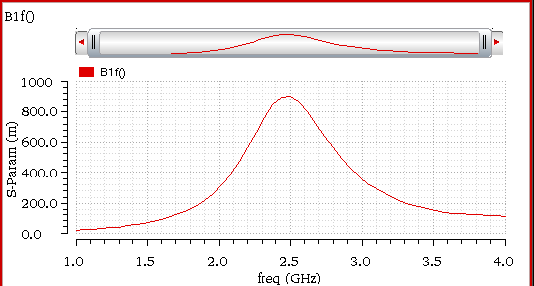

When you evaluate this expression, the following output waveform appears in the graph window:


















GA




Returns the available power gain.



The available power gain, GA, is defined as the ratio between the power available from the network and the power available from the source.













When source and load have impedance Z0, the equations are as follows:
















Example




This example applies the ga function on the S-Parameter analysis of a Low Noise Amplifier (LNA) design. For detailed information, see How to Run Examples?.



When you select the ga function in the Function Panel, the following expression is displayed in the Buffer:



GA()



Now, convert this signal into dB by applying the dB10 function on the above expression. The new expression in the Buffer is as follows:



dB10(GA())



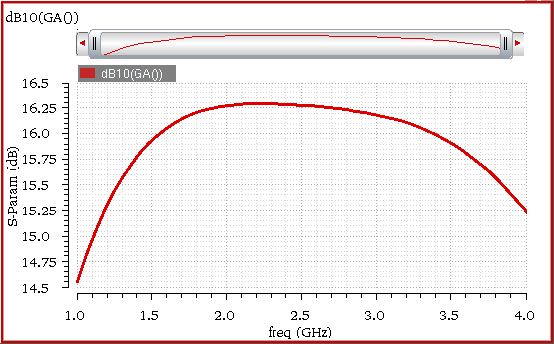

Now, when you evaluate this expression, the following output waveform appears in the graph window:


















gac_freq




Returns the available power gain circles where the gain is fixed and frequency is swept.













This function includes the following arguments:








The default value is 0 for all the fields.




Example




This example applies the gac_freq function on the S-Parameter analysis of a Low Noise Amplifier (LNA) design. For detailed information, see How to Run Examples?.



The following values for the function arguments has been specified in this example:







The corresponding expression created in the Buffer is as follows:



gac_freq(16 2G 3G 100M)



Ensure that the Impedance graph type is selected in the Selection toolbar.



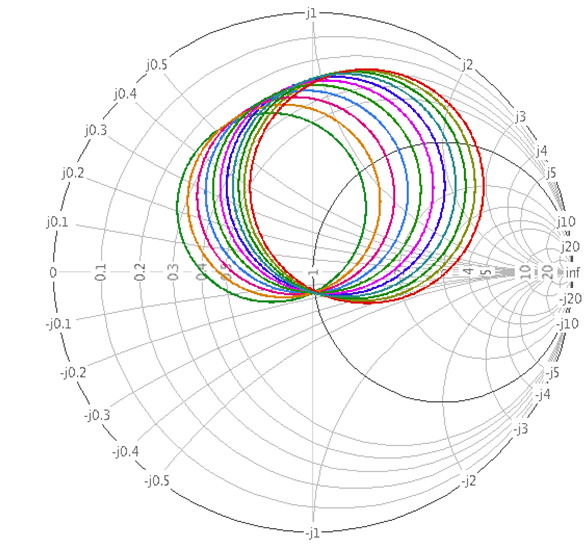

Now, when you evaluate this expression, the following output waveform is displayed in the graph window:


















gac_gain




Returns the available power gain circles where the frequency is fixed and gain is swept.













This function includes the following arguments:








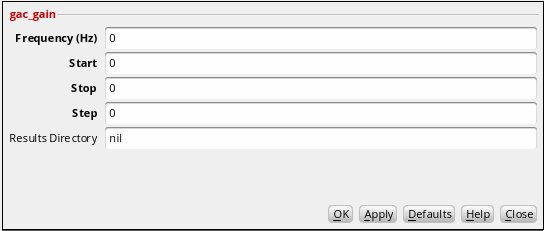

The default value is 0 for all the fields.




Example




This example applies the gac_gain function on the S-Parameter analysis of a Low Noise Amplifier (LNA) design. For detailed information, see How to Run Examples?



The following values for the function arguments has been specified in this example:







The corresponding expression created in the Buffer is as follows:



gac_gain(2.4G 14 18 0.5)



Ensure that the Impedance graph type is selected in the Selection toolbar.



Now, when you evaluate this expression, the following output waveform is displayed in the graph window:


















Gmax




Returns the maximum available gain for a two port.



The maximum transducer power gain, Gmax, is the simultaneous conjugate matching power gain when both the input and output are conjugately matched.





























Here, kf is the stability factor. For more information, see Kf.




Example




This example applies the gmax function on the S-Parameter analysis of a Low Noise Amplifier (LNA) design. For detailed information, see How to Run Examples?.



When you select the gmax function in the Function Panel, the following expression is displayed in the Buffer:



Gmax()



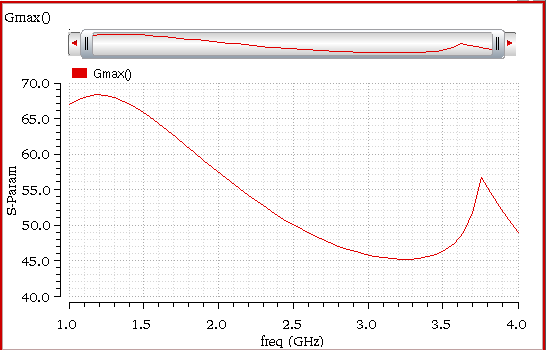

When you evaluate this expression, the following output waveform appears in the graph window:


















Gmin




Returns the optimum noise reflection coefficient for NFmin.




Example




This example applies the gmin function on the S-Parameter analysis of a Low Noise Amplifier (LNA) design. For detailed information, see How to Run Examples?.



When you select the gmin function in the Function Panel, the following expression is displayed in the Buffer:



Gmin()



Ensure that the Impedance graph type is selected in the Selection toolbar.



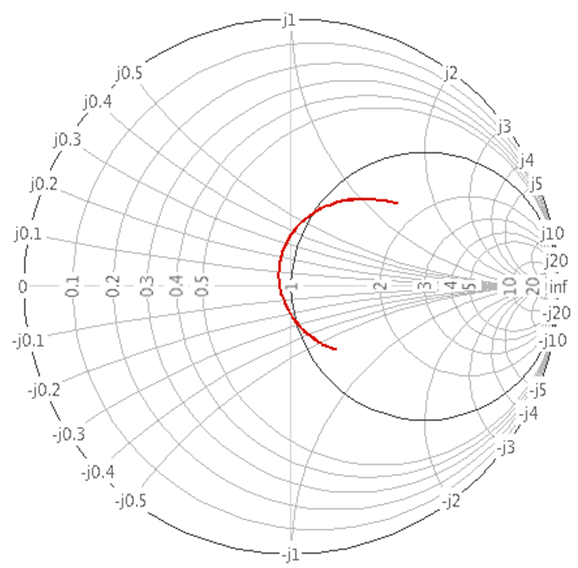

Now, when you evaluate this expression, the following output waveform appears in the graph window:


















Gmsg




Returns the maximum stable power gain for a two port.



Maximum stability gain, Gmsg, is the maximum of Gmax when the stability condition, Kf > 1, is satisfied.












Example




This example applies the gmsg function on the S-Parameter analysis of a Low Noise Amplifier (LNA) design. For detailed information, see How to Run Examples?.



When you select the gmsg function in the Function Panel, the following expression is displayed in the Buffer:



Gmsg()



Now, convert this signal into dB by applying the dB10 function on the above expression. The new expression in the Buffer is as follows:



dB10(Gmsg())



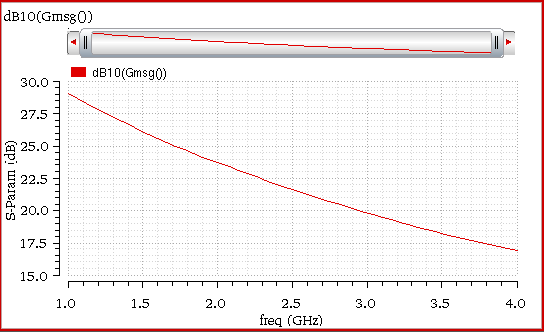

Now, when you evaluate this expression, the following output waveform appears in the graph window:


















GP




Returns the power gain.



Operating power gain, GP, is defined as the ratio between the power delivered to the load and the power input to the network.













When source and load have impedance Z0, the equations are as follows:
















Example




This example applies the gp function on the S-Parameter analysis of a Low Noise Amplifier (LNA) design. For detailed information, see How to Run Examples?.



When you select the gp function in the Function Panel, the following expression is displayed in the Buffer:



GP()



Now, convert this signal into dB by applying the dB10 function on the above expression. The new expression in the Buffer is as follows:



dB10(GP())



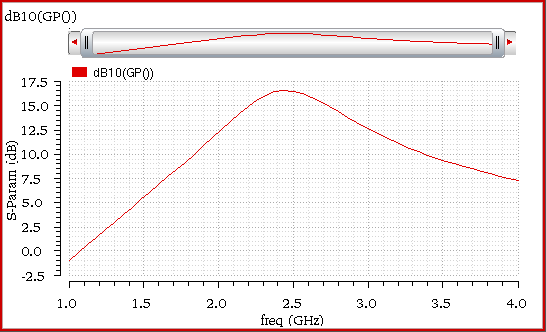

Now, when you evaluate this expression, the following output waveform appears in the graph window:


















gpc_freq




Returns the operating power gain circles where the gain is fixed and frequency is swept.













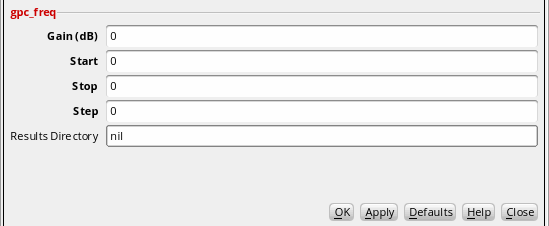

This function includes the following arguments:








The default value is 0 for all the fields.




Example




This example applies the gpc_freq function on the S-Parameter analysis of a Low Noise Amplifier (LNA) design. For detailed information, see How to Run Examples?.



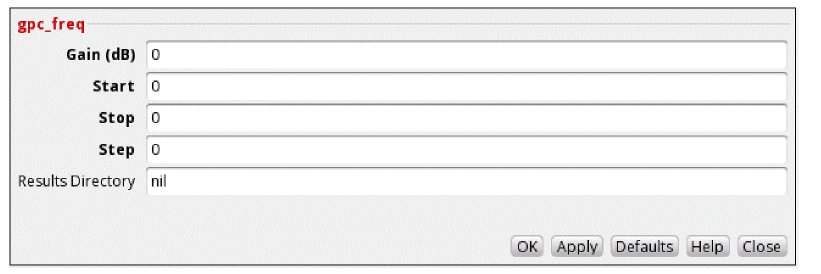

The following values for the function arguments has been specified in this example:







The corresponding expression created in the Buffer is as follows:



gpc_freq(16 2.4G 2.5G 10M)



Ensure that the Impedance graph type is selected in the Selection toolbar.



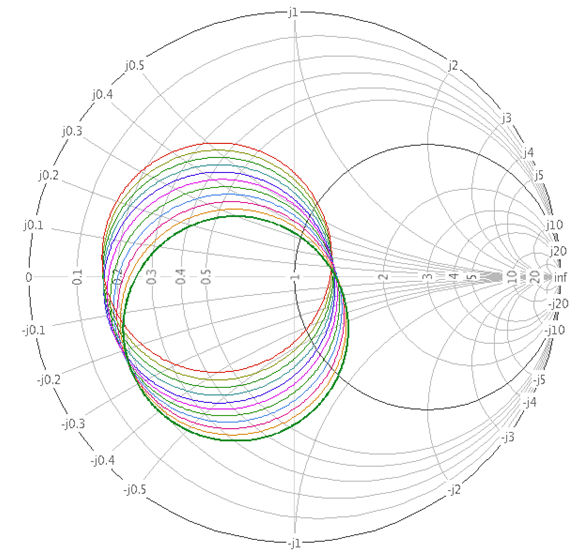

Now, when you evaluate this expression, the following output waveform is displayed in the graph window:


















gpc_gain




Returns the operating power gain circles where the frequency is fixed and gain is swept.













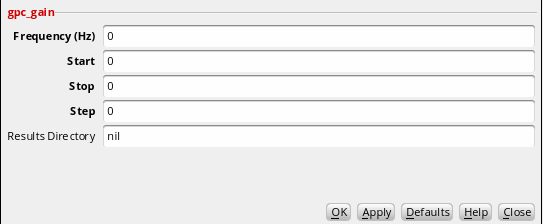

This function includes the following arguments:








The default value is 0 for all the fields.




Example




This example applies the gpc_gain function on the S-Parameter analysis of a Low Noise Amplifier (LNA) design. For detailed information, see How to Run Examples?.



The following values for the function arguments has been specified in this example:







The corresponding expression created in the Buffer is as follows:



gpc_gain(2.4G 14 18 0.5)



Ensure that the Impedance graph type is selected in the Selection toolbar.



Now, when you evaluate this expression, the following output waveform is displayed in the graph window:


















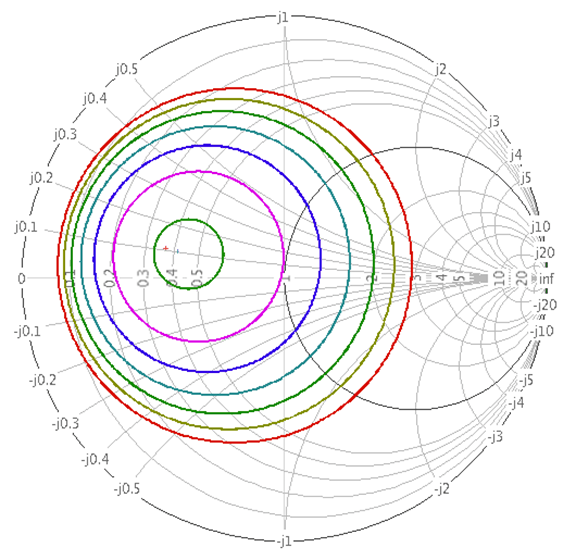

GT




Returns the transducer gain.



Transducer power gain, GT, is defined as the ratio between the power delivered to the load and the power available from the source.













When source and load have impedance Z0, the equations are as follows:
















Example




This example applies the gt function on the S-Parameter analysis of a Low Noise Amplifier (LNA) design. For detailed information, see How to Run Examples?.



When you select the gt function in the Function Panel, the following expression is displayed in the Buffer:



GT()



Now, convert this signal into dB by applying the dB10 function on the above expression. The new expression in the Buffer is as follows:



dB10(GT())



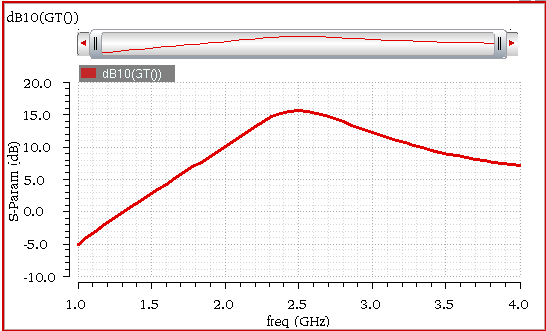

Now, when you evaluate this expression, the following output waveform appears in the graph window:


















Gumx




Returns the maximum unilateral power gain for a two port.



Maximum unilateral transducer power gain, Gumx, is the transducer power gain when S12 is zero, and the source and load impedances conjugate are matching.



Gumx = |S21|^2/((1–|S11|^2)*(1-|S22|^2))




Example




This example applies the gumx function on the S-Parameter analysis of a Low Noise Amplifier (LNA) design. For detailed information, see How to Run Examples?.



When you select the gmux function in the Function Panel, the following expression is displayed in the Buffer:



Gumx()



Now, convert this signal into dB by applying the dB10 function on the above expression. The new expression in the Buffer is as follows:



dB10(Gumx())



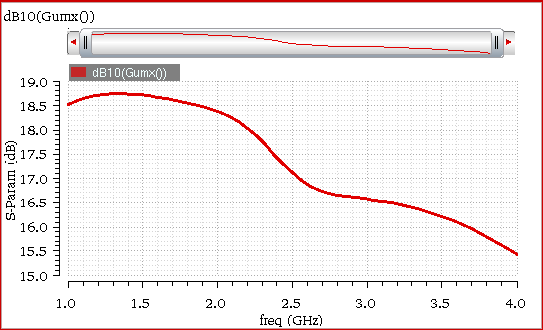

Now, when you evaluate this expression, the following output waveform appears in the graph window:


















Kf




Returns the Rollet stability factor.



The Rollet stability factor calculates circuit stability by using the following equation:













Here,









When Kf>1 and B1f>0, the circuit becomes unconditionally stable.




Example




This example applies the Kf function on Low Noise Amplifier (LNA) design. For detailed information, see How to Run Examples?.



When you select the Kf function in the Function Panel, the following expression is displayed in the Buffer:



Kf()



When you evaluate this expression, the following output waveform appears in the graph window:


















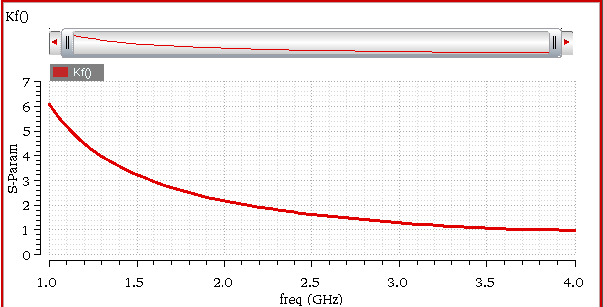

loadStability




Returns the load stability circles. Stability circles define the boundary between stable and potentially unstable
 or

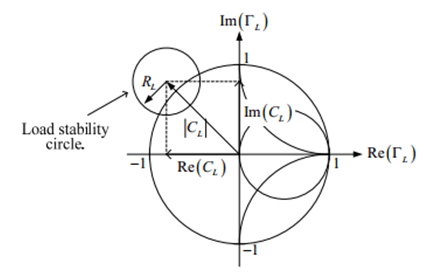

. For a conditionally stable circuit, the load stability on an extended Smith chart is displayed in the figure below:





















This function includes the following arguments:







The default value is 0 for all the fields.




Example




This example applies the loadStability function on the S-Parameter analysis of a Low Noise Amplifier (LNA) design. For detailed information, see How to Run Examples?.



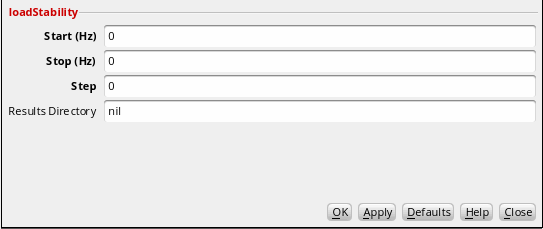

The following values for the function arguments has been specified in this example:






The corresponding expression created in the Buffer is as follows:



loadStability( sp(1 1 ?result "sp" ?resultsDir "./psf") sp(1 2 ?result "sp" ?resultsDir "./psf") sp(2 1 ?result "sp" ?resultsDir "./psf") sp(2 2 ?result "sp" ?resultsDir "./psf") '(2G 3G 0.2G) )



Ensure that the Impedance graph type is selected in the Selection toolbar.



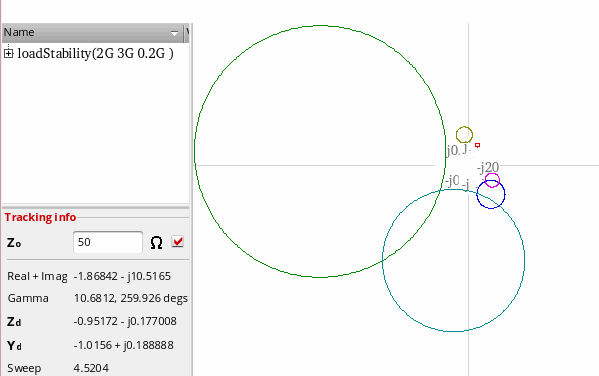

Now, when you evaluate this expression, the following output waveform is displayed in the graph window:


















nc_freq




Returns noise circles with fixed gain.













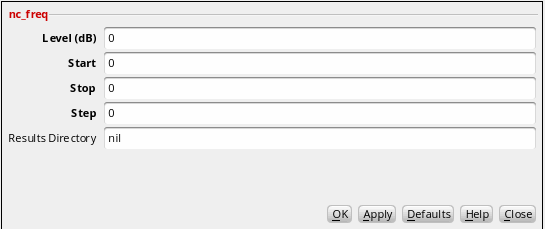

This function includes the following arguments:








The default value is 0 for all the fields.




Example




This example applies the nc_freq function on the S-Parameter analysis of a Low Noise Amplifier (LNA) design. For detailed information, see How to Run Examples?.



The following values for the function arguments has been specified in this example:







The corresponding expression created in the Buffer is as follows:



nc_freq(2 2G 3G 0.2G)



Ensure that the Impedance graph type is selected in the Selection toolbar.



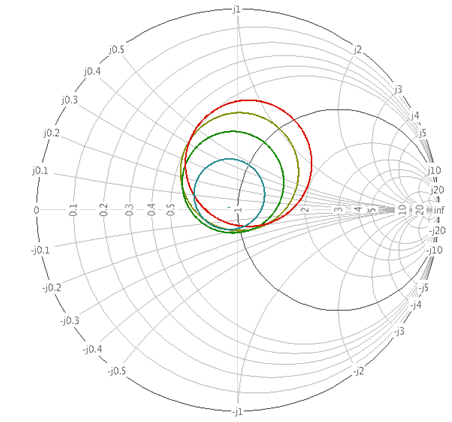

Now, when you evaluate this expression, the following output waveform is displayed in the graph window:


















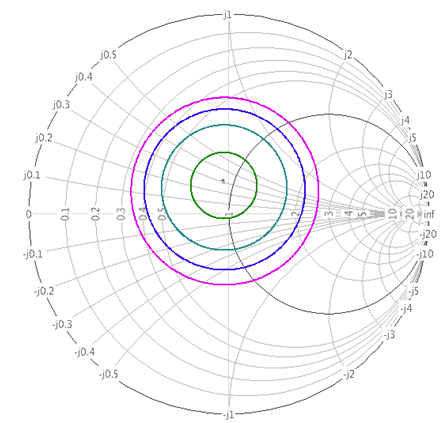

nc_gain




Returns noise circles with fixed frequency.













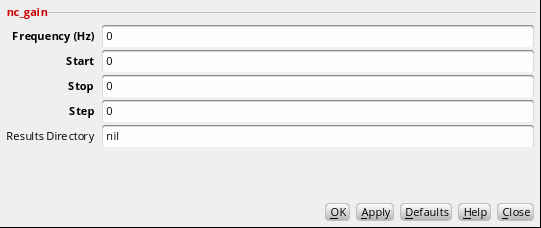

This function includes the following arguments:








The default value is 0 for all the fields.




Example




This example applies the nc_gain function on the S-Parameter analysis of a Low Noise Amplifier (LNA) design. For detailed information, see How to Run Examples?.



The following values for the function arguments has been specified in this example:







The corresponding expression created in the Buffer is as follows:



nc_gain(2.4G 1.5 2.4 0.2)



Ensure that the Impedance graph type is selected in the Selection toolbar.



Now, when you evaluate this expression, the following output waveform is displayed in the graph window:


















NF




Returns the noise figure.



NF=dB10(F)



Here, NF is the noise figure and F is the noise factor. Noise figure of a two-port is given by the ratio of total noise power, PNO, and the available power gain, GA, from the two-port multiplied with the input power PNi.












Example




This example applies the nf function on the S-Parameter analysis of a Low Noise Amplifier (LNA) design.



For detailed information, see How to Run Examples?.



When you select the nf function in the Function Panel, the following expression is displayed in the Buffer:



NF()



Now, when you evaluate this expression, the following output waveform appears in the graph window:


















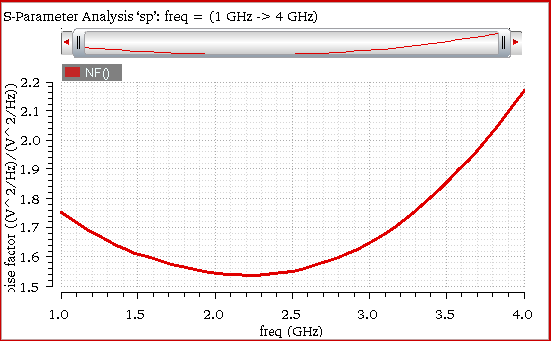

NFmin




Returns the minimum noise figure.












Example




This example applies the nfmin function on the S-Parameter analysis of a Low Noise Amplifier (LNA) design. For detailed information, see How to Run Examples?.



When you select the nfmin function in the Function Panel, the following expression is displayed in the Buffer:



NFmin()



Now, when you evaluate this expression, the following output waveform appears in the graph window:


















rn




Returns the normalized equivalent noise resistance as a function of frequency. This function is available only for a 2-port network from running an S-Parameter analysis.













Here, Rn is the equivalent noise resistance and Z0 is the source impedance. For more details about Rn function, see Rn.




Example




This example applies the rn function on the S-Parameter analysis of a Low Noise Amplifier (LNA) design. For detailed information, see How to Run Examples?.



When you select the rn function in the Function Panel, the following expression is displayed in the Buffer:



rn()



Now, when you evaluate this expression, the following output waveform appears in the graph window:


















s11




Returns s11 of a two-port network. S-parameters describe the response of an N-port network to voltage signals at each port. The first number in the subscript refers to the responding port, while the second number refers to the incident port. Therefore, S11 means the response at port1 due to a signal at port 1.



Consider a two-port network that is characterized by the scattering parameter matrix as below:













where bS and bL are the reflected waves from the input and output of the network, aS and aL are the incident waves to the input and output of the network.




















Example




This example applies the s11 function on the S-parameter analysis of a Low Noise Amplifier (LNA) design. For detailed information, see How to Run Examples?.



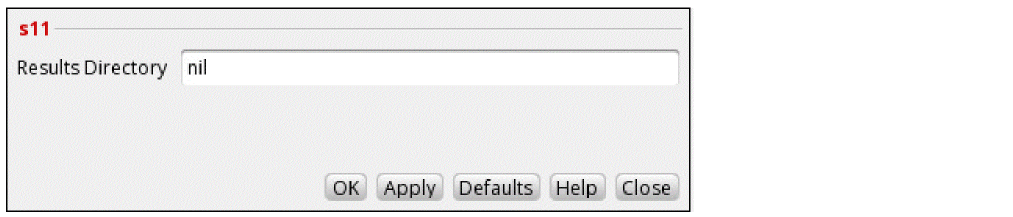

When you select the s11 function in the Function Panel, the following expression is displayed in the Buffer:



S11()



Now, convert this signal into dB by applying the dB20 function on the above expression. The new expression in the Buffer is as follows:



dB20(aaSP(1 1))



Now, when you evaluate this expression, the following output waveform appears in the graph window:


















s12




Returns s12 of a two-port network. S-parameters describe the response of an N-port network to voltage signals at each port. The first number in the subscript refers to the responding port, while the second number refers to the incident port. Therefore, S12 means the response at port1 due to a signal at port 2.



Consider a two-port network that is characterized by the scattering parameter matrix as below:













where bS and bL are the reflected waves from the input and output of the network, aS and aL are the incident waves to the input and output of the network.






















Example




This example applies the s12 function on the S-parameter analysis of a Low Noise Amplifier (LNA) design. For detailed information, see How to Run Examples?.



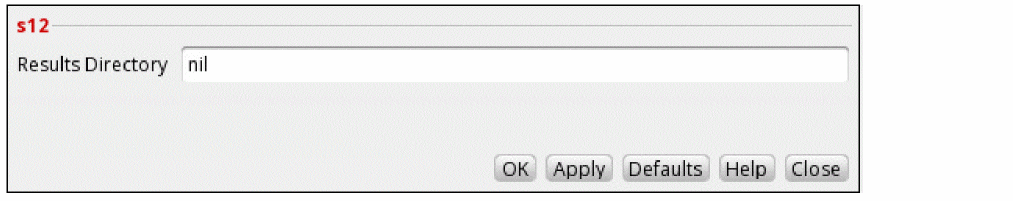

When you select the s12 function in the Function Panel, the following expression is displayed in the Buffer:



S12()



Now, convert this signal into dB by applying the dB20 function on the above expression. The new expression in the Buffer is as follows:



dB20(aaSP(1 2))



Now, when you evaluate this expression, the following output waveform appears in the graph window:


















s21




Returns s21 of a two-port network. S-parameters describe the response of an N-port network to voltage signals at each port. The first number in the subscript refers to the responding port, while the second number refers to the incident port. Therefore, S21 means the response at port 2 due to a signal at port 1.



Consider a two-port network that is characterized by the scattering parameter matrix as below:













where bS and bL are the reflected waves from the input and output of the network, aS and aL are the incident waves to the input and output of the network.






















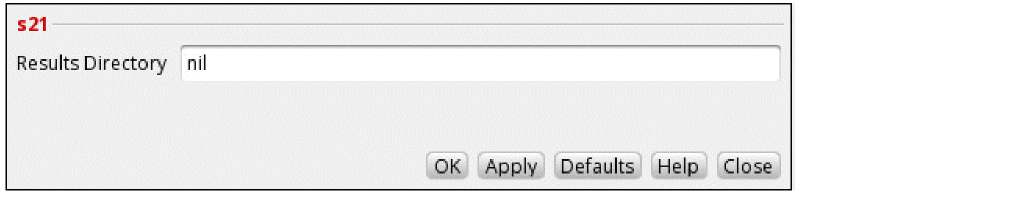

Example




This example applies the s21 function on the S-parameter analysis of a Low Noise Amplifier (LNA) design. For detailed information, see How to Run Examples?.



When you select the s21 function in the Function Panel, the following expression is displayed in the Buffer:



S21()



Now, convert this signal into dB by applying the dB20 function on the above expression. The new expression in the Buffer is as follows:



dB20(aaSP(2 1))



Now, when you evaluate this expression, the following output waveform appears in the graph window:


















s22




Returns s22 of a two-port network. S-parameters describe the response of an N-port network to voltage signals at each port. The first number in the subscript refers to the responding port, while the second number refers to the incident port. Therefore, S22 means the response at port 2 due to a signal at port 2.



Consider a two-port network that is characterized by the scattering parameter matrix as below:













where bS and bL are the reflected waves from the input and output of the network, aS and aL are the incident waves to the input and output of the network.






















Example




This example applies the s22 function on the S-parameter analysis of a Low Noise Amplifier (LNA) design. For detailed information, see How to Run Examples?.



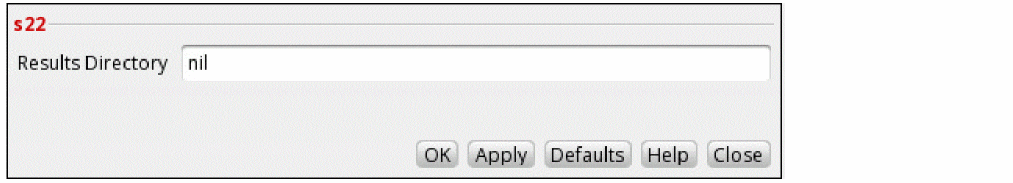

When you select the s22 function in the Function Panel, the following expression is displayed in the Buffer:



S22()



Now, convert this signal into dB by applying the dB20 function on the above expression. The new expression in the Buffer is as follows:



dB20(aaSP(2 2))



Now, when you evaluate this expression, the following output waveform appears in the graph window:


















sourceStability




Returns the source stability circles. Stability circles define the boundary between stable and potentially unstable
 or
. For a conditionally stable circuit, the load stability on an extended Smith chart is displayed in the figure below:



























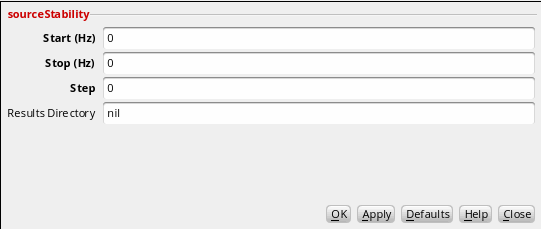

This function includes the following arguments:







The default value is 0 for all the fields.




Example




This example applies the sourceStability function on the S-parameter analysis of a Low Noise Amplifier (LNA) design. For detailed information, see How to Run Examples?.



The following values for the function arguments has been specified in this example:






The corresponding expression created in the Buffer is as follows:



sourceStability( sp(1 1 ?result "sp" ?resultsDir "./psf") sp(1 2 ?result "sp" ?resultsDir "./psf") sp(2 1 ?result "sp" ?resultsDir "./psf") sp(2 2 ?result "sp" ?resultsDir "./psf") '(2G 3G 0.2G) )



Ensure that the Impedance graph type is selected in the Selection toolbar.



Now, when you evaluate this expression, the following output waveform is displayed in the graph window:


















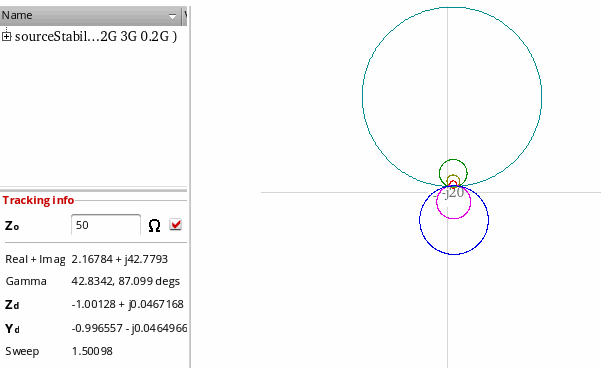

Spectre RF Functions




This section describes the following Spectre RF functions available in the Function Panel of Calculator:


























ifreq




Returns the current of the terminal at a specified frequency or at all frequencies in the frequency domain.













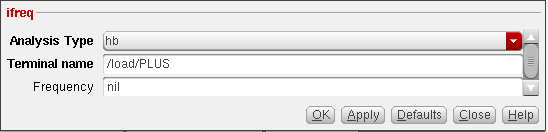

This function includes the following fields:














Example




This example shows the output plot generated if you build the following expression in the Buffer:



ifreq("hb" "/load/PLUS" 50 )



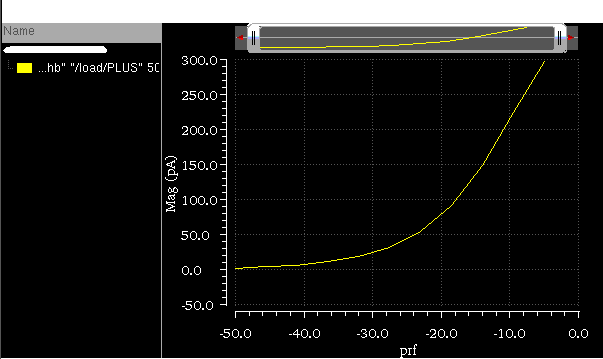

Here,










If you build the above expression with Frequency=nil, the current on all the frequency points are returned (as shown in the figure below).












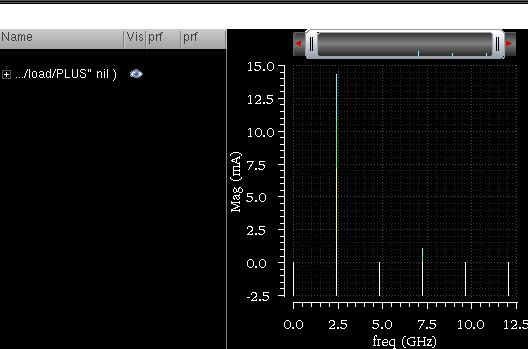

Additional Information




The following expression was created in the Buffer in the previous releases when you calculated the current at a specified frequency or at all frequency points:



i("/load/PLUS" ?result "hb_fd")



However, the similar calculation is now performed with the ifreq function and the following expression is created in the Buffer:



ifreq("hb" "/load/PLUS" nil )










ih




Returns the current of the terminal for a specified harmonic or for the harmonic list in the frequency domain.













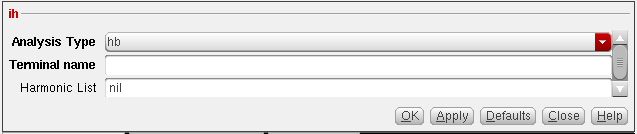

This function includes the following fields:














Example




This example shows the output plot generated if you build the following expression in the Buffer:



ih("hb" "/rf/PLUS" 2 )



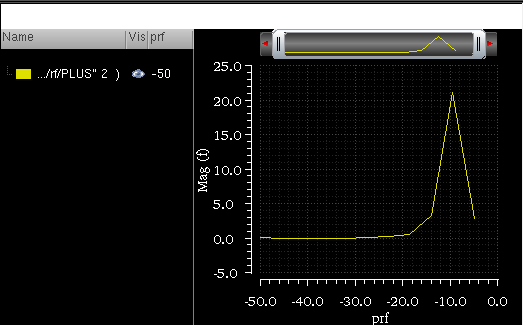

Here,










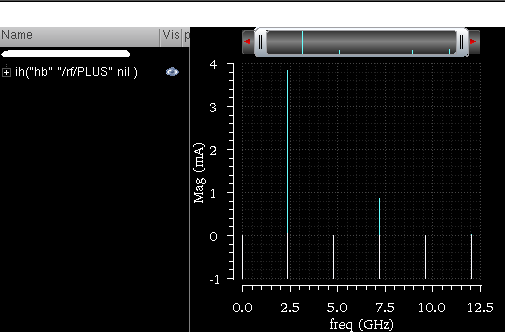

If you build the above expression with Harmonic List=nil, the current on all the harmonic points are returned (as shown in the figure below).












Additional Information




The following expression was created in the Buffer in the previous releases when you calculated the current at a specified harmonic or at all harmonic points:



i("/load/PLUS" ?result "hb_fd")



However, the similar calculation is now performed with the ih function and the following expression is created in the Buffer:



ih("hb" "/load/PLUS" nil )










itime




Returns the current of the terminal at a specified time point or at all time points in the time domain.













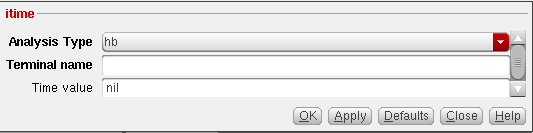

This function includes the following fields:














Example




This example shows the output plot generated if you build the following expression in the Buffer:



itime("hb" "/load/PLUS" 4 )



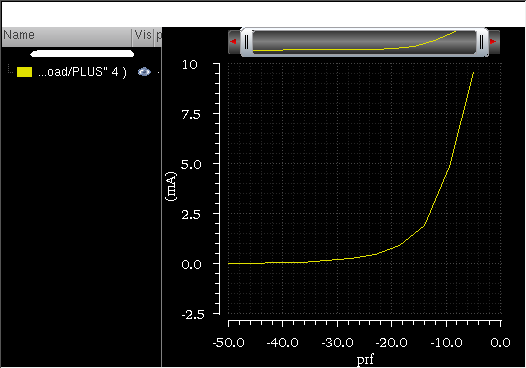

Here,










If you build the above expression with Time value=nil, the current on all the time points are returned (as shown in the figure below).












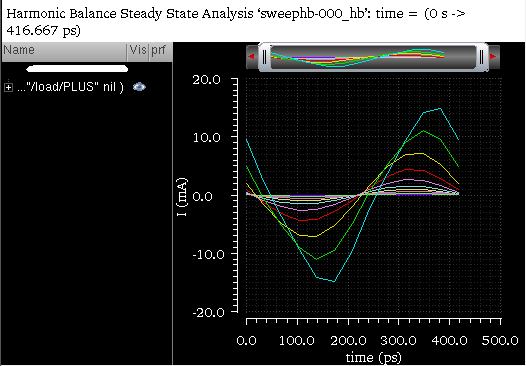

Additional Information




The following expression was created in the Buffer in the previous releases when you calculated the current at a time point or at all time points:



i("/load/PLUS" ?result "hb_td")



However, the similar calculation is now performed with the itime function and the following expression is created in the Buffer:



itime("hb" "/load/PLUS" nil )










pir




Returns the spectral power from the current at two terminals and resistance for a specified harmonic list.













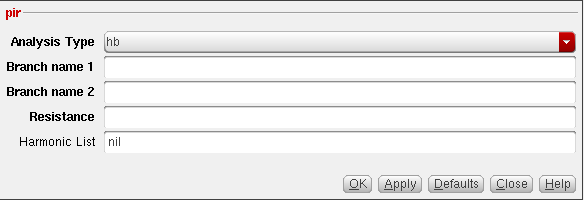

This function includes the following fields:














Example




This example shows the output plot generated if you build the following expression in the Buffer:



pir("hb" "/V1/PLUS" "/rf/PLUS" 2 5 )



Here,












If you build the above expression with Harmonic List=nil, the spectral power on all the harmonic points are returned (as shown in the figure below).












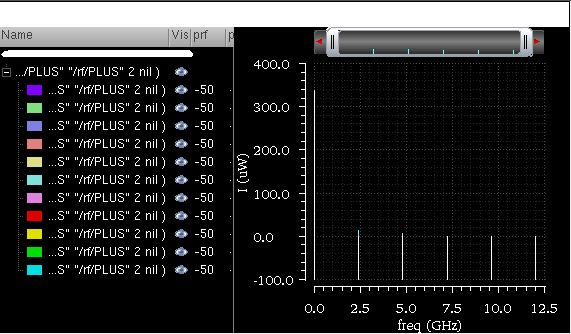

Additional Information




The following expression was created in the Buffer in the previous releases when you calculated the spectral power from current and resistance for a specified harmonic list:



spectralPower(((i("/rf/PLUS" ?result "hb_fd") - i("/load/PLUS" ?result "hb_fd")) * 50) (i("/rf/PLUS" ?result "hb_fd") - i("/load/PLUS" ?result "hb_fd")))



However, the similar calculation is now performed with the pir function and the following expression is created in the Buffer:



pir("hb" "/rf/PLUS" "/load/PLUS" 50 nil )










pmNoise




Returns the modulated phase noise for a specified frequency or for the entire spectrum.













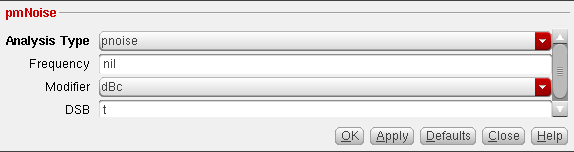

This function includes the following fields:








Example




This example shows the output generated if you build the following expression in the Buffer:



pmNoise("hbnoise" 50 "dBc" t )







The output generated in the Buffer is -50.0, which is a scalar value.



Now, if you specify Frequency=nil, phase noise on all frequency points are returned as shown in the figure below:


















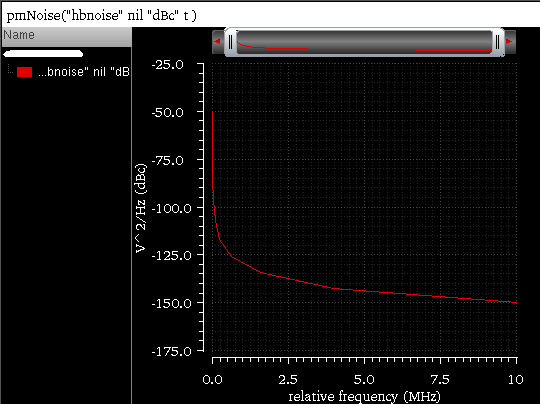

pn




Returns the phase noise at a specified frequency or at all frequency points.













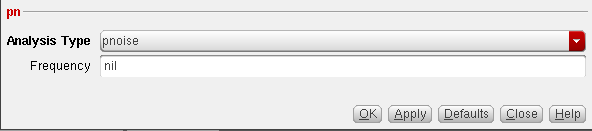

This function includes the following fields:






Example




This example shows the output generated if you build the following expression in the Buffer:



pn("hbnoise" 50 )





The output generated in the Buffer is -53.01, which is a scalar value.



Now, if you specify Frequency=nil, the phase noise on all frequency points are returned as shown in the figure below:



pn("hbnoise" nil )












Additional Information




The following expression was created in the Buffer in the previous releases when you calculated the phase noise at a specified frequency or at all frequency points:



phaseNoise(3 "hb_fd" ?result "hbnoise")



However, the similar calculation is now performed with the pn function and the following expression is created in the Buffer:



pn('hbnoise)










pvi




Returns the spectral power voltage on the positive and negative nodes and the current at two  terminals for a specified harmonic list or for all harmonics.













This function includes the following fields:















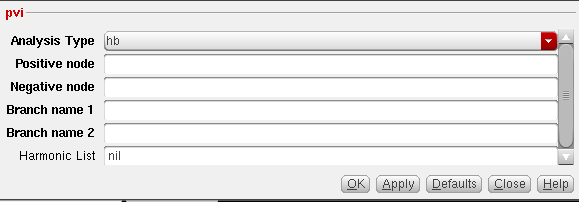

Example 1




The following example shows the output plot generated if you build the following expression in the Buffer:



pvi("hb" "/RFin" "/RFout" "/V1/PLUS" "/V2/PLUS" 2)



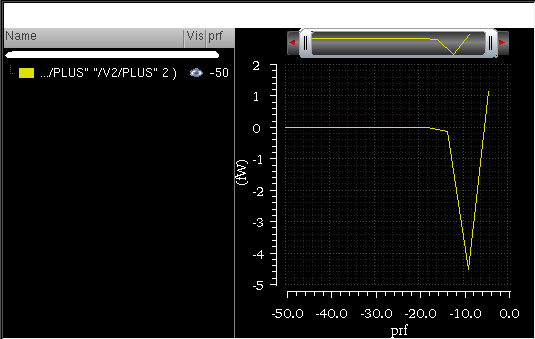

Here,













If you build the above expression with Harmonic List=nil, the spectral power on all the harmonic points are returned (as shown in the figure below).












Example 2




The following example shows the output plot generated if you build the following expression in the Buffer:



pvi("hb" 2 3 "/V1/PLUS" "/V2/PLUS" 2 )



Here,












Additional Information




The following expression was created in the Buffer in the previous releases when you calculated the spectral power from voltage and current at a specified harmonic list or at all harmonics:



spectralPower(i("/load/PLUS" ?result "hb_fd") v("/RFout" ?result "hb_fd"))



However, the similar calculation is now performed with the pvi function and the following expression is created in the Buffer:



pvi("hb" "/RFout" 0 "/load/PLUS" 0 nil )










pvr




Returns the spectral power for a specified harmonic list or for all harmonics with resistor and voltage on the positive and negative nodes.













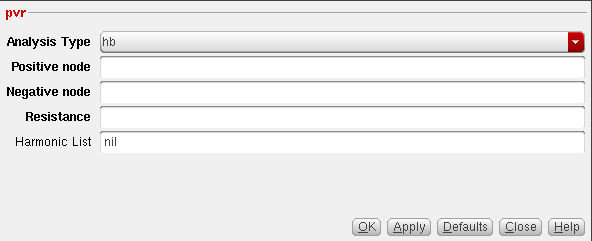

This function includes the following fields:














Example




The following example shows the output plot generated if you build the following expression in the Buffer:



pvr("hb" "/RFin" "/RFout" 2 2 )



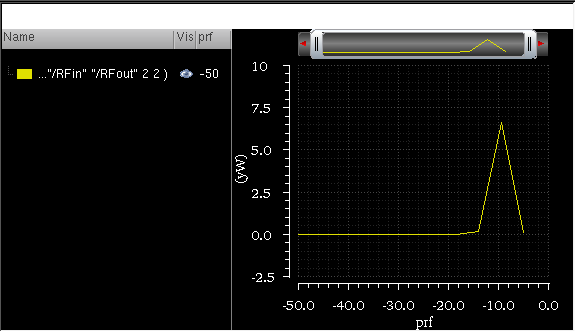

Here,












If you build the above expression with Harmonic List=nil, the spectral power on all the harmonic points are returned (as shown in the figure below).












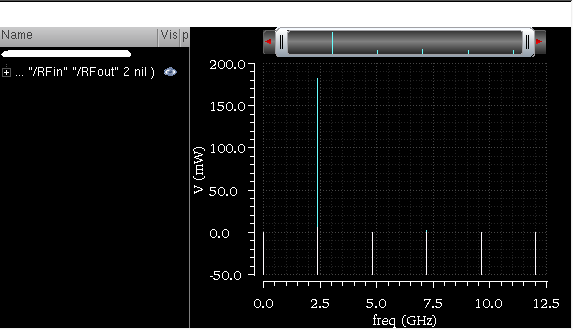

Additional Information




The following expression was created in the Buffer in the previous releases when you calculated the spectral power at a specified harmonic or at all harmonics with resistor and voltage on the positive and negative nodes.



spectralPower(((v("/RFin" ?result "hb_fd") - v("/RFout" ?result "hb_fd")) / 50) (v("/RFin" ?result "hb_fd") - v("/RFout" ?result "hb_fd")))



However, the similar calculation is now performed with the pvr function and the following expression is created in the Buffer:



pvr("hb" "/RFin" "/RFout" 50 nil )










rfGetMinDampFactor




Returns the lowest damping ratio for the loops identified in the Loop Finder (LF) analysis.




Example




Open the results from the Loop Finder (LF) analysis and ensure that the In Context Results DB field in Calculator contains the path of the LF results directory.



When you click the rfGetMinDampFactor function available in the Spectre RF Functions category in the Function Panel, the following expression is created in the Buffer:



rfGetMinDampFactor()



This function does not include any argument.



When you evaluate this expression, the lowest damping ratio for the loops given in the selected results directory is calculated and displayed in the Buffer, as shown in the figure below:


















spm




Returns the waveform for s-parameters.













This function includes the following fields:











Example 1:




This example shows the output plot generated when you build the following expression in the Buffer:



spm("sp" 1 1 ?port1 nil ?port2 nil)



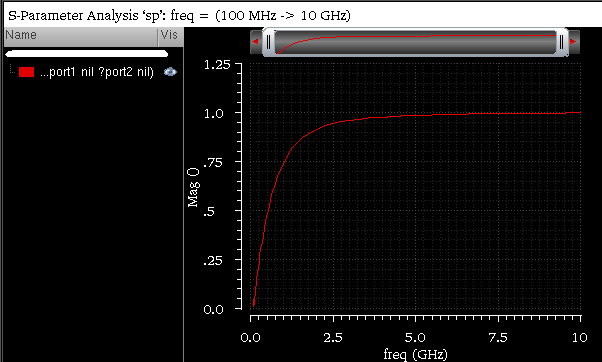

Here,











Example 2




This example shows the output plot generated when you build the following expression in the Buffer for differential s-parameter analysis:



spm("sp" 1 1 ?port1 "c" ?port2 "c")



Here,











Additional Information




The following expression was created in the Buffer in the previous releases when you plotted the waveform for s-parameters:



sp( 1 1 ?result \"sp\" ?port1 nil ?port2 nil)



However, the similar plot is now generated with the spm function and the following expression is created in the Buffer:



spm( \"sp\" 1 1 ?port1 nil ?port2 nil)










totalNoise




Calculates the integrated noise power over a specified bandwidth.













where
 is the noise voltage spectral density in
 computed by the noise, pnoise, qpnoise or hbnoise analyses.



Spectre keeps a track of the contribution of individual noise sources to the output noise. You can also optionally subtract the specified device instance contributions from the totalNoise calculation by using the formula given below.














 is the contribution of a specified device to the output noise.













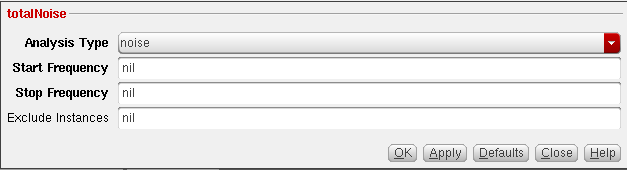

This function includes the following fields:








Example




This example shows the output generated when you build the following expression in the Buffer:



totalNoise("hbnoise" 1k 100k nil )



Here,







The output generated in the Buffer is 479.7E-9, which is a scalar value.




Example 2




This example shows the output generated when you build the following expression in the Buffer:



totalNoise("noise" 1G 2G list("/R0", "/R1"))



Here,







In this example, the noise contributed by resistor schematic instances /R0 and /R1 is excluded from the totalNoise calculation.




Example 3




The following example shows the total noise calculated for the noise, hbnoise, and pnoise analyses with various start and end frequency values. The Exclude Instances argument is specified for some expressions that means noise from the given instances is excluded.



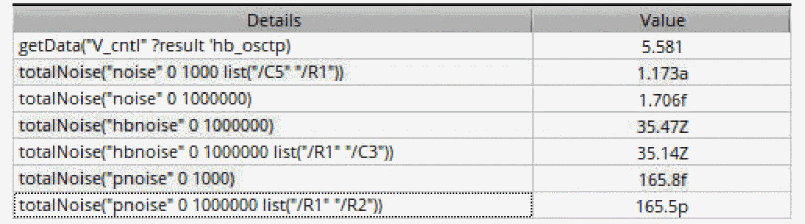

The results database used or this example is: ../totalNoise/psf


















vfreq




Returns the voltage of net at a specified frequency or at all frequencies in the frequency domain.













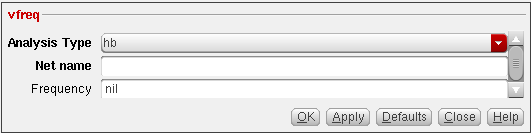

This function includes the following fields:














Example




This example shows the output plot generated if you build the following expression in the Buffer:



vfreq("hb" "/outp" 50 )



Here,










If you build the above expression with Frequency=nil, the voltage on all the frequency points are returned (as shown in the figure below).












Additional Information




The following expression was created in the Buffer in the previous releases when you calculated voltage of net at a specified frequency or at all frequencies in the frequency domain:



v("/RFout" ?result "hbac")



However, the similar calculation is now performed with the vfreq function and the following expression is created in the Buffer:



vfreq('hbac "/RFout")










vh




Returns the voltage on net at a specified harmonic or at all harmonics in the frequency domain.













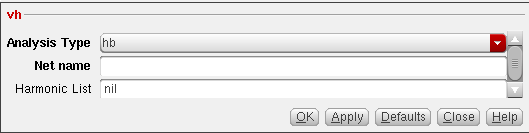

This function includes the following fields:














Example




This example shows the output plot generated if you build the following expression in the Buffer:



vh("hb" "/outp" 5 )



Here,










If you build the above expression with Harmonic List=nil, the voltage on all the harmonic points are returned (as shown in the figure below).












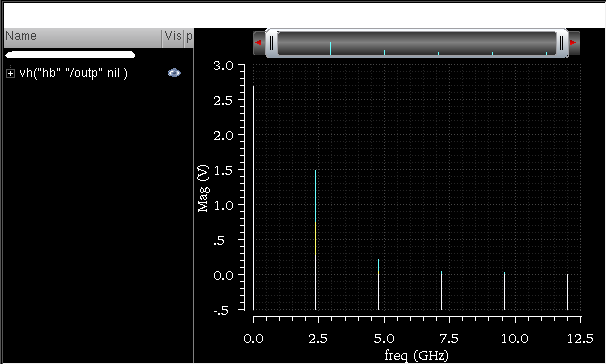

Additional Information




The following expression was created in the Buffer in the previous releases when you calculated the voltage on net at a specified harmonic or at all harmonics in the frequency domain:



v("/RFout" ?result "hb_fd")



However, the similar calculation is now performed with the vh function and the following expression is created in the Buffer:



vh('hb "/RFout")










vtime




Returns the voltage of net at a specified time point or at all time points in the time domain.













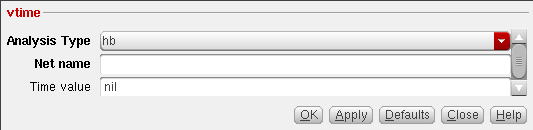

This function includes the following fields:














Example




This example shows the output plot generated if you build the following expression in the Buffer:



vtime("hb" "/net10" 20)



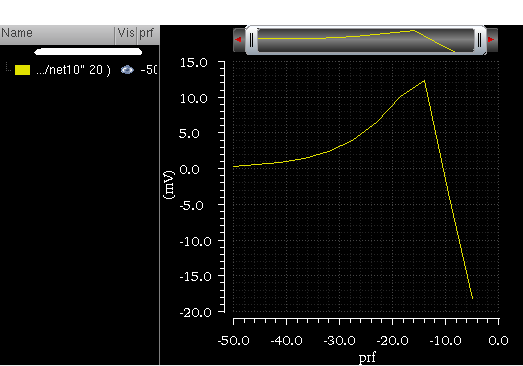

Here,










If you build the above expression with Time value=nil, the voltage on all the time points are returned (as shown in the figure below).












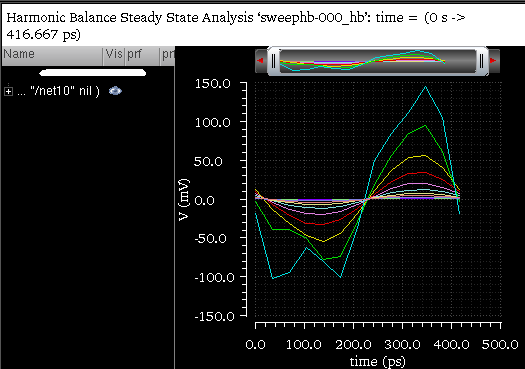

Additional Information




The following expression was created in the Buffer in the previous releases when you calculated the voltage of net at a specified time point or at all time points in the time domain:



v("/RFin" ?result "hb_td")



However, the similar calculation is now performed with the vtime function and the following expression is created in the Buffer:



vtime("hb" "/RFin" nil )










ypm




Returns the waveform for the y-parameter.













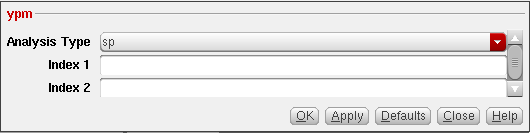

This function includes the following fields:







Example




This example shows the output plot generated when you build the following expression in the Buffer:



ypm("sp" 1 1)



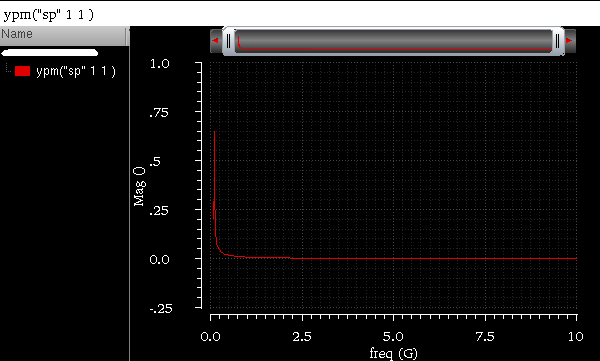

Here,









Additional Information




The following expression was created in the Buffer in the previous releases when you plotted the waveform for y-parameters:



yp(1 1 ?result \"sp\")



However, the similar plot is now generated with the ypm function and the following expression is created in the Buffer:



ypm('sp 1 1)










zpm




Returns the waveform for the z-parameter.













This function includes the following fields:







Example




This example shows the output plot generated when you build the following expression in the Buffer:



zpm("sp" 1 1)



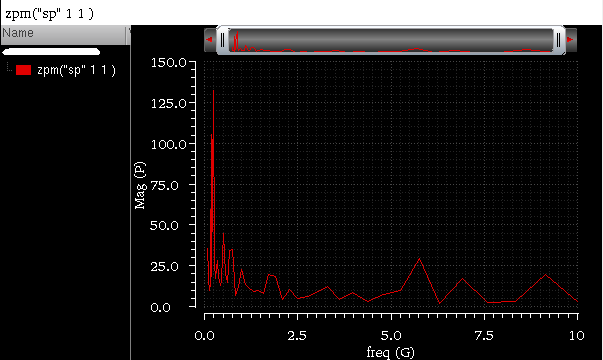

Here,









Additional Information




The following expression was created in the Buffer in the previous releases when you plotted the waveform for z-parameters:



zp(1 1 ?result \"sp\")



However, the similar plot is now generated with the zpm function and the following expression is created in the Buffer:



zpm('sp 1 1)


































































Return to top






 ⠀
X
