Group Array Editing

While working with a group array, you can perform basic functions such as stretching, moving, chopping, or ungrouping the group array. The drag mode set in the groupArrayDragMode environment variable is used while stretching a group array.

You can edit a group array by using the Edit Group Array Properties form, the Property Editor assistant, or the lxUpdateGroupArrayParams SKILL function. You can modify the following attributes of a group array:

• Number of rows and columns
• Spacing mode and values
• Orientation of individual cells
• Holes in the pattern
• Lock status of the group array, whether users can modify spacing mode and values

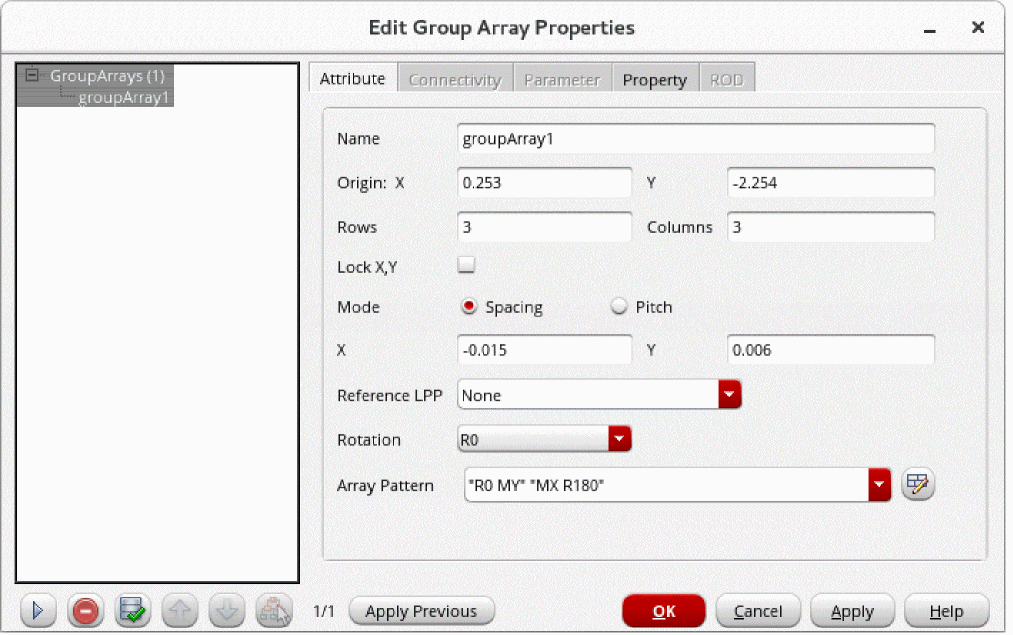

The following image shows group array properties displayed in the Edit Group Array Properties form.
