Basic Library Categories

---

The basic library is a default reference library provided within the Virtuoso cds.lib file.

This reference contains basic information about each symbol within the basic library.

The symbols in the basic library are categorized as follows:

• Misc
• Obsolete
• Pins
• Supplies
• VHDLPins

You can customize the values of symbols by amending the definition of the associated SKILL variables in the file schConfig.il. The file schconfig.il (located in install_dir/tools/dfII/samples/local) specifies various schematic editor configurations, including a configuration of the symbols within this library.

Misc

The Misc category (miscellaneous) lists those symbols that do not fall within the Supplies and Pins categories. It includes the following symbols:

• cds_alias
• cds_thru
• cds_thrualias
• dummy
• nlpglobals
• noConn
• onPageConn
• patch

cds_alias

Symbol View

cds_alias does not have a symbol view.

Description

A simple cell used by Verilog netlisters to short two nets.

cds_thru

Symbol View

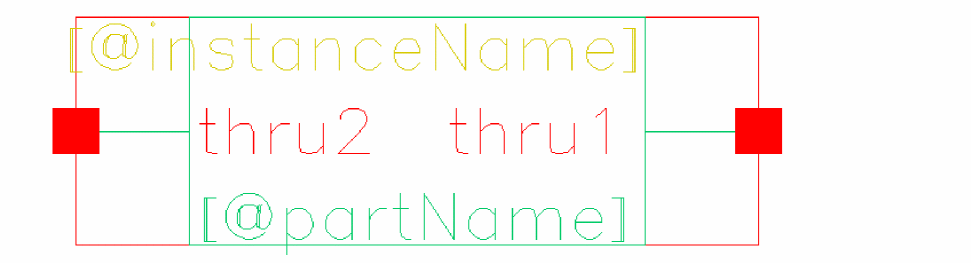

Description

This symbol is used as a component to create a connection that may otherwise be reported as a short. For example, when you need a short between two terminals or between a terminal and a global signal, use cds_thru as it prevents connectivity extraction errors in Virtuoso Schematic Editor due to shorted terminals.

The component is designed to netlist for the following tools:

• cdl/auCdl: a small value resistor that can be ignored by using *.RESI commands
• spectre: an iprobe, which is a zero-voltage source
• Verilog: a module describing the short. Terminal-to-terminal assigns are legal in Verilog.

In addition to a symbol view, this component cell has a functional view and other analog views, such as auLvs, hspice, hspiceD, spectre, and so on. The type of simulation determines whether a functional or analog view is used. To use an analog netlister to netlist a schematic, you can use analog views in the Hierarchy Editor (HED). To use the Verilog netlister, a functional view must be used in HED.

If you want to use another library and cell for shorting terminals, refer to Virtuoso VHDL Toolbox User Guide.

When an instance is bound to the function view of cds_thru in HED, cds_thrualias also display as a sub-instance of cds_thru in the hierarchy. AMS Unified Netlister (AMS UNL) generates an instance with cds_thru and passes the files, including the definitions of cds_thru and cds_thrualias, to the simulator. For example:

cds_thru I39 ( net012 ,  net09 );

Example

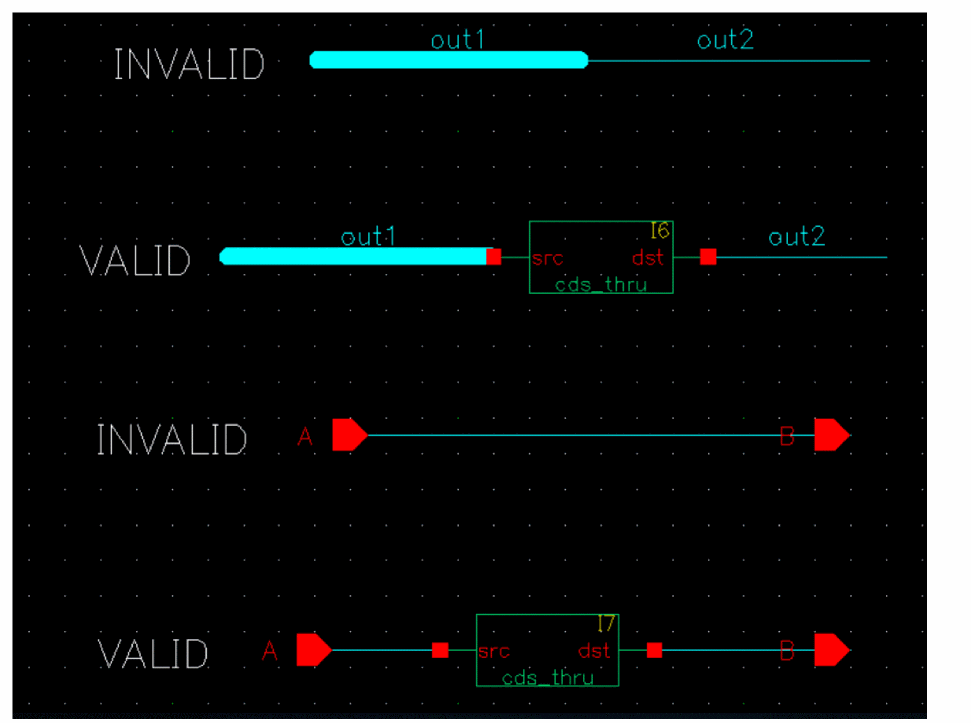

To short together two pins labeled out1 and out2, you can place the cds_thru component between the two pins. It would netlist in Spectre as follows:

I0 (out1 out2) iprobe

The iprobe does not affect the simulation run. So you have shorted out1 to out2. The following screenshot shows valid and invalid connections:

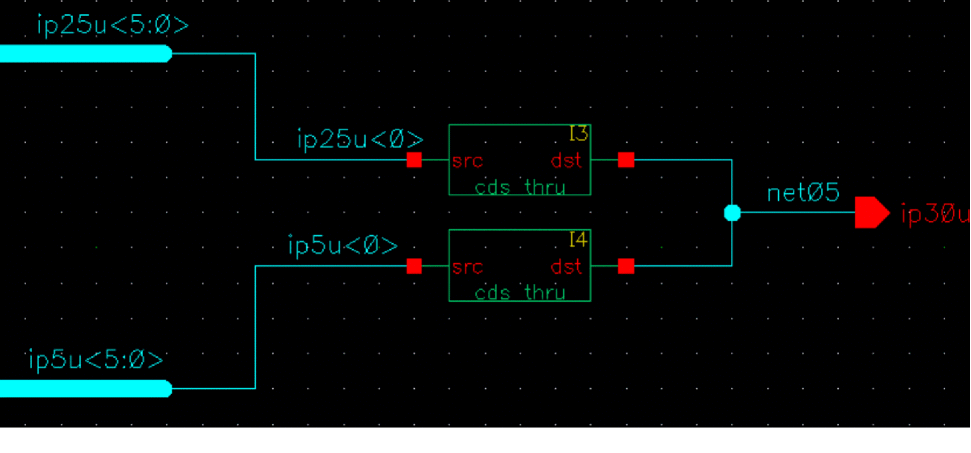

You can also combine two bus nets to form a single net using cds_thru as follows:

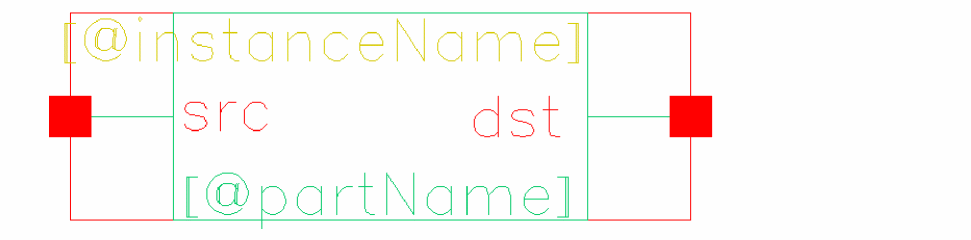

cds_thrualias

Symbol View

Description

When an instance is bound to the function view of cds_thru in the HED, cds_thrualias is also displayed as a sub-instance of cds_thru in the hierarchy.

AMS UNL generates an instance with cds_thru and passes the files, including the definitions of cds_thru and cds_thrualias, to the simulator.

Example

cds_thrualias I40 ( net015 ,  net014 );

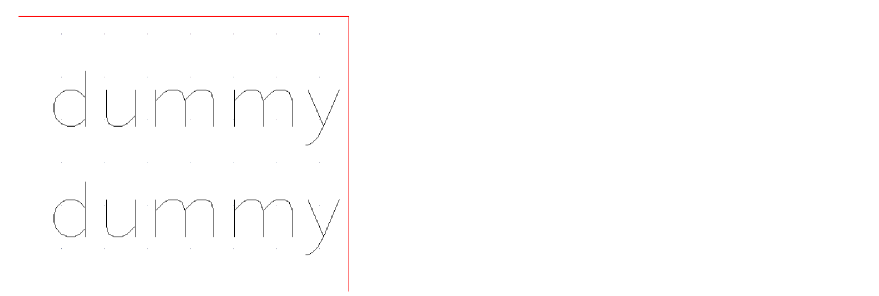

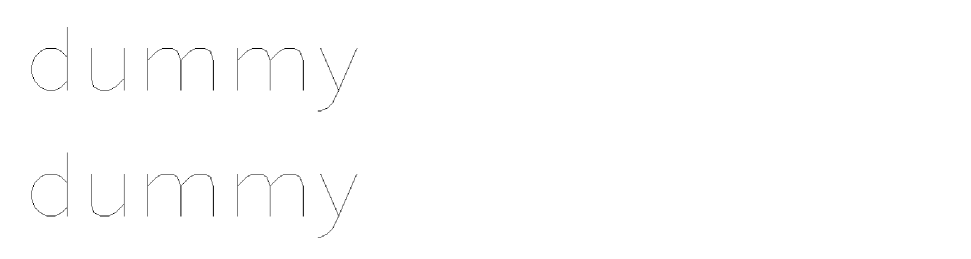

dummy

Symbol View

Description

A dummy symbol provided for nlpglobals.

nlpglobals

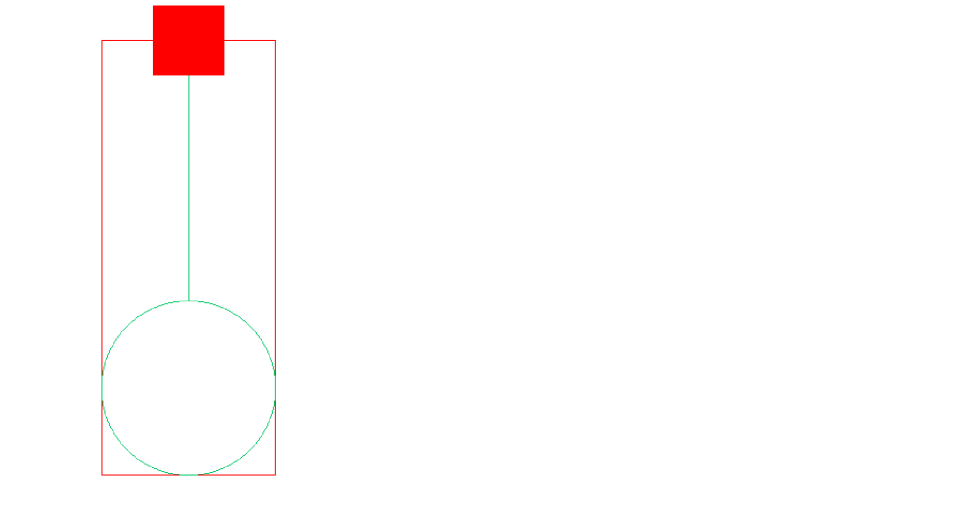

Symbol View

Description

A global block symbol containing the global netlist format property definitions used to indicate global nets. This is required when creating a global cellview for netlisting.

You must create an nlpglobals cell if using the flat netlister (FNL) to create a netlist. For more details on creating global cellviews, refer to the Open Simulation System Reference.

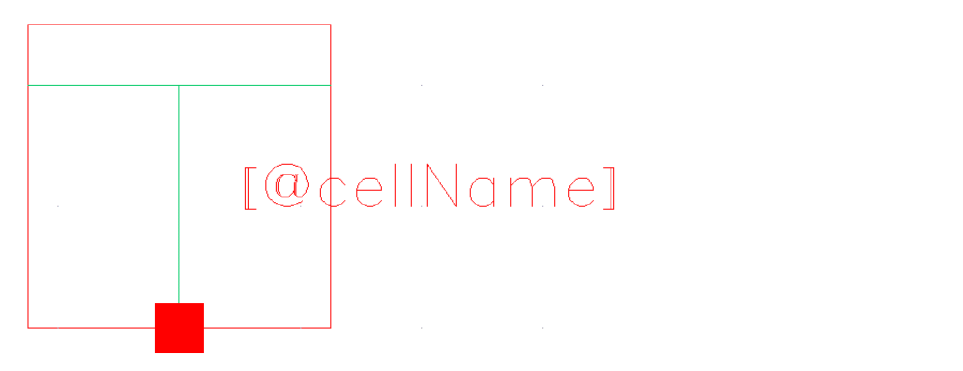

noConn

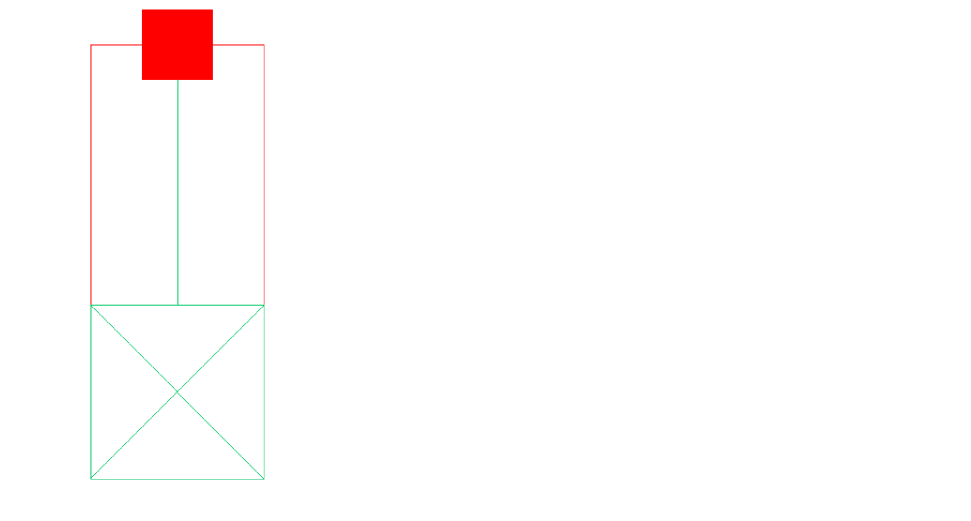

Symbol View

Description

This symbol can be attached to pins with signals that are unconnected to component output pins, schematic input pins, or any other schematic I/O pins. Adding this symbol to such pins ensures that they are not highlighted by the floating pin check.

Example

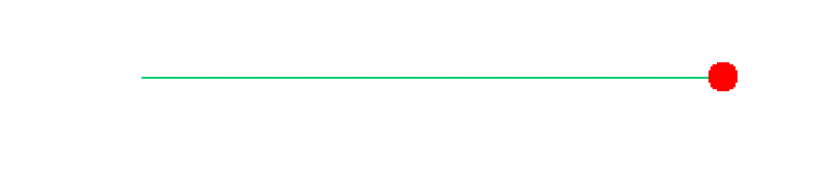

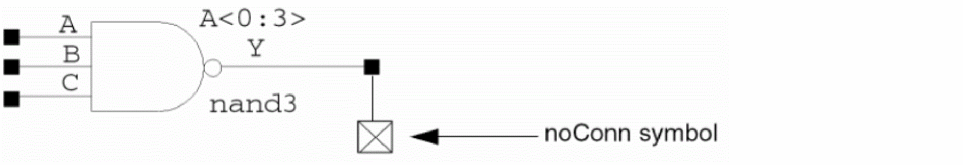

When the noConn +symbol is placed on the end of a dangling wire, the schematic rules check does not highlight the wire as an error.

Related Topics

For more details, see Bypassing Floating Pin Checks in the Virtuoso Schematic Editor User Guide.

onPageConn

Symbol View

Description

Use this symbol on wires without end points that do not physically connect to schematic or component pins, labels, or other wire segments. Attaching this symbol bypasses the unconnected wire check.

Example

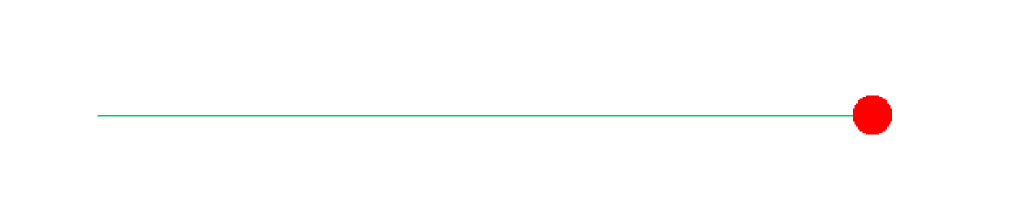

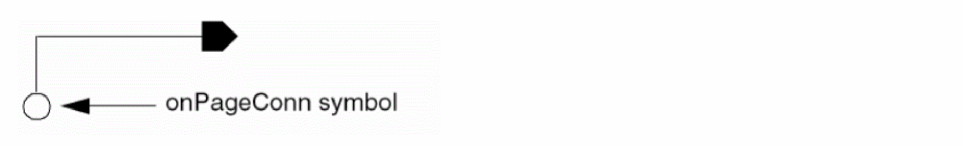

When the onPageConn symbol is placed on the end of a dangling wire, the schematic rules check does not highlight the wire as an error.

Related Topics

For more details, see Bypassing Unconnected Wire Checks in the Virtuoso Schematic Editor User Guide.

patch

Symbol View

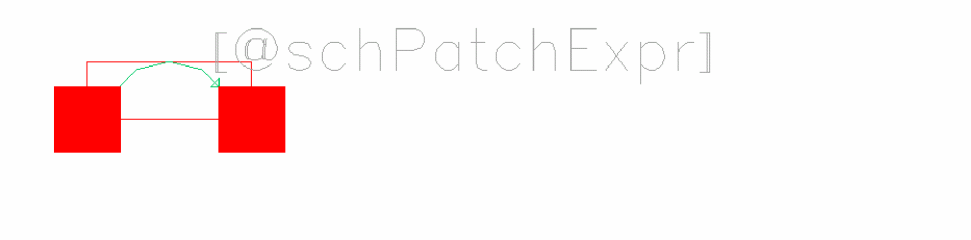

Description

Use this symbol to create a patchcord to establish aliases between the signals of two different nets.

Example

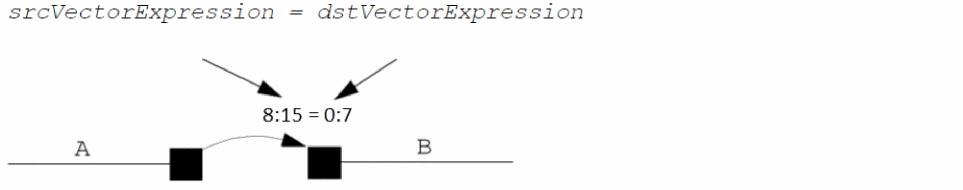

Nets A and B are aliased together. Logically, each object that A is connected to is also connected to B, and the patchcord connects the first bit named in srcVectorExpression to the first bit named in dstVectorExpression.

Related Topics

See the following topics in the Virtuoso Schematic Editor User Guide:

Patchcord Connections and Patchcord Naming Conventions

Adding Patchcords Using the Add Instances Form

Adding Patchcords Using the Create Patchcord Form

Obsolete

The symbols listed in this section are obsolete and should not be used for new designs. They are preserved for existing designs.

Connectors

FCON

MCON

MiscObsolete

simNameState

simState

Saber

idc	isin	vexp
iexp	vccs	vpulse
ipulse	vcvs	vpwl
ipwl	vdc	vsin

SuppliesObsolete

CGND	GND	VDD
DGND	PWR
EGND	VCC

TA

dst	iosc	src
gnd_net	oosc	ta_vdd

Pins

The Pins category lists the symbol pins. It includes the following symbols:

• actHiInOut / actHiInp / actHiOut
• blockiopin / blockipin / blockopin
• circle
• commActLoInOut / commActLoInp / commActLoOut
• ieeeActLoInOut / ieeeActLoInp / ieeeActLoOut
• in / io / out
• iopin / ipin / opin
• sympin
• tsgActLo
• tsgActLoClock
• tsgClock
• tsgIeeeActLoInp
• tsgIeeeActLoOut

For more details, see Adding Pins as Graphic Images in the Virtuoso Schematic Editor User Guide.

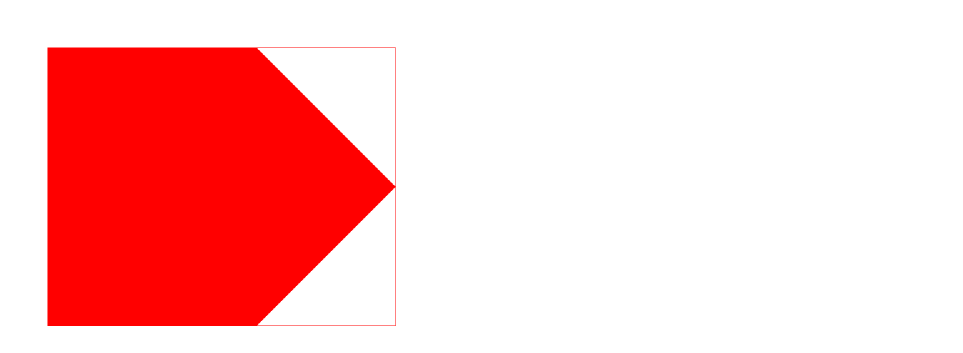

actHiInOut

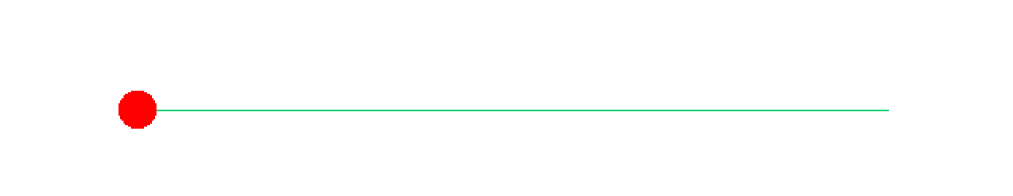

Symbol View

Description

A symbol pin used when the pin type actHi is selected with a direction of input-output on the Create Pin — Symbol form. There are also input and output direction pins available for the pin type actHi.

The schSymbolPinMasters variable defines the symbol pins that are associated with the specific pin direction and type.

For more details, see Customizing Global Editor Variables for Form Fields in the Virtuoso Schematic Editor User Guide.

Example

schSymbolPinMasters = list(

 list("actHi"

     list("inputOutput" list("basic" "actHiInOut" "symbol")))
)

actHiInp

Symbol View

Description

A symbol pin used when the pin type actHi is selected with a direction of input on the Create Pin — Symbol form. There are also output and inputOutput direction pins available for the pin type actHi.

The schSymbolPinMasters variable defines the symbol pins that are associated with the specific pin direction and type.

For more details, see Customizing Global Editor Variables for Form Fields in the Virtuoso Schematic Editor User Guide.

Example

schSymbolPinMasters = list(

 list("actHi"

     list("input" list("basic" "actHiInp"   "symbol")))
)

actHiOut

Symbol View

Description

A symbol pin used when the pin type actHi is selected with a direction of output on the Create Pin — Symbol form. There are also input and inputOutput direction pins available for the pin type actHi.

The schSymbolPinMasters variable defines the symbol pins that are associated with the specific pin direction and type.

For more details, see Customizing Global Editor Variables for Form Fields in the Virtuoso Schematic Editor User Guide.

Example

schSymbolPinMasters = list(

 list("actHi"
     list("output" list("basic" "actHiOut"   "symbol")))
)

blockiopin

Symbol View

Description

A symbol pin used when the pin type block is selected with a direction of inputOutput on the Create Pin — Symbol form.

The schSymbolPinMasters variable defines the symbol pins that are associated with the specific pin direction and type. The tsgConnectorMasters variable defines the symbol of the pin connector.

For more details, see Customizing Global Editor Variables for Form Fields in the Virtuoso Schematic Editor User Guide.

Example

schSymbolPinMasters = list(

 list("block"

     list("inputOutput" list("basic" "blockiopin" "symbol")))
)

Related Topics

Adding Blocks in the Virtuoso Schematic Editor User Guide

blockipin

Symbol View

Description

A symbol pin used when the pin type block is selected with a direction of input on the Create Pin — Symbol form.

The schSymbolPinMasters variable defines the symbol pins that are associated with the specific pin direction and type. The tsgConnectorMasters variable defines the symbol of the pin connector.

For more details, see Customizing Global Editor Variables for Form Fields in the Virtuoso Schematic Editor User Guide.

Example

schSymbolPinMasters = list(

 list("block"

     list("input" list("basic" "blockipin"  "symbol")))
)

Related Topics

Adding Blocks in the Virtuoso Schematic Editor User Guide

blockopin

Symbol View

Description

A symbol pin used when the pin type block is selected with a direction of output on the Create Pin — Symbol form.

The schSymbolPinMasters variable defines the symbol pins that are associated with the specific pin direction and type. The tsgConnectorMasters variable defines the symbol of the pin connector.

For more details, see Customizing Global Editor Variables for Form Fields in the Virtuoso Schematic Editor User Guide.

Example

schSymbolPinMasters = list(

 list("block"

     list("output" list("basic" "blockopin"  "symbol")))
)

Related Topics

Adding Blocks in the Virtuoso Schematic Editor User Guide

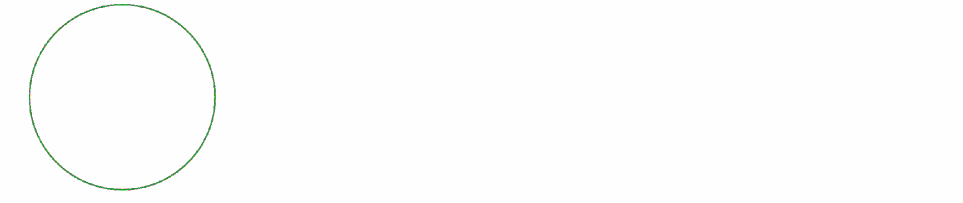

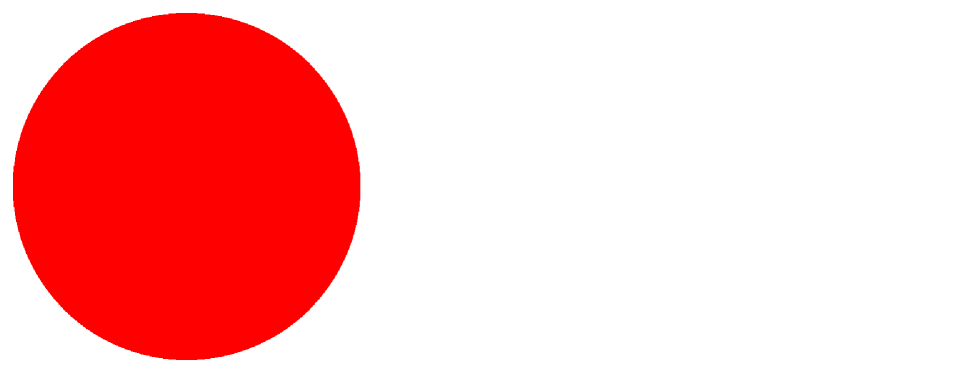

circle

Symbol View

Description

A symbol pin used when the pin type round is selected on the Create Pin — Symbol form.

The schSymbolPinMasters variable defines the symbol pins that are associated with the specific pin direction and type. The tsgConnectorMasters variable defines the symbol of the pin connector.

For more details, see Customizing Global Editor Variables for Form Fields in the Virtuoso Schematic Editor User Guide.

Example

schSymbolPinMasters = list(

 list("round"

     list("input" list("basic" "circle" "symbol"))

     list("output" list("basic" "circle" "symbol"))

     list("inputOutput" list("basic" "circle" "symbol"))

     list("switch" list("basic" "circle" "symbol"))

     list("jumper" list("basic" "circle" "symbol"))

     list("tristate" list("basic" "circle" "symbol"))

     list("unused" list("basic" "circle" "symbol")))
)

commActLoInOut

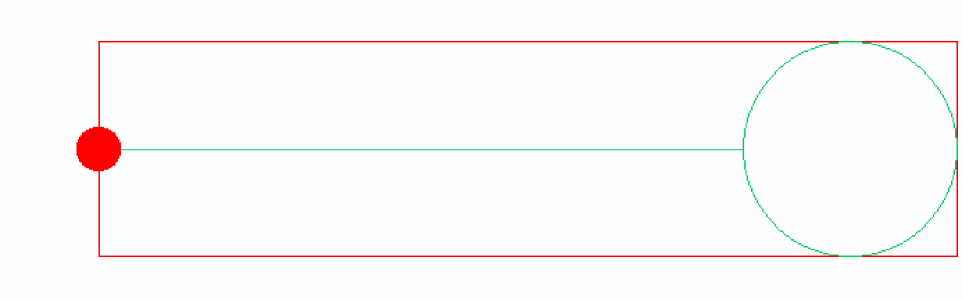

Symbol View

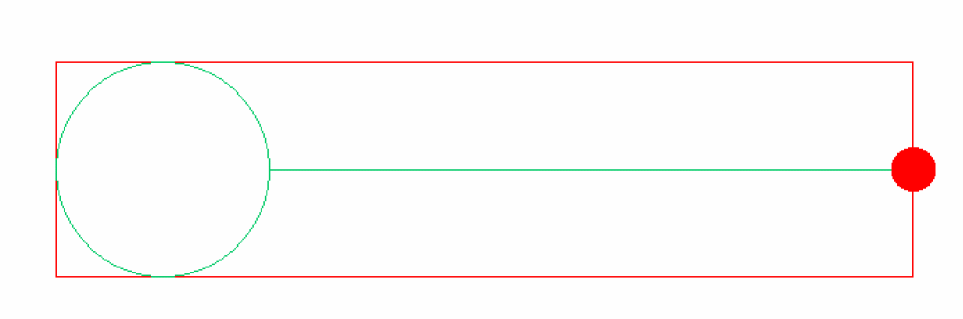

Description

A symbol pin used when the pin type commActLo is selected with a direction of inputOutput on the Create Pin — Symbol form. There are also input and output direction pins available for the pin type commActLo.

The schSymbolPinMasters variable defines the symbol pins that are associated with the specific pin types and directions.

For more details, see Customizing Global Editor Variables for Form Fields in the Virtuoso Schematic Editor User Guide.

Example

schSymbolPinMasters = list(

 list("commActLo"

     list("inputOutput" list("basic" "commActLoInOut" "symbol")))
)

commActLoInp

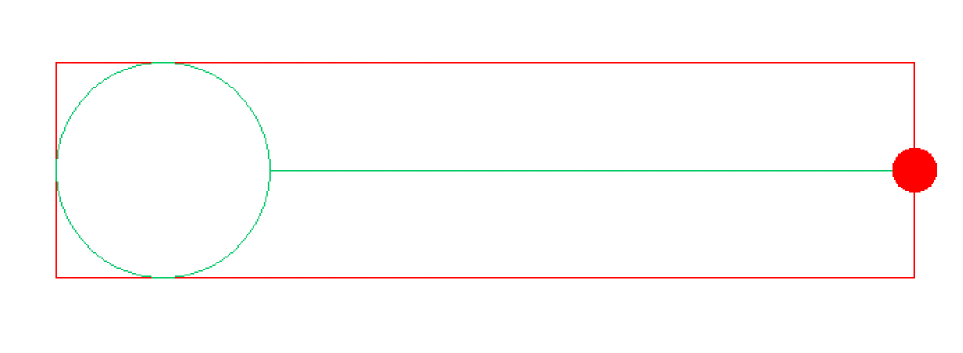

Symbol View

Description

A symbol pin used when the pin type commActLo is selected with a direction of input on the Create Pin — Symbol form. There are also output and inputOutput direction pins available for the pin type commActLo.

The schSymbolPinMasters variable defines the symbol pins that are associated with the specific pin types and directions.

For more details, see Customizing Global Editor Variables for Form Fields in the Virtuoso Schematic Editor User Guide.

Example

schSymbolPinMasters = list(

 list("commActLo"

     list("input" list("basic" "commActLoInp"   "symbol")))
)

commActLoOut

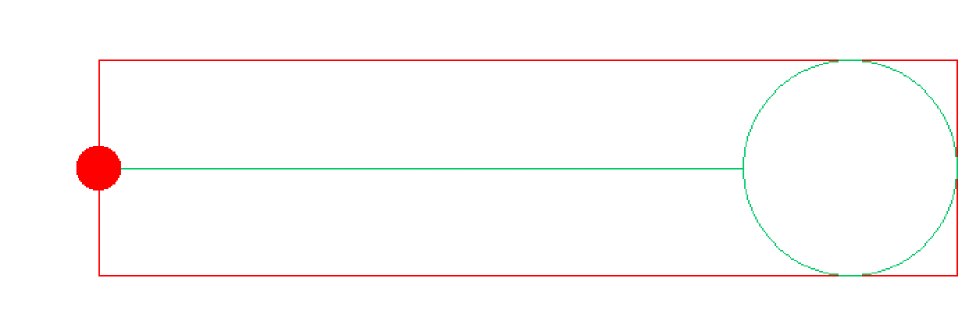

Symbol View

Description

A symbol pin used when the pin type commActLo is selected with a direction of output on the Create Pin — Symbol form. There are also input and inputOutput direction pins available for the pin type commActLo.

The schSymbolPinMasters variable defines the symbol pins that are associated with the specific pin types and directions.

For more details, see Customizing Global Editor Variables for Form Fields in the Virtuoso Schematic Editor User Guide.

Example

schSymbolPinMasters = list(

 list("commActLo"

     list("output" list("basic" "commActLoOut"   "symbol")))
)

ieeeActLoInOut

Symbol View

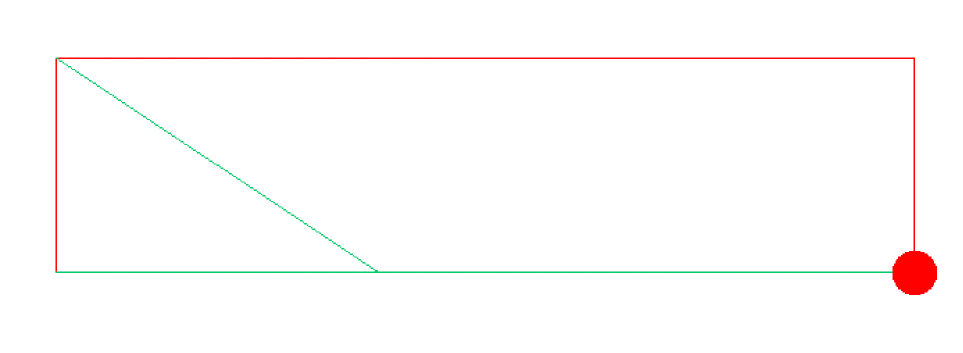

Description

A symbol pin used when the pin type ieeActLo is selected with a direction of inputOutput on the Create Pin — Symbol form. There are also input and output direction pins available for the pin type ieeActLo.

The schSymbolPinMasters variable defines the symbol pins that are associated with the specific pin types and directions.

For more details, see Customizing Global Editor Variables for Form Fields in the Virtuoso Schematic Editor User Guide.

Example

schSymbolPinMasters = list(

 list("ieeeActLo"

     list("inputOutput" list("basic" "ieeeActLoInOut" "symbol")))

)

ieeeActLoInp

Symbol View

Description

A symbol pin used when the pin type ieeActLo is selected with a direction of input on the Create Pin — Symbol form. There are also output and inputOutput direction pins available for the pin type ieeActLo.

The schSymbolPinMasters variable defines the symbol pins that are associated with the specific pin types and directions.

For more details, see Customizing Global Editor Variables for Form Fields in the Virtuoso Schematic Editor User Guide.

Example

schSymbolPinMasters = list(

 list("ieeeActLo"

     list("input" list("basic" "ieeeActLoInp" "symbol")))

)

ieeeActLoOut

Symbol View

Description

A symbol pin used when the pin type ieeActLo is selected with a direction of output on the Create Pin — Symbol form. There are also input and inputOutput direction pins available for the pin type ieeActLo.

The schSymbolPinMasters variable defines the symbol pins that are associated with the specific pin types and directions.

For more details, see Customizing Global Editor Variables for Form Fields in the Virtuoso Schematic Editor User Guide.

Example

schSymbolPinMasters = list(

 list("ieeeActLo"

     list("output" list("basic" "ieeeActLoOut" "symbol")))
)

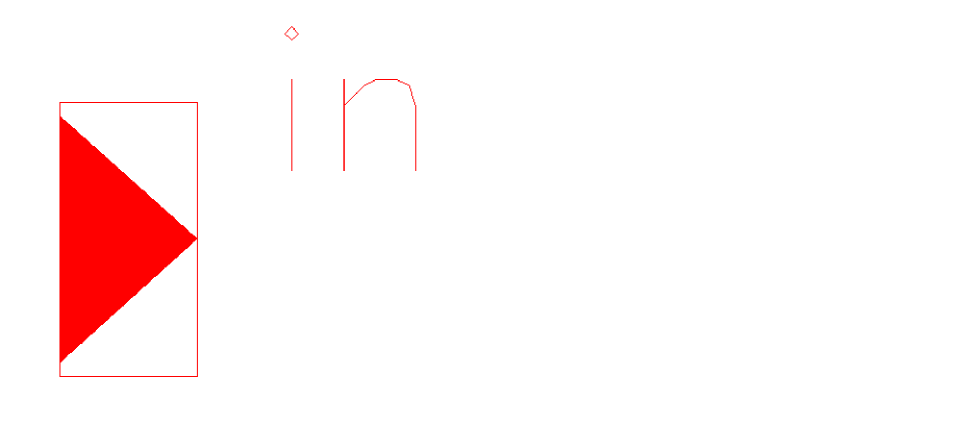

in

Symbol View

Description

A symbol pin used to represent the input terminals to which a net connects in a schematic. It is one of the pin masters available when you choose the Create – Pin command in Virtuoso Schematic Editor. There are also output and inputOutput direction pins available.

Related Topics

See the following topics in the Virtuoso Schematic Editor User Guide:

Adding Pins

Create Pin — Schematic

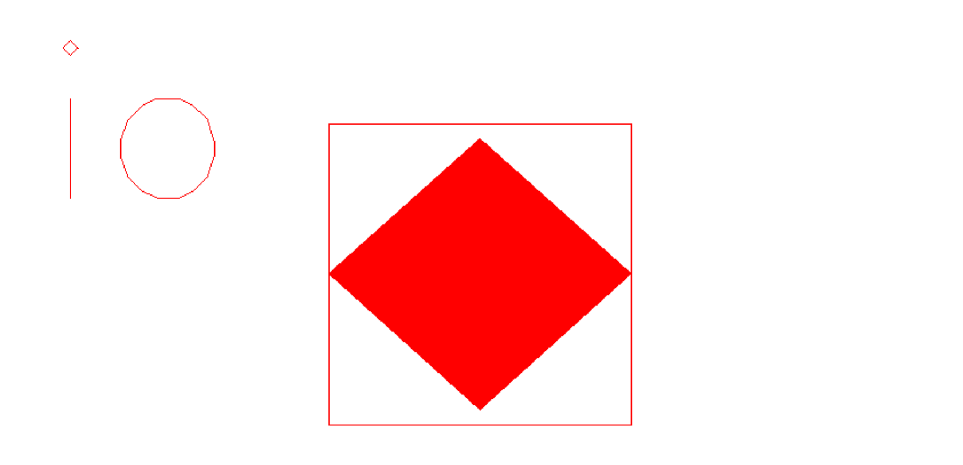

io

Symbol View

Description

A symbol pin used to represent the inputOutput terminals to which a net connects in a schematic. It is one of the pin masters available when you choose the Create – Pin command in Virtuoso Schematic Editor. There are also input and output direction pins available.

Related Topics

See the following topics in the Virtuoso Schematic Editor User Guide:

Adding Pins

Create Pin — Schematic

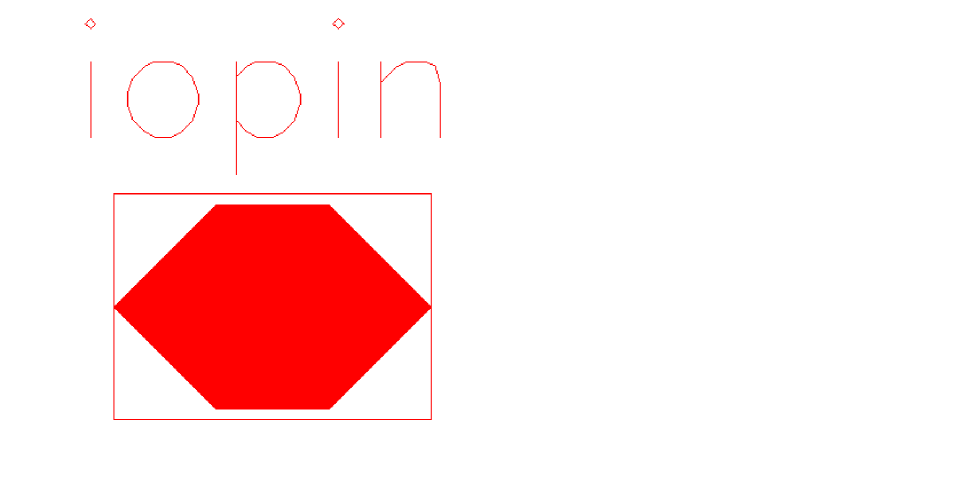

iopin

Symbol View

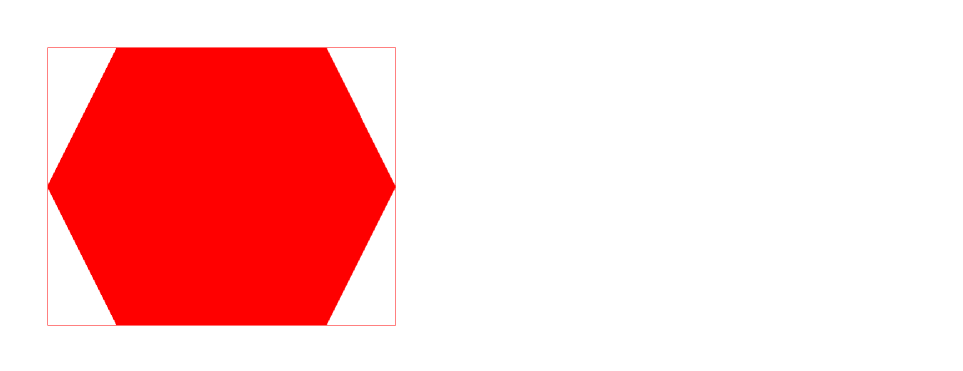

Description

A symbol pin used to represent the inputOutput direction. It is one of the symbol pin masters available when you choose the Create — Pin command in Virtuoso Schematic Editor. There are also input and output direction pins available.

Related Topics

See the following topics in the Virtuoso Schematic Editor User Guide:

Adding Pins

Create Pin — Symbol

ipin

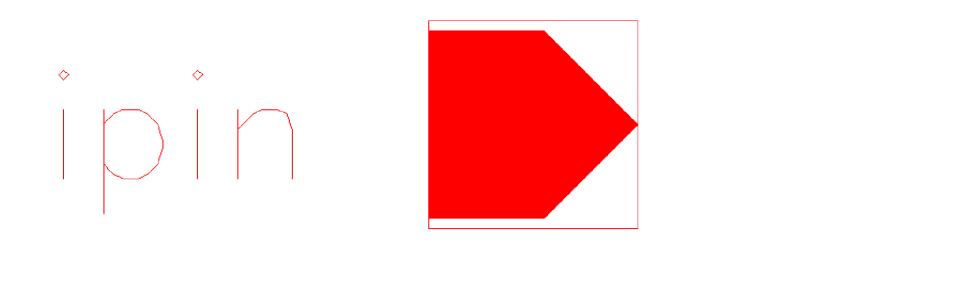

Symbol View

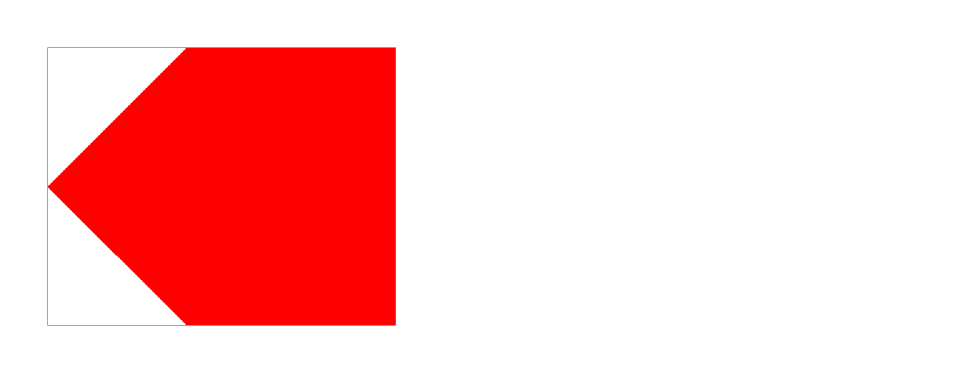

Description

A symbol pin used to represent the input direction. It is one of the symbol pin masters available when you choose the Create — Pin command in Virtuoso Schematic Editor. There are also output and inputOutput direction pins available.

Related Topics

See the following topics in the Virtuoso Schematic Editor User Guide:

Adding Pins

Create Pin — Symbol

opin

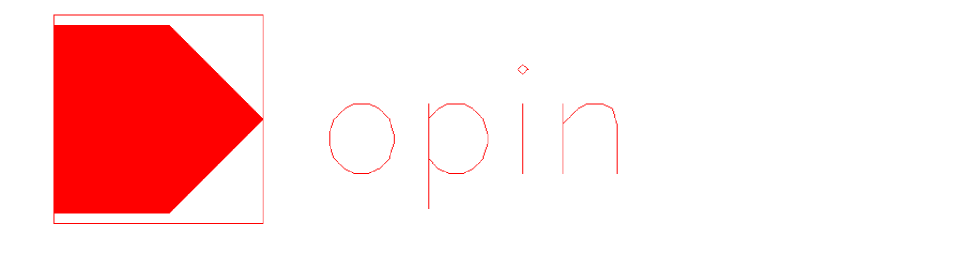

Symbol View

Description

A symbol pin used to represent the output direction. It is one of the symbol pin masters available when you choose the Create — Pin command in Virtuoso Schematic Editor. There are also input and inputOutput direction pins available.

Related Topics

See the following topics in the Virtuoso Schematic Editor User Guide:

Adding Pins

Create Pin — Symbol

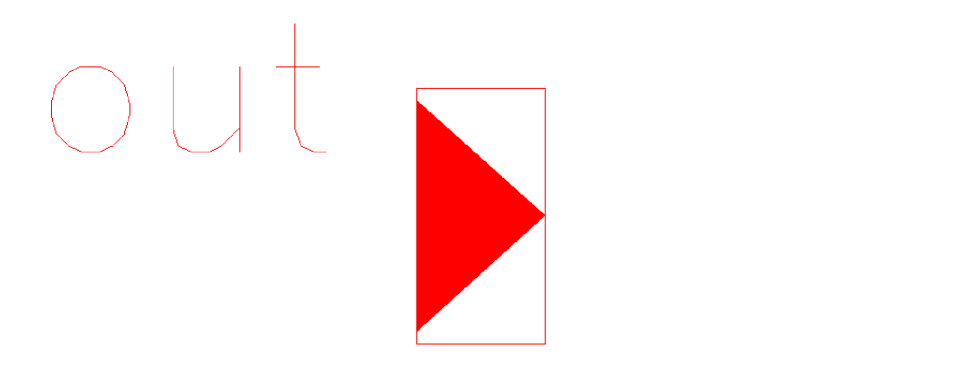

out

Symbol View

Description

This pin represents the output terminals to which a net connects in a schematic. It is one of the pin masters available when you choose the Create – Pin command. There are also input and inputOutput direction pins available.

Related Topics

See the following topics in the Virtuoso Schematic Editor User Guide:

Adding Pins

Create Pin — Schematic

sympin

Symbol View

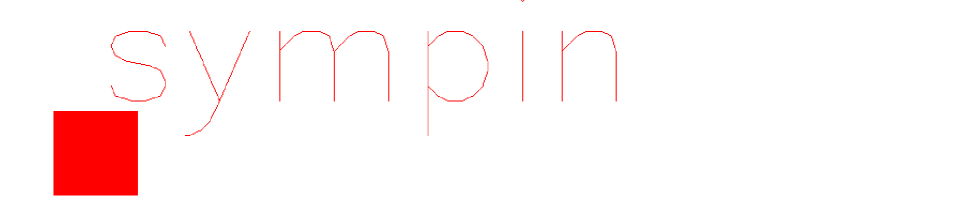

Description

This symbol pin represents the square pin type. It is one of the symbol pin masters available when you choose the Create – Pin command.

The schSymbolPinMasters variable defines the symbol pins that are associated with the specific pin direction and type. The tsgConnectorMasters variable defines the symbol of the pin connector.

For more details, see Customizing Global Editor Variables for Form Fields in the Virtuoso Schematic Editor User Guide.

Example

schSymbolPinMasters = list(

 list("square"

     list("input"       list("basic" "sympin" "symbolNN"))

     list("output"      list("basic" "sympin" "symbolNN"))

     list("inputOutput" list("basic" "sympin" "symbolNN"))

     list("switch"      list("basic" "sympin" "symbolNN"))

     list("jumper"      list("basic" "sympin" "symbolNN"))

     list("tristate"    list("basic" "sympin" "symbolNN"))

     list("unused"      list("basic" "sympin" "symbolNN")))

)

Related Topics

Create Pin — Symbol in the Virtuoso Schematic Editor User Guide

tsgActLo

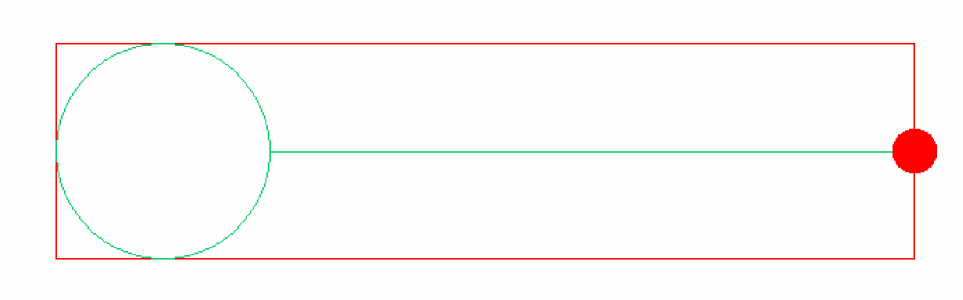

Symbol View

Description

A pin graphic master for actLo. The pin graphic is selected using the appropriate Attributes - List option in the Symbol Generation Options form.

The tsgActLo pin graphic is available from the tsgPinGraphicMasters variable, which defines the characteristics of the graphic when generating symbols. This information is not used by any other tool.

The text-to-symbol generator (TSG) is a Cadence application program that automatically generates symbol cellviews for the Virtuoso Schematic Editor and subsequent simulation processes. TSG provides a quick way to generate a symbol from a list of pins in a TSG file.

Example

tsgPinGraphicMasters = list(

 list("actLo"

     list("input"        list("basic" "tsgActLo"   "symbol"))

     list("output"       list("basic" "tsgActLo"   "symbol"))

     list("inputOutput"  list("basic" "tsgActLo"   "symbol"))

     list("switch"       list("basic" "tsgActLo"   "symbol"))

     list("jumper"       list("basic" "tsgActLo"   "symbol"))

     list("tristate"     list("basic" "tsgActLo"   "symbol"))

     list("unused"       list("basic" "tsgActLo"   "symbol")))

)

Related Topics

See the following topics in the Virtuoso Schematic Editor User Guide:

Text-to-Symbol Generator

Editing Symbol Generation Options

tsgActLoClock

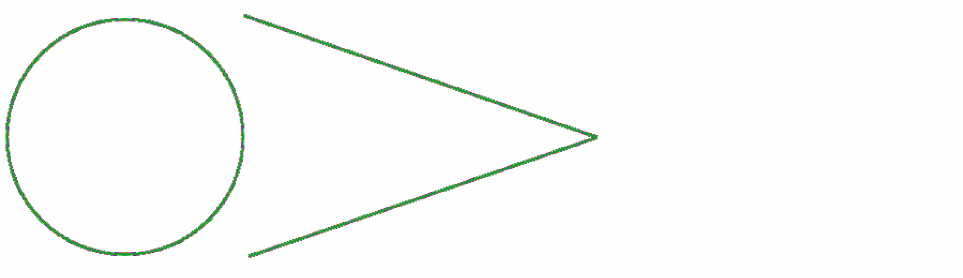

Symbol View

Description

A pin graphic master for actLoClock. The pin graphic is selected using the appropriate Attributes - List option in the Symbol Generation Options form.

The tsgActLoClock pin graphic s available from the tsgPinGraphicMasters variable, which defines the characteristics of the graphic when generating symbols. It displays an additional pin shape on the symbol. This information is not used by any other tool.

The text-to-symbol generator (TSG) is a Cadence application program that automatically generates symbol cellviews for the Virtuoso Schematic Editor and subsequent simulation processes. TSG provides a quick way to generate a symbol from a list of pins in a TSG file.

Example

tsgPinGraphicMasters = list(

 list("actLoClock"

     list("input"        list("basic" "tsgActLoClock"  "symbol"))

     list("output"       list("basic" "tsgActLoClock"  "symbol"))

     list("inputOutput"  list("basic" "tsgActLoClock"  "symbol")))

)

Related Topics

See the following topics in the Virtuoso Schematic Editor User Guide:

Text-to-Symbol Generator

Editing Symbol Generation Options

tsgClock

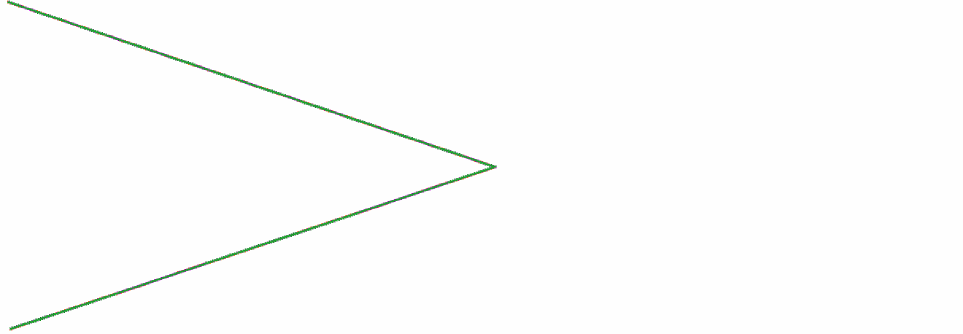

Symbol View

Description

A pin graphic master for clock. The pin graphic is selected using the appropriate Attributes - List option in the Symbol Generation Options form.

The tsgClock pin graphic is available from the tsgPinGraphicMasters variable, which defines the characteristics of the graphic when generating symbols. It displays an additional pin shape on the symbol. This information is not used by any other tool.

The text-to-symbol generator (TSG) is a Cadence application program that automatically generates symbol cellviews for the Virtuoso Schematic Editor and subsequent simulation processes. TSG provides a quick way to generate a symbol from a list of pins in a TSG file.

Example

tsgPinGraphicMasters = list(

 list("clock"

     list("input"        list("basic" "tsgClock"  "symbol"))

     list("output"       list("basic" "tsgClock"  "symbol"))

     list("inputOutput"  list("basic" "tsgClock" "symbol")))

)

Related Topics

See the following topics in the Virtuoso Schematic Editor User Guide:

Text-to-Symbol Generator

Editing Symbol Generation Options

tsgIeeeActLoInp

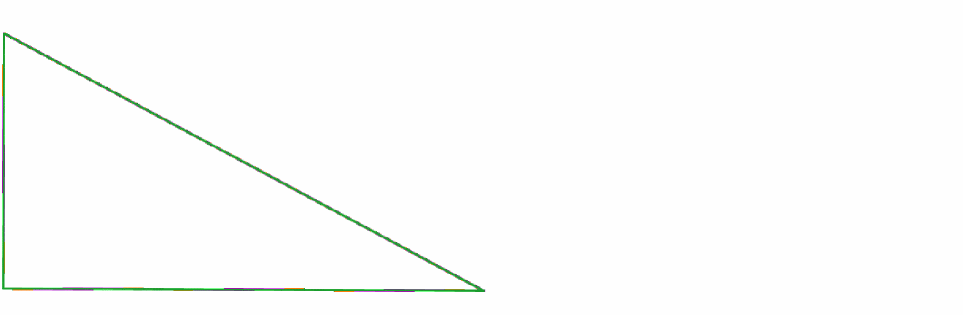

Symbol View

Description

A pin graphic master for ieeeActLoInp. The pin graphic is selected using the appropriate Attributes - List option in the Symbol Generation Options form.

The tsgIeeeActLoInp pin graphic is available from the tsgPinGraphicMasters variable, which defines the characteristics of the graphic when generating symbols. It displays an additional pin shape on the symbol. This information is not used by any other tool.

The text-to-symbol generator (TSG) is a Cadence application program that automatically generates symbol cellviews for the Virtuoso Schematic Editor and subsequent simulation processes. TSG provides a quick way to generate a symbol from a list of pins in a TSG file.

Example

tsgPinGraphicMasters = list(

 list("ieeeActLo"

     list("input"        list("basic" "tsgIeeeActLoInp"  "symbol")))

)

Related Topics

See the following topics in the Virtuoso Schematic Editor User Guide:

Text-to-Symbol Generator

Editing Symbol Generation Options

tsgIeeeActLoOut

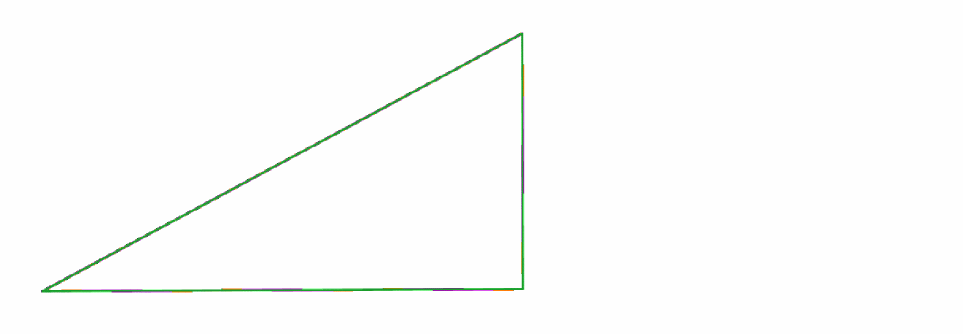

Symbol View

Description

A pin graphic master for ieeeActLoOut. The pin graphic is selected using the appropriate Attributes - List option in the Symbol Generation Options form.

The tsgIeeeActLoOut pin graphic is available from the tsgPinGraphicMasters variable, which defines the characteristics of the graphic when generating symbols. It displays an additional pin shape on the symbol. This information is not used by any other tool.

The text-to-symbol generator (TSG) is a Cadence application program that automatically generates symbol cellviews for the Virtuoso Schematic Editor and subsequent simulation processes. TSG provides a quick way to generate a symbol from a list of pins in a TSG file.

Example

tsgPinGraphicMasters = list(

 list("ieeeActLo"

     list("output"       list("basic" "tsgIeeeActLoOut"  "symbol")))
)

Related Topics

See the following topics in the Virtuoso Schematic Editor User Guide:

Text-to-Symbol Generator

Editing Symbol Generation Options

Supplies

The Supplies category lists the power and ground supply symbols. It includes the following symbols:

• gnd
• gnd_inherit
• vcc
• vcc_inherit
• vdd
• vdd_inherit
• vss
• vss_inherit

gnd

Symbol View

Description

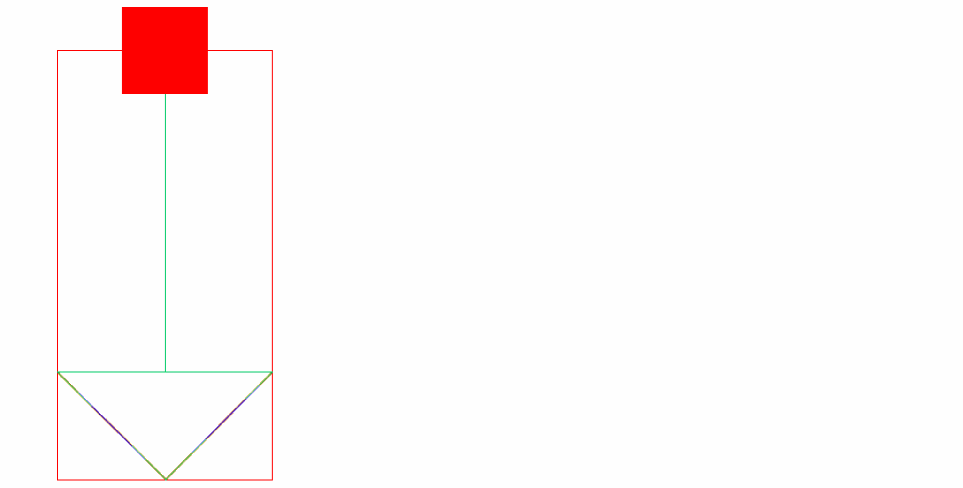

A ground supply symbol used to indicate an explicit ground pin.

Example

Related Topics

See the following topics in the Virtuoso Schematic Editor User Guide:

Global Net Name Connections

Inherited Connections

gnd_inherit

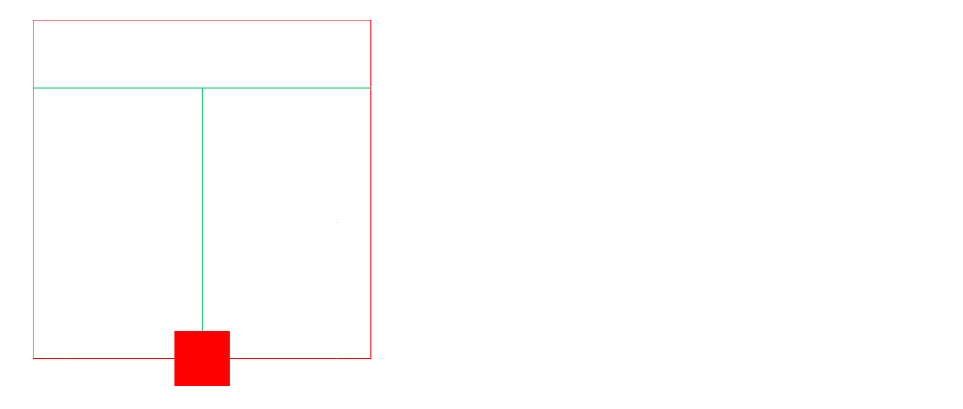

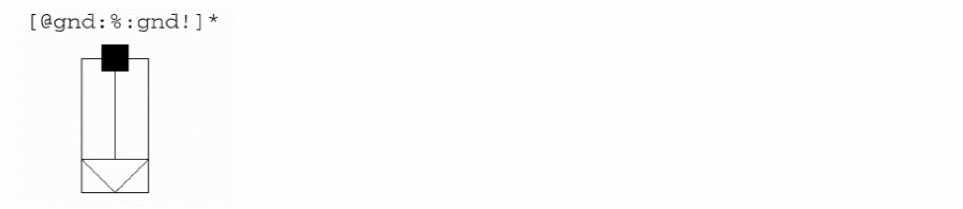

Symbol View

Description

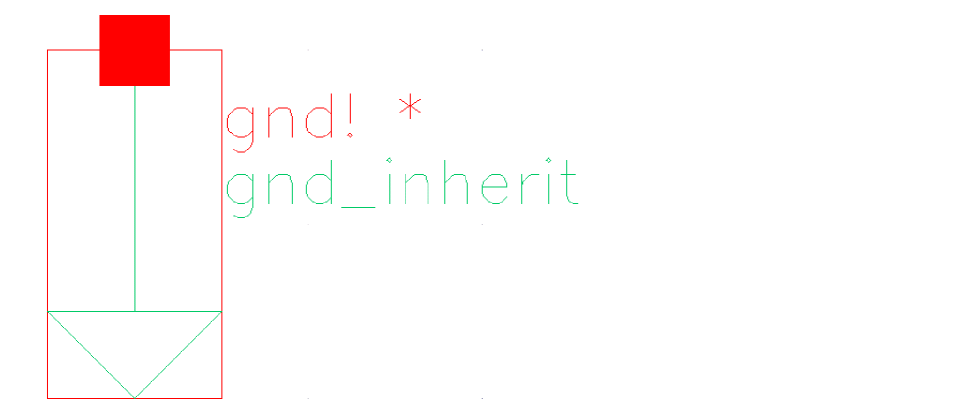

A parameterized ground supply symbol with net expression property. It can be used to create global signals or override them across a hierarchy with inherited connectivity.

Example

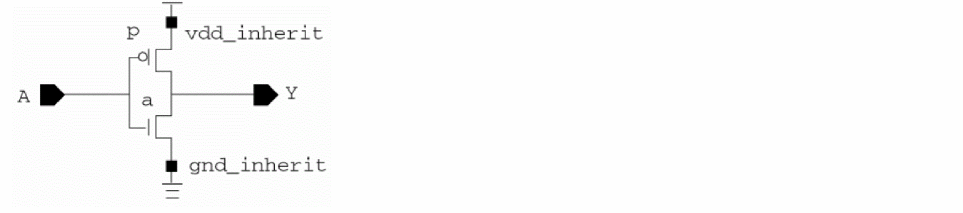

You can create an inherited connection in a schematic by placing an instance of a symbol where one of the symbol pins has a net expression label. When you run the checker program on the schematic, the net expression label from the symbol pin is propagated onto the net within the schematic.

Related Topics

See the following topics in the Virtuoso Schematic Editor User Guide:

Global Net Name Connections

Inherited Connections

vcc

Symbol View

Description

A power supply symbol used to indicate an explicit power pin.

Related Topics

See the following topics in the Virtuoso Schematic Editor User Guide:

Global Net Name Connections

Inherited Connections

vcc_inherit

Symbol View

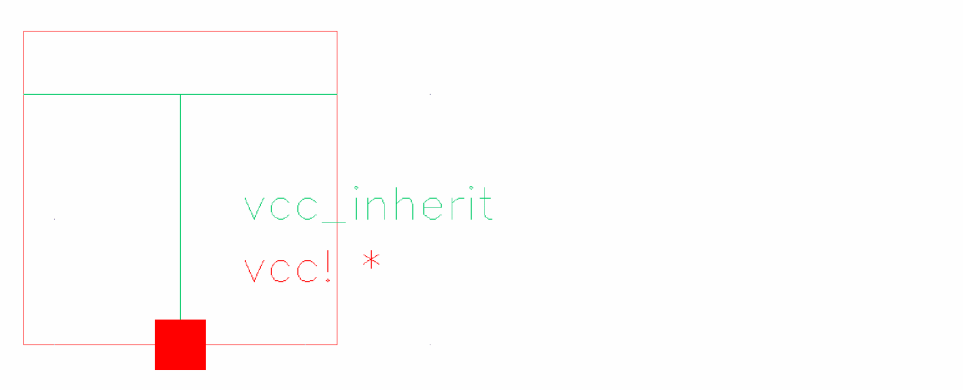

Description

Parameterized power supply symbol with net expression property. It can be used to create global signals or override them across a hierarchy with inherited connectivity.

Related Topics

See the following topics in the Virtuoso Schematic Editor User Guide:

Global Net Name Connections

Inherited Connections

vdd

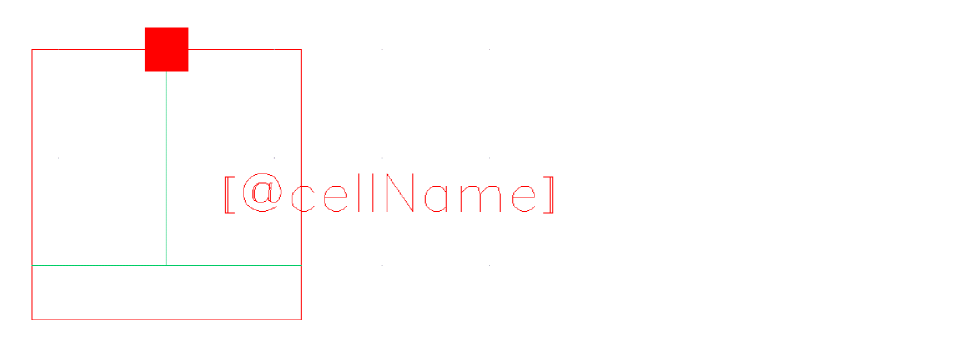

Symbol View

Description

A power supply symbol used to indicate an explicit power pin.

Related Topics

See the following topics in the Virtuoso Schematic Editor User Guide:

Global Net Name Connections

Inherited Connections

vdd_inherit

Symbol View

Description

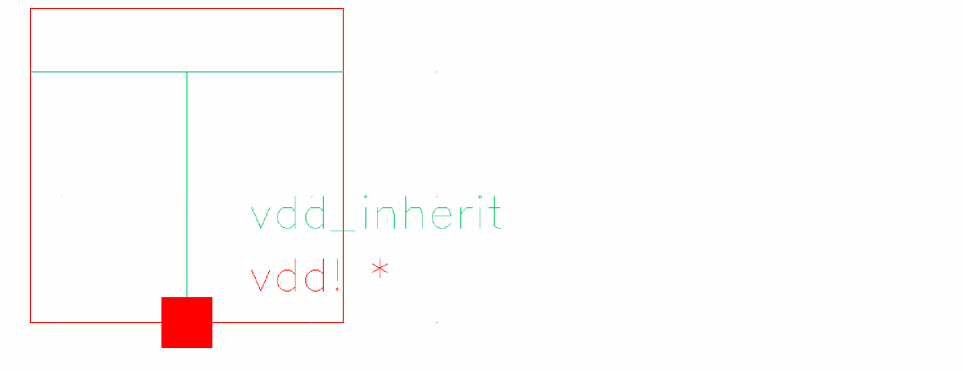

A parameterized power supply symbol with net expression property. It can be used to create global signals or override them across a hierarchy with inherited connectivity.

Example

Related Topics

See the following topics in the Virtuoso Schematic Editor User Guide:

Global Net Name Connections

Inherited Connections

vss

Symbol View

Description

A ground supply symbol used to indicate an explicit ground pin.

Related Topics

See the following topics in the Virtuoso Schematic Editor User Guide:

Global Net Name Connections

Inherited Connections

vss_inherit

Symbol View

Description

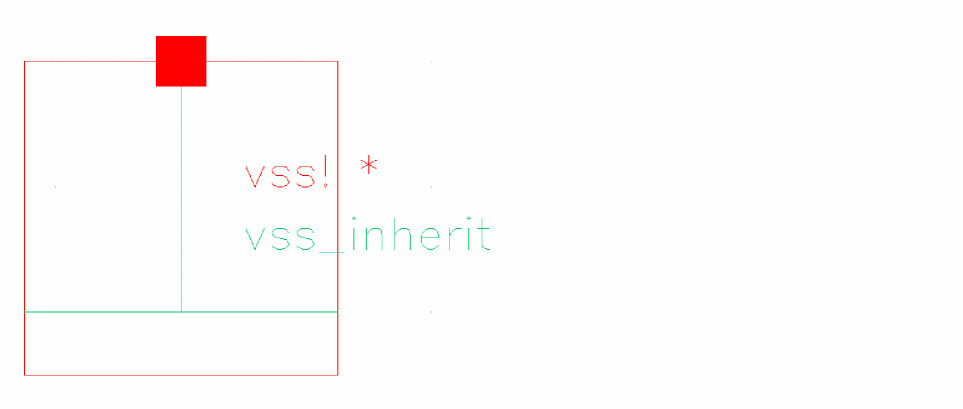

A parameterized ground supply symbol with net expression property. It can be used to create global signals or override them across a hierarchy with inherited connectivity.

Related Topics

See the following topics in the Virtuoso Schematic Editor User Guide:

Global Net Name Connections

Inherited Connections

VHDLPins

Within Virtuoso, you can convert a VHSIC Hardware Description Language (VHDL) structural or behavioral description into one of the following forms in OpenAccess database storage format:

• Schematic view
• Netlist view
• VHDL text views

For more details, refer to the VHDL In for Virtuoso Design Environment User Guide and Reference.

When generating schematics or netlists from VHDL, the following varieties of VHDL pins are available in the basic library:

vhdlActHilnOut	vhdlCommActLoOut
vhdlActHilnp	vhdlIOPin
vhdlActHiOut	vhdlIPin
vhdlBlockIOPin	vhdlIeeeActLoInOut
vhdlBlockIPin	vhdlIeeeActLoInp
vhdlBlockOpin	vhdlIeeeAcLoOut
vhdlCircle	vhdlOPin
vhdlCommActLoInOut	vhdlSymPin
vhdlCommActLoInp

Return to top
